Fig. 4

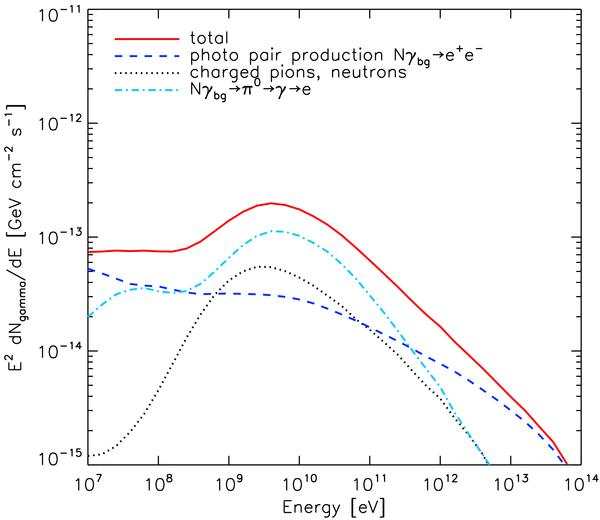

Same as Fig. 3, but for the particular case of a pure iron injection with spectral index 2.3. In red solid lines, we indicate the total flux, in blue dashed lines the contribution of the photo-pair production, in black dotted lines the flux due to charged pion production via photo-disintegration processes and to neutron disintegration, and in pale blue dash-dotted lines the contribution of the neutral pion channel.
