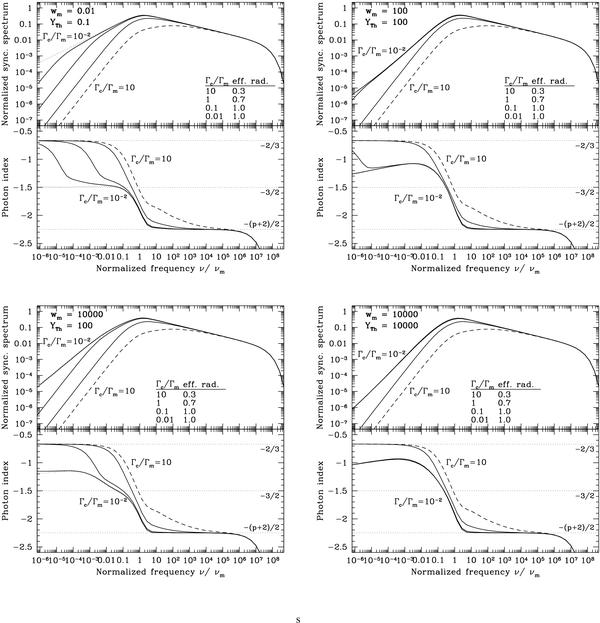

Fig. 4

The effect of adiabatic cooling on the fast cooling synchrotron spectrum in
presence of inverse Compton scatterings. The normalized synchrotron spectrum
defined by is plotted
as a function of the normalized frequency
ν/νm, as well as
the corresponding photon index
dlnuν/dlnν − 1.
All spectra in thick solid line are computed numerically using a detailed
radiative code including synchrotron radiation, inverse Compton scatterings and
adiabatic cooling (see text). Spectra in thin dotted line are computed without
inverse Compton scatterings. All other processes (synchrotron self-absorption,
γγ annihilation) are neglected. Each panel corresponds to a
different set of parameters
indicated in the top-left corner. In each panel, spectra are plotted for
increasing ratios Γc/Γm = 0.01, 0.1, 1
and 10. As in Fig. 2, the maximum Lorentz
factor of electrons is computed with a fixed ratio
Γmax/Γmin = 104. Spectra in
dashed lines are radiatively inefficient (slow cooling regime). The table inserted
in each panel lists the values of the radiative efficiency
frad of the electrons.
