Fig. 5

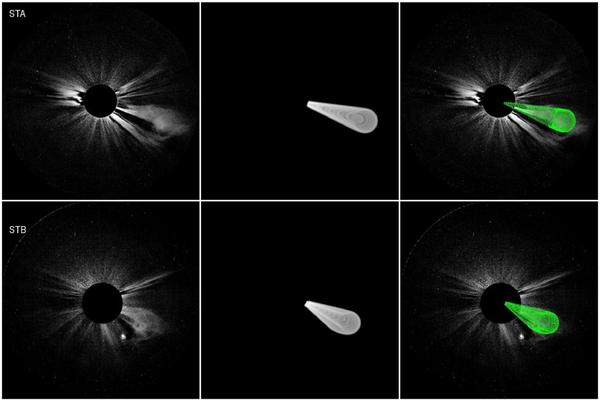

3D geometrical modeling of the CME observations of STA/COR2 (upper panel) and of STB/COR2 (lower panel). The left column shows the TB images for each spacecraft, where a pre-event image was first subtracted. The middle column shows synthetic TB images of the CME from our 3D modeling whereas the right column shows overlays of the CME wireframe(red) on the corresponding TB images. Observations taken at 14:52:20 UT for STA and at 14:52:47 for STB.
