Fig. 20

thumbnail

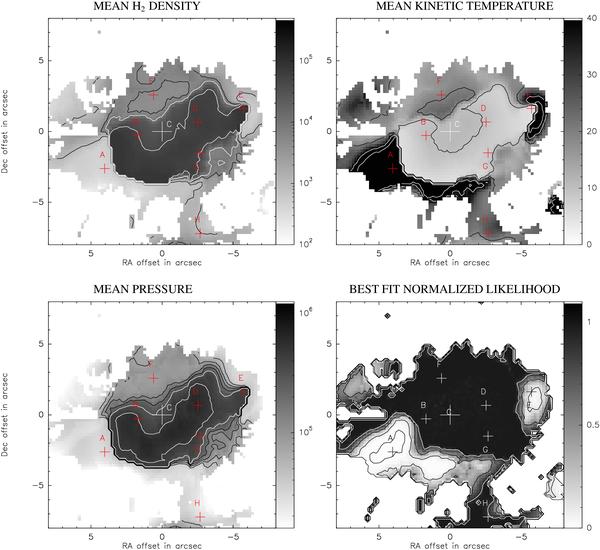

LVG result maps for NGC 4826. Upper left: H2 number density averaged over the 90% confidence interval of each LVG model. The black contours are at 103 and 5 × 103 cm-3 and the white contours at 104 and 5 × 104 cm-3. Upper right: kinetic temperature averaged over the 90% confidence interval of each model. The black contours are at 5, 10, 20 K and the white contours at 40 and 60 K. Lower left: pressure averaged over the 90% confidence interval of each model. The black contours are at 104.7, 104.9, 105.1 and 105.3 K cm-3 and the white contours at 105.5 and 105.7 K cm-3. Lower right: goodness-of-fit with the same contours as in Fig. 18.
