Fig.6

thumbnail

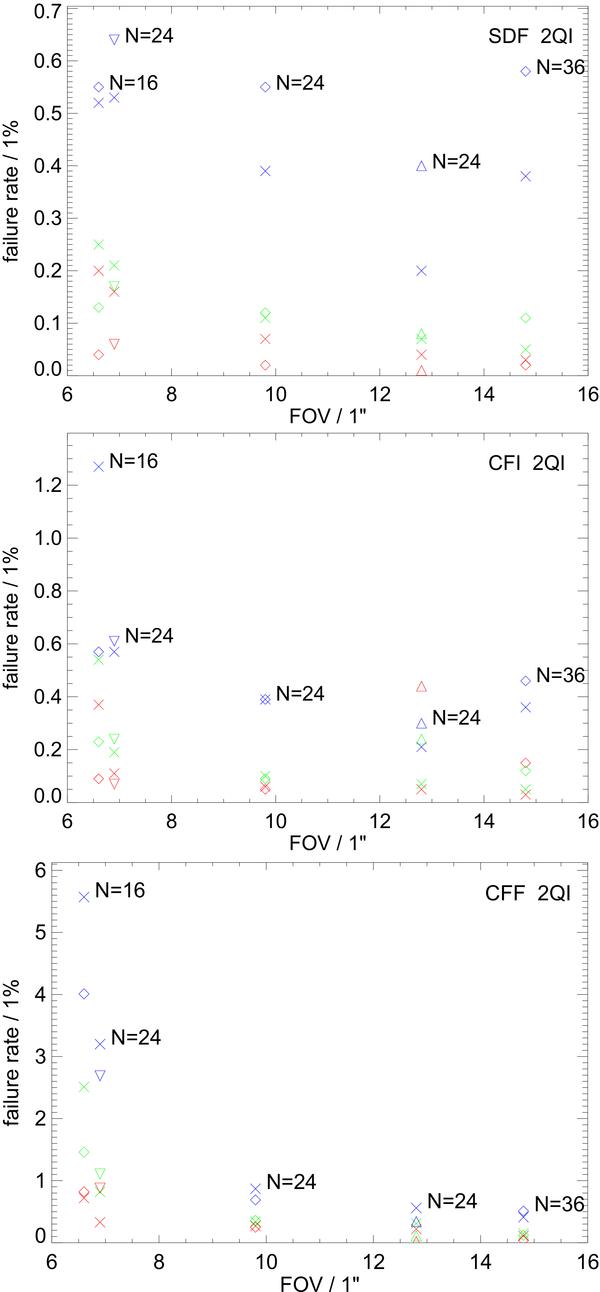

Failure rates in percent for different FOV sizes and CAs. Red: r0 = 20 cm; Green: r0 = 10 cm; Blue: r0 = 7 cm. N × N-pixel subfields. Diamonds (◇): image scale 0″̣41/pixel, varying N =  {16,24,36}  as labeled in the plots; Down triangles (▿): 0″̣29/pixel, N = 24; Up triangles (▵): 0″̣53/pixel, N = 24. All the above without noise. Crosses (×): corresponding FOVs, with noise. Note different vertical scales.

This figure is made of several images, please see below:
