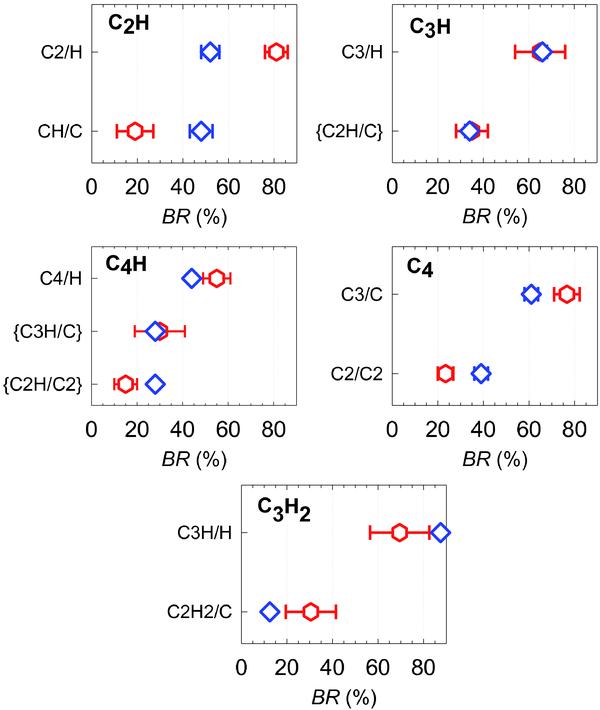

Fig. 7
Comparison between a two fragments breakup after dissociative recombination (DR) (blue diamonds) and HVC-CT (red hexagons – this work). DR-BR are adapted from Ehlerding et al. (2004) for C2H; Angelova et al. (2004b) for C3H, C3H2; Angelova et al. (2004a) for C4H and Heber et al. (2006) for C4. The parenthesis on Y-axis labels mean that hydrogen may be localized on either of the two fragments in DR experiments.
