Fig. 1

thumbnail

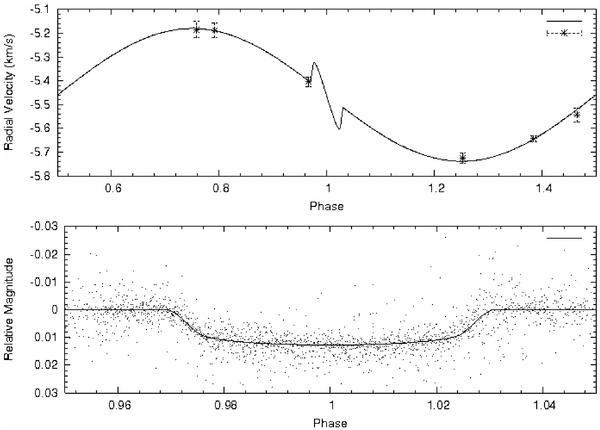

Upper panel: phase-folded plot of the 6 out-of-transit radial velocity measurements which are not affected by any time-varying asymmetry of the line-profile. The out-of-transit RV fit was calculated using the velocity semi-amplitude, orbital eccentricity, arguement of periastron and true anomaly. The position of the planet over the stellar disc, ratio of star/planet radii, impact parameter and non-linear limb darkening coefficients were used to model the RM anomaly during transit. Lower panel: phase-folded plot of all 8 sets of photometric data analysed in this study.
