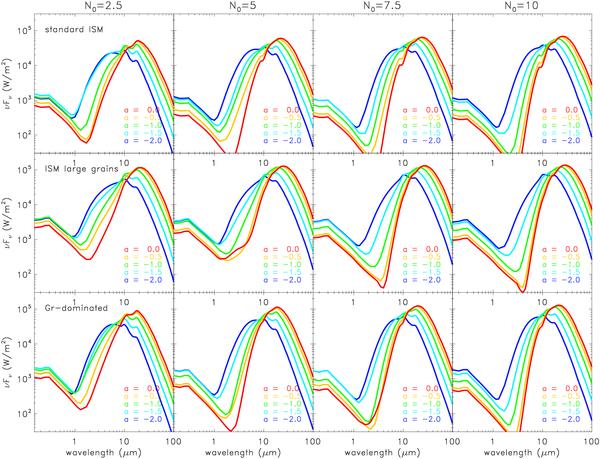

Model SEDs of an edge-on type-2 AGN (inclination angle i = 90°). The top row shows model models with the standard ISM composition, the middle row is for large grains, and the bottom row represents GR-dominated dust. From left to right, the columns show an increasing mean number of clouds in the equatorial line-of-sight, N₀ = 2.5, 5, 7.5, and 10, respectively. In each panel, we plot SEDs of one random cloud distribution for radial power law indices a = 0.5 (red),  −0.5 (orange),  −1.0 (green),  −1.5 (light blue), and  −2.0 (dark blue). Fixed parameters are R_out = 150, θ₀ = 45°, R_cl;0 = 0.035, b = 1, and τ_cl = 50.
