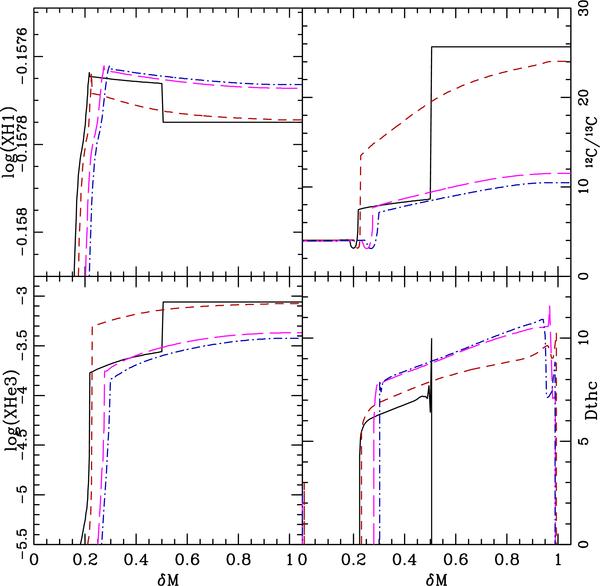

Fig. 4

Profiles of the abundances (in mass fraction) of H, 3He, of the carbon isotopic ratio, and of the thermohaline diffusion coefficient at various evolution points on the RGB (see Fig. 1): slightly above the bump (point B1.25, black solid line), at the luminosity of the contact (point C1.25, red dashed line), close from the RGB tip (point D1.25, magenta long dashed line), and at the RGB tip (point E1.25, blue dot-dashed line). The abscissa is the scaled mass coordinate δM that allows a blow up of the region of interest (δM = 0 at the base of the HBS and δM = 1 at the base of the convective envelope).
