A&A 521, A21 (2010)

SDO/AIA response to coronal hole, quiet Sun, active region, and flare plasma

B. O'Dwyer1 - G. Del Zanna1 - H. E. Mason1 - M. A. Weber2 - D. Tripathi1

1 - Department of Applied Mathematics and Theoretical Physics, Wilberforce Road, Cambridge, CB3 0WA, UK
2 - Harvard-Smithsonian Center for Astrophysics, 60 Garden St., MS 58, Cambridge, MA 02138, USA

Received 27 April 2010 / Accepted 14 June 2010

Abstract
Aims. We examine the contribution of spectral lines and continuum emission to the EUV channels of the Atmospheric Imaging Assembly (AIA) on the Solar Dynamics Observatory (SDO) in different regions of the solar atmosphere.
Methods. Synthetic spectra were obtained using the CHIANTI atomic database and sample differential emission measures for coronal hole, quiet Sun, active region and flare plasma. These synthetic spectra were convolved with the effective area of each channel, in order to determine the dominant contribution in different regions of the solar atmosphere.
Results. We highlight the contribution of particular spectral lines which under certain conditions can affect the interpretation of SDO/AIA data.

Key words: Sun: activity - Sun: atmosphere - Sun: corona - Sun: UV radiation

1 Introduction

The Atmospheric Imaging Assembly (AIA; Title et al. 2006) on the Solar Dynamics Observatory (SDO; launched 11 February, 2010; Schwer et al. 2002) is a set of normal-incidence imaging telescopes designed to acquire images of the solar atmosphere in a variety of extreme ultraviolet (EUV), ultraviolet and visible-light wavelength bands. The instrument observes solar plasma from photospheric to coronal temperatures, taking full-disk images, with high spatial resolution ($\sim$0.6 arcsec pixels) and with a cadence of 10 s or better.

Of the seven EUV channels six are expected[*] to be dominated by iron emission lines: 94 Å (Fe XVIII), 131 Å (Fe VIII, Fe XX, Fe XXIII), 171 Å (Fe IX), 193 Å (Fe XII, Fe XXIV), 211 Å (Fe XIV), 335 Å (Fe XVI), with the remaining channel 304 Å dominated by He II. In this letter we examine the contribution of spectral lines and continuum emission to each of the EUV channels in order to determine what the dominant contribution to each channel is in different regions of the solar atmosphere. It is timely for us to do so now in order to ensure the correct interpretation of observed features in SDO/AIA data. Analysis of this kind has been performed previously for the Transition Region and Coronal Explorer (TRACE; Handy et al. 1999) 173 Å and 195 Å passbands and the Extreme-ultraviolet Imaging Telescope (EIT; Delaboudinière et al. 1995) 171 Å, 195 Å and 284 Å passbands (cf., Del Zanna et al. 2003; Phillips et al. 2005; Tripathi et al. 2006; Del Zanna & Mason 2003).

2 Analysis

Under the assumption that a plasma is optically thin and in ionization equilibrium the observed intensity of a spectral emission line can be expressed as

\begin{displaymath}I_{\rm ob} = A({\rm z}) \int_{T_{\rm e}} G(T_{\rm e},N_{\rm e}) \varphi(T_{\rm e}) {\rm d}T_{\rm e}
\end{displaymath} (1)

where $A({\rm z})$ is the elemental abundance, $T_{\rm e}$ is the electron temperature, and $N_{\rm e}$ is the electron number density. The contribution function, $G(T_{\rm e},N_{\rm e})$, contains the relevant atomic parameters for each line and can be obtained using equilibrium ionization balance calculations. For this purpose we have used CHIANTI v. 6.0.1 (Dere et al. 1997,2009) atomic data and ionization equilibrium. The quantity $\varphi(T_{\rm e})$ is known as the differential emission measure (DEM) which is defined as

\begin{displaymath}\varphi(T_{\rm e}) = {N_{\rm e}}^2 \frac{{\rm d}h}{{\rm d}T_{\rm e}}
\end{displaymath} (2)

where h is the line-of-sight coordinate.

Included in Fig. 1 are sample DEMs for coronal hole (CH), quiet Sun (QS), active region (AR) and flare plasma. The CH DEM (Del Zanna 1999) and QS DEM (Andretta et al. 2003) were obtained from measurements by the Coronal Diagnostic Spectrometer (CDS; Harrison et al. 1995) on the Solar and Heliospheric Observatory. The AR DEM (O'Dwyer et al., in prep.) was obtained from AR intensities measured by the EUV Imaging Spectrometer (EIS; Culhane et al. 2007) on Hinode. The flare DEM was based on observations of an M2 X-ray class flare by Dere & Cook (1979).

Theoretical spectra have been calculated with these DEMs, using CHIANTI v. 6.0.1. The photospheric abundances of Asplund et al. (2009) were used in calculating the CH, QS and AR spectra. Density values of $N_{\rm e}=2$ $\times$108 cm-3, $N_{\rm e}=5$ $\times$ 108 cm-3 and $N_{\rm e}=5$ $\times$109 cm-3 were used in calculating the CH, QS and AR spectra respectively. These are the same density values as those used to calculate the contribution functions for the lines which were used to constrain the DEM curves for the CH, QS and AR cases. For the flare spectrum a value of $N_{\rm e}=1$ $\times$1011 cm-3 and the solar coronal abundances of Feldman et al. (1992) were used. The use of either photospheric or coronal abundances in calculating the synthetic spectra reflects the original use of either photospheric or coronal abundances in generating the DEM curves. These synthetic spectra were then convolved with the effective area of each channel. The effective areas were obtained from P. Boerner (2009, priv. comm.), with the exception of the 171 Å and 335 Å channels for which updated versions were used obtained from Solarsoft (12 July, 2010).

3 Results

Table 1:   Predicted AIA count rates.

\begin{figure}
\par\includegraphics[angle=90,scale=0.32]{14872fig1.ps}

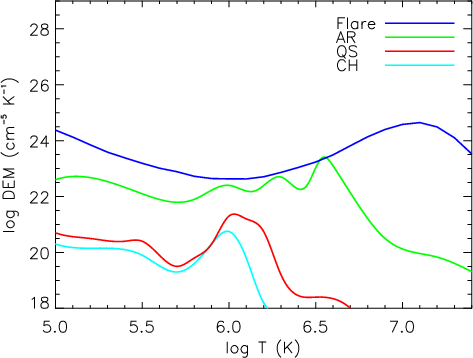

\end{figure} Figure 1:

Plot of DEM curves for coronal hole, quiet Sun, active region and flare plasma (see text for references).

Open with DEXTER

Table 1 lists those spectral lines which contribute more than 3% to the total emission in each channel for CH, QS, AR and flare plasma. Also included is the fractional contribution of the continuum emission for any case where the continuum contributes more than 3% to the total emission in a channel. Synthetic spectra for each of the channels are displayed in Figs. 2-8. For every channel each spectrum has been divided by the peak intensity of the strongest spectrum. Weaker spectra have been scaled by factors indicated in each figure.

The 94 Å channel is expected1 to observe the Fe XVIII 93.93 Å line [ $\log T{\rm [K]} \sim 6.85$] in flaring regions. For both AR and flare plasma (see Fig. 2) the dominant contribution comes from the Fe XVIII 93.93 Å line. However, for the CH and QS spectrum (see Fig. 2) the dominant contribution comes from the Fe X 94.01 Å line [ $\log T \sim 6.05$].

In flaring regions the 131 Å channel is expected1 to observe the Fe XX 132.84 Å and Fe XXIII 132.91 Å lines. However, for the flare spectrum (see Fig. 3) the dominant contribution comes from the Fe XXI 128.75 Å line [ $\log T \sim 7.05$]. The combined contribution of the Fe XX 132.84 Å and Fe XXIII 132.91 Å lines is less than ten percent of the total emission. For CH observations the 131 Å channel is expected1 to be dominated by Fe VIII lines [ $\log T \sim 5.6$]. From our simulations, the dominant contribution for CH and QS plasma (see Fig. 3) does come from Fe VIII lines, but with a significant contribution from continuum emission. For the AR spectrum the dominant contribution comes from continuum emission, with a significant contribution from Fe VIII lines.

\begin{figure}
\par\includegraphics[angle=90,scale=0.32]{14872fig2.ps}

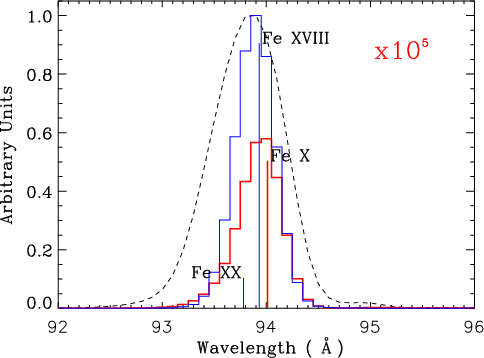

\end{figure} Figure 2:

Flare (blue) and QS (red) synthetic spectra for the 94 Å channel. The effective area is overplotted as a dashed line. The peak intensities of stronger lines are indicated. The weaker spectrum has been scaled by a factor indicated in the figure.

Open with DEXTER

\begin{figure}
\par\includegraphics[angle=90,scale=0.32]{14872fig3.ps}

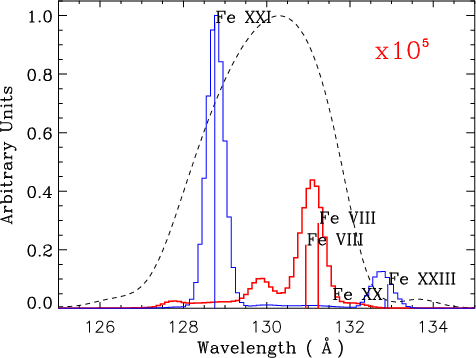

\end{figure} Figure 3:

Same as Fig. 2 for the 131 Å channel.

Open with DEXTER

\begin{figure}
\par\includegraphics[angle=90,scale=0.32]{14872fig4.ps}

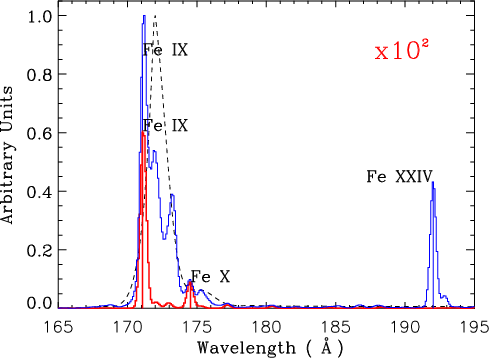

\end{figure} Figure 4:

Same as Fig. 2 for the 171 Å channel.

Open with DEXTER

\begin{figure}
\par\includegraphics[angle=90,scale=0.32]{14872fig5.ps}

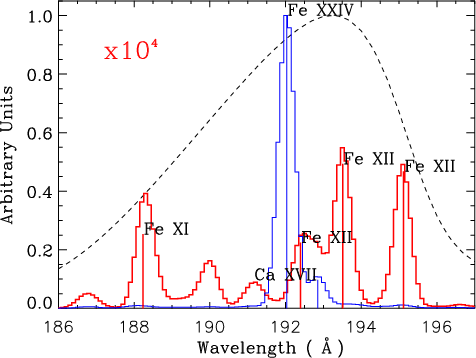

\end{figure} Figure 5:

Same as Fig. 2 for the 193 Å channel.

Open with DEXTER

\begin{figure}
\par\includegraphics[angle=90,scale=0.32]{14872fig6.ps}

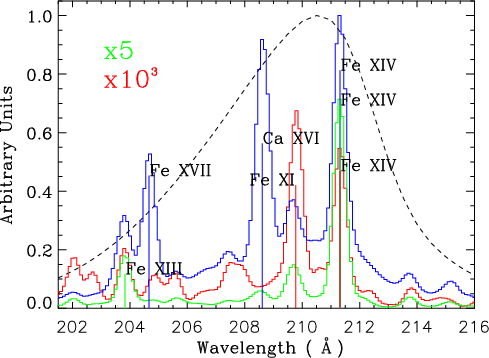

\end{figure} Figure 6:

Same as Fig. 2 for the 211 Å channel. The AR synthetic spectrum (green) is also included.

Open with DEXTER

The 171 Å channel is expected1 to observe the Fe IX 171.07 Å line [ $\log T \sim 5.85$] for QS observations. For CH, QS (see Fig. 4) and AR plasma the dominant contribution comes from the Fe IX 171.07 Å line. For the flare spectrum (see Fig. 4) the dominant contribution comes from the Fe IX 171.07 Å line, with a significant contribution from continuum emission. The 171 Å channel has a response to flarelike temperatures due to contributions from Fe XX lines. Phillips et al. (2005) highlighted the response of the TRACE 173 Å passband at flarelike temperatures, including the contribution of continuum emission to the passband at high temperatures. Raftery et al. (in prep.) have examined the response of the AIA 171 Å channel, highlighting the high temperature response of the channel for flare plasma.

The 193 Å channel is expected1 to be dominated by Fe XII lines [ $\log T \sim 6.2$] for QS and AR observations. For the QS (see Fig. 5) and AR spectra the dominant contribution does come from Fe XII lines, but with a significant contribution from Fe XI lines. In flaring regions the 193 Å channel is expected1 to be dominated by the Fe XXIV 192.03 Å line [ $\log T \sim 7.25$], which is indeed the case (see Fig. 5). However, for the CH spectrum there are significant contributions from Fe IX, Fe XI and Fe XII lines.

The 211 Å channel is expected1 to observe the Fe XIV 211.32 Å line [ $\log T \sim 6.3$] for AR observations. For AR plasma (see Fig. 6) the dominant contribution comes from the Fe XIV 211.32 Å line, as well as a significant contribution from Fe XIII lines. The fractional contribution of Fe XIII lines to the total emission is 0.24, while the contribution of Fe XIV lines is 0.41. For the CH spectrum the most significant contributions come from Fe XI, Fe X, Fe IX and Cr IX lines, as well as continuum emission. For the QS spectrum (see Fig. 6) the most significant contributions come from Fe XI, Fe XIII and Fe XIV. For the flare spectrum (see Fig. 6) the most significant contribution comes from continuum emission. The 211 Å channel has a response at high temperatures due to contributions from Fe XVII and Ca XVI lines.

As expected1 the 304 Å channel is dominated by the two He II 303.8 Å lines [ $\log T \sim 4.7$] for CH, QS, AR and flare plasma (see Fig. 7). However, in QS off-limb the dominant contribution to this channel would be expected to come from the Si XI 303.33 Å line [ $\log T \sim 6.2$]. This line is formed at a much higher temperature than the chromospheric He II 303.8 Å lines which dominate on-disk. The contribution of Si XI 303.33 Å to the He II 303.8 Å lines has been highlighted previously (Tousey et al. 1965). The 304 Å channel has a small response to flarelike temperatures due to a contribution from the Ca XVIII 302.19 Å line. Due to the anomalous behaviour of He II (see Andretta et al. 2003, and references therein) the predicted line intensities are under-estimated by large factors. For this reason correction factors based on observations have been applied. For the QS case a factor of 24.0 was used based on the observed intensity of the He II 304 Å line from Andretta et al. (2003). For the CH and AR cases correction factors of 19.3 and 4.82 have been adopted respectively. These values are based on the observed intensity of the He II 304 Å line from Vernazza & Reeves (1978). The correction factor adopted for the AR case was also used for the flare case.

The 335 Å channel is expected1 to observe the Fe XVI 335.41 Å line [ $\log T \sim 6.45$] for AR observations. For AR (see Fig. 8) and flare plasma the dominant contribution does indeed come from the Fe XVI 335.41 Å line. However, for the CH spectrum the most significant contributions come from Mg VIII and Fe X lines and for QS plasma (see Fig. 8) the most significant contributions come from Mg VIII, Al X and Fe X lines.

Changing the density values used in creating the synthetic spectra would affect the absolute intensities of the density sensitive lines, as well as the continuum. However for those cases considered here we note that varying the density by e.g. a factor of two only changes the fractional contribution of a particular line to a channel by at most four percent.

The AR DEM curve we have used to create the synthetic spectra was constrained using lines from low first ionization potential (FIP) elements, such as iron. For any synthetic spectrum created from a DEM curve of this kind the absolute intensities of lines from low-FIP elements are independent of the choice of elemental abundances, provided that the same abundances are used in creating the synthetic spectrum, as were used in generating the DEM curve. For lines from high-FIP elements the use of photospheric abundances increases the absolute intensities of the lines by a factor of $\sim$4 relative to the intensities obtained using coronal abundances. We note that, with the exception of the 304 Å channel, the contribution of lines from high-FIP elements to each channel is very small, of a few percent at most (cf. Table 1). As a result using coronal rather than photospheric abundances will not dramatically affect the fractional contribution of lines to each channel.

\begin{figure}
\par\includegraphics[angle=90,scale=0.32]{14872fig7.ps}

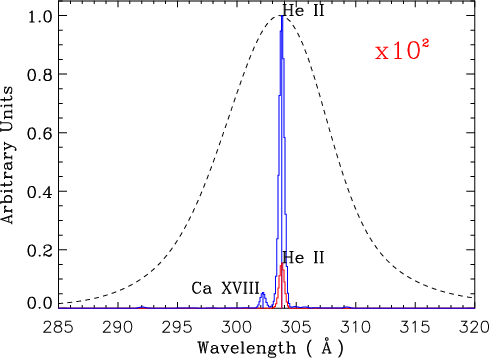

\end{figure} Figure 7:

Same as Fig. 2 for the 304 Å channel. Note the peak intensities of the two He II 303.8 Å lines have been combined.

Open with DEXTER

\begin{figure}
\par\includegraphics[angle=90,scale=0.32]{14872fig8.ps}

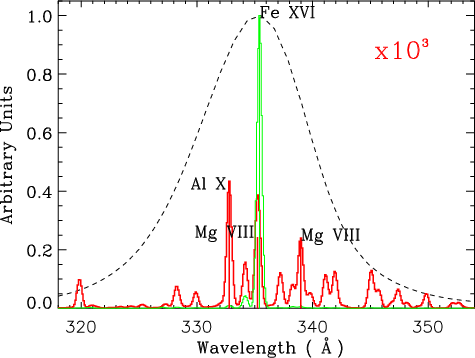

\end{figure} Figure 8:

Same as Fig. 2 for the 335 Å channel, except that the AR synthetic spectrum (green) is included instead of the flare spectrum.

Open with DEXTER

Table 2:   Count rates for each channel for the CH, QS, AR and flare synthetic spectra relative to the count rate for the 94 Å channel for the CH synthetic spectrum.

4 Conclusions and discussion

We have determined what the dominant contribution to each AIA channel is in different regions of the solar atmosphere. In general our findings are in agreement with expectations1. However we note that with the 131 Å channel for our flare spectrum the dominant contribution does not come from the Fe XX 132.84 Å or Fe XXIII 132.91 Å lines, but instead from the Fe XXI 128.75 Å line.

It is important to note that when using AIA channels to observe regions of the solar atmosphere other than those for which each channel was designed the contribution of particular spectral lines and continuum emission can affect the interpretation of the observed features. We note that the dominant contribution to the 94 Å channel for QS plasma comes from the Fe X 94.01 Å line. We also note the contribution of continuum emission to the 131 Å channel in ARs. In addition we note the significant contribution of continuum emission to the 211 Å channel in flaring regions.

The DEMs which we have used are intended to give an indication of which lines contribute to the SDO/AIA EUV channels under different solar conditions. Different DEMs will naturally give different contributions. For example with the QS DEM in CHIANTI for the 335 Å channel there is a significant contribution (32% of the total emission) from the Fe XVI 335.41 Å line. The QS DEM that we have used falls off more quickly at higher temperatures than the one in CHIANTI, and as a result the predicted contribution of the Fe XVI 335.41 Å line is much lower (2% of the total emission). Another example is that with the CH DEM in CHIANTI for the 193 Å channel there is a significant contribution from Fe VIII lines (44% of the total emission). With the CH DEM that we have used the predicted contribution of Fe VIII lines is lower (9% of the total emission). The CH DEM in CHIANTI peaks at a lower temperature than the one we have used, and as a result the fractional contribution of lower temperature lines is greater. Del Zanna et al. (2003) highlighted the contribution of Fe VIII lines to the EIT 195 Å passband during a CH observation.

No channel is predicted to be strictly isothermal, in the sense that emission from plasma formed at different temperatures contributes to the signal. For this reason extreme care must be taken when using ratios of SDO/AIA channels to derive isothermal temperatures. Detailed inversion (DEM) and forward modelling are required in most cases.
