A&A 519, A72 (2010)

NGC 4262: a Virgo galaxy with an extended ultraviolet ring

(Resarch Note)

D. Bettoni1 - L. M. Buson1 - G. Galletta2

1 - INAF Osservatorio Astronomico di Padova, vicolo dell'Osservatorio 5, 35122 Padova, Italy
2 - Dipartimento di Astronomia, vicolo dell'Osservatorio 2, 35122 Padova, Italy

Received 8 April 2010 / Accepted 23 June 2010

Abstract
Context. The Galaxy Ultraviolet Explorer (GALEX) satellite has recently shown the presence of an extended, outer ring studded with UV-bright knots surrounding the lenticular galaxy NGC 4262. Such a structure-not detected in the optical-is coupled with a ring of atomic (HI) gas.
Aims. We want to show that both star-forming and HI rings surrounding this SB0 galaxy share the same radial distance from the galaxy center and spatial orientation. We also model the kinematics of the ring(s) and of the galaxy body.
Methods. We make use of archive FUV and NUV GALEX data plus HI observations from the literature.
Results. We confirm that the UV-bright and atomic gas rings of NGC 4262 have the same extent and projected spatial orientation. Their kinematics is not coupled with that of the galaxy stars.
Conclusions. It is possible that NGC 4262 has undergone a major gas stripping event in the past that was the origin of the present ``necklace'' of UV-bright knots.

Key words: galaxies: general - galaxies: elliptical and lenticular, cD - galaxies: individual: NGC 4262 - galaxies: interactions

1 Introduction

Before the advent of the Galaxy Evolution Explorer (GALEX) UV-bright galaxy features with no counterpart in the optical were unavoidably neglected. In particular, GALEX has shown that over 30% of spiral galaxies possess previously unknown UV-bright extensions of their optical disks (e.g. Thilker et al. 2007). This is also the case of the lenticular galaxy NGC 4262 in Virgo discussed here and surrounded by an extended, UV-emitting ring lying well beyond its optical image.

\begin{figure}
\par\includegraphics[width=8.8cm,height=9cm]{14750fig1.eps}
\end{figure} Figure 1:

GALEX combined FUV and NUV image of NGC 4262 (blue=FUV, yellow=NUV), showing how individual knots forming the far-UV-bright ring.

Open with DEXTER

The Hubble Space Telescope Advanced Camera for Surveys (HST/ACS) imaging (Côté et al. 2006) unequivocally shows the morphology of NGC 4262 as typical of an SB0 at optical wavelengths. More precisely, the galaxy has a bright, nearly spherical bulge, a bar, and a lens extending well outside the bar radius (Laurikainen et al. 2010).

\begin{figure}
\par\includegraphics[width=14.5cm,height=14cm]{14750fig2.eps}
\end{figure} Figure 2:

Comparison of the optical (B+HST/ACS F475W) image of NGC 4262 ( upper left), with GALEX NUV and FUV images ( upper and lower right, respectively, and the smoothed HI column density ( lower left). Contours are 0.8, 1.6, 2.4, 3.2, and $4.8 \times 10^{20}$ atoms cm-2. The field of view of each panel is $\sim $ $5\hbox {$.\mkern -4mu^\prime $ }3 \times 5\hbox {$.\mkern -4mu^\prime $ }3$. The ring's physical size turns out to be $\sim $8.5 kpc, while the galaxy body-as seen in the NUV-has a radius of only $\sim $4 kpc.

Open with DEXTER

GALEX NUV (1771-2831 Å) and FUV (1344-1786 Å) images (Fig. 1) instead show an external knotty feature, something like ``beads on a string'' very likely made of individual, hot star clusters. In this respect, NGC 4262-having clustered UV-bright sources in its outer parts-could be classified as a type 1 extended ultraviolet disk (XUV), a kind of feature discussed in detail by Thilker et al. (2007) and properly modeled by Bush et al. (2010); note, however, that the lack of H$_\alpha$ observations does not allow us to state for certain we are looking at typical HII regions.

In this paper we want to ask the question whether the (strict) coincidence of the UV knots and HI ring reflects a past interaction event. The origin of the UV-bright ring is by necessity controversial. It could have formed with the galaxy itself, especially considering that tidal stellar and gas arms are often offset (e.g. Mihos 2001). On the other hand, though the projected image rules out that NGC 4262 is a classical polar ring galaxy (i.e. the ring is not at 90 degrees to the galaxy), and the knotting of the ring is similar to the knotting instability seen in the no-polar-ring Cartwheel galaxy, the presence of a ring surrounding an SB0 recalls shell and polar ring early-type galaxies, commonly thought to have undergone accretion and/or merging phenomena (e.g. Marino et al. 2009).

Toward our goal, we want (i) to show that both star-forming and HI rings surrounding this SB0 galaxy (see Fig. 2) share the same radial distance from the galaxy center and spatial orientation; and (ii) to model the kinematics of the ring(s) and of the galaxy body taking advantage of the existing innermost ionized gas velocity field (Sarzi et al. 2006) and the outer neutral hydrogen rotation curve (Krumm et al. 1985).

2 Data and data reduction

We took both GALEX FUV (1344-1786 Å) and NUV (1771-2831 Å) images of NGC 4262 from deep frames (exposure time = 9.1 ks [NUV], 7.2 ks, [FUV], respectively) belonging to the program GI2 017 (P.I. Zhong Wang). The telescope has a very wide field of view (1.25 degrees diameter) and a spatial resolution $\sim $4 $.\!\!^{\prime\prime}$2 and $\sim $5 $.\!\!^{\prime\prime}$3 FWHM in FUV and NUV respectively, sampled with $1.5'' \times 1.5''$ pixels (Morrissey et al. 2007).

We used FUV and NUV background-subtracted intensity images from the GALEX pipeline to compute the ultraviolet integrated photometry and light profile of the galaxy. Background counts were estimated from the sky background image and high-resolution relative response map provided by the GALEX pipeline itself. In addition, we used optical Sloan Digital Sky survey (SDSS) archival images (Adekman-McCarthy et al. 2008) in the g (3630-5830 Å) and i (6340-8630 Å) wavebands to obtain optical surface brightness profiles and (g-i) color profiles.

Both UV and optical surface photometry have been derived by means of the IRAF[*] STSDAS ELLIPSE routine. ELLIPSE computes a Fourier expansion for each successive isophote (Jedrzejewski 1987), producing radial luminosity and geometrical profiles, sampled in nested ellipses, 2 arcsec wide. These profiles are plotted versus galactocentric distance along the semi-major axis in Figs. 3 and 4.

\begin{figure}
\par\includegraphics[width=9.0cm,height=8.0cm]{14750fig3.eps}
\vspace*{3mm}

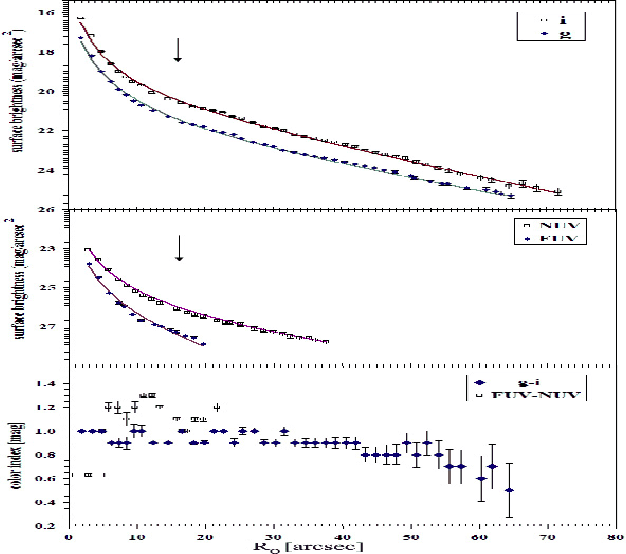

\end{figure} Figure 3:

UV/Optical surface brightness and color profiles of NGC 4262 main body. In each panel we always plot the sum of the two, single-fitted profiles, (arrows mark the radial distance where the disk starts to prevail). Upper panel shows the optical (g,i) profiles, while the middle panel gives the corresponding UV (NUV, FUV) profiles. Both optical (g-i) and UV (FUV-NUV) color profiles are presented in the bottom panel. The innermost UV color point represents the mean value inside the GALEX PSF.

Open with DEXTER

\begin{figure}
\par\includegraphics[width=9.0cm,height=7.0cm]{14750fig4.eps}
\vspace*{3mm}

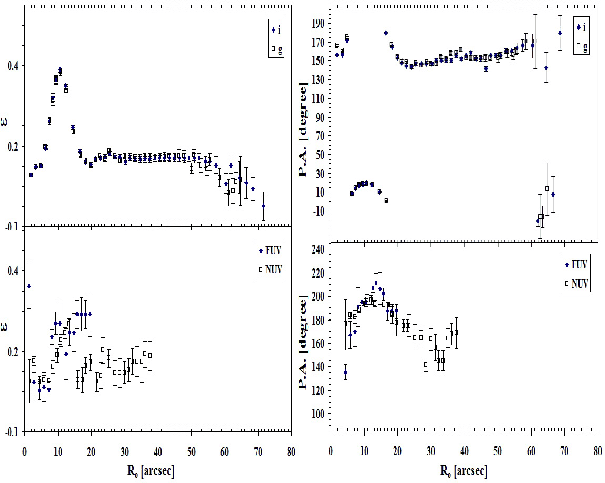

\end{figure} Figure 4:

Position angle and ellipticity profiles for both optical and UV images of NGC 4262. Upper left panel: optical ellipticity profile. Upper right panel: PA optical profile. Lower left panel: UV ellipticity profile. Lower right panel: PA UV profile.

Open with DEXTER

Table 1:   Photometric parameters from the fit of the luminosity profile.

To estimate the errors on UV (AB) magnitudes, we propagated the Poisson statistical errors on source and background counts. In addition to the statistical error, we added an uncertainty to account for systematic inaccuracies in the zeropoint of the absolute calibration of 0.05 for FUV and 0.03 mag for NUV (Morrissey et al. 2007). Our measured NUV total magnitude of NGC 4262 is consistent within errors with the one measured by Gil de Paz et al. (2007). We also derived the FUV and NUV integrated fluxes of each individual UV-bright knot in order to estimate its current star formation rate (SFR). They were computed as $m(AB)_{\rm UV} = -2.5 \times \log$ CR $_{\rm UV} + ZP$ where CR is the dead-time corrected, flatfielded count rate, and the zero points ZP=18.82 and ZP=20.08 in FUV and NUV, respectively (Morrissey et al. 2007). We corrected both UV fluxes and luminosities by adopting the foreground reddening given by Schleghel et al. (1998), namely E(B-V)=0.035. With reference to the extinction curve of Savage & Mathis (1979), this translates into the extinction values $A_{\rm FUV} = 0.28$ and $A_{\rm NUV} = 0.32$ having adopted $\lambda_{\rm eff} =1516$ Å and 2267 Å, respectively, for the two filters above.

3 Galaxy and UV-bright clumps photometry

The UV and optical surface brightness and color profiles of the galaxy body are shown in Fig. 3. The luminosity profiles of NGC 4262 at various wavebands indicate the predominance of a peaked distribution, which appears linear when plotted in r1/4, inside $\sim $16 arcsec and of an exponential distribution outside this radius. Because of this, data was fitted with a double-component curve made of a sum of a r1/4 law and an exponential law, spanning the full range of observed luminosity profiles. A preliminary fit was performed with only a single component, inside and outside 16 arcsec, to define the starting parameters, which are the effective radius $r_{\rm e}$ and the apparent surface brightness at the same distance $\mu_{\rm e}$. Then a model with both components was run, by adjusting the $r_{\rm e}$ and $\mu_e$ parameters for both luminosity laws with the goal of minimizing the residuals between observed and calculated surface brightness. To perform the fit, the very inner region of the profiles, affected by the seeing (PSF = 2'' in the optical and PSF = 5'' in the UV), were excluded. The best-fitting parameters are listed in Table 1.

Then, the total magnitudes of both components, bulge and disk were calculated and the resulting total galaxy magnitude for each waveband was obtained. These values are also listed in Table 1. We found very good agreement with the published values, within a few hundredths of a magnitude in i, g, and NUV values. The error in effective radii and surface brightness were calculated from the errors in the fitting parameters (slope and intercept) and are also reported in the table. Errors in total magnitudes were obtained from the correlation coefficient of the model fit vs the observed values.

As one can see, the disk contribution decreases as we go towards shorter wavelengths, and is only barely visible in the FUV profile. In Fig. 3 the radial position is shown where the disk starts to prevail. We note that-unlike optical color g-i-the FUV-NUV color becomes much bluer in the innermost region of the galaxy. The innermost UV color point represents the mean value inside the GALEX PSF.

In Fig. 4 we also show the ellipticity and position angle profiles for all four bands. The galaxy is seen almost face on, as the apparent disk ellipticity is 0.1 corresponding to an inclination of $\sim $26$^\circ $, assuming an intrinsic flattening of 0.25 for the disk. In the g and i images the bar signature is clearly visible from 5 to 20 arcsec, with an increase in ellipticity (up to $\epsilon_{\rm bar} = 0.4$) and a sharp change in the major axis to PA = 25$^\circ $. This is indeed the position angle of the major axis of the bar and is almost coincident with the PA of the major axis of the gas that reproduces its observed kinematics (both of the neutral and ionized components) as described in Sect. 5. In the NUV ellipticity and PA profiles, the signature of the bar is still present in the same region, whereas it almost disappears in the FUV profiles where only the bulge component is visible. The bar in the NUV is rounder than in the optical ( $\epsilon_{\rm barUV} = 0.3$). Figure 5 shows a schematic view of the galaxy (the apparent flattening on the sky of the stellar disk, the bar and outer HI ring, and also the edge-on view of the system with the line of sight is reported. In the upper right of each figure the geometrical parameters are given).

\begin{figure}
\par\includegraphics[width=8.8cm,height=8.8cm]{14750fg5a.eps}\\ [...
...ludegraphics[width=8.8cm,height=8.8cm]{14750fg5b.eps}
\vspace*{3mm}

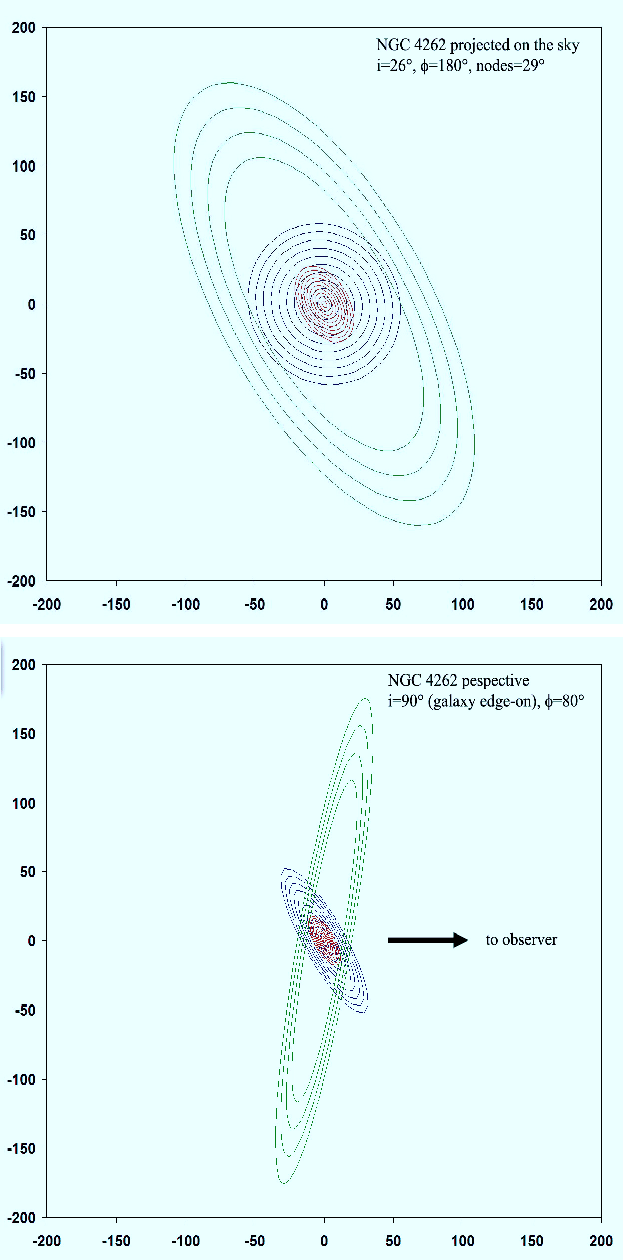

\end{figure} Figure 5:

A schematic view of the galaxy. Upper panel: the apparent flattening on the sky of the stellar disk (black circles), the bar (red ovals), and outer HI ring (green ovals) are shown. Lower panel: edge-on view of the system with the line of sight reported. In the upper right of the figures are reported the geometrical parameters.

Open with DEXTER

In addition to the luminosity profiles we measured the integrated $m_{\rm AB}$ magnitudes and colors of the UV-emitting clumps that are given in Table 2. The brightest clumps that we measured were selected by optical inspection, and all the magnitudes obtained inside an aperture of 7 arcsec in diameter. At the HST-based, adopted distance of 14.6 Mpc (Jordán et al. 2005), our (GALEX) spatial resolution is $\sim $400 pc and we cannot establish whether their physical size is in line with typical Galactic loose OB associations ($\sim $80-100 pc). In fact, the clump measured FWHMs are comparable to the large GALEX PSF (4-6'') and, as such, they are not resolved. As stated above, the adopted distance to convert AB magnitudes to luminosities is 14.6 Mpc. A map of individually measured, UV-bright clumps along the ring is shown in Fig. 6. This figure shows the full properly smoothed HI column density map (Krumm et al. 1985) superposed on the recent GALEX image of the galaxy and its ring. The resulting match between the UV and HI rings is outstanding by clearly representing the same feature. What is more, the regions of highest HI condensation correspond to the brightest complexes in the UV.



4 Star formation rate

The present-day SFR of each UV-bright blob along the ring can be derived - following Kennicut (1998) - using its UV continuum luminosity and the relation

SFR $_{\rm FUV}$ ($M_\odot$ yr $^{-1}) = 1.4 \times 10^{-28}~L_{\rm FUV} \left({\rm erg~s}^{-1}~{\rm Hz}^{-1}\right)$.

FUV fluxes, luminosities, and SFRs are given in Table 2. Our UV evidence of star formation within the galaxy body only apparently contrasts with the lack of star formation derived in the infrared by Shapiro et al. (2010). In fact, their low ratio between 8.0 $\mu$m and 3.6 $\mu$m SPITZER fluxes could be ascribed to a low amount of dust as well.

Table 2:   Integrated photometric properties.

\begin{figure}
\par\includegraphics[width=12cm,height=12cm]{14750fig6.eps}
\end{figure} Figure 6:

GALEX FUV image of NGC 4262 with superimposed the labels of individual, photometered UV-bright clumps along the outer ring. Their photometric parameters are listed in Table 1. The field of view is $\sim $4 $.\mkern -4mu^\prime $$\times $ 4 $.\mkern -4mu^\prime $3. The red empty circle shows the size of the photometric aperture used for all UV blobs (7 arcsec diameter), while the white empty square on the galaxy nucleus represents the size of the SAURON field of view ( $33'' \times 41''$).

Open with DEXTER



5 Galaxy and ring kinematics

The innermost kinematics of NGC 4262 appears quite complex. Sarzi et al. (2006) write that ``this strongly barred galaxy shows an integral-sign pattern in the gas distribution and a twisted gas velocity field. In addition this object shows peculiar asymmetric distributions for the central values of sigma and for OIII/H$\beta$ratio. The gas and stellar kinematics are strongly decoupled.``To reproduce the complicated gas shape and kinematics we used a model composed by a set of rings (described in Appendix A) inclined with respect to the sky plane and to the galaxy's reference plane. The intrinsic gas rotation curve is a typical Brandt (1960) curve with a steep increase in the first arcsecs from nucleus and an almost flat part outside (Fig. 7). The observed values for atomic gas distribution and kinematics are from HI observations by Krumm et al. (1985), while the ionized gas kinematics has been studied by Sarzi et al. (2006). We deduced the values from the two-dimensional maps and graphs of Krumm et al. (1985) and from a table of data used for the Sarzi et al. (2006) work and kindly sent us by Dr. Marc Sarzi (the size of the SAURON velocity field is overplotted in Fig. 6). For optical emission lines error bars were included as the rms of the velocities of each line. For HI points error bars were taken from Krumm et al. (1985). The rotation curve was extracted along a PA of 29$^\circ $, which corresponds to the sky elongation of the outer HI and UV ring, from 80 $\hbox{$^{\prime\prime}$ }$ to 120 $\hbox{$^{\prime\prime}$ }$. Then, a 100-ring model was generated that fits the ring shape in the inner part (flattening and PA). This generates the $i, \phi$ geometrical parameters described in Appendix A. The maximum extent of the model (100th ring) was adjusted to 120 $\hbox{$^{\prime\prime}$ }$, the maximum HI ring extent. As a first approach, no warping or twisting of the set of rings was applied (in the model $\Delta\delta_n = 0$ and $\Delta\alpha_n = 0$ for all the rings). We found, in agreement with Krumm et al. (1985), that the inclination of the set of rings is 65$^\circ $, and their line of the nodes is at PA = 29$^\circ $.

\begin{figure}
\par\includegraphics[width=8.5cm,clip]{14750fig7.eps}
\vspace*{3mm}

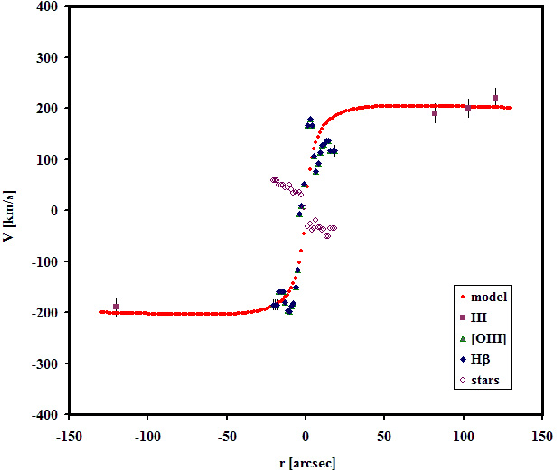

\end{figure} Figure 7:

The observed rotation curve of NGC 4262 extracted along the line of the nodes of the external ring (PA = 29$^\circ $). Inner data are from Sarzi et al. (2006) while full squares indicate the HI velocity deduced from Krumm et al. (1985). The model rotation curve crosses the points both in the inner and outer regions.

Open with DEXTER

After a solution for geometrical parameter had been found, we tried different solutions to fit the observed rotation curve both of HI and ionized gas. As a result, we found that the maximum rotation of the ring holds at $\sim $13 $\hbox{$^{\prime\prime}$ }$ with a maximum velocity of $\sim $210 km s $^{-1} \pm 10$ km s-1 (see Fig. 7). The inner kinematics of the ionized gas may be influenced by the bar, which appears elongated at the same PA of the ring. The peaks of velocity that appear in [O III]and H$\beta$ at few arcsec from the nucleus may be due to this deviation from circularity. Unfortunately, no observed data for galaxy motions between 20 $\hbox{$^{\prime\prime}$ }$ and 80 $\hbox{$^{\prime\prime}$ }$ exist, so we tried the simplest possible solution by fitting inner and outer data.

The intensity distribution of [O III] and H$\beta$ lines published by Sarzi et al. (2006) indicates a possible elongation of the gas to PA = 0$^\circ $. If real, this may indicate a twisting or spinning in the space of the gas ring toward the center. As an alternative, they may be a surposition of the gas circulating inside the bar in elliptic streamings with that of the disk in circular motion. But the map of the ionized gas distribution appears quite irregular, so we preferred do not search solutions with warped discs, to avoid increasing the number of variables present in the model.

6 Origin of the stellar ring

Considering the clear symmetry the HI ring around NGC 4262, is unlikely to come from a primordial cloud of neutral hydrogen such as discussed in detail by Thilker et al. (2009) and Cortese and Hughes (2009). In contrast, Bekki et al. (2005) model the stripping of rings and arcs of cold gas as the result of interaction with other galaxies. In this context, a stream of gas pulled out of the disk of the galaxy (or contributed by a perturber) forms stars when it is compressed. Such an interaction is also supported by a further hint, namely the observed inner decoupling of gas and stars velocity fields in NGC 4262 (Sarzi et al. 2006). In the specific case of NGC 4262 the existence of a mutual interaction with the other Virgo galaxy NGC 4254 has been proposed by Chyzy et al. (2007), while another example of such merger-induced, ringed lenticular galaxies could be NGC 404 (Thilker et al. 2010). The UV-detected, disk's star formation is likely to be occurring independently of the above possible (ring-forming) interaction event.

7 Summary and conclusions

Thanks to the UV-sensitive GALEX satellite we were able to detect an extended, UV-bright ring surrounding the otherwise normal SB0 galaxy NGC 4262. Such a feature (not recognizable in the optical) appears to host several knots, likely consisting of hot star clusters. In this respect, having clustered UV-bright sources in its outer parts NGC 4262 could be classified as a type 1 extended ultraviolet disk (XUV). About the origin of such a structure, one should be aware that theoretical models (e.g., Bekki 2005; Higdon & Higdon 2010) ascribe the onset of rings and arcs of cold gas, as well as of the formation of young star rings, to the past interaction with other galaxies. As a consequence, and also considering the observed inner decoupling of gas and stars velocity fields (Sarzi et al. 2006), we are fairly confident that a past major interaction episode undergone by NGC 4262 is responsible for the onset of the UV-bright ring we see today.

Acknowledgements
We are indebted to Marc Sarzi and the SAURON Team for providing their kinematical data. We thank the anonymous referee for his/her comments that improved our paper.

Appendix A: System geometry

\begin{figure}
\par\includegraphics[width=7cm]{14750fgA1.eps}\vspace{30mm}

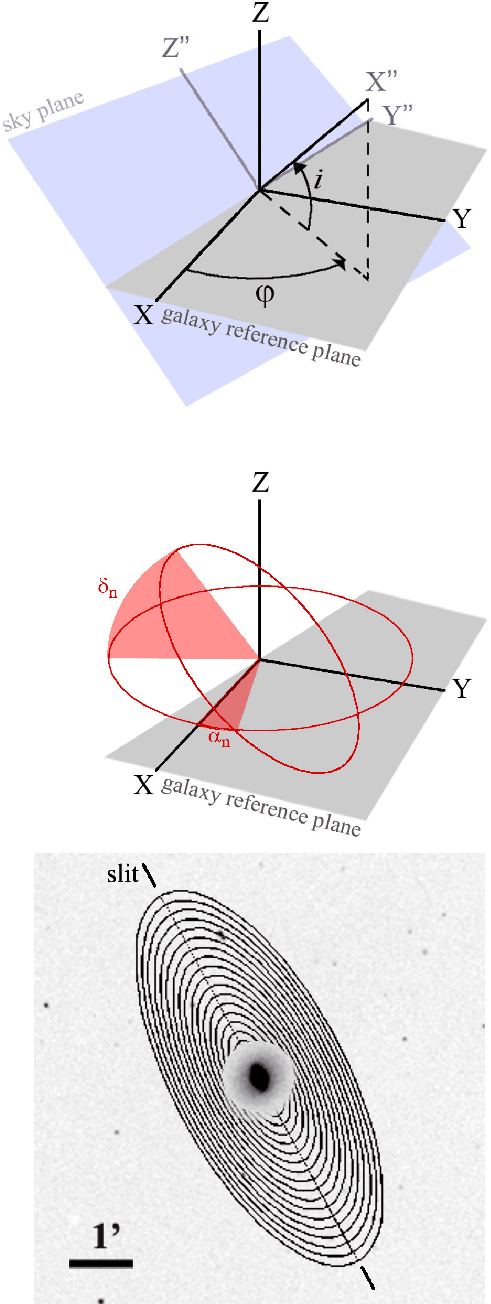

\end{figure} Figure A.1:

Top panel: the angles of the observer with respect to the galaxy reference plane. Mid-panel: the inclination of a ring with respect to the galaxy reference plane. Bottom panel: image of the model rings plotted on a DSS I image of NGC 4262. A circular ``hole'' has been created in the rings image only to make the galaxy visible. The outermost ring is at 200 arcsec, corresponding to the extension of the HI ring visible in the other figures of this paper. The straight line across the rings indicate the position of the slit used for extracting the model velocity values.

Open with DEXTER

We define an observer reference system X'' Y'' Z'' whose Y'' Z'' plane coincides with the sky plane, and the X'' axis represents the line-of-sight. The HI distribution is assumed to lie on the XY plane of a galaxy reference system in a set of concentric, circular rings. The two systems are inclined by the angles i and $\phi$ (see Fig. A.1), which are the inclination and the azimuth of the line of sight with respect to XYZ. The relation between the coordinates of the two systems is described by the rotation matrix R, as discussed in Galletta (1983):

\begin{displaymath}\left(
\begin{array}{l}
x'' \\
y'' \\
z'' \\
\end{array}...
...left( \begin{array}{l}
x \\
y \\
z \\
\end{array}\right)
\end{displaymath} (A.1)

Each ring, labeled n, may be independent of the others and is inclined with respect to the galaxy reference plane by the angles $\delta_n$ and $\alpha_n$, shown in Fig. A.1. The change in $\delta_n$ represents the warping of the gas plane, while the change in $\alpha_n$ is the ring twisting, if present. The coordinate system of each ring is then

\begin{displaymath}\left( \begin{array}{l}
x''_n \\ [2mm]
y''_n \\ [2mm]
z'...
...x_n \\ [2mm]
y_n \\ [2mm]
z_n \\ [2mm]
\end{array}\right)
\end{displaymath} (A.2)

\begin{displaymath}\mbox{with the additonal conditions}
\left\{\begin{array}{ll...
... [2mm]
z\ \ =0 & {\rm Ring plane} \\ [2mm]
\end{array} \right.
\end{displaymath} (A.3)

The values of the coefficients $R_{ijn}(i,\phi,\delta_n,\alpha_n)$ are listed in Arnaboldi & Galletta (1993) and each ring is described by its radius rn and by an angle $0^\circ\le\beta\le 360^\circ$.

\begin{displaymath}\left\{\begin{array}{l}
x_n= r_n \cos\beta_n \\ [2mm]
y_n= r_n \sin\beta_n \\ [2mm]
\end{array}\right.
\end{displaymath} (A.4)

To extract a simulated rotation curve, we calculate the couples of value {y'', z''} on the sky traced along a fixed PA according to the relation:

z''= K y'' (A.5)

where $K=\tan$(90+PA). With this assumption and the definition of the ring plane (Eq. (A.3)), Eq. (A.2) become:

\begin{displaymath}\left\{
\begin{array}{l}
y''_n= r (R''_{21n} \cos\beta_n+R''_...
...\cos\beta_n+R''_{32n} \sin\beta_n) \\ [2mm]
\end{array}\right.
\end{displaymath} (A.6)

wich gives for each {y'', z''} point a unique $\beta$ value crossing the nth ring:

\begin{displaymath}{\rm tg} \beta_n = -\frac{R''_{31n}-K\ R''_{21n}}{R''_{32n}- K\ R''_{22n}}\cdot
\end{displaymath} (A.7)

At this point, the rotational velocity of the nth ring projected along the line of sight is

\begin{displaymath}V_{\rm oss}(y'',z'',n) = V_{\rm circ}(r_n)({R''_{12n} \cos\beta_n - R''_{11n}} \sin\beta_n)
\end{displaymath} (A.8)

where $V_{\rm rot}$ is the intrinsic circular velocity of the rings. To interpolate the observed rotation values $V_{\rm oss}$ we used a simple rotation curve described by

\begin{displaymath}V_{\rm circ}(r_n)=3 V_{\max}\frac{r_n/r_{\max}}{1+2(r_n/r_{\max})^{3/2}}
\end{displaymath} (A.9)

according to Eqs. (26) and (28) discussed by Brandt (1960).
