A&A 516, A81 (2010)

The fate of the pre-main sequence-rich clusters Collinder 197 and vdB 92: dissolution?

C. Bonatto1 - E. Bica1

Universidade Federal do Rio Grande do Sul, Departamento de Astronomia, CP 15051, RS, Porto Alegre 91501-970, Brazil

Received 27 January 2010 / Accepted 16 March 2010

Abstract
Context. Since most of the star clusters do not survive the embedded phase, their early dissolution appears to be a major source of field stars. However, catching a cluster in the act of dissolving is somewhat elusive.
Aims. We investigate the nature and possible evolution of the young Galactic star clusters Collinder 197 (Cr 197) and vdB 92.
Methods. Photometric and structural properties were derived with near-infrared photometry and field-star decontamination. Kinematical properties were inferred from proper motions of the main sequence (MS) and pre-MS (PMS) member stars.
Results. The colour-magnitude diagrams (CMDs) are basically characterised by a poorly-populated MS and a dominant fraction ($\ga$75%) of PMS stars, and the combined MS and PMS CMD morphology in both clusters consistently constrains the age to within $5~\pm~4$ Myr, with a $\sim$10 Myr spread in the star formation process. The MS+PMS stellar masses are $\approx$ $660^{+102}_{-59}~\mbox{$M_\odot$ }$ (Cr 197) and $\approx$ $750^{+101}_{-51}~\mbox{$M_\odot$ }$ (vdB 92). Both Cr 197 and vdB 92 appear to be abnormally large when compared to clusters within the same age range. They have irregular stellar radial density distributions (RDPs) with a marked excess in the innermost region, a feature that, at less than 10 Myr, is more likely related to the star formation and/or molecular cloud fragmentation than to age-dependent dynamical effects. The velocity dispersion of both clusters, derived from proper motions, is in the range $\sim$ $15{-}22~\mbox{$\rm km~s^{-1}$ }$.
Conclusions. Both clusters appear to be in a super-virial state, with velocity dispersions higher than those expected of nearly-virialised clusters of similar mass and size. A possible interpretation is that Cr 197 and vdB 92 deviate critically from dynamical equilibrium, and may dissolve into the field. We also conclude that early cluster dissolution leaves detectable imprints on RDPs of clusters as massive as several $10^2~\mbox{$M_\odot$ }$. Cr 197 and vdB 92 may be the link between embedded clusters and young stellar associations.

Key words: open clusters and associations: general - open clusters and associations: individual: Collinder 197 - open clusters and associations: individual: vdB 92

1 Introduction

It has only now become well-established that a significant fraction of the embedded star clusters dissolve into the field on a time scale of a few 107 Myr. Basically, dissolution occurs mainly because the gravitational potential can be rapidly reduced by internal processes, such as the impulsive gas removal by supernovae and massive star winds associated with this early period. As a consequence, an important fraction of the stars, especially with low mass, end up moving faster than the scaled-down escape velocity and may be lost to the field (e.g. Goodwin & Bastian 2006). This process can dissolve the very young star clusters on time scales of 10-40 Myr.

From the stellar content perspective, the early cluster dissolution depends essentially on the effective star-formation efficiency, the total mass converted into stars, and the mass of the more massive stars (e.g. Tutukov 1978; Goodwin & Bastian 2006). However, there is also evidence that the determining factor for cluster survival during gas expulsion is the virial state of the stars just before the onset of this phase, so that clusters formed with a dynamically cold stellar component are more likely to survive (Goodwin 2009).

In any case, the early dissolution of embedded clusters may lead to the formation of OB stellar groups (e.g. Gouliermis et al. 2000), the subsequent dispersion of which may be an important source of field stars (e.g. Massey et al. 1995). Indeed, Lada & Lada (2003) suggest that only about 5% of the Galactic embedded clusters dynamically evolve into gravitationally bound open clusters (OCs). With such a high dissolution rate, the embedded clusters could be the major contributors of field stars in galaxies for generations. However, recent studies suggest that the early dissolution rate in the Magellanic Clouds is significantly lower ($\la$$30\%$ - de Grijs & Goodwin 2008, 2009) than in the Milky Way (Lada & Lada 2003) or in other galaxies such as the Antennae (e.g. 2007) or M 51 (e.g. Bastian et al. 2005).

Observationally, low-mass star clusters younger than $\sim$10 Myr, in general, have colour-magnitude diagrams (CMDs) with an under-populated and developing main sequence (MS) and a more conspicuous population of pre-MS (PMS) stars. Typical examples are NGC 6611, NGC 4755, NGC 2239, NGC 2244, Bochum 1, Pismis 5, NGC 1931, vdB 80, and BDBS 96 (Bonatto & Bica 2009c, and references therein). In terms of CMD morphology, bound and unbound young clusters are expected to present similar evolutionary sequences. On the other hand, the important early changes in the potential that affect the large-scale internal structure of clusters should be reflected in the stellar radial density profile (RDP). Bochum 1 (Bica et al. 2008a), and NGC 2244 (Bonatto & Bica 2009b), for instance, appear to be representatives of this scenario (i.e. structures evolving towards dissolution in a few 107 yr), in which an irregular RDP cannot be represented by a cluster-like profile (i.e. an approximately isothermal sphere). In this context, irregular RDPs in young clusters - when coupled to an abnormally high-velocity dispersion - may reflect significant profile erosion or dispersion of stars, and point to significant deviations from dynamical equilibrium.

The rather complex interplay among environment conditions, effective star-formation efficiency (as defined in Goodwin & Bastian 2006), and total mass converted into stars, is probably what explains the difference between (dissolving) objects like Bochum 1 and NGC 2244, and bound young OCs (in which the MS+PMS stars distribute according to a cluster RDP as in NGC 6611 and NGC 4755). Consistent with the above mass-dependent scenario, the MS+PMS mass of Bochum 1 and NGC 2244 is a factor 2-3 lower than in NGC 6611 and NGC 4755.

In this paper we investigate the nature of the poorly-studied, young (age $\sim$5 Myr; Sect. 4), large (with radii within 8-12 pc; Sect. 5), and PMS-rich (with stellar masses within $660{-}750~\mbox{$M_\odot$ }$; Sect. 6) clusters Cr 197 and vdB 92. Our main goal is to determine whether such young stellar systems can be characterised as typical OCs or if they are heading towards dissolution. In addition, we derive their fundamental and structural parameters, most of these for the first time.

Table 1:   Fundamental parameters.

This paper is organised as follows. In Sect. 2 we recall the literature data on both objects. In Sect. 3 we discuss the 2MASS photometry and build the field-star decontaminated CMDs. In Sect. 4 we derive fundamental cluster parameters. In Sect. 5 we derive structural parameters. In Sect. 6 we estimate cluster mass. In Sect. 7 we build the intrinsic proper motion distribution. In Sect. 8 we compare structural parameters and dynamical state with those of a sample of template OCs. Concluding remarks are given in Sect. 9.

2 Previous data on Cr 197 and vdB 92

Collinder 197 (Cr 197) was discovered by Collinder (1931) in Vela. It was also listed in the OC catalogue of Alter et al. (1970) as OCl-742, and the ESO/Uppsala Blue Plate Southern (Lauberts 1982) as ESO 313 SC13.

Vogt & Moffat (1973) centred the cluster on the B4 II star HIP 42908 at $\alpha(2000)=08^{\rm h}44^{\rm m}40.3^{\rm s}$, $\delta(2000)=-41\hbox{$^\circ$ }16\hbox{$^\prime$ }38\hbox{$^{\prime\prime}$ }$. This star, which is reported as a double system in SIMBAD, is the brightest in the area with V=7.32. HIP 42908 may be the cluster centre in the infrared, since strong absorption is suggested by the B plate image seen to the southwest of HIP 42908. Vogt & Moffat (1973) found the reddening $\mbox{$E(B-V)$ }=0.58$ and the distance from the Sun $\mbox{$d_\odot$ }=1.05$ kpc.

Besides dust absorption and emission in the area, Cr 197 is also embedded in the HII region Gum 15 (Gum 1955), also known as RCW 32 (Rodgers et al. 1960). Assuming that HIP 42908 is a cluster member, it might be responsible for the emission. Indeed, Pettersson & Reipurth (1994) have identified low-luminosity emission-line stars in Cr 197 and in the R-association Vela R2, which may be part of their low-mass population. They derive $\mbox{$d_\odot$ }=1.1$ kpc and estimate a few 106 yr of age. Battinelli & Capuzzo-Dolcetta (1991) and Battinelli et al. (1994) estimated 6.3 Myr of age, $\mbox{$d_\odot$ }=1$ kpc, a total mass of $\approx$ $100~\mbox{$M_\odot$ }$, and the integrated absolute magnitude $\mbox{$M_{V}$ }=-5.16$.

Found by van den Bergh (1966), the embedded cluster vdB 92 is related to the reflection nebula vdB-RN 92, which is located in Canis Major. The cluster is also listed as FSR 1188 by Froebrich et al. (2007) who, based on the H photometry, derived the core and tidal radii $\mbox{$R_{\rm c,{\it H}}$ }=1.1\hbox{$^\prime$ }$ and $\mbox{$R_{\rm t,{\it H}}$ }=24\hbox{$^\prime$ }$, and the total number of members N=297 stars. Magakian (2003) also reports the reflection nebula and related cluster. It is immersed in the large angular size association CMa OB1 (Clariá 1974a,b) and in the reflection nebula association CMa R1 (van den Bergh 1966). The equally extended emission nebula IC 2177, or Gum 2 (Gum 1955), seems to permeate the complex. The relatively bright star at $\approx$ $3.4\hbox{$^\prime$ }$ to the northeast of the cluster vdB 92 is the Herbig Be star Z CMa, which has a bipolar outflow (Poetzel et al. 1989). Undoubtedly, vdB 92 is part of a star-forming complex that deserves further analyses. With an approach that differs in various aspects from the present one, Soares & Bica (2003) studied the brighter sequences of vdB 92, deriving an age of 5-7 Myr, a mean visible absorption $A_{\rm v}=4.4$, and $\mbox{$d_\odot$ }\approx1.5$ kpc.

A few bright stars mixed with nebular gas and/or dust emission are seen in the $20\hbox {$^\prime $ }\times 20\hbox {$^\prime $ }$ R images (Fig. 1, taken from LEDAS[*]). Close-ups of the clusters are shown in the smaller field 2MASS $K_{\rm s}$ images. Table 1 provides parameters found in the literature and derived here. The central coordinates were computed again to match the absolute maxima present in the stellar surface densities (Sect. 3.2). The re-computed central coordinates of Cr 197 are almost coincident with HIP 42908.

3 Construction of decontaminated CMDs

\begin{figure} \par\includegraphics[width=4.5cm]{Fig1a.eps}\includegraphics[widt... ...ics[width=4.5cm]{Fig1b.eps}\includegraphics[width=4.5cm]{Fig1d.eps} \end{figure} Figure 1:

Top: $20\hbox {$^\prime $ }\times 20\hbox {$^\prime $ }$ DSS-II R images centred on Cr 197 ( left) and vdB 92 ( right). Gas emission, dust reflection, and/or absorption are present in the fields in varying proportions. Bottom: 2MASS $K_{\rm s}$ images covering $5\hbox {$^\prime $ }\times 5\hbox {$^\prime $ }$ (Cr 197) and $6\hbox {$^\prime $ }\times 6\hbox {$^\prime $ }$ (vdB 92). Orientation: North at the top and east to the left.

Open with DEXTER

Table 2:   Derived structural parameters.

Since both objects still retain part of the primordial gas and dust (Fig. 1), the near-IR provides the adequate depth to study them, especially the faint stellar sequences. For this purpose, we work with the 2MASS[*] J, H, and $K_{\rm s}$ photometry, which provides the spatial and photometric uniformity required for wide extractions that, in turn, result in high star-count statistics.

Our group has been developing analytical tools for 2MASS photometry that allow us to statistically disentangle cluster evolutionary sequences from field stars in CMDs. Decontaminated CMDs have been used to investigate the nature of star cluster candidates and derive their astrophysical parameters. In summary, we applied (i) field-star decontamination to uncover the intrinsic CMD morphology, essential for a proper derivation of reddening, age, and distance from the Sun, and (ii) colour-magnitude filters, which are required for intrinsic stellar RDPs, as well as luminosity and mass functions (MFs). In particular, the use of field-star decontamination in the construction of CMDs has proved to constrain age and distance more than the raw (observed) photometry, especially for low-latitude and/or bulge-projected OCs (e.g. Bica et al. 2008b, and references therein).

Photometry for both clusters was extracted from VizieR[*] in a wide circular field of radius $\mbox{$R_{\rm ext}$ }=80\hbox{$^\prime$ }$, which is adequate for determining the background level (Sect. 5) and statistically characterising the colour and magnitude distribution of the field stars (Sect. 3.1). As a photometric quality constraint, only stars with J, H, and $K_{\rm s}$ errors lower than 0.1 mag were used. Reddening corrections were based on the absorption relations AJ/AV=0.276, AH/AV=0.176, $A_{K_{\rm S}}/A_V=0.118$, and $A_J=2.76\times\mbox{$E(J-H)$ }$ given by Dutra et al. (2002), with RV=3.1, considering the extinction curve of Cardelli et al. (1989). The reddening values were derived from the 2MASS CMDs (Sect. 4).

3.1 Field decontamination

Field-star decontamination is usually required for proper identification and characterisation of star clusters, especially those near the Galactic equator and/or with large fractions of faint stars. Cr 197 and vdB 92 are located in the $3{\rm rd}$ Galactic quadrant (Table 1), which makes field-star contamination a minor issue (e.g. Bica et al. 2008b). However, their CMDs are dominated by PMS stars (Sect. 4), so, decontamination is important for avoiding confusion with the red dwarfs of the Galactic field. A summary of different decontamination approaches is provided in Bonatto & Bica (2009b). In this paper we apply the decontamination algorithm developed in Bonatto & Bica (2007), together with an improvement that is described below.

\begin{figure} \par\mbox{\includegraphics[width=9cm]{Fig2a.eps}\includegraphics[... ...hics[width=9cm]{Fig2c.eps}\includegraphics[width=9cm]{Fig2d.eps} }\end{figure} Figure 2:

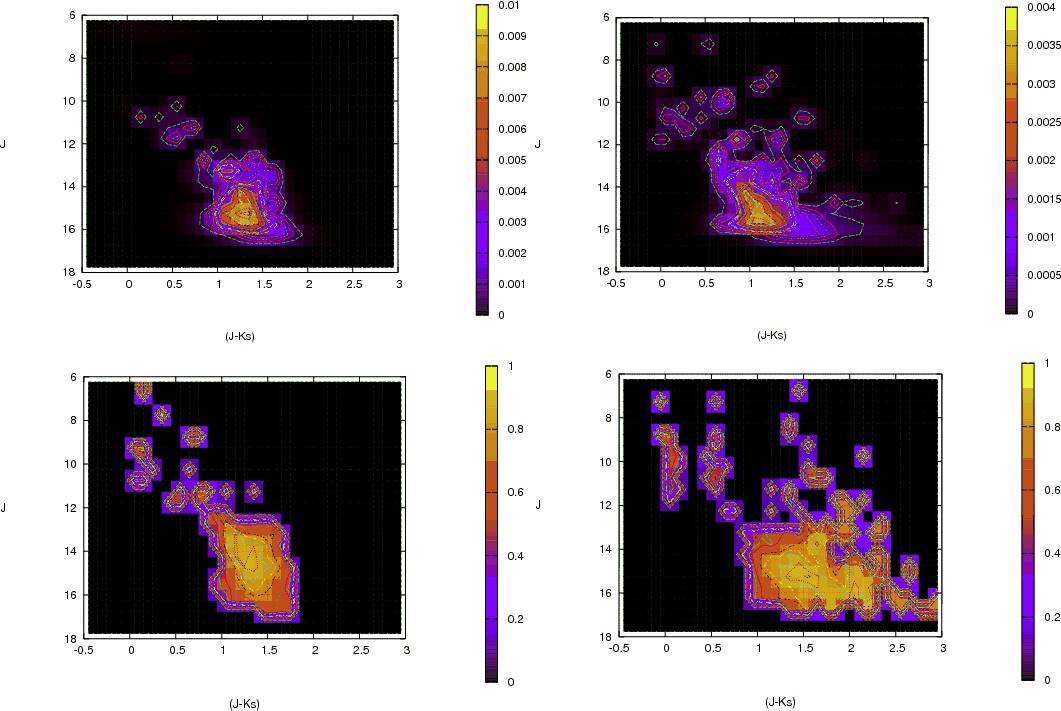

Top panels: number density ( $\eta _{\rm mem}$, in $\rm stars~arcmin^{-2}$) of the probable member stars present in the decontaminated CMDs extracted within $R=10\hbox {$^\prime $ }$ of Cr 197 ( left) and $R=15\hbox {$^\prime $ }$ of vdB 92 ( right). Bottom: survival frequency of the decontaminated stars.

Open with DEXTER

Photometric uncertainties are explicitly taken into account, in the sense that stars have a non-negligible probability (assumed to be Gaussian) of having a magnitude and colour significantly different from the average values. The algorithm (i) divides the full range of magnitude and colours of a CMD into a 3D grid of cells with axes along the J magnitude and the (J-H) and $(J-K_{\rm s})$ colours, (ii) computes the total (i.e. member+field) number density of stars within a given cell ( $\eta_{\rm tot}$), (iii) estimates the number density of field stars ( $\eta_{\rm fs}$) based on the number of comparison field stars with similar magnitude and colours as those in the cell, (iv) computes the expected number density of member stars, $\eta_{\rm mem}=\eta_{\rm tot}-\eta_{\rm fs}$, (v) converts the number density $\eta_{\rm fs}$ into the estimated number of field stars and subtracts it from each cell, and (vi) after subtraction of the field stars, the remaining $N^{\rm cell}_{\rm clean}$ stars in each cell are identified for further use (see below). The wide annulus between $50\hbox{$^\prime$ }<R<80\hbox{$^\prime$ }$ (outside the cluster radius - Table 2) is used as the comparison field for Cr 197; for vdB 92, it is located between $30\hbox{$^\prime$ }<R<80\hbox{$^\prime$ }$. The initial cell dimensions are $\Delta\mbox{$J$ }=1.0$ and $\Delta\mbox{$(J-H)$ }=\Delta\mbox{$(J-K_{\rm s})$ }=0.2$, but cell sizes half and twice the initial values are also used. As a new feature, we also consider shifts in the grid positioning by $\pm1/3$ of the respective cell size in the 2 colours and magnitude axes. When all the different grid/cell size setups are applied, the decontamination take 729 independent combinationss into account.

Each setup produces a total number of member stars, $N_{\rm mem}=\sum_{\rm cell}N^{\rm cell}_{\rm clean}$, from which we compute the expected total number of member stars $\left<N_{\rm mem}\right>$ by averaging out $N_{\rm mem}$ over all combinations. Stars (identified in step (vi) above) are ranked according to the number of times they survive all runs (survival frequency), and only the $\left<N_{\rm mem}\right>$ highest ranked stars are considered cluster members and transposed to the respective decontaminated CMD (e.g. Figs. 5 and 6).

The subtraction efficiency, i.e. the difference between the expected number of field stars (which may be fractional) and the number of stars effectively subtracted (which is integer) from each cell, summed over all cells, is 99.4% for vdB 92 and 96.7% for Cr 197. As a caveat, the present decontamination approach implicitly assumes that the field colour-magnitude distribution somewhat matches that of the cluster. Figure 1 shows some gas and dust around both clusters, which might lead to appreciable reddening and differential reddening. While the effect in the foreground contamination may be small, it should be greater in the background. However, the $3{\rm rd}$ Galactic quadrant location of Cr 197 and vdB 92 is expected to minimise the background contamination.

The number density of the probable member stars ( $\eta _{\rm mem}$) is shown in the $\mbox{$J$ }\times\mbox{$(J-K_{\rm s})$ }$ CMDs in Fig. 2 (top panels). In both cases, most of the stars are relatively faint and red, covering a wide range in colour, which is expected of PMS stars that are somewhat affected by differential reddening. Also shown in Fig. 2 (bottom panels) is the survival frequency of the decontaminated stars. Again, the highest membership probabilities occur among the PMS stars.

3.2 Decontaminated surface density maps

Our decontamination approach relies upon differences in the colour and magnitude distribution of stars located in separate spatial regions. For a star cluster, which can be characterised by a single-stellar population projected against a Galactic stellar field, the decontaminated surface density is expected to present a marked excess at the assumed cluster position.

\begin{figure} \par\includegraphics[width=9cm,clip]{Fig3.eps} \end{figure} Figure 3:

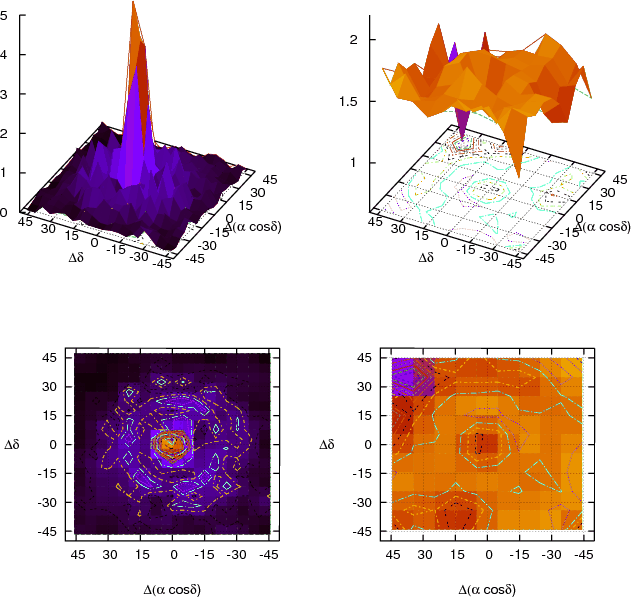

Left: stellar surface density $\sigma (\rm stars\ arcmin^{-2})$ computed with field-decontaminated photometry to enhance the cluster/background contrast of Cr 197. Right: average $(J-K_{\rm s})$ colour. $\Delta(\alpha~\cos(\delta))$ and $\Delta \delta $ in arcmin.
Open with DEXTER

Maps of the spatial distribution of the stellar surface density ($\sigma$, in units of $\rm stars~arcmin^{-2}$), built with field-star decontaminated photometry to maximise the cluster/background contrast, are shown in Figs. 3 (Cr 197) and 4 (vdB 92). Also shown are the isopleths, in which cluster size and geometry can be observed. The surface density is computed in a rectangular mesh with cells $2.5\hbox{$^\prime$ }\times2.5\hbox{$^\prime$ }$ wide, reaching total offsets of $\vert\Delta\alpha~\cos(\delta)\vert=\vert\Delta\delta\vert\approx45\hbox{$^\prime$ }$ with respect to the cluster centre (Table 1).

\begin{figure} \par\includegraphics[width=9cm,clip]{Fig4.eps} \end{figure} Figure 4:

Same as Fig. 3 for vdB 92.

Open with DEXTER

Despite the gas and dust associated with the present clusters (Fig. 1), the central excesses show up markedly in the decontaminated surface density distributions. Cr 197 has a well-defined, approximately round, and narrow stellar distribution (Fig. 3, left panel). Its $(J-K_{\rm s})$ colour distribution is rather uniform, within $1.0\la\mbox{$(J-K_{\rm s})$ }\la1.8$, with a blueward dip, owing to the few bright and rather blue stars, about the centre (right panel). The stellar distribution of vdB 92, on the other hand, presents a broad and elongated external region (Fig. 4, left panel) with a complex colour distribution (right panel) within $0.8\la\mbox{$(J-K_{\rm s})$ }\la2.5$. If most of these colour variations (with respect to the average) are caused by non-uniform reddening - and not by systematic differences in the stellar content - the upper limits to the differential reddening distribution would be $\Delta\mbox{$A_{\it V}$ }\la2.5$ mag for Cr 197 and $\Delta\mbox{$A_{\it V}$ }\la5$ mag for vdB 92.

4 Fundamental parameters

The top panels of Fig. 5 show $\mbox{$J$ }\times\mbox{$(J-K_{\rm s})$ }$ CMDs built with the raw photometry of Cr 197 and vdB 92. In both cases, the sampled region contains most of the cluster stars (Fig. 8). Features typical of very young OCs, such as a relatively vertical and poorly-populated MS, together with a large population of faint and red PMS stars, can be seen when these CMDs are compared to those extracted from the equal-area offset fields[*] (middle panels).

\begin{figure} \par\includegraphics[width=6cm,clip]{Fig5.eps} \end{figure} Figure 5:

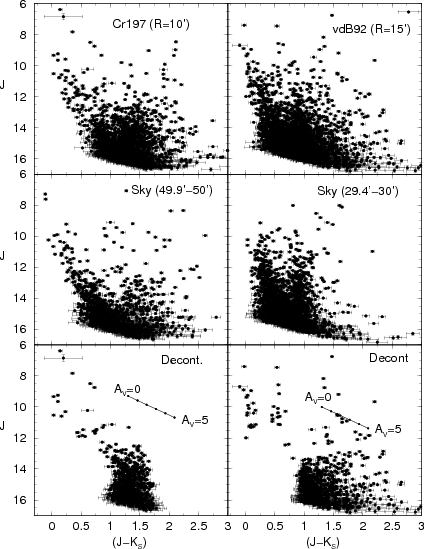

$\mbox{$J$ }\times\mbox{$(J-K_{\rm s})$ }$ CMDs of Cr 197 ( left) and vdB 92 ( right) showing the observed photometry for representative regions ( top) and the equal-area comparison fields ( middle). The decontaminated CMDs are shown in the bottom panels. Reddening vectors for $\mbox{$A_{\it V}$ }=0{-}5$ are shown in the bottom panels.

Open with DEXTER

As expected, the decontaminated CMDs (bottom panels of Fig. 5) essentially contain the typical stellar sequences of mildly reddened young clusters, with a developing MS and a significant population of PMS stars. Also, in both cases, the colour distribution at faint magnitudes ( $\mbox{$J$ }\ga13$) is wider than the spread predicted purely by PMS models (Fig. 6), which implies internal differential reddening. To examine this issue we include in Figs. 5, 6 reddening vectors computed with the 2MASS ratios (Sect. 3) for visual absorptions $\mbox{$A_{\it V}$ }=0~{\rm to}~5$. Taking the PMS isochrone fit into account (Fig. 6), the differential reddening appears to be lower than $\Delta\mbox{$A_{\it V}$ }=5$, especially for Cr 197, which is consistent with the values estimated in Sect. 3.2.

\begin{figure} \par\includegraphics[width=9cm,clip]{Fig6.eps} \end{figure} Figure 6:

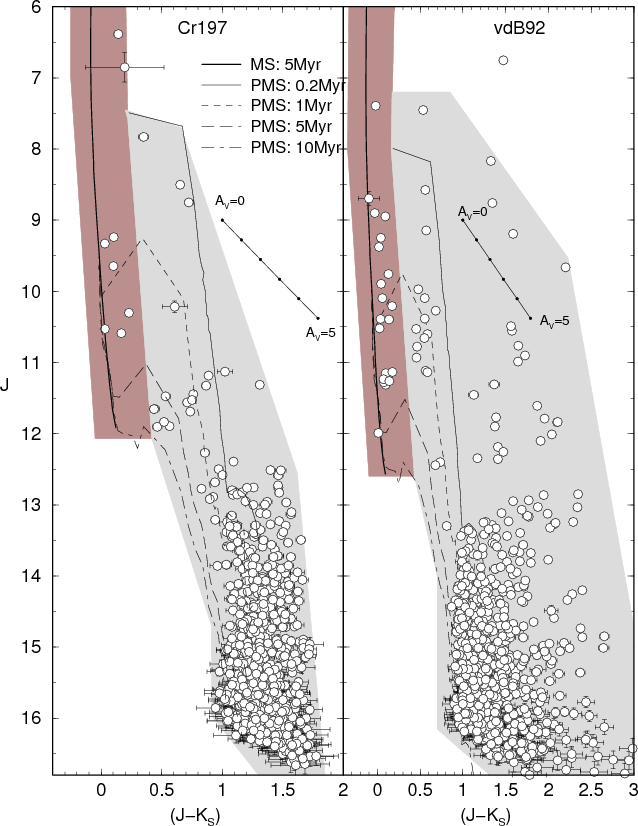

Adopted MS+PMS isochrone solutions to the decontaminated CMDs. Reddening vectors as in Fig. 5. Shaded polygons show the MS (dark-grey) and PMS (light-grey) colour-magnitude filters (Sect. 5).

Open with DEXTER

The fundamental parameters are derived by means of the constraints provided by the field-decontaminated CMD morphologies, especially the combined MS and PMS star distribution (Fig. 6). We adopt solar metallicity isochrones because both objects are young and located not far from the Solar circle (see below), a region essentially occupied by [Fe/H]  $\approx0.0$ OCs (Friel 1995). Padova isochrones (Girardi et al. 2002) computed with the 2MASS J, H, and $K_{\rm s}$ filters[*] are used to represent the MS. Isochrones of Siess et al. (2000) with ages in the range 0.2-10 Myr are used to characterise the PMS sequences. Since the decontaminated CMD morphologies are very similar and typical of young ages (Fig. 6), a similar isochrone solution is expected to apply to both objects.

As summarised in Naylor & Jeffries (2006), sophisticated approaches are available for analytical CMD fitting, especially the MS. However, given the poorly-populated MSs, the 2MASS photometric uncertainties for the fainter stars, the large population of PMS stars, and the differential reddening, we applied the direct comparison of isochrones with the decontaminated CMD morphology. The fits are made by eye, taking the combined MS and PMS stellar distributions as constraints, allowing as well for variations due to photometric uncertainties (which, given the restrictions imposed in Sect. 3, are small in both cases), and differential reddening. Specifically, we start with the MS+PMS isochrones set for zero distance modulus and reddening, and apply shifts in magnitude and colour to them. We take as best-fit the apparent distance modulus and reddening that simultaneously account for the blue border of the MS and PMS stellar distributions. Both clusters present a significant fraction of stars redder than the youngest PMS isochrone. Most of this $(J-K_{\rm s})$ excess towards the red probably stems from differential reddening. Below, we discuss the results, which are shown in Fig. 6.

Cr 197: Given the poorly-populated and nearly vertical MS, acceptable fits to the decontaminated MS are obtained with any isochrone with age in the range 1-10 Myr. If we consider the differential reddening, this age spread is consistent with the PMS stars, which are contained within the 0.2 Myr and 10 Myr isochrones as well. Thus, we take the 5 Myr isochrone as a representative solution, and allow for a $\pm4$ Myr age spread in the star formation.

\begin{figure} \par\includegraphics[width=9cm,clip]{Fig7.eps} \end{figure} Figure 7:

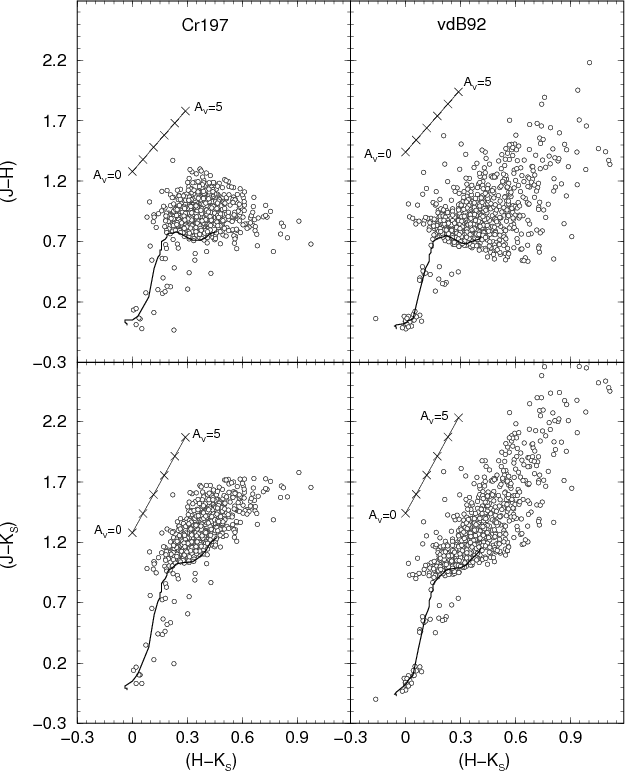

Colour-colour diagrams showing the decontaminated photometry and the 5 Myr PMS track (Siess et al. 2000), set with the derived reddening values (Sect. 4). MS stars lie on the blue side of the diagram. Error bars have been omitted for clarity. Reddening vectors as in Figs. 5 and 6.

Open with DEXTER

With the adopted solution, the fundamental parameters of Cr 197 are the near-IR reddening $\mbox{$E(J-H)$ }=0.10\pm0.05$ ( $\mbox{$E(B-V)$ }=0.34\pm0.16$ or $A_V=1.0\pm0.5$), the observed and absolute distance moduli $\mbox{$(m-M)_J$ }=10.4\pm0.4$ and $\mbox{$(m-M)_{\rm O}$ }=10.11\pm0.42$, respectively, and the distance from the Sun $\mbox{$d_\odot$ }=1.05\pm0.20$ kpc. This distance is compatible with what is obtained for the B4 II star HIP 42908 (B=7.65 and V=7.32), $\mbox{$d_\odot$ }=1.1$ kpc. With $\mbox{$R_\odot$ }=7.2\pm0.3$ kpc (Bica et al. 2006) as the Sun's distance to the Galactic centre[*], the Galactocentric distance of Cr 197 is $\mbox{$R_{\rm GC}$ }=7.5~\pm~0.1$ kpc, which puts it $\approx$0.3 kpc outside the Solar circle. This solution is shown in Fig. 6. The projected coordinate components are $(x_{\rm GC},y_{\rm GC},z_{\rm GC})\approx(-7.4,-1.4,0.0)$ in kpc, which put Cr 197 at the Orion-Cygnus and Sagittarius-Carina interarm region (e.g. Momany et al. 2006). We also computed the integrated apparent and absolute magnitudes in the 2MASS bands for the member stars within $R\leq\mbox{$R_{\rm RDP}$ }$, together with the reddening corrected colours. The results are $m_J=5.64\pm0.07$, $M_J=-4.76\pm0.12$, $\mbox{$(J-H)$ }=0.19\pm0.09$, and $\mbox{$(J-K_{\rm s})$ }=0.32\pm0.09$.

\begin{figure} \par\includegraphics[width=9cm,clip]{Fig8.eps} \end{figure} Figure 8:

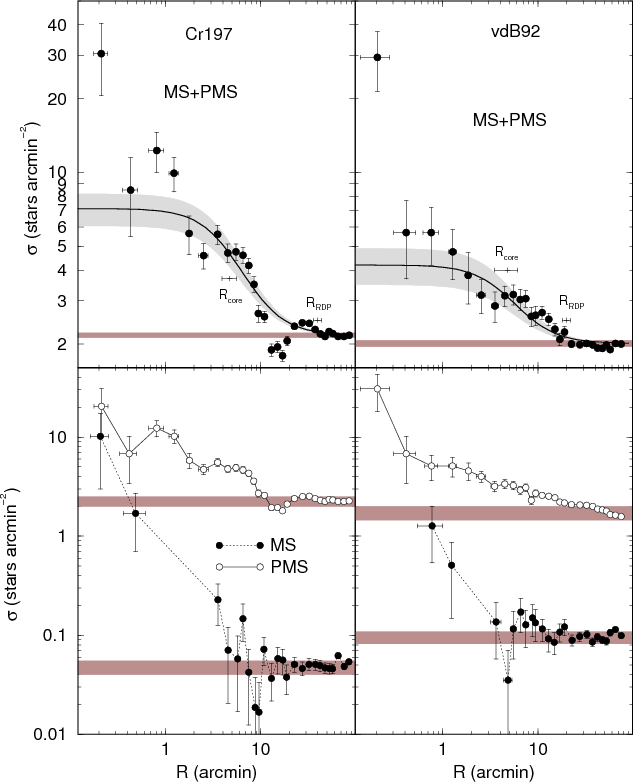

Top: stellar RDPs built for the MS and PMS stars combined, together with the best-fit King-like profile (solid line), the $1\sigma $ uncertainty (light-shaded region), and the background level (shaded polygon). Bottom: RDPs built isolately for the MS and PMS stars.

Open with DEXTER

vdB 92: Similar to Cr 197, any isochrone with age within 1-10 Myr provides an acceptable fit to the nearly vertical MS, while the PMS distribution is essentially contained within the 0.2-10 Myr isochrones. With this solution, the fundamental parameters of vdB 92 are $\mbox{$E(J-H)$ }=0.07~\pm~0.04$ ( $\mbox{$E(B-V)$ }=0.22~\pm~0.13$ or $A_V=0.7~\pm~0.4$), $\mbox{$(m-M)_J$ }=10.9~\pm~0.4$, $\mbox{$(m-M)_{\rm O}$ }=10.71~\pm~0.41$, $\mbox{$d_\odot$ }=1.38\pm0.26$ kpc, and $\mbox{$R_{\rm GC}$ }=8.3~\pm~0.2$ kpc, thus $\approx$1.0 kpc outside the Solar circle. Thus, with the coordinate components $(x_{\rm GC},y_{\rm GC},z_{\rm GC})\approx(-8.2,-1.0,-0.1)$, vdB 92 approximately coincides with the Orion-Cygnus arm (e.g. Momany et al. 2006). SIMBAD provides 5 stars with spectral type and optical photometry to within $\approx$ $10\hbox{$^\prime$ }$ of the central coordinates of vdB 92 (Table 1). These are HRW 14 (B7 III, B=12.67 and V=12.09), BD-11 1763 (B1.5 V, B=8.90 and V=8.91), BD-11 1761 (B2 V, B=9.32 and V=9.25), HIP 34133 (B0 V, B=7.31 and V=7.34), and NSV 3364 (B3 V, B=9.55 and V=9.41). The average spectroscopic distance of these stars is $\mbox{$d_\odot$ }=1.4~\pm~0.2$ kpc, in excellent agreement with the photometric value for vdB 92. For vdB 92 we derive $m_J=6.35~\pm~0.03$, $M_J=-4.53~\pm~0.41$, $\mbox{$(J-H)$ }=0.54~\pm~0.05$, and $\mbox{$(J-K_{\rm s})$ }=1.01~\pm~0.04$. Thus, Cr 197 is intrinsically brighter and somewhat bluer than vdB 92.

Besides the similar MS age, Cr 197 and vdB 92 share a significant age spread ($\sim$10 Myr) implied by the PMS stars, which indicates a non-instantaneous star formation. We found a similar scenario in our previous studies of, e.g. NGC 4755, NGC 6611, and NGC 2244.

Although with a relatively low foreground absorption ($A_V\la1$), both cases present a significant fraction of PMS stars redder (and fainter) than predicted by the PMS tracks (Fig. 6). Indeed, when transposed to near-IR colour-colour diagrams (Fig. 8), the age and reddening solutions derived for Cr 197 and vdB 92 consistently match most of their field-star decontaminated photometry, but a significant fraction of the PMS stars appear to be very reddened. Most of the very red PMS stars occur along the respective reddening vectors. However, a small fraction appear to present an abnormal excess in $(H-K_{\rm s})$, especially vdB 92, in the $\mbox{$(J-H)$ }\times\mbox{$(H-K_{\rm s})$ }$ diagram, which may come from PMS stars still bearing circumstellar discs, hence with excess in H (e.g. Furlan et al. 2009; Bonatto et al. 2006a).

5 Structural parameters

We derive structural parameters by means of the RDPs, which are the projected stellar number density around the cluster centre. Noise in the RDPs is minimised with colour-magnitude filters (Fig. 6), which exclude stars with colours incompatible with those of the cluster[*]. In previous works we have shown that this filtering procedure enhances the RDP contrast relative to the background, especially in crowded fields (e.g. Bonatto & Bica 2007).

Rings of increasing width with distance from the cluster centre are used to preserve spatial resolution over the full radial range. The set of ring widths used is $\Delta~R=0.25,\ 0.5,\ 1.0,\ 2.5,\ {\rm and}\ 5\hbox{$^\prime$ }$, respectively for $0\hbox{$^\prime$ }\le R<0.5\hbox{$^\prime$ }$, $0.5\hbox{$^\prime$ }\le R<2\hbox{$^\prime$ }$, $2\hbox{$^\prime$ }\le R<5\hbox{$^\prime$ }$, $5\hbox{$^\prime$ }\le R<20\hbox{$^\prime$ }$, and $R\ge20\hbox{$^\prime$ }$. The residual background level of each RDP is the average number density of field stars. The R coordinate (and uncertainty) of each ring corresponds to the average position and standard deviation of the stars inside the ring. The resulting RDPs are shown in Fig. 8. As a caveat we note that the projected stellar distribution of vdB 92 is not smooth and radially symmetric, especially at the outskirts (Fig. 4). Thus, the use of circular rings to build the RDP might introduce some noise at large radii, but with little effect on the central parts.

We fit the RDPs with the function $\sigma(R)=\sigma_{\rm bg}+\sigma_0/(1+(R/R_{\rm c})^2)$, where $\sigma_0$ and $\sigma_{\rm bg}$ are the central and residual background stellar densities, and $R_{\rm c}$ is the core radius. Applied to star counts, this function is similar to the one used by King (1962) for the surface-brightness profiles in the central parts of globular clusters[*]. To minimise degrees of freedom, only $\sigma_0$ and $R_{\rm c}$ are derived from the fit, while $\sigma_{\rm bg}$ is previously measured in the surrounding field and kept fixed.

The best-fit solutions (and uncertainties) are shown in Fig. 8, and the corresponding structural parameters are given in Table 2. In addition, we estimate the cluster radius ( $R_{\rm RDP}$), i.e., the distance from the centre where the cluster RDP and field fluctuations are statistically indistinguishable (e.g. Bonatto & Bica 2005), and the density contrast parameter $\delta_{\rm c}=1+\sigma_0/\sigma_{\rm bg}$ (Table 2). $R_{\rm RDP}$ may be taken as an observational truncation radius, whose value depends both on the radial distribution of member stars and the field density.

Within uncertainties, the adopted King-like function provides a reasonable description of the RDPs for $R\ga1\hbox{$^\prime$ }$ (Fig. 8). The drop in the RDP of CR 197 for $13\la R(\hbox{$^\prime$ })\la18$ is probably related to enhanced dust absorption. However, the RDP measured in the innermost region ( $R\la0.3\hbox{$^\prime$ }$) in both cases presents a significant ($\ga$$3\sigma$) excess, or cusp, over the fit. In old star clusters, this feature has been attributed to a post-core collapse structure, as detected in some globular clusters (e.g. Trager et al. 1995). Some Gyr-old OCs, e.g. NGC 3960 (Bonatto & Bica 2006) and LK 10 (Bonatto & Bica 2009a), also display such a dynamical evolution-related feature. Interestingly, this cusp also occurs in the RDP of some very young ($\la$10 Myr) clusters, e.g. NGC 2244 (Bonatto & Bica 2009b), NGC 6823 (Bica et al. 2008a), Pismis 5, and NGC 1931 (Bonatto & Bica 2009c). Such time scales are too short for clusters to evolve into a post-core collapse. Thus, the cusp in young clusters is probably related to molecular cloud fragmentation and/or star formation, and may suggest important early deviation from dynamical equilibrium (Sect. 8). As a dynamically-related alternative explanation for the RDP cusps, we note that numerical simulations of clusters that form dynamically cool (subvirial) and with a fractal structure (Allison et al. 2009) suggest that mass segregation may occur on time scales comparable to their crossing times, typically a few Myr. Also, clusters that form with significant substructure will probably develop an irregular central region, unless such a region collapses and smooths the initial substructure out.

Finally, we also show in Fig. 8 (bottom panels) the RDPs built after isolating the MS and PMS stars by means of the respective colour-magnitude filters (Fig. 6). In both clusters, MS stars are more concentrated than the PMS ones and, as expected, the fraction of PMS stars (with respect to the total number) increases with cluster radius, and largely dominates the MS stars, especially for $R\ga5\hbox{$^\prime$ }$. The innermost region of vdB 92 is primarily occupied by PMS stars. The different residual background levels between the PMS and MS RDPs reflect the dominant presence of faint and red stars in the field, with respect to the bright and blue ones. As a consequence, the density-contrast parameter of the MS stars in Cr 197 is $\approx$20 higher than that of the PMS stars. The absence of MS stars in the innermost RDP bin precludes this comparison for vdB 92.

Considering the fit parameters (Table 2), the density-contrast parameter is relatively low in both cases, $2.1\la\delta_{\rm c}\la3.3$. However, when the measured innermost RDP value is considered (Fig. 8), it increases to $\delta_{\rm c}=15.1\pm4.6$ and $\delta_{\rm c}=15.7\pm4.0$, respectively, for Cr 197 and vdB 92. The latter values are more representative of the visual contrast produced by the few relatively bright stars in the central regions of both objects.

Alternatively, we fitted the RDPs allowing for variations of the background level. Within the uncertainties, the corresponding parameters (Table 2) are compatible with the previous (fixed background level) ones. Taken at face value, the core radii - derived from the King-like fits - of Cr 197 ( $\mbox{$R_{\rm c}$ }\approx1.5$ pc) and vdB 92 ( $\mbox{$R_{\rm c}$ }\approx2.0$ pc) are somewhat larger than the median value of the $R_{\rm c}$ distribution derived for a sample of relatively nearby OCs by Piskunov et al. (2007).

6 Stellar mass estimate

By far, the CMDs of Cr 197 and vdB 92 are dominated in number by PMS stars, followed by the developing, poorly-populated MS (Fig. 6), which implies that most of the cluster mass is stored in the PMS stars. To compute the cluster masses we work with the field-decontaminated photometry within $R\le\mbox{$R_{\rm RDP}$ }$ and count the number of stars that belong either to the MS or PMS.

For the MS, the corresponding mass of each star is taken from the mass-luminosity relation derived from the isochrone solution (Sect. 4). The MS mass range, in both cases, lies within $\approx$ $2{-}30~\mbox{$M_\odot$ }$. Summing up these values for all stars produces the total number ( $n_{\rm MS}$) and mass ( $m_{\rm MS}$) of MS stars. Because of the differential reddening, individual masses cannot be assigned to the PMS stars. Thus, we simply count the number of PMS stars and adopt an average mass value to estimate $n_{\rm PMS}$ and $m_{\rm PMS}$. To compute the average PMS mass value we use the Kroupa (2001) initial mass function[*] for PMS masses between $0.08{-}7~\mbox{$M_\odot$ }$. The result is $\bar{m}_{\rm PMS}=0.6~\mbox{$M_\odot$ }$. Taking the uncertainty in $R_{\rm RDP}$ into account (Table 2), we obtain for Cr 197 $n_{\rm MS}=26^{+10}_{-7}$, $m_{\rm MS}=172^{+66}_{-46}~\mbox{$M_\odot$ }$, $n_{\rm PMS}=809^{+170}_{-62}$, and $m_{\rm PMS}=485^{+78}_{-37}~\mbox{$M_\odot$ }$. Thus, Cr 197 contains $\approx$835 stars and $\mbox{$M_{\rm clu}$ }\approx660^{+102}_{-59}~\mbox{$M_\odot$ }$ of stellar mass. The values for vdB 92 are $n_{\rm MS}=13^{+8}_{-5}$, $m_{\rm MS}=106^{+65}_{-41}~\mbox{$M_\odot$ }$, $n_{\rm PMS}=1067^{+130}_{-50}$, and $m_{\rm PMS}=640^{+78}_{-30}~\mbox{$M_\odot$ }$. The cluster vdB 92 thus contains $\approx$1080 stars and $\mbox{$M_{\rm clu}$ }\approx750^{+101}_{-51}~\mbox{$M_\odot$ }$ of stellar mass.

Both objects present similar values of member MS and PMS stars and total mass. Besides, as anticipated by the CMDs (Fig. 6), the MS is poorly-populated in each case, to the point where the mass stored in the PMS stars is the dominant component of the cluster mass ($74\%$ in Cr 197 and $85\%$ in vdB 92). However, these masses may still be somewhat higher, since because of the differential reddening and the 2MASS photometric limit, we may not detect the very low-mass PMS stars. Also, given the presence of some dust and gas in Cr 197 and vdB 92 (Fig. 1), their total cluster masses may be a bit higher than the present estimates. Finally, that most of the mass is stored in the faint PMS stars may explain the significant discrepancies with respect to previous mass determinations made in the optical (Sect. 2).

7 Proper motions

Given the relative proximity of both clusters (Table 1), we can use proper motion data to probe kinematical properties of the member stars. For this purpose we use the Third US Naval Observatory CCD Astrograph Catalog (UCAC3, Zacharias et al. 2010), which also provides the 2MASS photometry for each star.

Proper motions were obtained for the same central coordinates and extraction radius as those used to extract the 2MASS photometry (Table 1). The region analysed is contained within $R=10\hbox {$^\prime $ }$, both for Cr 197 and vdB 92, with the comparison field located within $60\hbox{$^\prime$ }{-}80\hbox{$^\prime$ }$. Also, we applied the respective colour-magnitude filters (Sect. 5) before computing the proper motion distributions. Conversion from $\rm mas~yr^{-1}$ to $\rm km~s^{-1}$ was based on the respective cluster distances (Table 1).

\begin{figure} \par\includegraphics[width=9cm,clip]{Fig9.eps} \end{figure} Figure 9:

Proper motion distribution of Cr 197 ( top) and vdB 92 ( bottom). In both cases, the field contribution (light-grey) is subtracted from that of the $R<10\hbox {$^\prime $ }$region (heavy-solid line) to produce the intrinsic distribution (heavy-grey). Gaussians are fitted to the resulting distributions (see text for details). For clarity, error bars are only shown in the subtracted profiles.

Open with DEXTER

The proper motion distributions ( $\phi(\mu)={\rm d}N/{\rm d}\mu$) in units of number of stars per arcmin2 per $\rm km~s^{-1}$, for both the $R=10\hbox {$^\prime $ }$ and field regions, are shown in Fig. 9. The intrinsic distribution corresponds to the subtraction of the field contribution to the $R=10\hbox {$^\prime $ }$ region.

Cr 197 appears to require two components of similar velocity dispersion to describe its intrinsic proper motion distribution, while a single one applies to vdB 92. The best-fits, obtained with Gaussians, are shown in Fig. 9, and the corresponding parameters are given in Table 3. In velocity space, the 2 proper motion distributions of Cr 197 have peaks separated by $\approx$ $26~\mbox{$\rm km~s^{-1}$ }$ and $\approx$ $39~\mbox{$\rm km~s^{-1}$ }$, respectively in right ascension and declination.

Table 3:   Gaussian fit parameters.

The spatial velocity dispersion of a cluster that is in virial equilibrium can be expressed as (Spitzer 1987) $\sigma^2 = \frac{G~M_{\rm D}}{\eta~R_{\rm eff}} \approx 0.5\left(\frac{M_{\rm ... ...t)\left(\frac{R_{\rm eff}}{1~{\rm pc}}\right)^{-1}~(\mbox{$\rm km~s^{-1}$ })^2 $, where G is the gravitational constant, $M_{\rm D}$ the dynamical mass (assumed to be stored only in stars), $\eta\approx9.75$ is a constant (that roughly depends on the density profile), and $R_{\rm eff}$ is the effective, or half-light, radius. Thus, clusters with $M_{\rm D}\sim10^3~\mbox{$M_\odot$ }$ and $R_{\rm eff}\sim1$ pc are expected to present $\sigma\sim1~\mbox{$\rm km~s^{-1}$ }$.

In the last column of Table 3, we provide an estimate of the spatial velocity dispersion ( $\sigma_{\rm v}$), computed by assuming spherical symmetry for Cr 197 and vdB 92, $\sigma_{\rm v}^2=\frac{3}{2}(\sigma_\alpha^2+\sigma_\delta^2)$. Clearly, both clusters present $\sigma_{\rm v}$ values that are much higher than the expected dynamical ones[*]. Such a super-virial state has been linked to the impulsive expulsion of the parental molecular cloud's residual gas, driven essentially by the strong winds of massive stars and supernovae (Goodwin & Bastian 2006), which leads to the high rate of dissolution of the young clusters (e.g. Lada & Lada 2003). A similar scenario has been observed to occur in the dissolving OC NGC 2244, which has a spatial velocity dispersion of $\sigma_{\rm v}\approx35~\mbox{$\rm km~s^{-1}$ }$ (Chen et al. 2004), which by far exceeds the expected dynamical value (de Grijs et al. 2008).

8 Discussion

In previous sections we derived a set of astrophysical parameters for Cr 197 and vdB 92. We now compare them with the same parameters derived (using the same methods and photometry) for a sample of classical OCs, basically gravitationally bound clusters, characterised by a range of properties (e.g. age, mass, size, etc.) and located in different environments. The template sample contains some relatively nearby and bright OCs (Bonatto & Bica 2005; Bonatto et al. 2006a) together with a few projected towards the central Galaxy (Bonatto & Bica 2007). The young OCs NGC 6611 (Bonatto et al. 2006b), NGC 6823 (Bica et al. 2008a) and NGC 2239 (Bonatto & Bica 2009b), are included for comparison with gravitationally bound objects of similar ages, while the young NGC 2244 (Bonatto & Bica 2009b) might be dynamically evolving into an OB association.

\begin{figure} \par\includegraphics[width=9cm,clip]{Fig10.eps} \end{figure} Figure 10:

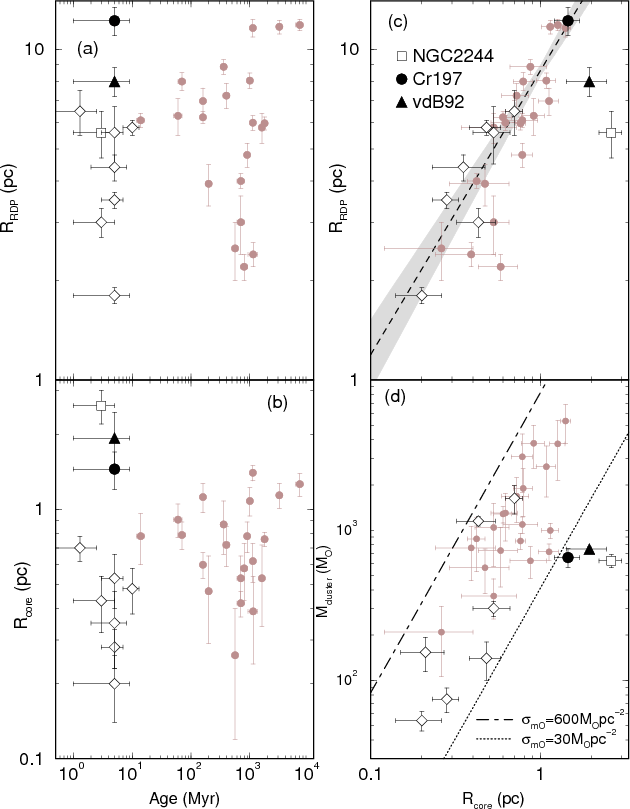

Diagrams dealing with astrophysical parameters of OCs. Grey-shaded circles: template OCs. The young OC NGC 2244 is indicated for comparison purposes. The analytical relations in panels c) and d) are discussed in the text.

Open with DEXTER

The comparisons are based on diagnostic-diagrams built with template clusters (Fig. 10). Panels (a) and (b) deal with the dependence of cluster ( $R_{\rm RDP}$) and core ($R_{\rm c}$) radii on age, respectively. In terms of $R_{\rm RDP}$, vdB 92 and, especially, Cr 197 present higher values than the other young OCs in the sample. Cr 197 is as big as some Gyr-old OCs. With respect to $R_{\rm c}$, both objects have a significantly larger core than the classical (young and old) OCs, comparable to the core of the disrupting NGC 2244. Within uncertainties, Cr 197 follows the relation $\mbox{$R_{\rm RDP}$ }=(8.9\pm0.3)\times R_{\rm C}^{(1.0\pm0.1)}$ (panel c), derived with the template sample. Similar to NGC 2244, vdB 92 is an outlier.

For gravitationally bound star clusters in which the projected mass density follows a King-like profile (e.g. Bonatto & Bica 2008) characterised by a central surface mass density $\sigma_{\it M0}$, the mass inside $R_{\rm RDP}$ can be expressed as a function of $R_{\rm c}$, $\sigma_{\it M0}$, and the ratio $R_{\rm RDP}$/$R_{\rm c}$, as $\rm {\it M}_{\rm clus}=\pi~{\it R}^2_{C}\sigma_{\it M0}\ln\left [1+\left(\mbox{$R_{\rm RDP}$ }/\mbox{$R_{\rm c}$ }\right)^2\right]$. With the relation between $R_{\rm c}$ and $R_{\rm RDP}$ implied by panel (c), this equation becomes $\rm {\it M}_{\rm clus}\approx13.8\sigma_{\it M0}~{\it R}^2_{C}$. Thus, the template OCs are constrained within King-like distributions with $\rm 30\la\sigma_{\it M0}~(\mbox{$M_\odot$ }~pc^{-2})\la600$ (panel d). Cr 197 and vdB 92 (together with NGC 2244) are outliers with respect to the distribution of bound OCs in the plane $R_{\rm C}\times M_{\rm clus}$, in the sense that their locii imply exceedingly low central mass densities ( $\rm 4\la\sigma_{\it M0}~(\mbox{$M_\odot$ }~pc^{-2})\la30$). Significantly smaller core radii and/or higher cluster mass would be required for them to be contained within the classical OC boundaries.

Together with the kinematical analysis (Sect. 7), a possible conclusion that can be drawn from this comparison with classical bound OCs is that Cr 197 and vdB 92 may be evolving into OB associations and/or towards dissolution. Given their young ages, the determining factor for this behaviour is certainly related to another mechanism than age-dependent dynamical evolution. Instead, it is probably associated with the primordial star formation process, or even earlier, to the molecular cloud fragmentation. Both clusters may have been formed with dynamically hot stellar components, so are unstable against dissolution (e.g. Goodwin 2009). A similar conclusion was reached for some equally young objects, but with very different masses: NGC 2244 (Bonatto & Bica 2009b) and Bochum 1 (Bica et al. 2008a) have comparable stellar masses ( $\mbox{$M_{\rm clu}$ }\sim600~\mbox{$M_\odot$ }$), while NGC 1931 and Pismis 5 (Bonatto & Bica 2009c) are at the low-mass end ( $\mbox{$M_{\rm clu}$ }\sim180~\mbox{$M_\odot$ }$, and $\mbox{$M_{\rm clu}$ }\sim60~\mbox{$M_\odot$ }$, respectively). Thus, early star cluster dissolution appears to leave detectable imprints also on the structure (e.g. RDP) of clusters as massive as several hundred solar masses.

9 Summary and conclusions

Given the complex interplay among environmental conditions, star-formation efficiency, initial dynamical state of the stellar content, and the total mass converted into stars or expelled, the majority of the embedded clusters do not survive the first few ten Myr, especially the low-mass ones. In this context, it is important to investigate the structural and photometric properties of OCs (with a mass range and in different environments) that are undergoing this early phase.

In the present paper we derive astrophysical parameters and investigate the nature of the young OCs Cr 197 and vdB 92. Their location in the $3{\rm rd}$ Galactic quadrant minimises contamination by field stars. We work with field-star decontaminated 2MASS photometry (with errors $\la$0.1 mag), which enhances CMD evolutionary sequences and stellar RDPs, yielding more constrained fundamental and structural parameters.

The decontaminated CMDs are characterised by similar properties, an under populated and developing MS, a dominant fraction ($\ga$$75\%$) of PMS stars, and some differential reddening. In both cases, the MS and PMS CMD morphologies consistently imply a time-spread of $\sim$10 Myr in the star formation. Thus, we set the age of Cr 197 and vdB 92 as constrained within $5\pm4$ Myr. Their MS+PMS stellar masses are $\approx$ $660^{+102}_{-59}~\mbox{$M_\odot$ }$ (Cr 197) and $\approx$ $750^{+101}_{-51}~\mbox{$M_\odot$ }$ (vdB 92). By means of the proper motion of the member MS and PMS stars, we estimate their velocity dispersions to be in the range $\approx$ $15~\mbox{$\rm km~s^{-1}$ }$ to $\approx$ $22~\mbox{$\rm km~s^{-1}$ }$.

Compared to a set of classical bound OCs, both Cr 197 and vdB 92 appear to have core and cluster radii that are abnormally large, with $\mbox{$R_{\rm c}$ }\approx1.5,~1.9$ pc and $\mbox{$R_{\rm RDP}$ }\approx12,~8$ pc, respectively for Cr 197 and vdB 92. Structurally, the stellar RDPs follow a cluster-like profile for most of the radial range, except in the central region, where they have a pronounced cusp. At less than about 10 Myr, this cusp is probably related to the star formation and/or molecular cloud fragmentation, and not the product of dynamical evolution. A possible conclusion is that Cr 197 and vdB 92 deviate critically from dynamical equilibrium, and similar to the equally young NGC 2244 and Bochum 1 (of comparable mass), and Pismis 5 and NGC 1931 (of significantly lower mass), they are heading towards dissolution. This interpretation is also consistent with the super-virial state of both clusters (as well as the dissolving OC NGC 2244), which have velocity dispersions that are much higher than the $\sigma_{\rm v}\approx1~\mbox{$\rm km~s^{-1}$ }$ expected for nearly virialised clusters of similar mass and size as Cr 197 and vdB 92. In this context, Cr 197 and vdB 92 may be taken as a link between embedded clusters and young stellar associations.

We provide evidence that early star cluster dissolution may be detected, for instance, by means of important and systematic irregularities in the stellar radial density profile of clusters as massive as several $10^2~\mbox{$M_\odot$ }$. Studies like the present one are important for a better understanding of the crucial early evolution of embedded star clusters - and the dependence on mass and environment - that rarely result in a classical bound OC or, more frequently, lead to their dissolution into the field.

Acknowledgements
We thank the referee, Simon Goodwin, for interesting comments and suggestions. We acknowledge support from the Brazilian Institution CNPq. This publication makes use of data products from the Two Micron All Sky Survey, which is a joint project of the University of Massachusetts and the Infrared Processing and Analysis Centre/California Institute of Technology, funded by the National Aeronautics and Space Administration and the National Science Foundation. This research has made use of the WEBDA database, operated at the Institute for Astronomy of the University of Vienna.
