A&A 516, A15 (2010)

Discovery of a magnetic neutron star in X-ray transient IGR J01583+6713

W. Wang

National Astronomical Observatories, Chinese Academy of Sciences, Beijing 100012, PR China

Received 28 August 2009 / Accepted 5 March 2010

Abstract
Aims. IGR J01583+6713 is a new transient source discovered by the INTEGRAL/IBIS hard X-ray surveys. Optical observations have provided evidence that it is a high mass X-ray binary, but its nature remains unclear.
Methods. We used the INTEGRAL/IBIS data to study IGR J01583+6713 during its outburst.
Results. We present the temporal profiles and spectral properties of IGR J01583+6713 around its outburst on 2005 Dec. 6. During the outburst, the mean X-ray luminosity reached around $4\times 10^{35}$ erg s-1 in the energy range of 20-100 keV. The continuum spectrum can be fitted by a bremsstrahlung model of $kT\sim 35$ keV or a power-law model of $\Gamma\sim 2.1$. In addition, the electron resonant cyclotron absorption lines were detected at $\sim $35 keV and possible at $\sim $67 keV, implying that a magnetic neutron star of $B\sim 4\times 10^{12}$ G is located in IGR J01583+6713. We class IGR J01583+6713 as a transient X-ray sources with a magnetic neutron star. After the outburst, the flux of IGR J01583+6713 decreased and could not be detected by IBIS after 2005 Dec. 10. During the outburst, we cannot confirm the possible pulse period at 469 s previously reported and did not detect the modulation signals in the range of 200-2000 s with the IBIS observations.
Conclusions. The transient hard X-ray source IGR J01583+6713 contains a magnetic neutron star, which would help to understand its transient nature.

Key words: stars: individual: IGR J01583+6713 - stars: neutron - binaries: general - X-rays: binaries

1 Introduction

The transient X-ray source IGR J01583+6713 was discovered by the the soft Gamma-ray Imager (IBIS/ISGRI) onboard The INTErnational Gamma-Ray Astrophysics Laboratory (INTEGRAL) during the observation of Cas A region on 2005 December 6 (Steiner et al. 2005). Subsequent INTEGRAL observations in the same region from 2005 Dec. 8-10 showed that the X-ray flux of IGR J01583+6713 was decreasing (Steiner et al. 2005). Swift observations also found this source on 2005 Dec. 13, and revealed that it is highly absorbed with $N_{\rm H}\sim 10^{23}$ cm-2 (Kennea et al. 2005). Follow-up optical and infrared observations identified the X-ray source as a Be star (Halpern et al. 2005). Based on optical spectroscopy, Masetti et al. (2006) classified the counterpart as an early-type star (O8 III or O9 V) in the Galaxy with a distance of $\sim $6.4 kpc, ruling out the possibility of both a supergiant companion and the source either being a low-mass X-ray binary or a cataclysmic variable.

Kaur et al. (2008) carried out a multiwavelength study on the transient source IGR J01583+6713, identified the spectral type of the companion star to be B2 IVe, and suggested a distance of $\sim $4 kpc. From the Swift observations, they also reported a possible pulse period of $\sim $469 s, but the evidence of pulsation was only marginal (Kaur et al. 2008), requiring additional confirmation.

We present results of the INTEGRAL/IBIS observations during the outburst state of IGR J01583+6713 that occurred in 2005 December. By reanalyzing these data, we attempt aim to study the hard X-ray spectral properties of the source both during and after the outburst. During the outburst state, we attempt search for the possible pulsation period using IBIS data. In Sect. 2, observations and data analysis are presented. We show the spectral results in Sect. 3 and timing analysis in Sect. 4. A summary of our results and brief discussions is presented in the last section.

2 INTEGRAL/IBIS observations and data analysis

Table 1:   INTEGRAL/IBIS observations of the field around IGR J01583+6713.

The present database was obtained from the INTEGRAL observations of the Cas A region performed from 2005 December 5-16 (MJD 53 709-53 720), from the part of INTEGRAL satellite revolutions 384-387. We used data from the coded mask imager IBIS/ISGRI (Lebrun et al. 2003; Ubertini et al. 2003) for a total exposure of $\sim $450 ks (also see Table 1) after screening for solar-flare events and erratic count fluctuations due to passages through the Earth's radiation belts.

The analysis was performed with the standard INTEGRAL off-line scientific analysis (OSA, Goldwurn et al. 2003) software, ver. 7.0. Individual pointings processed with OSA 7.0 were mosaicked to create sky images according to the methods and processes described in Bird et al. (2007). And we used the 20-60 keV band for source detection and to quote fluxes (see Fig. 1 and Table 1).

In revolution 384 (2005 Dec. 5-7), X-ray source IGR J01583+6713 was detected at the outburst state with a significance level of $\sim $ $16.2\sigma$. And from Dec. 8-10, the mean flux of IGR J01583+6713 decreased to less than half of its value in its outburst state, with a detection significance level of $\sim $$ 7.3\sigma$. But after 2005 Dec. 11, IGR J01583+6713 could not be detected by IBIS (Table 1). In the present analysis, we use the data in two revolutions 384 and 385 for the scientific studies.

In the IBIS observations of IGR J01583+6713, it should also be noted that some observations had large off-axis angles (e.g., >$12^\circ$). Because the mask transmission at large off-axis angles is affected by the mask support structure in a complex way that cannot not be easily modelled, timing analysis for large off-axis angles >$12^\circ$ could be subject to significant systematic errors due to limitations in the off-axis corrections performed (private communications from the IBIS group). The flux error bars may also become significantly larger for large off-axis angles due to lower effective exposures. Therefore, in the scientific studies (spectral and timing analysis) of IGR J01583+6713, we only use the data with the off-axis angles <$12^\circ$ in the following analysis. The remaining on-source time in the following science analysis is then about 51 ks and 75 ks for Rev 384 and Rev 385, respectively.

Extraction of spectra and light curves for then two revolutions 384 and 385 was also carried out in the OSA software system. In the timing analysis, because of the sensitivity limits of IBIS/ISGRI detector, the minimum time intervals are taken to be about 70 s and $\sim $300 s for the outburst state Rev 384 and Rev 385, respectively.

\begin{figure} \par\includegraphics[width=9cm,clip]{13196fg1.eps} \end{figure} Figure 1:

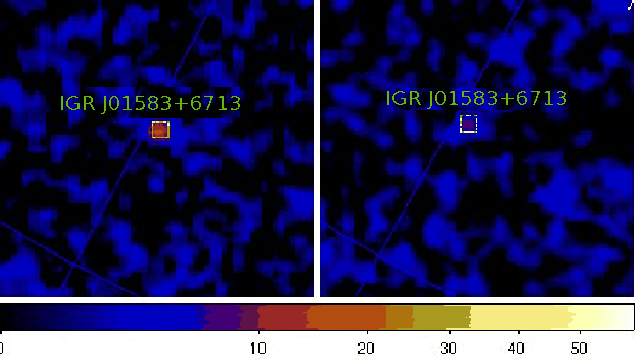

Significance mosaic maps around IGR J01583+6713 in Equatorial J2000 coordinates as seen with INTEGRAL/IBIS in the energy range of 20-60 keV in two revolutions: 384 ( left, outburst), 385 ( right, flux decreasing). False color representation of significance is displayed on a logarithmic scale.

Open with DEXTER

Table 2:   Different fits to the spectrum of IGR J01583+6713 during the outburst state.

3 Spectral properties

As a transient X-ray source, IGR J01583+6713 was only detected by IBIS during the outburst state around 2005 Dec. 6 and just few days after the outburst. In this section, we present the spectral properties of the transient source IGR J01583+6713 in the range 20-200 keV during the outburst (Rev 384) and after the outburst (Rev 385) separately. The spectral analysis software package used is XSPEC 12.4.0x[*] (Arnaud 1996).

\begin{figure} \par\includegraphics[angle=-90,width=9cm]{13196fg2a.ps}\vspace*{1... ...\includegraphics[angle=-90,width=9cm]{13196fg2b.ps}\vspace*{-1.5mm} \end{figure} Figure 2:

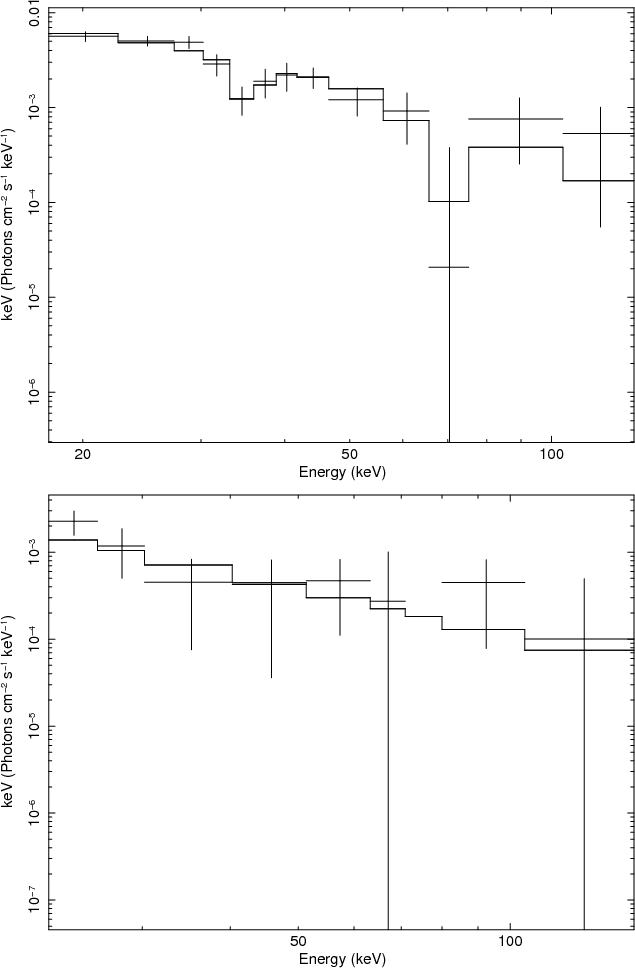

Top: the hard X-ray unfolded spectrum of IGR J01583+6713 during the outburst from 2005 Dec. 6-7. The spectrum was fitted using either a bremsstrahlung model of $kT\sim 35.2~\pm~ 4.1$ plus two cyclotron resonant absorption lines at $\sim $ $35.3~\pm~ 1.6$ keV and $\sim $ $67.9~\pm ~4.8$ keV, or a single power-law model plus two lines at 35.1 $\pm $  2.1 keV and 65.8 $\pm $ 4.9 keV. Bottom: the hard X-ray unfolded spectrum of IGR J01583+6713 after the outburst from 2005 Dec. 8-10. The spectrum can be fitted by a single power law model of $\Gamma\sim 2.7~\pm ~0.6$. See details in the text.

Open with DEXTER

In revolution 384, IGR J01583+6713 was detected at a high significance level (>$16\sigma$). The spectrum of this source in the outburst state is presented in Fig. 2, top panel. We first used two models to fit the spectrum: a thermal bremsstrahlung model and a power-law model. The 20-120 keV spectrum was fitted by a thermal bremsstrahlung model with $kT \sim 25.1\pm 1.9$ keV (reduced $\chi^2 \sim 1.211$, 11 degree of freedom, thereafter d.o.f.). The derived hard X-ray flux from 20-100 keV was determined to be $(1.91\pm 0.36)\times 10^{-10}$ erg cm-2 s-1, corresponding to a hard X-ray luminosity of $\sim $ $(3.8~\pm ~0.7)\times 10^{35}$ erg s-1 when assuming a distance of 4 kpc (Kaur et al. 2008). This spectrum was also fitted by a power-law model, with $\Gamma\sim 2.35\pm 0.18$ (reduced $\chi^2 \sim 1.290, 11$ d.o.f.), and the derived flux (20-100 keV) is about $(2.2\pm 0.5)\times 10^{-10}$ erg cm-2 s-1, corresponding to a hard X-ray luminosity of $\sim $ $(4.4\pm 0.9)\times 10^{35}$ erg s-1.

In both fits, we found that an absorption feature around 30-40 keV cannot be fitted, and another possible feature around 60-70 keV also exists. These features are probably related to the electron cyclotron resonance scattering feature (CRSF) in the transient source. We therefore used the thermal bremsstrahlung/power-law model to fit the continuum, and added the cyclotron resonant absorption model by using the XSPEC cyclabs to the continuum fit (see Fig. 2 top panel). In the power-law fit case, we derived $\Gamma\sim 2.13\pm 0.53$ in addition to a CRSF at $E_{\rm cyc}\sim 35.1\pm 2.1$ keV (F-test probability: $3.9\times 10^{-9}$) with a line width of ${\it FWHM} \sim 1.1\pm 0.4$keV and a depth 1.75$\pm 0.59$, and another feature at 65.8$\pm 4.9$ keV (F-test probability: 0.009) with a line width of ${\it FWHM} \sim 4.1\pm 2.4$ keV and a depth $0.81\pm 0.56$ (reduced $\chi^2 \sim 0.989, 5$ d.o.f.). We also carried out the fit with a bremsstrahlung model plus the CRSF on the spectrum. We then also found two absorption features in the fit, and obtained $kT\sim 35.2\pm 4.1$ keV plus a CRSF at $35.3\pm 1.6$ keV (F-test probability: $5.6\times 10^{-10}$) with a ${\it FWHM} \sim 1.2\pm 0.4$ keV and a depth of $\sim $ $1.98\pm 0.71$, the other CRSF at $67.9\pm 4.8$ keV (F-test probability: 0.011) with a ${\it FWHM} \sim 4.4\pm 2.5$ keV and a depth of $\sim $ $0.93\pm 0.55$ (reduced $\chi^2 \sim 0.828, 5$ d.o.f., see Fig. 2, top panel and Table 2).

After the outburst from 2005 Dec. 8-10, IGR J01583+6713 was detected by IBIS at a lower significance level $\sim $$7\sigma$. The spectrum after the outburst is displayed in the bottom panel of Fig. 2. The 20-100 keV spectrum could be described by a single power-law model of the photon index $\Gamma\sim 2.7\pm 0.6$(reduced $\chi^2 \sim 0.929, 7$ d.o.f.). No significant absorption features are detected. The derived flux is $\sim $ $(7.1\pm 2.8)\times 10^{-11}$ erg cm-2 s-1 from 20-100 keV, corresponding to a mean luminosity of $\sim $(1.4 $\pm $ 0.5) $\times$ 1035 erg s-1.

4 Timing analysis

From one SWIFT observation, during which the X-ray intensity was higher, Kaur et al. (2008) had a possible pulse detection with a period of 469.2 s. This detection was, however marginal. Thus, using the data of the IBIS observations during the outburst state of the transient hard X-ray source IGR J01583+6713, we attempt to search for the possible pulse period.

\begin{figure} \par\includegraphics[angle=-90,width=9cm,clip]{13196fg3a.ps}\par\includegraphics[angle=-90,width=9cm,clip]{13196fg3b.ps} \end{figure} Figure 3:

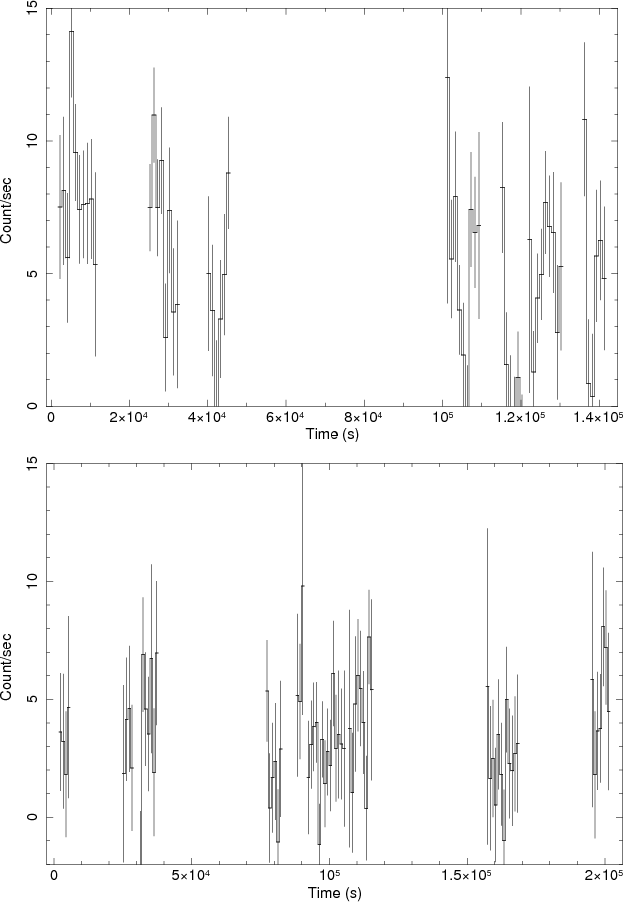

The IBIS/ISGRI background subtracted light curve of IGR J01583+6713 from 20-60 keV. Top: the light curve in Rev 384 starting at MJD 53 710.101 (2005 Dec. 6) with the bin time of 1000 s. Bottom: the light curve in Rev 385 starting at MJD 53 712.159 (2005 Dec. 8) with the bin time of 1000 s.

Open with DEXTER

\begin{figure} \par\includegraphics[width=8cm,clip]{13196fg4a.eps}\vspace*{1.5mm} \includegraphics[width=8cm,clip]{13196fg4b.eps} \end{figure} Figure 4:

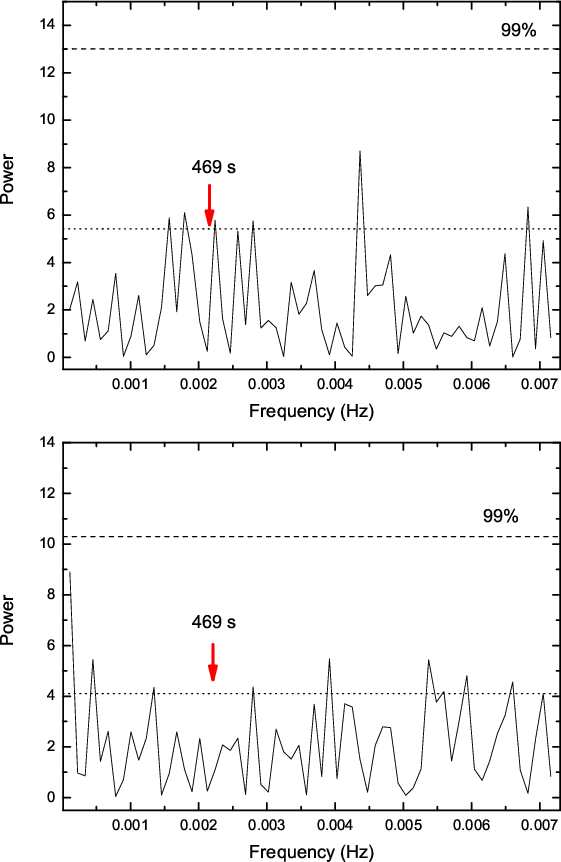

The power spectra of the IBIS light curve of IGR J01583+6713 for the outburst state on 2005 Dec. 6: ( top) from MJD 53 710.101-53 710.219; ( bottom) MJD 53 710.370-53 710.457. The possible period at 469 s reported by Kaur et al. (2008) is also noted in both power spectra. The dashed and dotted lines present the $99\%$ significant levels for white noise and red noise respectively.

Open with DEXTER

The light curve of IGR J01583+6713 from 2005 Dec. 6-7 observed by IBIS/ISGRI in the energy range of 20-60 keV is shown in Fig. 3 top panel. The background count rate was subtracted and the barycentric corrections were also performed. The count rates were rebinned in intervals of 1000 s in the plot for clarity. During the outburst on 2005 Dec. 6, the count rate reached $\sim $10 cts s-1. On Dec. 7, the rate decreased to $\sim $5 cts s-1. From 2005 Dec. 8-10 (revolution 385, Fig. 3 bottom panel), the count rate was around 3 cts s-1. After the outburst on Dec. 6, the X-ray flux of the transient source IGR J01583+6713 decreased.

\begin{figure} \par\includegraphics[angle=-90,width=9cm,clip]{13196fg5a.ps}\vspace*{1.5mm} \includegraphics[angle=-90,width=9cm,clip]{13196fg5b.ps} \end{figure} Figure 5:

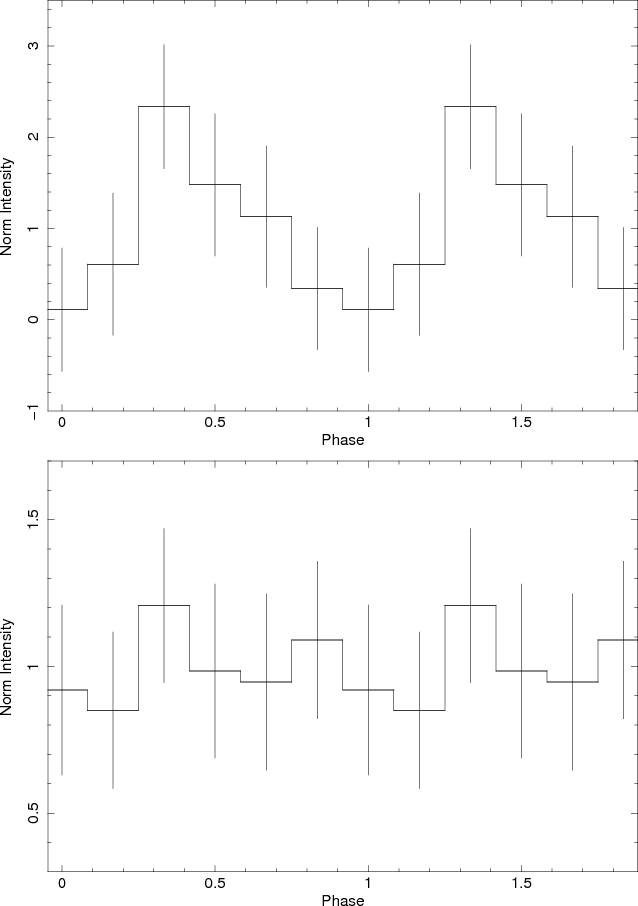

The IBIS/ISGRI light curves (20-60 keV) of IGR J01583+6713 folded at a possible pulsation period (469 s) for the observational data of two time intervals in outbursts: MJD 53 710.101-53 710.219 ( top); and MJD 53 710.370-53 710.457 ( bottom). The pulse profile is repeated once for clarity.

Open with DEXTER

\begin{figure} \par\includegraphics[angle=-90,width=9cm,clip]{13196fg6a.ps}\vspace*{1.5mm} \includegraphics[angle=-90,width=9cm,clip]{13196fg6b.ps} \end{figure} Figure 6:

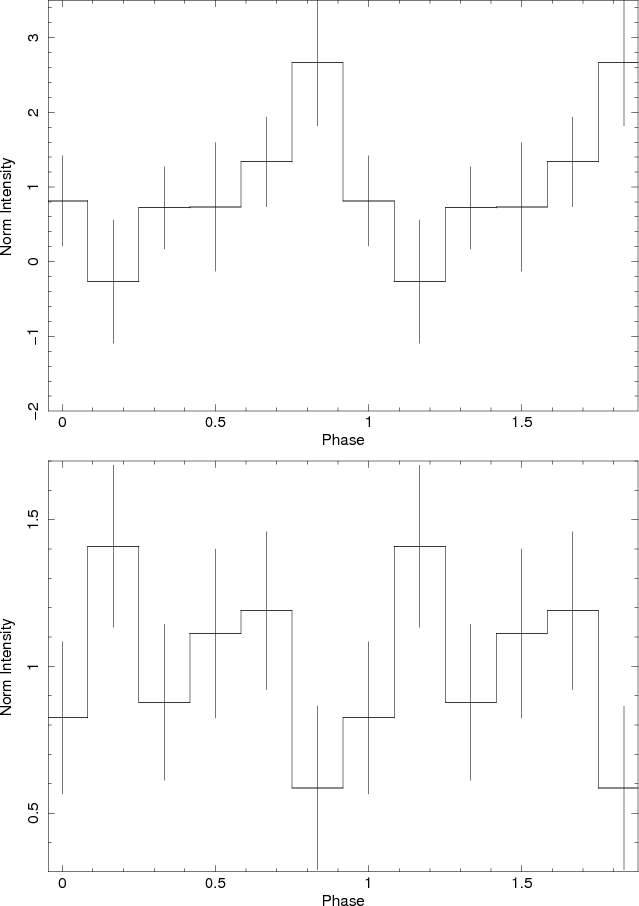

The IBIS/ISGRI light curves (20-60 keV) of IGR J01583+6713 folded at a possible pulsation period (230 s) for the observational data of two time intervals in outbursts: MJD 53 710.101-53 710.219 ( top); and MJD 53 710.370-53 710.457 ( bottom). The pulse profile is repeated once for clarity.

Open with DEXTER

To search for the modulation signal in the X-ray light curves, we applied the FFT to the IBIS/ISGRI light curves of IGR J01583+6713 during the outburst on 2005 Dec. 6. We used powspec of the Xronos software package ver. 5.21[*] available from NASA's HEASARC for the power density spectrum analysis. To estimate the significance level of the possible detected peak signals in the power spectra, we considered the white and red noise significance levels. The $99\%$ white noise significance level was estimated using Monte Carlo simulations (see examples in Kong et al. 1998). The $99\%$ red noise significance level was estimated using the REDFIT35 subroutine (Schulz & Mudelsee 2002)[*], which fits a first-order autoregressive process to the time series to estimate the red-noise spectrum.

\begin{figure} \par\includegraphics[width=9cm,clip]{13196fg7.eps} \end{figure} Figure 7:

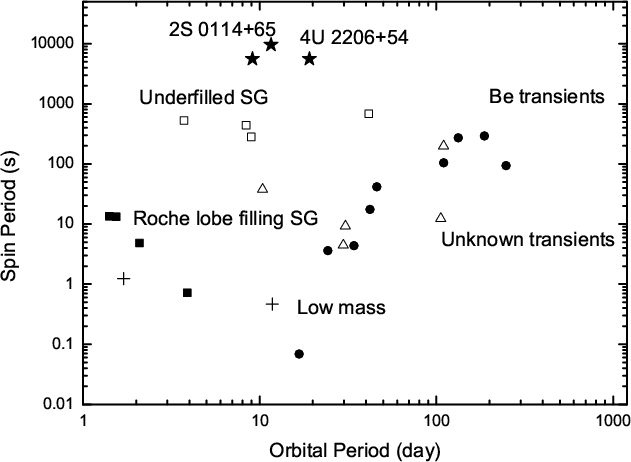

The spin period-orbital period diagram for the accreting neutron star systems (the Corbet diagram, Corbet 1986). The data point for 2S 0114+65 is taken from Farrell et al. (2008); the data point for 4U 2206+54 is taken from Wang (2009), two possible values of orbital period: 9.6 day and 19.1 day are both shown in this diagram; other points are taken from Bildsten et al. (1997). There exist a positive correlation between $P_{\rm spin}{-}P_{\rm orbit}$ for the Be transient systems; and a possible negative correlation for the disk-accretion system including Roche lobe filling supergiants and low mass systems. For the underfilled Roche lobe supergiants and two long-pulsation systems 2S 0014+65 and 4U 2206+54, which all belong to wind-fed accretion systems, the possible relation $P_{\rm spin}{-}P_{\rm orbit}$ differing from that of the Be transients.

Open with DEXTER

The hard X-ray count rates of IGR J01583+6713 in the outburst were obtained in several time intervals (see Fig. 3 top panel). In two time intervals, MJD 53 710.101-53 710.219 and MJD 53 710.370-53 710.457, the detected flux from IGR J01583+6713 had a count rate higher than 5 cts s-1, so we applied the FFT to these two light curves to search for possible modulation features. The derived power spectra of two outburst light curves were presented in Fig. 4, binned in 70 s intervals. The position of the pulse period at 469 s was identified in two power spectra, but no significant peak signals were found around 469 s in both power spectra. For the time interval MJD 53 710.101-53 710.219, we found a possible peak feature at $\sim $230 s (Fig. 4 top panel), but it may be caused by the noise (significantly lower than the $99\%$ white noise level and just a little higher than the $99\%$red noise level). In addition, this possible feature around 230 s was not found in the time interval MJD 53 710.370-53 710.457. Therefore, using the power spectrum analysis of our present IBIS data, we did not detect any possible modulation period signals in the X-ray light curves from 200-2000 s.

We note that the 469 s period was found by means of the pulse-folding technique (Kaur et al. 2008). We were also able to derive the folded profiles by folding the hard X-ray light curves at the possible pulse period. We folded the X-ray light curves using the efold tool of the Xronos software package. The folded pulse profiles were derived for two possible period values indicated in this work 469 s and 230 s (see Figs. 5 and 6). The folded profiles at both two periods of 469 s and 230 s from MJD 53 710.101-53 710.219 show the possible pulse features with the pulse fraction near $100\%$, if we assume this pulse period to be true. From MJD 53 710.370-53 710.457, significant pulse features do not appear in the folded profiles (large error bars can make the profiles look almost flat). When only considering pulse-folded profiles, we may find two possible period values: 469 s and 230 s. Only one of them may be the true period or both of them are not. However, both two period signals have not been detected in power spectrum analysis. Therefore the pulse-folding technique would not be a good tool for blindly searching for the possible period signal at the first step. The possible pulse period of 469 s cannot be confirmed with the IBIS data.

In addition, we could also check the possible pulse period at 469 s in a different way. In Fig. 7, we show the $P_{\rm spin}{-}P_{\rm orbit}$ diagram for known neutron star X-ray binaries (Corbet diagram, Corbet 1986). From optical identification (Masetti et al. 2006), IGR J01583+6713 may be a Be/X-ray star that might follow the previously found correlation between orbital period and pulse period in the classic Be star/neutron star binary systems (Corbet 1986). With the possible pulse period at 469 s, Kaur et al. (2008) estimated that the X-ray binary IGR J01583+6713 has an orbital period in the range 216-561 days assuming the maximum eccentricity of the orbit to be 0.47 for Be binaries as observed by Bildsten et al. (1997). Some neutron-star binary systems like underfilled Roche lobe supergiants and 4U 2206+54, 2S 0114+65 are powered by direct wind accretion. These systems may follow a $P_{\rm spin}{-}P_{\rm orbit}$relation that is quite different from that of the Be transient systems. If IGR J01583+6713 were to follow the possible relation (i.e., one that is not clearly evident) of wind accretion systems, assuming a pulse period of 469 s, IGR J01583+6713 may have a possible orbital period in the range 3-12 days.

To search for the possible orbital modulation signal of IGR J01583+6713, we used the archival one-day average RXTE/ASM data[*]. We downloaded the one-day average RXTE/ASM data for IGR J01583+6713 from 2000 Jan to 2009 Dec. and applied the FFT to the ten years of light curve data. The power spectrum of the RXTE/ASM data is presented in Fig. 8, but no significant features are apparent. In the range of 216-561 days, no peak features were found, and in the range of 3-12 days, two possible signals at $\sim $7.7 days and $\sim $10.6 days could be noise signals which are significantly lower than the $99\%$ white noise level. Therefore, with the RXTE/ASM data, we have not found any possible orbital period within the interval 3-1000 days, so we also cannot confirm the possible pulsed period at 469 s yet assuming the possible correlation between the spin period and orbital period in neutron star binaries.

\begin{figure} \par\includegraphics[width=8cm,clip]{13196fg8.eps} \end{figure} Figure 8:

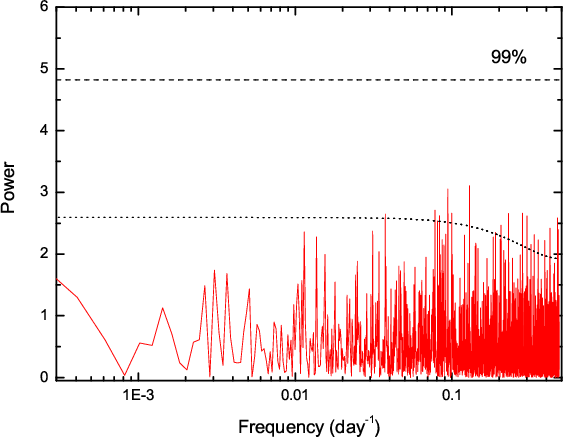

The power spectrum of the ASM light curve of IGR J01583+6713 from 2000 Jan. to 2009 Dec. We have not detected any significant modulation signals during the interval 4-1000 days. The possible peak features at $\sim $7.7 days and $\sim $10.6 days are probably noise signals, which are significantly lower than the $99\%$ white noise level (dashed line). The dotted line presents the $99\%$ red noise significant level.

Open with DEXTER

5 Summary and discussion

We have attempted to determine the nature of the transient hard X-ray source IGR J01583+6713 using IBIS/ISGRI observations acquired during the outburst state around 2005 Dec. 6. During the outburst, IGR J01583+6713 had an average luminosity of $\sim $ $4\times 10^{35}$ erg s-1 in the energy interval 20-100 keV. The spectrum of IGR J01583+6713 can be described by both a thermal bremsstrahlung model with $kT\sim 35$ keV plus two resonant cyclotron absorption lines at $\sim $ $35.3\pm 1.6$ keV and $\sim $ $67.9~\pm ~4.8$ keV and a single power-law model plus two lines at $35.1~\pm ~2.1$ keV and $65.8~\pm ~4.9$ keV. We can estimate the magnetic field of the compact object in IGR J01583+6713 according to a formula

\begin{displaymath}[B/10^{12}~{\rm G}]=[E_{\rm cycl}/11.6{\rm keV}](1+z), \end{displaymath} (1)

where $E_{\rm cycl}$ is the energy of the fundamental line, which we assume to be $E_{\rm cycl}=35\pm 3$ keV, and z is the gravitational redshift near the surface of the neutron star. For a canonical neutron star of 1.4  $~M_{\odot}$ with a radius of 10 km, we can take $z\sim 0.3$ (Kreykenbohm et al. 2004). Then we found a magnetic field of $\sim $ $(4.0\pm 0.4) \times 10^{12}$ G for IGR J01583+6713. Thus, the compact object in IGR J01583+6713 should be a magnetic neutron star.

Timing analysis was also carried out during the outburst to search for the possible pulsation period. The possible pulsation period at $\sim $469 s reported by Kaur et al. (2008) cannot be confirmed by our power spectrum analysis. In the time interval of MJD 53 710.101-53 710.219, a possible feature at 230 s was found in the power spectrum, which is still significantly lower than the $99\%$ white noise level. However, the folded light curves at both 230 s and 469.2 s from MJD 53 710.101-53 710.219 show possible pulse profiles. The pulse-folding technique may therefore provide some incorrect information about the blind period search. In addition, with the present IBIS observations, we have not detected any possible modulation period in the range 200-2000 s, and present RTXE/ASM data does no exhibit any orbital modulation signals in the range 3-1000 days.

After the outburst, the hard X-ray flux of IGR J01583+6713 decreased according to our observations. During the interval 2005 Dec. 8-10, the mean X-ray luminosity was around $\sim $ $1.4\times 10^{35}$ erg s-1 in the range of 20-100 keV. The spectrum could be fitted by a power-law model of $\Gamma\sim 2.7$. Because of the detection of a low significance level ($\sim $$7\sigma$), the CRSF was not found after the outburst. The derived power-law slope of $\sim $2.7 is generally steeper than those of other neutron star X-ray binaries (around 1.7-2.1, e.g. see Wang 2009; Farrell et al. 2008). A large uncertainty of 0.6 still exists, which requires confirmation.

The transient X-ray pulsar IGR J01583+6713 may represent a link to the supergiant fast X-ray transients (SFXTs) in some supergiant high mass X-ray binaries (e.g., Sguera et al. 2006) belonging to wind-fed systems. These transients show soft gamma-ray time-structured bursts of durations from several hours to about 2 days detected by INTEGRAL/IBIS observations. The mean X-ray luminosity reaches around 10 35-1036 erg s-1, while in quiescence, the X-ray luminosity is only $\sim $1033 erg s-1 (Sguera et al. 2006). These behaviors of SFXTs are similar to those of the transient X-ray pulsar IGR J01583+6713, though IGR J01583+6713 has a different companion from SFXTs. Soft X-ray monitoring of IGR J01583+6713 found that in quiescence after the outburst, the X-ray luminosity of IGR J01583+6713 decreased to several 1033 erg s-1 (Kaur et al. 2008). Both the origin of transient X-ray pulsars and the mechanisms that produce SFXTs are at present unkown. Connections between them would help us to understand common physical properties in transient or suddenly enhanced accretion systems. Thus, future detailed studies of the transient source IGR J01583+6713 would certainly enhance our understanding of the physical origin and connections of both SFXTs and transient X-ray pulsars.

Acknowledgements
We are grateful to the referee for the suggestions of improving the manuscript and to X. L. Zhang for the preparation of some figures. This paper is based on observations of INTEGRAL, an ESA project with instrument and science data center funded by ESA member states (principle investigator countries: Denmark, France, Germany, Italy, Switzerland and Spain), the Czech Republic and Poland, and with participation of Russia and US. W. Wang is supported by the National Natural Science Foundation of China under grants 10803009, 10833003.

References

  1. Arnaud, K. A. 1996, in Astronomical Data Analysis Software and Systems V, ASP Conf. Ser., 101, 17 [Google Scholar]
  2. Bird, A. J., Malizia, A., Bazzano, A., et al. 2007, ApJS, 170, 175 [NASA ADS] [CrossRef] [Google Scholar]
  3. Corbet, R. H. D. 1986, MNRAS, 220, 1047 [NASA ADS] [CrossRef] [Google Scholar]
  4. Corbet, R. H. D., Markwardt, C. B., & Tueller, J. 2007, ApJ, 655, 458 [NASA ADS] [CrossRef] [Google Scholar]
  5. Farrell, S. A., Sood, R. K., O'Neill, P. M., & Dieters, S. 2008, MNRAS, 389, 608 [NASA ADS] [CrossRef] [Google Scholar]
  6. Goldwurm, A., David, P., Foschini, L., et al. 2003, A&A, 411, L223 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  7. Halpern, J. P., & Tyagi, S. 2005, The Astronomer's Telegram, 681 [Google Scholar]
  8. Ikhsanov, N. R. 2007, MNRAS, 375, 698 [NASA ADS] [CrossRef] [Google Scholar]
  9. Kaur, R., Paul, B., Kumar, B., & Sagar, R. 2008, MNRAS, 386, 2253 [NASA ADS] [CrossRef] [Google Scholar]
  10. Kennea, J. A., Racusin, J. L., Burrows, D. N., et al. 2005, The Astronomer's Telegram, 673 [Google Scholar]
  11. Kong, A. K. H., Charles, P. A., & Kuulkers, E. 1998, NewA, 3, 301 [Google Scholar]
  12. Kreykenbohm, I., Wilms, J., Coburn, W., et al., 2004, A&A, 427, 975 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  13. Lebrun, F., Leray, J. P., Lavocat, P., et al. 2003, A&A, 411, L141 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  14. Li, X. D., & van den Heuvel, E. P. J. 1999, ApJ, 513, L45 [NASA ADS] [CrossRef] [Google Scholar]
  15. Masetti, N., Bassani, L., Bazzano, A., et al. 2006, A&A, 455, 11 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  16. Protassov, R., van Dyk, D. A., Connors, A., Kashyap, V. L., & Siemiginowska, A. 2002, ApJ, 571, 545 [NASA ADS] [CrossRef] [Google Scholar]
  17. Reig, P., Torrejón, J. M., Negueruela, I., et al. 2009, A&A, 494, 1073 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  18. Schulz, M., & Mudelsee, M. 2002, Comput. Geosci., 28, 421 [Google Scholar]
  19. Sguera, V., Bazzano, A., Bird, A. J., et al. 2006, ApJ, 646, 452 [NASA ADS] [CrossRef] [Google Scholar]
  20. Steiner, C., Eckert, D., Mowlavi, N., Decourchelle, A., & Vink, J. 2005, The Astronomer's Telegram, 672 [Google Scholar]
  21. Ubertini, P., Lebrun, F., Di Cocco, G., et al. 2003, A&A, 411, L131 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  22. Wang, W. 2009, MNRAS, 398, 1428 [NASA ADS] [CrossRef] [Google Scholar]
