LETTER TO THE EDITOR

3D simulations of wind-jet interaction in massive X-ray binaries

M. Perucho1 - V. Bosch-Ramon2 - D. Khangulyan3,2

1 - Dept. d'Astronomia i Astrofísica, Universitat de València, C/ Dr. Moliner 50, 46100 Burjassot, València, Spain
2 - Max Planck Institut für Kernphysik, Saupfercheckweg 1, Heidelberg 69117, Germany
3 - Institute of Space and Astronautical Science/JAXA, 3-1-1 Yoshinodai, Sagamihara, Kanagawa 229-8510, Japan

Received 11 February 2010 / Accepted 23 February 2010

Abstract
Context. High-mass microquasars may produce jets that will strongly interact with surrounding stellar winds on binary system spatial scales.
Aims. We study the dynamics of the collision between a mildly relativistic hydrodynamical jet of supersonic nature and the wind of an OB star.
Methods. We performed numerical 3D simulations of jets that cross the stellar wind with the code Ratpenat.
Results. The jet head generates a strong shock in the wind, and strong recollimation shocks occur due to the initial overpressure of the jet with its environment. These shocks can accelerate particles up to TeV energies and produce gamma-rays. The recollimation shock also strengthens jet asymmetric Kelvin-Helmholtz instabilities produced in the wind/jet contact discontinuity. This can lead to jet disruption even for jet powers of several times 1036 erg s-1.
Conclusions. High-mass microquasar jets likely suffer a strong recollimation shock that can be a site of particle acceleration up to very high energies, but also eventually lead to the disruption of the jet.

Key words: X-rays: binaries - ISM: jets and outflows - stars: winds, outflows - radiation mechanisms: non-thermal

1 Introduction

Jets of X-ray binaries (microquasars) are produced close to the compact object (black hole or neutron star) via ejection of material accreted from the stellar companion. Jet synchrotron emission was extensively observed (Ribó 2005), and its phenomenological properties and connections with other energy bands were thoroughly analyzed (Fender et al. 2004). The occurrence of collisionless shocks in microquasar jets can lead to efficient particle acceleration (Rieger et al. 2007) and non-thermal emission of synchrotron and inverse Compton origin and, possibly, from proton-proton collisions (see Bosch-Ramon & Khangulyan 2009, and references therein). To understand the dynamics of these jets, numerical simulations of their propagation were performed (Peter & Eichler 1995; Velázquez & Raga 2000; Perucho & Bosch-Ramon 2008; Bordas et al. 2009) together with several analytical treatments (Heinz & Sunyaev 2002; Heinz 2002; Kaiser et al. 2004; Nalewajko & Sikora 2009; Araudo et al. 2009). Most of these works were valid for microquasars in general, although jets of high-mass systems require a specific treatment due to the strong stellar wind.

Perucho & Bosch-Ramon (2008) - PBR08 from now on - studied how the strong wind of an OB star can influence the jet dynamics at scales similar to the orbital separation (${\sim}0.2$ AU). Simulations in two dimensions of a hydrodynamical jet interacting with an homogeneous (i.e. not clumpy) stellar wind were performed in cylindrical and slab symmetries. The results showed that a strong recollimation shock is likely to occur at jet heights ${\sim}10^{12}$ cm, which could lead to efficient particle acceleration and gamma-ray emission, which was detected in several high-mass X-ray binaries (HMXB) (LS 5039, LS I +61 303, Cygnus X-1, Cygnus X-3; Aharonian et al. 2005; Albert et al. 2006, 2007; Tavani et al. 2009). It was also found that jet disruption could occur for jet kinetic luminosities as high as $L_{\rm j}\sim 10^{36}$ erg s-1 because of jet instabilities produced by the strong and asymmetric wind impact. Such a $L_{\rm j}$-value is ${\sim}0.1{-}1$% of the Eddington luminosity, which is typical for an X-ray binary with persistent jets (see Fig. 1 in Fender et al. 2003). All this means that the role of the stellar wind in high-mass microquasars (HMMQ) is not only to feed accretion, but it may be also relevant for particle acceleration within the binary system (i.e. in strong recollimation shocks) and a detectable jet at larger spatial scales. However, although the assumptions in PBR08 of a hydrodynamical jet and a homogeneous wind seem reasonable at the involved jet heights of ${\sim}10^5$  $R_{\rm Sch}$ (Sikora et al. 2005) and under moderate clumping (see Owocki & Cohen 2006), the assumption of 2-dimensional symmetry is far less realistic. Therefore, 3-dimensional (3D) simulations of the wind impact on the jet are necessary to understand the non-thermal phenomena occurring in HMMQ.

In this letter we present the results of 3D simulations of hydrodynamical jets interacting with a typical OB star wind. We find that even jets with $L_{\rm j}$ as high as several times 1036 erg s-1 may be disrupted, since the lower wind-jet momentum transfer due to wind sidewards escape is balanced by enhanced development of disruptive instabilities. The simulations also show a strong recollimation shock that could efficiently accelerate particles. A deeper treatment of the radiative counterpart of the simulations presented here is in preparation (Bosch-Ramon et al., in preparation).

2 Simulations

We performed 3D simulations of two supersonic hydrodynamical jets with $L_{\rm j}=10^{35}$ (Jet 1) and 1037 erg s-1 (Jet 2). The medium is an isotropic wind (as seen from the star) of a mass-loss rate of 10-6 $M_\odot$ yr-1 and a constant velocity of 2 $\times $ 108 cm s-1 (PBR08). The companion star is assumed to be located at $R_{\rm orb}=2$ $\times $ 1012 cm from the base of the jet in a direction perpendicular to the jet axis. Both jets are injected at a distance to the compact object of z0=6 $\times $ 1010 cm with an initial jet radius $R_{\rm j}=6$ $\times $ 109 cm. Their initial velocity, temperature and Mach number are 0.55 c (1.7 $\times $ 1010 cm s-1), 1010 K and 17, respectively. The initial densities and pressures for the jets 1 and 2 are $\rho_1=0.088~\rho_{\rm w}$ and $\rho_2=8.8~\rho_{\rm w}$, and $P_{\rm j,1}=71$ erg cm-3 and $P_{\rm j,2}=7.1$ $\times $ 103 erg cm-3, respectively; $\rho_{\rm w}=3$ $\times $ 10-15 g cm-3 is the wind density at z0. We used the coordinate z for the direction of the initial propagation of the jet, x for the direction connecting the jet base and the star, and y for the direction perpendicular to z and x. We assumed that the magnetic field has no dynamical influence in the evolution of the jet, the wind is continuous and homogeneous and the compact object is at the same orbital position during the simulation time, ${\sim}10^3$ s, much smaller than the orbital period.

We used a finite-difference code named Ratpenat, which solves the equations of relativistic hydrodynamics in three dimensions written in conservation form using high-resolution-shock-capturing methods. Ratpenat was parallelized with a hybrid scheme with both parallel processes (MPI) and parallel threads (OpenMP) inside each process (see Perucho et al. 2010). The simulations were performed in Mare Nostrum, at the Barcelona Supercomputing Centre (BSC) with up to 128 processors. The numerical grid box expands transversely 20 $R_{\rm j}$ on each side of the axis, which amounts to a total of 40 $R_{\rm j}$, and 320 $R_{\rm j}$ along the axis. The numerical resolution of the simulation is of four cells per initial jet radius. This means that the final box is 160 $\times $ 160 $\times $ 1280 cells. An extended grid is used in the transversal direction, composed by 80 cells with an increasing size, which brings the outer boundary 80 $R_{\rm j}$ farther from the axis. The resolution is low at z0 due to the amount of computational time needed to perform the simulations, but because jets initially expand, the effective resolution at the z of interest ( ${\sim}10^{12}$ cm) in the main grid is ${\sim}16$ cells per $R_{\rm j}$. To check possible resolution problems, a double resolution simulation of Jet 2 was performed up to one half of the jet final distance (which required 10 times longer). The accumulated error in this first portion of the simulation is negligible for our purposes in all the hydrodynamical variables.

3 Results

Jet 1 propagates up to $z\leq 1.6$ $\times $ 1012 cm after ${\simeq}1.25$ $\times $ 103 s. Just after injection, the difference between the velocity of the jet head and that of the backflow generates a low density region around the jet base, and the backflow material fills it very slowly. The jet expands initially in this region, mixing with some of the cocoon material and finally generating a thick shear layer with positive velocities. The backflow interacts strongly with this outer region, generating instabilities that grow in the shear layer. These instabilities are quite asymmetric due to the nature of the cocoon in the plane of impact of the wind (see Fig. 1). After expansion, the central region of the jet becomes underpressured with respect to its surroundings and recollimates until the formation of a reconfinement shock. This shock is quasi-steady, i.e. propagates very slowly from $z_{\rm s}\simeq 2$ $\times $ 1011 cm to 4 $\times $ 1011 cm, as the pressure in the cocoon drops (see next section). Downstream of the reconfinement shock, the instabilities, which were growing in the shear layer, propagate to the whole section of the jet as the internal jet flow is decelerated and becomes more sensitive to perturbations. This process ends up in the mixing and deceleration of the jet flow at $z\geq 10^{12}$ cm.

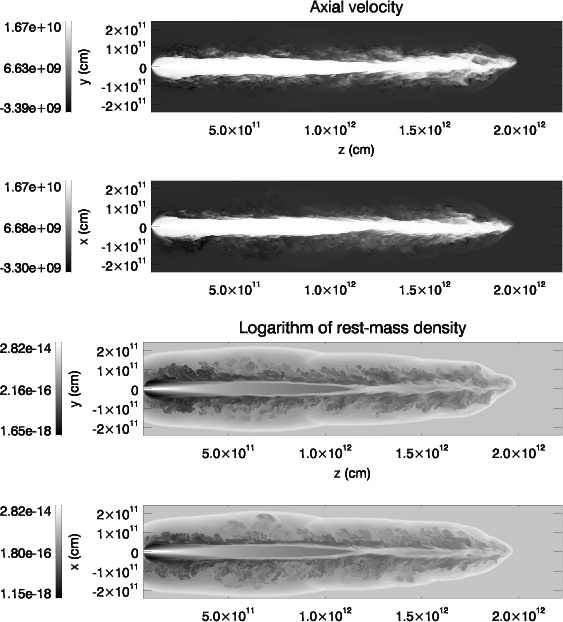

\begin{figure} \par\includegraphics[width=7.5cm,clip]{14241f1a.ps}\vspace*{3mm} \includegraphics[width=7.5cm,clip]{14241f1b.ps} \end{figure} Figure 1:

Jet 1, cuts of axial velocity (in  $\rm{cm~s^{-1}}$) and rest-mass density (in  $\rm{g~cm^{-3}}$) along the propagation axis. The upper two panels show a cut perpendicular to the star-jet plane, whereas the bottom panels show a cut in this plane. The scale of the figure respects the proportion with Fig. 3.

Open with DEXTER

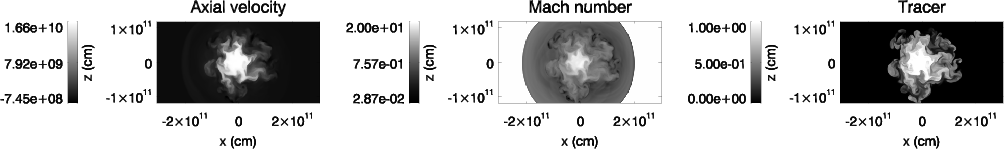

\begin{figure} \par\includegraphics[width=17cm,clip]{14241fg2.ps} \end{figure} Figure 2:

Transversal cuts for the axial velocity, Mach number and tracer in Jet 1 at $z\simeq 1.3$ $\times $ $10^{12}~\rm{cm}$. The Mach number is saturated for values higher than 20 (the wind).

Open with DEXTER

At the end of the simulation, the velocity of the bow shock at jet head is ${\simeq}3$ $\times $ 108 cm s-1. The fit for the bow-shock advance velocity results in a fast decrease with time: $v_{\rm bs}\propto t^{-0.6}$. Figure 1 shows two axial cuts of Jet 1 with axial velocity (two upper panels) and rest-mass density (two lower panels), along the plane perpendicular to the star-jet plane (upper) and in this plane (lower) at the last snapshot. The deviation caused by the wind thrust can be observed in the plane xz, which is the plane formed by the optical star and the jet. The low velocity of the jet head at the end of the simulation along with its final (destabilized) structure implies that the jet will be disrupted and will not propagate out of the binary system as a supersonic and collimated flow. Figure 2 shows transversal cuts of the axial velocity, Mach number and tracer[*] at  $z\simeq 1.3$ $\times $ 1012 cm. In this figure we can see the deformation of the bow shock caused by the wind thrust. The jet has been entrained up to its axis by the wind material ( $f_{\rm max}<1$). The maximum velocity in the jet fluid is still relatively fast ( ${\simeq}1.5$ $\times $ 1010 cm s-1) despite the irregular morphology and mixing, but the average Mach number is close to one.

The evolution of Jet 2 is similar to that of Jet 1 from a qualitative point of view. It propagates up to $z\sim 2$ $\times $ 1012 cm in ${\simeq}210$ s. The jet expands more at the base because it is initially denser (more overpressured), the velocity of the jet head is faster than in Jet 1, and the cocoon at this z is consequently filled more slowly. Therefore, the reconfinement shock is stronger and occurs at larger z (see next section). The location of the shock changes with time from $z\simeq 6$ $\times $ 1011 cm to 1012 cm (see Fig. 3). The effect of the wind in the direction of the jet propagation is small, as seen in Figs. 3 and 4. In the latter, the structure of the bow shock at $z\simeq 1.3$ $\times $ 1012 cm is observed to be more symmetric than that in Jet 1 (Fig. 2). Figure 4 shows that the jet core is unmixed (f=1) and that the flow velocity is still as high as that in the injection point. At the end of the simulation, the velocity of the bow shock is ${\simeq}8.4$ $\times $ 109 cm s-1, which is close to its initial speed ( ${\simeq}9.$ $\times $ 109 cm s-1). However, the differences in the the physical conditions in the cocoon on both sides of the jet cause the development of asymmetric Kelvin-Helmholtz instabilities in the shear layer. Their propagation to the whole jet after the reconfinement shock triggers helical motions and distortions in the flow.

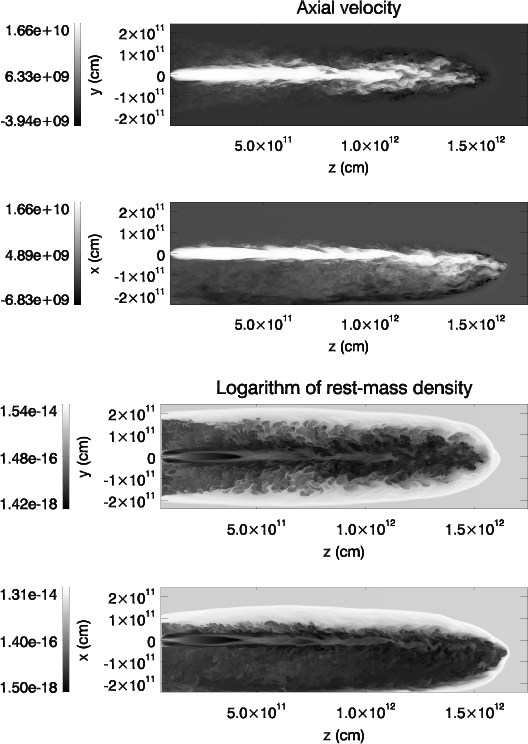

\begin{figure} \par\includegraphics[width=8cm,clip]{14241f3a.ps}\vspace*{3mm} \includegraphics[width=8cm,clip]{14241f3b.ps} \end{figure} Figure 3:

Same plots as in Fig. 1 for Jet 2.

Open with DEXTER

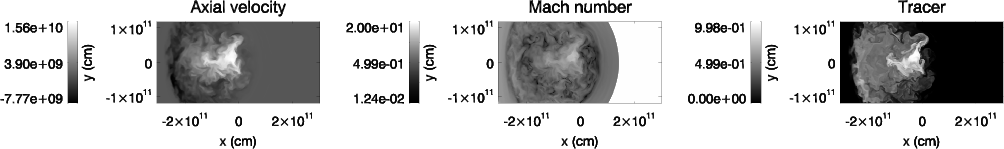

\begin{figure} \par\includegraphics[width=17cm,clip]{14241fg4.ps} \end{figure} Figure 4:

Same as in Fig. 2 for Jet 2 at $z\simeq 1.5$ $\times $ $10^{12}~\rm{cm}$. The Mach number is saturated for values higher than 20 (the wind).

Open with DEXTER

At $z\ga R_{\rm orb}$, we expect the density of the stellar wind to be ${\propto}z^{-2}$. This implies a pressure drop and a jet adiabatic expansion. The helical instability triggered at $z\la R_{\rm orb}$ will then develop in these changing conditions and may slow its growth (Hardee 2006). How much it will affect the stability of the jet flow in an expanding jet yet remains to be studied. However, since the instability reaches nonlinear amplitudes, the process is irreversible and we do not expect it to disappear. Therefore $L_{\rm j}=10^{37}$ erg s-1 seems to be close to the minimum jet power to propagate out of the binary region without disruption.

4 Discussion

The performed simulations show that a recollimation shock likely forms when the jet is crossing the wind. As mentioned, this shock can trigger particle acceleration, and could also enhance instabilities that would destroy the jet. However, the jet-wind interaction simulated here is time-dependent, and the study of the stationary case calls for a specific simulation. Still, it is worthwhile to estimate here analytically whether the shock remains inside the binary region when the jet head is already outside. This will depend on whether the wind ram pressure can substitute the cocoon pressure to keep the recollimation shock inside the system.

From Falle (1991), we know that $z_{\rm s}\propto P_{\rm {c}}^{-1/2}$, with  $P_{\rm {c}}$ the pressure of the cocoon, if the jet power and mass flux are kept constant. Thus we need to know how this pressure changes with time. Following Scheck et al. (2002) and Perucho & Martí (2007), we find that $P_{\rm {c}}\propto t^{-1-\alpha/2}$ for a homogeneous ambient medium, where $v_{\rm {bs}}\propto t^{\alpha}$; and $P_{\rm {c}}\propto t^{-2}$ when the ambient medium density decreases as $\rho_{\rm {a}}\propto z^{-2}$. This implies $z_{\rm s}\propto t^{1/2+\alpha/4}$ and  ${\propto}t$, respectively. This result can be tested using our simulation, in which the ambient medium is still roughly homogeneous (at  $z\la R_{\rm orb}$). For Jet 2 the recollimation shock forms at z=6 $\times $ 1011 cm at $t_1\simeq 61$ s. At  $t_2\simeq 210$ s, taking into account that the velocity is basically constant ($\alpha=0$), $z_{\rm s}(t_2)/z_{\rm s}(t_1)=(t_2/t_1)^{1/2}$, which results in $z_{\rm s}(t_2)=1.1$ $\times $ 1012 cm, in agreement with the simulation. We can then extrapolate to find out the time (t3) at which the shock would reach z=2 $\times $ 1012 cm. Taking t2=210 s, and $z_{\rm s}(t_2)=1.1$ $\times $ 1012 cm we obtain for $\rho_{\rm {a}}\propto z^{-2}$: $t_3 \simeq 2~t_2 \simeq 400$ s.

We now calculate the time at which the pressure of the cocoon will fall below the pressure of the shocked wind. This is the time from which the recollimation shock will be determined by the latter, which is $P_{\rm {w}}\sim 10^2$ erg cm-3 (see PBR08). Taking into account that the mean pressure in the cocoon is $P_{\rm {c}}\simeq 10^3~\rm {erg~cm^{-3}}$ at $t_2=210~\rm {s}$, pressure equilibrium with the shocked wind will be reached at $t\simeq \sqrt{P_{\rm {c,0}}/P_{\rm {w}}}~~t_2\simeq 3~t_2$. This means that Jet 2 is around the limit to keep the recollimation shock inside the system by the wind ram pressure alone, under the simulated conditions. For hotter or denser jets, the recollimation shock can move out of the region of interest at a finite time, whereas for colder or lighter jets, this shock will stay inside the binary system. This allows for continuous production of energetic emission, but puts the jet in danger of disruption. An X-ray binary in which a disruption of the jet could be taking place is LS 5039 (Moldón et al. 2008; Ribó et al. 2008), but higher angular resolution observations are required for a proper probe of the jet-wind interaction region.

The scenario considered in this work could take place in several HMXB in the Galaxy. The luminosity function derived by Grimm et al. (2003) predicts ${\sim}3$ HMXBs with $L_{\rm X}=10^{35}~\rm {erg/s}$. Following Fender et al. (2005), an HMXB with a  $10~M_\odot$ black hole could produce a jet with a kinetic power between 1035 and $10^{38}~\rm {erg/s}$, which is in the range of the simulations performed here. Although Grimm et al. (2003) do not offer a specific prediction for $L_{\rm X} \leq 10^{35}~\rm {erg/s}$, extrapolating the given luminosity function we deduce that there is room for ${\sim}10$ sources in our Galaxy whose jets could be disrupted by the stellar wind. These objects may be bright at high energies, but faint or even quiet in radio.

Several improvements are required to make 3D HMMQ jet simulations more realistic: to study a stationary case at the binary scales; to perform detailed calculations of the radiation produced in the jet-wind shocks; to introduce an inhomogeneous or clumpy stellar wind; to follow the jet head up to $z\gg R_{\rm orb}$ to study the effects of the decreasing wind density; and to account for the effect of the magnetic field on the dynamics of these jets, since the configuration of the magnetic field in the jet affects its stability (Hardee 2007; Mizuno et al. 2007). All this is ongoing work to be presented elsewhere.

Acknowledgements
M.P. acknowledges support from a ``Juan de la Cierva'' contract of the Spanish ``Ministerio de Ciencia y Tecnología'' and from the Spanish ``Ministerio de Educación y Ciencia'' through grants AYA2007-67627-C03-01, CSD2007-00050 and AYA2007-67752-C03-02. The authors acknowledge the Barcelona Supercomputing Center for support and the ``Red Española de Supercomputación'' for the computing time allocated for this project. V.B-R. acknowledges support by the Ministerio de Educación y Ciencia (Spain) under grant AYA 2007-68034-C03-01, FEDER funds. V.B.-R. thanks Max Planck Institut fuer Kernphysik for its kind hospitality and support.

References

  1. Aharonian, F., Akhperjanian, A. G., Aye, K.-M., et al. 2005, Science, 309, 746 [NASA ADS] [CrossRef] [PubMed] [Google Scholar]
  2. Albert, J., Aliu, E., Anderhub, H., et al. 2006, Science, 312, 1771 [NASA ADS] [CrossRef] [PubMed] [Google Scholar]
  3. Albert, J., Aliu, E., Anderhub, H., et al. 2007, ApJ, 665, L51 [NASA ADS] [CrossRef] [Google Scholar]
  4. Araudo, A., Bosch-Ramon, V., & Romero, G. E. 2009, A&A, 503, 673 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  5. Bordas, P., Bosch-Ramon, V., Paredes, J. M., & Perucho, M. 2009, A&A, 497, 325 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  6. Bosch-Ramon, V., & Khangulyan, D. 2009, Int. Journ. Mod. Phys. D, 18, 347 [Google Scholar]
  7. Falle, S. A. E. G. 1991, MNRAS, 250, 581 [NASA ADS] [CrossRef] [Google Scholar]
  8. Fender, R. P., Gallo, E., & Jonker, P. G. 2003, MNRAS, 343, 99 [Google Scholar]
  9. Fender, R. P., Belloni, T. M., & Gallo, E. 2004, MNRAS, 355, 1105 [NASA ADS] [CrossRef] [Google Scholar]
  10. Fender, R. P., Maccarone, T. J., & van Kesteren, Z. 2005, MNRAS, 360, 1085 [NASA ADS] [CrossRef] [Google Scholar]
  11. Grimm, H. J., Gilfanov, M., & Sunyaev, R. 2003, MNRAS, 339, 793 [NASA ADS] [CrossRef] [Google Scholar]
  12. Hardee, P. E. 2006, in Relativistic Jets, The Common Physics of AGN, Microquasars and Gamma-Ray Bursts, ed. P. E. Hughes, & J. N. Bregman, AIP Conf. Proc., 856, 57 [Google Scholar]
  13. Hardee, P. E. 2007, ApJ, 664, 26 [NASA ADS] [CrossRef] [Google Scholar]
  14. Heinz, S. 2002, A&A, 388, L40 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  15. Heinz, H., & Sunyaev, R. 2002, A&A, 390, 751 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  16. Kaiser, C. R., Gunn, K. F., Brocksopp, C., & Sokoloski, J. L. 2004, ApJ, 612, 332 [NASA ADS] [CrossRef] [Google Scholar]
  17. Martí, J. M Formula , Müller, E., Font, J. A., Ibáñez, J. M Formula , & Marquina, A. 1997, ApJ, 479, 151 [NASA ADS] [CrossRef] [Google Scholar]
  18. Mizuno, Y., Hardee, P. E., & Nishikawa, K. I. 2007, ApJ, 662, 835 [NASA ADS] [CrossRef] [Google Scholar]
  19. Moldón, J., Ribó, M., Paredes, J. M., Martí, J. M., & Massi, M. 2008, Proceedings of the VII Microquasar Workshop: Microquasars and Beyond [arXiv:0812.0988] [Google Scholar]
  20. Nalewajko, K., & Sikora, M. 2009, MNRAS, 392, 1205 [NASA ADS] [CrossRef] [Google Scholar]
  21. Perucho, M., & Martí, J. M. 2007, MNRAS, 382, 526 [NASA ADS] [CrossRef] [Google Scholar]
  22. Perucho, M., & Bosch-Ramon, V. 2008, A&A, 482, 917 (PBR08) [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  23. Perucho, M., Martí, J. M., & Hanasz, M. 2005, A&A, 443, 863 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  24. Perucho, M., Martí, J. M., Cela, J. M., et al. 2010, A&A, submitted [Google Scholar]
  25. Peter, W., & Eichler, D. 1995, ApJ, 438, 244 [NASA ADS] [CrossRef] [Google Scholar]
  26. Owocki, S. P., & Cohen, D. H. 2006, ApJ, 648, 565 [NASA ADS] [CrossRef] [Google Scholar]
  27. Ribó, M. 2005, ASPC, 340, 421 [arXiv:astro-ph/0402134] [Google Scholar]
  28. Ribó, M., Paredes, J. M., Moldón, J., Martí, J., & Massi, M. 2008, A&A, 481, 17 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  29. Rieger, F. M., Bosch-Ramon, V., & Duffy, P. 2007, Ap&SS, 309, 119 [NASA ADS] [CrossRef] [Google Scholar]
  30. Scheck, L., Aloy, M. A., Martí, J. M., Gómez, J. L., & Müller, E. 2002, MNRAS, 331, 615 [NASA ADS] [CrossRef] [Google Scholar]
  31. Sikora, M., Begelman, M. C., Madejski, G. M., & Lasota, J.-P. 2005, ApJ, 625, 72 [NASA ADS] [CrossRef] [Google Scholar]
  32. Tavani, M., Bulgarelli, A., Piano, G., et al. 2009, Nature, 462, 620 [NASA ADS] [CrossRef] [PubMed] [Google Scholar]
  33. Velázquez, P. F., & Raga, A. C. 2000, A&A, 362, 780 [NASA ADS] [Google Scholar]

Footnotes

... tracer[*]
The tracer, $f=\left[0,1\right]$, is a variable that indicates the composition of the fluid in a given cell (see e.g., Perucho et al. 2005), with a value of 0 corresponding to pure wind material, 1 to pure jet material, and any value between 0 and 1 indicating the relative amount of jet material in a cell where mixing has occurred.
