A&A 511, A30 (2010)

The distance to the cool T9 brown dwarf ULAS J003402.77-005206.7

R. L. Smart¹ - H. R. A. Jones² - M. G. Lattanzi¹ - S. K. Leggett³ - S. J. Warren⁴ - A. J. Adamson⁵ - B. Burningham² - M. Casali⁶ - D. W. Evans⁷ - M. J. Irwin⁷ - D. Pinfield²

1 - Istituto Nazionale di Astrofisica, Osservatório Astronomico di Torino, Strada Osservatório 20, 10025 Pino Torinese, Italy
2 - Centre for Astrophysics Research, Science and Technology Research Institute, University of Hertfordshire, Hatfield AL109AB, UK
3 - Gemini Observatory, 670 N. A'ohoku Place, Hilo, HI 96720, USA
4 - Imperial College London, Blackett Laboratory, Prince Consort Road, London SW7 2AZ, UK
5 - Joint Astronomy Centre, 660 North A'ohoku Place, Hilo, HI 96720, USA
6 - ESO, Karl-Schwarzschild-Str. 2, 85748 Garching bei Munchen, Germany
7 - Institute of Astronomy, Madingley Road, Cambridge CB3 0HA, UK

Received 10 November 2009 / Accepted 16 December 2009

Abstract
Aims. We demonstrate the feasibility of determining parallaxes for nearby objects with the Wide Field Camera on the United Kingdom Infrared Telescope (UKIRT) using the UKIRT Infrared Deep Sky Survey as a first epoch. We determine physical parameters for ULAS J003402.77-005206.7, one of the coolest brown dwarfs currently known, using atmospheric and evolutionary models with the distance found here.
Methods. Observations over the period 10/2005 to 07/2009 were pipeline processed at the Cambridge Astronomical Survey Unit and combined to produce a parallax and proper motion using standard procedures.
Results. We determined mas,  mas/yr and  mas/yr for ULAS J003402.77-005206.7.
Conclusions. We have made a direct parallax determination for one of the coolest objects outside of the solar system. The distance is consistent with a relatively young, 1-2 Gyr, low mass, 13-20 , cool, 550-600 K, brown dwarf. We present a measurement of the radial velocity that is consistent with an age between 0.5 and 4.0 Gyr.

Key words: astrometry - stars: distances - Stars: brown dwarfs - stars: fundamental parameter

1 Introduction

The prototype T dwarf was discovered in 1995 as a companion to the nearby M dwarf star Gl229 (Nakajima et al. 1995), and today we know of 155 T dwarfs (www.dwarfarchives.org as of 10/2009). The majority of these are a result of the near-infrared 2 Micron All Sky Survey (Skrutskie et al. 2006, 2MASS) and the deep optical Sloan Digital Sky Survey (York et al. 2000, SDSS). Once discovered, significant efforts were undertaken to determine their distances (Dahn et al. 2002; Tinney et al. 2003; Vrba et al. 2004) to map out the lower end of the Hertzsprung-Russell (H-R) diagram and to constrain models. However, in these surveys only a handful of objects have spectral types T7 or later and more examples of intrinsically fainter and cooler objects are crucial to understand both such objects and, in turn, exoplanets of similar masses.

In 2005 the UKIRT Infrared Deep Sky Survey (Lawrence et al. 2007, hereafter UKIDSS) began with the Wide Field Camera (Casali et al. 2007, WFCAM) large-field infrared camera. This survey is going about three magnitudes fainter than the 2MASS survey and has already revealed a number of extremely faint and cool T dwarfs (Lodieu et al. 2009b,2007; Pinfield et al. 2008; Burningham et al. 2008; Kendall et al. 2007; Lodieu et al. 2009a; Chiu et al. 2008). As part of the followup for the UKIDSS surveys we have started a program to determine parallaxes for the coolest objects being discovered.

The first and most obvious application of measured distances is to derive a luminosity which is used to populate the H-R diagram and constrain models. Distances are also used to identify unresolved companions via over-luminosities, and to provide space motions which provide indications of an object's origin and age.

There is a large degree of uncertainty in current model analyses of the late-type T dwarfs, due to known inadequacies in the atmospheric models (e.g. Leggett et al. 2009). However, evolutionary models of cooling brown dwarfs are well understood, and show that all brown dwarfs older than about 200 Myr have a radius within about 20% of Jupiter's (e.g. Burrows et al. 2001). Hence there is a tight relationship between luminosity and effective temperature ( ) for brown dwarfs (via the Stefan-Boltzman law). Parallax determinations combined with flux-calibrated observed spectra provide luminosities, and hence the best measurements of for brown dwarfs currently available. Once is known, gravity and metallicity can be constrained by comparing synthetic spectra to the observations (e.g. Saumon et al. 2007). Burningham et al. (2009) use luminosity to determine for the T8.5 Wolf 940B, and show that an analysis using synthetic spectra alone would have overestimated the temperature by 100 K, for this 600 K object.

The latest spectral type currently defined is T9 and three such objects are currently known: ULAS J003402.77-005206.7 (Warren et al. 2007b, hereafter ULAS 0034), CFBDS J005910.90-011401.3 (Delorme et al. 2008) and ULAS J133553.45 +113005.2 (Burningham et al. 2008). They have effective temperatures in the range 500 to 700 K, and masses of 5 to 50  corresponding to ages of 0.1 to 10 Gyr (e.g. Leggett et al. 2009). Here we present the first results of the UKIRT parallax program for ULAS 0034. In Sect. 2 we describe the observations and procedures for the program, in Sect. 3 we provide the results for ULAS 0034 and in Sect. 4 we find the most consistent set of physical parameters for ULAS 0034 by combining available observations and models.

2 Observations and reduction procedures

2.1 Imaging

The imaging observations were all made on the UKIRT 3.8 m telescope using the WFCAM imager. This is the instrument being used to carry out the UKIDSS surveys, and the calibrated images were taken directly from the pipeline for that survey (Irwin et al. 2004). All observations are carried out in queue override mode, allowing us to be very flexible in the scheduling, maximising the parallax factor and observing close to meridian passage. The observational sequence we adopt is very similar to the J-band imaging sequence in the Large Area Survey (LAS) component of UKIDSS (e.g. Warren et al. 2007a). A longer exposure time was used to provide an increased signal-to-noise for the targets, which are in general at the faint limit of the LAS. Specifically, we make observations in a 5 jitter (dithered) 3.2'' cross pattern, and at each jitter position we make 4 exposures in  micro-stepped positions of 1.5 pixels, where each exposure consists of 2 co-added 10 s images. The total exposure time is therefore  s. In average conditions this provides a signal-to-noise of 100 at J=18.

ULAS 0034 was discovered in a sequence of images taken on 2005/10/04. We use the same pointing, filter and detector setup as the J image from that night in our parallax sequence. This allows us to use the discovery image as the first epoch in the parallax determination, and we reduce the time required for that determination by about one year (the time between the discovery observation and the recognition that an object warrants the investment required to determine a parallax). Nominally, to distinguish between parallactic and proper motion we aim to have observations that cover at least three years, hence the saving of one year is significant.

Parallax observations require precise astrometry. Unfortunately WFCAM has a large field-of-view with significant radial distortion, and as all four detectors are offset from the optical axis they are subject to large astrometric distortions. To minimize the differential astrometric distortion between the discovery and subsequent observations, the original pointing orientation is always used unless the object is close to the edge of a detector, in which case we move the object towards the centre. We work under the assumption that the astrometric distortion does not change for the duration of the observational program. This assumption forms the basis of all small-field, high-precision, ground-based parallax programs, even in telescopes where the focal plane is considered astrometrically flat, and is required to be true for WFCAM because of the known large astrometric distortions (Irwin et al. 2004).

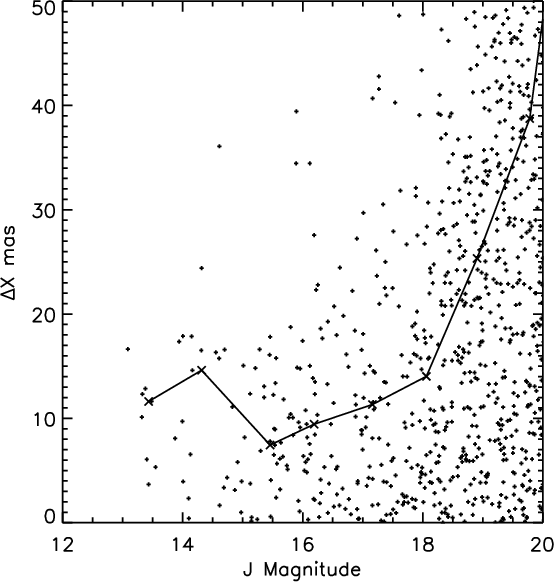

During our parallax campaign WFCAM, a forward Cassegrain focus instrument, was regularly unmounted for significant periods so that the Cassegrain instruments could be used. To check that unmounting and remounting does not lead to significant changes in the astrometric map, a comparison of the observations of the same cluster field for the nights 2005/06/20 and 2005/09/04 were made, which straddles a period where WFCAM was unmounted and remounted. In Fig. 1 we plot the differences in local x coordinates, as derived from the Cambridge Astronomical Survey Unit (CASU) pipeline discussed below. The first night was adopted as the reference system and the second night transformed using a six-constant model (translation, scale and rotation) derived from common objects. Assuming the nights were of equal quality the per observation error will be approximately equal to the combined error divided by . From this comparison we estimate that the per observation precision for objects to J=18 is around 10 mas in both coordinates including any contribution from the unmounting and remounting of WFCAM. An examination of binned residuals as a function of detector position did not reveal any systematic patterns.

The observations made with WFCAM are processed and reduced using a dedicated pipeline being run by the CASU. Since the centroid of the objects is our fundamental observation, we have extensively tested the results of this pipeline and we now describe these tests.

First we have taken the images as they come out of the CASU pipeline (i.e. dark-subtracted, flat-fielded, systematic noise removed, sky-corrected, and finally registered and stacked) and found centroids two ways: (1) fitting a two-dimensional Gaussian to the object's point source function (PSF) and (2) fitting a one-dimensional Gaussian to the object's marginal distributions above the sky background. The two-dimensional Gaussian fit is what is used in the Torino Observatory Parallax Program (Smart et al. 1999, hereafter TOPP) and the marginal distribution fit is what is suggested by Stone (1989) in the presence of a high background. We use these centroids and those from the CASU pipeline to compare eight ULAS 0034 observations over the period 2005 to 2008, after a six-constant transform (translation, scale and rotation) to a common system. In Fig. 2 we plot the root-mean-square (rms) of the x coordinate from the CASU pipeline of common stars. The median rms is 18 mas and using the other centroiding methods the rms was identical. In the y coordinate the median rms was slightly larger, 20 mas, but the difference between the three centroiding methods was also negligible.

We have also tried recombining the original micro-stepped images using a drizzle (Fruchter & Hook 2002) routine rather than the CASU standard routine. In the standard routine the 4 micro-stepped images are interleaved, i.e. combined assuming a higher spatial resolution, to produce a combined image with pixel size 0.2'' (half the 0.4'' physical pixel size). This produces a spiky PSF as the seeing changes between the four images. The alternative approach is to combine the counts in pixels from the four images in an underlying higher resolution grid with appropriate weighting (i.e. drizzling). This gives a much smoother PSF and retains the signal-to-noise, while losing some of the resolution as adjacent pixels are correlated. Using this process caused the ULAS 0034 median rms to increase slightly from 18 to 20 mas.

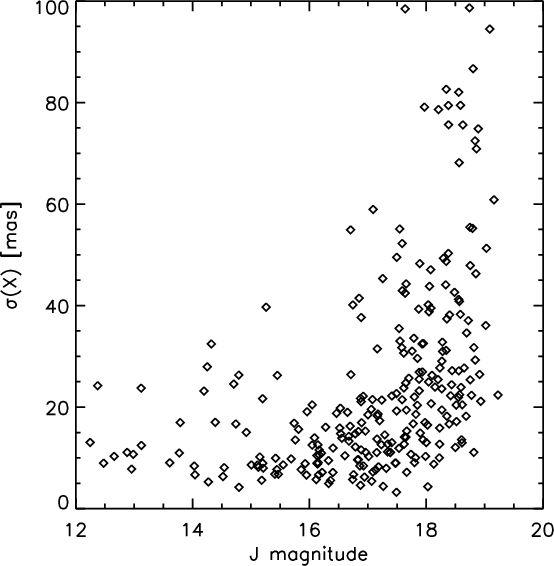

As a result of these tests we have decided to use positions coming directly out of the CASU pipeline, and work under the assumption that our median error is around 18 mas. We assume the larger error found in the ULAS 0034 sequence compared to the two-epoch cluster test is due to the fact that we are comparing a wider range of observing conditions over a longer time span. We note that the centroiding errors provided by the CASU pipeline are good indications of the errors found in our test.

Once the (x, y) coordinates have been determined, the parallax and proper motion of ULAS 0034 are determined using the methods adopted in the TOPP (Smart et al. 2003,2007). We limit the reference objects used to only those within 5 arcmin of the target, as these are sufficient for a transformation, and limiting the area of the detector being modeled also limits possible differential astrometric distortion. We have made two significant changes to the procedures used in the TOPP:

1.

as we are observing in the J-band where the atmospheric refraction is small we expect the differential reddening correction (DCR), to be negligible. This is in agreement with Tinney et al. (2003) and hence we do not apply any correction. Once we have data on more targets we will estimate the DCR and quantify the effect this could have on the target parallaxes;

2.

since we have the SDSS colours in this region we use the method of Ivezic et al. (2008) to determine photometric parallaxes for the anonymous reference stars and from those we calculate the correction from relative to absolute parallax. This correction is typically less than 2 milliarcsec.

In the field there are also significant numbers of galaxies which can be used to correct from a relative to an absolute system. For the proper motions we found the mean of the galaxies was less than the error of that mean and hence, within their error, these proper motions are on an absolute system. For the parallaxes we would need to use the parameters of the galaxies as constraints (Eichhorn 1997), future work will investigate this possibility.

2.2 Spectroscopy

We have also obtained new near-infrared spectra of ULAS 0034 as well as of the template T8 dwarf 2MASS J0415 (Burgasser et al. 2002), for comparison. By spectral type T8 the CH₄ and H₂O molecular bands that define the T sequence are practically saturated. Therefore, despite the low effective temperature of ULAS 0034, 550-600 K (see next section), relative to 750 K for 2MASS J0415 (Saumon et al. 2007), at low resolution the near-infrared spectral differences are reasonably subtle. For this reason we obtained medium-resolution spectra in the Y and J bands to search for any spectral differences identifiable at the higher resolution. One possibility is the appearance of absorption lines due to NH₃ (Leggett et al. 2007).

The observations were made with the ISAAC instrument on the ESO VLT in service mode, during several different nights within the period July to September 2008. We used a slit and the medium-resolution (MR) grating, providing wavelength coverage of m in the Y band, and m in the J band. Total integration times for ULAS 0034 were 160 min in the Y band and 120 min in the J band, and for the much brighter source 2MASS J0415 were 40 min in the Y band and also 40 min in the J band. We previously obtained a spectrum with ISAAC in the H band, of similar resolution, and the data reduction is described in Warren et al (2007b). We followed the same procedures for reducing the Y and J spectra here.

When smoothed to the lower resolution of the original GNIRS spectrum (from Warren et al. 2007b) we find the new spectra show good agreement, confirming in particular the additional absorption for ULAS 0034 compared to 2MASS J0415, in the blue wing of the J band. Nevertheless a search for individual absorption lines failed to reveal any new spectral features.

The new J-band spectrum of ULAS 0034 is of substantially higher S/N than the Y-band spectrum, and we use it here to measure the heliocentric radial velocity. The average seeing, , was a little less than the slit width, and determines the wavelength resolution of the spectrum, m FWHM. The use of a slit width larger than the seeing is not ideal for the measurement of a radial velocity (which was not the primary purpose of the observations), since any mis-centering of the source in the slit will introduce a systematic error. We quantify this error in the next section, when discussing the radial velocity.

3 Results

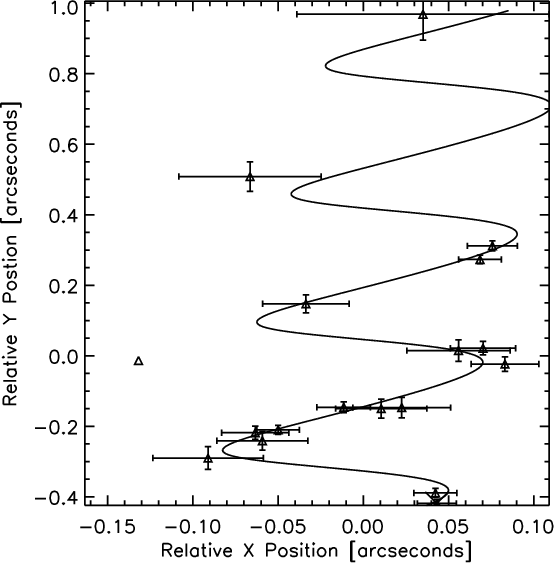

In Table 1 we report the astrometric parameters derived for ULAS 0034. In Fig. 3 we plot the observations and solution derived.

Table 1:   Solution parameters for ULAS 0034 and corresponding absolute magnitudes.

We measured the heliocentric radial velocity of ULAS 0034 relative to 2MASS J0415 by cross-correlating the two J-band spectra, finding a value  km s^-1, i.e. ULAS 0034 is blue-shifted relative to 2MASS J0415. The quoted uncertainty accounts for the S/N of the two spectra, but not for the systematic error, due to mis-centering of one or other object in the slit. We estimate, conservatively, that the accuracy of centering the object in the slit was as poor as . Then the systematic velocity error, for a single measurement, would be 10 km s^-1. We computed this value by establishing the shift of the centroid of the light captured by the slit, given the measured seeing, and assuming a Gaussian profile. This error dominates the error budget for the radial velocity, and it would be possible to obtain a more accurate velocity with a different instrumental setup. Combining in quadrature the systematic error for two measurements with the random error, we obtain a total uncertainty of 15 km s^-1. Taking the mean of the (much more accurate) heliocentric velocities for 2MASS J0415 given in Zapatero Osorio et al. (2007), we conclude that ULAS 0034 has a radial velocity of  km s^-1. Combining this with the measured proper motions, parallax and the velocity of the Sun from Dehnen & Binney (1998) we find a space motion, in km/s, of (radially inwards), (in the direction of Galactic rotation), and (vertically upwards).

Finally, we compare apparent J magnitudes for our 3 year parallax sequence and find an internal standard deviation of 0.02 mag and a systematic variation of less than 0.01. Hence ULAS 0034 does not appear to be photometrically variable in the near-infrared.

4 Discussion

Table 2:   Summary of physical parameters of ULAS 0034.

In the ULAS 0034 discovery paper, Warren et al. (2007b), they use near-infrared spectroscopy and mid-infrared photometry, with model atmospheres, to derive parameters of  K  and for ULAS 0034, corresponding to a mass range of 15 to 36  and an age range of 0.5 to 8 Gyr. The inferred photometric distance is 14-22 pc. Delorme et al. (2008) use near-infrared spectra alone, with models, to estimate  K and for ULAS 0034, consistent with the Warren et al. (2007b) analysis. Leggett et al. (2009, hereafter LCS09) used a model comparison to a more complete spectral energy distribution which included mid-infrared spectroscopy to constrain the physical properties of ULAS 0034 further. They find that  K , and . These values implied a distance of 13-16 pc, a mass of 5-20 and an age of 0.1-2 Gyr. The parallax determined here allows us to further refine these results.

The measured distance of , rules out the low gravity ( ), very low mass (5-8 ) and very young age (0.1-0.2 Gyr) LCS09 fits to ULAS 0034. We can check that the distance derived here is consistent with the other solutions by deriving the bolometric luminosity and comparing this to the family of , solutions calculated by structural models for a given luminosity (e.g. Saumon & Marley 2008, their Fig. 4).

We derived the bolometric flux by interpolating between the flux calibrated 0.8-2.3 m GNIRS and 8-15 m IRS spectra presented in LCS09 using  K, and  K, synthetic spectra. The 2.3-8 m region contributes 33-43% of the total flux. The contribution beyond 15 m was determined assuming a Rayleigh-Jeans tail to the distribution and  K or 600 K; this region contributes 8% of the total flux. The model interpolation and the Rayleigh-Jeans extrapolation were scaled by adopting the distance measured in this work, and the structural model radius of 0.11  as per LCS09. We find a luminosity of , including the 4.8% uncertainty in distance and an estimated total flux uncertainty of 13%. The flux uncertainty is dominated by the estimated 13% uncertainty due to the model interpolation section; other sources of error are the uncertainty in the flux calibration of the observed spectrum (3%) and the assumption of a Rayleigh-Jeans tail (2%). The luminosity is consistent with the  K,  LCS09 solution for ULAS 0034, implying an age of 1-2 Gyr and a mass of 13-20 . Note that the measured parallax rules out the possibility that ULAS 0034 is a 550-600 K binary system as the distance would have to be larger than any of the LCS09 solutions. Finally we note the velocity and age are consistent with the younger populations (<4 Gyr) in Figs. 5 and 6 of Holmberg et al. (2009) but outside the very young object (<0.5 Gyr) velocity box of Fig. 6 in Zuckerman & Song (2004).

The current UKIDSS followup program has 11 targets which will result in equally precise parallaxes by the end of 2009. Following the success for ULAS 0034 we recently added 20 other faint T dwarfs which will have enough observational coverage for a parallax determination by the end of 2011.

Acknowledgements

R.S. and H.R.A.J. would like to acknowledge the support of Royal Society International Joint Project 2007/R3. This research has benefitted from the M, L, and T dwarf compendium housed at dwarfArchives.org and maintained by Chris Gelino, Davy Kirkpatrick, and Adam Burgasser. We would like to express our thanks to Luca Rizzi for scheduling help and all the observers at UKIRT who have carried out the observations used here. The United Kingdom Infrared Telescope is operated by the Joint Astronomy Centre on behalf of the Science and Technology Facilities Council of the UK SKL's research is supported by the Gemini Observatory, which is operated by the Association of Universities for Research in Astronomy, Inc., on behalf of the international Gemini partnership of Argentina, Australia, Brazil, Canada, Chile, the United Kingdom, and the United States of America. The ESO ISAAC spectra described here were obtained under programme 381.C-0036(A).
