More than 160 near Earth asteroids observed in the EURONEAR network
,
M. Birlan1 - O. Vaduvescu2,1,12 - A. Tudorica4,16 - A. Sonka6 - A. Nedelcu3,1 - A. Galad7,8 - F. Colas1 - F. Pozo N.12 - A. Barr D.12 - R. Toma4,5,15 - I. Comsa11 - P. Rocher1 - V. Lainey1 - D. Vidican14 - D. Asher10 - C. Opriseanu14 - C. Vancea4 - J. P. Colque12 - C. P. Soto9 - R. Rekola13 - E. Unda-Sanzana12
1 - IMCCE, Observatoire de Paris, 77 avenue Denfert-Rochereau, 75014 Paris Cedex, France
2 -
Isaac Newton Group of Telescopes, La Palma, Canary Islands, Spain
3 -
The Astronomical Institute of the Romanian Academy, Str. Cutitul de Argint 5, 040557 Bucharest, Romania
4
- University of Bucharest, Department of Physics, Platforma Magurele,
Str. Fizicienilor nr. 1, CP Mg - 11, Bucharest-Magurele 76900, Romania
5 -
The Romanian Society for Meteors and Astronomy (SARM), Târgoviste,
Romania
6 -
Astronomical Observatory ``Admiral Vasile Urseanu'',
Bd. Lascar Catargiu, nr. 21, sect. 1, Bucharest, Romania
7 -
Astronomical Institute, Academy of Sciences of the Czech Republic
Fricova 1, 25165 Ondrejov, Czech Republic
8 -
Modra Observatory, Department of Astronomy, Physics of the Earth and Meteorology,
FMFI UK, Bratislava 84248, Slovakia
9 - Departamento de Ingeniería de Sistemas y Computación,
Universidad Católica del Norte, Avenida Angamos 0610, Antofagasta,
Chile
10 -
Armagh Observatory, College Hill, Armagh BT61 9DG, UK
11
- Babes-Bolyai University, Faculty of Mathematics and Informatics, Str.
Mihail Kogalniceanu nr. 1, 400084 Cluj-Napoca, Romania
12 -
Instituto de Astronomía, Universidad Católica del Norte,
Avenida Angamos 0610, Antofagasta, Chile
13 -
Tuorla Observatory, Department of Physics and Astronomy, University of Turku, Finland
14 -
Astroclubul Bucuresti, Bd. Lascar Catargiu, nr. 21, sect. 1, Bucharest, Romania
15 -
Rheinische-Friedrich-Wilhelms Universitaet Bonn Argelander Institut fuer Astronomie
Regina-Pacis-Weg 3, 53113 Bonn, Germany
16 -
Institute for Space Sciences, Bucharest - Magurele 077125, Romania
Received 10 July 2009 / Accepted 16 November 2009
Abstract
Context. The EUROpean Near Earth Asteroid Research
(EURONEAR) is a network which envisions to bring some European
contributions into the general context traced by the Spaceguard
Foundation which was carried out during the last 15 years mainly by the
US with some modest European and amateur contributions.
Aims. The number of known near Earth asteroids (NEAs) and
potentially hazardous asteroids (PHAs) has increased tremendously,
mainly thanks to five major surveys all focused on the discovery of new
bodies. But also other facilities are required to follow-up and
improvement the orbital parameters and to study the physical properties
of the known bodies. These goals are better achieved by a co-ordinated
network such as EURONEAR.
Methods. Astrometry is mandatory in order to acquire the
positional information necessary to define and improve orbits of NEAs
and PHAs and to study their trajectories through the solar system,
especially in the vicinity of Earth. Photometry is required to derive
some physical information about NEAs and PHAs. In order to achieve
these objectives, the main method of research of the EURONEAR is the
follow-up programme of objects selected by a few criteria, carried out
mostly at 1 m-class telescopes endowed with medium and large field
cameras.
Results. 162 NEAs summing more than 1500 individual positions
were observed for a total time of 55 nights in both visiting mode and
regular runs using nine telescopes located in four countries. The
observations were reduced promptly and reported to the Minor Planet
Centre (MPC) which validated and included them in the MPC and NEODyS

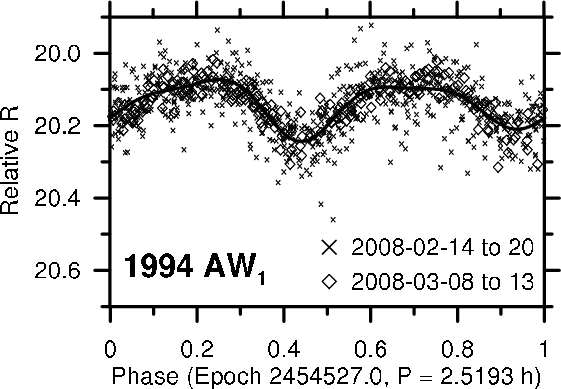

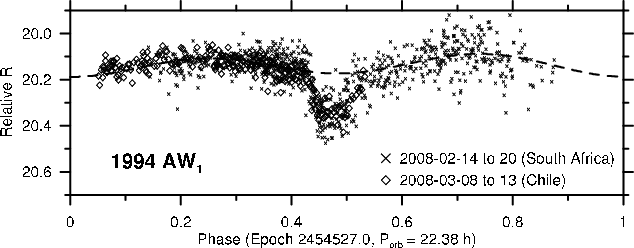

databases following the improvement of their orbital elements. For one
binary NEA we acquired photometry and were able to determine its
orbital and rotational periods. Complementary to the follow-up work, as
many as 500 unknown moving objects consistent with new Main Belt
asteroids and one possible NEA were discovered in the analyzed fields.
Conclusions. Our positions present 1
precision with an accuracy of 0.2-0.4
,
sufficient for achieving our immediate main goals. The observations and
data reduction were conducted by our network members, which included
some students and amateurs supervised by professional astronomers. In
most cases, we increased the observational arcs decreasing the
uncertainties in the orbits, while in some cases the new positions
allowed us to recover some bodies endangered to be lost, defining their
orbits.
Key words: astrometry - minor planets, asteroids: general
1 Introduction
Near Earth asteroids (NEAs) are designated as small bodies of the solar system with a perihelion distance
AU and aphelion distances
AU (Morbidelli et al. 2002). Potentially hazardous asteroids (PHAs) are designated as NEAs having a minimum
orbital intersection distance
AU (Milani et al. 2002; Bowell & Muinonen 1994) and the absolute magnitudes
,
which corresponds to objects
larger than about 150 m, assuming an albedo of 13%. Among the PHAs we can distinguish the virtual impactors (VIs), objects
for which the estimation of impact probability
with the Earth
is non-zero (Milani et al. 2000b,a).
The interest in the study of NEAs
increased tremendously during the last
two decades, as the consciousness of the potential danger of these objects
for the human society has been raised. Following Milani et al. (2002), the
importance of knowledge about NEAs population for the human society was
marked in 1990 by the US Congress. NASA was charged with the
organization of a strategy ``to study ways of increasing the discovery rate
of these objects as well as to study the technologies and options for
deflecting or destroying an NEO, should it be found to pose a danger to
life on Earth''. The first report on this subject (Morrison 1992) proposed
an international NEO survey programme called Spaceguard.
In the last decade we assisted to a complete a list of large sized NEAs/PHAs (D>1 km).
This situation is due mainly to five NEAs discovery programs in
progress, mostly carried out in the USA: Catalina Sky Survey (Larson et al. 1999; Stokes et al. 2002),
LINEAR (Viggh et al. 1998), Spacewatch (Gehrels & Jedicke 1996), LONEOS (Howell et al. 1996), and NEAT (Helin et al. 1997).
In the mean time, the interest in NEAs could be noticed in a
few observatories across Europe, and we introduce three of them here.
Klet' Observatory programme in the Czech Republic has been focused on the follow-up tasl using a 0.57 m telescope equipped with CCD cameras (Tichá et al. 2000). About 600 NEAs, summing more than 6500 individual positions were reported between 1994 and 1999. Based on this experience, their new KLENOT programme, using a 1.06 m telescope (Tichá et al. 2002) is currently working and reports follow-up astrometry for about 2700 NEAs observed between 1998 and 2008 and three NEA discoveries.
Another important program we used for this was CINEOS (Bernardi et al. 2002). This program started regular observations on NEAs in 2001, using the 0.60/0.90 m Schmidt telescope of Campo Imperatore Observatory, Italy. The CINEOS survey was designed to discover new objects, joining the main goal of Spaceguard, namely to discover more than 90% of kilometer-sized NEOs by the end of 2008. Between 2001 and 2005, this program reported 30 000 astrometric positions and was credited with the discovery of seven NEAs (Boattini et al. 2007).
The most prolific NEA discovery program in Europe appears to be carried
out at the Crni Vrh observatory in Slovenia, and is actually run by a
team of amateur and professional astronomers.
Equipped with a robotic 60-cm telescope controlled over the internet since 2004, this program leads
the European contributions with 13 NEA discoveries (J. Skvarc 2009, private communication).
Astrometry of NEAs is also performed in Russia (Devyatkin et al. 2007), and jointly in Turkey and the Ukraine (Ivantsov et al. 2008), but their programs are not formalized with specific names.
The International Astronomical Union sponsored data centers which are open to all observational reports over the world.
These reports are to follow rigorous steps for the validation of the acquired astrometric
data (newly discovered or not) before being used in the calculus of orbital elements.
New rules are also proposed for increasing the standard procedure (Milani et al. 2007).
It is important to explain the fundamental difference between a program
dedicated to the discovery of NEAs and and the one
devoted to the follow-up, securement and improvement of orbital
elements. In a general sense, the requirement of a survey is to scan a
large part of the sky during the entire observing night and discover as
many NEAs as possible. Nevertheless, most of the survey programs use
instruments with large pixel sizes, sometimes up to 3
,
which is inappropriate for accurate astrometry. Alternatively, a
follow-up and recovery program focuses on accurate astrometric
observations of selected objects announced in the alerts and observing
lists maintained by dedicated authorities (such are MPC,
Spaceguard Center, JPL, etc.). The requirements of such a follow-up and
recovery program are shifted to observations of relatively small
fields (10
30
)
and an instrument with a small pixel size (0.3
1.0
/pixel).
Table 1: Telescopes and detectors used for follow-up, recovery and secure orbits of NEAs.
Follow-up observations of NEAs/PHAs are necessary for several important reasons; namely i) once a new NEA is discovered, immediate observations are necessary to recover and secure the knowledge of its orbit; ii) once a PHA is determined, follow-up observations are necessary in order to improve its orbit, to be able to predict future close encounters and possible collisions with Earth; iii) studies of its physical parameters such as rotation periods, color, albedo, taxonomy and size are necessary to extract information about the most possible encounters.
The EURONEAR project envisions to establish a co-ordinated network which will follow-up and recover NEAs/PHAs using 1-2 m-class telescopes (dedicated and non-dedicated) located in Europe and elsewhere (Vaduvescu et al. 2008). While the programs CINEOS, KLENOT, and Crni Vrh are mainly focused on using specific telescopes in Europe to perform observations, the major objective of EURONEAR has been the high precision astrometry of NEAs in a co-ordinated network and the creation of synergies between European planetologists (and not only) for follow-up, precovery, and recovery of NEAs and PHAs.
EURONEAR has been working since May 2006. Besides its main scientific interest, the EURONEAR network is organized in order to increase the collaboration, mostly European, between professional astronomers, amateurs and students interested in NEAs. The implementation of the network is organized around a dynamic EURONEAR website and a specific list of emails.
2 Observations and astrometry
2.1 Observations
A total of 55 nights of observations are reported in this article. Most of the observations were obtained in visiting mode at several observatories across the world. These runs were partly obtained as the result of regular semestrial applications for observing time. The proposals submitted were successful, and we observed in this mode for a total time of 22 nights. The rest of the nights were observed with the telescopes in Pic du Midi, Cerro Armazones, Admiral ``Vasile Urseanu'' in Bucharest, and York University.
The runs obtained via regular applications offer the advantage of having enough time for preparing the run and the ad hoc team to work for data reduction. This organization is essential when a huge amount of data is obtained during the run (for example the run with 2.2 m MPI/WFI on La Silla). On the other hand, the facilities at disposal offer more flexibility of schedule, allowing among other things for the assessment of specific newly released targets which may need urgent observation. We used a total of nine telescopes located in four countries: France, Chile, Canada and Romania. These facilities are presented in Table 1.
NEAs are objects with fast apparent movement, with a period of visibility which
can change dramatically in just a few days. For that, EURONEAR has
developed its own scheduler program for NEA observations, available on
its webserver.
For newly discovered objects, the optimum window of observations is
defined for each asteroid according to a few factors, so as to ensure
maximum probability of successful follow-up and consequently securing
of their orbits.
Typically, windows of about 20 days after discovery suffice in
such
cases. This scheduling tool is at the disposal of the scientific
community.
We used a binning mode of
for the ESO/MPG 2.2 m and ESO 1 m
telescopes due to requirements in minimizing the data transfer and
oversampling. The atmospheric conditions were quite heterogeneous
between several sites, with the average seeing estimations in the
range of
,
the lowest value being in La Silla and Las
Campanas, while the worst seeing was recorded for the Vasile Urseanu
observatory in Bucharest, and York University in Toronto.
2.2 Astrometry
The images were calibrated by flat field and bias frames
before the astrometric measurements. Approximately 80% of the images were
reduced using the Astrometrica software and the USNO-B1 catalog.
Astrometrica is easily accessible and very often used by the amateur
community for asteroid observations, and we decided to use it mainly
because most of our data reduction was made by students and amateurs,
members of our network. Despite its relatively low astrometric precision and lack of proper
motion of sources, we preferred the USNO-B1 versus UCAC2 catalog because
of the higher density of stars of USNO-B1 and its all-sky coverage,
thus the astrometric calibration of small fields is always possible.
![]() |
Figure 1: The 1538 positions of a total of 162 NEAs observed in the EURONEAR network, in cumulative number per year, between 2006 and 2008. |
Open with DEXTER |
Table 2: An example of the catalog EURONEAR_Release1.
For the rest of the images we used
some personal procedures in MIDAS, IDL or IRAF. It is important to note that
some of the observations were treated with a specific software which is under development among the EURONEAR members, based on the CPL
procedures and using the UCAC2 catalog.
162 NEAs, summing more than 1500 individual positions were observed in the visiting mode in the frame of the EURONEAR network, between May 2006 and Dec 2008, as presented in Fig. 1. The observing log table is presented in the Appendix of this article and includes the telescope location, the name of the asteroid, the type, the date of observations, the apparent magnitude, the exposure time, and the number of observations. This table contains also the apparent motion of the asteroid and the time period (d-days, y-years) between its discovery and the EURONEAR observation.
Most of the runs were conducted using sidereal tracking. However, for a few runs (Pic du Midi and ESO/MPG) we tracked using the half-value of the proper motion of the observed asteroids, which has the advantage to have shorter trails for the asteroids while increasing the exposure time in order to reach fainter magnitudes.
To reduce the ESO/WFI images, a specific procedure was developed. Following the flat and bias treatement of the images, we sliced the mosaic image in the eight CCD components which were treated independently, and we measured them separately. To take advantage of the large field of the ESO/MPG, LCO/Swope and CTIO 1 m runs, we inspected the entire field of these runs besides the observed NEA and reported all asteroids (known and new) found in the images.
Depending on the field of the telescope and the density of the stars in the field,
the scale and the orientation of the field were computed using about 6 to 100 catalog stars with a precision better than 0.3
.
The measured (x, y) values were related
to the standard (X, Y) coordinates using a linear model.
Typically, the differences between the measurements and the catalog positions do not exceeded 300 mas.
The center (x, y) of the measured sources was obtained using a 2D-symetric Gaussian function. The rms fit of the center was lower than 150 mas, depending on the telescope aperture, the magnitude, the seeing, and the method of guiding during the acquision of the image.
3 Results
The catalog EURONEAR_Release1 contains all the data referred into the article. The columns of the release are: the name of the asteroid, rigth ascension and declination for the J2000.0 epoch, magnitude and filter (when available) and the UAI observatory code. A sample of the release is presented in Table 2.References of reported EURONEAR astrometry are in the following Minor Planets (Electronic) Circulars: Cavadore et al. (2006); Tubbiolo et al. (2008); Buie et al. (2008); Elst et al. (2008a,c); Scotti et al. (2008b); Tholen et al. (2008b); Vaduvescu et al. (2007c); Elst et al. (2008b); Cavadore et al. (2008); Vaduvescu & Tudorica (2008); Vaduvescu et al. (2007d,b); Young et al. (2008); Sheppard et al. (2008); Pozo et al. (2008); Scotti et al. (2008a); Vaduvescu et al. (2007a); Kern et al. (2008).
All astrometric measurements were accepted by MPC, being included
successfully in the procedure of adjustment of the orbital catalogs

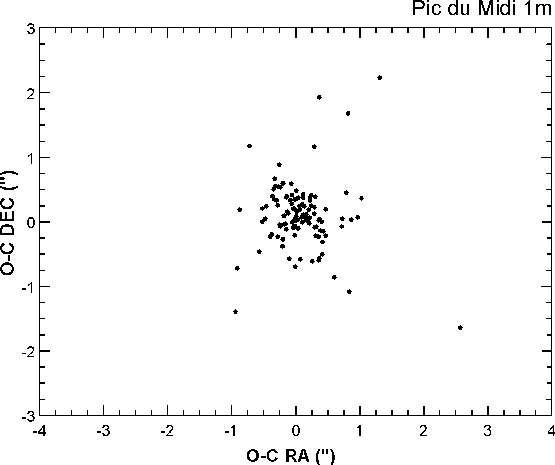

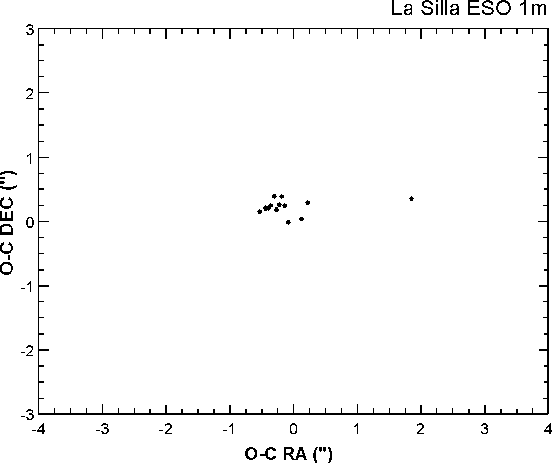

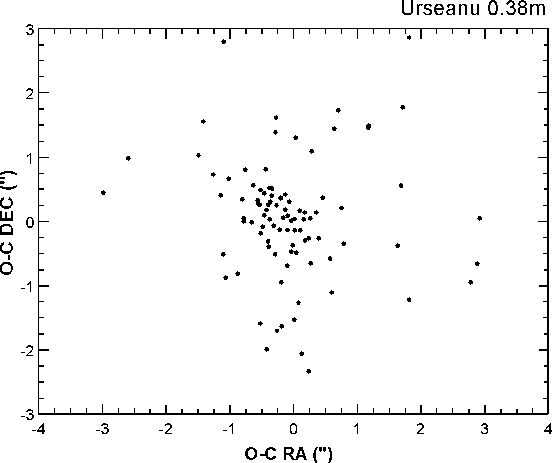

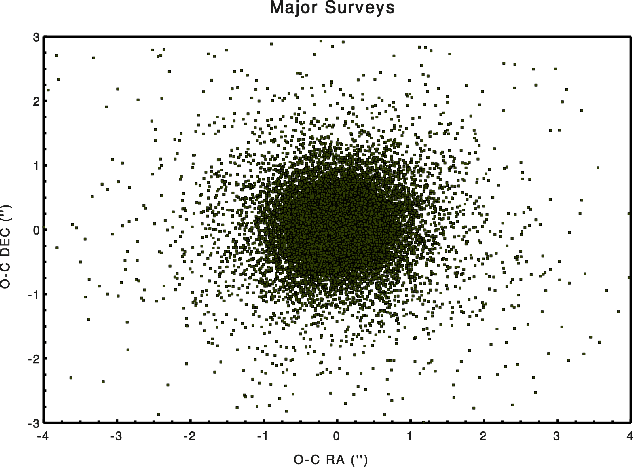

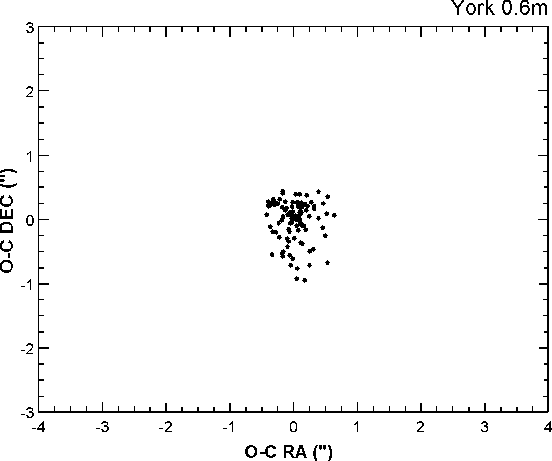

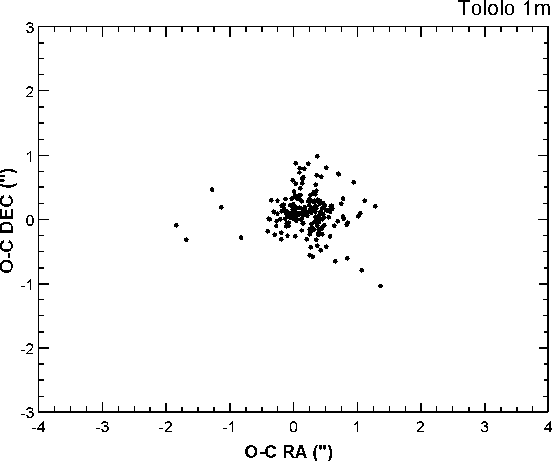

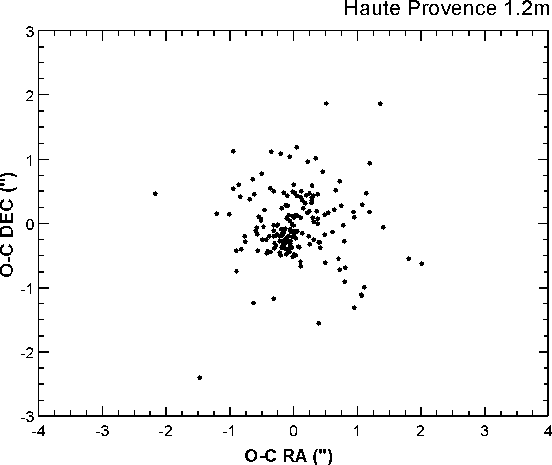

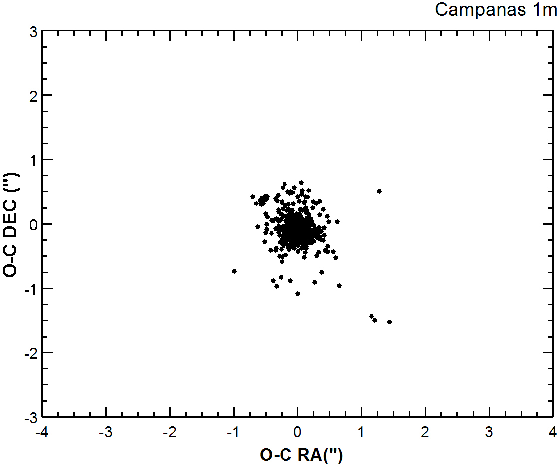

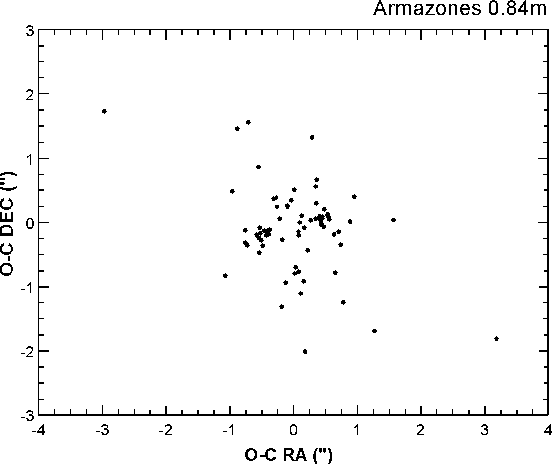

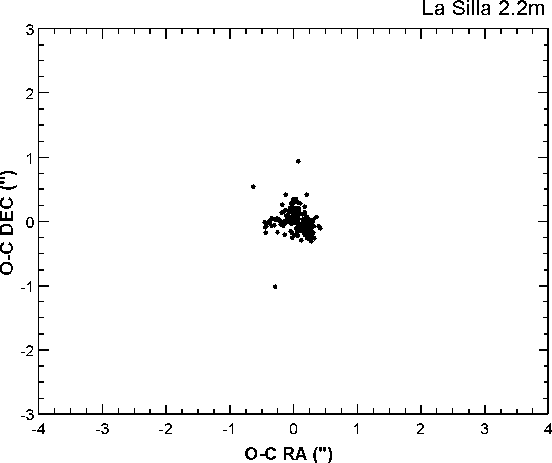

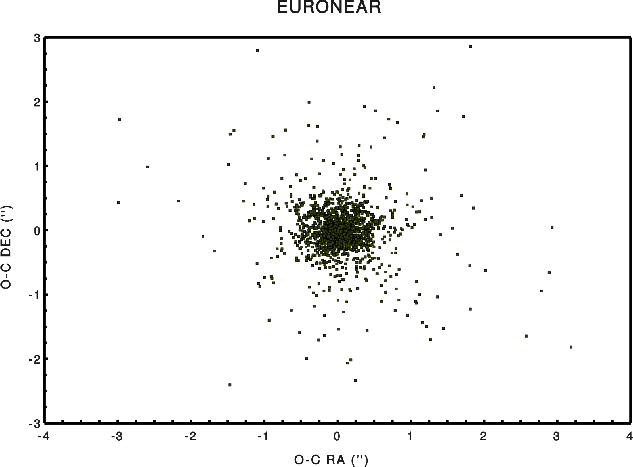

maintained by JPL and NEODyS. Figure 2 presents the distribution of
observed minus calculated (o-c) positions in right ascension and
declination for all runs. The values are mostly confined within 1
for all observatories,
probing the precision of data reduction,
observational capabilities and the available instrumentation. The
frequencies of values (Fig. 4) are centered relatively close to zero.
![]() |
Figure 2:
(o-c) residuals for 1538 positions of 162 NEAs observed in the EURONEAR network. Most of the points are
confined within 1
|
Open with DEXTER |
![]() |
Figure 3: Over 23 000 (o-c) residuals related with observations performed by all other surveys which observed in the past the same asteroids with EURONEAR. Comparing this plot with the one of Fig. 2, one can observe that EURONEAR observations appear better confined around zero, and this fact is also supported by statistics. |
Open with DEXTER |
![]() |
Figure 4:
The frequency of (o-c) values in the plane of right ascension and declination, with a bin value of 0.095
|
Open with DEXTER |
The individual plots of the (o-c) values for each telescope are available in the Appendix of this paper. The dispersion of observations between observatories is different and is related to the telescope aperture, pixel size and seeing conditions. We will focus our interest on the telescopes for which the (o-c) values are well confined around the zero value.
The Gaussian fit was performed for all (o-c) values in right ascension and in declination, assuming
non-weighting data, in free parameter mode.
In the right ascension, the Gaussian distribution corresponds to 94.97% of
the correlation and the FWHM is (
)
,
while for the declination
the correlation in 97.81% and the FWHM is (
)
.
The maximum
of the Gaussian fit is slightly shifted to positive values, (
)
in right ascension and (
)
in declination.
The (o-c) values are very well centered around zero for the
observations obtained with the 2.2 m telescope. The best Gaussian
function is obtained for a
)
centered at (
)
in right ascension, and
)
,
centered at (
)
in declination. These values show a very good consistency between the internal errors
of the data and the expected position errors from the USNO-B1 reference
catalog. Careful analysis of the data shows that the (o-c) values are
widely spread for newly discovered objects whose orbit uncertainties
were larger, while for the objects observed at two (or more)
oppositions the (o-c) values are well confined around zero. This could
be seen in Fig. 5.
Recently, Tholen et al. (2008a) described systematic offsets in the astrometry of (99942) Apophis for more
than 200 individual observations. This large offset of
approximately 0.2
to the north of ephemerides position was associated to the systematic errors in declination of the star
catalog
, compared to the ICRF sources. From
our global histograms of observed objects we cannot confirm such a kind of offset,
which suggests that the 0.2
error is related to a local systematic error in the catalog. Also, such
a kind of analysis for a given asteroid of our sample is not possible,
while for each object the number of individual observations is around
ten (thus statistically irrelevant) and over a short arc of orbit.
![]() |

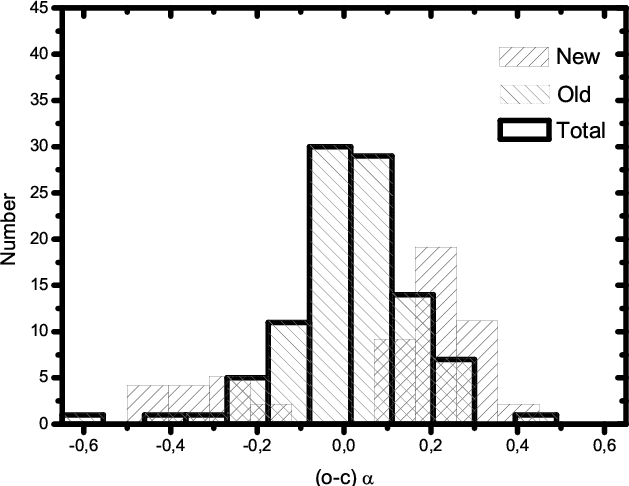

Figure 5: (o-c) residuals in right ascension for the asteroids observed with 2.2 m telescope, La Silla. These values are widely spread for newly discovered objects whose orbit uncertainties were larger, while for the objects observed at two (or more) oppositions the values are well confined around zero. |
Open with DEXTER |
We compared our work with other programs, mostly the five major US
surveys capable to regularly observe NEAs using facilities similar to
those used by our network. In Fig. 3
we plot (o-c)s derived from data taken by all other surveys for the
same NEAs which were observed by us. Over 23 000 (o-c) points of
Fig. 3 refer to the same
observed objects plotted in Fig. 2. Our data appear to be better
confined around zero (about 0.4
)
than the (o-c) points from the
other surveys (about 0.6
). Similar analysis carried out separately
for each telescope used by our network arrives at similar results, with
even better (o-c) confinement in the case of the ESO/MPG 2.2 m and LCO 1 m
datasets.
3.1 Recovered VIs, PHAs, and NEAs
Besides NEAs selected from the Spaceguard and MPC object lists, we checked during a few runs also the MPC NEO confirmation list. Six minor planets were recovered by EURONEAR at OHP, CTIO, and LCO within one day from discovery, following their alert on the MPC list, while another four could not be recovered. The recovered objects are marked by (*) in the Appendix.
The recovered objects are: 2007 JX2 (MPEC 2007-J32) - PHA discovered by Catalina and recovered by EURONEAR at OHP 1.2 m (formerly 7J2E987); 2008 KE6 (MPEC 2008-K63) - PHA discovered by Catalina and recovered by EURONEAR at CTIO 1 m (formerly 8K85BC5); 2008 KN11 (MPEC 2008-K66) - VI discovered by Catalina and recovered by EURONEAR at CTIO 1 m (formerly 8K86577); 2008 UQ2 (MPEC 2008-U45) - MBA discovered by Catalina and recovered by EURONEAR at LCO 1 m (formerly 8UB57EF); 2008 UT2 (MPEC 2008-U48) - NEA discovered by Catalina and recovered by EURONEAR at LCO 1 m (formerly 8UB733D) and 2008 UR2 (MPEC 2008-U46) - NEA discovered by Spacewatch and recovered by EURONEAR at LCO 1 m (formerly SW40ea).
Part of the observed NEAs, EURONEAR observed one NEA having a very large sigma uncertainty, namely
2008 JA8, discovered by CSS on May 5, 2008, which was recovered by EURONEAR at CTIO 1 m about 10
away from predicted
position, later being tracked back and identified with a NEAT 2001 observation thanks to EURONEAR that defined its orbit.
3.2 Astrometry and orbit adjustment: the case of 2008 CR118 as a scholarship example
The astrometry performed by EURONEAR contributes to the improvement of the orbital elements of NEAs. These elements are updated regularly by several services and teams (e.g. MPC, NEODyS, ASTORB). These new orbital elements are dependent on several factors, such as the initial conditions of the adjustment, the weight of individual observations, the procedure of the adjustment of observations, the precision (double, quadruple) in the procedure, the dynamical system used for the integration, and the choice of the numerical integrator.
It is important to note that the adjustment is mandatory for objects for which one has a poor knowledge of their orbital parameters. This occurs mainly in two situations: i) the object was not observed for a long time, and ii) the object is a new discovery.
We propose to investigate this problem in a non-exhaustive way for our whole sample and to provide an example of such new observations, thus underlining the importance of an orbital adjustment of NEAs. We will concentrate on the asteroid 2008 CR118 as a generic example of the situation described below.
We computed the orbital elements of the NEA 2008 CR118
from 80 individual observations, obtained between March 2003 and
October 2008. Ten of these astrometric observations were obtained by
EURONEAR in Las Campanas (IAU code 304), on Oct. 22, 2008. When the
EURONEAR observations were performed, the estimated uncertainty of the
MPC ephemeris was around 20
.
In our investigation we used two different approaches to
quantify the importance of these new observations. The first approach
which we used was NOE-AST, derived from Lainey et al. (2007), Lainey (2008), and Lainey & Vienne (2009). This procedure uses the dynamical model DE406. The treshold of the adjustment in the procedure was established at 3,
while the numerical integration was
based on Gauss-Radau polynomials (Everhart 1985).
The second approach, ASTERPRO (Bec-Borsenberger & Rocher 1988; Rocher 2007), is a specific procedure of adjustment and orbital
element computation developed by Patrick Rocher. This procedure uses the dynamical
model SLP98 (G. Francou, personal communication), the post-newtonian correction,
minimization procedure and K-student
test as well as the Bulirsch and Stoer numerical integrator.
We used the orbital elements for the epoch June 18, 2009,
proposed by the Lowell Observatory
as initial conditions in our adjustment, and the weight of each
observation was considered equal to the unity (i.e. independent
observations).
![]() |

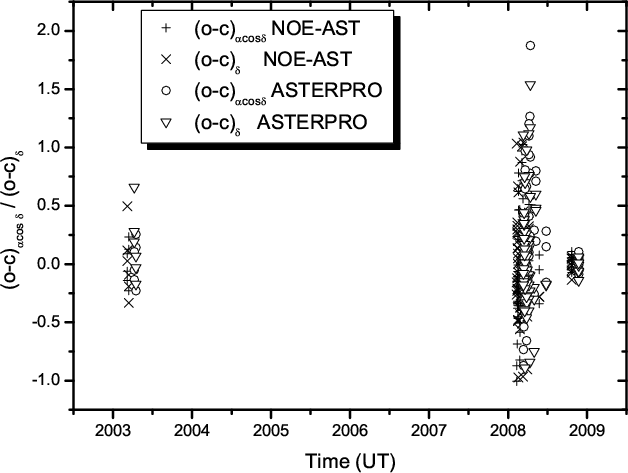

Figure 6: The (o-c) values in right ascension and declination, correspondent to the adjustment of 2008 CR118 using NOE-AST and ASTERPRO. |
Open with DEXTER |
Table 3: Comparison of the differences of rectangular coordinates and velocities calculated for the asteroid 2008 CR118 using two adjustment procedures.
Table 4: Sample of orbit adjustment (semi-major axis for briefness here) and MOID calculated with observational datasets available immediately before and after our observations, compared with the complete dataset available on July 6, 2009.
The reliability of the results after the adjustment was checked using several NEAs, by
comparing the rectangular coordinates X, Y, and Z and their first derivatives ,
,
and
,
as well as the (o-c) values of the observations which were retained for
the final solution. Globally the differences in rectangular coordinates
are below 10-7-10-6 AU, at values similar to the standard
deviation of the observations. In the case of 2008 CR118, these values are 10-6,
,
and 10-7 AU for X, Y, and Z respectively (i.e. less than 1 km of difference). These differences correspond to
excursions of semi-major axis of less than 10-7 AU and less than
in eccentricity. The correspondent (o-c) in right ascension and declination are presented in Fig. 6.
We applied these two methods of adjustment to the asteroid 2008 CR118 in two situations: i) the case of the observation sample on which we extracted the observations from October 22, 2008, (Obs-without-EURONEAR) and ii) the case of a sample including all observations (Total-Obs). Then, the comparison of results would give an estimation of the improvement in the orbital coordinates, in NOE-AST and ASTERPRO approach respectively.
The results of the differences in coordinates and velocities
(Total-Obs minus Obs-without-EURONEAR) are presented in Table 3.
We conclude an important influence of the observations of Oct. 22,
2008 in the cartesian coordinates of the asteroid. Thus, for the X cartesian coordinate, the differences are 1995.6 km and 3383.1 km for
NOE-AST and ASTERPRO respectively, which is more important by two orders than that for the Y coordinate. Relatively important
differences are also calculated for the Z
coordinate (358.6 km and 446.8 km for NOE-AST and ASTERPRO
respectively). Consequently, this is translated in differences of 10-7 in the semi-major axis and
in eccentricity,
for both the NOE-AST and ASTERPRO methods.
3.3 Brief orbital study of VIs, PHAs, and recovered NEAs
All together, EURONEAR observed 66 VIs, PHAs and recovered NEAs, according
to their classifications available at the observing epoch (online Table).
We considered these cases to fit the orbits and derive the semi-major axis (a)
and Minimum Orbital Intersection Distances (MOID) from orbits fitted to the
observational datasets available immediately before and after our observations,
as well as those resulting from the fit of all data available at present
(e.g., including all observations after our runs). To perform the orbital
fitting we used the ORBFIT package and the asteroids' observational data from NEODyS
. Table 4 includes some results which show several important cases where the EURONEAR contribution can be seen.
3.4 Photometry of NEAs
Most NEAs observed by EURONEAR had magnitudes between
(1 m class telescopes)
as faint as
for the 2.2 m telescope (see Table in the Appendix), compatible
with or complementing to other major surveys. Most observations were
obtained using the Johnson or Cousins R filter. In the case of faint asteroids, no filter was used to maximize
the recording of the Sun flux reflected by the body.
One of the NEAs observed in Las Campanas, 1994 AW1, was actually the main target of a campaign focused on acquiring photometric data for a few selected binary asteroids (mostly Main Belt) to constrain the distribution of their orbital poles (Capek & Vokrouhlický 2004). A few weeks previous to our 1 m telescope observations in Chile, 1994 AW1 was observed using the 1 m telescope at SAAO in South Africa in poor weather conditions. By joining the two datasets we could obtain a better precision for the orbital and rotation periods.
![]() |
Figure 7: Composite lightcurve of the binary system 1994 AW1 after subtraction of the short period. The dashed line is the assumed fit of the lightcurve, which does not cover the whole period. |
Open with DEXTER |
![]() |
Figure 8: The composite lightcurve of the primary body of the binary system 1994 AW1. |
Open with DEXTER |
A fast rotation period of the primary 1994 AW1 was derived,
h. The amplitude of the lightcurve was 0m.17. The
orbital period of the system,
h,
was obtained after realizing that only primary events (magnitude
attenuation) were observed in February and in March 2008. The rotation
period of the satellite coincides with its orbital period and the
amplitude of the lightcurve (without fitted component from the rotation
period of the primary) is at least
.
The fits to the binary model in Fig. 7, which show the orbital period
and in Fig. 8 the rotation period of the binary system. We compared the previous
results of Pravec & Hahn (1997)
with ours, and the results are similar despite the change in the geometry of the system by
about 50°
in longitude and
in latitude (if one takes into account the so-called phase-angle bisector).
Photometry and physical data of binary NEAs are rather sparse, mainly because photometry is a task very time-consuming which requires a few nights or weeks to derive rotational and orbital periods for only a few systems. For most telescopes the observations for long periods seems to be incompatible with the policy of granted observing time. However, studies of physical properties of binary NEAs as well as their dynamical evolution are essential for the near future. In this regard, it is clear that a co-ordinated network to include at least two telescopes would be preferable, and EURONEAR could contribute in the near future with photometric data for NEA physical studies.
3.5 Discovery of MBAs and NEAs
Some of the NEAs followed-up by EURONEAR were located close to the ecliptic plane, and consequently many objects with proper motion compatible with MBAs could be identified in the observed fields. Besides the surveyed NEAs, data reducers closely inspected the entire fields, identifying and measuring all moving bodies using the convenient blink function of Astrometrica.
Most moving objects identified in the larger fields of 1 m telescopes (CTIO, LCO, OHP) were identified as known MBAs. Some others were not known and were detected in the runs at Las Campanas 1 m and ESO/MPG 2.2 m, thanks to the larger FOV and larger aperture in the second case. All together, we identified, measured and reported to MPC some 50 unknown moving bodies in the LCO 1 m run (five nights in Oct 2008 observing some 50 fields covering about 6 sq. degree) and about 450 unknown bodies in the ESO/MPG run (Mar. 2008 observing some 42 WFI fields covering about 21 sq. degree). To date, 56 objects observed at ESO/MPG have been officially considered EURONEAR discoveries by the MPC.
One set of eight images observed at the ESO/MPG during one night shows a well-visible
set of longer collinear trails (about 25 pixels each), which suggests
an object moving quite fast (about 10 arcsec/min), which could not be
linked to any known NEA or PHA. We speculate that the accidental encounter
of one new NEA during this three night run with ESO/MPG equipped with WFI mosaic
camera could be compatible with the results of Boattini et al. (2004).
In 2002 Boattini et al. (2004) discovered three NEAs during three clear nights
using ESO/MPG at a time when the number of known NEAs was much less.
Unfortunately, our object
was observed for about 15 min only during one night, so it is impossible
to establish an orbit, but it is expected to be linked to another object
sometime soon. It is out of the scope of this paper to present our MBA
discoveries, so we plan to investigate them statistically in the context of
the MBA populations and 2 m survey capabilities at the faint end (mag
).
4 Conclusions and perspectives
EURONEAR network has been organized to increase the collaboration, mostly European, between professional astronomers, amateurs and students interested in NEAs. The optimization of this collaborative work of observations and astrometric data reduction is possible via a dedicated website which includes some specific software and a dedicated list of emails.Astrometry has been the main tool of research for orbital properties. Overall, 162 NEAs, summing more than 1500 individual positions observed over a total of 55 nights between 2006 and 2008 were reported by the EURONEAR network and used in the orbital adjustment of NEAs (NEAs, PHAs, VIs). These results are published in the catalog EURONEAR_Release1. Some orbital fits run as examples with some models such as NOE-AST, ASTERPRO, and ORBFIT including our datasets were compared with those obtained before our observations, clearly probing the contributions of our runs. Photometry is the main tool of research for basic physical properties of NEAs, and in this sense the NEA binary system 1994 AW1 was observed, and we derived its rotation and orbital period.
About 500 new objects, whose motions are compatible with MBAs were reported as potential serendipitous discoveries in Las Campanas 1 m and La Silla 2.2 m, thanks to their large field and aperture capabilities. From these objects, 56 MBAs are officially recognized by the MPC as new discoveries. One object is speculated to be a new NEA which was possibly lost.
The (o-c) plots for all our observations show that most of our reduced data remained confined
within 1
,
probing the observational capabilities for all facilities and the
accurate data reduction. Considering our whole reduced dataset, the
average astrometric
position error has a FWHM of 0.4
consistent with the USNO-B1 catalog
uncertainty. This value is two times lower for the ESO/MPG
observations,
which benefit by the 2 m aperture and a large field. For the
future, we
intend to decrease these errors by employing unique dedicated
reduction pipeline based on CPL procedures which uses UCAC-2 and
UCAC-3 catalogs. These results are about two to three times better than
those reported by other major surveys dedicated mainly to the discovery
of new objects, which use much larger pixel scales and other observing
protocols.
An important contribution could be obtained in the NEA research using 1 m class and even smaller telescopes, and this task was achieved during the last three years by the EURONEAR network, which used nine telescopes located in four countries in a team effort. Other runs are planned in the future on 1-2 m class telescopes to our specific objectives, while some funding continue to be searched in order to dedicate one or two 1-2 m class telescopes to the EURONEAR project.
AcknowledgementsThe article is based on observations acquired in Pic du Midi, Haute Provence, La Silla, Cerro Tololo, Las Campanas, Cerro Armazones, Bucharest Urseanu, and York University Observatories. The run of Alex Tudorica in Cerro Tololo was supported by the University of Bucharest, Faculty of Physics, Romania. We thank Prof. Mircea Rusu from the University of Bucharest, Faculty of Physics, for his contribution. The runs of F. Pozo N., and A. Barr D. in Las Campanas, and C.P. Soto in La Silla were supported by the Universidad Católica del Norte. The EURONEAR website is hosted by the Institut de Mécanique Céleste et de Calcul des Ephémérides, Observatoire de Paris, France. To analyze the photometry data we used the ALC software (Pravec, private communication). Observations at SAAO were done by Henry Hsieh in a joint proposal including Alan Fitzsimmons, Petr Pravec and Alan Harris. Adrian Galad was supported by the Slovak Grant Agency for Science VEGA (Grant 2/0016/09) and the Grant Agency of the Czech Republic (Grant 205/09/1107).
References
- Bec-Borsenberger, A., & Rocher, P. 1988, in Dévelopments Récents en Planétologie Dynamique, 29 [Google Scholar]
- Bernardi, F., Boattini, A., D'Abramo, G., et al. 2002, Asteroids, Comets, and Meteors: ACM 2002, ed. B. Warmbein, in ESA SP-500, 801 [Google Scholar]
- Boattini, A., D'Abramo, G., Scholl, H., et al. 2004, A&A, 418, 743 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
- Boattini, A., D'Abramo, G., Valsecchi, G. B., et al. 2007, Earth Moon and Planets, 100, 259 [NASA ADS] [CrossRef] [Google Scholar]
- Bowell, E., & Muinonen, K. 1994, in Hazards Due to Comets and Asteroids, ed. T. Gehrels, M. S. Matthews, & A. M. Schumann, 149 [Google Scholar]
- Buie, M. W., Parker, J. W., Wittman, D., et al. 2008, Minor Planet Circulars, 6312, 3 [NASA ADS] [Google Scholar]
- Cavadore, C., Colas, F., Vaduvescu, O., et al. 2006, Minor Planet Circulars, 5711, 2 [NASA ADS] [Google Scholar]
- Cavadore, C., Elst, E. W., Lagerkvist, C.-I., et al. 2008, Minor Planet Circulars, 6336, 9 [NASA ADS] [Google Scholar]
- Devyatkin, A. V., Kulish, A. P., Kouprianov, V. V., et al. 2007, in IAU Symp. 236, ed. G. B. Valsecchi, & D. Vokrouhlický, 391 [Google Scholar]
- Elst, E. W., Lagerkvist, C.-I., Boattini, A., Boehnhardt, H., & Vaduvescu, O. 2008a, Minor Planet Circulars, 6287, 8 [NASA ADS] [Google Scholar]
- Elst, E. W., Lagerkvist, C.-I., Boattini, A., et al. 2008b, Minor Planet Circulars, 6257, 3 [NASA ADS] [Google Scholar]
- Elst, E. W., Lagerkvist, C.-I., Boattini, A., et al. 2008c, Minor Planet Circulars, 6312, 5 [NASA ADS] [Google Scholar]
- Everhart, E. 1985, in Dynamics of Comets: Their Origin and Evolution, ed. A. Carusi, & G. B. Valsecchi (Dordrecht: Reidel), Astrophysics and Space Science Library, 115, Proc. Colloq., held in Rome, Italy, June 11-15, 1984, 83, 185 [Google Scholar]
- Gehrels, T., & Jedicke, R. 1996, Earth Moon and Planets, 72, 233 [NASA ADS] [CrossRef] [Google Scholar]
- Helin, E. F., Pravdo, S. H., Rabinowitz, D. L., & Lawrence, K. J. 1997, New York Academy Sciences Annals, 822, 6 [NASA ADS] [CrossRef] [Google Scholar]
- Howell, S. B., Koehn, B., Bowell, E., & Hoffman, M. 1996, AJ, 112, 1302 [NASA ADS] [CrossRef] [Google Scholar]
- Ivantsov, A. V., Aslan, Z., Gumerov, R. I., et al. 2008, in American Institute of Physics Conf. Ser., 1043, 167 [Google Scholar]
- Kern, S. D., Sheppard, S. S., Vaduvescu, O., & Schechter, P. L. 2008, Minor Planet Circulars, 6336, 10 [NASA ADS] [Google Scholar]
- Lainey, V. 2008, Planet. Space Sci., 56, 1766 [Google Scholar]
- Lainey, V., & Vienne, A. 2009, in Connaissance des Temps (EDP Sciences), 177 [Google Scholar]
- Lainey, V., Dehant, V., & Pätzold, M. 2007, A&A, 465, 1075 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
- Larson, S., Spahr, T., Brownlee, J., Hergenrother, C., & McNaught, R. 1999, In Proceedings of the 1999 AMOS Technical Conference, 182 [Google Scholar]
- Milani, A., Chesley, S. R., Boattini, A., & Valsecchi, G. B. 2000a, Icarus, 145, 12 [NASA ADS] [CrossRef] [Google Scholar]
- Milani, A., Chesley, S. R., & Valsecchi, G. B. 2000b, Planet. Space Sci., 48, 945 [NASA ADS] [CrossRef] [Google Scholar]
- Milani, A., Chesley, S. R., Chodas, P. W., & Valsecchi, G. B. 2002, Asteroids III, 55 [Google Scholar]
- Milani, A., Gronchi, G. F., & Knezevic, Z. 2007, Earth Moon and Planets, 100, 83 [NASA ADS] [CrossRef] [Google Scholar]
- Morbidelli, A., Bottke, Jr., W. F., Froeschlé, C., & Michel, P. 2002, Asteroids III, 409 [Google Scholar]
- Morrison, D. 1992, Mercury, 21, 103 [NASA ADS] [Google Scholar]
- Pozo, F., Barr, A., Vaduvescu, O., et al. 2008, Minor Planet Electronic Circulars, 48 [Google Scholar]
- Pravec, P., & Hahn, G. 1997, Icarus, 127, 431 [NASA ADS] [CrossRef] [Google Scholar]
- Rocher, P. 2007, in Notes scientifiques et techniques de l'IMCCE, ISBN: 2-910015-54-8 [Google Scholar]
- Scotti, J. V., Pozo, F., Barr, A., et al. 2008a, Minor Planet Electronic Circulars, 46 [Google Scholar]
- Scotti, J. V., Pozo, F., Barr, A., et al. 2008b, Minor Planet Electronic Circulars, 45 [Google Scholar]
- Sheppard, S. S., Vaduvescu, O., Galad, A., et al. 2008, Minor Planet Circulars, 6225, 1 [NASA ADS] [Google Scholar]
- Stokes, G. H., Evans, J. B., & Larson, S. M. 2002, Asteroids III, 45 [Google Scholar]
- Tholen, D. J., Bernardi, F., & Micheli, M. 2008a, in AAS/Division for Planetary Sciences Meeting Abstracts, 40, 27.02 [Google Scholar]
- Tholen, D. J., Elst, E. W., Lagerkvist, C.-I., et al. 2008b, Minor Planet Circulars, 6226, 5 [NASA ADS] [Google Scholar]
- Tichá, J., Tichý, M., & Kocer, M. 2002, in Asteroids, Comets, and Meteors: ACM 2002, ed. B. Warmbein, ESA SP-500, 793 [Google Scholar]
- Tichá, J., Tichý, M., & Moravec, Z. 2000, Planet. Space Sci., 48, 787 [Google Scholar]
- Tubbiolo, A. F., Bressi, T. H., Gilmore, A. C., et al. 2008, Minor Planet Electronic Circulars, 66 [Google Scholar]
- Capek, D., & Vokrouhlický, D. 2004, Icarus, 172, 526 [NASA ADS] [CrossRef] [Google Scholar]
- Vaduvescu, O., & Tudorica, A. 2008, Minor Planet Circulars, 6312, 6 [NASA ADS] [Google Scholar]
- Vaduvescu, O., Colque, J. P., & Nedelcu, A. 2007a, Minor Planet Circulars, 6143, 11 [NASA ADS] [Google Scholar]
- Vaduvescu, O., Nedelcu, A., Birlan, M., & Sonka, A. 2007b, Minor Planet Circulars, 5986, 3 [NASA ADS] [Google Scholar]
- Vaduvescu, O., Nedelcu, A., Lombardi, G., et al. 2007c, Minor Planet Electronic Circulars, 32 [Google Scholar]
- Vaduvescu, O., Nedelcu, A., & Sonka, A. 2007d, Minor Planet Circulars, 6008, 5 [NASA ADS] [Google Scholar]
- Vaduvescu, O., Birlan, M., Colas, F., Sonka, A., & Nedelcu, A. 2008, Planet. Space Sci., 56, 1913 [NASA ADS] [CrossRef] [Google Scholar]
- Viggh, H. E. M., Stokes, G. H., Shelly, F. C., Blythe, M. S., & Stuart, J. S. 1998, in Space 98, ed. R. G. Galloway, & S. Lokaj, 373 [Google Scholar]
- Young, J., Vaduvescu, O., Tudorica, A., et al. 2008, Minor Planet Electronic Circulars, 63 [Google Scholar]
Appendix A
Table A.1: The observing log file.
![]() |
Figure A.1: Pic du Midi 1 m: (o-c) residuals for 122 positions of 14 NEAs observed by EURONEAR in one run. |
Open with DEXTER |
![]() |
Figure A.2: Haute Provence 1.2 m: (o-c) residuals for 171 positions of 19 NEAs observed by EURONEAR in one run. |
Open with DEXTER |
![]() |
Figure A.3: Armazones 0.84 m: (o-c) residuals for 73 positions of 6 NEAs observed by EURONEAR in one run. |
Open with DEXTER |
![]() |
Figure A.4: Tololo 1 m: (o-c) residuals for 207 positions of 24 NEAs observed by EURONEAR in one run. |
Open with DEXTER |
![]() |
Figure A.5: Campanas 1 m: (o-c) residuals for 575 positions of 54 NEAs observed by EURONEAR in three runs. |
Open with DEXTER |
![]() |
Figure A.6: La Silla 1 m: (o-c) residuals for 16 positions of 2 NEAs observed by EURONEAR in one run. |
Open with DEXTER |
![]() |
Figure A.7: La Silla 2.2 m: (o-c) residuals for 165 positions of 15 NEAs observed by EURONEAR in one run. |
Open with DEXTER |
![]() |
Figure A.8: Urseanu 0.38 m: (o-c) residuals for 95 positions of 21 NEAs observed by EURONEAR in 18 runs. |
Open with DEXTER |
![]() |
Figure A.9: York University 0.6 m: (o-c) residuals for 98 positions of 4 NEAs observed by EURONEAR in 4 runs. |
Open with DEXTER |
Footnotes
- ... network
- Based on observations acquired in Pic du Midi, Haute Provence, La Silla, Cerro Tololo, Las Campanas, Cerro Armazones, Bucharest Urseanu, and York University Observatories.
- ...
- Astrometric and photometric data are only available in electronic form at the CDS via anonymous ftp to cdsarc.u-strasbg.fr (130.79.128.5) or via http://cdsweb.u-strasbg.fr/cgi-bin/qcat?J/A+A/511/A40
- ... probability
- Milani et al. (2000b) underline the difference between the possibility of an impact with the Earth from the calculus of the probability of impact.
- ... NEO
- Near Earth Object.
- ... Survey
- Acronym CSS in the article.
- ... observatories
- In our knowledge there is no exhaustive statistics at this moment in the World (in general, and in Europe in particular) for NEAs activities.
- ... astronomers
- http://www.observatorij.org/
- ... centers
- AstDys, MPC.
- ... webserver
- http://euronear.imcce.fr
- ... software
- Raab, H. 2008, http://www.astrometrica.at
- ... software
- The embryo of a future pipeline to be used by our network.
- ... CPL
- http://www.eso.org/sci/data-processing/software/cpl/
- ...
catalog
- They used USNO-B1.
- ... Observatory
- ftp://ftp.lowell.edu/pub/elgb/astorb.dat.gz
- ... package
- http://adams.dm.unipi.it/~orbmaint/orbfit/
- ... NEODyS
- http://newton.dm.unipi.it/neodys/
All Tables
Table 1: Telescopes and detectors used for follow-up, recovery and secure orbits of NEAs.
Table 2: An example of the catalog EURONEAR_Release1.
Table 3: Comparison of the differences of rectangular coordinates and velocities calculated for the asteroid 2008 CR118 using two adjustment procedures.
Table 4: Sample of orbit adjustment (semi-major axis for briefness here) and MOID calculated with observational datasets available immediately before and after our observations, compared with the complete dataset available on July 6, 2009.
Table A.1: The observing log file.
All Figures
![]() |

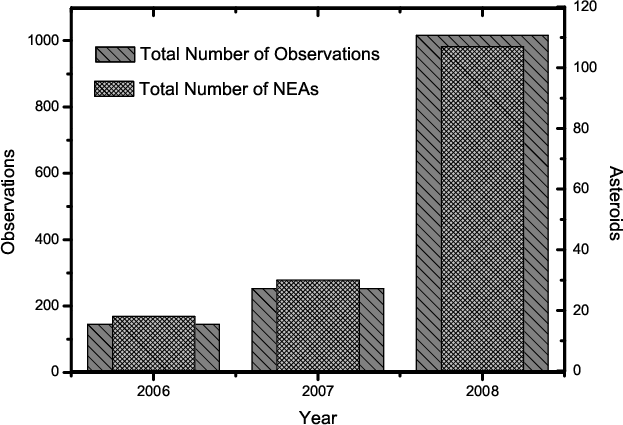

Figure 1: The 1538 positions of a total of 162 NEAs observed in the EURONEAR network, in cumulative number per year, between 2006 and 2008. |
Open with DEXTER | |
In the text |
![]() |
Figure 2:
(o-c) residuals for 1538 positions of 162 NEAs observed in the EURONEAR network. Most of the points are
confined within 1
|
Open with DEXTER | |
In the text |
![]() |
Figure 3: Over 23 000 (o-c) residuals related with observations performed by all other surveys which observed in the past the same asteroids with EURONEAR. Comparing this plot with the one of Fig. 2, one can observe that EURONEAR observations appear better confined around zero, and this fact is also supported by statistics. |
Open with DEXTER | |
In the text |
![]() |
Figure 4:
The frequency of (o-c) values in the plane of right ascension and declination, with a bin value of 0.095
|
Open with DEXTER | |
In the text |
![]() |
Figure 5: (o-c) residuals in right ascension for the asteroids observed with 2.2 m telescope, La Silla. These values are widely spread for newly discovered objects whose orbit uncertainties were larger, while for the objects observed at two (or more) oppositions the values are well confined around zero. |
Open with DEXTER | |
In the text |
![]() |
Figure 6: The (o-c) values in right ascension and declination, correspondent to the adjustment of 2008 CR118 using NOE-AST and ASTERPRO. |
Open with DEXTER | |
In the text |
![]() |
Figure 7: Composite lightcurve of the binary system 1994 AW1 after subtraction of the short period. The dashed line is the assumed fit of the lightcurve, which does not cover the whole period. |
Open with DEXTER | |
In the text |
![]() |
Figure 8: The composite lightcurve of the primary body of the binary system 1994 AW1. |
Open with DEXTER | |
In the text |
![]() |
Figure A.1: Pic du Midi 1 m: (o-c) residuals for 122 positions of 14 NEAs observed by EURONEAR in one run. |
Open with DEXTER | |
In the text |
![]() |
Figure A.2: Haute Provence 1.2 m: (o-c) residuals for 171 positions of 19 NEAs observed by EURONEAR in one run. |
Open with DEXTER | |
In the text |
![]() |
Figure A.3: Armazones 0.84 m: (o-c) residuals for 73 positions of 6 NEAs observed by EURONEAR in one run. |
Open with DEXTER | |
In the text |
![]() |
Figure A.4: Tololo 1 m: (o-c) residuals for 207 positions of 24 NEAs observed by EURONEAR in one run. |
Open with DEXTER | |
In the text |
![]() |
Figure A.5: Campanas 1 m: (o-c) residuals for 575 positions of 54 NEAs observed by EURONEAR in three runs. |
Open with DEXTER | |
In the text |
![]() |
Figure A.6: La Silla 1 m: (o-c) residuals for 16 positions of 2 NEAs observed by EURONEAR in one run. |
Open with DEXTER | |
In the text |
![]() |
Figure A.7: La Silla 2.2 m: (o-c) residuals for 165 positions of 15 NEAs observed by EURONEAR in one run. |
Open with DEXTER | |
In the text |
![]() |
Figure A.8: Urseanu 0.38 m: (o-c) residuals for 95 positions of 21 NEAs observed by EURONEAR in 18 runs. |
Open with DEXTER | |
In the text |
![]() |
Figure A.9: York University 0.6 m: (o-c) residuals for 98 positions of 4 NEAs observed by EURONEAR in 4 runs. |
Open with DEXTER | |
In the text |
Copyright ESO 2010
Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
