A search for pulsations from the compact object of GRB 060218
N. Mirabal1 - E. V. Gotthelf2
1 - Ramón y Cajal Fellow; Dpto. de Física Atómica,
Molecular y Nuclear, Universidad Complutense de
Madrid, Spain
2 - Columbia Astrophysics Laboratory, Columbia University, New York,
NY 10027-6601, USA
Received 29 June 2009 / Accepted 19 December 2009
Abstract
Aims. A fraction of massive stars are expected to collapse
into compact objects (accreting black holes or rapidly rotating neutron
stars) that successfully produce gamma-ray bursts (GRBs). We examine
the possibility of directly observing these gamma-ray burst compact
objects (GCOs) using post-explosion observations of past and future GRB
sites.
Methods. We present a search for early pulsations from the nearby (z=0.0335)
gamma-ray burst GRB 060218, which exhibited features possibly
consistent with a rapidly spinning neutron star as its underlying GCO.
We also consider alternative techniques that could potentially achieve
a detection of GCOs either in the Local Volume or near the plane of our
own Galaxy.
Results. We report the non-detection of pulsations from the GCO
of GRB 060218. In particular, fast fourier transform analysis applied
to the light curve shows no significant power over the range of
frequencies
with an upper limit on the pulsed fraction of
2%.
In addition, we present detection limits of current high-resolution
archival X-ray images of galaxies within the Local Volume. The existing
data could be harnessed to rule out the presence of any background
contaminants at the GRB position of future nearby events.
Conclusions. The null detection of pulsations from the GCO of
GRB 060218 is most likely explained by the fact that the afterglow
emission occurs near the head of the jet and should be far removed from
the compact object. We also find that the comparison of pre- and
post-explosion explosion images of future GRBs within the Local Volume,
as well as the firm identification of a GCO within an ancient GRB
remnant near the Galactic plane are extremely challenging with current
GeV/TeV capabilities. Finally, we conclude that only under some very
exceptional circumstances will it be possible to directly detect the
compact object responsible for gamma-ray bursts.
Key words: gamma-ray burst: individual: GBR 060218 - gamma rays: stars
1 Introduction
Optical spectroscopy has verified the long-hypothesized origin of gamma-ray bursts (GRBs) in the deaths of massive stars (e.g., Stanek et al. 2003; Hjorth et al. 2003). It is now accepted that ``long-duration'' (>2 s) GRBs accompany some core-collapse supernovae of Type Ic, in which a compact object produced during the collapse of a Wolf-Rayet progenitor powers a focused jet that bores its way through the stellar envelope (Woosley & Bloom 2006). Unfortunately, the exact nature and eventual fate of the gamma-ray burst compact object (GCO) responsible for the the launch of the GRB jet remains unknown. The most promising alternatives include highly magnetized neutron stars (Wheeler et al. 2000; Thompson et al. 2004) and accreting black holes characterized as ``collapsars'' (MacFadyen & Woosley 1999; Woosley 1993). The detection of such GCOs would not only open a new frontier in our understanding of compact object formation, but it would help us address the circumstances that give rise to a variety of stellar explosions.Much of the effort aimed at revealing the nature of GCOs has centered on the possible interaction of the GRB with its surroundings. Brown et al. (2000) suggested that GRB explosions could lead to the formation of X-ray binaries with a black hole primary. The identification of GRB remnants in our Galaxy or in nearby galaxies has also been proposed as a possible way to pinpoint the GCO responsible for the explosion (Ramirez-Ruiz 2004; Perna et al. 2000; Ayal & Piran 2001). Looking for the compact object produced at the site of historical core-collapse supernovae has also been addressed by Perna et al. (2008). Using data from the Burst and Transient Experiment (BATSE) onboard the Compton Gamma Ray Observatory (CGRO), McBreen et al. (2002) inspected cumulative light curves of GRBs for possible signatures of a black hole being either spun up or down during the accretion process. Other surveys have focused on the search for gravitational waves associated with GRBs (Abbott et al. 2008). Most recently, Mazzali et al. (2006) have used spectral analysis of the broad-lined supernova SN 2006aj to infer the formation of a magnetar associated with GRB 060218. While these studies provide important insight into the origins of the explosion, further observational work is required to detect and distinguish GCOs directly.
Theoretical studies of GRBs suggest that the combination of rapid rotation and large magnetic fields in neutron stars (magnetars) could generate an energy of 1051-1052 erg on a 10-100 s timescale required to power a long-duration GRB (Thompson et al. 2004). A direct detection of pulsations at the site of a GRB would provide strong support for such hypothesized neutron star at the center of the explosion. So far, searches for pulsation signatures have found no significant evidence of periodicity in the prompt gamma-ray (25-320 keV energy range) light curves of GRBs (Deng & Schaefer 1997). However, very recent observations have produced tantalizing but controversial evidence of quasi-periodic variations in the gamma-ray light curve of GRB 090709A (Markwardt et al. 2009; Mirabal & Gotthelf 2009; Gotz et al. 2009; Golenetskii et al. 2009).
Owing to its close proximity (z = 0.0335) and the early detection of an associated supernova with the Swift satellite, the observations of GRB 060218/SN 2006aj (Soderberg et al. 2006; Campana et al. 2006; Mirabal et al. 2006; Pian et al. 2006; Modjaz et al. 2006) constitute an ideal dataset to search for pulsations following the GRB onset. Additional motivation for a thorough pulsation search is provided by spectral modeling of its associated supernova SN 2006aj suggesting a nascent neutron star as the likely GCO for GRB 060218 (Mazzali et al. 2006).
In this paper, we present an early search for pulsations from the
GCO of nearby GRB 060218, and an analysis of alternative
observations that may produce a direct view of the GCO in the future.
The paper is organized as follow. In Sect. 2, we describe a search for
coherent pulsations from the GRB 060218.
Section 3 discusses our results and examines potential
techniques that could reveal the nature of GCOS. Finally,
conclusions are presented in Sect. 4.
Throughout we adopt a
concordance cosmology model
(
km s-1 Mpc-1,
and
).
2 Observations and data analysis
Timing observations of GRB 060218 were obtained with the X-ray
telescope (XRT; Gehrels et al. 2004) on-board the Swift
satellite. The XRT focal plane sensor is a
pixel CCD
sensitive to photons in the 0.2-10 keV energy range. Data were
acquired in Windowed Timing (WT) mode starting 159 s after the burst.
This mode provides 1.77 ms time resolution by rapidly clocking out the
central 200 columns in the column direction with the resulting loss of
imaging in one spatial dimension. We analyzed standard pipeline
products created using processing version v3.9.10 made available in
the Swift archive
.
Data collected in the first orbit spanned an initial 2540 s with a
mean count rate of 72 counts s-1 in a 1' wide extraction
aperture centered on the source. The light curve rises to a peak 100 counts
at the 800 s mark before slowly falling back to the
initial detected rate of 30 counts
.
In the next interval, following
a 3160 s spacecraft orbit gap due to Earth block,
the source is barely detectable (mean rate of 0.7 counts
over
120 s), then nearly undetectable during 22
40s
orbit-to-orbit monitoring intervals over 35 hrs, for a total of 808 s
of exposure, resulting in 32 source counts and 8 background
counts. Apart from the highly variable source flux rate, the
background remained constant during all observation intervals.
A light curve of the Swift events for the first interval following
detection is shown is Fig. 1;
note that count rates for the later observations are essential zero on this
scale.
![]() |

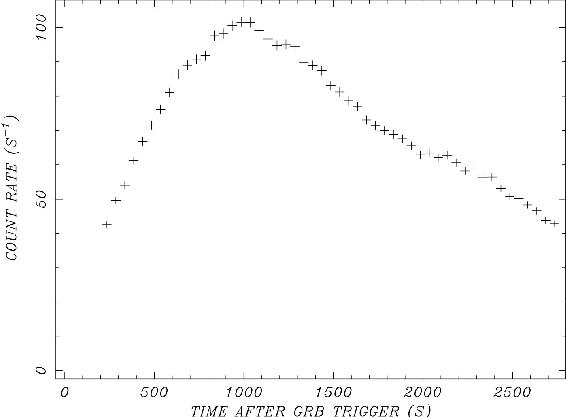

Figure 1: Initial Swift XRT light curve of GRB 060218 acquired 159 s after the GRB trigger, in the 0.2-10 keV energy band. |
Open with DEXTER |
We searched for a coherent signal in the initial Swift XRT data
of GRB 060218 using a fast Fourier transform (FTT). The
barycenter-corrected data taken during the first orbit was re-binned
in 1.77 ms steps and transformed using a N=221 element FFT. No
significant power is found over the range of search frequencies
searched. The resulting power spectrum for
GRB 060218 is displayed in Fig. 2 and shows characteristics of
both white (power independent in frequency, mean of 2) and red noise
(power modeled by a power law with best fit index
),
the latter dominating at frequencies above 30 mHz. In the white noise
regime, the maximum FFT power is S = 25.67 at 223 Hz
(P=4.48 ms). This power is consistent with random fluctuations,
corresponds to a false detection probability of
for a
coherence sinusoidal. Formally, the corresponding pulsed fraction
limit is
(
,
N = 162 k detected photons), with 50% probability.
For periods in the magnetar range (
Hz),
which partially overlap the red noise regime, the peak FFT power is S
= 37.51 after allowing for the modeled red noise contribution,
corresponding to a blind search false positive detection probability
of
(
)
and pulsed fraction limit of
.
Similar results are obtained using the Rayleigh, or
S=Z21 test, where the power is distributed like
with
two degrees of freedom, as for the FFT power.
To look for possible non-stationary oscillations, a similar timing
analysis was done on 100-s intervals using the burst and no
significant signal is found to a pulsed fraction limit of 10%,
(maximum FFT power
counts), with 50%
probability.
![]() |

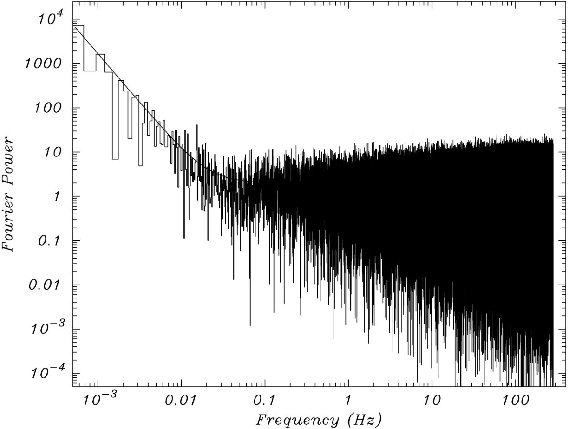

Figure 2:
Power spectrum of GRB 060218. The spectrum shows
no significant coherent signal and it is dominated by red noise
at low frequencies |
Open with DEXTER |
3 Discussion
In a different astrophysical context, the absence of coherent pulsations from a newly formed compact object would be intriguing. In the case of GRBs; however, the absence of coherent pulsation is not totally unexpected. The reason is that the observed afterglow/breakout emission most likely occurs near the jet head far removed from the central engine (Zhang et al. 2003). As a result, temporal and spectral signatures (if any) associated with the GCO are probably swamped by the afterglow emission (Butler 2007; Mirabal et al. 2003; Sako et al. 2005).
Even in the absence of a bright afterglow, as is the case
for GRB 060218, it is not entirely clear that the temporal signatures will
be retained during the expansion of the jet.
Consequently, we argue that early searches for pulsations in GRBs
will not always provide clues about the nature of GCOs.
We note, however, that our results do not necessarily rule out neutron star
models for GCOs. In fact, the range of
frequencies considered here may only rule
out millisecond pulsars with relative slow spin periods f < 283 Hz.
As argued by Thompson et al. (2004),
an energy release
erg implies that
the spin period of the neutron star at birth might be as low
as 0.1 ms.
Interestingly, our failed search forces us to consider alternative approaches for observing GCOs directly such as direct comparison of pre- and post-explosion X-ray images of future nearby GRB localizations (Kouveliotou et al. 2004; Pian et al. 2004) or the firm identification of a GCO within the interior of a GRB remnant in our own Galaxy (Ioka & Mészáros 2010). In the case of pre- and post-explosion comparisons, the appearance of an X-ray source at the GRB localization, once the early GRB afterglow and underlying supernova have significantly subsided (Kouveliotou et al. 2004), would provide direct access to the GCO itself.
If GRBs originate in binary systems and the binary remains bound after the explosion (Davies et al. 2002), it is possible that a soft X-ray transient will be formed after the explosion via black hole accretion (Brown et al. 2000); or through accretion onto a neutron star from the stellar wind of an O or B companion (Lewin et al. 1995). Since GRBs are a subset of supernovae that in some cases may give birth to rapidly rotating magnetars, it makes sense to look for X-rays from an isolated rotation powered pulsar, not just an accreting binary. Perna et al. (2000) has computed the expected X-ray luminosity as a function of time for neutron stars born with different magnetic fields and spin periods. While the detection of a steady X-ray source at the site of the explosion would not by itself distinguish between a black hole or neutron star compact object, it would provide direct access to the compact object underlying the explosion.
Apart from modeling the SN and afterglow evolution, the main
challenge with pre- and post-explosion comparisons is
ruling out unrelated background sources
such as AGN and pre-existing X-ray binaries sources at the GRB site.
Fortunately, there already exists an extensive high-resolution
X-ray image archive of nearby
galaxies acquired during the past decade (Liu 2008).
The recent compilation by Liu (2008)
includes 383 galaxies within 40 Mpc. After excluding early-type galaxies,
this leaves a subset of 200 late-type, irregular, and peculiar
galaxies within 40 Mpc.
Potentially, this extensive X-ray sample can be used to
to set restrictive upper limits on the X-ray emission at the GRB site
prior to the explosion. Figure 3 shows the X-ray luminosity limits
for 200 galaxies listed in Liu (2008) as a function of distance.
Overplotted in Fig. 3
are the luminosity limits reachable for nearby GRB 980425 (Galama et al. 1998)
and GRB 060218 with current X-ray telescopes assuming
an X-ray flux limit
erg cm-2 s-1. In the case of GRB 060218,
a detection of a newly formed X-ray binary would have to exceed the levels of
Eddington luminosity for a
stellar-mass black hole. The situation improves for less distant
events.
![]() |

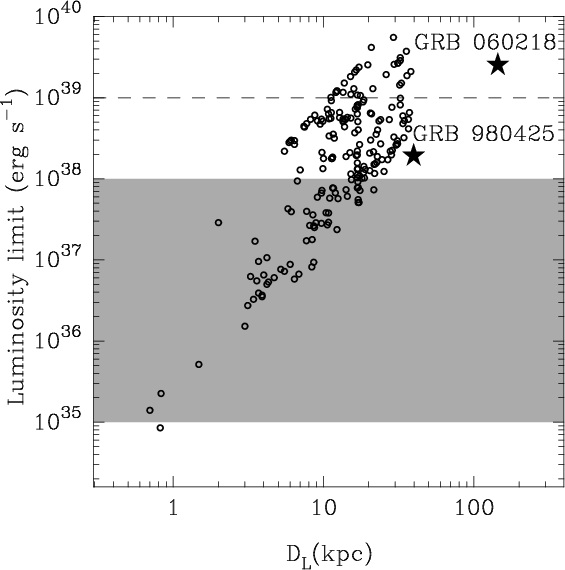

Figure 3:
X-ray luminosity limits in the 0.3-10 keV band for the subsample of galaxies
tabulated in (Liu 2008) plotted as a function of distance |
Open with DEXTER |
Barring the highly unlikely explosion of a GRB in our Galactic neighborhood (Stanek et al. 2006), a direct detection of a GCO embedded in a GRB remnant near the Galactic plane will have to rely heavily on studies based on morphology alone (Ioka & Mészáros 2010; Perna et al. 2000). Numerical simulations suggest that the evolution of the GRB explosion would create non-spherical topologies that could stand out against the remnants of other stellar explosions (Ayal & Piran 2001). However, the stability of such non-spherical morphology has been called into question given the sideways evolution of the relativistic jet (Zhang & MacFadyen 2009). Indeed, GRB remnants may lurk within the numerous shells identified near the Galactic plane, but distinguishing them from other types of stellar remnants will be a very tall task (Daigle et al. 2007). In practical terms, the actual probability of GRB remnant detection is determined simply by the available volume that can be sampled and accurately classified. Currently, the likelihood of detecting such a GRB remnant with the available sample of high-energy sources appears limited (Aharonian et al. 2006; Abdo et al. 2009; Holder et al. 2006; Rico 2008). Fortunately, future dedicated GeV/TeV surveys could bring such detection within reach (Buckley et al. 2008).
4 Conclusions
In this paper we have conducted a search for early pulsations from the compact object of the nearby GRB 060218. No significant evidence of pulsations is observed. This null detection suggests that the afterglow continuum most likely swamps any pulsation/modulation signature or that the viewing angle into the progetitor is rather unfavorable. By itself, this result is not sufficient to rule out neutron star models. It should be noted that high redshifts and bright relativistic jets will challenge a sensitive search for pulsations in other GRBs detected by Swift.
Based on our analysis, opportunities of observing GCOs directly either through their interaction with a bound stellar binary companion or via the detection of a compact object embedded within a GRB remnant near the Galactic plane offer modest hope for moving beyond afterglow science in the near future. The situation could radically change with a reasonably placed GRB in the Local Volume (e.g., SN 1987A) or through substantial progress in our GeV/TeV capabilities. Thus, we conclude that observational progress on the nature of GCOs will once again have to rely heavily on the serendipity that is central to the origin and history of the GRB field.
We thank Jules Halpern for stimulating conversations. N.M. acknowledges support from the Spanish Ministry of Science and Technology through a Ramón y Cajal fellowship.
References
- Abbott, B. P., Abbott, R., Ahikari, R., et al. 2008, Phys. Rev. D., 77, 062004 [NASA ADS] [CrossRef] [Google Scholar]
- Abdo, A. A., Ackermann, M., Ajello, M., et al. 2009, ApJS, 183,46 [Google Scholar]
- Aharonian, F. A., Akhperjanian, A. G., Bazer-Bachi, A. R., et al. 2006, ApJ, 636, 777 [Google Scholar]
- Ayal, S., & Piran, T. 2001, ApJ, 555, 23 [NASA ADS] [CrossRef] [Google Scholar]
- Brown, G. E., Lee, C.-H., Wijers, R. A. M. J., et al. 2000, New Astron., 5, 191 [Google Scholar]
- Buckley, J., Baltz, E., Bertone, G., et al. 2008, Technical Report,[arXiv:0812.0795] [Google Scholar]
- Butler, N. R. 2007, ApJ, 656, 1001 [NASA ADS] [CrossRef] [Google Scholar]
- Campana, S., Mangano, V., Blustin, A. J., et al. 2006, Nature, 442, 1008 [NASA ADS] [CrossRef] [PubMed] [Google Scholar]
- Daigle, A., Joncas, G., & Parizeau, M. 2000, ApJ, 661, 285 [Google Scholar]
- Davies, M., King, A., Rosswog, S., & Wynn, G. 2002, ApJ, 579, L63 [NASA ADS] [CrossRef] [Google Scholar]
- Deng M., & Schaefer B. E., 1997, ApJ, 491, 720 [NASA ADS] [CrossRef] [Google Scholar]
- Galama, T. J., Vreeswijk, P. M., van Paradijs, J., et al. 1998, Nature, 395, 670 [NASA ADS] [CrossRef] [Google Scholar]
- Gehrels, N., Chincarini, G., & Giommi, P. 2004, ApJ, 611, 1005 [NASA ADS] [CrossRef] [Google Scholar]
- Golenetskii, S., Aptekar, R., Mazets, E., et al. 2009, GCN Circular, 9647 [Google Scholar]
- Gotz, D., Mereghetti, S., von Kienlin, A., et al. 2009, GCN Circular, 9649 [Google Scholar]
- Grimm, H.-J., Gilfanov, M., & Sunyaev, R. 2002, A&A, 391, 923 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
- Hjorth, J., Sollerman, J., Moller, P., et al. 2003, Nature, 423, 847 [NASA ADS] [CrossRef] [PubMed] [Google Scholar]
- Holder, J., Atkins, R. W., Badran, H. M., et al. 2006, Astropart. Phys., 25, 391 [NASA ADS] [CrossRef] [MathSciNet] [Google Scholar]
- Ioka K., & Mészáros, P. 2010, ApJ, 709, 1337 [NASA ADS] [CrossRef] [Google Scholar]
- Kouveliotou, C., Woosley, S. E., Patel, S. K., et al. 2004, ApJ, 608, 872 [NASA ADS] [CrossRef] [Google Scholar]
- Lewin, W. H. G., van Paradijs, J., & van den Heuvel, E. P. J. 1995, X-ray Binaries (Cambridge University Press), Cambridge Astrophysics Series, 26 [Google Scholar]
- Liu, J. 2008, [arXiv:0811.0804] [Google Scholar]
- MacFadyen A. I., & Woosley S. E., 1999, ApJ, 524, 262 [NASA ADS] [CrossRef] [Google Scholar]
- Markwardt, C. B., Gavriil, F. P., Palmer, D. M., et al. 2009, GCN Circular, 9645 [Google Scholar]
- Mazzali, P. A., Deng, J., Nomoto, K. et al. 2006, Nature, 442, 1018 [NASA ADS] [CrossRef] [PubMed] [Google Scholar]
- McBreen, S., McBreen, B., Hanlon, L., et al. 2002, A&A, 393, L15 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
- Mirabal, N., & Gotthelf, E. V. 2009, GCN Circular, 9696 [Google Scholar]
- Mirabal, N., Paerels, F., & Halpern, J. P. 2003, ApJ, 587, 128 [NASA ADS] [CrossRef] [Google Scholar]
- Mirabal, N., Halpern, J. P., An, D., Thorstensen, J. R., & Terndrup, D. M. 2006, ApJ, 643, L21 [Google Scholar]
- Modjaz, M., Stanek, K. Z., Garnavich, P. M., et al. 2006, ApJ, 645, L21 [NASA ADS] [CrossRef] [Google Scholar]
- Perna, R., Raymond, J., & Loeb, A. 2000, ApJ, 533, 658 [NASA ADS] [CrossRef] [Google Scholar]
- Perna, R., Soria, R., Pooley, D., & Stella, L. 2008, MNRAS, 384, 1638 [NASA ADS] [CrossRef] [Google Scholar]
- Pian, E., Giommi, P., Amati, L., et al. 2004, Adv. Sp. Res., 34, 2711 [NASA ADS] [CrossRef] [Google Scholar]
- Pian, E., Mazzali, P. A., Masetti, N., et al. 2006, Nature, 442, 1011 [NASA ADS] [CrossRef] [PubMed] [Google Scholar]
- Ramirez-Ruiz, E. 2004, MNRAS, 349, L38 [NASA ADS] [CrossRef] [Google Scholar]
- Rico, J. 2008, in High Energy Astronomy: Proc. of the 4th International meeting on High Energy Gamma-Ray Astronomy, ed. Aharonian F. A., Hofman W., Rieger F., AIP Conf. Proc., 1085, 183 [Google Scholar]
- Sako, M., Harrison, F. A., & Rutledge, R. E. 2005, ApJ, 623, 973 [NASA ADS] [CrossRef] [Google Scholar]
- Soderberg, A. M., Kulkarni, S. R., Nakar, E., et al. 2006, Nature, 442, 1014 [CrossRef] [Google Scholar]
- Stanek, K. Z., Matheson, T., Garnavich P. M. et al. 2003, ApJ, 591, L17 [NASA ADS] [CrossRef] [Google Scholar]
- Stanek, K. Z., Gnedin, O. Y., Beacom, J. F., et al. 2006, Acta Astron., 56, 333 [NASA ADS] [Google Scholar]
- Thompson, T. A., Chang, P., & Quataert, E. 2004, ApJ, 611, 380 [NASA ADS] [CrossRef] [Google Scholar]
- Wheeler, J. C., Yi, I., Höflich, P., et al. 2000, 537, 810 [Google Scholar]
- Woosley, S. E. 1993, ApJ, 405, 273 [NASA ADS] [CrossRef] [Google Scholar]
- Woosley, S. E., & Bloom, J. S. 2006, ARA&A, 44, 507 [NASA ADS] [CrossRef] [Google Scholar]
- Zhang, W., & MacFadyen, A. 2009, ApJ, 698, 1261 [NASA ADS] [CrossRef] [Google Scholar]
- Zhang, W., Woosley, S. E., & MacFadyen, A. I. 2003, ApJ, 586, 356 [NASA ADS] [CrossRef] [Google Scholar]
Footnotes
- ... archive
- See http://heasarc.gsfc.nasa.gov/docs/swift/archive/
All Figures
![]() |
Figure 1: Initial Swift XRT light curve of GRB 060218 acquired 159 s after the GRB trigger, in the 0.2-10 keV energy band. |
Open with DEXTER | |
In the text |
![]() |
Figure 2:
Power spectrum of GRB 060218. The spectrum shows
no significant coherent signal and it is dominated by red noise
at low frequencies |
Open with DEXTER | |
In the text |
![]() |
Figure 3:
X-ray luminosity limits in the 0.3-10 keV band for the subsample of galaxies
tabulated in (Liu 2008) plotted as a function of distance |
Open with DEXTER | |
In the text |
Copyright ESO 2010
Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
