Filaments in observed and mock galaxy catalogues

R. S. Stoica1 - V. J. Martínez2 - E. Saar3

1 - Université Lille 1, Laboratoire Paul Painlevé, 59655 Villeneuve d'Ascq Cedex, France
2 - Observatori Astronòmic and Departament d'Astronomia i Astrofísica, Universitat de València, Apartat de correus 22085, 46071 València, Spain
3 - Tartu Observatoorium, Tõravere 61602, Estonia

Received 3 July 2009 / Accepted 10 November 2009

Abstract
Context. The main feature of the spatial large-scale galaxy distribution is an intricate network of galaxy filaments. Although many attempts have been made to quantify this network, there is no unique and satisfactory recipe for that yet.
Aims. The present paper compares the filaments in the real data and in the numerical models, to see if our best models reproduce statistically the filamentary network of galaxies.
Methods. We apply an object point process with interactions (the Bisous process) to trace and describe the filamentary network both in the observed samples (the R2dFGRS catalogue) and in the numerical models that have been prepared to mimic the data. We compare the networks.
Results. We find that the properties of filaments in numerical models (mock samples) have a large variance. A few mock samples display filaments that resemble the observed filaments, but usually the model filaments are much shorter and do not form an extended network.
Conclusions. We conclude that although we can build numerical models that are similar to observations in many respects, they may fail yet to explain the filamentary structure seen in the data. The Bisous-built filaments are a good test for such a structure.

Key words: cosmology: large-scale structure of Universe - methods: data analysis - methods: statistical

1 Introduction

The large-scale structure of the Universe traced by the three-dimensional distribution of galaxies shows intriguing patterns: filamentary structures connecting huge clusters surround nearly empty regions, the so-called voids. As an example, we show here a map from the 2dF Galaxy Redshift Survey (R2dFGRS, Colless et al. 2001). As an illustration of the filamentary network, Fig. 1 shows the positions of galaxies in two $2.6^\circ $ thick slices from two spatial regions that the R2dFGRS covered. Distances are given in redshifts z.

\begin{figure}
\par\includegraphics[width=14cm,clip]{12823fg1.eps}
\end{figure} Figure 1:

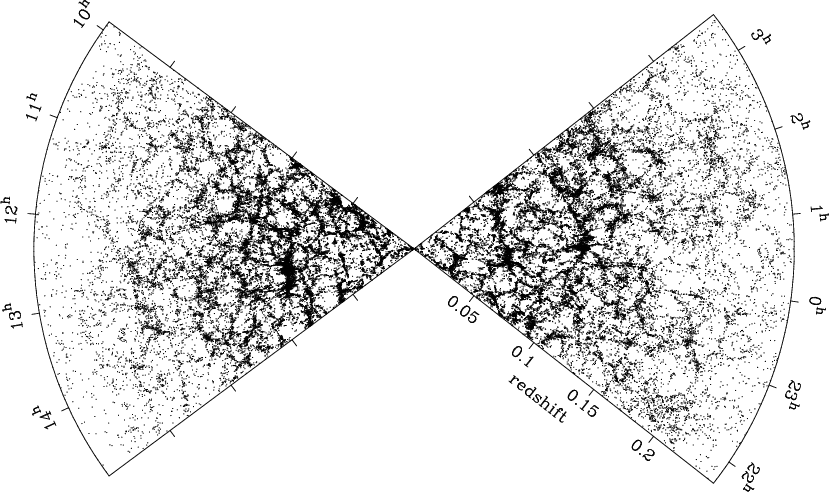

Galaxy map for two R2dFGRS slices of the thickness of $2.6^\circ $. The filamentary network of galaxies is clearly seen.

Open with DEXTER

Filaments visually dominate the galaxy maps. Real three-dimensional filaments have been extracted from the galaxy distribution as a result of special observational projects (Pimbblet & Drinkwater 2004), or by searching for filaments in the R2dFGRS catalogue (Pimbblet et al. 2004). These filaments have been searched for between galaxy clusters, determining the density distribution and deciding if it is filamentary, individually for every filament (Pimbblet 2005). Filaments are also suspected to hide half of the warm gas in the Universe; an example of a discovery of such gas is the paper by Werner et al. (2008).

However, there are still no standard methods to describe the observed filamentary structure, but much work is being done in this direction. The usual second-order summary statistics as the two-point correlation function or the power spectrum do not provide morphological information. Minkowski functionals, minimal spanning tree (MST), percolation and shapefinders have been introduced for this purpose (for a review see Martínez & Saar 2002).

The minimal spanning tree was introduced in cosmology by Barrow et al. (1985). It is a unique graph that connects all points of the process without closed loops, but it describes mainly the local nearest-neighbour distribution and does not give us the global and large-scale properties of the filamentary network. A recent development of these ideas is presented by Colberg (2007). He applies a minimal spanning tree on a grid, and works close to the percolation regime - this allows the study of the global structure of the galaxy distribution. We note that using a grid introduces a smoothed density, and this is typical for other recent approaches, too.

In order to describe the filamentary structure of continuous density fields, a skeleton method has been proposed and developed by Eriksen et al. (2004) and Novikov et al. (2006). The skeleton is determined by segments parallel to the gradient of the field, connecting saddle points to local maxima. Calculating the skeleton involves interpolation and smoothing the point distribution, which introduces an extra parameter, which is the band-width of the kernel function used to estimate the density field from the point distribution, typically a Gaussian function. This is generally the case for most of the density-based approaches. The skeleton method was first applied for two-dimensional maps, an approach to study the cosmic microwave sky background (Eriksen et al. 2004). The method was adapted for 3-D maps (Sousbie et al. 2008a) and was applied to the Sloan Digital Sky Survey by Sousbie et al. (2008b), providing by means of the length of the skeleton, a good distinguishing tool for the analysis of the filamentary structures. The formalism has recently been further developed and applied to study the evolution of filamentary structure in simulations (Sousbie et al. 2009).

Another approach is that of Aragón-Calvo et al. (2007a) (see also Aragón-Calvo 2007). They use the Delaunay Triangulation Field Estimator (DFTE) to reconstruct the density field for the galaxy distribution, and apply the Multiscale Morphology Filter (MMF) to identify various structures, as for instance clusters, walls, filaments and voids (Aragón-Calvo et al. 2007b). As a further development, this group has used the watershed algorithm to describe the global properties of the density field (Aragon-Calvo et al. 2008).

A new direction is to use the second-order properties (the Hessian matrix) of the density field (Bond et al. 2009) or the deformation tensor (Forero-Romero et al. 2008). As is shown in these papers, this allows them to trace and classify different features of the fields.

Our approach does not introduce the density estimation step; we consider the galaxy distribution as a marked point process. In an earlier paper (Stoica et al. 2005b), we proposed to use an automated method to trace filaments for realisations of marked point processes, which has been shown to work well for the detection of road networks in remote sensing situations (Stoica et al. 2004,2002; Lacoste et al. 2005). This method is based on the Candy model, a marked point process where segments serve as marks. The Candy model can be applied to 2-D filaments, and we tested it on simulated galaxy distributions. The filaments we found delineated well the filaments detected by eye.

Based on our previous experience with the Candy model, we generalised the approach for three dimensions. As the interactions between the structure elements are more complex in three dimensions, we had to define a more complex model, the Bisous model (Stoica et al. 2005a). This model gives a general framework for the construction of complex patterns made of simple interacting objects. In our case, it can be seen as a generalisation of the Candy model. We applied the Bisous model to trace and describe the filaments in the R2dFGRS (Stoica et al. 2007b) and demonstrated that it works well.

In the paper cited above we chose the observational samples from the main magnitude-limited R2dFGRS catalogue, selecting the spatial regions to have approximately constant spatial densities. But a strict application of the Bisous process demands a truly constant spatial density (intensity). In this paper, we will apply the Bisous process to compare the observational data with mock catalogues, specially built to represent the R2dFGRS survey. To obtain strict statistical test results, we use here volume-limited subsamples of the R2dFGRS and of the mock catalogues. We trace the filamentary network in all our catalogues and compare its properties.

2 Mathematical tools

In this section we describe the main tools we use to study the large-scale filaments. The key idea is to see this filamentary structure as a realisation of a marked point process. Under this hypothesis, the cosmic web can be considered as a random configuration of segments or thin cylinders that interact, forming a network of filaments. Hence, the morphological and quantitative characteristics of these complex geometrical objects can be obtained by following a straightforward procedure: constructing a model, sampling the probability density describing the model, and, finally, applying the methods of statistical inference.

We have given a more detailed description of these methods in a previous paper (Stoica et al. 2007b).

2.1 Marked point processes

A popular model for the spatial distribution of galaxies is a point process on K (a compact subset of ${\vec R}^3$, the cosmologist's sample volume), a random configuration of points ${\vec k}=\{k_1,\ldots,k_n\}$, lying in K. Let $\nu(K)$ be the volume of K.

We may associate characteristics or marks to the points. For instance, to each point in a configuration ${\vec k}$, shape parameters describing simple geometrical objects may be attached. Let $(M,{\cal M},\nu_{M})$be the probability measure space defining these marks. A marked or object point process on $K \times M$ is the random configuration ${\vec y}
=\{(k_{1},m_{1}),(k_{2},m_{2}),\ldots,(k_{n},m_{n})\}$, with $y_i =
(k_i,m_i) \in K \times M$ for all $i=1,\ldots,n$ in a way that the locations process is a point process on K. For our purposes, the point process is considered finite and simple, i.e. the number of points in a configuration is finite and $k_i \neq k_j$, for any i,j so that $1 \leq i,j \leq n$.

In case of the simplest marked point process, the objects do not interact. The Poisson object point process is the most appropriate choice for such a situation. This process chooses a number of objects according to a Poisson law of the intensity parameter $\nu(K)$, gives a random independent location to each object uniformly in K and a random shape or mark chosen independently according to $\nu_{M}$. The Poisson object point process has the great advantage that it can be described by analytical formulae. Still, it is too simple whenever the interactions of objects are to be taken into account.

The solution to the latter problem is to specify a probability density $p({\vec y})$that takes into account interactions between the objects. This probability density is specified with respect to the reference measure given by the Poisson object point process. There is a lot of freedom in building such densities, provided that they are integrable with respect to the reference measure and are locally stable. This second condition requires that there exists $\Lambda >0$so that $p({\vec y}\cup \{(k,m)\})/p({\vec y}) \leq \Lambda$for any $(k,m)
\in K \times M$. Local stability implies integrability. It is also an important condition, guaranteeing that the simulation algorithms for sampling such models have good convergence properties.

For further reading and a comprehensive mathematical presentation of object point processes, we recommend the monographs by van Lieshout (2000), Møller & Waagepetersen (2003), Stoyan et al. (1995), and Illian et al. (2008).

2.2 Bisous model

In this section, we shall describe the probability density of the Bisous model for the network of cosmic filaments. The Bisous model is a marked point process that was designed to generate and analyse random spatial patterns (Stoica et al. 2005a,2007b).

Random spatial patterns are complex geometrical structures composed of rather simple objects that interact. We can describe our problem as follows: in a region K of a finite volume, we observe a finite number of galaxies ${\vec d}=\{d_1,d_2,\ldots,d_r\}$. The positions of these galaxies form a complicated filamentary network. Modelling it by a network of thin cylinders that can get connected and aligned in a certain way, a marked point process - the Bisous model - can be built in order to describe it.

A random cylinder is an object characterised by its centre k and its mark giving the shape parameters. The shape parameters of a cylinder are the radius r, the height h and the orientation vector $\omega$. We consider the radius and height parameters as fixed, whereas the orientation vector parameters $\omega=\phi(\eta,\tau)$are uniformly distributed on $M=[0,2\pi) \times[0,1]$so that

\begin{displaymath}\omega=\left(\sqrt{1-\tau^2}\cos(\eta),\sqrt{1-\tau^2}\sin(\eta),\tau\right).
\end{displaymath} (1)

For our purposes, throughout this paper the shape of a cylinder is denoted by $s(y)=s(k,r,h,\omega)$, which is a compact subset of  ${\vec R}^3$of a finite volume $\nu(s(y))$. The shape of a random cylinder configuration ${\vec y}$ is defined by the random set $Z({\vec y}) =
\cup_{y \in {\vec y}} s(y)$.

A cylinder $(k,\omega)$ has q=2 extremity rigid points. We centre around each of these points a sphere of the radius $r_{\rm a}$. These two spheres form an attraction region that plays an important role in defining connectivity and alignment rules for cylinders. We illustrate the basic cylinder in Fig. 2, where it is centred at the coordinate origin and its symmetry axis is parallel to Ox. The coordinates of the extremity points are

\begin{displaymath}e_{u} = \left((-1)^{u+1}\left(\frac{h}{2}+r_{\rm a}\right),0,0\right), \quad u \in \{1,2\}
\end{displaymath} (2)

and the orientation vector is $\omega=(1,0,0)$.

\begin{figure}
\par\includegraphics[width=7cm,clip]{12823fg2.eps}
\end{figure} Figure 2:

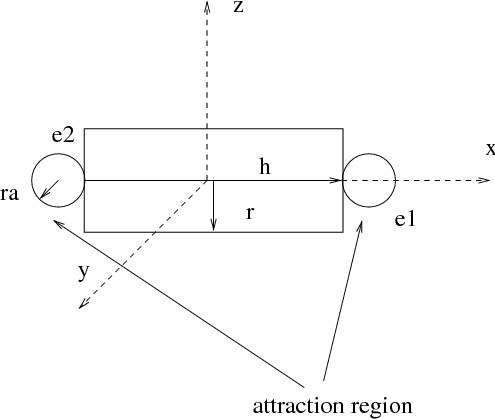

A thin cylinder that generates the filamentary network.

Open with DEXTER

The probability density for a marked point process based on random cylinders can be written using the Gibbs modelling framework:

\begin{displaymath}p({\vec y}\vert \theta) = \frac{\exp\left[-U({\vec y}\vert\theta)\right]}{\alpha}
\end{displaymath} (3)

where $\alpha$ is the normalising constant, $\theta$ is the vector of the model parameters and $U({\vec y}\vert\theta)$ is the energy function of the system.

Modelling the filamentary network induced by the galaxy positions needs two assumptions. The first assumption is that locally, galaxies may be grouped together inside a rather small thin cylinder. The second assumption is that such small cylinders may combine to extend a filament if neighbouring cylinders are aligned in similar directions.

Following these two ideas the energy function given by (3) can be specified as:

\begin{displaymath}U({\vec y}\vert\theta) = U_{\rm d}({\vec y}\vert\theta) + U_{\rm i}({\vec y}\vert\theta)
\end{displaymath} (4)

where $U_{\rm d}({\vec y}\vert\theta)$ is the data energy and $U_{\rm i}({\vec y}\vert\theta)$is the interaction energy, associated to the first and second assumptions above, respectively. In fact, it is perfectly reasonable to think that the data energy is the reason that the cylinders in the galaxy field are positioned just so, and that the interaction energy is the main factor which causes the cylinders to form filamentary patterns.

2.3 Data energy

The data energy of a configuration of cylinders ${\vec y}$ is defined as the sum of the energy contributions corresponding to each cylinder:

\begin{displaymath}U_{\rm d}({\vec y}\vert\theta) = - \sum_{y \in {\vec y}} v(y)
\end{displaymath} (5)

where $v(\cdot)$ is the potential function associated to a cylinder that depends on ${\vec d}$ and the model parameters.

The cylinder potential is built taking into account local criteria such as the density, spread and number of galaxies. To formulate these criteria, an extra cylinder is attached to each cylinder y, with exactly the same parameters as y, except for the radius which equals 2r. Let $\tilde{s}(y)$be the shadow of s(y) obtained by the subtraction of the initial cylinder from the extra cylinder, as shown in Fig. 3. Then, each cylinder y is divided in three equal volumes along its main symmetry axis, and we denote by s1(y), s2(y) and s3(y) their corresponding shapes.

\begin{figure}
\par\includegraphics[width=6.1cm,clip]{12823fg3.eps}
\end{figure} Figure 3:

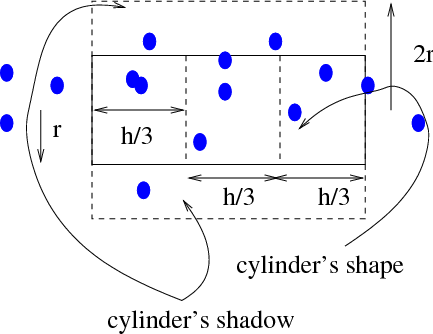

Two-dimensional projection of a thin cylinder with its shadow within a pattern of galaxies.

Open with DEXTER

The local density condition verifies that the density of galaxies inside s(y) is higher than the density of galaxies in $\tilde{s}(y)$, and it can be expressed as follows:

\begin{displaymath}n({\vec d}\cap s(y))/\nu(s(y)) > n({\vec d}\cap \tilde{s}(y))/\nu(\tilde{s}(y)),
\end{displaymath} (6)

where $n({\vec d}\cap s(y))$ and $n({\vec d}\cap \tilde{s}(y))$ are the numbers of galaxies covered by the cylinder and its shadow, and $\nu(s(y))$and $\nu(\tilde{s}(y))$are the volumes of the cylinder and its shadow, respectively.

The even location of the galaxies along the cylinder main axis is ensured by the spread condition, which is formulated as

\begin{displaymath}\prod_{i=1}^{3}n({\vec d}\cap s_{i}(y)) > 0,
\end{displaymath} (7)

where $n({\vec d}\cap s_{i}(y))$ is the number of galaxies belonging to si(y).

If both these conditions are fulfilled, then v(y) is given by the difference between the number of galaxies contained in the cylinder and the number of galaxies contained in its shadow:

\begin{displaymath}v(y)=n({\vec d}\cap s(y)) - n({\vec d}\cap \tilde{s}(y)).
\end{displaymath} (8)

Whenever any of the previous conditions is violated, a positive value $v_{\max}$ is assigned to the potential of a cylinder.

A segment which does not fulfill the required conditions can still be integrated into the network by the parameter $v_{\max}$. This should result in more complete networks and better mixing properties to the method.

We note that we have chosen cylinders as the objects here in order to trace filaments in the galaxy distribution. Such objects are tools at our disposal and any object can be chosen; as an example, Stoica et al. (2005a) have built systems of flat elements (walls) and of regular polytopes (galaxy clusters), based on the Bisous process.

2.4 Interaction energy

The interaction energy takes into account the interactions between cylinders. It is the model component ensuring that the cylinders form a filamentary network, and it is given by

\begin{displaymath}U_{\rm i}({\vec y}\vert\theta) = - n_{\kappa}({\vec y}) \log \gamma_{\kappa} - \sum_{s=0}^{2}n_{s}({\vec y})\log\gamma_{s},
\end{displaymath} (9)

where $n_{\kappa}$ is the number of repulsive cylinder pairs and nsis the number of cylinders connected to the network through sextremity points. The variables $\log\gamma_{\kappa}$ and $\log\gamma_s$are the potentials associated to these configurations, respectively.

We define the interactions that allow the configuration of cylinders to trace the filamentary network below. To illustrate these definitions, we show an example configuration of cylinders (in two dimensions) in Fig. 4.

Two cylinders are considered repulsive, if they are rejecting each other and if they are not orthogonal. We declare that two cylinders $y_{1}=(k_1,\omega_1)$and $y_{2}=(k_2,\omega_2)$reject each other if their centres are closer than the cylinder height, d(k1,k2) < h. Two cylinders are considered to be orthogonal if $\vert\omega_{1}
\cdot \omega_{2}\vert \leq \tau_{\perp}$, where $\cdot$ is the scalar product of the two orientation vectors and $\tau_{\perp} \in (0,1)$is a predefined parameter. So, we allow a certain range of mutual angles between cylinders that we consider orthogonal.

Two cylinders are connected if they attract each other, do not reject each other and are well aligned. Two cylinders attract each other if only one extremity point of the first cylinder is contained in the attraction region of the other cylinder. The cylinders are ``magnetised'' in the sense that they cannot attract each other through extremity points having the same index. Two cylinders are well aligned if $\omega_{1} \cdot \omega_{2} \geq 1 -
\tau_{\parallel}$, where $\tau_{\parallel} \in (0,1)$ is a predefined parameter.

Take now a look at Fig. 4. According to the previous definitions, we observe that the cylinders c1, c2 and c3 are connected. The cylinders c1 and c3 are connected to the network through one extremity point, while c2 is connected to the network through both extremity points. The cylinders c4 and c5 are not connected to anything - c4 is not well aligned with c2, the angle between their directions is too large, and c5 is not attracted to any other cylinder. It is important to notice that the cylinders c3 and c4 are not interacting - they are wrongly ``polarised'', their overlapping extremity points have the same index. The cylinder c5 is rejecting the cylinders c2 and c4(the centres of these cylinders are close), but as it is rather orthogonal both to c2 and c4, it is not repulsing them. The cylinders c2 and c4 reject each other and are not orthogonal, so they form a repulsive pair.

Altogether, the configuration at Fig. 4 adds to the interaction energy contributions from three connected cylinders (one doubly-connected, c2, and two single-connected, c1 and c3), and from one repulsive cylinder pair (c2-c4).

\begin{figure}
\par\includegraphics[width=8cm,clip]{12823fg4.eps}
\end{figure} Figure 4:

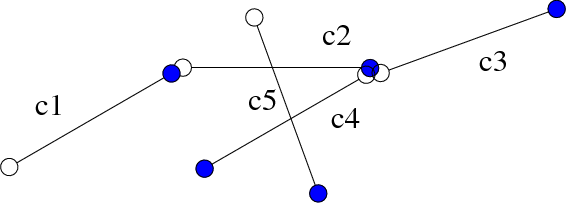

Two-dimensional representation of interacting cylinders.

Open with DEXTER

The complete model (3) that includes the definitions of the data energy and of the interaction energy given by (5) and (9) is well defined for parameters as $v_{\max} < 0$, $\gamma_0,\gamma_1,\gamma_2 >
0$and $\gamma_\kappa \in [0,1]$. The definitions of the interactions and the parameter ranges chosen ensure that the complete model is locally stable and Markov in the sense of Ripley-Kelly (Stoica et al. 2005a). For cosmologists it means that we can safely use this model without expecting any dangers (numerical, convergence, etc.).

2.5 Simulation

Several Monte Carlo techniques are available to simulate marked point processes: spatial birth-and-death processes, Metropolis-Hastings algorithms, reversible jump dynamics or more recent exact simulation techniques (Kendall & Møller 2000; Green 1995; Geyer & Møller 1994; Geyer 1999; van Lieshout & Stoica 2006; Preston 1977; van Lieshout 2000).

In this paper, we need to sample from the joint probability density law $p({\vec y},\theta)$. This is done by using an iterative Monte Carlo algorithm. An iteration of the algorithm consists of two steps. First, a value for the parameter $\theta$ is chosen with respect to $p(\theta)$. Then, conditionally on $\theta$, a cylinder pattern is sampled from $p({\vec y}\vert\theta)$ using a Metropolis-Hastings algorithm (Geyer 1999; Geyer & Møller 1994).

The Metropolis-Hastings algorithm for sampling the conditional law $p({\vec y}\vert\theta)$has a transition kernel based on three types of moves. The first move is called birth and proposes to add a new cylinder to the present configuration. This new cylinder can be added uniformly in K or can be randomly connected with the rest of the network. This mechanism helps to build a connected network. The second move is called death, and proposes to eliminate a randomly chosen cylinder. The role of this second move is to ensure the detailed balance of the simulated Markov chain and its convergence towards the equilibrium distribution. A third move can be added to improve the mixing properties of the sampling algorithm. This third move is called change; it randomly chooses a cylinder in the configuration and proposes to ``slightly'' change its parameters using simple probability distributions. For specific details concerning the implementation of this dynamics we recommend Lieshout & Stoica (2003) and Stoica et al. (2005a).

Whenever the maximisation of the joint law $p({\vec y},\theta)$is needed, the previously described sampling mechanism can be integrated into a simulated annealing algorithm. The simulated annealing algorithm is built by sampling from $p({\vec y},\theta)^{1/T}$, while T goes slowly to zero. Stoica et al. (2005a) proved the convergence of such simulated annealing for simulating marked point processes, when a logarithmic cooling schedule is used. According to this result, the temperature is lowered as

\begin{displaymath}T_{n} = \frac{T_{0}}{\log n+1};
\end{displaymath} (10)

we use T0=10 for the initial temperature.

2.6 Statistical inference

One straightforward application of the simulation dynamics is the estimation of the filamentary structure in a field of galaxies together with the parameter estimates. These estimates are given by:
                             $\displaystyle (\widehat{{\vec y}},\widehat{\theta})$ = $\displaystyle \arg\max_{\Omega \times \Psi} p({\vec y},\theta)= \arg\max_{\Omega \times \Psi} p({\vec y}\vert\theta)p(\theta)$
  = $\displaystyle \arg\min_{\Omega \times \Psi}\left\{ \frac{U_{\rm d}({\vec y}\ver...
...ert\theta)}{\alpha(\theta)} + \frac{U_{p}(\theta)}{\alpha_{p}(\theta)}\right\},$ (11)

where $\alpha(\theta)$ is the normalising constant, $p(\theta)=\exp[-U_{p}(\theta)]/\alpha_{p}(\theta)$is the prior law for the model parameters and $\Psi$ is the model parameter's space.

However, the solution we obtain is not unique. In practice, the shape of the prior law $p(\theta)$ may influence the solution, making the result to look more random compared with a result obtained for fixed values of parameters. Therefore, it is reasonable to wonder how precise the estimate is, that is if an element of the pattern really belongs to the pattern, or if its presence is due to random effects (Stoica et al. 2007a,b).

For compact subregions ${\cal R}\subseteq K$, we can compute or give Monte Carlo approximations for average quantities such as

\begin{displaymath}{\rm E}_{({\vec Y},\Theta)}\left[f({\cal R}, Z({\vec Y}))\right],
\end{displaymath} (12)

where E denotes the expectation value over the data and model parameter space, and $f({\cal R},\cdot)$ is a real measurable function with respect to the $\sigma$-algebra associated to the configuration space of the marked point process.

If $f({\cal R}, Z({\vec Y})) = {\bf 1}\{{\cal R}\subseteq Z({\vec Y})\}$(where ${\bf 1}$is the indicator function), then the expression (12) represents the probability of how often the considered model includes or visits the region ${\cal R}$. Furthermore, if K is partitioned into a finite collection of small disjoint cells $\{\cR_1,\cR_2,\ldots,\cR_q\}$, then a visit probability map can be obtained. This map is given by the partition together with the value $P_{i} = {\rm E} \left[ {\bf 1}\{\cR_i \subseteq Z({\vec Y})\}\right]$associated to each cell. The map is defined by the model and by the parameters of the simulation algorithm; its resolution is given by the cell partition.

The sufficient statistics of the model (9) - the interaction parameters $n_{\kappa}$ and ns, s=(0,1,2) - describe the size of the filamentary network and quantify the morphological properties of the network. Therefore, they are suitable as a general characterisation of the filamentarity of a galaxy catalogue. This renders the comparison of the networks of different regions and/or different catalogues perfectly possible. Here, we use the sufficient statistics to characterise the real data and the mock catalogues.

The visit maps show the location and configuration of the filament network. Still, the detection of filaments and this verification test depend on the selected model. It is reasonable to ask if these results are obtained because the data exhibits a filamentary structure or just because of the way the model parameters are selected.

The sufficient statistics can be used to build a statistical test in order to answer the previous question. For a given data catalogue, samples of the model are obtained, so the means of the sufficient statistics can be then computed. The same operation, using exactly the same model parameters, can be repeated whenever an artificial point field - or a synthetic data catalogue - is used. If the artificial field is the realisation of a binomial point process having the same number of points as the number of galaxies in the original data set, the sufficient statistics are expected to have very low values - there is no global structure in a such binomial field. If the values of the sufficient statistics for these binomial fields were large, this would mean that the filamentary structure is due to the parameters, not to the data. Comparing the values obtained for the original data sets with Monte Carlo envelopes found for artificial point fields, we can compute Monte Carlo p-values to test the hypothesis of the existence of the filamentary structure in the original data catalogue (Stoica et al. 2007a,b).

3 Data

We apply our algorithms to a real data catalogue and compare the results with those obtained for 22 mock catalogues, specially generated to simulate all main features of the real data.

\begin{figure}
\par\includegraphics[width=16.5cm,clip]{12823fg5.eps}
\end{figure} Figure 5:

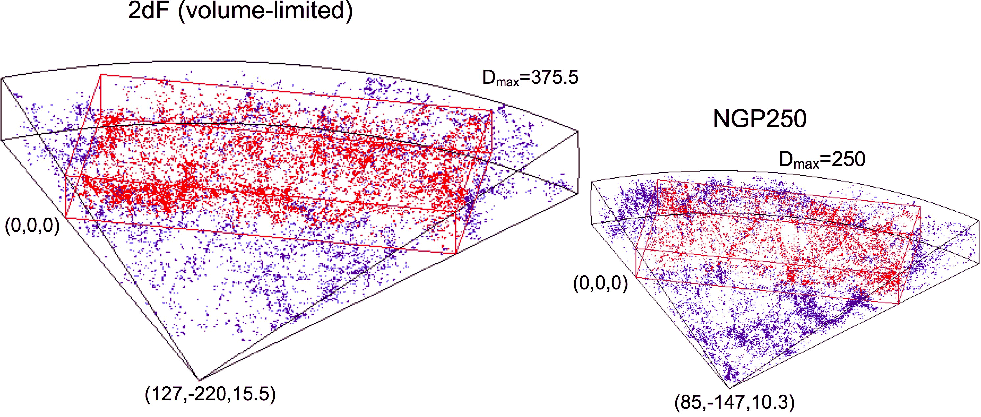

The geometry and coordinates of the data bricks. Right panel: all 2dF galaxies inside a large contiguous area of the northern wedge are shown in blue (up to a depth of 250 h-1 Mpc), galaxies that belong to the NGP250 sample are depicted in red. The left panel corresponds to the volume-limited sample. Both diagrams are shown to scale; there is very little overlap (only 15.6 h-1 Mpc in depth) between the NGP250 and the 2dF volume-limited bricks. The coordinates are in units of 1 h-1 Mpc.

Open with DEXTER

3.1 Observational data

At the moment there are two large galaxy redshift (spatial position) catalogues that are natural candidates for a filament search. When the work reported here was carried out a few years ago, the best available redshift catalogue to study the morphology of the galaxy distribution was the 2 degree Field Galaxy Redshift Survey (R2dFGRS, Colless et al. 2001); the much larger Sloan Digital Sky Survey (SDSS) (see the description of its final status in Abazajian & Sloan Digital Sky Survey 2009) was yet in its first releases. Also, only the R2dFGRS had a collection at that time of mock catalogues that were specially generated to mimic the observed data. So this study is based on the R2dFGRS; we shall certainly apply our algorithms to the SDSS in the future, too.

The R2dFGRS covers two separate regions in the sky, the NGP (North Galactic Cap) strip, and the SGP (South Galactic Cap) strip, with a total area of about 1500 square degrees. The nominal (extinction-corrected) magnitude limit of the R2dFGRS catalogue is bj=19.45; reliable redshifts exist for 221 414 galaxies. The effective depth for the catalogue is about z=0.2 or a comoving distance of D=572 h-1 Mpc for the standard cosmological model with $\Omega_{\rm matter}=0.3$ and $\Omega_{\Lambda}=0.7$[*].

The R2dFGRS catalogue is a flux-limited catalogue and therefore the density of galaxies decreases with distance. For a statistical analysis of such surveys, a weighting scheme that compensates for the missing galaxies at large distances has to be used. However, such a weighting is suitable only for specific statistical problems, as e.g. the calculation of correlation functions. When studying the local structure, such a weighting cannot be used; it would only amplify the shot noise.

We can eliminate weighting by using volume-limited samples. The 2dF team has generated these for scaling studies (see, e.g., Croton et al. 2004); they kindly sent these samples to us. The volume-limited samples are selected in one-magnitude intervals; we chose as our sample the one with the largest number of galaxies for the absolute magnitude interval $M_b\in[-19.0,~-20.0]$. The total number of galaxies in this sample is 44 713.

The NGP250 sample is good for detecting filaments, as shown in our previous paper (Stoica et al. 2007b). But this sample is magnitude-limited (not volume-limited), therefore the number of galaxies decreases with depth, because only galaxies with an apparent magnitude exceeding the survey cutoff are detected. Since we can perform statistical tests only when our base point process is a Poisson process, implying approximately constant mean density with depth, we have to use volume-limited samples in our study. Moreover, the mocks that have been built for the R2dFGRS are already volume-limited, and cannot be combined into a magnitude-limited sample because of their different depths. Thus, if we want to compare the observed filaments with those in the mock samples, we are forced to use volume-limited samples.

Table 1:   Galaxy content and geometry for the data bricks (sizes are in h-1 Mpc).

The borders of the two volumes covered by the sample are rather complex. As our algorithm is recent, we do not yet have the estimates of the border effects, and we cannot correct for these. So we limited our analysis to the simplest volumes - bricks. As the southern half of the galaxy sample has a convex geometry (it is limited by two conical sections of different opening angles), the bricks which are possible to cut from there have small volumes. Thus we used only the northern data which have a geometry of a slice, and chose the brick of a maximum volume that could be cut from the slice. We will compare the results obtained for this sample (2dF) below with those obtained for a smaller sample in a previous paper (NGP250); the geometry and galaxy content of these two data sets is described in Table 1. We have shifted the origin of the coordinates to the near lower left corner of the brick; the geometry of the bricks (both the 2dF and NGP250 sample) is illustrated in Fig. 5.

3.2 Mock catalogues

We compare the observed filaments with those built for mock galaxy catalogues which try to simulate the observations as closely as possible. The construction of these catalogues is described in detail by Norberg et al. (2002); we give a short summary here. The 2dF mock catalogues are based on the ``Hubble Volume'' simulation (Colberg et al. 2000), an N-body simulation of a 3 h-1 Gpc cube of 109 mass points. These mass points are considered as galaxy candidates and are sampled according to a set of rules that include:
1.
Biasing: the probability for a galaxy to be selected is calculated on the basis of the smoothed (with a $\sigma=2~h^{-1}~{\rm Mpc}$Gaussian filter) final density. This probability (biasing) is exponential (rule 2 of Cole et al. 1998), with parameters chosen to reproduce the observed power spectrum of galaxy clustering.
2.
Local structure: the observer is placed in a location similar to our local cosmological neighbourhood.
3.
A survey volume is selected, following the angular and distance selection factors of the real R2dFGRS.
4.
Luminosity distribution: luminosities are assigned to galaxies according to the observed (Schechter) luminosity distribution; k+e-corrections are added.
These ``ideal'' catalogues are then combined with observational errors to produce the final mock catalogues:
1.
galaxy redshifts are modified by adding random dynamical velocities;
2.
observational random errors are added to galaxy magnitudes;
3.
based on galaxy positions, survey incompleteness factors are calculated.
These catalogues are as close to the observed catalogues as currently possible - the spatial coverage, galaxy density, clustering, luminosities and observational errors are the same. So, we expect that the filamentary structure of the mock catalogues should be close to the ones we observe.

\begin{figure}
\par\includegraphics[width=7.8cm,clip]{12823fg6.eps}\hspace*{0.5cm}
\includegraphics[width=6cm,clip]{12823fg7.eps}
\end{figure} Figure 6:

Filaments in the main data set 2dF ( left panel) and in a smaller, but more dense data set N250 ( right panel). The volumes are shown at the same scale.

Open with DEXTER

4 Filaments

4.1 Experimental setup

As described above, we use the data sets drawn from the galaxy distribution in the Northern subsample of the R2dFGRS survey and from the 22 mock catalogues. For mock catalogues, we use the same absolute magnitude range and cut the same bricks as for the R2dFGRS survey.

The sample region K is the brick. In order to choose the values for the dimensions of the cylinder we use the physical dimensions of the galaxy filaments that have been observed in more detail (Pimbblet & Drinkwater 2004); we used the same values also in our previous paper (Stoica et al. 2007b): a radius r=0.5 and a height h=6.0(all sizes are given in h-1 Mpc). The radius of the cylinder is close to the minimal one can choose, taking into account the data resolution. Its height is also close to the shortest possible, as our shadow cylinder has to have a cylindrical geometry, too (the ratio of its height to the diameter is presently 3:1). We choose the attraction radius as $r_{\rm a}=0.5$, giving the value 1.5 for the maximum distance between the connected cylinders, and for the cosines of the maximum curvature angles we choose $\tau_{\parallel}=\tau_{\perp}=0.15$. This allows for a maximum of ${\approx}30^\circ$ between the direction angles of connected cylinders and considers the cylinders to be orthogonal, if the angle between their directions is larger than ${\approx}80^\circ$.

The model parameters $(r,h,r_{\rm a})$influence the detection results. If they are too low, all network will be considered as made of clusters, so no filaments will be detected. If they are too high, the detected filaments will be too wide and/or too sparse, and precision will be lost. Still, this makes the visit maps an interesting tool, since, in a certain manner, they average the detection result. In this work, the $(r,h,r_{\rm a})$ parameters were fixed after a visual inspection of the data and of different projections outlining the filaments.

The marked point process-based methodology allows us to introduce these parameters as marks or priors characterised by a probability density, hence the detection of an optimal value for these parameters is then possible. Knowledge based on astronomical observations could be used to set the priors for such probability densities.

For detecting the scale-length of the cylinders or for obtaining indications about its distribution, we may use visit maps to build cell hypothesis tests to see which the most probable h of the cylinder passing through this cell could be. This may require also a refinement of the data term of the model.

For the data energy, we limit the parameter domain by $u_{\max}=[-25,20]$. For the interaction energy, we choose the parameter domain as follows: $\log \gamma_{0} \in [-12.5,-7.5]$, $\log
\gamma_{1} \in [-5, 0] $and $\log \gamma_{2} \in [0, 5]$. The hard repulsion parameter is $\gamma_{k}=0$, so the configurations with repulsing cylinders are forbidden. The domain of the connection parameters was chosen in a way that 2-connected cylinders are generally encouraged, 1-connected cylinders are penalised and 0-connected segments are strongly penalised. This choice encourages the cylinders to group in filaments in those regions where the data energy is good enough. Still, we have no information about the relative strength of those parameters. Therefore, we have decided to use the uniform law over the parameter domain for the prior parameter density $p(\theta)$.

4.2 Observed filaments

We ran the simulated annealing algorithm for 250 000 iterations; samples were picked up every 250 steps.

The cylinders obtained after running the simulated annealing outline the filamentary network. But as simulated annealing requires an infinite number of iterations till convergence, and also because of the fact that an infinity of solutions is proposed (slightly changing the orientation of cylinders gives us another solution that is as good as the original one), we shall use visit maps to ``average'' the shape of the filaments.

Figure 6 shows the cells that have been visited by our model with a frequency higher than 50%, together with the galaxy field. Filamentary structure is seen, but the filaments tend to be short, and the network is not very well developed. For comparison, we show a similar map for the smaller volume (NGP250), where the galaxy density is about three times higher. We see that the effectiveness of the algorithm depends strongly on the galaxy density; too much of a dilution destroys the filamentary structure.

As galaxy surveys have different spatial densities, this problem should be addressed. The obvious way to do that is to rescale the basic cylinder. First, we can do full parameter estimation, with cylinder sizes included. Second, we can use an empirical approach, choosing a few nearby well-studied filaments, removing their fainter galaxies and finding the values for h and r that are needed to keep the filaments together.

But this needs a separate study. We will use here a simple density-based rescaling - as the density of the 2dF sample is three times lower than that of the smaller volume we rescaled the cylinder dimensions by 31/3=1.44. The filamentary network for this case is shown in Fig. 7. This is better developed, but not as well delineated as that for the smaller volume.

This rescaling assumes that the dilution is Poissonian, and there is no luminosity-density relation. Both those assumptions are wrong. Our justification of the scaling used here is that this is the simplest scaling assumption, and the dimensions of the rescaled cylinder (r=0.72, h=8.6) do not contradict observations. Also, the filamentary networks found with rescaled cylinders and the visit maps seem to better trace the filaments seen by eye. We realise that the scaling problem is important, and will return to it in the future.

\begin{figure}
\par\includegraphics[width=8cm,clip]{12823fg8.eps}
\end{figure} Figure 7:

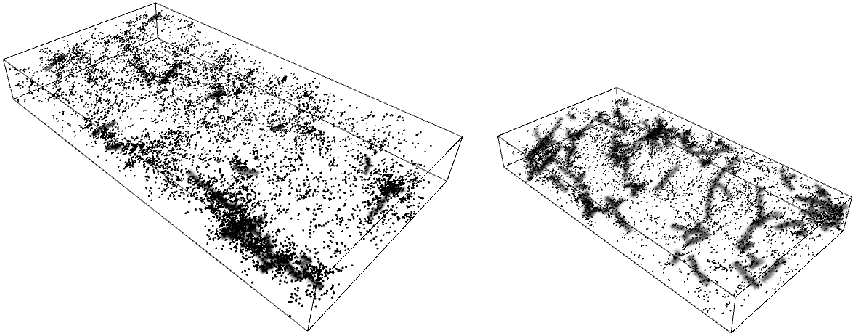

Filaments in the main data set 2dF, for the rescaled basic cylinder.

Open with DEXTER

As we work in the redshift space, the apparent galaxy distribution is distorted by peculiar velocities in groups and clusters that produce so-called ``fingers-of-god'', structures that are elongated along the line-of-sight. These fingers may masquerade as filaments for our procedure. To estimate their influence, we first found the cylinders using the simulated annealing algorithm. The cylinders along the line-of-sight may be caused by the finger-of-god effect. A simple test was implemented, checking if the module of the scalar product between the direction of the symmetry axis of the cylinder and the direction of the line-of-sight ( $\vert\!\cos\phi\vert$, where $\phi$ is the angle between these directions) is close to 1 (greater than 0.95).

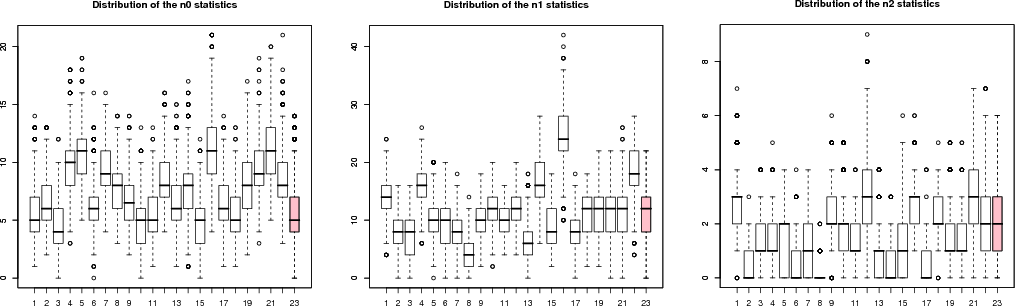

The results are shown in Table 2 and in Fig. 8. The table shows the total number of cylinders $n_{\rm t}$, the number of line-of-sight cylinders $n_{\rm f}$, and the expected number of cylinders $n_{\rm e}$(assuming an isotropic distribution of cylinders, $n_{\rm e}=0.05n_{\rm t}$). Figure 8 compares the network of all cylinders (left panel) with the location of the line-of-sight cylinders (right panel). The figures for all other catalogues listed in Table 2 appear to be similar.

Table 2:   Line-of-sight cylinders in the data (2dF and NGP250) and in two mocks, 8 and 16.

\begin{figure}
\par\includegraphics[width=8.4cm,clip]{12823fg9.eps}\hspace*{0.5mm}
\includegraphics[width=8.4cm,clip]{12823f10.eps}
\end{figure} Figure 8:

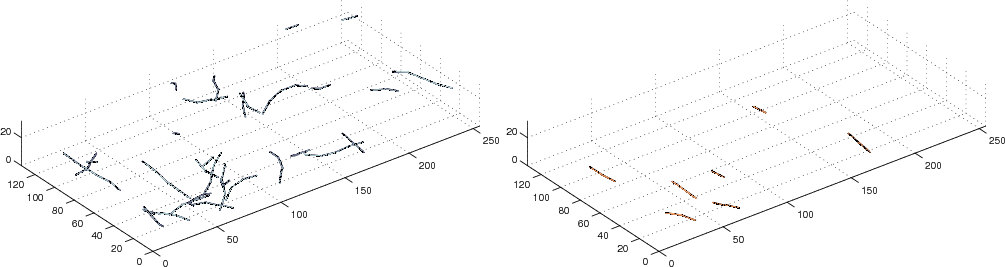

The full cylinder network ( left panel) and line-of-sight cylinders ( right panel), for the 2dF data brick, with a rescaled cylinder. The coordinates are in units of 1 h-1 Mpc.

Open with DEXTER

Clearly, our method detects such fingers, although the number of extra cylinders (fingers-of-god) is not large. There are at least two possibilities to exclude them. The first is to use a group catalogue, where fingers are already compressed, instead of a pure redshift space catalogue. Another possibility is to modify our data term, checking for the cylinder orientation, and to eliminate the fingers within the algorithm. We will test both possibilities in future work.

\begin{figure}
\par\includegraphics[width=5.7cm,clip]{12823f11.eps}\hspace*{2mm}...
....eps}\hspace*{2mm}
\includegraphics[width=5.7cm,clip]{12823f13.eps}
\end{figure} Figure 9:

Visit maps for two mocks (mock 8 - left panel, mock 16 - right panel) and the real data ( middle panel), for the rescaled cylinder. We show the cells for the 50% threshold.

Open with DEXTER

A problem that has been addressed in most of the papers about galaxy filaments is the typical filament length (or the length distribution). As our algorithm allows branching of filaments (cylinders that are approximately orthogonal), it is difficult to separate filaments. We have tried to cut the visit maps into filaments, but the filaments we find this way are too short. We may advance here applying morphological operations to visit maps. Still, this kind of operation needs at least a good mathematical understanding of the ``sum'' of all the cells forming the visit maps.

Another possibility is to use the cylinder configurations for selecting individual filaments. These configurations can be thought of as a (somewhat random) filament skeletons of visit maps. We have used them to find the distributions of the sufficient statistics, and these configurations should be good enough to estimate other statistics, as filament lengths. We will certainly try that in the future.

There are problems where knowing the typical filament length is very important, as in the search for missing baryons. These are thought to be hidden as warm intergalactic gas (WHIM, see, e.g. Viel et al. 2005). In order to detect this gas, the best candidates are galaxy filaments that lie approximately along the line-of-sight; knowing the typical length of a filament we can predict if a detection would be possible.

Concerning the length of the entire filamentary network, the most direct way of estimating it is to multiply the number of cylinders with h. In this case, the distribution of the length of the network is given by the distribution of the sum of the three sufficient statistics of the model. The precision of the estimator is related to the precision of h. Another possible estimator can be constructed using $h+r_{\rm c}$ instead of h. The same construction can be used even if different cylinders are used Stoica et al. (2004,2002); Lacoste et al. (2005). As for the sufficient statistics, the distribution of the length of the network may be derived using Monte Carlo techniques.

We note that we can easily find the total volumes of filaments, counting the cells on the visiting map. As an example, for the cases considered here, the relative filament volumes are $1.8\times10^{-3}$(2dF, smaller cylinder), $3.3\times 10^{-3}$ (2dF, rescaled cylinder), and $1.6\times 10^{-2}$ (NGP250).

4.3 Statistics

As we explained before, in order to compare the filamentarity of the observed data set (2dF) and the mocks, we had to run the Metropolis-Hastings algorithm at a fixed temperature T=1.0 (sampling from $p({\vec y},\theta)$). The algorithm was run for 250 000 iterations, and samples were picked up every 250 iterations. The means of the sufficient statistics of the model were computed using these samples. As an example, we compare the single-temperature visit map for the data with two extreme cases for the mocks (8 and 16) in Fig. 9. The obtained results are shown in Table 3.

Table 3:   The mean of the sufficient statistics for the data and the mocks.

\begin{figure}
\par\includegraphics[width=5.25cm,clip]{12823f14.eps}\hspace*{6mm...
...eps}\hspace*{6mm}
\includegraphics[width=5.25cm,clip]{12823f16.eps}
\end{figure} Figure 10:

Comparison of the distributions of the sufficient statistics for the real data (dark boxplot) and the mock catalogues. Box plots allow a simultaneous visual comparison in terms of the center, spread and overall range of the considered distributions: the middle line of the box corresponds to q0.5, the empirical median of the distribution, whereas the bottom and the top of the box correpond to q0.25 and q0.75, the first and the third empirical quartile, respectively. The low extremal point of the vertical line (whiskers) of the box is given by $q_{0.25}-1.5\Delta q$, where the interquartile range $\Delta q=q_{0.75}-q_{0.25}$, and the high extremal point is given by $q_{0.75}+1.5\Delta q$. There is a statistical rule-of-thumb stating that the values located outside the interval given by the whiskers may be outliers. These are shown by dots - full dots indicate ``extreme'' outliers, more than $3\Delta q$ away from the q0.25 or q0.75, and open dots - ``mild'' outliers, closer than $3\Delta q$ from these quartiles. As an example, for the Gaussian distribution the outlier region accounts for 0.7% of the total probability.

Open with DEXTER

The MH algorithm was run at a fixed temperature. This allows us a quantitative comparison of the observed data and the mock catalogues through the distributions of the model sufficient statistics.

The box plots of the distributions of the sufficient statistics for the mocks and the real data are shown in Fig. 10. The box plots for the mock catalogues are indexed from 1 to 22, and this corresponds to the indexes of each catalogue. The box plot corresponding to the real data is indexed 23 and it is coloured dark.

The distributions of the n0 statistics are compared in the left panel in the Fig. 10. We recall that the n0 statistics represents the number of isolated cylinders (no connections). Thus, a large number of such cylinders tells us that the network is rather fragmented. We see that only the mock catalogue 3 exhibits a less fragmented network than the real data. A considerable number of mock catalogues has a filamentary network that is much more fragmented than the data: the median for these catalogues is clearly much higher than the median for the real data. Nevertheless, there are some catalogues which have similar values as the data for the median, and also a similar shape for the distributions. These mock catalogues are 1,10,11,15 and 18. In order to see how similar these catalogues are to the real data, we ran a Kolmogorov-Smirnov test. The p-values for the mock catalogues 1 and 18were 0.96 and 0.13, respectively. For the mock catalogues 10,11 and 15 the obtained p-values were all lower than 0.002. Hence, we conclude that among all mock catalogues, there are only two that are similar to the real data with respect to the distribution of the n0 statistics. A big majority of the mock catalogues exhibits networks that are much more fragmented than the one in the real data.

The right panel in Fig. 10 compares the distributions of the n2 statistics. The n2 statistics represents the number of cylinders in a configuration which are connected at both its extremities. A configuration with a considerable number of such cylinders forms a network made of rather long filaments. So we see that mock catalogues 12 and 21 exhibit a network with longer filaments than in the data. The distribution of the n2 statistics for the mock catalogue 22 appears to be very similar to the real data. The p-value of the associated Kolmogorov-Smirnov test is 0.09. To make a decision concerning the mock catalogues 1, 9, 16 and 18, a one-sided Kolmogorov-Smirnov test was done, based on an alternative hypothesis that the distribution of the n2 statistics for the real data may extend farther than the distributions for the corresponding mock catalogs. Since the obtained p-values where all very small, we can state that the filamentary network of these four mock catalogues is made of shorter filaments than those in the real data. So, we conclude that with a few exceptions the mock catalogues exhibit a network made of filaments which are shorter than the ones in the real data.

The distributions of the n1 statistics are compared in the middle panel of Fig. 10. The n1 statistics gives the number of cylinders that are connected at only one extremity. Hence, a configuration with a large value of this statistics is a network with a rather high density of the filaments. Looking at all the three statistics together, we get a rough idea of the topology of the network. For instance, if both the values of n1 and n2 are high, this indicates a network similar to a spaghetti plate or to a tree with long branches. Or the other way around, if the n1 and n0 statistics are both high, the network should be similar to a macaroni plate or to a bush with short branches. This means that the mock catalogues 1,4,14,16 and 22 produce a network which is much more dense (or has more endpoints) than the one in the real data catalogue. The box plots for the mock catalogs 18,19,20and 21 are almost identical to the box plot for the real data, showing that the n1 distributions are similar. This was confirmed by the Kolmogorov-Smirnov test. The mock catalogues 10 and 12 have the same median as the data, while the distributions are much more concentrated and symmetrical. The Kolomogorov-Smirnov test showed that these distributions differ significantly from that for the real data. We conclude that concerning the distributions of the n1 statistics, four mock catalogues have similar distributions to the data, and five others clearly have a much more dense network, while the rest of the catalogues produce networks that are clearly less dense or have fewer endpoints than the network in the real data catalogue.

In summary, if for a single model characteristic the mock catalogues may look similar to the data, taking into account all three of them leads to a rather obvious difference between the mocks and the observations. Generally, from a topological point of view, the networks in the mock catalogues are more fragmented and contain shorter filaments than in the data. As for the filament density, the mock catalogues encompass the real data, with a large variance.

To see the influence of rescaling to the sufficient statistics, we repeated the procedure with the rescaled cylinder for the data and for the mocks 8 and 16. The data are given in Table 4.

Table 4:   The mean of the sufficient statistics for the data and the mocks, for the rescaled basic cylinder.

Rescaling the basic cylinder improves the network, but not as much as expected - the interaction parameters remain lower than those obtained for the NGP250 sample.

To see if the filamentary network we find is really hidden in the data, we uniformly re-distributed the points inside the domain K. Now the points follow a binomial distribution that depends only on the total number of points. For each (mock) data set this operation was done 100 times, obtaining 100 point fields accordingly. For each point field the method was launched during 50 000 iterations at fixed T=1.0, while samples were picked up every 250 iterations. The model parameters were the same as previously described. The mean of the sufficient statistics was then computed. The maximum values for the all 100 means for each data set are shown in Table 5.

Table 5:   The maximum of mean of the sufficient statistics over binomial fields generated for some mock catalogues (the same number of points).

As we see, the algorithm does not find any connected cylinders for a random distribution, both the numbers of the 1-connected and 2-connected cylinders are strictly zero. Only in a few cases the data allow us to place a single cylinder. Thus, the filaments our algorithm discovers in galaxy surveys and in mock catalogues are real, they are hidden in the data and are not the result of a lucky choice of the model parameters.

5 Discussion, conclusions and perspectives

In a previous paper (Stoica et al. 2007b) we developed a new approach to locate and characterise filaments hidden in three-dimensional point fields. We applied it to a galaxy catalogue (R2dFGRS), found the filaments and described their properties by the sufficient statistics (interaction parameters) of our model.

As there are numerical models (mocks) that are carefully constructed to mimic all local properties of the R2dFGRS, we were interested to see whether these models also have global properties similar to the observed data. An obvious test for that is to find and compare the filamentary networks in the data and in the mocks. We did that, using fixed shape parameters for the basic building blocks for the filaments, and fixed interaction potentials. These priors had led to good results before.

In order to strictly compare the observed catalogue and the mocks, we had to work with constant-density samples (volume-limited catalogues). This inevitably led to a smaller spatial density, and the filament networks we recovered were not as good as those found in the previous paper. Rescaling the basic cylinder helped, but not as much as expected.

As all the mock samples are selected from a single large-volume simulation, they share the same realisation of the initial density and velocity fields. The large-scale properties of the density field and its filamentarity should be similar in all the mocks. The volumes of the mocks are sufficiently high to suppress cosmic noise at the filament scales, and the dimensions of the bricks are large, too, except for the third dimension, the thickness of the brick. Our bricks are very thin, with a height of only 31.1 h-1 Mpc). This can cause a selection of different pieces of dark matter filaments and consequently a broad variance in the filamentarity of the density field.

The biasing scheme will also influence the properties of mock filaments. As the particle mass in the simulation was $2.2\times10^{12}~M_{\odot}$, galaxies had to be identified with individual mass points, and this makes the biasing scheme pretty random (compared with later scenarios where galaxies have been built inside dark matter subhaloes). Another source of randomness is the random assignment of galaxy luminosities that excludes reproducing the well-known luminosity-density relation. As we saw, the filaments in a typical mock are shorter, and that can be explained by the ``randomisation'' of galaxy chains.

There are several new results in our paper:

1.
The filamentarity of the real galaxy catalogue, as described by the sufficient statistics of our model (the interaction parameters), lies within the range covered by the mocks. But the model filaments are, in general, much shorter and do not form an extended network.
2.
The filamentarity of the mocks themselves differs much. This may be caused both by the specific geometry (thin slice) of the sample volume and by the biasing scheme used to populate the mocks with galaxies.
3.
Finally, we compared our catalogues with the random (binomial) catalogues with the same number of data points and found that these do not exhibit any filamentarity at all. This proves that the filaments we find exist in the data.
Our method does not yield an estimate of the precision of the detection. This is an important and far from a trivial problem. For instance, even in the ideal situation of an entirely supervised detection of these filaments (made by hand by a human specialist), we may wonder how the obtained result should be validated? Another very important difficulty is related to the fact that there exists no precise (mathematical) definition of what a galactic filament really is.

The definition we propose, ``something complicated made of connected small cylinders containing galaxies that are more concentrated in a cylinder than outside it'', can be clearly improved in order to allow a better local fit for a cylinder. Still, although quite simple, this definition allows us a general treatement using marked point processes. Very recent work in marked point process literature presents methodological ideas leading to statistical model validation (Baddeley et al. 2005,2008). This gives hope and perspective to incorporate these ideas into our method. This perspective is important because it allows us a global appreciation of the result.

The detection test on realisations of binomial point processes shows that whenever filaments are not present in the data, the proposed method does not detect filaments. This also means that the detected filaments in the data are ``true filaments'' (in the sense of our definition) and not a ``random alignment of points'' (false alarms) that may occur by chance even in a binomial point process. In that sense, together with the topological information given by the sufficient statistics, our model is a good tool for describing the network. The strong point of this approach is that it allows simultaneous morphological description and statistical inference. Another important advantage of using a marked point process based methodology is that it allows for the evolution of the definition of the objects forming the pattern we are looking for.

One of the messages this paper communicates is that looking at two different families of data sets with the same statistical tool, we get rather different results from a statistical point of view. Therefore, we can safely conclude that the two families of data sets are different.

There are many ways to improve on the work we have done so far. We have seen above that it is difficult to find the scale (lengths) of the filaments for our model; this problem has to be solved. Second, we have used fixed parameters for the data term (cylinder sizes); these should be found from the data. Third, the filament network seems to be hierarchical, with filaments of different widths and sizes; a good model should include this. Fourth, parameter estimation and detection validation should be also included; the uniform law does not allow the characterisation of the model parameters distribution and for the moment we cannot say that the detected filamentary pattern is correctly detected; the only statistical statement that we can do is that this pattern is hidden in the data and we have some good ideas about where it can be found, but we do not give any precise measure about it.

Also, it would be good if our model could be extended to describe inhomogeneous point processes - magnitude-limited catalogues that have much more galaxies and where the filaments can be traced much better. The first rescaling attempt we made in this paper could be a step in this direction, but as we saw, it is not perfect. And, as usual in astronomy - we would understand nature much better if we had more data. The more galaxies we see at a given location, the better we can trace their large-scale structure.

The Bayesian framework and the theory of marked point process allow the mathematical formulation for filamentary pattern detection methodologies introducing the previously mentioned improvements (inhomogeneity, different size of objects, parameter estimation). The numerical implementation and the construction of these improvements in harmony with the astronomical observations and theoretical knowledge are open and challenging problems.

Acknowledgements
First, we thank our referee for detailed and constructive criticism and suggestions. This work has been supported by the University of Valencia through a visiting professorship for Enn Saar, by the Spanish Ministerio de Ciencia e Innovación CONSOLIDER projects AYA2006-14056 and CSD2007-00060, including FEDER contributions, by the Generalitat Valenciana project of excellence PROMETEO/2009/064, by the Estonian Ministry of Education and Science, research project SF0060067s08, and by the Estonian Science Foundation grant 8005. We thank D. Croton for the observational data (the R2dFGRS volume-limited catalogues) and the mock catalogues. The authors are also grateful to G. Castellan for helpful discussions concerning statistical data analysis.

Three-dimensional visualisation in this paper was conducted with the S2PLOT programming library (Barnes et al. 2006). We thank the S2PLOT team for superb work

References

Footnotes

...$\Omega_{\Lambda}=0.7$[*]
Here and below h is the dimensionless Hubble constant, $H=h\cdot100$ km s-1 Mpc-1.

All Tables

Table 1:   Galaxy content and geometry for the data bricks (sizes are in h-1 Mpc).

Table 2:   Line-of-sight cylinders in the data (2dF and NGP250) and in two mocks, 8 and 16.

Table 3:   The mean of the sufficient statistics for the data and the mocks.

Table 4:   The mean of the sufficient statistics for the data and the mocks, for the rescaled basic cylinder.

Table 5:   The maximum of mean of the sufficient statistics over binomial fields generated for some mock catalogues (the same number of points).

All Figures

  \begin{figure}
\par\includegraphics[width=14cm,clip]{12823fg1.eps}
\end{figure} Figure 1:

Galaxy map for two R2dFGRS slices of the thickness of $2.6^\circ $. The filamentary network of galaxies is clearly seen.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=7cm,clip]{12823fg2.eps}
\end{figure} Figure 2:

A thin cylinder that generates the filamentary network.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=6.1cm,clip]{12823fg3.eps}
\end{figure} Figure 3:

Two-dimensional projection of a thin cylinder with its shadow within a pattern of galaxies.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=8cm,clip]{12823fg4.eps}
\end{figure} Figure 4:

Two-dimensional representation of interacting cylinders.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=16.5cm,clip]{12823fg5.eps}
\end{figure} Figure 5:

The geometry and coordinates of the data bricks. Right panel: all 2dF galaxies inside a large contiguous area of the northern wedge are shown in blue (up to a depth of 250 h-1 Mpc), galaxies that belong to the NGP250 sample are depicted in red. The left panel corresponds to the volume-limited sample. Both diagrams are shown to scale; there is very little overlap (only 15.6 h-1 Mpc in depth) between the NGP250 and the 2dF volume-limited bricks. The coordinates are in units of 1 h-1 Mpc.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=7.8cm,clip]{12823fg6.eps}\hspace*{0.5cm}
\includegraphics[width=6cm,clip]{12823fg7.eps}
\end{figure} Figure 6:

Filaments in the main data set 2dF ( left panel) and in a smaller, but more dense data set N250 ( right panel). The volumes are shown at the same scale.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=8cm,clip]{12823fg8.eps}
\end{figure} Figure 7:

Filaments in the main data set 2dF, for the rescaled basic cylinder.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=8.4cm,clip]{12823fg9.eps}\hspace*{0.5mm}
\includegraphics[width=8.4cm,clip]{12823f10.eps}
\end{figure} Figure 8:

The full cylinder network ( left panel) and line-of-sight cylinders ( right panel), for the 2dF data brick, with a rescaled cylinder. The coordinates are in units of 1 h-1 Mpc.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=5.7cm,clip]{12823f11.eps}\hspace*{2mm}...
....eps}\hspace*{2mm}
\includegraphics[width=5.7cm,clip]{12823f13.eps}
\end{figure} Figure 9:

Visit maps for two mocks (mock 8 - left panel, mock 16 - right panel) and the real data ( middle panel), for the rescaled cylinder. We show the cells for the 50% threshold.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=5.25cm,clip]{12823f14.eps}\hspace*{6mm...
...eps}\hspace*{6mm}
\includegraphics[width=5.25cm,clip]{12823f16.eps}
\end{figure} Figure 10:

Comparison of the distributions of the sufficient statistics for the real data (dark boxplot) and the mock catalogues. Box plots allow a simultaneous visual comparison in terms of the center, spread and overall range of the considered distributions: the middle line of the box corresponds to q0.5, the empirical median of the distribution, whereas the bottom and the top of the box correpond to q0.25 and q0.75, the first and the third empirical quartile, respectively. The low extremal point of the vertical line (whiskers) of the box is given by $q_{0.25}-1.5\Delta q$, where the interquartile range $\Delta q=q_{0.75}-q_{0.25}$, and the high extremal point is given by $q_{0.75}+1.5\Delta q$. There is a statistical rule-of-thumb stating that the values located outside the interval given by the whiskers may be outliers. These are shown by dots - full dots indicate ``extreme'' outliers, more than $3\Delta q$ away from the q0.25 or q0.75, and open dots - ``mild'' outliers, closer than $3\Delta q$ from these quartiles. As an example, for the Gaussian distribution the outlier region accounts for 0.7% of the total probability.

Open with DEXTER
In the text


Copyright ESO 2010

Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.

Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.

Initial download of the metrics may take a while.
