The G292.0+1.8 pulsar wind nebula in the mid-infrared
D. A. Zyuzin1,2 - A. A. Danilenko1 - S. V. Zharikov3 - Yu. A. Shibanov1
1 - Ioffe Physical Technical Institute, Politekhnicheskaya
26, St. Petersburg, 194021, Russia
2 - Academical Physical Techonological University, Khlopina 2-8, St. Petersburg, 194021, Russia
3 - Observatorio Astronómico Nacional SPM, Instituto de Astronomía, UNAM, Ensenada, BC, Mexico
Received 21 August 2009 / Accepted 21 September 2009
Abstract
Context. G292.0+1.8 is a Cas A-like supernova remnant that
contains the young pulsar PSR J1124-5916 powering a compact
torus-like pulsar wind nebula visible in X-rays. A likely counterpart
to the nebula has been detected in the optical VRI bands.
Aims. To confirm the counterpart candidate nature, we examined
archival mid-infrared data obtained with the Spitzer Space Telescope.
Methods. Broad-band images taken at 4.5, 8, 24, and 70 m were analyzed and compared with available optical and X-ray data.
Results. The extended counterpart candidate is firmly detected in the 4.5 and 8 m
bands. It is brighter and more extended in the bands than in the
optical, and its position and morphology agree well with the
coordinates and morphology of the torus-like pulsar wind nebula in
X-rays. The source is not visible in 24 and 70
m
images, which are dominated by bright emission from the remnant shell
and filaments. We compiled the infrared fluxes of the nebula, which
probably contains a contribution from an unresolved pulsar in its
center, with the optical and X-ray data. The resulting unabsorbed
multiwavelength spectrum is described by power laws of significantly
steeper slope in the infrared-optical than in X-rays, implying a
double-knee spectral break between the optical and X-rays. The 24 and
70
m
flux upper limits suggest a second break and a flatter spectrum at the
long wavelength limit. These features are common to two other pulsar
wind nebulae associated with the remnants B0540-69.3 and 3C 58 and
observed in all three ranges.
Conclusions. The position, morphology, and spectral properties
of the detected source allow us to confirm that it is the
infrared-optical counterpart to both the pulsar and its wind nebula
system in the G292.0+1.8 supernova remnant.
Key words: ISM: supernova remnants - pulsars: individual: PSR J1124-5916 - stars: winds, outflows - infrared: general - radiation mechanisms: non-thermal - ISM: individual objects: G292.0+1.8
1 Introduction
Infrared (IR) observations can provide valuable information about the poorly understood physical processes responsible for multiwavelength radiation from rotation-powered neutron stars and pulsar wind nebulae (PWNe). However, until now only a few of these objects have been detected in the IR. The most well studied Crab-pulsar and its torus-like PWN exhibit almost a flat spectrum in the IR (Temim et al. 2006,2009), while some bright structures of the PWN, such as a knot south of the pulsar, exhibit a steep flux increase towards longer wavelengths (Sollerman 2003; Sandberg & Sollerman 2009). In contrast to the emission of the Crab-pulsar itself, the emission from three older pulsars detected in the near-IR (Vela, B0656+14, Geminga) show a flux increase with wavelength (Shibanov et al. 2006,2003).
Two young Crab-like pulsar+PWN systems associated with supernova remnants (SNRs) B0540-69.3 and 3C 58, observed in the mid-IR with the Spitzer telescope, exhibited an even steeper flux increase towards the IR (Williams et al. 2008; Slane et al. 2008; Shibanov et al. 2008). Their optical and IR data can be described by a single power law, whose slope and intensity differ significantly from those observed in X-rays suggesting a double-knee break in the multiwavelength spectra of both systems between the optical and X-rays (Shibanov et al. 2008; Serafimovich et al. 2004). The emission from the Crab contains only one break within the same range. More complex energy distributions of radiating relativistic particles in the two former systems may be resposible for this difference. IR observations of other pulsar-PWN systems can help us to understand whether the double-knee break is a more common feature of these systems than the single break seen in the Crab.
The young PSR J1124-5916 was only recently discovered in
the radio (Camilo et al. 2002) and X-rays (Hughes et al. 2003,2001).
It is associated with SNR G292.0+1.8 (MSH 11-54), which is the third oxygen-rich
SNR to be detected in the Galaxy after Cas A and Puppis A.
In a similar way to the Crab-pulsar, PSR J1124-5916 powers a torus-like X-ray PWN with a jet (Hughes et al. 2003; Park et al. 2007; Safi-Harb & Gonzalez 2002; Hughes et al. 2001).
The characteristic age of the pulsar,
yr, which is
consistent with 2700-3700 yr age of the SNR (Chevalier 2005; Camilo et al. 2002), and its spin-down luminosity,
ergs s-1, rank this pulsar as the sixth youngest and the eighth most energetic
among the all rotation-powered pulsars known.
Deep optical images obtained last year
with the VLT detected a likely candidate to the optical counterpart of the pulsar+PWN system in VRI bands (Zharikov et al. 2008).
The major axis of an elliptically shaped counterpart candidate coincides with the major
axis of the torus-like PWN, which is seen in X-rays almost edge-on.
Smaller source extents suggest that only the brightest inner part
of the X-ray PWN containing the pulsar was detected in the optical range.
Using Spitzer archival images of the G292.0+1.8 field, we report the detection of the same source in the mid-IR. Similar source morphology to that in X-rays and a single power law spectral energy distribution in the optical and IR show that it is indeed the optical-mid-IR counterpart of the G292.0+1.8 pulsar+PWN system. The IR observations are described in Sect. 2, the results are presented and discussed in Sects. 3 and 4.
![]() |

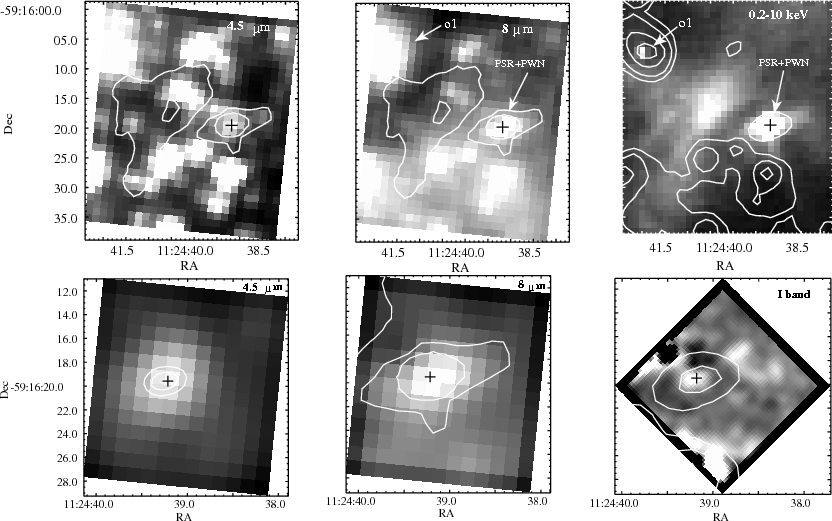

Figure 1:
Top row: central |
Open with DEXTER |
2 Observations
G292.0+1.8 was imaged with the Spitzer telescope at several observing sets
from March 13 to April 15 2008 using the Infrared Array Camera (IRAC) and Multiband Imaging
Photometer for Spitzer (MIPS). The data
were retrieved
from the Spitzer archive. Various parts of the SNR were detected
in all four IRAC channels, although its central part, containing the pulsar, was imaged
in only the second and fourth bands with effective wavelengths of
4.5
m and 8.0
m, respectively. We used the IRAC post-BCD calibrated mosaic images with an effective image scale of 1
2 per pixel and field of view (FOV) of
.
Two separate sets of observations were obtained with the MIPS at the effective wavelengths of 24
m and 70
m
to image the entire SNR. We regenerated the MIPS post-BCD calibrated
mosaic images from respective BCD data using the MOPEX
tool. The resulting image scales are 2
4 per pixel for the first, and 4
0 for the second band with the FOV of
for both bands. The effective exposures were
3500 s per pixel for both IRAC bands,
500 s for 24
m, and
380 s for 70
m MIPS bands.
3 Results
3.1 Identification of the pulsar / PWN counterpart candidate
As a first step, to check the Spitzer pointing accuracy, we applied
astrometric referencing
to the IRAC images. In the IRAC FOV, eight unsaturated isolated
astrometric standards from the USNO-B1 catalog were selected as
reference points. Their catalog and image positional uncertainties for
both coordinates were 0
2 and
0
5, respectively. IRAF ccmap/cctran tasks were used to find plate solutions. Formal rms uncertainties of the astrometric fit were
0
2 with maximal residuals of
0
5
for both coordinates and both IRAC bands. After astrometric
transformations the shifts between the original and transformed images
were
0
4
(or less than 0.3 of the pixel scale), ensuring the almost perfect
pointing accuracy of the Spitzer observations. Combining all
uncertainties, a conservative estimate of 1
referencing uncertainty is
0
5
(or less than 0.4 of the IRAC pixel scale) in both
coordinates for both bands. This is about twice as poor as the
astrometric uncertainties estimated by Zharikov et al. (2008) for the deepest available Chandra/ACIS-I X-ray (
0
27) and VLT/FORS2 (
0
15)
optical images of G292.0+1.8. Nevertheless, this is sufficient to
identify positionally the objects in the mid-IR, optical, and X-rays on
a subarcsecond accuracy level.
The region containing the pulsar is shown in Fig. 1, where we compare
the IRAC mid-IR images with the X-ray and optical images obtained with Chandra/ACIS-I
and VLT/FORS2 (Zharikov et al. 2008).
In both IRAC bands at the pulsar position, marked by a cross,
we detect a faint extended source. The FWHM of the IR point spread function
varies from 2
1 to 2
5, and the extended structure
of the source, which subtends up to
10
5, is clearly resolved.
In the 8
m
image, which is less contaminated by background stars, the object has
an elliptical shape, as can also be seen from its contours overlaid on
the X-ray and optical images
.
The coordinates of the source center, derived from the source surface brightness fit in 8
m band by elliptical isophotes, are RA
11:24:39.129 and Dec
59:16:19.51.
Accounting for the astrometric uncertainties, this is in good agreement
with the X-ray position of the pulsar, RA
11:24:39.183 and Dec
59:16:19.41, and with the central position of the optical pulsar/PWN counterpart candidate, RA
11:24:39.216 and Dec
59:16:19.60 (Zharikov et al. 2008).
The source ellipticity and position angle are compatible with the
structure of the brightest inner part of the X-ray PWN, which has been
interpreted as a Crab-like PWN torus seen almost edge-on (Hughes et al. 2003).
The position and morphology of the detected mid-IR source allow us
to consider whether it is a true counterpart to the pulsar+PWN system.
A faint jet-like structure extended south of the torus and a bright SNR filament visible N-E of the PWN in X-rays are not
detected in the mid-IR. In the frames presented in Fig. 1,
we note only one additional cross-identification, an object o1,
showing a point-like spatial profile in X-rays but a non-stellar
structure in the IR. This may be a background galaxy.
Star-subtracted optical and mid-IR images (bottom row panels of
Fig. 1) show that at the pulsar position we see the same
extended elliptical object in both ranges. This confirms the reality of its
optical detection in the region that is extremely crowded by background objects (Zharikov et al. 2008).
Most nearby stars contaminating the
source flux in the optical becomes fainter in the IR, while the
brightness of the source itself does not decrease, enabling its
detection in the mid-IR at a higher significance level. As in the
optical, its surface brightness distribution reaches a peak at the pulsar
position. We cannot resolve any point-like object there, but the peak
is probably associated with the contribution from the pulsar. Some blurring is caused by
a lower mid-IR spatial resolution compared to the optical one. However, the object sizes along its major axis
corresponding to 90% of the enclosed flux are significantly larger in the IR,
10
5,
than in the optical,
3
.
This suggests that the source becomes brighter with wavelength (see
below Sects. 3.2 and 3.3), revealing its fainter outer
regions. At 8
m,
it becomes comparable in size and shape to the torus part of the PWN seen in X-rays.
Our counterpart candidate is not detected in the MIPS bands, where
the emission from filaments and the outer shell of the SNR strongly dominates over other sources
in contrast to the shorter wavelength IRAC bands.
Some faint structure may be present at the pulsar position,
particularly in the 24 m image. However, the poorer spatial
resolution of MIPS does not allow us to determine, whether it is related
to the candidate or to a faint peninsula-like part of a bright nearby filament of the remnant.
3.2 Photometry
Elliptical aperture photometry of the detected source was performed on the star-subtracted IRAC images using IRAF polyphot tasks in accordance with prescriptions and zeropoints given in the IRAC Observers Manual![[*]](/icons/foot_motif.png)




The 3
upper limits to the source magnitudes in the MIPS bands were estimated
using the standard deviations and inherent flux variations in the possible faint part of the remnant filament
within the same elliptical apertures as in the IRAC bands. Both ways provided similar values.
For 70
m, we used a post-BCD filtered calibrated mosaic image generated by us
with the MOPEX tool.
The magnitudes were converted into fluxes in physical units and
the results are summarized in Table 1. Our 70
m limit is slightly above the 5
flux confusion limit of 1500
J estimated for this MIPS band by Frayer et al. (2006).
Table 1: Observed magnitudes and fluxes for the presumed infrared/optical pulsar/PWN counterpart of J1124-5916, and de-reddened fluxes for the AV range of 1.86-2.10.
3.3 Multiwavelength spectrum
Using the mid-IR, optical, and X-ray data, we compiled a tentative multiwavelength spectrum of the pulsar/PWN system. We dereddened the observed optical/IR fluxes using a most plausible interstellar extinction range

To compare the fluxes in different ranges from the same physical region,
we extracted the pulsar/PWN X-ray spectrum from the archival Chandra/ACIS-I data using the same elliptical aperture, as for the mid-IR photometry of the detected source,
with the semimajor axis of 5
2,
ellipticity
0.5, and the PA
70
.
An absorbed power law spectral model provided a statistically acceptable fit
with a photon spectral index
,
absorbing column density
cm-2, and
normalization constant
photons cm-2 s-1 keV-1.
The fit had
per degree of freedom (d.o.f.) and the unabsorbed integral flux
was
erg cm-2 s-1 in 0.3-10 keV range.
The resulting
and NH are compatible with those of
Zharikov et al. (2008), while the normalization constant and integral flux are about twice as high. This is
because of a larger extraction aperture than in their work, where the aperture was chosen to fit the smaller
source extent in the optical range. The optical fluxes are unchanged by the aperture increase
since the likely counterpart is more compact in the optical than in the IR.
![]() |

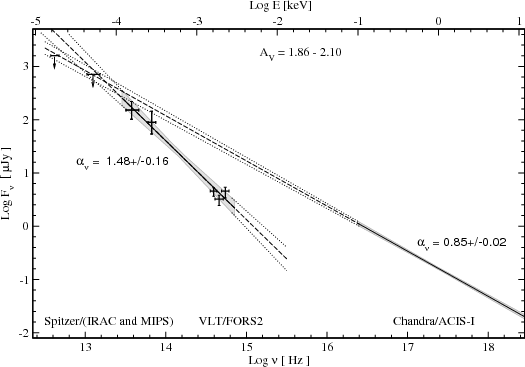

Figure 2:
Tentative unabsorbed multiwavelength spectrum for the inner part of the
torus region of the G292.0+1.8 pulsar/PWN system compiled from the data
obtained with different instruments, as indicated in the plot.
Errorbars of the dereddened optical and mid-IR fluxes include the AV uncertainty range shown at the top. The VLT and IRAC data are fitted by a single powerlaw, whose spectral index
|
Open with DEXTER |
The resulting unabsorbed spectrum is presented in Fig. 2.
The counterpart candidate spectral energy distribution (SED) in
the IR-optical range shows a steep flux increase towards the mid-IR.
The fluxes in this range can be fitted by a single power-law with a
spectral index
(
per
d.o.f.), implying a nonthermal nature of the emission. This is expected
for PWNe, where synchrotron radiation from relativistic particles
accelerated at the pulsar wind termination shock is considered as the
main radiative process responsible for the continuum emission of the
nebulae. Accounting for possible contamination of the V flux by O III emission from the SNR (Zharikov et al. 2008),
we excluded this band from the fit. This leads to only a marginal
improvement of the fit with insignificant steepening of the spectral
slope within the uncertainties shown in the plot. The observed SED
cannot be produced by overlapping field stars of the same brightness.
Our test measurements of nearby faint stars show that in the latter
case the spectral slope would be a positive, flat, or curved.
As seen from Fig. 2,
the optical and mid-IR fluxes of the suggested counterpart
are below the low frequency extrapolation of the pulsar/PWN spectrum in
X-rays. This implies a double-knee spectral break between the optical
and X-rays. At the same time, the flux upper limits in the
MIPS bands are below the low frequency extrapolation of the
IRAC-optical SED, suggesting a second break near 20 m after which the spectrum become flatter
or goes down with the frequency decrease. These changes in the spectral index and breaks
are similar to those observed for PWNe around young pulsars in SNRs 3C 58 and B0540-69.3 (Williams et al. 2008; Slane et al. 2008; Shibanov et al. 2008; Serafimovich et al. 2004).
Together with the source morphology, this is a strong evidence that the
detected source is the true mid-IR and optical counterpart of the
pulsar/PWN system in the G292.0+1.8 supernova remnant.
4 Discussion
These broad-band Spitzer observations have allowed us to confirm the pulsar/PWN counterpart nature of a faint optical nebulosity detected early at the PSR J1124-5916 position with the VLT (Zharikov et al. 2008). Its similar source morphology in the mid-IR, optical, and X-rays, as well as its spectral properties make any alternative interpretation discussed in Zharikov et al. (2008) (SNR filament, faint background spiral galaxy) very unlikely. The mid-IR data have enabled us to establish the long wavelength SED of the nebula, which was very uncertain based only on the optical data, and conclude that the multiwavelength spectrum of the J1124-5916 pulsar/PWN system from the mid-IR to X-rays is similar to the spectra of pulsar/PWN systems in the SNRs B0540-69.3 and 3C 58. Forthcoming high spatial resolution near-IR observations of the pulsar field will allow us to decrease the rather large uncertainties of the IR-optical spectral slope and possible distinguish the pulsar from the PWN.
Our results increase the number of PWNe identified in the mid-IR from three to four, and show that these objects can be significantly brighter in the IR than in the optical, making the IR range promising for the study of the PWNe. The presence of the double-knee breaks in the spectra between the optical and X-rays in the three of four torus-like PWNe makes this feature regular and notable. This is distinct from the Crab-PWN and has to be taken into account in the modeling of the PWNe when understanding their structure and emission nature.
AcknowledgementsWe are grateful to anonymous referee for useful comments improving the paper. The work was partially supported by RFBR (grants 08-02-00837a, 09-02-12080), NSh-2600.2008.2, CONACYT 48493 and PAPIIT IN101506 projects, and by the German DFG project number Ts 17/2-1. DAZ was supported by St Petersburg Goverment grant for young scientists (2.3/04-05/008).
References
- Camilo, F., Manchester, R. N., Gaensler, B. M., et al. 2002, ApJ, 567, L71 [NASA ADS] [CrossRef]
- Cardelli, J. A., Clayton, G. C., & Mathis, J. S. 1989, ApJ, 345, 245 [NASA ADS] [CrossRef]
- Chevalier, R. 2005, ApJ, 619, 839 [NASA ADS] [CrossRef]
- Flaherty, K. M., Pipher, J. L., Megeath, S. T., et al. 2007, ApJ, 663, 1069 [NASA ADS] [CrossRef]
- Frayer, D. T., Huynh, M. T., & Chary, R. 2006, ApJ, 647, L9 [NASA ADS] [CrossRef]
- Hughes, J. P., Slane, P. O., Burrows, D. N., et al. 2001, ApJ, L153
- Hughes, J. P., Slane, P. O., Park, S., et al. 2003, ApJ, 591, L139 [NASA ADS] [CrossRef]
- Indebetouw, R., Mathis, J. J., Babler, B. L., et al. 2005, ApJ, 619, 931 [NASA ADS] [CrossRef]
- Park, S., Hughes, J. P., Slane, P. O., et al. 2007, ApJ, 670, L121 [NASA ADS] [CrossRef]
- Safi-Harb, S., & Gonzalez, M. E. 2002, in X-rays at Sharp Focus: Chandra Science, Symp. ASP Conf. Ser., 262, ed. E. Schlegel, & S. D. Vrtilek
- Sandberg, A., & Sollerman, J. 2009, A&A, 504, 525 [EDP Sciences] [CrossRef]
- Serafimovich, N., Shibanov, Yu. A., Lundqvist, P., et al. 2004, A&A, 425, 1041 [NASA ADS] [EDP Sciences] [CrossRef]
- Shibanov, Yu. A., Koptsevich, A. B., Sollerman, J., et al. 2003, A&A, 406, 645 [NASA ADS] [EDP Sciences] [CrossRef]
- Shibanov, Y. A., Zharikov, S. V., Komarova, V. N., et al. 2006, A&A, 448, 313 [NASA ADS] [EDP Sciences] [CrossRef]
- Shibanov, Yu. A., Lundqvist, N., Lundqvist, P., et al. 2008, A&A, 486, 273 [NASA ADS] [EDP Sciences] [CrossRef]
- Slane, P., Helfand, D. J., Reynolds, S. P., et al. 2008, ApJ, 676, L33 [NASA ADS] [CrossRef]
- Sollerman, J. 2003, A&A, 46, 639 [NASA ADS] [CrossRef]
- Temim, T., Gehrz, R. D., Woodward, C. E., et al. 2006, AJ, 132, 1610 [NASA ADS] [CrossRef]
- Temim, T., Gehrz, R. D., Woodward, C. E., et al. 2009, AJ, 137, 5155 [NASA ADS] [CrossRef]
- Williams, B. J., Borkowski, K. J., Reynolds, S. P., et al. 2008, ApJ, 687, 1054 [NASA ADS] [CrossRef]
- Zharikov, S., Shibanov, Yu., Zyuzin, D. A., et al. 2008, A&A, 479, 793 [NASA ADS] [EDP Sciences] [CrossRef]
Footnotes
- ... (MIPS)
- See http://ssc.spitzer.caltech.edu
- ... data
- PROGID 40583, PI Ghavamian.
- ... MOPEX
- http://ssc.spitzer.caltech.edu/postbcd/mopex.html
- ... images
- In both images, the contours are identical, but the internal IR contour seen in the optical falls inside the X-ray PWN and is not visible on chosen scale levels in the X-ray image.
- ... Manual
- See, e.g., http://ssc.spitzer.caltech.edu/archanaly/quickphot.html
- ... data
- Obs 6677-6680, 8221, 8447, 530 ks exposure, PI S. Park
All Tables
Table 1: Observed magnitudes and fluxes for the presumed infrared/optical pulsar/PWN counterpart of J1124-5916, and de-reddened fluxes for the AV range of 1.86-2.10.
All Figures
![]() |
Figure 1:
Top row: central |
Open with DEXTER | |
In the text |
![]() |
Figure 2:
Tentative unabsorbed multiwavelength spectrum for the inner part of the
torus region of the G292.0+1.8 pulsar/PWN system compiled from the data
obtained with different instruments, as indicated in the plot.
Errorbars of the dereddened optical and mid-IR fluxes include the AV uncertainty range shown at the top. The VLT and IRAC data are fitted by a single powerlaw, whose spectral index
|
Open with DEXTER | |
In the text |
Copyright ESO 2009
Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
