Temporal variations of the CaXIX spectra in solar flares
R. Falewicz1 - P. Rudawy1 - M. Siarkowski2
1 - Astronomical Institute of Wrocaw
University, 51-622 Wroc
aw,
ul. Kopernika 11, Poland
2 - Space Research Centre, Polish Academy of Sciences, 51-622 Wrocaw, ul. Kopernika 11, Poland
Received 29 June 2009 / Accepted 18 September 2009
Abstract
Aims. The standard model of solar flares comprises a
bulk expansion and a rise of abruptly heated plasma (chromospheric
evaporation). Emission from plasma ascending along loops rooted in the
visible solar disk often should be dominated, at least temporally, by a
blue-shifted emission. However, there is only a very limited number of
published observations of solar flares having spectra in which the
blue-shifted component dominates the stationary one. In this work we
compare observed X-ray spectra of three solar flares recorded during
their impulsive phases and relevant synthetic spectra calculated using
one-dimensional hydro-dynamic numerical model of these flares. The main
aim of the work is to explain why many flares do not show blue-shifted
spectra.
Methods. We synthetised time series of Bragg Crystal
Spectrometer (BCS) spectra of three solar flares at various moments of
their evolution from the beginning of the impulsive phases to beyond
maxima of the X-ray emission using a 1D numerical model of the solar
flares and standard software to calculate BCS synthetic spectra of the
flaring plasma. The models of the flares were calculated using observed
energy distributions of the non-thermal electron beams injected into
the loops, initial values of the main physical parameters of the plasma
confined in the loops and geometrical properties of the loops estimated
using available observational data. The synthesized BCS spectra of the
flares were compared with the relevant observed BCS spectra.
Results. Taking into account the geometrical
dependences of the line-of-sight velocities of the plasma moving along
the flaring loop inclined toward the solar surface as well as a
distribution of the investigated flares over the solar disk, we
conclude that the stationary component of the spectrum should be
observed for almost all flares during their early phases of evolution.
On the contrary, the blue-shifted component of the spectrum could not
be detected in flares having plasma rising along the flaring loop even
with high velocity due to the geometric dependences only. Our
simulations based on realistic heating rates of plasma by non-thermal
electrons indicate that the upper chromosphere is heated by non-thermal
electrons a few seconds before the beginning of noticeable
high-velocity bulk motion, and before this time plasma emits the
stationary component of the spectrum only. After the start of the
upward flow, the blue-shifted component temporally dominates the
synthetic spectra of the investigated flares in their early phases.
Key words: Sun: chromosphere - Sun: corona - Sun: flares - Sun: magnetic fields - Sun: X-rays, gamma rays
1 Introduction
Solar flares are powered mainly by high-energy non-thermal electrons accelerated in the solar corona which stream along magnetic field lines toward the chromosphere, and even the photosphere, and deposit there its energy, mostly in Coulomb collisions. However, a small fraction of the energy carried by non-thermal electrons is converted into hard X-rays (HXR) by bremsstrahlung processes (Brown 1973). Rapid deposition of energy by the electron beams cause the energy not to be radiated away sufficiently fast, therefore a strong pressure imbalanced develops, and heated plasma expands into the corona in a process known as chromospheric evaporation (Antonucci et al. 1999,1984; Fisher 1985).The heated and evaporated plasma radiates over a wide spectral range from hard X-rays or gamma rays to radio emission, but most of the energy is emitted in soft X-rays (SXR) (Lin & Hudson 1971; Petrosian 1973). Hard and soft X-ray fluxes emitted by solar flares are generally relate, in a way first described by Neupert (1968), who found that the time derivative of the soft X-ray flux approximately matches the microwave flux during the flare impulsive burst. A similar effect was also observed for hard X-ray emission (Dennis & Zarro 1993). Since hard X-ray and microwave emissions is produced by non-thermal electrons and soft X-rays are generated by thermal emission from hot plasma, the Neupert effect suggests that non-thermal electrons are the primary source of plasma heating.
Detailed studies (Veronig et al. 2002; Dennis & Zarro 1993) show deviations from the Neupert effect, indicating that the processes involved are much more complicated. There is clear evidence of an SXR rise before the impulsive HXR emission in some flares (often referred to as preheating), a persistence of the increase and a slower than expected decrease of the SXR flux is frequently observed after the end of the HXR emission. Statistical studies (e.g., Veronig et al. 2002; Lee et al. 1995) indicate that additional heating processes are necessary.
While the mechanisms and processes involved in an abrupt heating of the flaring plasma are still not fully understood, a potentially fruitful way to study solar flare physics is through a comparison of the observational imaging and spectral data with the results of the numerical modeling of the relevant processes.
![]() |

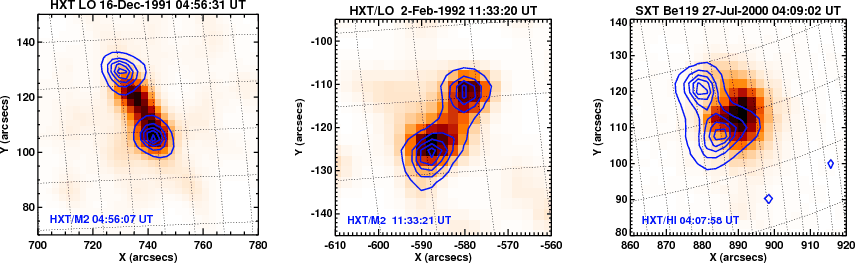

Figure 1: Images of three analysed flares taken by the Yohkoh satellite with SXT or HXT/LO (gray scale images) and HXT (iso-contours) telescopes. |
Open with DEXTER |
Table 1: Physical parameters of the analysed flares.
Spectra of hot and rapidly rising plasma emission are temporally dominated by a blue-shifted component (i.e. blue-shifted emission of the plasma dominates or is comparable to the stationary one). It seems that the strongly blue-shifted emission should be routinely detected during flares, at least during large ones. Most of the papers describing Bragg Crystal Spectrometer (BCS) analysis results indicate that the BCS spectra are dominated by the emission of the stationary component. There is only a very limited number of described observations of solar flares having spectra in which the blue-shifted component dominates the stationary one (e.g., Gan & Li 2002 and references therein; Culhane et al. 1994). Gan & Watanabe (1997) performed a statistical study of flares having a single loop structure or a single loop dominating the SXT images. They found that although the blue asymmetry is very common during the impulsive phase, the number of events with large blue-shifts is very small. They also found that for most flares the blue-shift emission appears during early impulsive phases and is temporally correlated with the line broadening. There also exist interesting observations of a blue-shifted emission detected during the gradual phases of flares, although this is out of the scope of this work (Czaykowska et al. 1999).
Most of the published observations of solar events do not indicate the presence of a large blue-shifted component of the spectrum. However, most 1D hydrodynamic (HD) numerical models of chromospheric evaporation in a single loop show the presence of very high up-flow velocities, up to several hundred kilometers per second (Mariska & Zarro 1991; Mariska 1994; Mariska et al. 1993; Emslie et al. 1992). This discrepancy between observations and models could be explained by insufficient sensitivity of the instruments (Doschek & Warren 2005; Antonucci et al. 1987), but most of the theoretical works present models of solar flares having low up-flow velocities. The most advanced model of this kind is a multi-thread model of a flare proposed by Hori et al. (1998) and developed by Doschek and Warren, consistent with the observed BCS spectra (Doschek & Warren 2005; Warren & Doschek 2005). In this paper, we present another explanation for the lack of the blue-shifted spectra. For three solar flares, we show that one can explain the observed spectra using simple 1D single-loop HD models and taking into account geometrical effects of the viewing angles to the loops.
We describe the observed flares (Sect. 2), the model calculation (Sect. 3), the obtained results (Sect. 4) and provide the discussion and conclusions in Sect. 5.
2 Observational data
We selected three solar flares observed by the Yohkoh satellite on the disk, having a clearly recognizable single-loop geometric structure and maximum hard X-ray flux of not less than 10 ctns/s per subcollimator in the M 2 channel (33-53 keV) of the HXT instrument (Kosugi et al. 1991). Two analysed flares: the C 2.7 GOES class flare observed on 1992 February 2 and the M 2.4 flare on 2000 July 27 were not mentioned previously in the literature; the third one, an M 2.7 class flare on 1991 December 16, was investigated previously by Culhane et al. (1994). All the flares were observed with the HXT telescope during their impulsive phases but only one of them (2000 July 27) was also observed with the Yohkoh SXT grazing-incidence telescope (Tsuneta et al. 1991). HXT images of the flares were reconstructed using the standard Pixon method (Metcalf et al. 1996) with variable accumulation times and an assumed threshold count rate of 200 counts in the M 2 band (33-53 keV). The emission of the flares was routinely recorded with the GOES X-ray photometers (1-8 Å and 0.5-4 Å bands). The images of the investigated flares are shown in Fig. 1, and their main characteristics are given in Table 1.
Geometric parameters of the loops i.e. their length
(L0), cross-section (S)
and inclination were evaluated under the
assumption that the observational error of the position of the
observed structure is of the order of one pixel (i.e.
2.45 arcsec).
In the course of the calculations, both semi-lengths and cross-sections
of the loops were refined (in a range of the error only) in order to
obtain the best conformity between theoretical and observed GOES
and
BCS light curves (Table 1
presents the final values of S and L0
used
in the calculations). The errors of inclination of the loops depend on
the flare localization on the Sun but for all investigated events is
less than 5 deg.
The observed X-ray spectra of the flares were recorded with the BCS instrument on board the Yohkoh satellite (Culhane et al. 1991). The BCS is a full-Sun crystal spectrometer, which measured spectra in the vicinity of strong resonance lines of H-like FeXXVI and He-like FeXXV, CaXIX, and SXV ions using curved crystals. The spectra were recorded in one-dimensional position-sensitive proportional counters, with a time resolution of <1 s. In this paper, we used spectra measured around the CaXIX resonance line. The BCS does not have an absolute wavelength calibration because the location of spectra on the detector depends on the location of the flares on the Sun. To take this pointing offset into account, we determined the rest wavelengths of the spectra using spectra recorded late in the flare when the expected velocities are small.
2.1 M 2.7 flare on 1991 December 16
The M 2.7 GOES incremental class (i.e.,
background
subtraction) solar flare occurred at 04:54 UT on 1991 December
16 in
the active region NOAA 6961 on N04W45. The flare appeared as a single
loop of moderate semi-length of about 15 400 km in
SXR (see Fig. 1).
The impulsive HXR emission of the flare above 23 keV
was recorded
between 04:55:50 UT and 04:56:28 UT. We estimated the
cross-section
of the loop as equal to
using
the reconstructed HXR images.
The BCS observations of this flare were described in detail by Culhane et al. (1994). We used spectra measured around the CaXIX resonance line. The spectra were recorded in a 6 s cadence from 04:56:06 UT except for the first spectrum recorded at 04:55:42 UT with a 24 s integration time. A blue-shifted, highly asymmetric component dominated between 04:56:06 and 04:56:48 UT. High asymmetry suggests a wide spectrum of up-flow velocities.
A numerical model of the flare was calculated using parameters
of
the photon spectra
and scaling factors a0
calculated
as a function of time on the basis of hard X-ray fluxes observed in
M 1 and M 2 channels of the HXT instrument.
2.2 C 2.7 flare on 1992 February 02
The C 2.7 GOES incremental class flare on
1992 February 02
was observed between 11:33 UT and 11:38 UT in an
active region NOAA 7042 on S11E41 with Yohkoh/HXT
and GOES only (see
Fig. 1).
The impulsive HXR emission above 23 keV was recorded
between 11:33:18 UT and 11:33:28 UT only. HXT/LO
images of the flare
show X-ray emission of a single loop of moderate semi-length 9750 km.
The feet of the loop were seen in images taken in HXT
channels M 2 and H only. The estimated area of the loop
cross-section
was
.
The CaXIX spectra were recorded from 11:33:01 UT with a 6 s cadence. The blue-shifted component with a velocity higher than 200 km s-1 became visible 6 s later.
The numerical model of the flare was calculated in the same way as for the previous one.
2.3 M 2.4 flare on 2000 July 27
The M 2.4 GOES incremental class solar
flare on 2000 July 27
was observed between 04:08 UT and 04:13 UT in the
active region NOAA
9090 on N10W72. The flare was visible in SXT as a single loop of
moderate semi-length of about 8690 km (see Fig. 1). The impulsive
hard X-ray emission above 23 keV was recorded between
04:07:54 UT
and 04:08:30 UT. We estimated the cross-section of the loop as
equal to
using the
reconstructed
HXR images.
The spectra were recorded with a 6 s cadence starting from 04:08:11 UT except for the first spectrum recorded at 04:07:47 UT with a 24 s integration time. From the beginning of the impulsive phase, spectra reveal a clear blue-shifted component. The blue-shifted component was highly asymmetric and dominated between 04:56:06 UT and 04:56:48 UT. This suggests a wide spectrum of up-flow velocities.
The numerical model of the flare was calculated in the same way as for the previous events.
3 Method of analysis
The BCS CaXIX synthetic spectra of the investigated events were calculated using results of the 1D numerical HD models of the observed events. The HD models take into account the main factors forming an energy budget and plasma kinetics of the flares: observed energy distributions of the non-thermal electrons and temporal variations of the emitted X-ray fluxes, geometry of the flaring loops estimated using images of the events, estimated main initial physical parameters of the plasma (density, temperature) and processes of gain and loss of energy by the matter.
![]() |

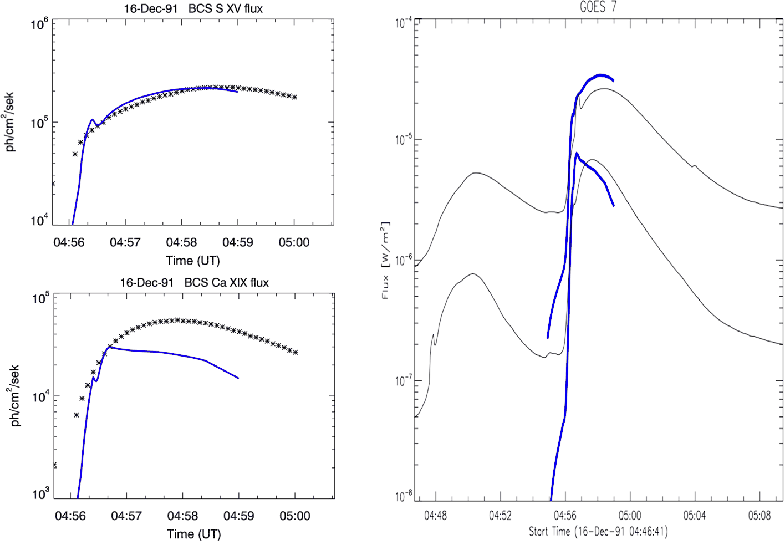

Figure 2: Left: synthesised BCS CaXIX and BCS SXV fluxes (blue lines), and the observed ones (asterisks) of the M 2.7 class solar flare observed on 16 December 1991. Right: synthetic X-ray fluxes in 0.5-4 Å and 1-8 Å bands calculated using a numerical model for the same solar flare observed on 16 December 1991 (blue thick line) and relevant fluxes recorded with the GOES 7 satellite (thin gray lines). |
Open with DEXTER |
In this work, we used the modified Naval Research Laboratory Solar
Flux Tube Model code kindly made available to the solar community by
Mariska and his co-workers (Mariska
et al. 1989,1982). A typical flaring
loop can be modeled for many purposes with a simple 1D hydrodynamic
model (as with the NRL Code), although it is a 3D structure
surrounded by a complex active region. We included a few modifications
to
the original NRL code: new radiative
loss and heating functions; the VAL-C model (Vernazza
et al. 1981) of the initial
structure of the lower part of the loop (extended down using Solar
Standard Model data;
Bahcall & Pinsonneault 2004),
double precision of the calculations and a mesh of new values of
the radiative loss function, calculated using the CHIANTI
(version 5.2) software
(Dere
et al. 1997; Landi et al. 2006) for a
temperature range 104-108 K
and density range .
All changes were tested by comparison of the obtained results with the
results
of original models published by Mariska.
An important problem seen during the modeling of the flares using the original NRL code was an insufficient amount of matter located in the feet of the loops. All our attempts to apply energy flux derived from observational data of medium or large solar flares caused massive evaporation of the whole NRL isothermal ``chromosphere'' and an un-physical ``diving'' of the feet, even if the chromosphere was unrealistically thick. To solve this problem we applied the VAL C model of the solar plasma, extended using Solar Standard Model data. It was done solely in order to obtain enough storage of the matter. Under such an assumption it does not matter much which particular VAL model is used. All other aspects of the NRL model of the chromosphere are unchanged (radiation is suppressed, optically thick emission is not accounted for, and no account is taken of neutrals).
The main geometrical parameters of the flaring loops: the volume (V), loop cross section (S), half-length (L0) and a local inclination of the loop's axis to the line of sight were determined using images taken with SXT and HXT. The loop cross sections were estimated as the areas within a flux level equal to 30% of the maximum flux in the HXT/M 2 channel. Loop half lengths L0 were estimated using distances between the centres of gravity of the HXT/M 2 footpoints, assuming a semi-circular shape for the loop an fixed cross-section.
Temperatures ()
and emission measures (EM) of the plasma were
estimated using GOES 1-8 Å and
0.5-4 Å fluxes and
the filter-ratio method proposed by Thomas et al. (1985) and
updated
by White et al. (2005). Mean electron densities (
)
were
estimated from emission measures (EM) and volumes (
V =
2 L0S).
The heating of the plasma by the Coulomb collisions of the
non-thermal electrons was modeled using the approximation given by
Fisher (1989), necessary parameters of the non-thermal electron
distributions were calculated as a function of time from hard X-ray
fluxes observed in the HXT M 1 and M 2 channels. We
calculated time
variations of the spectral indexes ()
and scaling factors
a0 (photon flux at
1 keV) for the impulsive phases of the
investigated flares assuming power-law hard X-ray photon spectra.
Electron spectra of the form
can be
calculated from power-law photon spectra using the thick target
approximation. A detailed description of this numerical model is
also given by Falewicz
et al. (2009).
All models were calculated for periods lasting from the beginning of the impulsive phase beyond the soft X-ray emissions maximum. The time steps in the models were about 0.0005-0.001 s.
While the chromospheric evaporation is powered by non-thermal
electrons, a proper estimation of the energy flux carried by
electrons is decisive for realistic evaluation of the plasma
velocity field. The total energy carried by the non-thermal
electrons is very sensitive to the assumed low energy cut-off of the
electron spectrum (),
due to the power-law nature of the energy
distribution. A change of the
value by just a few keV can add
or remove a substantial amount of energy to/from the modelled
system, so
must be selected with great care. For the investigated
flares, we estimated
using an iterative method, selecting the
value which gives the best
agreement of the synthesized and observed
X-ray fluxes recorded with GOES X-ray photometers
(i.e.
GOES classes for 1-8 Å band) and Yohkoh/BCS
fluxes. Examples of the achieved conformity of the observed and
synthesized BCS light curves and the observed and synthesized
GOES curves are shown in Fig. 2. For each flare the
selected
value of the
was fixed while the electron spectral index
(
)
and corresponding scaling factor (A) varied in time
in
accordance with the observed variations of the HXR energy
flux. The
values of the
and estimated
,
observed at the maximum of
the HXR emission, are given in Table 1.
As a result of HD numerical modeling, we obtain time
sequences of 1D models of flaring loops. Each model consists
of 1000 cells with
individual ,
EM and velocity v. For each cell we
calculated the corresponding spectrum in the vicinity of the CaXIX
resonance
line using Chianti 5.2 emissivities for continuum and lines;
each
cell's spectrum was Doppler-shifted in wavelength (
)
by
according to the local
line-of-sight velocity component (v). The total
CaXIX spectrum
from the loop at given moment of evolution was calculated as a sum
of those Doppler-shifted cell's spectra. For better comparison with
observations we used the same dispersion i.e., the wavelength bin
width as obtained from BCS data.
![]() |

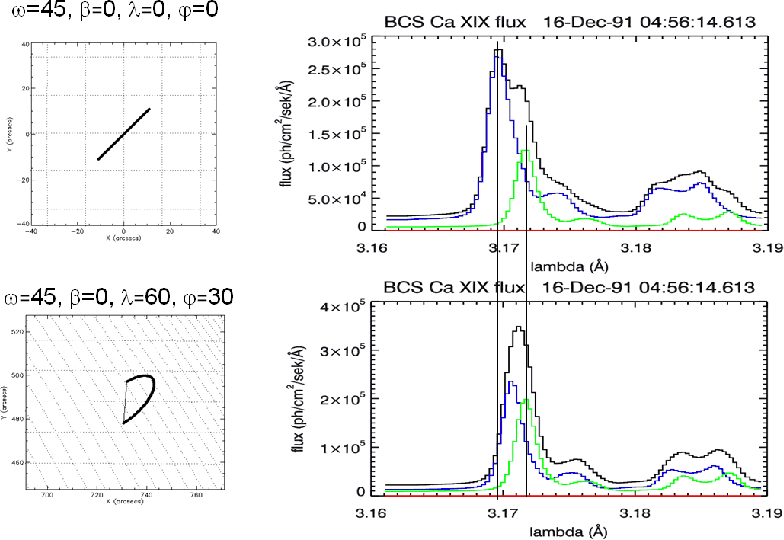

Figure 3: Influence of the position and orientation of the loop on the spectrum obtained and the observed blue-shift for the same physical and geometrical parameters of the loop. Numerically modeled BCS CaXIX spectra are plotted with solid thin lines (black), the blue-shifted components of the modeled spectra are plotted with blue lines, red-shifted components with red lines and the static component with green lines. |
Open with DEXTER |
Velocities projected along the line-of-sight (LOS) for each volume
element (cell) of the loop were calculated in the way similar to the
method described by Li et al.
(1989). The LOS velocities depend on the
geometry of the loop, on their orientation (inclination to the solar
surface ()
and the tilt angle (
)),
and their
heliographical coordinates (
). In Fig. 3 we compared
spectra obtained for the same velocity distribution along the loop
but for two different loop positions on the solar disk. Depending on
the loop location and orientation, the blue-shifted component may be
dominant or only a small feature in the spectrum.
The inclinations of the loops to the solar surface ()
were
calculated under the assumption of a semi-circular shape. Using SXT
or HXT/LO images, we fitted the observed loops with semi-circular
loops having the same length and rooted in the same points, but
inclined to the solar surface (an example is shown in Fig. 4). Using
known longitudes and latitudes of the feet and inclination of the
loop to the solar surface, an actual projection of a velocity vector
along the loop on the line of sight axis was evaluated for all
points of the calculation mesh along the loop.
![]() |
Figure 4: Image of the flare taken by the Yohkoh satellite with SXT or HXT/LO (gray scale images) and HXT (iso-contours) telescopes. The theoretical semi-circular loop anchored in the footpoints and perpendicular to the solar surface (black) should be declined (tilted) 40 degrees from the vertical to cover the observed loop (green). |
Open with DEXTER |
All investigated flares emitted a slightly enhanced BCS emission long before the beginning of the detected hard X-ray emission. In order to generate a similarly enhanced BCS emission in our numerical models of the flares, we started calculations of the temporal evolution of the models tens of seconds before the beginning of the recorded hard X-ray emission (i.e., before the beginning of plasma heating by non-thermal electrons), applying low energy pre-heatings fitted to mimic the observed enhancement of the BCS emission. The values of the flux maxima are reproduced very well but the noticeably large discrepancies during the early rise and especially late decay phases are caused by a lack of additional pre- and post-impulsive heating of the plasma in our model.
The rapid time variations of the energy fluxes carried by non-thermal electrons (of sub-second time scales) cause significant changes of the temperature, density and plasma velocity distributions along the flaring loops and variations of the HXR emission of the solar flares on a sub-second time scale (e.g., Radziszewski et al. 2007). Due to the technical features of the Yohkoh/BCS spectrometer and limited intensities of the X-ray emission of the investigated flares, an effective time resolution of the recorded BCS spectra was of the order of 4-6 s. Thus, each recorded BCS spectrum could be recognized as a sum of numerous spectra emitted consecutively by the flaring loop in the course of the period of the spectrum's accumulation. In order to mimic the process of observed spectra accumulation, the momentary BCS spectra calculated for consecutive time steps of the numerical models of the flares were averaged over the periods equal to the relevant periods of accumulation of the observed BCS spectra. In Fig. 5 we present an example of evolution of the synthetic spectra during accumulation period. These variations are large, both stationary and blue-shifted components can change significantly during the period when BCS collected the spectra. This fact should be kept in mind when interpreting the observed spectra. This is especially important during rising phase of the flares when, because of low statistics, the accumulation times varied from 6 to 9 s.
![]() |

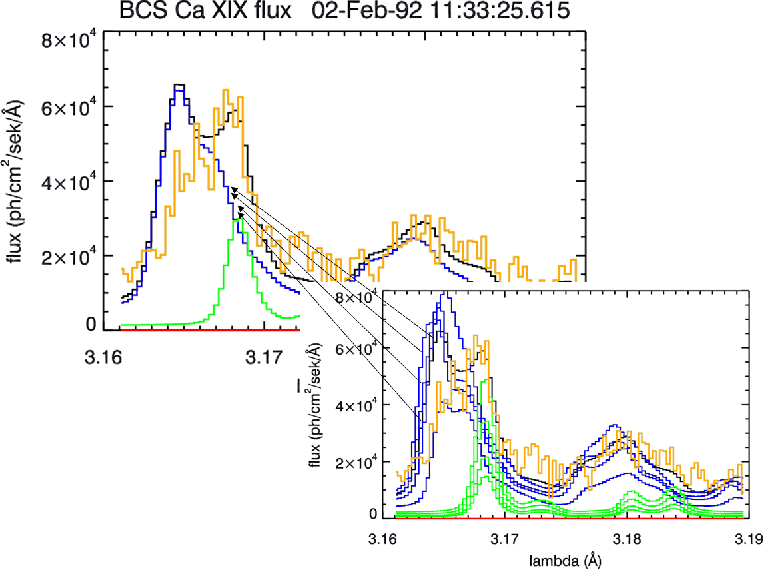

Figure 5: The observed spectrum as the sum of several spectra from the model. More details can be found in the text. |
Open with DEXTER |
4 Results
We defined blue-shifted, static and red-shifted components of the numerically modeled spectrum as emissions of plasma having radial velocities greater than 50 km s-1 (toward the observer), between -50 km s-1 and 50 km s-1, and greater than -50 km s-1 (away from the observer), respectively. The observed BCS CaXIX spectra are plotted using solid thick (yellow) lines, numerically modeled spectra are plotted with solid thin lines (black), the blue-shifted component of the modeled spectra are plotted with blue lines, the red-shifted component with red lines and the static component with green lines (see Fig. 6).
4.1 M 2.7 flare on 1991 December 16
The flare appeared in SXR as a single loop with a semi-length of 15 400 km inclined to the local vertical direction by 40 deg (see Fig. 1, left panel and Fig. 4). BCS observations revealed the strong and highly asymmetric blue-shift component recorded from the beginning of the impulsive phase. The high asymmetry of the spectral lines indicated a wide spectrum of up-flow velocities.
The numerical model of the flare was calculated for the period from 04:54:52 UT to 04:58:52 UT (240 s), which covers the impulsive phase of the flare and spreads beyond the maximum of the recorded GOES satellite emission.
The blue-shifted emission is less than or comparable to the
stationary component only in the first observed spectrum. The time
evolution of the synthetic and observed BCS CaXIX spectra is very
similar. The synthetic spectrum consists of the static component
only up to 04:56:00 UT. The blue-shifted emission appeared at
04:56:00 UT and increased instantly, but up to
04:56:08 UT it is
dominated by the static component. After that, the spectrum was
dominated entirely by broadened blue-shifted emission. The observed
(yellow) and synthetic (black) spectra recorded between
04:56:12 UT
and 04:56:18 UT (6 s accumulation time) as well as
blue-, red- and
stationary (green line) components of the synthetic spectra are
shown in Fig. 6
upper left panel. While the blue-shifted synthetic
component is narrower than the much more dispersed observed one, the
overall agreement between model and observations seems to be
fulfilled. The blue-shifted emission diminished gradually after
04:54:30 UT. Faint red-shifted emission appeared in the
synthetic
spectra between 04:56:24 UT and 04:56:29 UT. In
Fig. 6
(right panel),
we compared the observed and synthetic spectra for the period
between 04:56:30 UT and 04:56:36 UT (with
6 s accumulation time).
Again, the qualitative agreement between theory and observations is
good. The blue-shifted component vanished entirely after
04:56:46 UT
(20-30 s
earlier than observed), and the BCS CaXIX spectrum
became static again.
4.2 C 2.7 flare on 1992 February 2
HXT/LO images of the flare show the X-ray emission arriving from a
single loop with a semi-length 9750 km, inclined to the local
vertical direction by 35 deg (see Fig. 1, central panel).
The numerical model of the flare was calculated for the period
from
11:32:32 UT to 11:35:57 UT (205 s), covering
an impulsive phase
and spreading beyond the maximum of the emission recorded with
GOES. The stationary component was present in both
synthetic and
observe spectra up to 11:33:01 UT only. There is a good
compliance
between modeled and observed spectra although the registered signal
was weak. After 11:33:13 UT the blue-shifted component with a
velocity
km s-1
appeared in the spectra. Initially weak, this
component increased instantly.
After 11:33:19 UT the blue-shifted component
dominated the
stationary one. The velocity of blue-shifted component was about
km s-1.
There is good agreement between model and observe
spectra (see Fig. 6
- left panel, where the color line markings are
the same as in earlier events). The stationary component dominates
from 11:33:31 UT again and the mean velocity of the
blue-shifted
component decreased to v= 190 km s-1.
The time evolution and shapes
of synthetic and observed spectra match well. The blue-shifted
emission in the modeled spectrum diminished gradually after
11:33:36 UT, vanishing entirely at 11:33:43 UT, when
the synthetic BCS
CaXIX spectrum became static again. No red-shifted emission was
present during the whole modeled period of the flare's evolution.
4.3 M 2.4 flare on 2000 July 27
![]() |

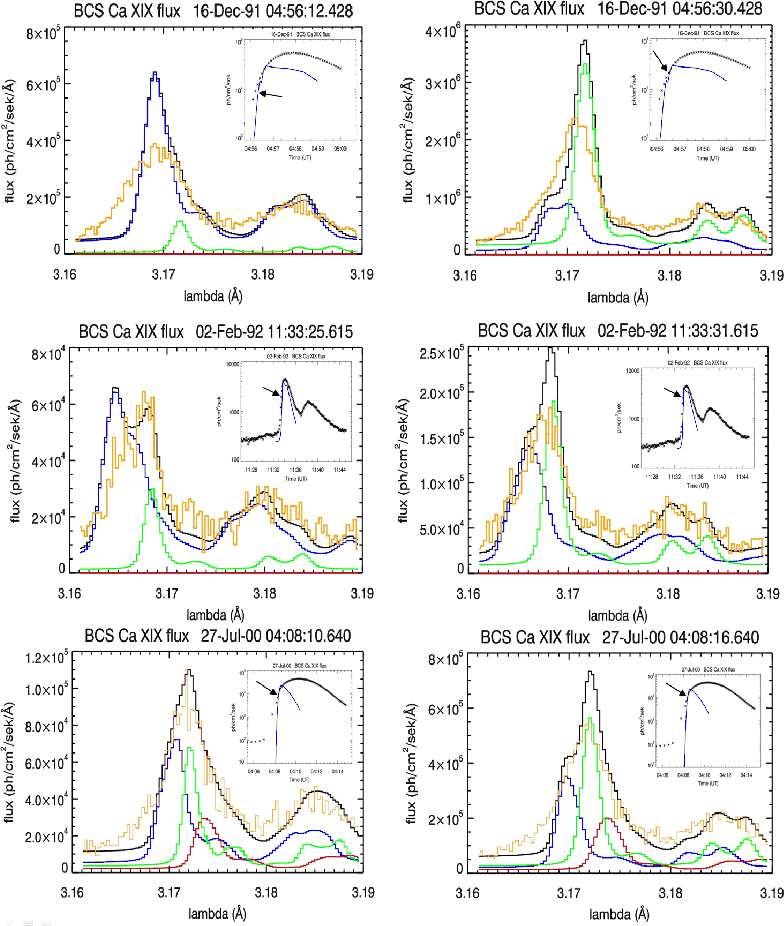

Figure 6: The observed spectrum for the different moments of time for the three analysed events. Observed BCS CaXIX spectra are plotted using solid thick lines (yellow), numerically modeled spectra are plotted with solid thin lines (black), blue-shifted component of the modeled spectra are plotted with blue lines, red-shifted component with red lines and static component with green lines, respectively. |
Open with DEXTER |
The flare was visible in SXT as a single loop perpendicular to the
solar surface (see Fig. 1,
right panel) with semi-length 8
690 km.
The numerical model of the flare was calculated for the period from 04:07:56 UT to 04:10:30 UT, covering an impulsive phase and maximum of the emission recorded with GOES. The observed BCS CaXIX spectra include blue-shifted and stationary components up to 04:07:46 UT. The blue-shifted component with velocity v = 180 km s-1(which is two times weaker than stationary) can be seen in the observed spectra. The model agrees well with the observed spectra although the observed lines are more broadened that the ones in the model. The blue-shifted component with velocity v=290 km s-1dominates in the spectra after 04:08:10 UT. There is a good agreement between modeled and observed spectra. At this time a faint red-shifted emission also was present in the synthetic spectra (Fig. 6 - left panel, the color of the lines are the same as in earlier events). After 04:08:16 UT the stationary component begins to dominate again and the velocity of blue component decreased (v=120 km s-1), until its complete disappearance (see Fig. 6 - right panel). A faint red-shifted emission was still present in the synthetic spectra. After 04:08:43 UT the synthetic BCS CaXIX spectrum become static again.
5 Discussion and conclusions
Numerical modeling of the flares allow us to study distributions of the plasma velocities along the flaring loops. Thus, it is possible to estimate the relative contributions of the emissions of the stationary and moving plasma to the spectra (i.e. their stationary and shifted components).
Most papers describing results of the analysis of the BCS data indicate that the BCS spectra are dominated by the stationary component. Additionally, there is only a very limited number of described observations of solar flares having spectra in which the blue-shifted component dominates the stationary one. The statistical paper by Gan & Watanabe (1997) shows that although moderate blue asymmetry is very common during the impulsive phase, the number of events having spectra with high blue-shift is very small. They also found that for most flares, the blue-shift emission appears during early impulsive phases and is temporally correlated with the line broadening.
Most 1D numerical models of chromospheric evaporation in single loops show a presence of very fast up-flows, up to several hundred kilometers per second. This discrepancy between observations and models could be explained by insufficient sensitivity of the instruments but most of the theoretical works present models of the solar flare having low up-flow velocities. The most advanced model of this kind is a multi-thread model of the flare proposed by Hori et al. (1998) and developed by Doschek & Warren (2005), consistent with the observed BCS spectra. In this paper we present another explanation of the lack of the observed blue-shifted spectra.
We investigated the C 2.7 GOES class flare observed on 1992 February 2, the M 2.4 flare observed on 2000 July 27, and the M 2.7 class flare observed on 1991 December 16. Two of the analyzed flares (C 2.7 and M 2.4) were not described previously in the literature; the third one, M 2.7 was investigated by Culhane et al. (1994). The synthetic BSC spectra of the flares were calculated using real observational parameters of the observed flares (geometry, physical parameters of the plasma, energy spectrum of the non-thermal electrons).
For all investigated events, we obtained good quantitative agreement of the synthetic and observed BCS CaXIX spectra. For the whole impulsive phase of each flare, we obtained overall good agreement of fluxes, shapes and time variations of the observed and synthetic spectra.
Generally, widths of the observed spectral lines were greater than widths of the relevant synthetic spectral lines. The observed blue-shifted component was wider than the synthetic one and highly asymmetric. This suggests a wider dispersion of up-flow velocities in observed events than in our theoretical models. This non-conformability could be caused by disregarded turbulent motions of the plasma in our numerical model and by some differences between calculated and real distributions of the physical parameters of the plasma along the loops (densities, temperatures, and macroscopic velocities). Nevertheless, we obtained good agreement between overall shape, and stationary, red- and blue-shifted components of the relevant calculated and observed spectra.
Despite very high up-flow velocities of the plasma obtained in numerical simulations of the various flares, similarly high radial velocities could be observed mostly for the events located in the central part of the solar disc only, due to a geometrical projection of the velocity vector onto the direction of sight. Assuming a semi-circular loop located perpendicularly to the local solar surface and rooted at the solar longitude of 60 deg, the line-of-sight (LOS) component of the velocity is two times smaller than the real velocity of the plasma along the loop. Similarly about 50% of the emission emitted as blue-shifted from the loop rooted at the disc centre is observed as a stationary component for the loop rooted at the solar longitude of 60 deg. So, taking into account the geometrical dependences of the LOS velocities of the plasma moving along the loops inclined toward the solar surface as well as the distribution of the flare sites over the solar disc, we can conclude that stationary component can be observed for all flares during their early phases of evolution (i.e., in almost all flares some plasma exists which does not move along the LOS). On the other side, the blue-shifted component of the spectrum could not be detected, even for plasma rising along the flaring loop with very high velocity. Additionally, our simulations based on realistic heating rates by non-thermal electrons indicate that the upper chromosphere plasma is heated by non-thermal electrons a few seconds before the beginning of noticeable high-velocity bulk motion, and until this time it emits a stationary (not red- or blue-shifted) spectrum only.
Very similar investigations of the impact of the various viewing angles on the resulting spectral signature of the flare were made by Li et al. (1989). They used theoretical models of flaring loops with arbitrarily selected plasma parameters and temporal variations of the local heating. For most cases they obtained a strong blue-shifted component of the spectrum. Our models are based on observational data; duration of the heating and delivered energy flux were evaluated from Yohkoh/HXT data. In our models, the absolute velocities of the plasma up-flow were of the order of 450-500 km s-1, but taking into account the geometrical effect of the angle of view on the loops, they were reduced to a moderate 200-250 km s-1.
Taking into account the geometrical dependences of the line-of-sight velocities of the plasma moving along the flaring loop inclined toward the solar surface as well as the distribution of the investigated flares over the solar disk, we conclude that the stationary component of the spectrum should be observed for almost all flares during their early phases of evolution. The blue-shifted component of the spectrum could not be detected in flares having plasma rising along the flaring loop even with high velocity due to the geometrical dependences only. Our simulationsbased on realistic heating rates of plasma by non-thermal electrons indicate that the upper chromosphere is heated by non-thermal electrons a few seconds before the beginning of noticeable high-velocity bulk motion, and before this time, plasma emits a stationary component of the spectrum only. After the start of the up-flow motion, the blue-shifted component temporally dominates the synthetic spectra of the investigated flares in their early phases.
AcknowledgementsThe authors would like to thank the Yohkoh team for excellent solar data and software. They are also grateful to the anonymous referee for useful comments and suggestions. This work was supported by the Polish Ministry of Science and Higher Education, grant number N203 022 31/2991.
References
- Antonucci, E., Gabriel, A. H., & Dennis, B. R. 1984, ApJ, 287, 917 [NASA ADS] [CrossRef]
- Antonucci, E., Dodero, M. A., Peres, G., Serio, S., & Rosner, R. 1987, ApJ, 322, 522 [NASA ADS] [CrossRef]
- Antonucci, E., Alexander, D., Culhane, J. L., et al. 1999, in The Many Faces of the Sun: a Summary of the Results from NASAs Solar Maximum Mission, ed. K. T. Strong, J. L. R. Saba, B. M. Haisch, & J. T. Schmelz (Springer-Verlag), chapt. 10.
- Bahcall, J. N., & Pinsonneault, H. M. 2004, Phys. Rev. Lett., 92, 12 [CrossRef]
- Brown, J. C. 1973, Sol. Phys., 31, 143 [NASA ADS] [CrossRef]
- Culhane, J. L., Hiei, E., Doschek, G. A., Cruise, A. M., et al. 1991, Sol. Phys. 136, 89
- Culhane, J. L., Phillips, A. T., Inda-Koide, et al. 1994, Sol. Phys., 153, 307 [NASA ADS] [CrossRef]
- Czaykowska, A., de Pontieu, B., Alexander, D., & Rank, G. 1999, ApJ, 521, L75 [NASA ADS] [CrossRef]
- Dennis, B. R., & Zarro, D. M. 1993, Solar Phys., 146, 177 [NASA ADS] [CrossRef]
- Dere, K. P., Landi, E., Mason, H. E., Monsignori-Fossi, B. C., & Young, P. R. 1997, A&AS, 125, 149 [NASA ADS] [EDP Sciences] [CrossRef]
- Doschek, G. A., & Warren, H. P. 2005, ApJ, 629, 1150 [NASA ADS] [CrossRef]
- Emslie, A. G., Li, P., & Mariska, J. T. 1992, ApJ, 399, 714 [NASA ADS] [CrossRef]
- Falewicz, R., Rudawy, P., & Siarkowski, M. 2009, A&A, 500, 901 [NASA ADS] [EDP Sciences] [CrossRef]
- Fisher, G. H. 1989, ApJ, 346, 1019 [NASA ADS] [CrossRef]
- Fisher, G. H., Canfield, R. C., & McClymont, A. N. 1985, ApJ, 289, 425 [NASA ADS] [CrossRef]
- Gan, W. Q., & Li, Y. P. 2002, Solar Phys., 205, 117 [NASA ADS] [CrossRef]
- Gan, W. Q., & Watanabe, T. 1997, Adv. Space Res., 20/12, 2319
- Hori, K., Yokoyama, T., Kosugi, T., & Shibata, K. 1998, ApJ, 500, 492 [NASA ADS] [CrossRef]
- Kosugi, T., Masuda, S., Makishima, K., et al. 1991, Solar Phys., 136, 17 [NASA ADS] [CrossRef]
- Landi, E., Del Zanna, G.,Young, P. R., et al. 2006, ApJS, 162, 261 [NASA ADS] [CrossRef]
- Lee, T. T., Petrosian, V., & McTiernan, J. M. 1995, ApJ, 448, 915 [NASA ADS] [CrossRef]
- Li, P., Emslie, A. G., & Mariska, J. T. 1989, ApJ, 341, 1075 [NASA ADS] [CrossRef]
- Lin, R. P., & Hudson, H. S. 1971, Sol. Phys., 17, 412 [NASA ADS] [CrossRef]
- Mariska, J. T. 1994, ApJ, 434, 756 [NASA ADS] [CrossRef]
- Mariska, J. T., & Zarro, D. M. 1991, ApJ, 381, 572 [NASA ADS] [CrossRef]
- Mariska, J. T., Boris, J. P., Oran, E. S., Young, T. R., Jr., & Doschek, G. A. 1982, ApJ, 255, 738 [NASA ADS] [CrossRef]
- Mariska, J. T., Emslie, A. G., & Li, P. 1989, ApJ, 341, 1067 [NASA ADS] [CrossRef]
- Mariska, J. T., Doschek, G. A., & Bentley, R. D. 1993, ApJ, 419, 418 [NASA ADS] [CrossRef]
- Metcalf, T. R., Hudson, H. S., Kosugi, T., Puetter, R. C., & Pina, R. K. 1996, ApJ, 466, 585 [NASA ADS] [CrossRef]
- Neupert, W. M. 1986, ApJ, 153, L59 [NASA ADS] [CrossRef]
- Petrosian, V. 1973, ApJ, 186, 291 [NASA ADS] [CrossRef]
- Radziszewski, K., Rudawy, P., & Phillips, K. J. H. 2007, 461, 303
- Tsuneta, S., Acton, L., Bruner, M., et al. 1991, Solar Phys., 136, 37 [NASA ADS] [CrossRef]
- Vernazza, J., Avrett, E., & Loeser, R. 1981, ApJS, 45, 635 [NASA ADS] [CrossRef]
- Veronig, A. M., Vrsnak, B., Dennis, B. R., et al. 2002, A&A, 392, 699 [NASA ADS] [EDP Sciences] [CrossRef]
- Warren, H. P., & Doschek, G. A. 2005, ApJ, 618, L157 [NASA ADS] [CrossRef]
All Tables
Table 1: Physical parameters of the analysed flares.
All Figures
![]() |
Figure 1: Images of three analysed flares taken by the Yohkoh satellite with SXT or HXT/LO (gray scale images) and HXT (iso-contours) telescopes. |
Open with DEXTER | |
In the text |
![]() |
Figure 2: Left: synthesised BCS CaXIX and BCS SXV fluxes (blue lines), and the observed ones (asterisks) of the M 2.7 class solar flare observed on 16 December 1991. Right: synthetic X-ray fluxes in 0.5-4 Å and 1-8 Å bands calculated using a numerical model for the same solar flare observed on 16 December 1991 (blue thick line) and relevant fluxes recorded with the GOES 7 satellite (thin gray lines). |
Open with DEXTER | |
In the text |
![]() |
Figure 3: Influence of the position and orientation of the loop on the spectrum obtained and the observed blue-shift for the same physical and geometrical parameters of the loop. Numerically modeled BCS CaXIX spectra are plotted with solid thin lines (black), the blue-shifted components of the modeled spectra are plotted with blue lines, red-shifted components with red lines and the static component with green lines. |
Open with DEXTER | |
In the text |
![]() |
Figure 4: Image of the flare taken by the Yohkoh satellite with SXT or HXT/LO (gray scale images) and HXT (iso-contours) telescopes. The theoretical semi-circular loop anchored in the footpoints and perpendicular to the solar surface (black) should be declined (tilted) 40 degrees from the vertical to cover the observed loop (green). |
Open with DEXTER | |
In the text |
![]() |
Figure 5: The observed spectrum as the sum of several spectra from the model. More details can be found in the text. |
Open with DEXTER | |
In the text |
![]() |
Figure 6: The observed spectrum for the different moments of time for the three analysed events. Observed BCS CaXIX spectra are plotted using solid thick lines (yellow), numerically modeled spectra are plotted with solid thin lines (black), blue-shifted component of the modeled spectra are plotted with blue lines, red-shifted component with red lines and static component with green lines, respectively. |
Open with DEXTER | |
In the text |
Copyright ESO 2009
Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
