A&A 507, 14091423 (2009)
The evolution of the stellar mass function in star clusters^{}
J. M. D. Kruijssen^{1,2}
1  Astronomical Institute, Utrecht University,
PO Box 80000, 3508TA Utrecht, The Netherlands
2
Leiden Observatory, Leiden University,
PO Box 9513, 2300RA Leiden, The Netherlands
Received 20 September 2009 / Accepted 23 October 2009
Abstract
Context. The dynamical escape of stars from star clusters
affects the shape of the stellar mass function (MF) in these clusters,
because the escape probability of a star depends on its mass. This is
found in Nbody simulations and has been approximated in
analytical cluster models by fitting the evolution of the MF. Both
approaches are naturally restricted to the set of boundary conditions
for which the simulations were performed.
Aims. The objective of this paper is to provide and to apply a
simple physical model for the evolution of the MF in star clusters for
a large range of the parameter space. It should also offer a new
perspective on the results from Nbody simulations.
Methods. A simple, physically selfcontained model for the
evolution of the stellar MF in star clusters is derived from the basic
principles of twobody encounters and energy considerations. It is
independent of the adopted mass loss rate or initial mass function
(IMF), and contains stellar evolution, stellar remnant retention,
dynamical dissolution in a tidal field, and mass segregation.
Results. The MF evolution in star clusters depends on the
disruption time, remnant retention fraction, initialfinal stellar mass
relation, and IMF. Lowmass stars are preferentially ejected after Myr.
Before that time, masses around 1520% of the maximum stellar mass are
lost due to their rapid twobody relaxation with the massive stars that
still exist at young ages. The degree of lowmass star depletion grows
for increasing disruption times, but can be quenched when the retained
fraction of massive remnants is large. The highly depleted MFs of
certain Galactic globular clusters are explained by the enhanced
lowmass star depletion that occurs for low remnant retention
fractions. Unless the retention fraction is exceptionally large,
dynamical evolution always decreases the masstolight ratio. The
retention of black holes reduces the fraction of the cluster mass in
remnants because white dwarfs and neutron stars have masses that are
efficiently ejected by black holes.
Conclusions. The modeled evolution of the MF is consistent with Nbody simulations when adopting identical boundary conditions. However, it is found that the results from Nbody
simulations only hold for their specific boundary conditions and should
not be generalised to all clusters. It is concluded that the model
provides an efficient method to understand the evolution of the stellar
MF in star clusters under widely varying conditions.
Key words: stellar dynamics  stars: kinematics  Galaxy: globular clusters: general  galaxies: star clusters  Galaxy: open clusters and associations: general  galaxies: stellar content
1 Introduction
The evaporation of star clusters is known to change the shape of the underlying stellar mass function^{} (Chernoff & Weinberg 1990; Takahashi & Portegies Zwart 2000; Baumgardt & Makino 2003; Hénon 1969; Vesperini & Heggie 1997; Portegies Zwart et al. 2001). This phenomenon has been used to explain the observed MFs in globular clusters (De Marchi & Pulone 2007; Richer et al. 1991; De Marchi et al. 2007), which are flatter than typical initial mass functions (IMFs, e.g. Salpeter 1955; Kroupa 2001). In addition, the effect of a changing MF on cluster photometry has been investigated (Anders et al. 2009; Kruijssen & Lamers 2008; Lamers et al. 2006). This has been shown to explain the low masstolight ratios of globular clusters (Kruijssen 2008; Kruijssen & Mieske 2009) and to have a pronounced effect on the inferred globular cluster mass function (Kruijssen & Portegies Zwart 2009).The existing parameterised cluster models that incorporate a description of lowmass star depletion are restricted by the physically selfcontained models on which they are based. Some studies (Kruijssen & Lamers 2008; Lamers et al. 2006) assume an increasing lower stellar mass limit to account for the evolving MF, others (Anders et al. 2009) fit a changing MF slope to Nbody simulations. In both cases, the models are accurate for a certain range of boundary conditions, but they do not include a physical model and are therefore lacking flexibility. While Nbody simulations do include the appropriate physics, they are very timeconsuming. As a result, only a limited number of clusters can be simulated and the applicability of the simulations is thus restricted to the specific set of boundary conditions for which they have been run.
It would be desirable to obtain a simple physical model for the evolution of the MF, which would have a short runtime and could be used independently of Nbody simulations. Forty years ago, a pioneering first approach to such a model was made by Hénon (1969), who considered the stellar massdependent escape rate of stars from star clusters. However, the applicability of his model was limited due to a number of assumptions that influenced the results. First of all, Hénon (1969) assumed that the clusters exist in isolation and neglected the tidal field. As a consequence, the escape of a star could only occur by a single, close encounter and the repeated effect of twobody relaxation was not included. Secondly, the distribution of stars was independent of stellar mass, i.e. mass segregation was not included. Both mass segregation and the influence of a tidal field are observed in real clusters, and can be expected to affect the evolution of the MF.
The aim of this paper is to derive a physical description of the evolution of the stellar MF in star clusters, alleviating the assumptions that were made by Hénon (1969). This should explain the results found in Nbody simulations and observations, while providing the required flexibility to explore the properties of star clusters with simple, physically selfcontained models. The outline of this paper is as follows. In Sect. 2, total mass evolution of star clusters is discussed. A recipe for the evolution of the MF is derived in Sect. 3, covering stellar evolution, the retain of stellar remnants, dynamical dissolution and mass segregation. The model is compared to Nbody simulations in Sect. 4. In Sect. 5, the model is applied to assess the evolution of the MF for different disruption times and remnant retention fractions. The consequences for other cluster properties are also considered. This paper is concluded with a discussion of the results and their implications.
2 The mass evolution of star clusters
The mass of star clusters decreases due to stellar evolution and dynamical dissolution. This is expressed mathematically aswith M the cluster mass, and the subscripts ``ev'' and ``dis'' denoting stellar evolution and dynamical dissolution. The contribution of stellar evolution to the mass loss is derived from the decrease of the maximum stellar mass with time and depends on the adopted stellar evolution model.
The dynamical evaporation of star clusters is increasingly well
understood. Over the past years it has become clear that clusters lose
mass on a disruption timescale
that is proportional to a combination of the halfmass relaxation time
and the crossing time
as
(e.g. Gieles & Baumgardt 2008; Baumgardt & Makino 2003; Baumgardt 2001). It is found that x=0.750.80, depending on the concentration (
)
or King parameter (W_{0}) of the cluster (Baumgardt & Makino 2003). This proportionality leads to a disruption timescale that scales with the present day mass as (Lamers et al. 2005):
with M the cluster mass, t_{0} the dissolution timescale parameter which sets the rapidity of dissolution and depends on the cluster environment, and a constant related to x. Lamers et al. (2009, in prep.) find for W_{0}=5 and for W_{0}=7. This timescale implies a mass loss rate due to dissolution that can be described with the simple relation
which can be integrated for the mass evolution of the cluster due to dynamical dissolution.
The above formulation of the cluster mass evolution was extended to include stellar remnants, photometric cluster evolution, and a simple description of the MF in the SPACE cluster models (Kruijssen & Lamers 2008). Stellar remnants were accounted for by assuming initialfinal mass relations (similar to Sect. 3.1 of the present paper), while the photometric evolution was computed by integrating stellar isochrones from the Padova group (Bertelli et al. 1994; Girardi et al. 2000). The description of lowmass star depletion followed the simple model from Lamers et al. (2006) in which the minimum stellar mass of the MF increases with time.
The present study provides a new description of the evolution of the MF which is based on fundamental principles, and does not depend on the above prescription for the total mass evolution. In addition, the latest Padova models (Marigo et al. 2008) are incorporated to calculate the photometric cluster evolution. These improvements update the SPACE cluster models.
3 The evolution of the stellar mass function
To describe the evolution of the MF, the effects of stellar evolution, stellar remnant production, and dynamical dissolution need to be included. While the focus of this paper lies with the effects of dissolution, a proper treatment of stellar evolution is essential. This is described first, before presenting a model for cluster dissolution^{}.3.1 Stellar evolution
The influence of stellar evolution on the MF is twofold. First of all, the maximum stellar mass decreases, because at any time during cluster evolution the most massive stars reach the end of their lives. Secondly, the stellar remnants that are created upon the death of these massive stars constitute a part of the MF that can only be lost from the cluster by dynamical mechanisms.The maximum stellar mass in the cluster as a function of its age is taken from the Padova 2008 isochrones (Marigo et al. 2008) for metallicities in the range Z=0.00010.03. The stellar remnant masses
are computed from their progenitor stellar mass m using initialfinal mass relations. Following Kruijssen & Lamers (2008), for white dwarfs (
)
the relation from Kalirai et al. (2008) is adopted:
which holds for all ages that are covered by the Padova isochrones. For neutron stars ( ) the relation from Nomoto et al. (1988) is used:
while for black holes ( ) a simple relation is assumed that is in acceptable agreement with theoretically predicted masses of stellar mass black holes (Fryer & Kalogera 2001):
With these relations, the remnant MF is computed from conservation of numbers as
with denoting the appropriate remnant type, representing its MF, denoting the cluster massdependent fraction of these remnants that is retained after applying kick velocities, and representing the progenitor MF.
For a given velocity dispersion of remnants, the retention fraction of each remnant type depends on the local escape velocity
,
which is related to the potential
as
.
Stellar remnants are predominantly produced in the cluster centre in
the case of mass segregation, which is reached most rapidly for massive
stars (see Sect. 3.2). For a Plummer (1911, also see Eq. (9)# potential this implies that upon remnant production
,
with G the gravitational constant and r_{0} the Plummer radius. Adopting a Maxwellian distribution of velocities that is truncated at
,
it is straightforward to show that
where A is a normalisation constant to account for the truncation of the velocity distribution and , with denoting the total velocity dispersion of the produced remnant type, which arises from the central velocity dispersion in the cluster (e.g. Heggie & Hut 2003) and the velocity dispersion of the exerted kick . The normalisation constant then follows as .
Typical values of the kick velocity dispersion are given in literature. White dwarf kicks have recently been proposed to be of order km s^{1} (Davis et al. 2008; Fregeau et al. 2009). For neutron stars km s^{1} is adopted, which is a somewhat conservative estimate with respect to theory, but it agrees reasonably well with observed neutron star numbers in globular clusters and represents a compromise between single star and binary channels (for estimates of the retention fraction and discussions of the ``neutron star retention problem'' see Drukier 1996; Arzoumanian et al. 2002; Lyne & Lorimer 1994; Pfahl et al. 2002). Gravitational wave recoils are thought to exert black hole kicks of order km s^{1} (Moody & Sigurdsson 2009). This value depends on metallicity, but for simplicity I assume a single, typical value here.
The retention fractions following from Eq. (8) are shown as a function of cluster mass per unit Plummer radius in Fig. 1. This quantity best reflects the retention fraction because in Eq. (8). Open clusters (with initial masses such that typically , Larsen 2004) do not retain any neutron stars or black holes, while globular clusters (  , Harris 1996) retain 0.14% of the neutron stars and 0.37% of the black holes. These values are in excellent agreement with other studies (e.g. Moody & Sigurdsson 2009; Pfahl et al. 2002), but are still lower than the large observed number of neutron stars in a number of globular clusters (the aforementioned ``retention problem'').
3.2 Dissolution and the evolution of the mass function
Dissolution alters the shape of the stellar MF in star clusters due to the effects of twobody relaxation and energy equipartition. In a pioneering paper, Hénon (1969) derived the escape rate of stars of different masses from an isolated cluster. The cluster was represented by a Plummer (1911) gravitational potential:where r_{0} denotes the Plummer radius setting the concentration of the cluster and represents the central potential, with G the gravitational constant and M the cluster mass. It was argued by Hénon (1960) that the only way for stars to escape such an isolated cluster is by a single, close encounter. The corresponding stellar massdependent escape rate was found to be (Hénon 1969):
with N(m) the MF, m the stellar mass, E the total energy of the cluster, and a function related to the escape probability for a star of mass m in a close encounter with a star of mass m' and a corresponding mass ratio . The expression in Eq. (10) is independent of the adopted IMF. The function F will be referred to as the ``Hénon function'' and is shown in Fig. 2. The original expression consists of several integrals that have to be solved numerically. In Hénon (1969), a table is given for the Hénon function, but it can also be fitted by:
This approaches the power law for , as was derived explicitly by Hénon (1969).

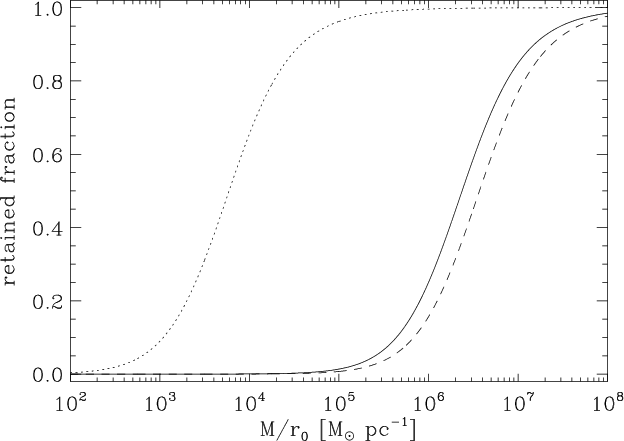

Figure 1: Retention fraction of stellar remnants as a function of cluster mass per unit Plummer radius M/r_{0}, for black holes (solid), neutron stars (dashed) and white dwarfs (dotted).

Open with DEXTER

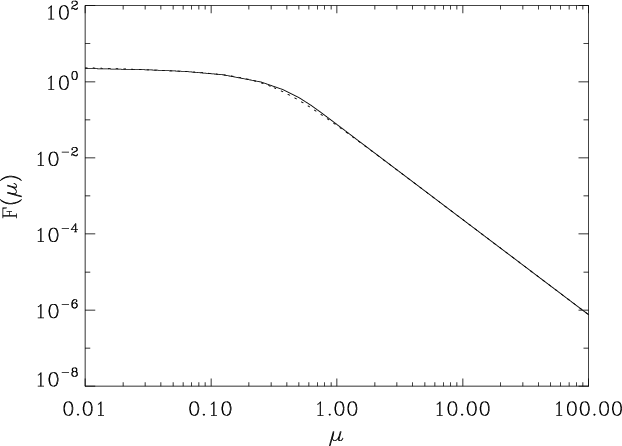

Figure 2: Hénon function , which is a measure for the escape probability of a star of mass m in a twobody interaction with mass ratio . The dotted line shows the fit from Eq. (11).

Open with DEXTER
The total mass loss rate corresponding to Eq. (10) conflicts with Nbody simulations (as was already noted by Wielen 1971) because only ejections by single, close encounters are included. This restriction implies that the disruption timescale
is proportional to the halfmass relaxation time
times the Coulomb logarithm
(
), while Nbody simulations show that it scales with a combination of the halfmass relaxation time and the crossing time (
)
due to twobody relaxation, i.e. the repeated effect of soft encounters (e.g. Fukushige & Heggie 2000; Baumgardt & Makino 2003). Nonetheless, the escape rate from Hénon (1969)
does accurately describe what happens if two stars interact and can
therefore be used as a starting point for a more complete description
of the evolution of the MF. For that purpose, it is convenient to scale
Eq. (10) to the mass loss rate found in Nbody simulations and only use the relative or `differential' stellar mass dependence from Hénon (1969). This is allowed if the ratio
only depends on global cluster properties. It is straightforward to show (e.g. Spitzer 1987; Heggie & Hut 2003) that indeed this is the case as
.
As such, one can write
with the mass loss rate from Eq. (3) (Lamers et al. 2005) and the stellar massdependent escape rate per unit mass loss rate. The quantity is completely independent of the prescription for the total mass evolution. In order to derive , I start from Eq. (10) and express as
where represents a correction factor to account for additional physics (see below). The numerator reflects the escape rate, while the denominator is proportional to the mass loss rate.
For mathematical simplicity^{} Hénon (1969) made the following assumptions in the derivation of Eq. (10).
 (1)
 The cluster exists in isolation and the tidal field is neglected. Therefore, escape can only occur by a single, close encounter and the repeated effect of soft encounters (twobody relaxation) is not accounted for. This underestimates the escape rate of massive stars;
 (2)
 The distribution of stars is independent of stellar mass, i.e. mass segregation is not included. Depending on the balance between their encounter rate and their proximity to the escape energy, this over or underestimates the escape rate of lowmass stars from Hénon (1969). Considering the results from Baumgardt & Makino (2003), the latter seems to be the case.
Let us assume that the distribution of stars over radius and velocity space is initially independent of their mass. This implies that mass segregation is dynamically created and not primordial, which is discussed in Sect. 6. For such an initial distribution, the separation from the escape energy is independent of mass. As the cluster evolves, energy equipartition is reached between the stars and the radius, velocity and proximity to the escape energy become a function of stellar mass. I first consider this effect on the escape rate before including the timescale on which twobody relaxation occurs for different stellar masses. Please note that the formulation of Eq. (13) with appearing in the numerator and the denominator implies that only the proportionality of is important. Its exact value is determined by constants that drop out when substituting in Eq. (13).
It is intuitive to express the dependence of the escape rate on the energy needed for escape as
.
The energy that is required for escape
is related to the position and velocity of the star^{}. For the potential in Eq. (9) it is given by
with r and v the radial position and velocity of the star, and its escape velocity. If the cluster is in ``perfect'' energy equipartition and correspondingly perfect mass segregation, the radius and velocity become a monotonous function of stellar mass (Heggie & Hut 2003, Chap. 16). Mass segregation is strongest in the cluster centre, which for a Plummer (1911) potential can be approximated with a harmonic potential . For a cluster in a tidal field the potential is truncated, and the harmonic approximation serves as a crude but reasonable approximation for the entire cluster (Heggie & Hut 2003, Ch. 16). Energy equipartition yields
with the mean speed of all stars squared and the mean stellar mass. For the harmonic potential, this translates to a similar relation for the radial position:
where r_{0} represents the typical radius of the system, in this case the Plummer radius. This relation assumes that there is no particular stellar mass which dominates the mass spectrum. The decrease of radial position with stellar mass implied by Eq. (16) is a direct consequence of the energy loss endured by massive stars^{} as the system evolves towards energy equipartition. Substituting Eqs. (15) and (16) into Eq. (14) and dividing out the proportionality gives an expression for :
with denoting the ratio of the mean speed squared to the central escape velocity squared. This constant mainly depends on the degree of mass segregation. Consequently, it will depend on the IMF. By comparing the models to the Nbody simulations with a mass spectrum by Baumgardt & Makino (2003) the value is constrained to c_{1}=0.020 for a Kroupa IMF, using King (1966) potentials with King parameter W_{0}=57 (see Sect. 4). For reference, an unevolved Plummer (1911) potential has .
By comparing the models to Nbody simulations (provided by Gieles, private communication) with different IMF power law slopes and a ratio between the maximum and minimum mass of 10, the approximate relation is found^{} for a MF . Fitting the Kroupa IMF with a single power law in the mass range 0.08 (as used by Baumgardt & Makino 2003) yields , resulting in c_{1}=0.020 as mentioned earlier^{}. The comparison with Nbody simulations also showed that a single value of c_{1} suffices to determine the MF evolution, even though it does not remain constant over the full cluster lifetime.
Because
,
Eq. (17)
indicates that the escape rate of lowmass stars is increased if a
cluster is in complete energy equipartition. However, the timescale on
which twobody relaxation occurs between different stellar masses has
not yet been considered. For a cluster starting with a stellar
massindependent distribution of radial positions and velocities, the
equipartition timescale
scales as
for equipartition between stars of masses m and m' (Heggie & Hut 2003). This is a modified version of the relaxation timescale, which shows a very similar proportionality ( ). It illustrates that twobody relaxation occurs on a shorter timescale for massive stars than for lowmass stars, increasing their escape rate .
The correction factor for the escape rate
that appears in the integrals of Eq. 13 now follows from Eqs. (17) and (18) as
It was mentioned before that the proportionalities of and rather than their exact values suffice for the computation of due to the renormalisation of the total mass loss rate that appears in Eq. (13): only the stellar massdependence is important.
The influence of the tidal field is now included in two ways. First of all, the escape of stars no longer occurs by a single, close encounter but arises due to twobody relaxation on the equipartition timescale, representing the repeated effect of soft encounters. Secondly, the above derivation of the separation from the escape energy assumes a potential which approximates tidally limited clusters. As a result, the escape rate of massive stars is increased with respect to clusters in the model of Hénon (1969), which was derived for an isolated cluster. On the other hand, the effect of mass segregation is included by introducing a stellar massdependence for the energy needed by stars to reach the escape velocity. Lowmass stars are closer to the tidal radius than massive stars, leading to a lower energy that is needed for escape and an increased escape rate. It depends on the shape of the MF which mechanism dominates.
The evolution of the MF of various cluster components is obtained from Eqs. (12), (13) and (19) by writing
where the MFs of stars, white dwarfs, neutron stars and black holes are represented by , with . The overall cluster evolution is computed by combining the results of this section with the prescription for stellar evolution from Sect. 3.1.
If stellar evolution is included, the resulting mass loss causes an
expansion of the cluster, during which stars are lost independently of
their masses. This delays the onset of mass segregation and the stellar
massdependent mass loss that is described above. The moment of
transition to stellar massdependent mass loss can be characterised by
a certain fraction of the initial cluster mass that has been lost by
dissolution
.
It is assumed that the fraction
of the mass loss for which the escape rate depends on the stellar mass grows exponentially^{} between 0 and 1 as
where the subscript ``smd'' denotes ``stellar massdependent'', is the fraction of the initial mass that has been lost by dissolution at which mass segregation is reached, and C=(e1)^{1} is a constant to normalise at the reference value . For , per definition , indicating that all mass loss is stellar massdependent. The timescale on which mass segregation is reached and the transition to stellar massdependent mass loss is completed is proportional to the initial halfmass relaxation time ( ). It has been shown in several studies that for Roche lobefilling clusters the disruption timescale (Gieles & Baumgardt 2008; Baumgardt & Makino 2003; Vesperini & Heggie 1997), implying that . The expression for in Eq. (2) then leads to . Assuming that the cluster mass evolution is close to linear, the firstorder relation is obtained, implying
for a King parameter of W_{0}=5, with the dissolution timescale parameter at the solar galactocentric radius Myr. For a King parameter of W_{0}=7, the exponent of the initial cluster mass becomes 0.23 and Myr (Kruijssen & Mieske 2009). In this relation, c_{2} represents a constant that is fixed by comparing the model to the results of Nbody simulations from Baumgardt & Makino (2003), giving c_{2}=0.25 for W_{0}=5 and c_{2}=0.15 for W_{0}=7 (see Sect. 4). The variation with King parameter arises because twobody relaxation is faster for more concentrated clusters. If stellar evolution were neglected, at all ages c_{2}=0 and .

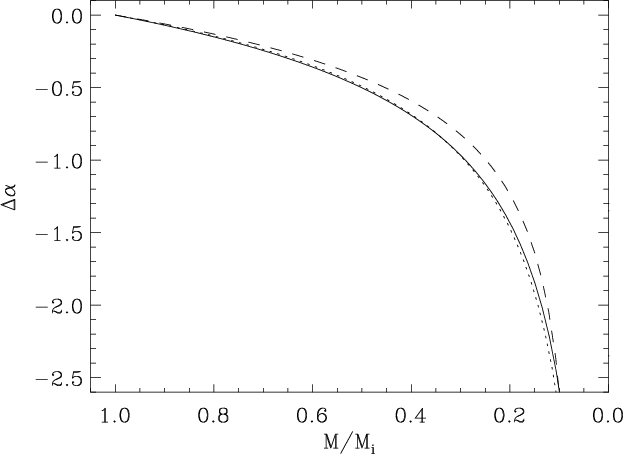

Figure 3: MF slope change in the range m=0.1 versus the remaining mass fraction for a Kroupa IMF (solid), Salpeter IMF (dotted), and a power law IMF with (dashed). In all cases, the IMF mass range is m=0.1 . The displayed relation is valid if stellar evolution is excluded.

Open with DEXTER
The modeled MF slope change in the mass range m=0.1 is shown in Fig. 3 for different IMFs covering m=0.1 . Evidently, is a function of the remaining mass fraction and is insensitive to the slope of the IMF, as long as that the ratio between the maximum and minimum mass is kept fixed and stellar evolution is excluded. This is an interesting observation in view of the MF evolution of globular clusters, in which  and stellar evolution only plays a minor role. Figure 3 shows that the slope of the MF in globular clusters could be a possible indicator for the mass fraction that has been lost due to dissolution, provided that the IMF does not vary and the remnant retention fractions were not substantially dissimilar during the early evolution of different globular clusters (see Sect. 5.2 and Fig. 19).

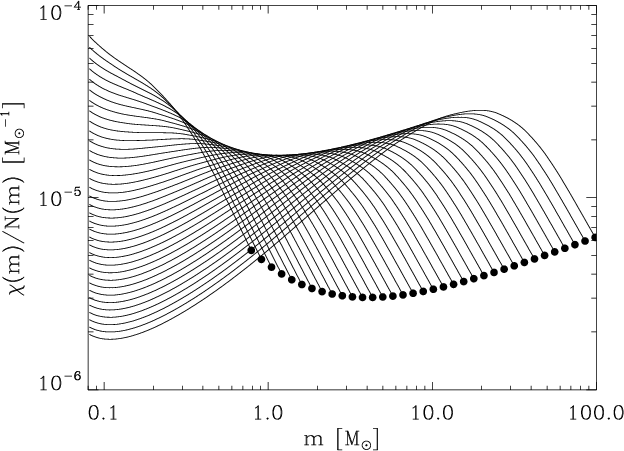

Figure 4: Relative escape rate as a function of stellar mass, shown for a Kroupa MF with different maximum masses. The end point of each curve (dot) marks its maximum mass. The quantity represents the escape rate per unit mass loss rate normalised to the number of stars at each mass (also see Eq. (13)).

Open with DEXTER

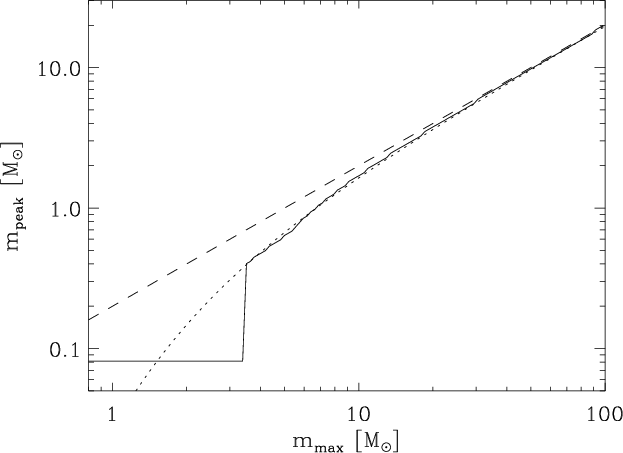

Figure 5: Mass of the highest relative escape rate as a function of the maximum stellar mass of the MF (solid line). The dashed line represents the relation , while the dotted line describes an eyeball fit for masses and includes an exponential truncation at the lowmass end (see Eq. (23)).

Open with DEXTER
Even though its quantitative properties only hold for a Kroupa MF, the variation of the relative escape rate with the maximum mass of the MF has several implications for star cluster evolution. The change of in Figs. 4 and 5 can be interpreted as an example of what happens when stellar evolution removes the most massive stars in the cluster, provided that the remnants are all ejected by their kick velocities. If dynamical evolution does not affect the shape of the MF too much before , or Myr, the subsequent evolution of the MF will be dominated by lowmass star depletion. If substantial dissolution occurs earlier on, it is dominated by the `sweet spot' depletion of intermediate masses. Only the retention of massive stellar remnants will make the evolution of the MF deviate from these basic estimates, because remnant retention can provide a fixed maximum (remnant) mass of the MF. This is treated in more detail in Sect. 5.
4 Comparison to Nbody simulations

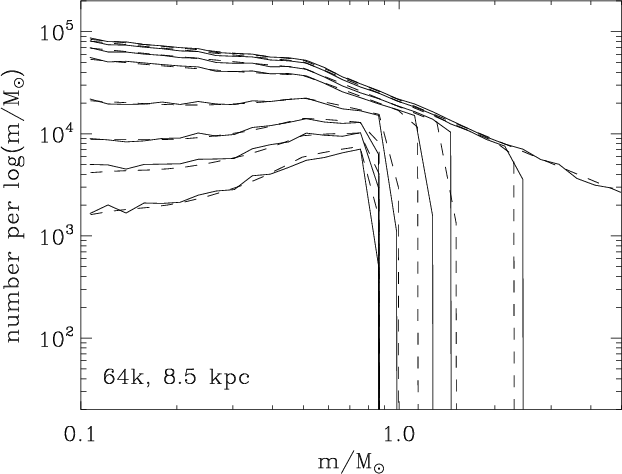

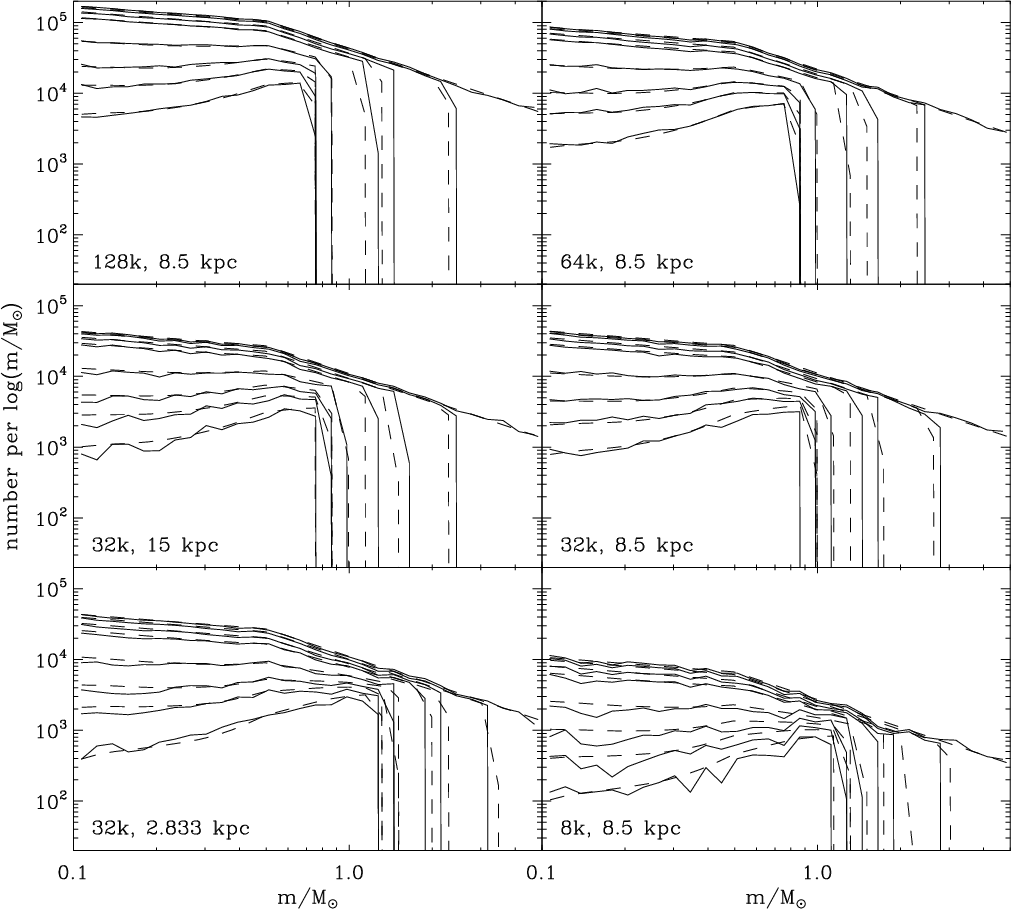

Figure 6: Comparison of the evolution of the stellar MF from the models (dashed) to the Nbody runs from Baumgardt & Makino (2003, solid) for the exact same boundary conditions. The initial number of particles and the galactocentric radius are indicated in the bottomleft corner of each panel. From top to bottom, the subsequent MFs in each panel are shown for the times at which the remaining cluster mass fraction equals .

Open with DEXTER
The model described in Sect. 3 can be easily verified by running it for the exact same boundary conditions as the Nbody simulations^{} by Baumgardt & Makino (2003) and comparing the results. They conducted simulations of Roche lobefilling clusters between 8k and 128k particles, which were evolved in the Galactic tidal field at galactocentric radii in the range 2.83315 kpc. The boundary conditions for the Nbody runs of Baumgardt & Makino (2003) differ from those described in Sect. 3 by neglecting kick velocities and defining the Kroupa stellar IMF between 0.1 and 15 , thereby excluding black holes. For this particular comparison, the same IMF, stellar evolution prescription, and initialfinal mass relation for stellar remnants are used in the model that is presented in this paper.
In Fig. 6, the modeled evolution of the (luminous) stellar MF is compared to the Nbody runs with King parameter W_{0}=5 for a range of cluster masses and total disruption times. As time progresses, the maximum stellar mass decreases due to stellar evolution and the MF is lowered due to the dynamical dissolution of the star cluster. The slope of the MF changes due to the preferential escape of lowmass stars, which have energies closer to their escape energies, even to the extent that it dominates over their relatively slow twobody relaxation. For both the models and the Nbody simulations, the MF develops a slight bend at when approaching total disruption. The bend arises as an optimum between on the one hand high energies but slow relaxation for the lowest stellar masses, and on the other hand quick relaxation but low energies for the highest stellar masses (see the discussion at the end of Sect. 3).
In all cases, the resemblance of the models and the Nbody simulations is striking. The models reproduce all key aspects of the Nbody runs, such as the amount of lowmass star depletion, the changing slope at for clusters close to dissolution, the survival of the Kroupa bend at , and the dependence of the lowmass depletion on the total lifetime of the cluster (compare the three 32k runs). The only difference occurs at the highmass end of the MF, where the maximum stellar masses do not match at young ages. This is due to a minor dissimilarity of the total mass evolution (also see Kruijssen & Lamers 2008; Lamers et al. 2005). Because the maximum stellar mass only depends on the age of the cluster, this causes a difference in maximum stellar mass when showing the MFs at fixed remaining cluster mass fractions. The contrast is clearest at young ages, since there the maximum stellar mass most rapidly decreases.
In the description of the model in Sect. 3, two constants have been determined from the Nbody simulations by Baumgardt & Makino (2003). These constants are the ratio of the mean speed squared to the central escape velocity squared (c_{1}, see Eq. (17)) and the proportionality constant for the relation marking the transition to stellar massdependent mass loss (c_{2}, see Eq. (22)). As mentioned in Sect. 3, for a Kroupa IMF and King parameter W_{0}=5 one obtains c_{1}=0.020 and c_{2}=0.25. To illustrate the robustness of the models, in Fig. 7 they are compared to a 64k Nbody run with W_{0}=7. For such a cluster with a higher concentration, the early mass segregation implies c_{2}=0.15. Again, the model and the simulation are in excellent agreement.
Figure 7: Comparison of the evolution of the stellar MF from the models (dashed) to the Nbody run from Baumgardt & Makino (2003, solid) with W_{0}=7 for the exact same boundary conditions. From top to bottom, the subsequent MFs are shown for the times at which the remaining cluster mass fraction equals .

Open with DEXTER
The dependence of the MF evolution on both constants is considered in Fig. 8. For c_{1}, the dependence of the evolution of the MF on its value is shown in the upper panel of Fig. 8, while for c_{2} it is shown in the bottom panel of Fig. 8. Both panels show the evolution of the MF for the 64k cluster in Fig. 6 for different values of c_{1} and c_{2}.

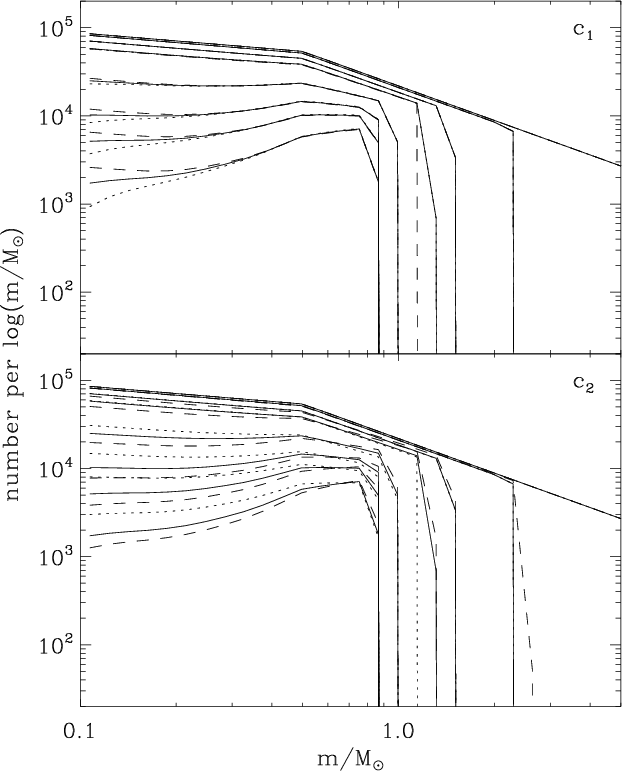

Figure 8: Influence of the constants c_{1} and c_{2} on the evolution of the stellar MF. From top to bottom, the subsequent MFs in each panel are shown for the times at which the remaining cluster mass fraction equals . Top panel: the values are represented by dashed, solid and dotted lines, respectively. Bottom panel: the values are represented by dashed, solid and dotted lines, respectively. For both c_{1} and c_{2}, the second (boldfaced) value is the one obtained from the comparison to the Nbody simulations with W_{0}=5 in Fig. 6.

Open with DEXTER
The ratio of the mean speed squared to the central escape velocity squared c_{1} affects the escape probability of the stars with the lowest masses. Because these stars are closest to their escape energies in a masssegregated cluster, they are most strongly influenced by the value of c_{1}. For higher c_{1}, the MF gets more depleted in lowmass stars due to their closer proximity to the escape energy, while for lower c_{1} more lowmass stars are retained as the balance between close proximity to the escape energy and slow relaxation shifts to the latter.
The proportionality constant for the transition to stellar massdependent dissolution c_{2} in Eq. (22) affects the MF as a whole. For lower c_{2}, the transition occurs earlier and more lowmass stars are lost, while for higher c_{2} the onset of the depletion is delayed and the slope of the MF remains closer to its initial value. If one were to assume a constant , which is contrary to the adopted relation with cluster mass in Eq. (22), this would therefore yield a stellar MF in massive clusters that is underpopulated in lowmass stars, and a MF in lowmass clusters that is overabundant in lowmass stars.
5 Star cluster evolution
In this section, the described model is applied to compute the evolution of clusters for a variety of boundary conditions. The stellar content as well as integrated photometry are addressed, using the boundary conditions from Sect. 3 instead of those that were adopted to compare the model to Nbody simulations in Sect. 4. The most important differences are the mass range of the IMF, the inclusion of remnant kick velocities, and the initialfinal mass relation.The model that will be referred to as the ``standard model'' uses a metallicity Z=0.004 (which is typical of globular clusters), a King parameter^{} of W_{0}=7 (corresponding to
in Eq. (2)), a dissolution timescale parameter t_{0}=1 Myr, and a Kroupa IMF between
and the maximum stellar mass given by the Padova isochrones at
,
which is typically
.
For the computation of the retained remnant fraction (see Eq. (8)), the Plummer radius r_{0} is related to the halfmass radius
as
.
The halfmass radius is assumed to remain constant during the cluster lifetime (e.g. Aarseth & Heggie 1998). For the relation between
and initial cluster mass
the expression from Larsen (2004) is adopted:
The models that are used in this section are computed from 10^{7} yr to yr (the maximum age of the Padova isochrones) for initial masses between and , spaced by 0.25 dex intervals.
5.1 The influence of the disruption time
The disruption time of a cluster affects the evolution of the MF and of the integrated photometric properties. To assess the influence of the disruption time on cluster evolution, clusters with low and high remnant retention fractions should be treated separately, because the presence of massive remnants also has a pronounced effect on the results (see Sect. 5.2). As shown in Fig. 1, for a given kick velocity dispersion the remnant retention fraction is set by the cluster mass. This means that the division between low and high remnant retention fractions can be made by making a cut in initial cluster mass.

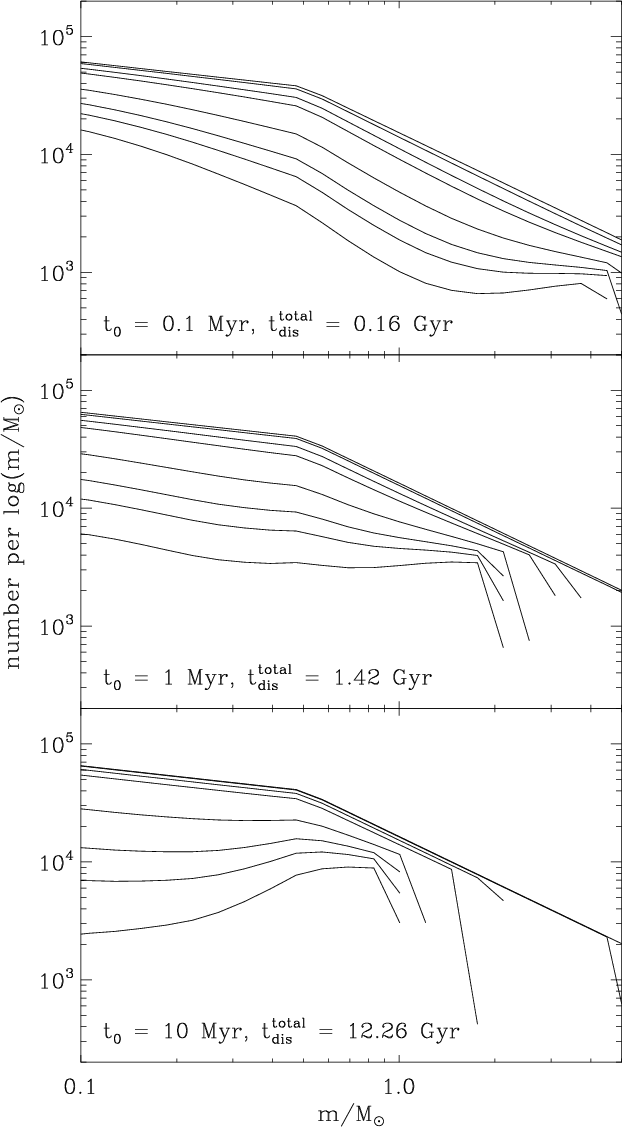

Figure 9: Influence of the disruption time on the evolution of the stellar MF for a cluster with a low remnant retention fraction ( ). From top to bottom, the subsequent MFs in each panel are shown for the times at which the remaining cluster mass fraction equals .

Open with DEXTER
A quantifiable way to look at the evolution of the stellar MF in star clusters is to consider the slope of the MF in certain mass intervals (De Marchi & Pulone 2007; Vesperini et al. 2009; De Marchi et al. 2007; Richer et al. 1991). For the commonly used mass intervals () and (), Fig. 10 shows the evolution of the slope for the same clusters as before. Like Fig. 9, this illustrates that for short disruption times the slope steepens as the cluster dissolves, while for long disruption times the slope flattens with time. The presented models and other model runs indicate that increases with time for Gyr and decreases for Gyr. For total disruption times in between these values, the slope first increases and then decreases. The slope in the second mass interval shows the same behaviour. It increases for Gyr and decreases for Gyr.
The masstolight (M/L) ratio evolution of star clusters is affected by the evolution of the MF due to the large variations in M/L ratio between stars of different masses. Massive stars have lower M/L ratios than lowmass stars, implying that a cluster with a MF that is depleted in lowmass stars will have a reduced M/L ratio (Kruijssen 2008; Kruijssen & Lamers 2008; Baumgardt & Makino 2003). As such, one would also expect a correlation between the slope of the MF and M/L ratio.
In Fig. 11, the evolution of the ratio of the Vband M/L_{V} to the masstolight ratio due to stellar evolution is shown for the same clusters as in Figs. 9 and 10. This quantity reflects the relative M/L_{V} ratio change induced by dynamical evolution with respect to evolutionary fading only. If the escape rate would be independent of stellar mass, the evolution would follow a horizontal line at . However, when accounting for dynamical evolution, the M/L ratio is always smaller than that for stellar evolution only. Somewhat surprisingly, this is also the case for clusters for which the slope of the MF increases (see Fig. 10). This is explained by looking at the evolution of the entire MF in Fig. 9. Even though the slope at low masses increases for short disruption times due to the escape of intermediatemass stars, the most massive stars that dominate the cluster light are still retained. Because stars of intermediate masses are lost instead, the M/L ratio decreases.

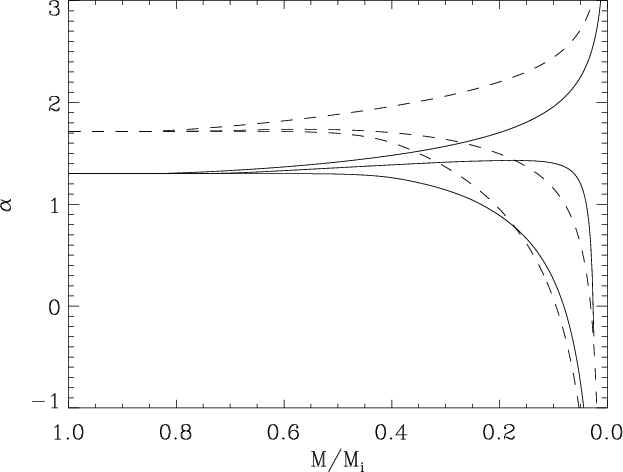

Figure 10: Influence of the disruption time on the stellar MF slope in the range (solid) and (dashed) for a cluster with a low remnant retention fraction ( ). Shown is versus the remaining cluster mass fraction. From top to bottom, for each mass range the lines represent Myr, corresponding to Gyr.

Open with DEXTER
Because the slope of the stellar MF either increases or decreases at masses , the decrease of the M/L ratio implies a large range of MF slopes that can occur at low M/L ratios. This is shown in Fig. 12, where the relation between and the M/L ratio drop is presented. The slope of the stellar MF in a certain mass range does not necessarily reflect the M/L ratio of the entire cluster. Considering the aforementioned rule of thumb stating that for total disruption times Gyr the depletion of the MF occurs around 1520% of the mass of the most massive star , it is useful to define the slope in a mass range that is related to . In Fig. 12, the relation between slope and M/L ratio is also shown for the slope in the stellar mass range . In such a relative mass range, the slope follows a much narrower relation with M/L ratio. The range between 30% and 80% of was chosen to maximise this effect.
For the slopes in the fixed stellar mass ranges ( and , see above), the relation with the M/L ratio becomes better defined for longlived clusters. It is shown in Figs. 1012 that both the slope and the M/L ratio decrease for clusters with long disruption times, indicating that both quantities are more clearly related for globular clusterlike lifetimes.
The colour of star clusters is also influenced by the evolution of the MF, due to the colour differences between stars of different masses. The VI magnitude difference with respect to the VI value that a cluster would have if dynamical evolution were neglected is shown in Fig. 13. As the clusters dissolve, their colours become redder due to the escape of main sequence stars. The magnitude difference in VI exceeds mag for total disruption times 1.5 Gyr. In redder passbands (e.g. the VK colour), the difference grows to several tenths of magnitudes. For longer total disruption times only stars of the lowest masses are ejected (see Fig. 9), which hardly contribute to the cluster light and colour, implying that the colours are only marginally affected.

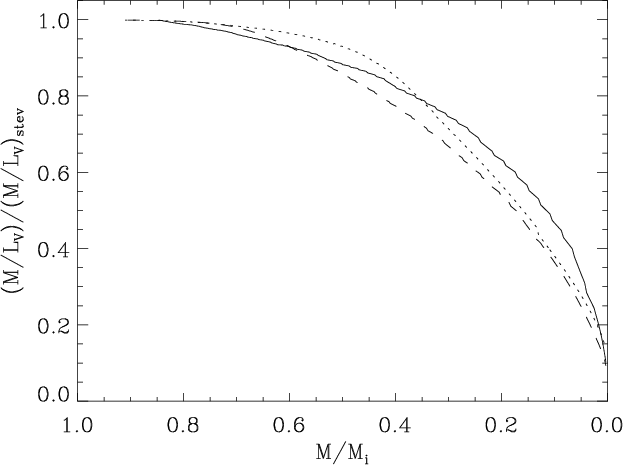

Figure 11: Influence of the disruption time on the M/L_{V} ratio evolution for a cluster with a low remnant retention fraction ( ). Shown is the relative M/L_{V} ratio decrease with respect to the value expected for stellar evolution versus the remaining cluster mass fraction. The solid, dashed and dotted lines represent Myr, respectively, corresponding to Gyr.

Open with DEXTER

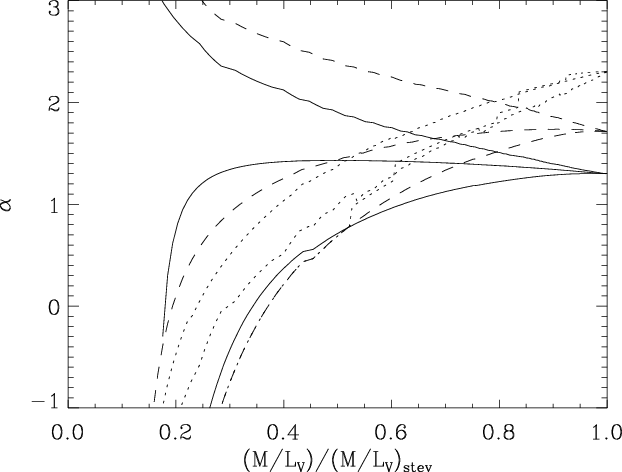

Figure 12: Influence of the disruption time on the combined evolution of the MF slope and the M/L_{V} ratio for a cluster with a low remnant retention fraction ( ). Shown is versus the relative M/L_{V} ratio decrease due to dynamical evolution. All clusters start at the vertical line . Solid lines denote the slope in the mass range , dashed lines designate the mass range , and dotted lines represent the mass range , with from top to bottom Myr, corresponding to Gyr.

Open with DEXTER

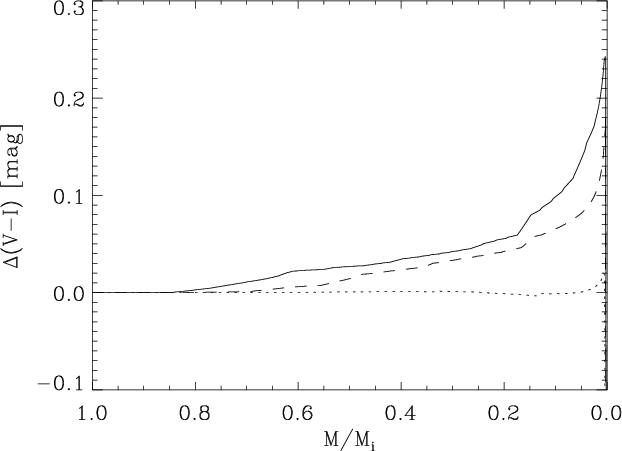

Figure 13: Influence of the disruption time on the VI colour for a cluster with a low remnant retention fraction ( ). Shown is the colour offset due to dynamical evolution versus the remaining mass fraction. The solid, dashed and dotted lines represent Myr, respectively, corresponding to Gyr.

Open with DEXTER
5.2 The influence of the remnant retention fraction
The formation of stellar remnants introduces massive bodies in the MF that do not end their lives due to stellar evolution like massive stars do. Depending on their kick velocities, stellar remnants can be retained in (massive) clusters. If they are retained, they keep affecting the evolution of the stellar MF until the cluster is disrupted. Especially black holes can have a pronounced effect on cluster evolution.
The remnant retention fraction arises from the cluster mass, radius and the kick velocity dispersion (see Eq. (8)). In this section, the massradius relation from Eq. (24) is used. Although the results will differ for other relations, it has been verified that for commonly used alternatives^{}, the change is only marginal and does not affect the nature of the conclusions. To separate the effect of remnant retention from that of the disruption time, a fixed initial cluster mass of is assumed while independently varying the velocity dispersion of the remnant kick velocities and the disruption time. The corresponding evolution of the stellar MF is shown in Fig. 14, for the standard model (see the beginning of this section) with black hole kick velocity dispersions km s^{1}, equivalent to for a cluster, and for dissolution timescale parameters Myr, which for a cluster implies Gyr. Assuming an age of 12 Gyr, the presentday mass in the case of t_{0}=1 Myr is about , comparable to globular clusters. The remaining fraction of the initial mass is .

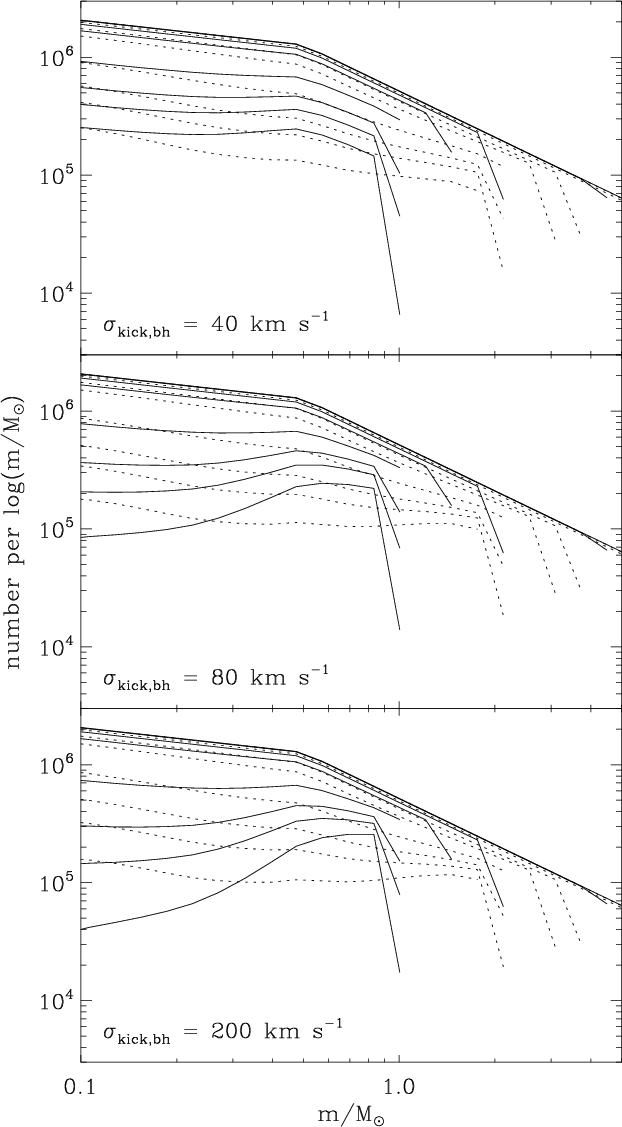

Figure 14: Influence of the black hole kick velocity dispersion and disruption time on the evolution of the stellar MF for an initial cluster mass . From top to bottom, the subsequent MFs in each panel are shown for the times at which the remaining cluster mass fraction equals . Solid lines denote t_{0}=1 Myr ( Gyr), while dotted lines represent t_{0}=0.1 Myr ( Gyr).

Open with DEXTER
If the velocity dispersion of black hole kicks is low and a relatively large fraction of black holes is retained, then the escape rate of massive stars is increased with respect to high kick velocity dispersions. This arises due to the quick twobody relaxation between the massive stars and the black holes, which will have masses larger than the most massive stars after a few Myr of stellar evolution. As a result, the escape rate of lowmass stars is largest in clusters containing only few black holes. This happens for clusters with either long or short disruption times, but the effect is largest for longlived clusters (the solid lines in Fig. 14). In these clusters the maximum stellar mass is more strongly decreased by stellar evolution than in shortlived clusters, implying that the black hole masses are larger compared to the most massive stars in these clusters. For long disruption times, the presence of massive remnants therefore has a more pronounced effect on the escape rate of massive stars than for short disruption times. If these longlived clusters retain a sufficiently large fraction of the stellar remnants, their stellar MF may even become depleted in massive stars.
The top panel of Fig. 14 also shows that for a cluster with a high remnant retention fraction, the impact of the disruption time on the MF evolution is similar to that of clusters with low retention fractions (see Fig. 9). However, the influence of the disruption time becomes smaller when more remnants are retained. This explains why Baumgardt & Makino (2003) only found a very weak dependence of the evolution of the MF on the disruption time (also see Fig. 6), since they neglected remnant kick velocities and retained all remnants in their simulations.
Figure 15: Influence of the black hole retention fraction on the stellar MF slope in the range (solid) and (dashed) for an initial cluster mass . Shown is versus the remaining cluster mass fraction. From top to bottom, for each mass range the lines represent km s^{1}, corresponding to for a cluster.

Open with DEXTER
Analogous to Fig. 10 in Sect. 5.1, the evolution of the MF slope in different mass ranges is shown in Fig. 15 for the clusters with t_{0}=1 Myr from Fig. 14^{}. The kick velocity dispersion has an effect on the MF that is more uniform than the consequences of variations in the disruption time, leading to very similar slope evolutions in the two different stellar mass ranges. Independent of the mass range, an increase in remnant retention fraction is reflected by an increase of . The model that is displayed for km s^{1}, t_{0}=1 Myr, and (the upper dashed and solid lines in Fig. 15) marks the transition between an increase or decrease of the MF slope by dynamical evolution. For an initial , lowmass stars are preferentially ejected during most of the cluster lifetime, while for mainly the massive stars escape. For shorter disruption times, the transition is located at a smaller black hole retention fraction.
Because the black hole retention fraction affects the overall slope of the stellar MF, the changes in are matched by corresponding changes in the M/L ratio. In Fig. 16, the relative M/L_{V} ratio change due to dynamical evolution is shown for same clusters as in Fig. 15. Contrary to the clusters with low remnant retention fractions in Sect. 5.1, the M/L ratio of the clusters in Fig. 16 does not monotonously decrease. Close to total disruption, the massive remnants are the last bodies to be ejected. During that short phase of cluster evolution, the M/L ratio is increased by dynamical evolution and exceeds the value it would have due to stellar evolution alone.
Figure 16: Influence of the black hole retention fraction on the M/L_{V} ratio evolution for an initial cluster mass . Shown is the relative M/L_{V} ratio decrease with respect to the value expected for stellar evolution versus the remaining cluster mass fraction. The solid, dashed and dotted lines represent km s^{1}, corresponding to for a cluster.

Open with DEXTER
The behaviour of M/L ratio for different black hole kick velocity dispersions has interesting implications for the relation between stellar MF slope and M/L ratio, which is shown in Fig. 17. In combination with Fig. 12 (note the different axes), it shows possible evolutionary tracks of star clusters in this plane, indicating that nearly every location may be reached. However, when limiting ourselves to longlived clusters, Fig. 17 illustrates that these clusters will follow a trend of decreasing slope with decreasing M/L ratio, albeit with excursions to high M/L ratios and slightly higher close to their total disruption. This explains the trend that was found by Kruijssen & Mieske (2009), who considered the relation between the observed MF slopes and M/L ratios of Galactic globular clusters.

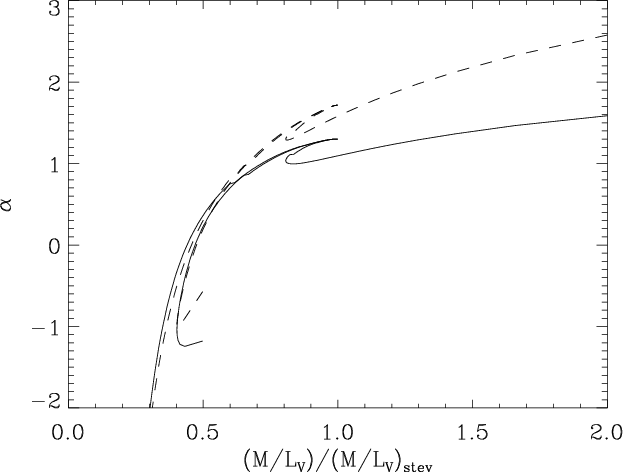

Figure 17: Influence of the black hole retention fraction on the combined evolution of the MF slope and the M/L_{V} ratio for an initial cluster mass . Shown is versus the relative M/L_{V} ratio decrease due to dynamical evolution. All clusters start at the vertical line . Solid lines denote the slope in the mass range and the dashed lines designate the mass range , with from right to left km s^{1}, corresponding to for a cluster.

Open with DEXTER
The colour change due to dynamical evolution is only very small for clusters with Gyr (see Sect. 5.1). Because clusters in which remnants are retained are massive, their lifetimes are correspondingly long. As a result, the colour evolution is largely unaffected for the clusters in which the remnant retention fraction could play a role ( mag). The colour change is even smaller if more massive remnants are retained, because then the stellar MF more closely resembles its initial form (see the upper panel of Fig. 14). Longlived clusters generally appear 0.005 mag bluer in VI due to dynamical evolution during the last 320% of their lifetimes and reach a similar reddening upon their total disruption, which is well within observational errors. The colours of old clusters are thus only marginally affected by dynamical evolution.
The evolution of the total remnant mass fraction is shown in Fig. 18 for different black hole kick velocity dispersions. The seemingly counterintuitive result is that the fraction of the cluster mass that is constituted by remnants is smaller when more black holes are retained. As shown in Fig. 14, the retention of black holes suppresses the depletion of the lowmass end of the MF due to the ``sweet spot'' escape (see Sect. 3) of massive ( ) stars by the black holes. After 1 Gyr, white dwarfs and neutron stars have masses that are similar to those of the massive stars, implying that their escape rate is also increased when more black holes are retained. Because the total mass constituted by white dwarfs and neutron stars is larger than the combined mass of all black holes, the fraction of the total cluster mass that is constituted by remnants decreases if these lowmass remnants are ejected by the more massive black holes.

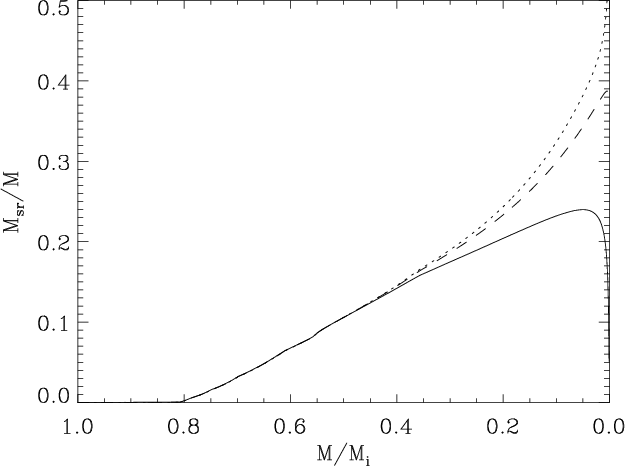

Figure 18: Influence of the black hole retention fraction on the total remnant mass fraction. Shown is the ratio of the total mass in stellar remnants to the cluster mass M versus the remaining cluster mass fraction. The solid, dashed and dotted lines represent km s^{1}, corresponding to for a cluster.

Open with DEXTER
6 Discussion and applications
The results of this paper show that the stellar MFs in star clusters differ strongly from their initial forms due to dynamical cluster evolution. The specific kinds of these differences depend on the properties of the star clusters and their tidal environment, most importantly on the disruption time, remnant retention fraction, and IMF^{}.A physical model for the evolution of the stellar MF is presented in which twobody relaxation leads to a stellar mass dependence of the escape rate. For any particular stellar mass, the escape rate is determined by the typical proximity of that mass to the escape energy and by the timescale on which the twobody relaxation with the other stars takes place. Combined with a prescription for stellar evolution, stellar remnant production, and remnant retention using kick velocity dispersions, this provides a description for the total evolution of the MF. This description is independent of the adopted total mass evolution. The model shows that the slope of the mass function is a possible indicator for the mass fraction that has been lost due to dissolution, provided that the IMF does not vary and the remnant retention fraction has been fairly similar for young globular clusters^{}.
For the exact same initial conditions, the model shows excellent agreement with Nbody simulations of the evolving MF by Baumgardt & Makino (2003). However, an important advantage of the presented model compared to the (more accurate) Nbody simulations is its short runtime and corresponding flexibility. It can be easily applied to compute the evolution of clusters for a large range of initial conditions. The results can then be used to identify interesting cases for more detailed and less simplified calculations with Nbody or Monte Carlo models.
The most important simplification of the model is neglecting the effect of binary encounters on the stellar mass dependence of the escape rate. To incorporate binaries, a conclusive census of the binary population in star clusters would be required, which is not yet available. Nonetheless, it is possible to make a qualitative estimate for the effect of binaries. The encounter rate of binaries would typically be higher than that of individual stars, because the cross section of binaries is larger. This would increase the relative escape rate at the stellar mass for which the binary fraction^{} peaks. This binary fraction is found to increase with primary mass (see e.g. Kouwenhoven et al. 2009). Because massive stars are removed by stellar evolution, this implies that the binary fraction decreases with age, which is in agreement with the low binary fraction observed in globular clusters (, e.g. Richer et al. 2004). The effect of binaries on the evolution of the mass function would thus be most notable if the majority of the dynamical mass loss occurs at ages <50 Myr (the typical lifetime of an star), in which case it would somewhat enhance the relative escape rate of the most massive stars. The influence is expected to be small, since the presence of binaries mainly affects ejections by hard encounters and leaves the overall evaporation rate largely unchanged (Küpper et al. 2008). On the other hand, neglecting binary encounters of massive remnants such as black holes could underestimate their escape rate for times beyond 50 Myr. This would imply that the model overestimates the impact of the black hole retention fraction on the evolution of the MF.
The model is applied to investigate the influence of the disruption time and remnant retention on the evolution of the MF and integrated photometric properties of star clusters. For total disruption times Gyr, the modeled relative escape rate is highest at a certain ``sweet spot'' mass that is typically 1520% of the mass of the most massive objects in the cluster. For longer lifetimes, the evolution of the MF is dominated by lowmass star depletion, unless the retention fraction of massive stellar remnants is larger than 0.25. Only in the particular case of such a high retention fraction, the M/L ratio is increased by dynamical evolution when the cluster approaches total disruption. In all other scenarios, the M/L ratio decreases because the most massive (luminous) stars are kept^{}. When defining the slope of the MF in the range 3080% of the maximum stellar mass, this gives a clear relation between the MF slope and the M/L ratio. For slopes that are defined in fixed mass ranges, there is not necessarily a correlation between slope and M/L ratio if Gyr. In clusters with a longer total disruption time, both quantities are related. Dynamical cluster evolution is found to induce some reddening of the integrated cluster colours, amounting up to 0.10.2 mag in VI for total disruption times Gyr. The fraction of the cluster mass that is constituted by remnants surprisingly decreases if more black holes are retained, because the black holes preferentially eject bodies around the masses of white dwarfs and neutron stars, which contain most of the total remnant mass.

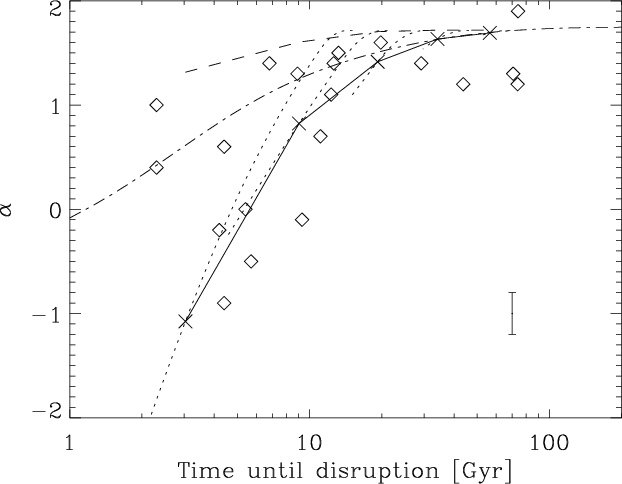

Figure 19: MF slope versus remaining lifetime (assuming a globular cluster age of 12 Gyr). Diamonds represent the observed values from De Marchi et al. (2007), with typical errors as shown by the error bar in the lower right corner. The remaining lifetimes are taken from Baumgardt et al. (2008). Dotted curves represent the model evolutionary tracks of clusters with from Sect. 5.2 with km s^{1}, corresponding to for a cluster. The solid line connects the presentday locations of the modeled clusters in the diagram (crosses), while the dashed line represents the same relation for km s^{1} ( for a cluster). The dashdotted line shows the homologous cluster evolution from Baumgardt & Makino (2003).

Open with DEXTER
Contrary to what is suggested by other studies (e.g. Anders et al. 2009; Baumgardt & Makino 2003), the evolution of the MF is not homologous. The reason that these studies concluded that its evolution is very similar for all clusters (also see Figs. 6 and 7), is that they assumed that all remnants were retained. It is illustrated in Fig. 14 that the differences between clusters with dissimilar disruption times disappear when the retention fraction increases. For realistic retention fractions, differences do arise. If two clusters with different initial masses have the same total disruption time, their MF evolution will be dissimilar due to their different remnant retention fractions and the impact of the retained remnants on the dynamical cluster evolution. Alternatively, if two clusters have equal initial masses but different total disruption times, for instance due to differences in their galactic location or environment, their MF evolution will be dissimilar due to the dynamical impact of the evolution of the maximum stellar mass.
The larger variation of MF evolution that is found with presented model may also be able to explain observations of globular clusters in which the MF cannot be characterised by a single power law (De Marchi et al. 2000). If the evolution of the MF were homologous, these features would likely be primordial (Baumgardt & Makino 2003), but this is not necessarily the case when using realistic retention fractions. Most other differences between the results presented in Sect. 5 and those from Baumgardt & Makino (2003) are also due to their assumption of full remnant retention. For example, their M/L ratio evolution shows a smaller decrease than in Fig. 11. This is explained in Fig. 16, where it is shown that dynamical evolution reduces the M/L ratio by a smaller amount if the retention fraction is larger.
Studies on the fractal nature of cluster formation show that star clusters are initially substructured (Elmegreen 2000; Bonnell et al. 2003). Even though this substructure is typically erased on a crossing time, it can induce primordial mass segregation in star clusters (McMillan et al. 2007; Allison et al. 2009). The influence of primordial mass segregation on the evolution of the MF has recently been investigated by Baumgardt et al. (2008) and Vesperini et al. (2009). While Baumgardt et al. (2008) do not include stellar evolution and concentrate on twobody relaxation, Vesperini et al. (2009) do include stellar evolution. They show that for some degrees of primordial mass segregation, the mass loss by stellar evolution can induce additional dynamical mass loss that strongly decreases the total disruption time. For clusters that survive for a Hubble time, the MF evolution in the case of primordial mass segregation is very similar to an initially unsegregated cluster. Vesperini et al. (2009) conclude that the evolution of the MF is only affected by primordial mass segregation for clusters in which the total disruption time is sufficiently decreased by the induced mass loss. In that case, the slope of the MF remains much closer to its initial value than it would in clusters without primordial mass segregation. Their conclusion is consistent with the model presented in this paper, because the evolution of the MF is determined by the most massive stars at the time when the largest mass loss occurs (see Figs. 4 and 9). This induced mass loss enters the model in terms of the absolute mass loss rate in Eq. (3), not in the stellar massdependent escape rate per unit mass loss rate of Eq. (13).
A change in total mass loss rate is not the only consequence of primordial mass segregation. Baumgardt et al. (2008) have shown that lowmass star depletion is enhanced for clusters without stellar evolution that are primordially masssegregated. This occurs because energy equipartition is reached on a shorter timescale and because of their use of a fixed ( ) maximum stellar mass. As a result, there are no massive bodies to increase the escape rate of intermediate mass stars (see Fig. 5), implying that only the lowmass stars are preferentially lost. In the present paper, mass segregation is assumed to arise dynamically, but the model could in principle be adapted to cover primordial mass segregation by setting c_{2}=0 and adjusting c_{1} to the initial velocity distribution until it is erased by dynamical evolution (see Eq. (22)), after which the values from Sect. 3 can be used^{}. This does not necessarily yield enhanced lowmass star depletion for clusters with a complete IMF (including masses ) because of the presence of massive stars or remnants.
The presented model can be applied to the MFs of Galactic globular clusters that are observed by De Marchi et al. (2007). These MFs are more strongly depleted than is found in the Nbody simulations by Baumgardt & Makino (2003), which has been attributed to primordial mass segregation (Baumgardt et al. 2008). However, the observations can also very accurately be explained with the realistic remnant retention fractions that are used in the present paper. This is shown in Fig. 19, where the observed MF slopes and remaining lifetimes of the globular clusters from De Marchi et al. (2007) are compared with the globular clusterlike models from Sect. 5.2 (t_{0}=1 Myr). The models are in much better agreement with the data than the Nbody runs with complete remnant retention from Baumgardt & Makino (2003). Deviations to other values of can occur due to variations in disruption time and remnant retention fractions, as is also shown in Fig. 19. For example, a variation of the remnant kick velocity with metallicity in combination with the known variation of the disruption time (see e.g. Kruijssen & Portegies Zwart 2009; Kruijssen & Mieske 2009) should be sufficient to cover the observed scatter.
The above line of reasoning provides an explanation for the the depleted MFs in Fig. 19 that is consistent with the simulations by Vesperini et al. (2009), who showed that the effects of primordial mass segregation are in fact suppressed in longlived clusters due to the expansion caused by stellar evolution. This increases the relaxation time and yields an evolution of the MF that is very similar to the initially unsegregated scenario, indicating that primordial mass segregation is not a likely explanation for strongly depleted MFs. Observations of the remnant composition of these globular clusters could reveal a definitive answer as to whether the depleted MFs are explained by primordial mass segregation or by dynamical evolution with a realistic remnant retention fraction.
Dynamical cluster evolution does not appear to have a large effect on the colours of old (globular) clusters. The only way in which the colours could be affected beyond typical observational errors, is if globular clusters have lost substantial fractions of their masses during the first Gyr after their formation. In that case, the dynamical evolution of the stellar MF in globular clusters may have implications for studies of colour bimodality (e.g. Larsen et al. 2001) or the blue tilt (e.g. Harris et al. 2006). It could then also possibly explain the trend of increasing VK colour with decreasing M/L_{V} ratio found by Strader et al. (2009) for globular clusters in M 31, because quickly dissolving clusters generally become redder and have reduced M/L ratios. More research is needed to determine the role of the changing MF in the above properties of globular cluster systems.
It can be concluded that the evolution of the stellar MF in star clusters is not as similar for all clusters as previously thought. Its precise evolution is determined by cluster characteristics like the disruption time, the remnant retention fraction, initialfinal stellar mass relation, and the IMF. In order to decipher the evolution of observed star clusters, it is essential to record these characteristics and to relate them to possible scenarios for the internal evolution of clusters. That way, observables like the slope of the MF, the M/L ratio, the broadband colours, and the mass fraction in remnants can be better understood.
AcknowledgementsI thank Henny Lamers and Simon Portegies Zwart for support, advice and constructive comments on the manuscript. I also thank Douglas Heggie for inspiring suggestions during the KITP conference on globular clusters in Santa Barbara and for commenting on the manuscript. Holger Baumgardt is acknowledged for interesting discussions and for kindly providing the data from Baumgardt & Makino (2003) and Baumgardt et al. (2008). I would like to thank Nate Bastian, Mark Gieles and Peter Kruijssen for constructive comments on the manuscript. I am indebted to Mark Gieles for kindly providing Nbody runs for different IMFs. The referee, Thijs Kouwenhoven, is thanked for thoughtful comments. The Institute of Astronomy in Cambridge is gratefully acknowledged for their kind hospitality during my visit, when a large part of this work was carried out. This research is supported by a TopTalent fellowshipfrom the Netherlands Organisation for Scientific Research (NWO), grant number 021.001.038.
References
 Aarseth, S. J. 1999, PASP, 111, 1333 [NASA ADS] [CrossRef]
 Aarseth, S. J., & Heggie, D. C. 1998, MNRAS, 297, 794 [NASA ADS] [CrossRef]
 Allison, R. J., Goodwin, S. P., Parker, R. J., et al. 2009, ApJ, 700, L99 [NASA ADS] [CrossRef]
 Anders, P., Lamers, H. J. G. L. M., & Baumgardt, H. 2009, A&A, 502, 817 [NASA ADS] [CrossRef] [EDP Sciences]
 Arzoumanian, Z., Chernoff, D. F., & Cordes, J. M. 2002, ApJ, 568, 289 [NASA ADS] [CrossRef]
 Baumgardt, H. 2001, MNRAS, 325, 1323 [NASA ADS] [CrossRef]
 Baumgardt, H., & Makino, J. 2003, MNRAS, 340, 227 [NASA ADS] [CrossRef]
 Baumgardt, H., De Marchi, G., & Kroupa, P. 2008, ApJ, 685, 247 [NASA ADS] [CrossRef]
 Bertelli, G., Bressan, A., Chiosi, C., Fagotto, F., & Nasi, E. 1994, A&AS, 106, 275 [NASA ADS]
 Boily, C. M., Fleck, J.J., Lançon, A., & Renaud, F. 2009, Ap&SS, 110
 Bonnell, I. A., Bate, M. R., & Vine, S. G. 2003, MNRAS, 343, 413 [NASA ADS] [CrossRef]
 Chernoff, D. F., & Weinberg, M. D. 1990, ApJ, 351, 121 [NASA ADS] [CrossRef]
 Davis, D. S., Richer, H. B., King, I. R., et al. 2008, MNRAS, 383, L20 [NASA ADS]
 De Marchi, G., & Pulone, L. 2007, A&A, 467, 107 [NASA ADS] [CrossRef] [EDP Sciences]
 De Marchi, G., Paresce, F., & Pulone, L. 2000, ApJ, 530, 342 [NASA ADS] [CrossRef]
 De Marchi, G., Paresce, F., & Pulone, L. 2007, ApJ, 656, L65 [NASA ADS] [CrossRef]
 Drukier, G. A. 1996, MNRAS, 280, 498 [NASA ADS]
 Elmegreen, B. G. 2000, ApJ, 530, 277 [NASA ADS] [CrossRef]
 Fregeau, J. M., Richer, H. B., Rasio, F. A., & Hurley, J. R. 2009, ApJ, 695, L20 [NASA ADS] [CrossRef]
 Fryer, C. L., & Kalogera, V. 2001, ApJ, 554, 548 [NASA ADS] [CrossRef]
 Fukushige, T., & Heggie, D. C. 2000, MNRAS, 318, 753 [NASA ADS] [CrossRef]
 Gieles, M., & Baumgardt, H. 2008, MNRAS, 389, L28 [NASA ADS]
 Girardi, L., Bressan, A., Bertelli, G., & Chiosi, C. 2000, A&AS, 141, 371 [NASA ADS] [CrossRef] [EDP Sciences]
 Harris, W. E. 1996, AJ, 112, 1487 [NASA ADS] [CrossRef]
 Harris, W. E., Whitmore, B. C., Karakla, D., et al. 2006, ApJ, 636, 90 [NASA ADS] [CrossRef]
 Heggie, D., & Hut, P. 2003, The Gravitational MillionBody Problem: A Multidisciplinary Approach to Star Cluster Dynamics (Cambridge University Press), 372
 Hénon, M. 1960, Annales d'Astrophysique, 23, 668 [NASA ADS]
 Hénon, M. 1969, A&A, 2, 151 [NASA ADS]
 Kalirai, J. S., Hansen, B. M. S., Kelson, D. D., et al. 2008, ApJ, 676, 594 [NASA ADS] [CrossRef]
 King, I. R. 1966, AJ, 71, 64 [NASA ADS] [CrossRef]
 Kouwenhoven, M. B. N., Brown, A. G. A., Goodwin, S. P., Portegies Zwart, S. F., & Kaper, L. 2009, A&A, 493, 979 [NASA ADS] [CrossRef] [EDP Sciences]
 Kroupa, P. 2001, MNRAS, 322, 231 [NASA ADS] [CrossRef]
 Kruijssen, J. M. D. 2008, A&A, 486, L21 [NASA ADS] [CrossRef] [EDP Sciences]
 Kruijssen, J. M. D., & Lamers, H. J. G. L. M. 2008, A&A, 490, 151 [NASA ADS] [CrossRef] [EDP Sciences]
 Kruijssen, J. M. D., & Mieske, S. 2009, A&A, 500, 785 [NASA ADS] [CrossRef] [EDP Sciences]
 Kruijssen, J. M. D., & Portegies Zwart, S. F. 2009, ApJ, 698, L158 [NASA ADS] [CrossRef]
 Küpper, A. H. W., Kroupa, P., & Baumgardt, H. 2008, MNRAS, 389, 889 [NASA ADS] [CrossRef]
 Lamers, H. J. G. L. M., Anders, P., & De Grijs, R. 2006, A&A, 452, 131 [NASA ADS] [CrossRef] [EDP Sciences]
 Lamers, H. J. G. L. M., Gieles, M., & Baumgardt, H. 2009, A&A, to be submitted
 Lamers, H. J. G. L. M., Gieles, M., Bastian, N., et al. 2005, A&A, 441, 117 [NASA ADS] [CrossRef] [EDP Sciences]
 Larsen, S. S. 2004, A&A, 416, 537 [NASA ADS] [CrossRef] [EDP Sciences]
 Larsen, S. S., Brodie, J. P., Huchra, J. P., Forbes, D. A., & Grillmair, C. J. 2001, AJ, 121, 2974 [NASA ADS] [CrossRef]
 Lyne, A. G., & Lorimer, D. R. 1994, Nature, 369, 127 [NASA ADS] [CrossRef]
 Marigo, P., Girardi, L., Bressan, A., et al. 2008, A&A, 482, 883 [NASA ADS] [CrossRef] [EDP Sciences]
 McMillan, S. L. W., Vesperini, E., & Portegies Zwart, S. F. 2007, ApJ, 655, L45 [NASA ADS] [CrossRef]
 Moody, K., & Sigurdsson, S. 2009, ApJ, 690, 1370 [NASA ADS] [CrossRef]
 Nomoto, K., Shigeyama, T., & Hashimoto, M. 1988, in Supernovae, Remnants, Active Galaxies, Cosmology, ed. G. Boerner, 34
 Pfahl, E., Rappaport, S., Podsiadlowski, P., & Spruit, H. 2002, ApJ, 574, 364 [NASA ADS] [CrossRef]
 Plummer, H. C. 1911, MNRAS, 71, 460 [NASA ADS]
 Portegies Zwart, S. F., McMillan, S. L. W., Hut, P., & Makino, J. 2001, MNRAS, 321, 199 [NASA ADS] [CrossRef]
 Richer, H. B., Fahlman, G. G., Buonanno, R., et al. 1991, ApJ, 381, 147 [NASA ADS] [CrossRef]
 Richer, H. B., Fahlman, G. G., Brewer, J., et al. 2004, AJ, 127, 2771 [NASA ADS] [CrossRef]
 Salpeter, E. E. 1955, ApJ, 121, 161 [NASA ADS] [CrossRef]
 Spitzer, L. 1987, Dynamical evolution of globular clusters (Princeton, NJ: Princeton University Press),191
 Strader, J., Smith, G. H., Larsen, S., Brodie, J. P., & Huchra, J. P. 2009, AJ, 138, 547 [NASA ADS] [CrossRef]
 Takahashi, K., & Portegies Zwart, S. F. 2000, ApJ, 535, 759 [NASA ADS] [CrossRef]
 Vesperini, E., & Heggie, D. C. 1997, MNRAS, 289, 898 [NASA ADS]
 Vesperini, E., McMillan, S. L. W., & Portegies Zwart, S. 2009, ApJ, 698, 615 [NASA ADS] [CrossRef]
 Wielen, R. 1971, A&A, 13, 309 [NASA ADS]
Footnotes
 ... clusters^{}
 Tables of models are only available in electronic form at the CDS via anonymous ftp to cdsarc.ustrasbg.fr (130.79.128.5) or via http://cdsweb.ustrasbg.fr/cgibin/qcat?J/A+A/507/1409
 ... function^{}
 Hereafter, ``mass function'' is referred to as ``MF''.
 ... dissolution^{}
 The model presented in this paper is independent of the mass loss rate and of the form of the IMF , but for explanatory purposes a Kroupa (2001) IMF is adopted later on.
 ... found^{}
 This prescription for c_{1} implies that the condition for the stars in the cluster to be physically bound is satisfied for all .
 ... earlier^{}
 Nonetheless, the relation for c_{1} should be expected to exhibit some variation for different mass ranges.
 ... simplicity^{}
 And because this is the only way to obtain an analytical solution as in Eq. (10).
 ... star^{}
 The energy difference that is discussed here concerns the energy that needs to be added to reach the escape energy. As such, it differs from the separation from the escape energy in Fukushige & Heggie (2000) and Baumgardt (2001), who are considering the excess energy of stars and its relation to the escape time, resulting in the aformentioned relation .
 ... stars^{}
 And the energy gain experienced by lowmass stars.
 ... exponentially^{}
 This form assumes that the increase of the fraction of the mass loss that is stellar massdependent scales with the total dynamical mass loss, which is a compromise between a step function and a linear increase.
 ... simulations^{}
 These were performed using NBODY4 (Aarseth 1999).
 ... parameter^{}
 For W_{0}=5, or , the results vary only marginally.
 ... fractions^{}
 High remnant retention fractions will be treated in the discussion of the influence of the retention fraction in Sect. 5.2.
 ... alternatives^{}
 Such as a constant radius or density.
 ...
^{}  For the clusters with relatively long disruption times that are considered in this section, the variable stellar mass range that was introduced in Sect. 5.1 to trace the relation between MF slope and M/L ratio gives an evolution of the slope that is comparable that for the fixed mass ranges. It is omitted from the figures in this section to improve their clarity.
 ... clusters^{}
 Any variability of the retention fraction would induce substantial scatter, see Sect. 5.2 and Fig. 19.
 ... IMF^{}
 Although not specifically shown in this paper (but not surprisingly), the differences also depend on the initialfinal stellar mass relation.
 ... fraction^{}
 The fraction of stars residing in binary or multiple systems.
 ... kept^{}
 This process differs from a possible variability of the proportionality between the velocity dispersion and the cluster mass, which concerns a much shorter timescale (e.g. Boily et al. 2009).
 ... used^{}
 As explained in Sect. 3, c_{1} represents the ratio of the mean speed squared to the central escape velocity squared that depends on the degree of mass segregation (and thus on the IMF). On the other hand, c_{2} is a proportionality constant in the expression for the onset of the stellar massdependent escape of stars, which depends on the concentration or King parameter.
All Figures
Figure 1: Retention fraction of stellar remnants as a function of cluster mass per unit Plummer radius M/r_{0}, for black holes (solid), neutron stars (dashed) and white dwarfs (dotted).

Open with DEXTER
In the text
Figure 2: Hénon function , which is a measure for the escape probability of a star of mass m in a twobody interaction with mass ratio . The dotted line shows the fit from Eq. (11).

Open with DEXTER
In the text
Figure 3: MF slope change in the range m=0.1 versus the remaining mass fraction for a Kroupa IMF (solid), Salpeter IMF (dotted), and a power law IMF with (dashed). In all cases, the IMF mass range is m=0.1 . The displayed relation is valid if stellar evolution is excluded.

Open with DEXTER
In the text
Figure 4: Relative escape rate as a function of stellar mass, shown for a Kroupa MF with different maximum masses. The end point of each curve (dot) marks its maximum mass. The quantity represents the escape rate per unit mass loss rate normalised to the number of stars at each mass (also see Eq. (13)).

Open with DEXTER
In the text
Figure 5: Mass of the highest relative escape rate as a function of the maximum stellar mass of the MF (solid line). The dashed line represents the relation , while the dotted line describes an eyeball fit for masses and includes an exponential truncation at the lowmass end (see Eq. (23)).

Open with DEXTER
In the text
Figure 6: Comparison of the evolution of the stellar MF from the models (dashed) to the Nbody runs from Baumgardt & Makino (2003, solid) for the exact same boundary conditions. The initial number of particles and the galactocentric radius are indicated in the bottomleft corner of each panel. From top to bottom, the subsequent MFs in each panel are shown for the times at which the remaining cluster mass fraction equals .

Open with DEXTER
In the text
Figure 7: Comparison of the evolution of the stellar MF from the models (dashed) to the Nbody run from Baumgardt & Makino (2003, solid) with W_{0}=7 for the exact same boundary conditions. From top to bottom, the subsequent MFs are shown for the times at which the remaining cluster mass fraction equals .

Open with DEXTER
In the text
Figure 8: Influence of the constants c_{1} and c_{2} on the evolution of the stellar MF. From top to bottom, the subsequent MFs in each panel are shown for the times at which the remaining cluster mass fraction equals . Top panel: the values are represented by dashed, solid and dotted lines, respectively. Bottom panel: the values are represented by dashed, solid and dotted lines, respectively. For both c_{1} and c_{2}, the second (boldfaced) value is the one obtained from the comparison to the Nbody simulations with W_{0}=5 in Fig. 6.

Open with DEXTER
In the text
Figure 9: Influence of the disruption time on the evolution of the stellar MF for a cluster with a low remnant retention fraction ( ). From top to bottom, the subsequent MFs in each panel are shown for the times at which the remaining cluster mass fraction equals .

Open with DEXTER
In the text
Figure 10: Influence of the disruption time on the stellar MF slope in the range (solid) and (dashed) for a cluster with a low remnant retention fraction ( ). Shown is versus the remaining cluster mass fraction. From top to bottom, for each mass range the lines represent Myr, corresponding to Gyr.

Open with DEXTER
In the text
Figure 11: Influence of the disruption time on the M/L_{V} ratio evolution for a cluster with a low remnant retention fraction ( ). Shown is the relative M/L_{V} ratio decrease with respect to the value expected for stellar evolution versus the remaining cluster mass fraction. The solid, dashed and dotted lines represent Myr, respectively, corresponding to Gyr.

Open with DEXTER
In the text
Figure 12: Influence of the disruption time on the combined evolution of the MF slope and the M/L_{V} ratio for a cluster with a low remnant retention fraction ( ). Shown is versus the relative M/L_{V} ratio decrease due to dynamical evolution. All clusters start at the vertical line . Solid lines denote the slope in the mass range , dashed lines designate the mass range , and dotted lines represent the mass range , with from top to bottom Myr, corresponding to Gyr.

Open with DEXTER
In the text
Figure 13: Influence of the disruption time on the VI colour for a cluster with a low remnant retention fraction ( ). Shown is the colour offset due to dynamical evolution versus the remaining mass fraction. The solid, dashed and dotted lines represent Myr, respectively, corresponding to Gyr.

Open with DEXTER
In the text
Figure 14: Influence of the black hole kick velocity dispersion and disruption time on the evolution of the stellar MF for an initial cluster mass . From top to bottom, the subsequent MFs in each panel are shown for the times at which the remaining cluster mass fraction equals . Solid lines denote t_{0}=1 Myr ( Gyr), while dotted lines represent t_{0}=0.1 Myr ( Gyr).

Open with DEXTER
In the text
Figure 15: Influence of the black hole retention fraction on the stellar MF slope in the range (solid) and (dashed) for an initial cluster mass . Shown is versus the remaining cluster mass fraction. From top to bottom, for each mass range the lines represent km s^{1}, corresponding to for a cluster.

Open with DEXTER
In the text
Figure 16: Influence of the black hole retention fraction on the M/L_{V} ratio evolution for an initial cluster mass . Shown is the relative M/L_{V} ratio decrease with respect to the value expected for stellar evolution versus the remaining cluster mass fraction. The solid, dashed and dotted lines represent km s^{1}, corresponding to for a cluster.

Open with DEXTER
In the text
Figure 17: Influence of the black hole retention fraction on the combined evolution of the MF slope and the M/L_{V} ratio for an initial cluster mass . Shown is versus the relative M/L_{V} ratio decrease due to dynamical evolution. All clusters start at the vertical line . Solid lines denote the slope in the mass range and the dashed lines designate the mass range , with from right to left km s^{1}, corresponding to for a cluster.

Open with DEXTER
In the text
Figure 18: Influence of the black hole retention fraction on the total remnant mass fraction. Shown is the ratio of the total mass in stellar remnants to the cluster mass M versus the remaining cluster mass fraction. The solid, dashed and dotted lines represent km s^{1}, corresponding to for a cluster.

Open with DEXTER
In the text
Figure 19: MF slope versus remaining lifetime (assuming a globular cluster age of 12 Gyr). Diamonds represent the observed values from De Marchi et al. (2007), with typical errors as shown by the error bar in the lower right corner. The remaining lifetimes are taken from Baumgardt et al. (2008). Dotted curves represent the model evolutionary tracks of clusters with from Sect. 5.2 with km s^{1}, corresponding to for a cluster. The solid line connects the presentday locations of the modeled clusters in the diagram (crosses), while the dashed line represents the same relation for km s^{1} ( for a cluster). The dashdotted line shows the homologous cluster evolution from Baumgardt & Makino (2003).

Open with DEXTER
In the text
Copyright ESO 2009
