APEX-CHAMP+ high-J CO observations of low-mass young stellar objects

II. Distribution and origin of warm molecular gas[*]

T. A. van Kempen1,2 - E. F. van Dishoeck1,3 - R. Güsten4 - L. E. Kristensen1 - P. Schilke4 - M. R. Hogerheijde1 - W. Boland1,5 - K. M. Menten4 - F. Wyrowski4

1 - Leiden Observatory, Leiden University, PO Box 9513, 2300 RA Leiden, The Netherlands
2 - Center for Astrophysics, 60 Garden Street, Cambridge, MA 02138, USA
3 - Max-Planck Institut für Extraterrestrische Physik (MPE), Giessenbachstr. 1, 85748 Garching, Germany
4 - Max Planck Institut für Radioastronomie, Auf dem Hügel 69, 53121 Bonn, Germany
5 - Nederlandse Onderzoeksschool Voor Astronomie (NOVA), PO Box 9513, 2300 RA Leiden, The Netherlands
6 - SRON Netherlands Institute for Space Research, PO Box 800, 9700 AV Groningen, The Netherlands

Received 15 May 2009 / Accepted 18 August 2009

Abstract
Context. The origin and heating mechanisms of warm (50<T< 200 K) molecular gas in low-mass young stellar objects (YSOs) are strongly debated. Both passive heating of the inner collapsing envelope by the protostellar luminosity as well as active heating by shocks and by UV associated with the outflows or accretion have been proposed. Most data so far have focussed on the colder gas component.
Aims. We aim to characterize the warm gas within protosteller objects, and disentangle contributions from the (inner) envelope, bipolar outflows and the quiescent cloud.
Methods. High-J CO maps (12CO J=6-5 and 7-6) of the immediate surroundings (up to 10 000 AU) of eight low-mass YSOs are obtained with the CHAMP+ 650/850 GHz array receiver mounted on the APEX telescope. In addition, isotopologue observations of the 13CO J=6-5 transition and [C I] $^3\rm P_2-^3\!P_1$ line were taken.
Results. Strong quiescent narrow-line 12CO 6-5 and 7-6 emission is seen toward all protostars. In the case of HH 46 and Ced 110 IRS 4, the on-source emission originates in material heated by UV photons scattered in the outflow cavity and not just by passive heating in the inner envelope. Warm quiescent gas is also present along the outflows, heated by UV photons from shocks. This is clearly evident in BHR 71 for which quiescent emission becomes stronger at more distant outflow positions. Shock-heated warm gas is only detected for Class 0 flows and the more massive Class I sources such as HH 46. Outflow temperatures, estimated from the CO 6-5 and 3-2 line wings, are $\sim$100 K, close to model predictions, with the exception of the L 1551 IRS 5 and IRAS 12496-7650, for which temperatures <50 K are found.
Conclusions. APEX-CHAMP+ is uniquely suited to directly probe the protostar's feedback on its accreting envelope gas in terms of heating, photodissociation, and outflow dispersal by mapping $\sim$ $1'\times1'$regions in high-J CO and [C I] lines. Photon-heating of the surrounding gas may prevent further collapse and limit stellar growth.

Key words: astrochemistry - stars: formation - ISM: jets and outflows - submillimeter - stars: circumstellar matter - stars: pre-main sequence

1 Introduction

Low-mass (M<3 $M_{\odot}$) Stage 0 and Stage 1 protostars (Robitaille et al. 2006) have two distinct components. First, they are surrounded by a protostellar envelope, consisting of a reservoir of gas and dust, which can feed the star and disk. The envelope can be divided into cold ( $T\sim10{-}20$ K) outer regions and a warm (T>50 K) inner region (Shirley et al. 2002; Whitney et al. 2003a; Adams et al. 1987; Shirley et al. 2000; Robitaille et al. 2006; Jørgensen et al. 2002; Schöier et al. 2002). Second, most, if not all, embedded protostars have molecular outflows(Bachiller 1996; Hirano et al. 2006; Arce & Sargent 2005; Bachiller & Tafalla 1999; Lee & Ho 2005). These outflows have been observed to have a wide variety in intensity, collimation and affected area, ranging from the strong and large (ten thousands of AU) outflows seen in L 1448, L 1551 IRS 5 and HH 46 (e.g., Heathcote et al. 1996; Bachiller et al. 1994; van Kempen et al. 2009, from here on referred to as Paper I) to the weak, much more compact, outflows as found for TMR 1 and TMC-1 (Hogerheijde et al. 1998; Cabrit & Bertout 1992). Such molecular outflows are observed to widen with time and influence the evolution of the envelope (e.g., Arce & Sargent 2005).

Envelope models can be constructed using either a 1-D or 2-D self-consistent dust radiative transfer calculation, constrained by observations of the cold dust (e.g. Shirley et al. 2002; Jørgensen et al. 2002) and/or the spectral energy distribution (SED) (e.g. Whitney et al. 2003a,b; Robitaille et al. 2006; Crapsi et al. 2008). Combining heterodyne observations with radiative transfer calculations, one can in turn analyze line emission of a large range of molecules and determine their origin and excitation conditions, both in the inner and outer regions of protostellar envelopes as well as in circumstellar disks and fore-ground components (e.g. Lee et al. 2007; Brinch et al. 2007; Maret et al. 2004; Jørgensen 2004; Boogert et al. 2002). Envelope models predict that the inner regions are warm (T>100 K), dense (n(H2) >106 cm-3) and relatively small (R< 500 AU). Most molecular lines observable at (sub)mm wavelengths trace the colder gas, but a few lines, such as the high-J CO lines, directly probe the warm gas. The atmospheric windows at 650 and 850 GHz are the highest frequency windows in which observations of CO (up to energy levels of $\sim$150 K) can be routinely carried out. Unfortunately, few studies have succesfully observed CO transitions or its isotopologues in these atmospheric windows due to the excellent weather conditions necessary. In addition, such studies are often limited to single spectra of only a handful of YSOs (e.g. Parise et al. 2006; Schuster et al. 1993; Ceccarelli et al. 2002; Hogerheijde et al. 1998; Stark et al. 2004; Schuster et al. 1995; van Kempen et al. 2006). The lack of spatial information on the warm gas distribution has prevented an in-depth analysis. Comparison between ground-based high-J CO observations and far-IR CO transitions (CO 15-14 and higher) do not always agree on the origin of the high-J CO lines (van Kempen et al. 2006).

Complex molecules such as H2CO and CH3OH, emit in high excitation lines at longer wavelengths, and have been observed to have surprisingly high abundances in low-mass protostars (e.g. Ceccarelli et al. 2000; Bottinelli et al. 2007,2004; Blake et al. 1995; van Dishoeck et al. 1995; Maret et al. 2004; Jørgensen 2004; Schöier et al. 2002). Unfortunately, the abundances of these molecules are influenced by the gas-phase and grain surface chemistry, complicating their use as tracers of the physical structure (e.g., Bisschop et al. 2007). It has been proposed that the emission of such molecules originates inside a hot core region, a chemically active area close to the star, coinciding with the passively heated warm inner region of the protostellar envelope where ices have evaporated (Ceccarelli et al. 2000; Bottinelli et al. 2007,2004). However, to fully understand the origin of these complex organics, knowledge of the structure of the warm gas is an essential ingredient.

Warm gas near protostars can have different origins than passive heating alone. Outflow shocks passing through the envelope can be a source of heat. Quiescent gas, heated by X-rays or UV, is present in the inner envelope. For example, Stäuber et al. (2004) show that significant amounts of far ultra-violet (FUV) or X-ray photons are necessary to reproduce the line intensities and the derived abundances of molecules, such as CO+, CN, CH+ and NO in both high and low-mass protostars. Spaans et al. (1995) investigated photon heating of outflow cavity walls to reproduce the observed line intensties and widths of 12CO 6-5 and 13CO 6-5 emission in Class I sources (Hogerheijde et al. 1998). In Paper I, an extension of this model is proposed in which a Photon Dominated Region (PDR) at the outflow/envelope cavity walls is present in the HH 46 outflow to explain the relatively strong and quiescent high-J CO emission. The emission of [C I] can constrain the color and extent of the more energetic photons. Apart from the accretion disk, UV photons are also produced by the jet shocks in the outflow cavity and the outflow bow shock. All these models provide different predictions for the spatial extent of the warm gas ($\sim$1 $\hbox{$^\prime$ }$for the outflow to <1 $\hbox{$^{\prime\prime}$ }$for a passively heated envelope), as well as the different integrated intensities and line profiles of the high-J CO transitions.

The most direct tracers of the warm (50<T<200 K) gas are thus the high-J CO lines. So far, studies to directly detect the warm gas components through these lines have rarely been able to disentangle the envelope and outflow contributions. Far infrared (IR) transitions of even higher-J CO, the far-IR CO lines, have been observed using the ISO-LWS instrument to trace the inner regions (e.g., Giannini et al. 2001; Nisini et al. 2002; Ceccarelli et al. 1998; Nisini et al. 1999; Giannini et al. 1999), but could not unambigiously constrain the origin of the warm gas emission, due to the limited spatial and spectral resolution.

The Chajnantor plateau in northern Chile, where the recently commissioned Atacama Pathfinder EXperiment (APEX)[*] is located, currently is the only site able to perform routine observations within the high frequency atmospheric windows at high ($\leq$10 $\hbox{$^{\prime\prime}$ }$) spatial resolutions. The CHAMP+ instrument, developed by the MPIfR and SRON Groningen, is the only instrument in the world able to simultaneously observe molecular line emission in the 650 and 850 GHz atmospheric windows on sub-arcminute spatial scales and is thus ideally suited to probe the warm gas directly through observations of the 6-5, 7-6 and 8-7 transitions of CO and its isotopologues with 7-9 $\hbox{$^{\prime\prime}$ }$angular resolution (Güsten et al. 2008; Kasemann et al. 2006). CHAMP+ has 14 pixels (7 in each frequency window) and is thus capable of fast mapping of the immediate surroundings of embedded YSOs. The Herschel Space Observatory will allow observations of far-IR CO lines at spectral and spatial resolution similar to APEX ($\sim$10 $\hbox{$^{\prime\prime}$ }$). Note also that the beam of Herschel is comparable or smaller than the field of view of CHAMP+ at its longer wavelenghts ($\sim$500 $\mu $m). Thus the CHAMP+ data obtained here provide information of the distribution of warm gas within the Herschel beams.

In Paper I, we presented the results for one source, HH 46 IRS. In this paper, we present observations of CO and its isotopologues using CHAMP+ for seven additional embedded YSOs and compare them with the HH 46 case. Section 2 presents the sample and observations. The resulting spectral maps are shown in Sect. 3. Section 4 discusses the envelope and outflow structure, while the heating within protostellar envelopes and molecular outflows is analyzed in Sect. 5. Section 6 investigates the relation between the emission of more complex molecules and the emission of high-J CO. Final conclusions are given in Sect. 7.

2 Sample and observations

2.1 Observations

The sample was observed using the CHAMP+ array (Güsten et al. 2008; Kasemann et al. 2006) on APEX (Kasemann et al. 2006). CHAMP+ observes simultaneously in the 650 GHz (450 $\mu $m, CHAMP+-I) and 850 GHz (350 $\mu $m, CHAMP+-II) atmospheric windows. The array has 7 pixels for each frequency, arranged in a hexagon of 6 pixels around 1 central pixel, for a total of 14 pixels. During the observations, the backend consisted of 2 Fast Fourier Transform Spectrometer (FFTS) units serving the central pixel, and 12 MPI-Auto-Correlator Spectrometer (MACS) units serving the other pixels. The FFTS units are capable of observing up to a resolution of 0.04 km s-1 (0.12 MHz) and the MACS units to a spectral resolution of 0.37 km s-1 (1 MHz), both at a frequency of 806 GHz. The observations were done during three observing runs in June 2007, October-November 2007 and July 2008 in three different line settings; see Table 1. Note that in July 2008, all pixels were attached to FFTS units and no MACS backends were used. For mapping purposes, the array was moved in a small hexagonal pattern to provide a fully Nyquist sampled map or in an on-the-fly (OTF) mode. The ``hexa'' pattern covers a region of about $30\hbox{$^{\prime\prime}$ }\times30\hbox{$^{\prime\prime}$ }$. For some sources, a slightly larger area was mapped in a small OTF ( $40\hbox {$^{\prime \prime }$ }\times 40\hbox {$^{\prime \prime }$ }$) map in 12CO 6-5/7-6. Both kinds of maps were regridded to a regular grid with standard rebinning algorithms included in the CLASS package[*]. A binning method that uses equal weight binning was adopted to produce contour maps. A pixelsize of 1/3rd of the beamsize was adopted to create accurate contour maps. CLASS was also used as the main reduction package for individual lines. At the edge of the maps, noise levels are often higher due to the shape of the CHAMP+ array. NGC 1333 IRAS 2, TMR 1 and RCrA IRS 7 were observed using the hexa mode and have smaller covered areas. Due to the different beams at 690 and 800 GHz, small differences exist between the areas covered in CO 6-5 and 7-6. For the C18O 6-5/13CO 8-7 (setting C; only done for HH 46), a stare mode was used to increase the S/N within the central pixel. A position switch of 900 $^{\prime \prime }$was used for all settings, except for the stare setting C, which used a beam-switching of 90 $^{\prime \prime }$.

Beam efficiencies, derived using observations on planets during each run, are 0.56 for CHAMP+-I and 0.43 for CHAMP+-II. These efficiencies were found to vary by less than 10$\%$ over a single observing run and between runs. Between pixels the variation is similar, all within 10$\%$. Depending on observing mode, a given sky position is covered by many (all) pixels, so the average (relative) calibration error will be a few per cent. Typical single side-band system temperatures are 700 K for CHAMP+-I and 2100 K for CHAMP+-II. The 12-m APEX dish produces a beam of 9 $^{\prime \prime }$at 650 GHz and 7 $\hbox{$^{\prime\prime}$ }$at 850 GHz. Pointing was checked on various planets and sources and was found to be within 3 $\hbox{$^{\prime\prime}$ }$. Calibration of the sources was done using similar observations, as well as hot and cold loads. The typical sideband rejection at both frequencies was measured to be less than 10dB. At APEX 10 dB is used as the input to the calibrator (both continuum and line. From all these effects, the total calibration error is estimated to be $\sim$30$\%$, including the atmospheric model. Note that all technical aspects of CHAMP+ will be discussed more extensively in Güsten et al. (to be submitted to A&A, see also Güsten et al. 2008).

The difference in CO 7-6 emission of 60$\%$ for IRAS 12496-7650 in van Kempen et al. (2006) and this paper can be accounted for by the respective calibration and pointing errors of FLASH and CHAMP+. A factor of 2 difference is found with the observations of TMR 1 in Hogerheijde et al. (1998). Since a similar factor of 2 is seen between the observations of T Tau in Schuster et al. (1995) and Hogerheijde et al. (1998), it is most likely that the side-band gain ratios for the observations taken by Hogerheijde et al. (1998) were incorrectly calibrated.

\begin{figure}
\par\includegraphics[width=450pt]{12507fig1.ps}\vspace*{4mm}
\end{figure} Figure 1:

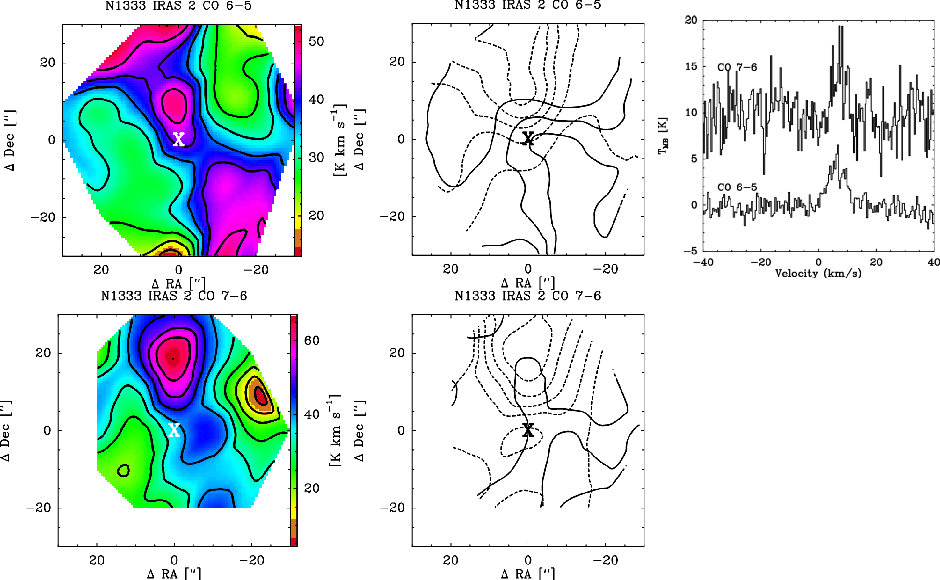

Maps of CO 6-5 ( top row) and CO 7-6 ( bottom row) of NGC 1333 IRAS 2. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 4 K km s-1 for both transitions. The outflow contributions are calculated by only including emission greater or smaller than +/-1.5 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position.

Open with DEXTER

\begin{figure}
\par\includegraphics[width=450pt]{12507fig2.ps}
\end{figure} Figure 2:

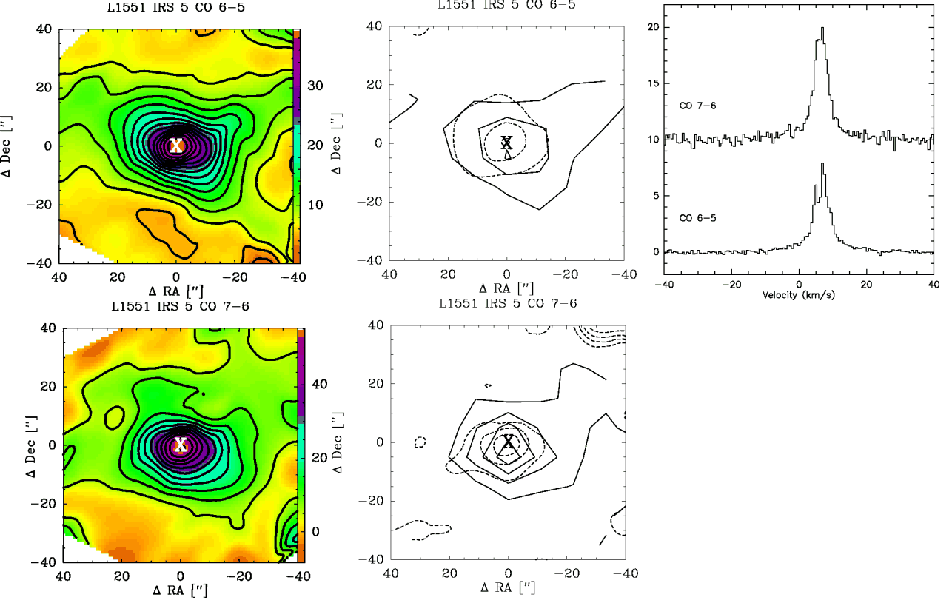

Maps of CO 6-5 ( top row) and CO 7-6 ( bottom row) of L 1551 IRS 5. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 0.5 K km s-1 for both transitions. The outflow contributions are calculated by only including emission greater or smaller than +/-1.5 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position.

Open with DEXTER

\begin{figure}
\par\includegraphics[width=450pt]{12507fig3.ps}
\end{figure} Figure 3:

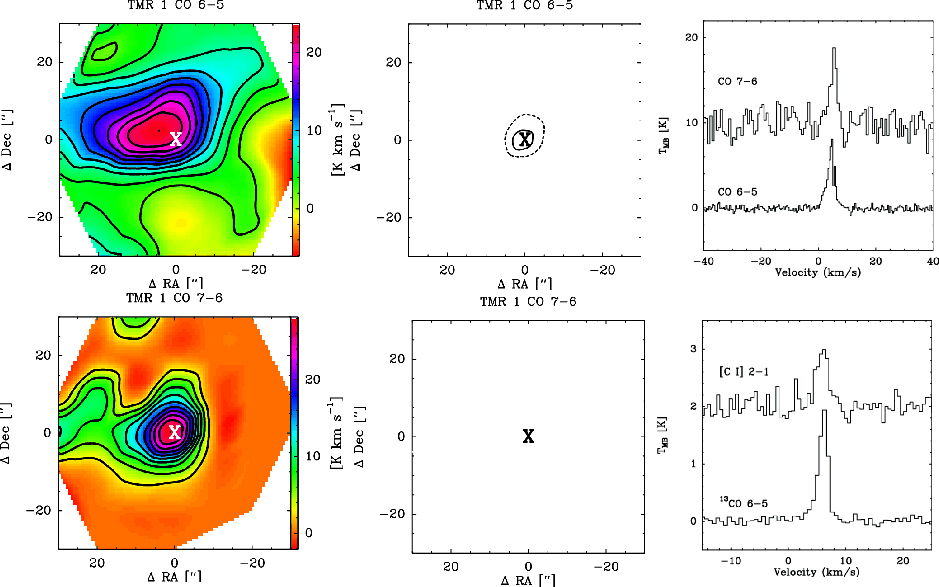

Maps of CO 6-5 ( top row) and CO 7-6 ( bottom row) of TMR 1. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 1 K km s-1 for both transitions.The outflow contributions are calculated by only including emission greater or smaller than +/-1.5 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position, while the right-most image at the bottom row shows the spectra of the observed isotopologues and [C I] 2-1 at the central position.

Open with DEXTER

\begin{figure}
\par\includegraphics[angle=270,width=450pt]{12507fig4.ps}
\end{figure} Figure 4:

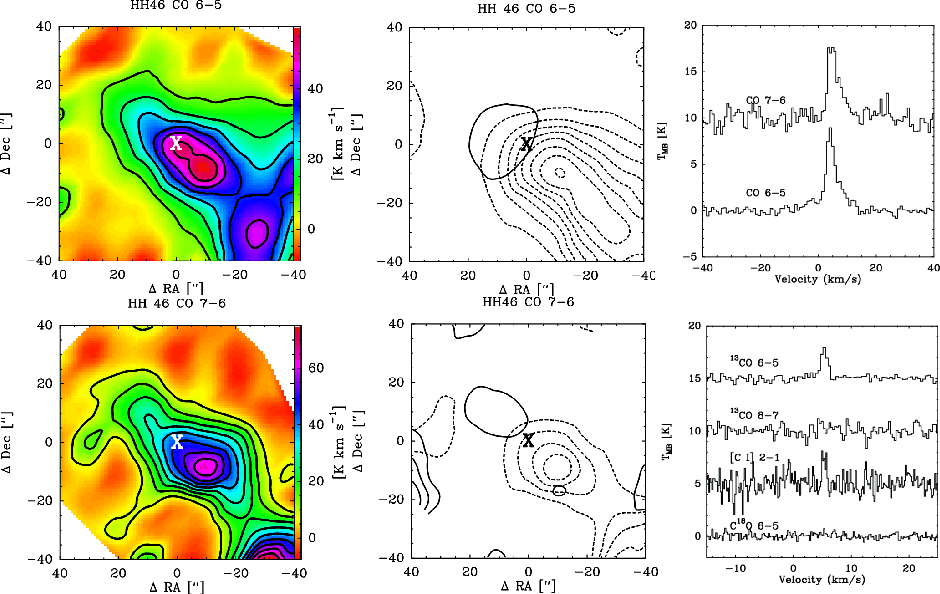

CO 6-5 ( left) CO 7-6 ( middle) maps and spectra of the central position of HH 46. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 2 K km s-1 for CO 6-5 and 3 K km s-1 for CO 7-6. The outflow contributions are calculated by only including emission greater or smaller than +/-1.5 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position, while the right-most image at the bottom row shows the spectra of the observed isotopologues and [C I] 2-1 at the central position (see also Paper I).

Open with DEXTER

\begin{figure}
\par\includegraphics[angle=270,width=450pt]{12507fig5.ps}
\end{figure} Figure 5:

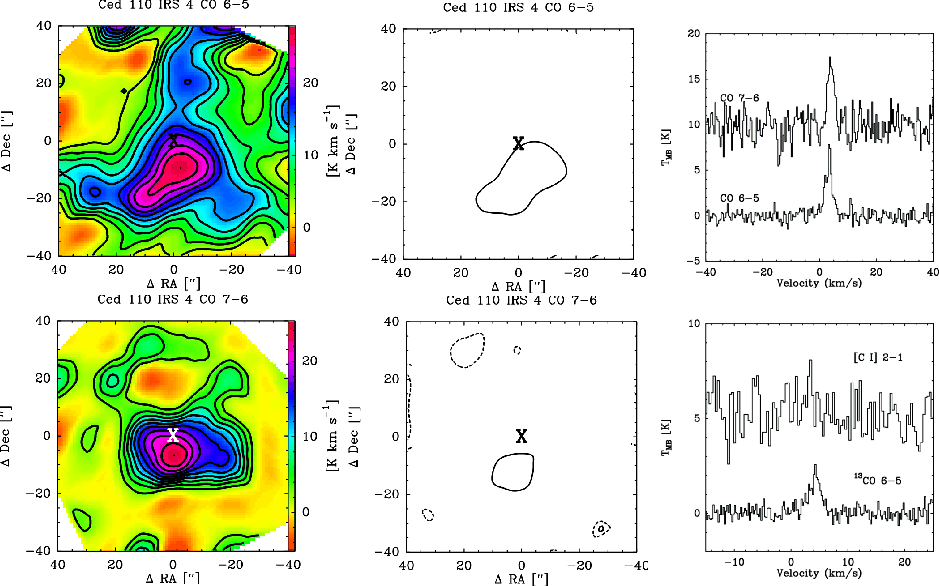

Maps of CO 6-5 ( top row) and CO 7-6 ( bottom row) of Ced 110 IRS 4. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 3 K km s-1 for both transitions. The outflow contributions are calculated by only including emission greater or smaller than +/-1.5 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position, while the right-most image at the bottom row shows the spectra of the observed isotopologues and [C I] 2-1 at the central position.

Open with DEXTER

\begin{figure}
\par\includegraphics[angle=270,width=450pt]{12507fig6.ps}
\end{figure} Figure 6:

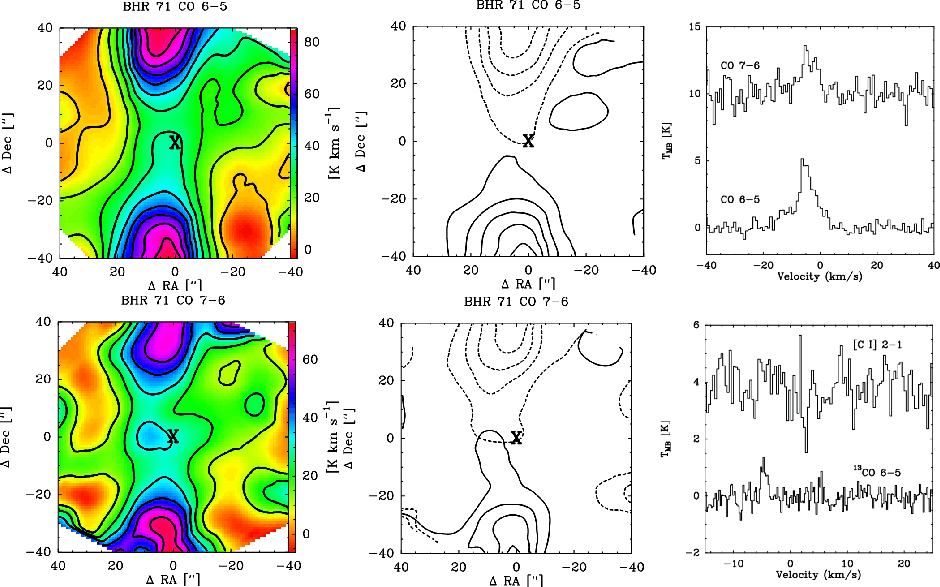

Maps of CO 6-5 ( top row) and CO 7-6 ( bottom row) of BHR 71. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 10 K km s-1 for CO 6-5 and 5 K km s-1 for CO 7-6. The outflow contributions are calculated by only including emission greater or smaller than +/-1.5 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position, while the right-most image at the bottom row shows the spectra of the observed isotopologues and [C I] 2-1 at the central position.

Open with DEXTER

\begin{figure}
\par\includegraphics[angle=270,width=470pt]{12507fig7.ps}
\end{figure} Figure 7:

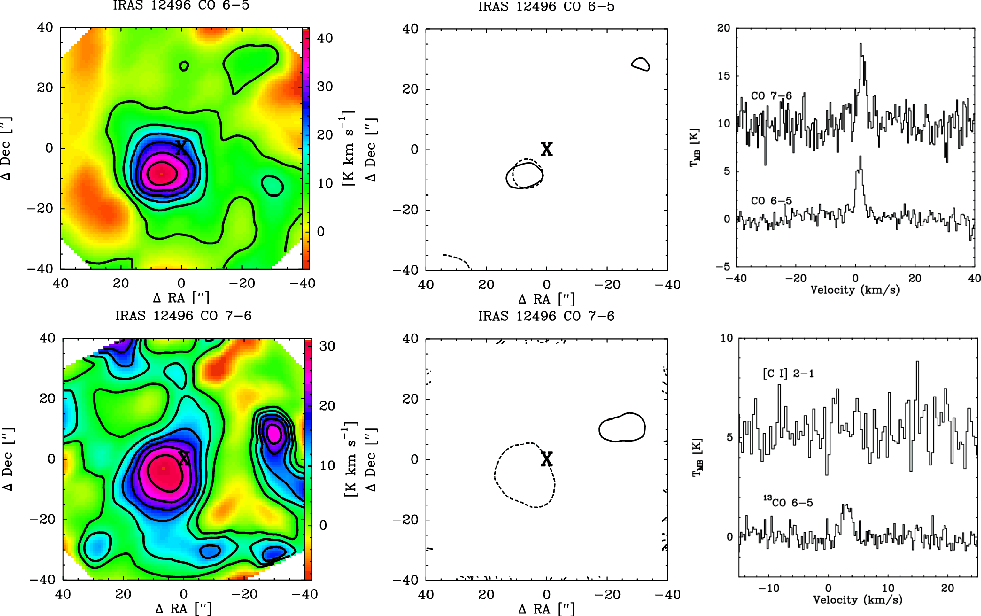

Maps of CO 6-5 ( top row) and CO 7-6 ( bottom row) of IRAS 12496-7650. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 3 K km s-1 for both transitions. The outflow contributions are calculated by only including emission greater or smaller than +/-1.5 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position, while the right-most image at the bottom row shows the spectra of the observed isotopologues and [C I] 2-1 at the central position.

Open with DEXTER

\begin{figure}
\par\includegraphics[angle=270,width=465pt]{12507fig8.ps}
\end{figure} Figure 8:

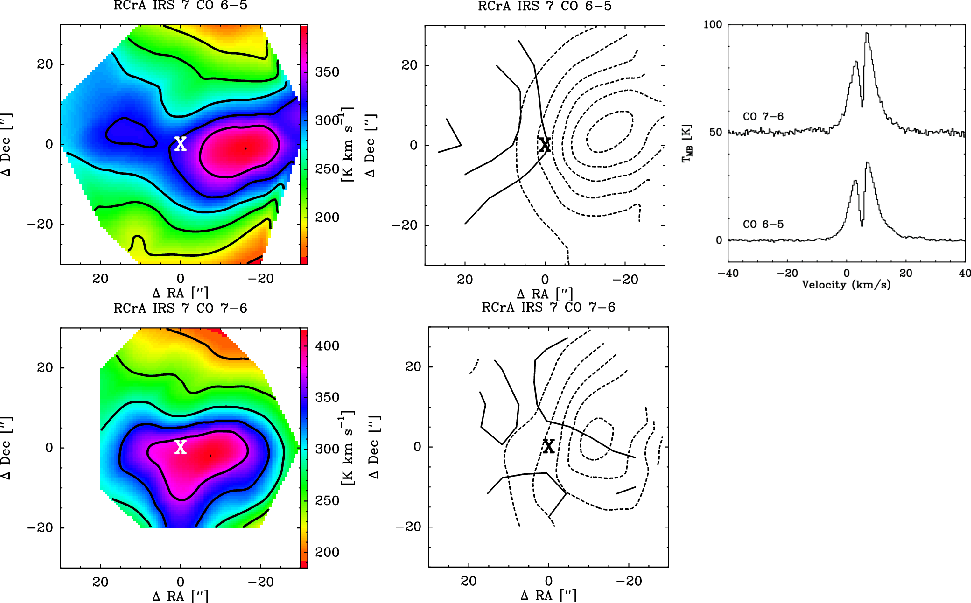

Maps of CO 6-5 ( top row) and CO 7-6 ( bottom row) of RCrA IRS 7a. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 10 K km s-1 for both transitions. The outflow contributions are calculated by only including emission greater or smaller than +/-8 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position.

Open with DEXTER

2.2 Sample

The sample consists of eight well-known and well-studied embedded protostars, with a slight bias toward the southern sky. A variety of protostars in mass, luminosity, evolutionary stage and parental cloud is included. All sources have been studied in previous surveys of embedded YSOs in the sub-mm (e.g., Jørgensen et al. 2004,2002; Groppi et al. 2007). More information on southern sources can be found in van Kempen et al. (2006) (IRAS 12496-7650), van Kempen et al. 2009 submitted (IRAS 12496-7650, RCrA IRS 7 and Ced 110 IRS 4) and Paper I (HH 46). Table 2 gives the parameters of each source and its properties. References to previous continuum studies (Col. 7) include infrared (IR) and (sub)millimeter dust continuum photometry, and studies of CO emission (Col. 8) include both submillimeter and far-IR lines. Note that the binary source of N1333 IRAS 2A, N1333 IRAS 2B is not covered by our map.

2.3 Spectral energy distribution

For all sources, SED information was acquired from the literature, ranging from near-IR to the (sub-)mm wavelengths. Spitzer-IRAC (3.6, 4.5, 5.6, 8.0 $\mu $m), Spitzer-MIPS (24, 70 and 160 $\mu $m), submillimeter photometry from JCMT/SCUBA (Di Francesco et al. 2008), SEST/SIMBA and IRAM-30m/MAMBO are all included, if available. For sources with no reliable Spitzer fluxes, IRAS fluxes at 12, 25, 60 and 100 $\mu $m were used. In addition to the obtained fluxes, the bolometric luminosity and temperature, $L_{\rm {bol}}$ and $T_{\rm {bol}}$were calculated using the mid-point method (Dunham et al. 2008). The results can be found in Table 2. Note that due to a lack of mid- and far-IR fluxes with sufficient spatial resolution, the derived values for IRAS 12496-7650 and Ced 110 IRS 4 are highly uncertain, with expected errors of 50$\%$, while no $T_{\rm {bol}}$ and $L_{\rm {bol}}$ could be determined for RCrA IRS 7 due to confusion. For other sources, errors are on the order of 10-20$\%$.

3 Results

3.1 Maps

Figures 1 to 8 show the integrated intensity and the red- and blue-shifted outflow emission mapped in the CO 6-5 line, as well as the spectra at the central position of all observed emission lines. Both the integrated intensity and outflow maps were spatially rebinned to a resolution of 10 $\hbox{$^{\prime\prime}$ }$. Figures 9 to 12 show the CO 6-5 and 7-6 spectra taken in the inner 40 $\hbox{$^{\prime\prime}$ }\times40\hbox{$^{\prime\prime}$ }$of all the sources, also binned to square 10 $\hbox{$^{\prime\prime}$ }\times10\hbox{$^{\prime\prime}$ }$bins.

Table 3 presents the intensities of both CO lines. Here, the total integrated emission, the peak main beam temperature, the emission in the red and blue outflow wings shown in the outflow maps and the noise levels are given for the central position, as well as at positions with clear detections of outflow wings away from the center. The limits for the red and blue outflow were chosen to be -10 to -1.5 km s-1 with respect to the source velocity for the blueshifted emission and +1.5 to +10 km s-1 with respect to the source velocity for the redshifted emission for most sources. These limits were chosen after examination of the profiles of the spectra and subtracting Gaussians that were fitted to the central 3 km s-1 of the profile. For all sources, except RCrA IRS 7, the difference in the blue- and red-shifted emission between the two methods was less than 5$\%$. The outflowing gas of RCrA IRS 7 was derived by limiting the red- and blue-shifted emission to -20 to -8 and +8 to +20 km s-1 from line center. This corresponds to a $FWHM\approx 8$ km s-1 for the quiescent material. Broad line widths of 3 km s-1 are also seen for the rarer isotopologues C18O and C17O, much wider than typically observed for these species in low-mass YSOs (Schöier et al. 2006). Noise levels (see Table 3) differ greatly between sources and even within single maps.

12CO 6-5 and 7-6 was detected at the central position of all sources, ranging from 20.8 K km s-1 ( $T_{\rm {peak}}=7.8$ K) for Ced 110 IRS 4 for CO 6-5 to 407.6 K km s-1 ( $T_{\rm {peak}}=46.3$ K) for RCrA IRS 7A for the CO 7-6 line. All maps show extended emission, except for IRAS 12496-7650, which shows unresolved emission in the CO 7-6 transition. However, the scales on which extended emission is seen varies significantly, with detections at all mapped positions for RCrA IRS 7 to only 1 or 2 for IRAS 12496-7650, TMR 1 and Ced 110 IRS 4. All sources except RCrA IRS 7 and NGC 1333 IRAS 2 show spectra with a single peak over the entire map, while the latter two have spectra that are self-absorbed.

Figures 9 to 12 clearly identify the variation of the line profiles across the maps, especially when outflowing gas is present, such as in the maps of NGC 1333 IRAS 2, BHR 71, HH 46 and RCrA IRS 7. The sources for which little to no shocked emission is seen do show spatially resolved CO 6-5 and 7-6 emission, but always quiescent narrow emission located close to the central pixel.

3.2 Outflow emission

From the outflow maps in Figs. 1 to 8, it can be concluded that the contributions from shocks within the bipolar outflows to the warm gas differ greatly from source to source. RCrA IRS 7, NGC 1333 IRAS 2, HH 46, and BHR 71 produce spatially resolved flows, but TMR 1, L 1551 IRS 5, IRAS 12496-7650 and Ced 110 IRS 4 do not have warm shocked gas that results in broad high-J CO in any of the off-positions. Small shocks on the source position are seen, but are generally weak. For all sources in the sample, outflow emission has been detected in low ( $J_{\rm {up}}\leq 3$) excitation CO lines, although such flows have large differences in spatial scales, ranging from tens of arcminutes to the central twenty arcseconds (e.g. Parise et al. 2006; Bourke et al. 1997; Moriarty-Schieven & Snell 1988; Bachiller et al. 1994; Cabrit & Bertout 1992; Hogerheijde et al. 1998; Fridlund et al. 1989; van Kempen et al. 2009, submitted). Table 3 gives the integrated intensities of the CO emission at selected off-positions for the outflowing gas.

3.3 Isotopologue observations at the central position

For HH 46, transitions of 13CO J=6-5 and 8-7 and C18O J=6-5 as well as [C I] 2-1 were observed (see Table 1 and 2). TMR 1, Ced 110 IRS 4, IRAS 12496-7650 and BHR 71 were observed in 13CO 6-5 and [C I] 2-1. The results at the central position can be found in Fig. 1 to 8, as well as Table 4. All 13CO 6-5 spectra can be fitted with single Gaussians. However, the width of the Gaussians varies with a FWHM of $\sim$1.2 km s-1 for HH 46 and BHR 71 to $\sim$2.2 km s-1 for Ced 110 IRS 4 and IRAS 12496-7650. [C I] 2-1 is detected for TMR 1, HH 46 and Ced 110 IRS 4 ($\sim$3$\sigma$). No line was found for IRAS 12496-7650 and BHR 71 down to a 1$\sigma$limit of 0.6 K in 0.7 km s-1 bins. Integrated line strengths are on the order of 3 K km s-1 with widths of 0.75 km s-1. 13CO 8-7 and C18O 6-5 were observed towards HH 46 only, but not detected down to a 1$\sigma$ level of 0.15 and 0.3 in a 0.7 km s-1 channel.

3.4 13CO 6-5 and [C I] 2-1 maps

For 13CO 6-5 and [C I] 2-1 maps were also obtained. Spectra at the central position are given in Figs. 1 to 8. Integrated intensity maps are presented in Fig. 13 (13CO 6-5) and Fig. 14 ([C I] 2-1) It is seen that such observations are often dominated by centrally located unresolved emission, but not always peaked at the source. Both HH 46 and BHR 71 also show some isotopic emission associated with the outflow. For HH 46, 13CO 6-5 is only detected off-source for the blue outflow, where part of the outflow is unobscured by cloud or envelope (Paper I).

Table 1:   Adopted Champ+ settings.

4 Envelope

4.1 Envelope models

In order to investigate whether high-J CO emission can be reproduced by a passively heated envelope, the properties of the protostellar envelopes were calculated by modelling 850 $\mu $m continuum images, SED information and the 1-D dust radiative transfer code DUSTY described in Ivezic & Elitzur (1997) (Jørgensen et al. 2002; Schöier et al. 2002). Similar to previous studies, the so-called OH5 dust opacities were used (Ossenkopf & Henning 1994). Although NGC 1333 IRAS 2, L1551 IRS 5 and TMR 1 were included in a similar study by Jørgensen et al. (2002), new fluxes from Spitzer (e.g., Gutermuth et al. 2008; Luhman et al. 2008, see Table 2) have since come available and must be included. To constrain the models both the SED from $\sim$50 $\mu $m to 1.3 mm and the spatial distribution of the sub-mm continuum emission at 850 $\mu $m were used, with the exception of BHR 71 and Ced 110 IRS 4, for which no 850 $\mu $m map is available. A normalized radial emission profile with a power law index of 1.5 for the 850 $\mu $m emission is assumed for these two sources. The radial profiles of L 1551 IRS 5, RCrA IRS 7A, NGC 1333 IRAS 2 and TMR 1 were obtained from 850 $\mu $m images of the processed SCUBA archive (Di Francesco et al. 2008). For HH 46 and IRAS 12496-7650, recent data from LABOCA at 870 $\mu $m were used (see Paper I and Nefs et al. in prep.).

The parameters of the best-fitting envelope models can be found in Table 5, together with the corresponding physical parameters of the envelope. The three main parameters of DUSTY, Y, the ratio over the inner to outer radius, p, the power law exponent of the density profile $n \propto r^{-p}$[*] and $\tau_{100~\mu\rm {m}}$, the opacity at a 100 $\mu $m, are scaled by the $L_{\rm {bol}}$ and the distance, D given in Table 2, to get the physical properties of each source. Figure 15 shows the best-fitting model of each source of the radial profiles of the 850 $\mu $m images and the SEDs of the entire sample.

The inner radii of the protostellar envelopes range from 5 to 35 AU corresponding to $T_{\rm {d}}=250$ K, a limit chosen by us. Most sources also show a steep profile with all sources having $p\geq1.7$, with the exception of Ced 110 IRS 4, which has a p=1.4.

\begin{figure}
\par\includegraphics[angle=270,width=200pt]{12507fg9a.ps}\includegraphics[angle=270,width=230pt]{12507fg9b.ps}
\end{figure} Figure 9:

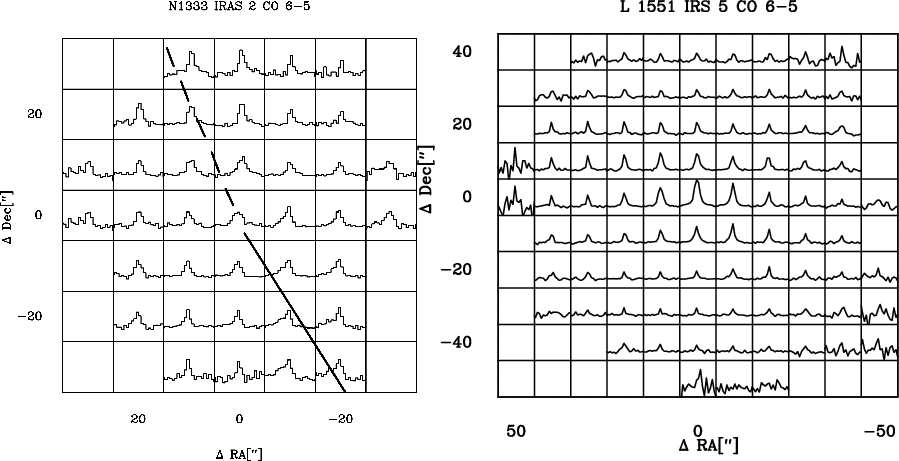

Spectra of 12CO 6-5 over an area of $40\hbox {$^{\prime \prime }$ }\times 40\hbox {$^{\prime \prime }$ }$ of NGC 1333 IRAS 2 ( left) and L 1551 IRS 5 ( right). NGC 1333 IRAS 2 was observed using the hexa mode, so the covered area is slightly smaller than that of L 1551 IRS 5 taken in OTF mode. For all spectra in both sources, horizontal axes range from -10 to 25 km s-1 and vertical axes from -5 to 12 K. For both sources, the main outflow axis of the red and blue are shown with a dashed and solid lines.

Open with DEXTER

\begin{figure}
\par\includegraphics[angle=270,width=200pt]{12507f10a.ps}\includegraphics[angle=270,width=200pt]{12507f10b.ps}
\end{figure} Figure 10:

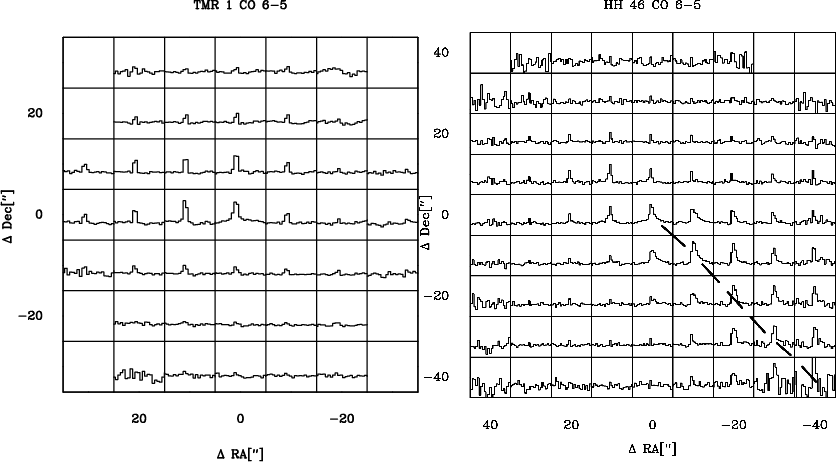

Spectra of 12CO 6-5 over an area of $40\hbox {$^{\prime \prime }$ }\times 40\hbox {$^{\prime \prime }$ }$ of TMR 1 ( left) and HH 46 ( right). TMR 1 was observed using the hexa mode, so the covered area is slightly smaller than that of HH 46 taken in OTF mode. For all spectra in both sources, the horizontal axes range from -10 to 20 km s-1 with vertical axes from -5 to 12 K. For HH 46, the red outflow axis is shown with a dashed line.

Open with DEXTER
\begin{figure}
\par\includegraphics[angle=270,width=200pt]{12507f11a.ps}\includegraphics[angle=270,width=200pt]{12507f11b.ps}
\end{figure} Figure 11:

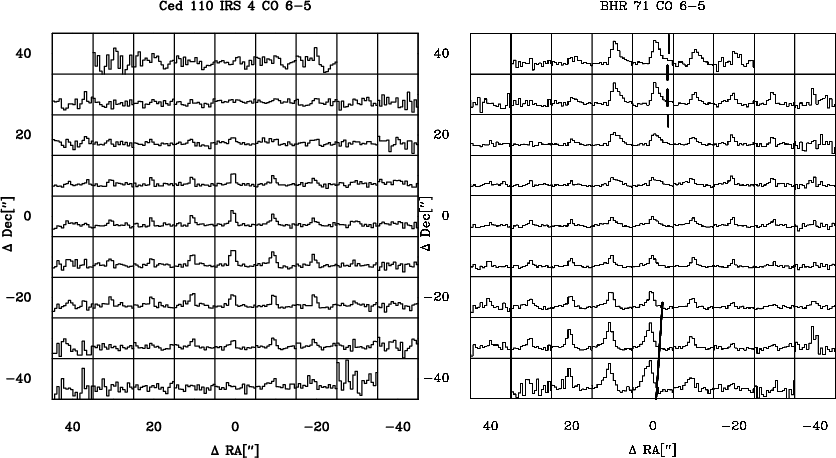

Spectra of 12CO 6-5 over an area of $40\hbox {$^{\prime \prime }$ }\times 40\hbox {$^{\prime \prime }$ }$ of Ced 110 IRS 4 ( left) and BHR 71 ( right). For Ced 110 IRS 4, the horizontal axes are -10 to 25 km s-1 with vertical axes from -4 to 10 K. For BHR 71, horizontal axes are -20 to 10 km s-1 with vertical axes -5 to 15 K. For BHR 71, the main outflow axis of the red and blue are shown with a dashed and solid lines.

Open with DEXTER
\begin{figure}
\par\includegraphics[angle=270,width=195pt]{12507f12a.ps}\includegraphics[angle=270,width=195pt]{12507f12b.ps}
\end{figure} Figure 12:

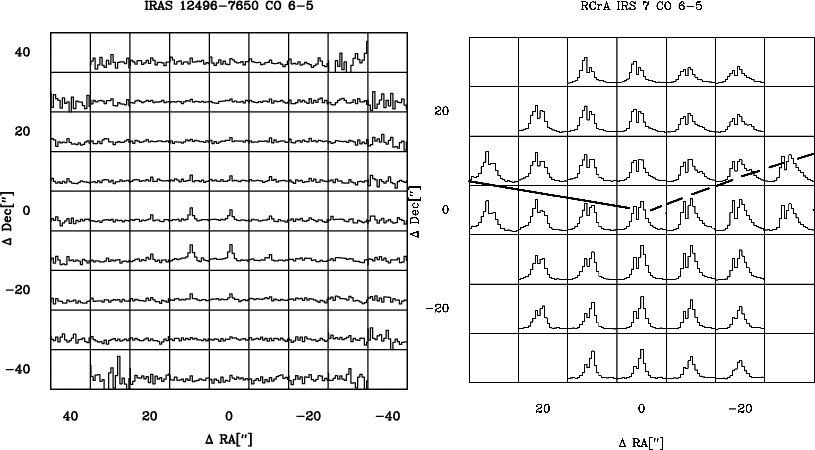

Spectra of 12CO 6-5 over an area of $40\hbox {$^{\prime \prime }$ }\times 40\hbox {$^{\prime \prime }$ }$ of IRAS 12496-7650 ( left) and RCrA IRS 7A ( right). RCrA IRS 7A was observed using the hexa mode, so the covered area is slightly smaller than that of IRAS 12496-7650 taken in OTF mode. For all spectra, the horizontal axes are -15 to 15 km s-1 with vertical axes from -5 to 15 K for IRAS 12496-7650 and from -10 to 25 km s-1 and -5 to 50 K for RCrA IRS 7. For RCrA IRS 7, the main outflow axis of the red and blue lobes are shown with a dashed and solid lines.

Open with DEXTER
\begin{figure}
\par\mbox{\includegraphics[width=160pt]{12507f13a.ps}\includegrap...
...13d.ps}\includegraphics[width=160pt]{12507f13e.ps}\hspace*{80pt}}
\end{figure} Figure 13:

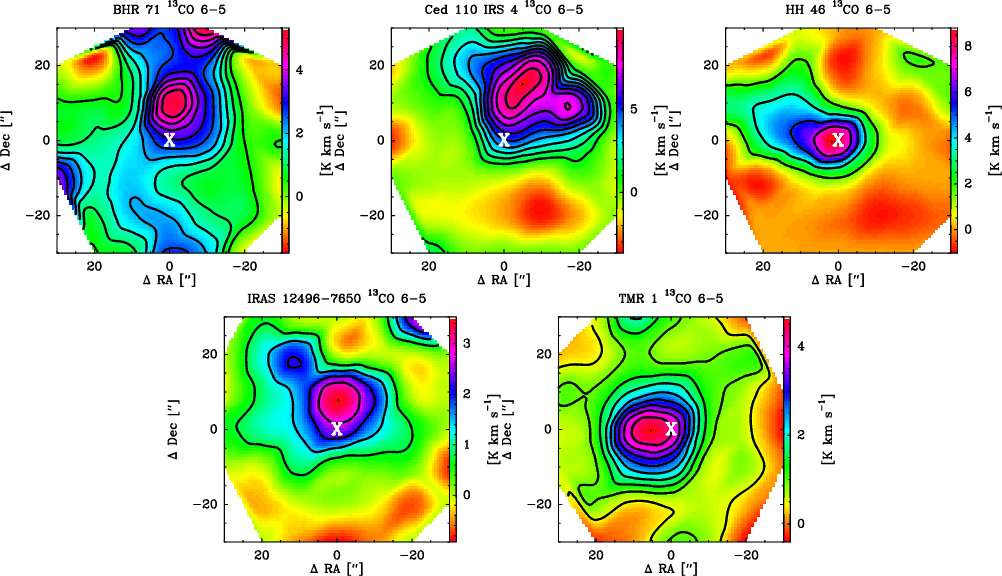

13CO 6-5 integrated intensity maps of BHR 71 ( upper left), Ced 110 IRS 4 ( upper middle), HH 46 ( upper right), IRAS 12496-7650 ( lower left) and TMR 1 ( lower middle).

Open with DEXTER
\begin{figure}
\par\includegraphics[width=150pt]{12507f14a.ps}\includegraphics[width=150pt]{12507f14b.ps}
\end{figure} Figure 14:

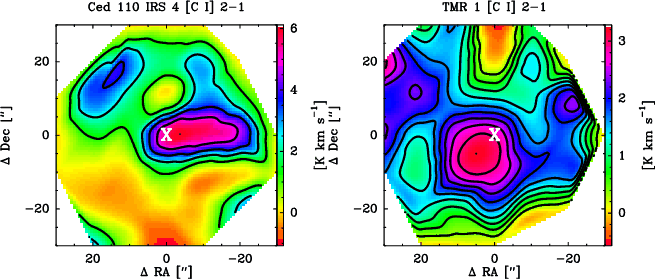

[C I] 2-1 integrated intensity maps of Ced 110 IRS 4 ( left) and TMR 1 ( right). Note that the TMR 1 data suffer from a de-rotation problem in the calibrator data and are subject to change.

Open with DEXTER
\begin{figure}
\par\includegraphics[width=300pt]{12507fg15.ps}
\end{figure} Figure 15:

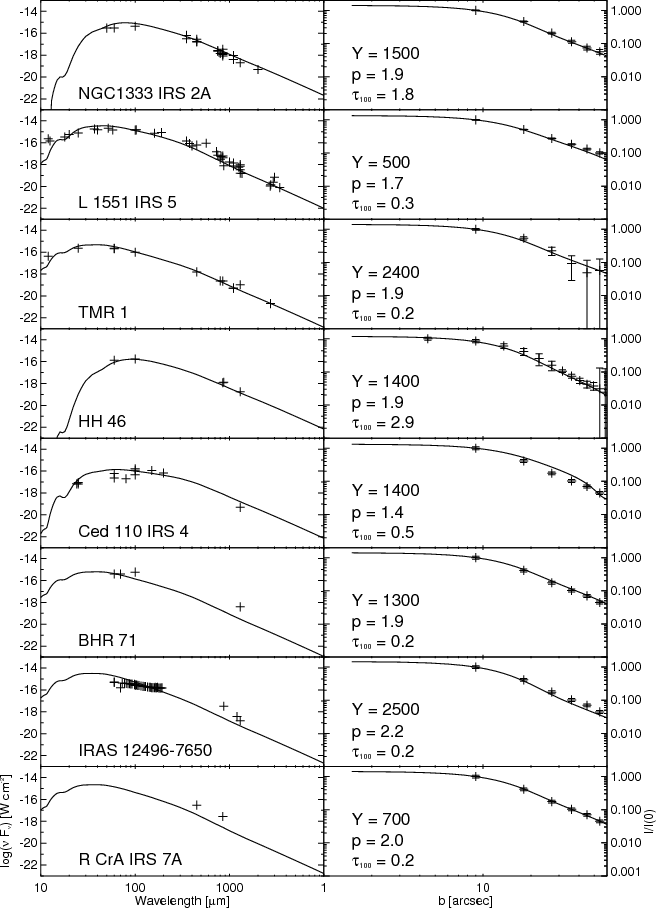

The SEDs and radial profiles at 850 $\mu $m of the sample. Overplotted is the best-fitting envelope model. For Ced 110 IRS 4 and BHR 71, the model spatial 850 $\mu $m profile of 1.5 is plotted since data are lacking. Note that this power law index of 1.5 does not equal the power law index p.

Open with DEXTER

\begin{figure}
\par\includegraphics[width=7cm,clip]{12507fg16.ps}
\end{figure} Figure 16:

The contribution of the envelope to CO lines at the source position with $J_{\rm {up}}$ ranging from 1 to 19. Integrated emission is shown with dashed and solid lines. Dashed lines are modelled lines which show excessive self-absorption. Solid lines represent Gaussian fitted to the line wings of the envelope model and thus represent the strict upper limit to the CO line emission from the protostellar envelope. Beam-sizes were taken to be 10 $^{\prime \prime }$for all transitions except for $J_{\rm {up}}\leq 3$, for which a beam of 20 $^{\prime \prime }$was used. Stars indicate the integrated quiescent emission of the lines observed with CHAMP+ from Table 3 at the source position, corrected for red- and blue-shifted emission, while triangles are literature data (see Table 2).

Open with DEXTER

4.2 CO emission within protostellar envelopes

Using the best-fit envelope temperature and density structure derived from the dust emission, the CO intensities and line profiles from the protostellar envelopes were in turn simulated with the self-consistent 1D molecular line radiative transfer code RATRAN (Hogerheijde & van der Tak 2000) using data files of the LAMDA database (Schöier et al. 2005). CO abundances with respect to H2 are taken from Jørgensen et al. (2005). A ``drop'' abundance with $X_0=2.7\times 10^{-4}$and $X_{\rm d}=10^{-5}$ is adopted. This ``drop'' abundance profile describes a warm ( $T>T_{\rm {freeze}}$) inner region with a high abundance X0 and a region in which $T<T_{\rm {freeze}}$and $n>n_{\rm {de}}$ where CO is frozen out to a low abundance $X_{\rm d}$. In the outer region ( $n<n_{\rm {de}}$), the abundance is again high at X0 because freeze-out timescales become longer than the typical life-times of protostars. In our models, $T_{\rm {freeze}}=30$ K and $n_{\rm {de}}=10^5$ cm-3 are adopted, following the conclusions of Jørgensen et al. (2005). There, the derived abundances are based upon the emission of low-excitation optically thin lines such as C18O lines (both 2-1 and 3-2, 1-0 is often dominated by the very cold cloud material) and C17O. Paper I showed that contrary to the low-J CO lines there is little difference between ``jump'' and ``drop'' abundances for the emission in high-Jtransitions. A static velocity field is assumed with a turbulent width of 1 km s-1. Due to the static nature of the velocity field, excessive self-absorption is seen in line profiles of CO lines up to the 8-7 transition. The total area of a Gaussian fitted to the line wings is used in those cases to derive an upper limit. This is a very strict limit as the true CO emission associated with the envelope is best fitted by a infall velocity (Schöier et al. 2002), producing integrated intensities between the two limits. However, Schöier et al. (2002) show that the envelope emission modelled with an infall velocity is in the worst case only a factor 2 greater than the intensity derived from the static envelope. The lower limit is derived from the actual modelled integrated intensity with the static velocity field.

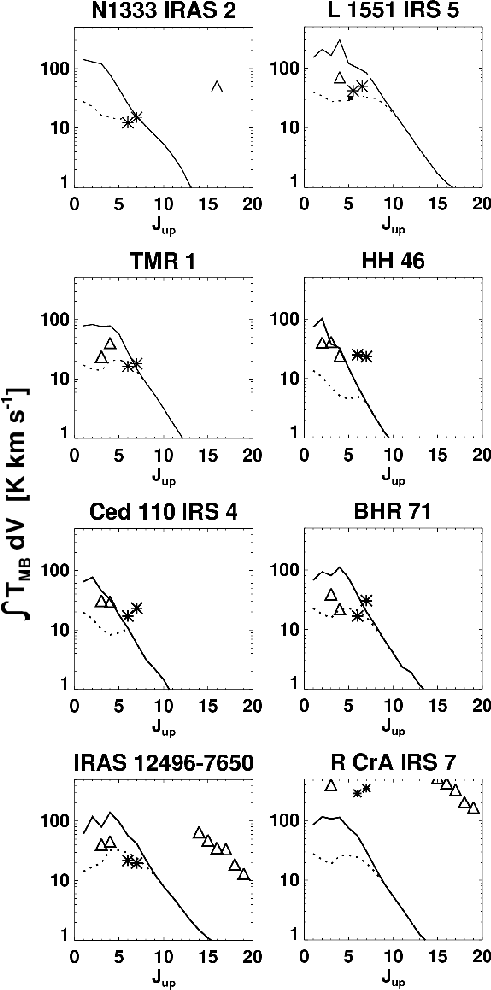

Figure 16 shows the resulting integrated intensities produced by the model protostellar envelopes of all CO lines from J=1-0 up to J=19-18. The data for all transitions were convolved with a 10 $^{\prime \prime }$beam used for CHAMP+, except the three lowest transitions, which are convolved with a beam of 20 $^{\prime \prime }$. Such beams are typical for single-dish submillimeter telescopes. 10 $^{\prime \prime }$will also be the approximate beam for several transitions covered by the PACS and HIFI (Band 6 and 7) instruments on Herschel at the higher frequencies. Overplotted are the observed line strengths from various CO lines of different studies, including the far-IR high-J CO lines of Giannini et al. (1999) and Giannini et al. (2001), assuming that all flux observed by the ISO-LWS in its 80 $^{\prime \prime }$beam originates in a 10 $^{\prime \prime }$region. See Table 2 for the references used.

The low-J CO emission can often be completely reproduced by the envelope models, as it is dominated by the colder gas in the outer regions of the envelopes. For HH 46, Ced 110 IRS 4 and RCrA IRS 7, the observed quiescent emission in the CO 6-5 and 7-6 lines is clearly brighter by a factor of 3-5 than the modelled envelope emission, even for the 13CO 6-5 lines (see Table 6).

For RCrA IRS 7, the difference is almost an order magnitude. Deep C18O 6-5 spectra are needed to fully pin down the envelope models. In Paper I, the quiescent CO 6-5 and 7-6 emission of HH 46 was attributed to ``photon heating'' (Spaans et al. 1995), both by UV from the accretion disk and shocks inside the outflow cavity. Figure 16 clearly shows that this method of heating likely applies to other sources.

In contrast, the envelopes of both IRAS 12496-7650 and L 1551 IRS 5 can account for all the emission detected in the 12CO 6-5 and 7-6 lines. Giannini et al. (1999) and Giannini et al. (2001) report emission of high-J CO (14-13 to 19-18) lines at far-IR of NGC 1333 IRAS 2, IRAS 12496-7650 and RCrA. For RCrA, RCrA IRS 7 is within the beam, but the emission is probably dominated by emission from RCrA itself. Fluxes in excess of 10-20 W cm-2 are seen for IRAS 12496-7650. They assumed that the flux originates within the central 3 $^{\prime \prime }$($\sim$400 AU). It is very clear from Fig. 16 that such observed emission cannot be produced by a passively heated envelope. A more likely explanation is that the CO emission detected with ISO-LWS is either located outside the inner 10 $^{\prime \prime }$as is the likely case for IRAS 12496-7650 (see van Kempen et al. 2006) or associated with an energetic outflow.

5 Outflows

5.1 Shocks

Bachiller & Tafalla (1999) propose an evolutionary sequence of outflows around low-mass protostars, with young deeply embedded YSOs (Class 0) producing highly collimated and energetic outflows, and with more evolved embedded YSOs (Class I) producing outflows which show less energetic shocks and a wider opening angle (Arce et al. 2007, see also). Observations of the shocked 12CO 6-5 and 7-6 gas in the outflow directions confirm the scenario that the shocks within the vicinity of the protostar grow weaker in energy over time. The Class 0 sources (NGC 1333 IRAS 2, BHR 71 and RCrA IRS 7) all show shocked warm gas in their CO 6-5 and 7-6 lines, in both blue- and red-shifted outflow. Of the Class I sources, only HH 46 shows shocked gas in its red-shifted outflow. L 1551 IRS 5, one of the most-studied molecular outflows (Bachiller et al. 1994; Moriarty-Schieven & Snell 1988), shows little emission in the high-J lines associated with outflow shocks. Although several spectra do show a small outflow wing, the integrated emission in the wings is not higher than a few $\sigma$. All other Class I flows show no sign of shocked warm gas. HH 46 and L 1551 IRS 5, even though classified as Class I, have massive envelopes of a few $M_{\odot}$, more characteristic of Class 0 (Jørgensen et al. 2002). L 1551 IRS 5 is believed to be older and to consist of several sucessive ejection events (White et al. 2000; Bachiller et al. 1994).

Figure 17 shows the maximum outflow velocities of the 12CO 6-5 and 3-2 lines vs. the bolometric temperature, envelope mass and outflow force. A clear absence of warm high-velocity material is seen for sources with a higher bolometric temperature. Only the cold outflow of IRAS 12496-7650 is seen at higher  $T_{\rm {bol}}$(van Kempen et al. 2006). Similarly, there is also a clear relation between the mean outflow force of both red and blue outflow lobes, and the maximum velocity seen in both 12CO 3-2 and 12CO 6-5 emission. Outflow forces are derived from the spatial scales and velocities of low-excitation CO line emission (1-0, 2-1 and 3-2) (Bourke et al. 1997; Hogerheijde et al. 1998; Cabrit & Bertout 1992, Paper I; van Kempen et al. 2009, submitted)

5.2 Temperatures of the swept-up gas

The excitation temperature of the outflowing swept-up gas can be derived from the ratios of different CO line wings. As an example, Fig. 18 shows the CO 3-2 data from van Kempen et al. (2009) submitted and Paper I and CO 6-5 data from this paper overplotted on the same scales for a few sources. The CO 6-5 data have not been binned to the larger CO 3-2 beam, so the comparison assumes similar volume filling factors of the shocked gas; for HH 46 in Paper I it has been checked that rebinning gives similar results within the uncertainties. If the density is known this excitation temperature can be related to the kinetic temperature using the diagnostic plots produced by the RADEX radiative transfer code (van der Tak et al. 2007).

As can be seen from the temperature analysis of HH 46 (Paper I), there are many uncertainties, leading to error bars as large as 50 K on the inferred temperatures. The ratios depend on the velocity, the optical depth of the line wings and the ambient density at different distances from the source. For HH 46, a drop in temperature was observed if the density remains constant, but it is more plausible that the density is lower at larger radii which will result in a constant kinetic temperature with distance.

Table 7 gives the median temperatures using the extreme velocities of the line wings with intensities >$3\sigma$, assuming the line wings are optically thin and with an ambient cloud density of 104 cm-3. CO 3-2 spectra can be found in Hogerheijde et al. (1998) (TMR 1, L 1551 IRS 5), Knee & Sandell (2000) (NGC 1333 IRAS 2), Parise et al. (2006) (BHR 71), van Kempen et al. (2006) (IRAS 12496-7650), van Kempen et al. (2009, submitted) (RCrA IRS 7, Ced 110 IRS 4) and Paper I (HH 46).

Table 2:   The sample of sources observed with CHAMP+.

Table 3:   Properties of the 12CO linesa.

The main error on these temperature estimates is the optical depth in the outflow wings. Deep 13CO 3-2 observations show that outflows can be optically thick. Hogerheijde et al. (1998) find optical depths in the 12CO 3-2 line wings, $\tau_{\rm {wing}}$, on the order of 10, while in Paper I $\tau_{\rm {wing}}=1$-1.8 is found for HH 46. Even if the optical depths are assumed to be similar in CO 3-2 and CO 6-5, kinetic temperatures can be almost 50$\%$ lower than those given in Table 7.

For a more thorough discussion about the density of the surrounding envelope and cloud material, see Paper I. Our choice of the density of 104 cm-3 is based on the typical densities found in model envelopes of Jørgensen et al. (2002) at distances of a few thousand AU, corresponding to the 10 K radius where the envelope merges with the surrounding molecular cloud. Higher densities will produce lower outflow temperatures (see Paper I for more extensive discussion).

A theoretical study by Hatchell et al. (1999) using a jet-driven bow shock model suggests that the kinetic temperatures of molecular outflows are typically of order of 50-150 K along the axis and rising toward the location of the bow shock, with overall values increasing with higher jet velocities. The temperatures found in Table 7 agree well with these predicted temperatures. For several outflows, e.g., IRAS 12496-7650 (blue) or Ced 110 IRS 4 (red), temperatures are significantly lower, however. The lowest outflow temperatures are found for the flows of L 1551 IRS 5, where CO 4-3/6-5 ratios are on the order of 8 or higher. At an assumed density of 104 cm-3, this corresponds to kinetic temperatures of 50 K and lower. If both line wings are optically thin, densities must be lower than 103 cm-3 to produce temperatures of $\sim$100 K, observed for other flows.

6 Heating processes in the molecular outflow and protostellar envelope

As discussed in Sect. 4, several sources show quiescent, narrow 12CO 6-5 and 7-6 emission that is more intense than can be produced by an envelope model. Moreover, strong narrow high-J CO emission is observed off-source along outflow axes for most sources. In Paper I, we proposed that for HH 46 the quiescent narrow 12CO 6-5 and 7-6 line emission originates within the outflow cavity walls heated to 250-400 K by an enhancement factor G0 with respect to the standard interstellar radiation field of a few hundred. The UV photons can be created by jet shocks in the outflow cavities as well as in the disk-star accretion boundary layer near the central protostar. This heating method was first proposed by Spaans et al. (1995), but extended by Paper I to both the inner envelope as well as the outflow cavity walls much further from the central star. The data presented in this paper show that photon heating is present in other protostars as well, especially in outflow cavities. Even in sources with little to no outflow, such as Ced 110 IRS 4, relatively strong narrow 12CO 6-5 and 7-6 lines are seen at positions not associated with the central protostar, see Fig. 16. The presence of significant radiative ``feedback'' from the protostar on its surroundings may have consequences for the collapse of the envelope, limiting the accretion rate and mass of the star and suppressing disk fragmentation (e.g., Offner et al. 2009).

The origin of such quiescent high-J CO emission at the source velocity is physically different from both the thermal emission of the protostellar envelope (see Sect. 6.4), emission from shocks present at the working surfaces of outflows (Raga et al. 2007; Reipurth & Raga 1999).

Slow ( $v_{\rm s}=5{-}10$ km s-1) C-shocks may produce similar quiescent levels of CO 6-5 and 7-6 emission in outflows (Spaans et al. 1995; Draine & Roberge 1984). However, the presence of quiescent 12CO 6-5 and 7-6 emission in the envelopes of TMR 1 and Ced 110 IRS 4, both of which show little to no spatially resolved outflow emission in the CO 3-2 line (Hogerheijde et al. 1998; van Kempen et al. submitted), is more easily explained with the photon heating scenario than with slow C-shocks. In addition, the narrow line widths for other sources argue against this scenario.

6.1 Envelope and outflow of BHR 71

The proposed model that photon heating takes place both in the outflow cavities and the inner envelope is clearly illustrated by the observations of BHR 71. At the north and south position of the outflow, shocked gas is clearly detected, but almost no shocked gas is seen near the central star. Quiescent gas with $\Delta V=1.5$ km s-1 is observed both within the inner envelope and along the outflow. In the 12CO 7-6 map, the photon heating in the envelope can be strongly identified by the central contour. BHR 71 is the only source for which the quiescent emission at the outflow position is (much) brighter than that seen at the position of the envelope. It is likely that strong shocks producing copious UV are present in the main outflow. This outflow (Bourke et al. 1997) is clearly detected at the edges of the map, but the secondary weaker outflow, associated with the IRS2 position, as seen by Parise et al. (2006) is not detected down to the noise levels. Shocked CO 6-5 and 7-6 emission is also only seen at relatively low levels in the inner 20 $^{\prime \prime }$and strongly increases at 40 $^{\prime \prime }$away from the source for both outflows.

6.2 The ``fossil'' outflow of L 1551 IRS 5

The outflow of L 1551 IRS 5 has been considered an example of an older outflow, due to its large size (Moriarty-Schieven & Snell 1988; Fridlund et al. 1989), large opening angle (Bachiller et al. 1994) and other submillimeter properties (Bachiller et al. 1994; Hogerheijde et al. 1998; Cabrit & Bertout 1992). White et al. (2000) constructed a detailed model from a wide variety of space- and ground-based IR continuum and spectroscopic observations, including a wide opening angle of the outflow ($\sim$50$^{\circ}$) and low densities inside the cavity. This view is clearly confirmed by the low derived temperatures of 40 to 50 K of the shocked gas, which is much cooler than in other sources. Little high-J CO emission is seen at the off-positions, and the maps are dominated by the emission of the central source. Comparison of the peak temperatures of CO 4-3 (Hogerheijde et al. 1998), 6-5 and 7-6 shows that $T_{\rm {peak}}$ at high-J transitions is similar to that at low-J CO transitions. This suggest that even though the outflow is present, the density in the surrounding cloud must be quite low.

\begin{figure}
\par\includegraphics[width=160pt]{12507f17a.ps}\includegraphics[width=160pt]{12507f17b.ps}\includegraphics[width=160pt]{12507f17c.ps}
\end{figure} Figure 17:

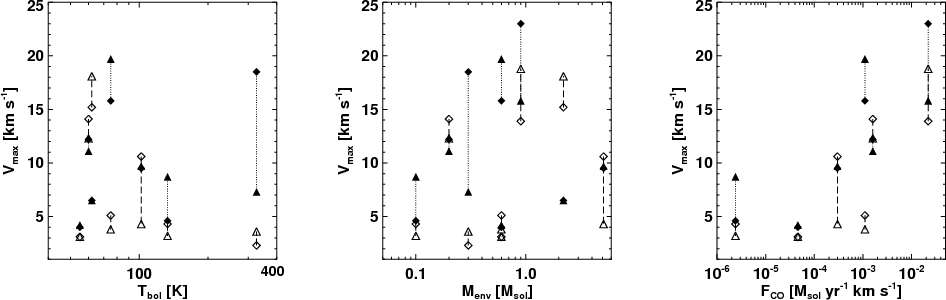

$V_{\rm {max}}$of 12CO 6-5 and 3-2 vs. $T_{\rm {bol}}$ ( left), envelope mass ( middle) and outflow force. Triangles represent the blue outflows and diamonds the red outflows. Open symbols are the CO 6-5 lines and filled symbols the CO 3-2 lines. Outflow force from Hogerheijde et al. (1998); Cabrit & Bertout (1992) (NGC 1333 IRAS 2, L 1551 IRS 5 and TMR 1), Bourke et al. (1997) (BHR 71) and van Kempen et al. submitted (Ced 110 IRS 4, IRAS 12496-7650, RCrA IRS 7) and van Kempen et al. (2009) (HH 46). CO 3-2 from Parise et al. (2006) (BHR 71), Hogerheijde et al. (1998) (TMR 1, L 1551 IRS 5), Knee & Sandell (2000) (NGC 1333 IRAS 2), van Kempen et al. (2006) (IRAS 12496-7650) and van Kempen et al. 2009, submitted (HH 46, RCrA IRS 7 and Ced 110 IRS 4).

Open with DEXTER

\begin{figure}
\par\includegraphics[angle=270,width=500pt]{12507fg18.ps}
\end{figure} Figure 18:

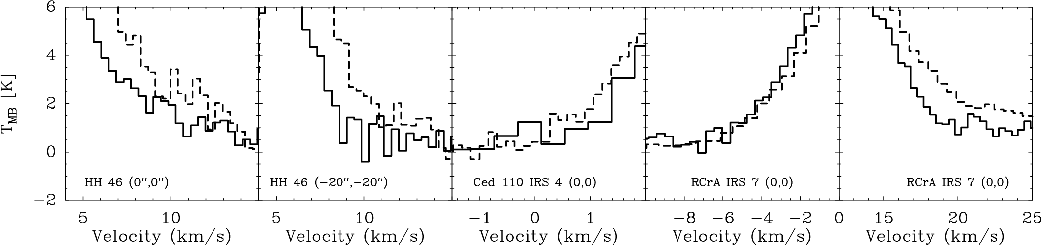

Line wings of CO 6-5 ( solid) and CO 3-2 ( dashed) for HH 46 (red wing at central position and in the red outflow), Ced 110 IRS 4 (blue at the central position), RCrA IRS 7A (red and blue at the central position).

Open with DEXTER

6.3 The PDR of RCrA IRS 7

The lines of RCrA IRS 7 are an order of magnitude stronger than those of equivalent sources in different clouds. Even at off-positions at the edge of the observed area, integrated intensities larger than 300 K km s-1 are seen. Even with the high luminosity of $\sim$20-30 $L_\odot$, these integrated intensities cannot originate from heating by RCrA IRS 7 itself. A likely explanation is the proximity of the A5 star RCrA ( $L_{\rm {bol}}=130$ $L_\odot$) at 36 $^{\prime \prime }$(4500 AU). RCrA was observed by ISO-LWS, and many strong high-J CO lines (CO 14-13 to 21-20) were detected in the large beam of ISO (Lorenzetti et al. 1999; Giannini et al. 1999). Models were put forward with the emission originating in relatively small ($\sim$0.002 pc), dense (>106 cm-3) and hot ( T>300-1000 K) regions (Giannini et al. 1999). However, the spatial distribution of the CO 6-5 and 7-6 seen in Fig. 8 does not agree with this hypothesis. A much more likely explanation is that RCrA itself irradiates the outer edges of the cloud and envelope around RCrA IRS 7a, creating a PDR at its surface, much like the case of intermediate mass sources in Orion (Jørgensen et al. 2006).

6.4 Presence of [C I] 2-1

A limit on the amount of FUV/X-ray emission that is available to dissociate CO and H2 can be derived from the presence of the [C I] 2-1. Photodissociation of CO can only occur at 912-1100 Å (van Dishoeck & Black 1988), so the absence of strong [C I] 2-1 emission in the outflow cavities of most protostars suggests that the radiation field in outflows does not produce sufficiently energetic radiation, but still heats the cavity walls to a few hundred K. This would also limit the shock velocities to <90 km s-1, since higher shock velocities produce CO and H2dissocating photons (Neufeld & Dalgarno 1989).

[C I] is detected in the inner 10 $^{\prime \prime }$for HH 46, TMR 1 and Ced 110 IRS 4 at levels of 2 K km s-1. For IRAS 12496-7650 and BHR 71, no [C I] 2-1 was detected. The low emission in all sources can be accounted for by a C abundance of a few times 10-6 with respect to H2. Such abundances can be maintainted by low UV levels produced by cosmic ray radiation (Flower et al. 1994).

Table 4:   CO isotopologue and [C I] properties at the source position.

Table 5:   Inferred envelope properties from the DUSTY models.

7 Conclusions

In this paper, we have presented the first 12CO 6-5 and 7-6 maps of a sample of 8 low-mass protostars with a large range of luminosities, evolution and densities, as well as several isotopologue and [C I] observations. All observations have been carried out with the CHAMP+ instrument. The main conclusions of this paper are:

  • Warm gas, as traced by 12CO 6-5 and 7-6, is present in all observed protostars at the central position. Three different origins of the warm gas emission are found: (i) the inner envelope heated passively by the protostellar luminosity; (ii) shocked gas in the outflow; and (iii) quiescent gas heated by UV photons. This latter mechanism, as detailed in Spaans et al. (1995) and in Paper I, generally dominates the extended high-J CO emission.

  • Envelope models show that for HH 46 and Ced 110 IRS 4, passive heating of the envelope is insufficient to explain the observed 12CO 6-5, 7-6 and 13CO 6-5 lines, requiring heating of the envelope by UV photons even at the (0, 0) position.

  • Photon heating of the cavity walls takes place on arcmin scales for the outflow cavities of several other Class 0 and Class I protostars, as seen at positions off-source of BHR 71, NGC 1333 IRS 2, HH 46 and L 1551 IRS 5. The necessary UV photons are created by internal jet shocks and the bow shock where the jet interacts with the ambient medium, in addition to the disk-star accretion boundary layer. The distribution of the quiescent CO 6-5 and 7-6 emission of BHR 71, with narrow emission stronger at larger distances from the source, confirms the hypothesis that UV photons necessary for the heating can originate both mechanisms. This suggests that photon heating is present in all outflows.

  • The lack of [C I] 2-1 emission in the outflows constrains the production of energetic CO dissociative photons in the shocks. The observed [C I] emission at the source position can be accounted for by a low atomic C abundance that is maintained by cosmic ray induced UV photodissocation of CO.

  • Shocked 12CO 6-5 and 7-6 gas only exists in large quantities in flows of more massive sources (NGC 1333 IRAS 2, BHR 71, HH 46 and RCrA IRS 7), while low-mass flows do not show much shocked gas that emits in the 12CO 6-5 and 7-6 lines. Within the proposed model of Bachiller & Tafalla (1999), the outflows of Class I are more evolved and are driven with much less energy, producing much weaker shocks. This is also reflected in the decreasing maximum velocity of 12CO 6-5 with lower outflow force.

  • Kinetic temperatures of $\sim$100 K are found for the molecular gas in most flows studied here. Such temperatures agree with expected conditions of jet driven flows modelled by (Hatchell et al. 1999). Only the flows of L 1551 IRS 5 and IRAS 12496-7650 are much colder (<50 K), in agreement with the ``fossil'', empty nature of the flows.

    Table 6:   13CO model predictions.

  • The very strong intensities at all positions of RCrA IRS 7, an order of magnitude higher than can be produced by passive heating, must be due to a significant PDR region near the source. Likely, RCrA itself heats the outside of the RCrA IRS 7 envelope and cloud region.

Spatially resolved observations with APEX-CHAMP+ of high-J CO and isotopologues clearly provide unique insight into the structure and physical processes of low-mass protostars, as well as their feedback on the surroundings. The ubiquitous photon heating of the gas found here may have some consequences for the amount of envelope gas that can eventually collapse. Detailed multi-dimensional radiative transfer modelling, including outflow cavities are needed to directly adress this question. Such models are now being developed for high-mass YSOs (Bruderer et al. 2009), and will be extended to low-mass YSOs. The UV radiation will also significantly affect the chemistry along the outflow walls, dissociating molecules like H2O to OH and O and HCN to CN. In the future, the Herschel Space Observatory will be able to map even higher J CO lines as well as H2O, OH and [O I] lines in the far-IR between 60 and 600 $\mu $m with the PACS and HIFI

Table 7:   Outflow kinetic temperature estimatesa.

Acknowledgements

T.v.K. and astrochemistry at Leiden Observatory are supported by a Spinoza prize and by NWO grant 614.041.004. The staff at APEX and many members of the Bonn submillimeter group are thanked for the excellent support during observations. CHAMP+ is constructed with funds from NWO grant 600.063.310.10. We thank Ronald Stark for continued support of the CHAMP+ project.

References

  • Adams, F. C., Lada, C. J., & Shu, F. H. 1987, ApJ, 312, 788 [NASA ADS] [CrossRef]
  • Arce, H. G., & Sargent, A. I. 2005, ApJ, 624, 232 [NASA ADS] [CrossRef]
  • Arce, H. G., Shepherd, D., Gueth, F., et al. 2007, in Protostars and Planets V, ed. B. Reipurth, D. Jewitt, & K. Keil, 245
  • Bachiller, R. 1996, ARA&A, 34, 111 [NASA ADS] [CrossRef]
  • Bachiller, R., & Tafalla, M. 1999, in The Origin of Stars and Planetary Systems, ed. C. J. Lada, & N. D. Kylafis (Dordrecht: Kluwer), 227
  • Bachiller, R., Tafalla, M., & Cernicharo, J. 1994, ApJ, 425, L93 [NASA ADS] [CrossRef]
  • Bisschop, S. E., Jørgensen, J. K., van Dishoeck, E. F., & de Wachter, E. B. M. 2007, A&A, 465, 913 [NASA ADS] [CrossRef] [EDP Sciences]
  • Blake, G. A., Sandell, G., van Dishoeck, E. F., et al. 1995, ApJ, 441, 689 [NASA ADS] [CrossRef]
  • Boogert, A. C. A., Hogerheijde, M. R., Ceccarelli, C., et al. 2002, ApJ, 570, 708 [NASA ADS] [CrossRef]
  • Bottinelli, S., Ceccarelli, C., Lefloch, B., et al. 2004, ApJ, 615, 354 [NASA ADS] [CrossRef]
  • Bottinelli, S., Ceccarelli, C., Williams, J. P., & Lefloch, B. 2007, A&A, 463, 601 [NASA ADS] [CrossRef] [EDP Sciences]
  • Bourke, T. L., Garay, G., Lehtinen, K. K., et al. 1997, ApJ, 476, 781 [NASA ADS] [CrossRef]
  • Bourke, T. L. 2001, ApJ, 554, L91 [NASA ADS] [CrossRef]
  • Brinch, C., Crapsi, A., Jørgensen, J. K., Hogerheijde, M. R., & Hill, T. 2007, A&A, 475, 915 [NASA ADS] [CrossRef] [EDP Sciences]
  • Bruderer, S., Benz, A. O., Doty, S. D., van Dishoeck, E. F., & Bourke, T. L. 2009, ApJ, 700, 872 [NASA ADS] [CrossRef]
  • Butner, H. M., Evans, II, N. J., Lester, D. F., Levreault, R. M., & Strom, S. E. 1991, ApJ, 376, 636 [NASA ADS] [CrossRef]
  • Cabrit, S., & Bertout, C. 1992, A&A, 261, 274 [NASA ADS]
  • Ceccarelli, C., Caux, E., White, G. J., et al. 1998, A&A, 331, 372 [NASA ADS]
  • Ceccarelli, C., Castets, A., Caux, E., et al. 2000, A&A, 355, 1129 [NASA ADS]
  • Ceccarelli, C., Boogert, A. C. A., Tielens, A. G. G. M., et al. 2002, A&A, 395, 863 [NASA ADS] [CrossRef] [EDP Sciences]
  • Chandler, C. J., & Richer, J. S. 2000, ApJ, 530, 851 [NASA ADS] [CrossRef]
  • Crapsi, A., van Dishoeck, E. F., Hogerheijde, M. R., Pontoppidan, K. M., & Dullemond, C. P. 2008, ArXiv e-prints, 801
  • Di Francesco, J., Johnstone, D., Kirk, H., MacKenzie, T., & Ledwosinska, E. 2008, ApJS, 175, 277 [NASA ADS] [CrossRef]
  • Draine, B. T., & Roberge, W. G. 1984, ApJ, 282, 491 [NASA ADS] [CrossRef]
  • Dunham, M. M., Crapsi, A., Evans, II, N. J., et al. 2008, ArXiv e-prints, 806
  • Enoch, M. L., Young, K. E., Glenn, J., et al. 2006, ApJ, 638, 293 [NASA ADS] [CrossRef]
  • Evans, N. J., Harvey, P. M., Dunham, M. M., et al. 2007, c2d delivery document
  • Flower, D. R., Le Bourlot, J., Pineau Des Forets, G., & Roueff, E. 1994, A&A, 282, 225 [NASA ADS]
  • Fridlund, C. V. M., Sandqvist, A., Nordh, H. L., & Olofsson, G. 1989, A&A, 213, 310 [NASA ADS]
  • Froebrich, D. 2005, ApJS, 156, 169 [NASA ADS] [CrossRef]
  • Furlan, E., McClure, M., Calvet, N., et al. 2008, ApJS, 176, 184 [NASA ADS] [CrossRef]
  • Giannini, T., Lorenzetti, D., Tommasi, E., et al. 1999, A&A, 346, 617 [NASA ADS]
  • Giannini, T., Nisini, B., & Lorenzetti, D. 2001, ApJ, 555, 40 [NASA ADS] [CrossRef]
  • Groppi, C. E., Hunter, T. R., Blundell, R., & Sandell, G. 2007, ApJ, 670, 489 [NASA ADS] [CrossRef]
  • Güsten, R., Baryshev, A., Bell, A., et al. 2008, SPIE Conf. Ser., 7020,
  • Gutermuth, R. A., Myers, P. C., Megeath, S. T., et al. 2008, ApJ, 674, 336 [NASA ADS] [CrossRef]
  • Hatchell, J., Fuller, G. A., & Ladd, E. F. 1999, A&A, 344, 687 [NASA ADS]
  • Hatchell, J., Fuller, G. A., Richer, J. S., Harries, T. J., & Ladd, E. F. 2007, A&A, 468, 1009 [NASA ADS] [CrossRef] [EDP Sciences]
  • Heathcote, S., Morse, J. A., Hartigan, P., et al. 1996, AJ, 112, 1141 [NASA ADS] [CrossRef]
  • Henning, T., & Launhardt, R. 1998, A&A, 338, 223 [NASA ADS]
  • Henning, T., Pfau, W., Zinnecker, H., & Prusti, T. 1993, A&A, 276, 129 [NASA ADS]
  • Hiramatsu, M., Hayakawa, T., Tatematsu, K., et al. 2007, ApJ, 664, 964 [NASA ADS] [CrossRef]
  • Hirano, N., Liu, S.-Y., Shang, H., et al. 2006, ApJ, 636, L141 [NASA ADS] [CrossRef]
  • Hogerheijde, M. R., van Dishoeck, E. F., Blake, G. A., & van Langevelde, H. J. 1998, ApJ, 502, 315 [NASA ADS] [CrossRef]
  • Hogerheijde, M. R., van Dishoeck, E. F., Salverda, J. M., & Blake, G. A. 1999, ApJ, 513, 350 [NASA ADS] [CrossRef]
  • Hogerheijde, M. R., & van der Tak, F. F. S. 2000, A&A, 362, 697 [NASA ADS]
  • Ivezic, Z., & Elitzur, M. 1997, MNRAS, 287, 799 [NASA ADS]
  • Jørgensen, J. K. 2004, A&A, 424, 589 [NASA ADS] [CrossRef] [EDP Sciences]
  • Jørgensen, J. K., Schöier, F. L., & van Dishoeck, E. F. 2002, A&A, 389, 908 [NASA ADS] [CrossRef] [EDP Sciences]
  • Jørgensen, J. K., Schöier, F. L., & van Dishoeck, E. F. 2004, A&A, 416, 603 [NASA ADS] [CrossRef] [EDP Sciences]
  • Jørgensen, J. K., Schöier, F. L., & van Dishoeck, E. F. 2005, A&A, 435, 177 [NASA ADS] [CrossRef] [EDP Sciences]
  • Jørgensen, J. K., Johnstone, D., van Dishoeck, E. F., & Doty, S. D. 2006, A&A, 449, 609 [NASA ADS] [CrossRef] [EDP Sciences]
  • Kasemann, C., Güsten, R., Heyminck, S., et al. 2006, SPIE Conf., 6275
  • Kenyon, S. J., Gomez, M., Marzke, R. O., & Hartmann, L. 1994, AJ, 108, 251 [NASA ADS] [CrossRef]
  • Knee, L. B. G., & Sandell, G. 2000, A&A, 361, 671 [NASA ADS]
  • Lee, C.-F., & Ho, P. T. P. 2005, ApJ, 624, 841 [NASA ADS] [CrossRef]
  • Lee, J.-E., Di Francesco, J., Bourke, T. L., Evans, II, N. J., & Wu, J. 2007, ApJ, 671, 1748 [NASA ADS] [CrossRef]
  • Lehtinen, K., Haikala, L. K., Mattila, K., & Lemke, D. 2001, A&A, 367, 311 [NASA ADS] [CrossRef] [EDP Sciences]
  • Lehtinen, K., Harju, J., Kontinen, S., & Higdon, J. L. 2003, A&A, 401, 1017 [NASA ADS] [CrossRef] [EDP Sciences]
  • Liu, M. C., Graham, J. R., Ghez, A. M., et al. 1996, ApJ, 461, 334 [NASA ADS] [CrossRef]
  • Lorenzetti, D., Tommasi, E., Giannini, T., et al. 1999, A&A, 346, 604 [NASA ADS]
  • Luhman, K. L., Allen, L. E., Allen, P. R., et al. 2008, ApJ, 675, 1375 [NASA ADS] [CrossRef]
  • Maret, S., Ceccarelli, C., Caux, E., et al. 2004, A&A, 416, 577 [NASA ADS] [CrossRef] [EDP Sciences]
  • Moriarty-Schieven, G. H., & Snell, R. L. 1988, ApJ, 332, 364 [NASA ADS] [CrossRef]
  • Motte, F., & André, P. 2001, A&A, 365, 440 [NASA ADS] [CrossRef] [EDP Sciences]
  • Neufeld, D. A., & Dalgarno, A. 1989, ApJ, 340, 869 [NASA ADS] [CrossRef]
  • Nisini, B., Benedettini, M., Giannini, T., et al. 1999, A&A, 350, 529 [NASA ADS]
  • Nisini, B., Giannini, T., & Lorenzetti, D. 2002, ApJ, 574, 246 [NASA ADS] [CrossRef]
  • Nutter, D. J., Ward-Thompson, D., & André, P. 2005, MNRAS, 357, 975 [NASA ADS] [CrossRef]
  • Offner, S. S. R., Klein, R. I., McKee, C. F., & Krumholz, M. R. 2009, ArXiv e-prints
  • Osorio, M., D'Alessio, P., Muzerolle, J., Calvet, N., & Hartmann, L. 2003, ApJ, 586, 1148 [NASA ADS] [CrossRef]
  • Ossenkopf, V., & Henning, T. 1994, A&A, 291, 943 [NASA ADS]
  • Parise, B., Belloche, A., Leurini, S., et al. 2006, A&A, 454, L79 [NASA ADS] [CrossRef] [EDP Sciences]
  • Raga, A. C., de Colle, F., Kajdic, P., Esquivel, A., & Cantó, J. 2007, A&A, 465, 879 [NASA ADS] [CrossRef] [EDP Sciences]
  • Reipurth, B., & Raga, A. C. 1999, in NATO ASIC Proc. 540: The Origin of Stars and Planetary Systems, ed. C. J. Lada, & N. D. Kylafis, 267
  • Reipurth, B., Chini, R., Krugel, E., Kreysa, E., & Sievers, A. 1993, A&A, 273, 221 [NASA ADS]
  • Reipurth, B., Rodríguez, L. F., Anglada, G., & Bally, J. 2002, AJ, 124, 1045 [NASA ADS] [CrossRef]
  • Robitaille, T. P., Whitney, B. A., Indebetouw, R., Wood, K., & Denzmore, P. 2006, ApJS, 167, 256 [NASA ADS] [CrossRef]
  • Sandell, G., & Knee, L. B. G. 2001, ApJ, 546, L49 [NASA ADS] [CrossRef]
  • Schöier, F. L., Jørgensen, J. K., van Dishoeck, E. F., & Blake, G. A. 2002, A&A, 390, 1001 [NASA ADS] [CrossRef] [EDP Sciences]
  • Schöier, F. L., van der Tak, F. F. S., van Dishoeck, E. F., & Black, J. H. 2005, A&A, 432, 369 [NASA ADS] [CrossRef] [EDP Sciences]
  • Schöier, F. L., Jørgensen, J. K., Pontoppidan, K. M., & Lundgren, A. A. 2006, A&A, 454, L67 [NASA ADS] [CrossRef] [EDP Sciences]
  • Schuster, K. F., Harris, A. I., Anderson, N., & Russell, A. P. G. 1993, ApJ, 412, L67 [NASA ADS] [CrossRef]
  • Schuster, K.-F., Russell, A. P. G., & Harris, A. I. 1995, Ap&SS, 224, 117 [NASA ADS] [CrossRef]
  • Shirley, Y. L., Evans, N. J., Rawlings, J. M. C., & Gregersen, E. M. 2000, ApJS, 131, 249 [NASA ADS] [CrossRef]
  • Shirley, Y. L., Evans, II, N. J., & Rawlings, J. M. C. 2002, ApJ, 575, 337 [NASA ADS] [CrossRef]
  • Spaans, M., Hogerheijde, M. R., Mundy, L. G., & van Dishoeck, E. F. 1995, ApJ, 455, L167 [NASA ADS] [CrossRef]
  • Stark, R., Sandell, G., Beck, S. C., et al. 2004, ApJ, 608, 341 [NASA ADS] [CrossRef]
  • Stäuber, P., Doty, S. D., van Dishoeck, E. F., Jørgensen, J. K., & Benz, A. O. 2004, A&A, 425, 577 [NASA ADS] [CrossRef] [EDP Sciences]
  • Terebey, S., Chandler, C. J., & Andre, P. 1993, ApJ, 414, 759 [NASA ADS] [CrossRef]
  • van der Tak, F. F. S., Black, J. H., Schöier, F. L., Jansen, D. J., & van Dishoeck, E. F. 2007, A&A, 468, 627 [NASA ADS] [CrossRef] [EDP Sciences]
  • van Dishoeck, E. F., & Black, J. H. 1988, ApJ, 334, 771 [NASA ADS] [CrossRef]
  • van Dishoeck, E. F., Blake, G. A., Jansen, D. J., & Groesbeck, T. D. 1995, ApJ, 447, 760 [NASA ADS] [CrossRef]
  • van Kempen, T. A., Hogerheijde, M. R., van Dishoeck, E. F., et al. 2006, A&A, 454, L75 [NASA ADS] [CrossRef] [EDP Sciences]
  • van Kempen, T. A., van Dishoeck, E. F., Salter, D. M., et al. 2009, A&A, 498, 167 [NASA ADS] [CrossRef] [EDP Sciences]
  • White, G. J., Liseau, R., Men'shchikov, A. B., et al. 2000, A&A, 364, 741 [NASA ADS]
  • Whitney, B. A., Wood, K., Bjorkman, J. E., & Cohen, M. 2003a, ApJ, 598, 1079 [NASA ADS] [CrossRef]
  • Whitney, B. A., Wood, K., Bjorkman, J. E., & Wolff, M. J. 2003b, ApJ, 591, 1049 [NASA ADS] [CrossRef]

Footnotes

... gas[*]
Fits files of data used in constructing maps are only available in electronic form at the CDS via anonymous ftp to cdsarc.u-strasbg.fr (130.79.128.5) or via http://cdsweb.u-strasbg.fr/cgi-bin/qcat?J/A+A/507/1425
... (APEX)[*]
This publication is based on data acquired with the Atacama Pathfinder Experiment (APEX). APEX is a collaboration between the Max-Planck-Institut für Radioastronomie, the European Southern Observatory, and the Onsala Space Observatory.
... package[*]
CLASS is part of the GILDAS reduction package.
See http://www.iram.fr/IRAMFR/GILDAS for more information.
...$n \propto r^{-p}$[*]
Note that this power law index is not the same as the power law index p for the normalized 850 $\mu $m radial emission profile.
Copyright ESO 2009

All Tables

Table 1:   Adopted Champ+ settings.

Table 2:   The sample of sources observed with CHAMP+.

Table 3:   Properties of the 12CO linesa.

Table 4:   CO isotopologue and [C I] properties at the source position.

Table 5:   Inferred envelope properties from the DUSTY models.

Table 6:   13CO model predictions.

Table 7:   Outflow kinetic temperature estimatesa.

All Figures

  \begin{figure}
\par\includegraphics[width=450pt]{12507fig1.ps}\vspace*{4mm}
\end{figure} Figure 1:

Maps of CO 6-5 ( top row) and CO 7-6 ( bottom row) of NGC 1333 IRAS 2. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 4 K km s-1 for both transitions. The outflow contributions are calculated by only including emission greater or smaller than +/-1.5 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=450pt]{12507fig2.ps}
\end{figure} Figure 2:

Maps of CO 6-5 ( top row) and CO 7-6 ( bottom row) of L 1551 IRS 5. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 0.5 K km s-1 for both transitions. The outflow contributions are calculated by only including emission greater or smaller than +/-1.5 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=450pt]{12507fig3.ps}
\end{figure} Figure 3:

Maps of CO 6-5 ( top row) and CO 7-6 ( bottom row) of TMR 1. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 1 K km s-1 for both transitions.The outflow contributions are calculated by only including emission greater or smaller than +/-1.5 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position, while the right-most image at the bottom row shows the spectra of the observed isotopologues and [C I] 2-1 at the central position.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[angle=270,width=450pt]{12507fig4.ps}
\end{figure} Figure 4:

CO 6-5 ( left) CO 7-6 ( middle) maps and spectra of the central position of HH 46. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 2 K km s-1 for CO 6-5 and 3 K km s-1 for CO 7-6. The outflow contributions are calculated by only including emission greater or smaller than +/-1.5 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position, while the right-most image at the bottom row shows the spectra of the observed isotopologues and [C I] 2-1 at the central position (see also Paper I).

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[angle=270,width=450pt]{12507fig5.ps}
\end{figure} Figure 5:

Maps of CO 6-5 ( top row) and CO 7-6 ( bottom row) of Ced 110 IRS 4. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 3 K km s-1 for both transitions. The outflow contributions are calculated by only including emission greater or smaller than +/-1.5 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position, while the right-most image at the bottom row shows the spectra of the observed isotopologues and [C I] 2-1 at the central position.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[angle=270,width=450pt]{12507fig6.ps}
\end{figure} Figure 6:

Maps of CO 6-5 ( top row) and CO 7-6 ( bottom row) of BHR 71. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 10 K km s-1 for CO 6-5 and 5 K km s-1 for CO 7-6. The outflow contributions are calculated by only including emission greater or smaller than +/-1.5 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position, while the right-most image at the bottom row shows the spectra of the observed isotopologues and [C I] 2-1 at the central position.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[angle=270,width=470pt]{12507fig7.ps}
\end{figure} Figure 7:

Maps of CO 6-5 ( top row) and CO 7-6 ( bottom row) of IRAS 12496-7650. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 3 K km s-1 for both transitions. The outflow contributions are calculated by only including emission greater or smaller than +/-1.5 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position, while the right-most image at the bottom row shows the spectra of the observed isotopologues and [C I] 2-1 at the central position.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[angle=270,width=465pt]{12507fig8.ps}
\end{figure} Figure 8:

Maps of CO 6-5 ( top row) and CO 7-6 ( bottom row) of RCrA IRS 7a. The left-most image shows the total integrated intensity over the line. The middle figures show the outflow contributions from the red ( dashed lines) and blue ( solid lines) outflow. Contours are in increasing levels of 10 K km s-1 for both transitions. The outflow contributions are calculated by only including emission greater or smaller than +/-8 km s-1 from the central velocity. The right-most image at the top row shows the 12CO spectra at the central position.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[angle=270,width=200pt]{12507fg9a.ps}\includegraphics[angle=270,width=230pt]{12507fg9b.ps}
\end{figure} Figure 9:

Spectra of 12CO 6-5 over an area of $40\hbox {$^{\prime \prime }$ }\times 40\hbox {$^{\prime \prime }$ }$ of NGC 1333 IRAS 2 ( left) and L 1551 IRS 5 ( right). NGC 1333 IRAS 2 was observed using the hexa mode, so the covered area is slightly smaller than that of L 1551 IRS 5 taken in OTF mode. For all spectra in both sources, horizontal axes range from -10 to 25 km s-1 and vertical axes from -5 to 12 K. For both sources, the main outflow axis of the red and blue are shown with a dashed and solid lines.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[angle=270,width=200pt]{12507f10a.ps}\includegraphics[angle=270,width=200pt]{12507f10b.ps}
\end{figure} Figure 10:

Spectra of 12CO 6-5 over an area of $40\hbox {$^{\prime \prime }$ }\times 40\hbox {$^{\prime \prime }$ }$ of TMR 1 ( left) and HH 46 ( right). TMR 1 was observed using the hexa mode, so the covered area is slightly smaller than that of HH 46 taken in OTF mode. For all spectra in both sources, the horizontal axes range from -10 to 20 km s-1 with vertical axes from -5 to 12 K. For HH 46, the red outflow axis is shown with a dashed line.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[angle=270,width=200pt]{12507f11a.ps}\includegraphics[angle=270,width=200pt]{12507f11b.ps}
\end{figure} Figure 11:

Spectra of 12CO 6-5 over an area of $40\hbox {$^{\prime \prime }$ }\times 40\hbox {$^{\prime \prime }$ }$ of Ced 110 IRS 4 ( left) and BHR 71 ( right). For Ced 110 IRS 4, the horizontal axes are -10 to 25 km s-1 with vertical axes from -4 to 10 K. For BHR 71, horizontal axes are -20 to 10 km s-1 with vertical axes -5 to 15 K. For BHR 71, the main outflow axis of the red and blue are shown with a dashed and solid lines.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[angle=270,width=195pt]{12507f12a.ps}\includegraphics[angle=270,width=195pt]{12507f12b.ps}
\end{figure} Figure 12:

Spectra of 12CO 6-5 over an area of $40\hbox {$^{\prime \prime }$ }\times 40\hbox {$^{\prime \prime }$ }$ of IRAS 12496-7650 ( left) and RCrA IRS 7A ( right). RCrA IRS 7A was observed using the hexa mode, so the covered area is slightly smaller than that of IRAS 12496-7650 taken in OTF mode. For all spectra, the horizontal axes are -15 to 15 km s-1 with vertical axes from -5 to 15 K for IRAS 12496-7650 and from -10 to 25 km s-1 and -5 to 50 K for RCrA IRS 7. For RCrA IRS 7, the main outflow axis of the red and blue lobes are shown with a dashed and solid lines.

Open with DEXTER
In the text

  \begin{figure}
\par\mbox{\includegraphics[width=160pt]{12507f13a.ps}\includegrap...
...13d.ps}\includegraphics[width=160pt]{12507f13e.ps}\hspace*{80pt}}
\end{figure} Figure 13:

13CO 6-5 integrated intensity maps of BHR 71 ( upper left), Ced 110 IRS 4 ( upper middle), HH 46 ( upper right), IRAS 12496-7650 ( lower left) and TMR 1 ( lower middle).

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=150pt]{12507f14a.ps}\includegraphics[width=150pt]{12507f14b.ps}
\end{figure} Figure 14:

[C I] 2-1 integrated intensity maps of Ced 110 IRS 4 ( left) and TMR 1 ( right). Note that the TMR 1 data suffer from a de-rotation problem in the calibrator data and are subject to change.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=300pt]{12507fg15.ps}
\end{figure} Figure 15:

The SEDs and radial profiles at 850 $\mu $m of the sample. Overplotted is the best-fitting envelope model. For Ced 110 IRS 4 and BHR 71, the model spatial 850 $\mu $m profile of 1.5 is plotted since data are lacking. Note that this power law index of 1.5 does not equal the power law index p.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=7cm,clip]{12507fg16.ps}
\end{figure} Figure 16:

The contribution of the envelope to CO lines at the source position with $J_{\rm {up}}$ ranging from 1 to 19. Integrated emission is shown with dashed and solid lines. Dashed lines are modelled lines which show excessive self-absorption. Solid lines represent Gaussian fitted to the line wings of the envelope model and thus represent the strict upper limit to the CO line emission from the protostellar envelope. Beam-sizes were taken to be 10 $^{\prime \prime }$for all transitions except for $J_{\rm {up}}\leq 3$, for which a beam of 20 $^{\prime \prime }$was used. Stars indicate the integrated quiescent emission of the lines observed with CHAMP+ from Table 3 at the source position, corrected for red- and blue-shifted emission, while triangles are literature data (see Table 2).

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=160pt]{12507f17a.ps}\includegraphics[width=160pt]{12507f17b.ps}\includegraphics[width=160pt]{12507f17c.ps}
\end{figure} Figure 17:

$V_{\rm {max}}$of 12CO 6-5 and 3-2 vs. $T_{\rm {bol}}$ ( left), envelope mass ( middle) and outflow force. Triangles represent the blue outflows and diamonds the red outflows. Open symbols are the CO 6-5 lines and filled symbols the CO 3-2 lines. Outflow force from Hogerheijde et al. (1998); Cabrit & Bertout (1992) (NGC 1333 IRAS 2, L 1551 IRS 5 and TMR 1), Bourke et al. (1997) (BHR 71) and van Kempen et al. submitted (Ced 110 IRS 4, IRAS 12496-7650, RCrA IRS 7) and van Kempen et al. (2009) (HH 46). CO 3-2 from Parise et al. (2006) (BHR 71), Hogerheijde et al. (1998) (TMR 1, L 1551 IRS 5), Knee & Sandell (2000) (NGC 1333 IRAS 2), van Kempen et al. (2006) (IRAS 12496-7650) and van Kempen et al. 2009, submitted (HH 46, RCrA IRS 7 and Ced 110 IRS 4).

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[angle=270,width=500pt]{12507fg18.ps}
\end{figure} Figure 18:

Line wings of CO 6-5 ( solid) and CO 3-2 ( dashed) for HH 46 (red wing at central position and in the red outflow), Ced 110 IRS 4 (blue at the central position), RCrA IRS 7A (red and blue at the central position).

Open with DEXTER
In the text


Copyright ESO 2009

Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.

Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.

Initial download of the metrics may take a while.
