A&A 507, 1531-1539 (2009)

The origin of the supersoft X-ray-optical/UV flux anticorrelation in the symbiotic binary AG Draconis

A. Skopal1 - M. Sekerás1 - R. González-Riestra2 - R. F. Viotti3

1 - Astronomical Institute, Slovak Academy of Sciences, 059 60 Tatranská Lomnica, Slovakia
2 - XMM Science Operations Centre, ESAC, PO Box 78, 28691 Villanueva de la Cañada, Madrid, Spain
3 - INAF Instituto di Astrofisica Spaziale e Fisica Cosmica di Roma, via del Fosso del Cavaliere 100, 00133 Roma, Italy

Received 25 November 2008 / Accepted 27 August 2009

Abstract
Context. AG Draconis produces a strong supersoft X-ray emission. The X-ray and optical/UV fluxes are in strict anticorrelation throughout the active and quiescent phases.
Aims. We identify the source of the X-ray emission and reveal the nature of the observed flux anticorrelation.
Methods. We used X-ray and UV observations with XMM-Newton, far-UV spectroscopy from FUSE, low- and high-resolution IUE spectra, and optical/near-IR spectroscopic and/or photometric observations. We modeled the spectral energy distribution and broad wings of the O VI  $\lambda 1032, \lambda 1038$ and He II $\lambda $1640 lines by the electron-scattering during the maximum of the 2003 burst, and the subsequent transition and quiescent phase.
Results. The X-ray-near-IR energy distribution at different levels of the star's brightness confirmed the observed flux anticorrelation quantitatively and showed that the optical bursts are associated to an increase in the nebular component of radiation. The profile-fitting analysis revealed a significant increase in the mean particle density around the hot star from $\sim $ $2.6\times 10^{10}$  cm-3 during quiescent phase to $\sim $ $ 1.1\times 10^{12}$  cm-3 during the burst.
Conclusions. The supersoft X-ray emission is produced by the white dwarf photosphere. The X-ray and far-UV fluxes make it possible to determine its temperature unambiguously. The supersoft X-ray-optical/UV flux anticorrelation is caused by the variable wind from the hot star. The enhanced hot star wind gives rise to the optical bursts by reprocessing high-energy photons from the Lyman continuum to the optical/UV.

Key words: stars: binaries: symbiotic - stars: fundamental parameters - X-rays: binaries - X-rays: individuals: AG Draconis

1 Introduction

Symbiotic stars are long-period (orbital periods are on the order of years) interacting binaries consisting of a cool giant and a compact star, which is in most cases a white dwarf (WD) that accretes from the giant's wind. This process generates a very hot ( $T_{\rm h} \approx 10^5$ K) and luminous ( $L_{\rm h} \approx 10^2 {-} 10^4$ $L_{\odot}$) source of radiation, which ionizes a fraction of the neutral wind from the giant giving rise to nebular emission. As a result, the spectrum of symbiotic stars has three basic components of radiation, two stellar and one nebular (see e.g. Mürset et al. 1991; Skopal 2005; Kenyon & Webbink 1984; Seaquist et al. 1984). This situation represents the so-called quiescent phase, during which the symbiotic system releases its energy approximately at a constant rate and at a stable spectral energy distribution (SED). Sometimes, the symbiotic system changes its radiation significantly, brightens up by 1-3 mag in the optical, shows signatures of a mass outflow, and changes its ionization structure for a few months to years (see e.g. Skopal 2005; Corradi et al. 2003; Viotti et al. 1984, and references therein). We call this stage the active phase, and the corresponding brightening in the light curve is classified as the ``Z And-type'' outburst. Occurrence of these outbursts is unpredictable, and their nature is so far poorly understood (e.g. Sect. 1 in Sokoloski et al. 2006). Investigation of this type of outburst represents the key problem in the research of symbiotic stars.

AG Dra is a yellow symbiotic binary comprising a K2 III giant (Mürset & Schmid 1999) and a WD accreting from the giant's wind on a 549-day orbit (Fekel et al. 2000). The light curve of AG Dra shows numerous bursts with amplitude of 1-3 mag in U (Fig. 1). González-Riestra et al. (1999) identified cool and hot outbursts differing in their Zanstra temperatures and the light curve profile. The former are more pronounced ( $\Delta U\sim 3$ mag) lasting for 1-2 years (e.g. 1981-83, 2006-07), while the latter are weaker ( $\Delta U\sim 1{-}2$ mag), single brightenings lasting for weeks to months (e.g. 1985, 1986, 2003, see Fig. 1). Modeling the UV/IR continuum, Skopal (2005) found a significant contribution from the nebula in the near-UV/optical that strengthens during outbursts. The symbiotic nebula in AG Dra is dense. Material supplied by the giant's wind into the binary environment at a rate of $3\times 10^{-7}$  $M_{\odot}~{\rm yr}^{-1}$ (Skopal 2005) corresponds to number densities of $\approx $ $1{-}10\times 10^{8}$ cm-3, in between the binary components and the neighboring regions of similar dimensions. Therefore, to investigate properties of symbiotic nebula, we can consider Case B for its radiation (see Kwok 2000; Osterbrock 1989).

AG Dra is a halo binary system, placed at a galactic latitude of +41 $\hbox{$^\circ$ }$ with a low reddening. Viotti et al. (1983) found $E_{B-V} = 0.06\pm 0.03$ by fitting the 2200 Å depression on the IUE spectra. Mikolajewska et al. (1995) re-analyzed several IUE spectra and suggested $E_{B-V} = 0.05\pm 0.01$, while Birriel et al. (2000) derived the extinction value of $E_{B-V} = 0.08\pm 0.01$ mag by fitting the UV spectra obtained by the Hopkins Ultraviolet Telescope. These quantities are comparable to the total reddening through the Galaxy towards AG Dra (0.07-0.08, Burstein & Heiles 1982), which justifies that the measured extinction to AG Dra is purely interstellar. From the Ly$\alpha$ width on high-resolution IUE spectra, Viotti et al. (1983) estimate the H I column density of $\log ~N_{\rm H} = 20.2$. Using the Einstein X-ray observations, Anderson et al. (1981) found $N_{\rm H} = 3\times 10^{20}$ cm-2. According to the relationship between $N_{\rm H}$ and EB-V ( $N_{\rm H}/E_{B-V} \sim 4.93\times 10^{21}~{\rm cm^{-2}~mag^{-1}}$, Diplas & Savage 1994), both these parameters are consistent.

\begin{figure}
\par\resizebox{18cm}{!}{\includegraphics[angle=-90]{11418fg1.eps}}
\end{figure} Figure 1:

The U and V light curves of AG Dra from 1977. They are characterized by a series of outbursts with multiple maxima. The data were summarized by Skopal et al. (2007). The right panel shows a detail around the 2003 hot burst with timing of the XMM-Newton (long thin lines) and the FUSE (short thick bars) observations. During the optical maxima, the soft X-ray emission was not detectable (long dashed lines).

Open with DEXTER

The orbital inclination of the binary is rather low. There are no signs of eclipses whether in the optical, far-UV, or X-ray regions (e.g. González-Riestra et al. 2008). Considering the geometry of the main sources of radiation, Mikolajewska et al. (1995) estimated a system inclination $i \approx 30^{\circ}{-}45^{\circ}$ and Schmid & Schild (1997), based on spectropolarimetric observations, suggested $i=60\pm 8\hbox{$.\!\!^\circ$ }2$. As a result we instead see the hot star from its pole than the orbital plane, where a disk-like structured material can be expected (e.g. Mastrodemos & Morris 1998). Both the low interstellar absorption/extinction and the low orbital inclination suggest a high transmission of the interstellar medium (ISM) to soft X-rays, which is consistent with AG Dra being the brightest system at these energies among other symbiotics. Therefore, AG Dra has been frequently observed by X-ray satellites.

Using the ROSAT observations Greiner et al. (1997) first noted a remarkable decrease in the X-ray flux during the optical (1994 and 1995) maxima, while in the UV and the optical they indicated a large increase in the emission line and continuum fluxes. They ascribed this X-ray/UV flux anticorrelation to a temperature decrease of the hot component. The X-ray history of AG Dra has recently been reviewed and discussed by González-Riestra et al. (2008). They find that the anticorrelation between the X-ray and optical/UV emission appears to be a general feature of AG Dra radiation and is independent of the type and strength of the outburst. They suggest that the WD radiation increases during outbursts, but is strongly absorbed by the circumstellar ionized gas.

Table 1:   Log of the used spectroscopic observations.

As the effect of the flux anticorrelation is related to transitions between active and quiescent phases, its understanding thus can aid us in revealing the nature of the Z And-type outbursts. Accordingly, in this paper we investigate the origin of the observed anticorrelation between the supersoft X-ray and the optical/UV fluxes for the case of AG Dra. For this purpose we model its composite continuum within the X-rays - near-IR domain at different levels of the activity. In Sect. 2 we summarize and describe the nearly-simultaneous observations we used to model the continuum. In Sect. 3 we describe our analysis and present the results. Their discussion and summary with conclusions are found in Sects. 4 and 5, respectively.

2 Observations

For this paper we selected observations from the supersoft X-ray to the near-IR, taken at different levels of the AG Dra activity. We analyzed the archival supersoft X-ray data made by the X-ray Multi-Mirror Telescope (XMM-Newton), including its optical monitor (XMM-OM) for the near-UV fluxes (Jansen et al. 2001), the far-UV spectra (988-1082 Å) made with the LiF1A channel of the Far Ultraviolet Spectroscopic Explorer (FUSE), the ultraviolet low- and high-resolution spectra taken by the International Ultraviolet Explorer (IUE), the optical low-resolution spectrum from the Loiano observatory, and the flux-points determined by the broad band optical ${\it UBVR}_{\rm C}I_{\rm C}$ and near-IR ${\it JHKLM}$ photometry. The XMM-Newton and Loiano observations were described in detail by González-Riestra et al. (2008). The FUSE spectra were processed according to Skopal et al. (2006).

During quiescent phase we composed the observed SED by the XMM-Newton and FUSE observations, complemented with the IUE spectrum (SWP9084/LWR07831) taken at a similar orbital position. During the transition phase we selected the near-simultaneous XMM-Newton and FUSE observations and the photometric ${\it UBV}$ flux-points from the descending branch of the 2003 burst (Fig. 1). To model the SED at the maximum of hot bursts, we used the ultraviolet XMM-OM fluxes and the optical spectrum, both from the maximum of the 2003 burst. However, to estimate the relevant far-UV fluxes we had to use a non-simultaneous observation. We used well-exposed IUE spectra (SWP25443/LWP05513) taken around the maximum of the 1985 hot burst. To match the XMM-OM fluxes, we scaled the IUE spectrum by a factor of 1.3. This was possible because hot bursts are similar in their profiles and colors (see Fig. 1 here and Fig. 6 of González-Riestra et al. 1999, for UV colors). Their SED shows a dominant contribution from the nebula to the near-UV/U region, while the hot stellar source dominates the far-UV region (see Fig. 13 of Skopal 2005).

For the profile-fitting analysis we used the O VI  $\lambda 1032, \lambda 1038$ doublet on the FUSE spectra, available from the quiescent and transition phases. For the optical maximum we analyzed the He II  $\lambda 1640$ line exposed on the high-resolution IUE spectra (SWP55372 and SWP55373) at the maximum of the 1995 hot burst. The spectra were calibrated with the aid of their low-resolution counterparts. Relevant observations were dereddened with EB-V = 0.08 and resulting parameters were scaled to a distance of 1.1 kpc (Skopal 2005; Birriel et al. 2000). Their log and plots are given in Table 1 and Fig. 2, respectively.

To estimate the X-ray fluxes we fitted the spectra from the EPIC-pn instrument with the XSPEC software package. According to a very high temperature of the hot stellar source in AG Dra (>105 K, Mürset et al. 1991; Skopal 2005; Greiner et al. 1997; Kenyon & Webbink 1984), we can assume that the supersoft X-ray fluxes are emitted by the WD photosphere. Therefore, we considered a simple temperature blackbody model in fitting our 0.18-0.4 keV data.

The resulting fit to the spectrum from quiescence corresponded to the blackbody radiation absorbed with the hydrogen column density $N_{\rm H} \sim 3\times 10^{20}$ cm-2 and temperature of $\sim $14.5 eV as in the case of the ROSAT PSPC observations from quiescence (see Greiner et al. 1997; González-Riestra et al. 2008). During the transition, the shape of the spectrum was similar, but the lower signal-to-noise ratio prevented a meaningful fit. In this case we assumed the same parameters as for the quiescence spectrum, and thus fitted only the normalization factor. Fluxes were derived from these ``unfolded'' models and the corresponding data/model ratio. This approach implies that the fluxes obtained by this way are, to a certain extent, model dependent. However, we are confident that the spectrum can be represented well by a simple absorbed blackbody model, which is also supported by the data-minus-model residuals that are small, flat, and within the errors in the range of 40-70 Å. Here we refer the reader to the paper of Nowak et al. (2002), who discuss other approaches to obtaining flux points from X-ray data and the effects connected with them.

To assess influence of the hydrogen column density and the temperature in the derived fluxes we fitted the data with a few hundred models covering a wide range of these parameters. Taking the 30 best-fit cases (in terms of $\chi^2$), we found that the fluxes derived from these models differ from the resulting ones by less than 15% in the range of 30-65 Å. Uncertainties of the X-ray fluxes derived in this way satisfy the purposes of this work. Furthermore, we complemented the X-ray fluxes with those from the FUSE spectra to determine final parameters of the radiation produced by the WD photosphere (see below, Sect. 3.1.1).

3 Analysis and results

3.1 Modeling the composite spectrum

The continuum spectrum of symbiotic stars is composed of three basic components of radiation - two stellar, $F_{\rm h}(\lambda)$ and $F_{\rm g}(\lambda)$, from the hot star and the cool giant, respectively, and one nebular, $F_{\rm n}(\lambda)$, from the ionized gas in the system (Sect. 1). Their superposition then yields the observed flux as

\begin{displaymath}F(\lambda) = F_{\rm g}(\lambda) + F_{\rm h}(\lambda) +
F_{\rm n}(\lambda).
\end{displaymath} (1)

To achieve our aim we needed to determine physical parameters of the hot stellar and the nebular component of radiation during different stages of the activity. We used the method of disentangling the composite spectrum of S-type symbiotic stars as proposed by Skopal (2005). Observations from the soft X-rays to the near-IR cover all the energy domains well, within which the individual radiation components dominate. This allowed us to model them separately. In the following three sections we describe our approximations of these components of radiation.

3.1.1 The hot star continuum

According to Greiner et al. (1997) and Viotti et al. (2005), the soft X-ray radiation in AG Dra could be associated with the hot-star photosphere. However, the soft X-rays from cosmic sources are significantly attenuated by absorptions in the ISM, which requires relevant correction before interpretation (e.g. Cruddace et al. 1974; Wilms et al. 2000). Assuming that no emission occurs on the path between the X-ray source and the observer, we can use the simplest solution of the radiative transfer equation to correct the observed X-ray flux, $F_{\rm x}^{\rm obs}(\lambda)$, for absorptions as

\begin{displaymath}F_{\rm x}^{\rm obs}(\lambda) =
F_{\rm x}(\lambda)~{\rm e}^{-\tau_{\lambda}},
\end{displaymath} (2)

where $F_{\rm x}(\lambda)$ is the X-ray spectrum as emitted by the source and  $\tau_{\lambda}$ the optical depth along the line of sight. It is given by the absorption cross-section per atom, $\sigma_i(\lambda)$, of the element, i, and the total number of atoms on the line of sight, $\sum_i n_i$. Thus, $\tau_{\lambda} = \sum_i n_i \sigma_i(\lambda) =
\sum_i a_i\sigma_i(\lambda) N_{\rm H} =
\sigma_{\rm X}(\lambda) N_{\rm H}$, where ai is the relative abundance, $N_{\rm H}$ the total hydrogen column density [cm-2], and $\sigma_{\rm X}(\lambda)$ [cm2] the total cross-section of the material on the line of sight per hydrogen atom in the X-ray domain (e.g. Cruddace et al. 1974).

In addition to the X-ray fluxes from XMM-Newton, we use the far-UV continuum fluxes between $\lambda $1188 and $\lambda $1000 Å, made nearly simultaneously with the FUSE satellite (see Fig. 1). As we analyze both the X-ray and the far-UV data, we consider attenuation of the light by bound-free absorptions in the X-ray domain and by the interstellar extinction in the far-UV spectrum. According to previous models (see Sect. 2), we approximated the hot stellar continuum by a blackbody radiation at a temperature $T_{\rm h}$. As a result, and in the sense of Eq. (2), we modeled the hot-star continuum by fitting the observed X-ray/far-UV fluxes, $F_{\rm h}^{\rm obs}(\lambda)$, with a function

\begin{displaymath}F_{\rm h}^{\rm obs}(\lambda) =
\left\{
\begin{array}{ll}
\th...
...~E_{B-V}}
& {\rm for } ~\lambda > 912~\AA
\end{array}\right.
\end{displaymath} (3)

where the scaling factor $\theta_{\rm h}=R_{\rm h}^{\rm eff}/d$ is given by its effective radius $R_{\rm h}^{\rm eff}$ and distance d, and thus represents the angular radius of the hot stellar source. The observed far-UV fluxes were corrected using the extinction curve  $k_{\lambda}$ of Cardelli et al. (1989) and the ratio of total to selective extinction R = 3.1 (e.g. Wegner 2003). In addition to the attenuation effects included in Eq. (3), the neutral hydrogen on the line of sight causes a depression of the continuum around hydrogen lines of the Lyman series due to the Rayleigh scattering (Isliker et al. 1989). By analogy to the first term of Eq. (3), we can express the Rayleigh attenuated continuum as

\begin{displaymath}F_{\rm h}^{\rm obs}(\lambda) =
\theta_{\rm h}^2 \pi B_{\lambda}(T_{\rm h})~
{\rm e}^{-\sigma_{\rm R}(\lambda)~N_{\rm H}},
\end{displaymath} (4)

where $\sigma_{\rm R}(\lambda)$ is the Rayleigh scattering cross-section for atomic hydrogen. On our FUSE spectra, the effect is seen around the Ly-$\beta$ line (Fig. 2) and can be used to test quantity of $N_{\rm H}$ obtained from the X-ray domain.
\begin{figure}
\par\resizebox{18cm}{!}{\includegraphics[angle=-90]{11418fg2.eps}}

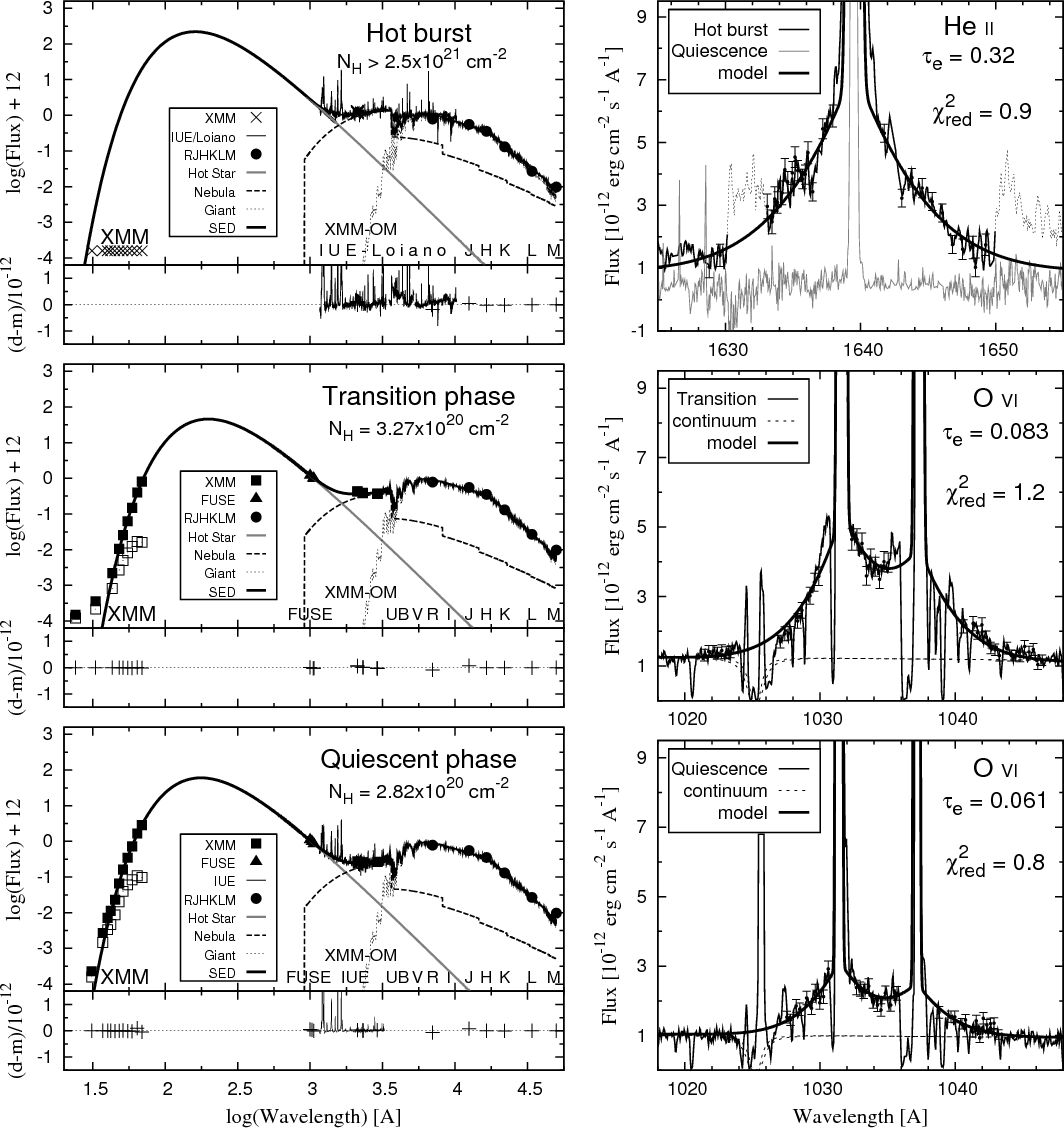

\end{figure} Figure 2:

Left panels show a comparison of the observed and modeled SEDs of AG Dra during the hot burst ( top), transition phase ( middle), and quiescent phase ( bottom) with corresponding residuals. Open/filled squares are the observed/corrected X-ray fluxes. They are in units of $\rm~erg~cm^{-2}~s^{-1}~\AA^{-1}$. Typical uncertainties of the flux-points are around of 10% (Sect. 3.3). Right panels compare the observed and modeled broad wings of the O VI  $\lambda 1032, \lambda 1038$ doublet and the He II  $\lambda 1640$ line at these stages of activity. Sample points are plotted with uncertainties. Timing of individual observations are given in Table 1. Models are described in Sect. 3 and their parameters given in Tables 2 and 3.

Open with DEXTER

3.1.2 The nebular continuum

We approximate the nebular component of radiation in the UV/optical continuum by processes of recombination and thermal bremsstrahlung in the hydrogen plasma, radiating under the conditions of the Case B. Validity of this simplification is supported by the following arguments: (i) A strong nebular continuum is characterized with a simple and low electron temperature of $T_{\rm e} \sim 2\times 10^{4}$ K (Table 3), which suggests that the nebula is powered mainly by photoionization, i.e. ionizations by collisions are not important; (ii) There are no recognizable signatures of the He II continuum in the IUE spectra (e.g. a jump in emission at $\sim $2050 Å and/or a pronounced Paschen series of the He II recombination lines). Also it is not possible to separate contributions from the He I continuum, because of its very similar recombination coefficients to that of H I (e.g. Brown & Mathews 1970) and a small abundance. That is why we consider nebular emission only from hydrogen; (iii) Symbiotic nebulae are relatively very dense (Sect. 1). This makes the mean-free path of any diffuse Lyman continuum photons too short to escape the nebula; i.e., the nebula is optically thick in the Lyman continuum. This means that the ionizations caused by stellar radiation-field photons are balanced by recombinations to excited levels of H I, while the ground state in the recombination process can be ignored. Therefore we consider Case B for the nebular radiation; (iv) Because of the high density, we can neglect contributions from the two-photon emission.

According to these simplifications and with the aid of Eq. (11) in Skopal (2005), the $F_{\rm n}(\lambda)$ term in Eq. (1) here can be expressed as

\begin{displaymath}F_{\rm n}(\lambda) = \frac{EM}{4\pi d^2}
\varepsilon_{\lambda}({\rm H},T_{\rm e}),
\end{displaymath} (5)

where $\varepsilon_{\lambda}({\rm H},T_{\rm e})$ [ $\rm ~erg~cm^{3}~s^{-1}~\AA^{-1}$] is the volume emission coefficient for hydrogen, which depends on the electron temperature $T_{\rm e}$ and is a function of wavelength (e.g. Brown & Mathews 1970). We note that the observed nebular emission represents only the optically thin part of the symbiotic nebula (Skopal 2001). This implies that the measured EM represents a lower limit of what was originally created by ionizations, which puts a lower limit to the required flux of ionizing photons (see Eq. (6) below).

3.1.3 Radiation from the giant

For the stellar radiation from the giant in AG Dra, we adopt the model SED according to Skopal (2005). The model is based on the optical ${\it VRI}$ and the near-IR ${\it JHKLM}$ flux points matched by a synthetic spectrum calculated for the effective temperature of 4300 K. This spectrum then defines the first term in Eq. (1), $F_{\rm g}(\lambda)$. Its bolometric flux, $\theta_{\rm g}^2 \sigma T_{\rm eff}^4 =
9.51\times 10^{-9}$  $\rm ~erg~cm^{-2}~s^{-1}$, corresponds to the giant's radius $R_{\rm g} = 33~(d/1.1~{\rm kpc})~R_{\odot}$ and the luminosity $L_{\rm g} = 360~(d/1.1~{\rm kpc})^2~L_{\odot}$.

3.2 Thomson-scattering wings of O VI $\lambda $1032, $\lambda $1038, and He II $\lambda $1640 lines

The aim of this section is to model the extended wings of the O VI and He II lines measured at similar levels of the optical brightness, at which the X-ray observations were carried out. In this way we support the results obtained by model SEDs.

Schmid et al. (1999) suggest that the broad wings of the O VI $\lambda $1032 and $\lambda $1038 resonance lines could be explained by scattering of the O VI photons by free electrons. The effect of this process is weak and wavelength independent, because of a very low and constant value of the Thomson cross-section, $\sigma_{\rm T} = 6.652\times 10^{-25}$ cm2. However, the densest portions of the symbiotic nebula ( $\log~(n_{\rm e}) \sim 8 {-} 12$  cm-3) extending to a few AU could be optically thick enough for the electron-scattering process. Qualitatively, the effect should be more significant during active phases, because of a surplus of electrons from the increased hot star wind (e.g. Skopal 2006). Especially, the strong emission lines of highly ionized elements that are formed in the densest part of the hot stellar wind represent the best candidates for a measurable effect of the Thomson scattering.

To calculate the electron-scattering wing profiles, we adopted the procedure suggested by Münch (1950) that assumes the electron scattering happens in the layer outside the line formation region and that the electrons are segregated from the other opacity sources, which implies no change in the equivalent width of the line. Furthermore we used the expression of Castor et al. (1970) for the resulting scattered line profile and the electron-scattering redistribution function derived by Hummer & Mihalas (1967). This simplified approach was used by many authors, recently by Young et al. (2005).

In our profile-fitting analysis, we approximated the observed P Cygni-type of the O VI line profiles by two Gaussians and fitted their broad wings with 2 free parameters - the electron temperature, $T_{\rm e}$, and the electron-scattering optical depth, $\tau_{\rm e}$. After removing emission/absorption features and bumps in the profiles, we fitted the broad wings in the range of about $\pm$10 Å around the line cores using 644, 1004, and 370 flux-points in the wing profile from the quiescence, transition, and burst stages, respectively. The resulting fits for all three cases have small reduced $\chi^2_{\rm red} \la 1$ (Table 2, Fig. 2), which implies that mean residuals are comparable to the errors of the modeled flux-points. Thus the model fits the broad wings of the profile well, which confirms their origin in electron scattering. A detailed description of our approach will be presented elsewhere (Sekerás & Skopal 2009, in prep.).

A comparison of our model SEDs and profiles with observations are plotted in Fig. 2 and corresponding parameters are given in Tables 2 and 3.

Table 2:   Parameters of the profile-fitting analysis (Sect. 3.2, Fig. 2).

3.3 The SED-fitting analysis

3.3.1 Parameters of the hot stellar source

To derive parameters of the hot stellar source in AG Dra, the following points are relevant:

(i)
we dereddened the FUSE fluxes and calculated the Rayleigh scattering effect around Ly-$\beta$ (Eq. (4)) to estimate $N_{\rm H}$. The scattering cross-section, $\sigma_{\rm R}(\lambda)$, was calculated according to Nussbaumer et al. (1989). However, numerous and strong absorptions in the FUSE spectrum did not allow us to determine the $N_{\rm H}$ parameter unambiguously. Therefore, we could only compare the Rayleigh attenuated blackbody radiation to the observed continuum for a reasonable range of $N_{\rm H}$ quantities. We found that the observed depression in the continuum around Ly-$\beta$ constrains $N_{\rm H}$ to $\sim $ $ 2{-}4\times 10^{20}$  cm-2, which is consistent with the values suggested by different methods (Sect. 1);

(ii)
we calculated a grid of synthetic models of the function (3) for reasonable ranges of the fitting parameters, $\theta_{\rm h}$, $T_{\rm h}$, and $N_{\rm H}$. We compared models to both the observed X-ray and dereddened UV fluxes, and used the $\chi^2$ statistics to evaluate the fit. To correct the observed X-ray fluxes for absorptions, we used the tbabs absorption model (Tübingen-Boulder absorption ISM model, Wilms et al. 2000). During the quiescent phase, we fitted 11 X-ray fluxes from 31 to 69 Å and three far-UV flux-points around 1000 Å (bottom left panel of Fig. 2). We estimated errors in the X-ray fluxes to be 2-17% of their mid values, while for the FUSE spectra we adopted errors as large as 5-10% of the measured continuum. The best-fit-model and the flux-point errors yielded $\chi^2 = 34.6$ and $\chi^2_{\rm red} = 3.1$ for 11 degrees of freedom (d.o.f.). As the model fits the data, the somewhat larger $\chi^2_{\rm red}$ reflects rather low values of our error estimates. During the transition stage, we fitted 7 X-ray fluxes between 43 and 69 Å and three far-UV flux-points. We omitted fluxes around 20-30 Å, because of their different nature. They could have been caused by shocks in the nebula. The flux uncertainties we used were estimated to be in the range of 7-22%. The resulting fit has a small $\chi^2_{\rm red} = 0.6$ for 7 d.o.f, which suggests that the model fits the data very closely, well within their uncertainties. Corresponding best-fit-model parameters and their derivatives (the effective radius and the luminosity of the hot stellar source) are introduced in Table 3;

(iii)
during the bursts, when the supersoft X-ray emission is absorbed entirely, it is impossible to unambiguously determine the hot star temperature for $T_{\rm h} \ga 10^{5}$ K, because of a too narrow range of the far-UV fluxes available. Nevertheless, we can estimate a lower limit to the temperature of the ionizing source, $T_{\rm h}^{\rm min}$, at which the hot star radiation, scaled to the far-UV fluxes, is just capable of producing the observed EM; i.e., the total number of ionizing photons just balances the total number of recombinations. According to simplifications for the plasma radiation as introduced in Sect. 3.1.2., we solve the equilibrium equation (Eq. (6) below) for the temperature $T_{\rm h}$ and the scaling factor $\theta_{\rm h}^2$, which determine the flux of ionizing photons, with the input parameters of the measured nebula, EM, and $T_{\rm e}$. The resulting temperature then corresponds to $T_{\rm h}^{\rm min}$, at which the hot star radiation gives rise to the observed nebular emission (see Skopal 2005, in detail).

3.3.2 Parameters of the nebula

According to Eq. (1), the nebular component of radiation can be obtained by subtracting the stellar contributions from the observed spectrum, i.e. $F_{\rm n}(\lambda) =
F(\lambda)-F_{\rm h}(\lambda)-F_{\rm g}(\lambda)$. First, we estimated representative continuum fluxes at about 20 wavelengths between 1250 and 3300 Å and complemented them with photometric U and XMM-OM fluxes, if available. Uncertainties of the well exposed spectra from the IUE archive are between 5 and 10% of the measured values. Errors in the XMM-OM fluxes were estimated to only a few percent (see Table 2 in González-Riestra et al. 2008). Uncertainties of classical photometric measurements can be assumed to be less than 10%. We corrected corresponding fluxes for the influence of emission lines using our Loiano spectra (see Skopal 2007, in detail). Second, we subtracted the contribution of the WD and the giant, and fitted the function $F_{\rm n}(\lambda)$ given by Eq. (5) to the corrected flux-points to determine the EM and $T_{\rm e}$ of the symbiotic nebula. Resulting fits have $\chi^2_{\rm red} \la 1$, which proves assumptions of our simplified model of the nebula (Sect 3.1.2.). Corresponding plots and parameters are found in Fig. 2 and Table 3, respectively.

4 Discussion

4.1 Model SEDs and the flux anticorrelation

Model SEDs show that the light variations in the optica/near-UV, as measured at different levels of activity, are caused exclusively by the variable nebular continuum (Fig. 2, Table 3). Contribution from the hot stellar object can be neglected within this domain, and that from the giant can be assumed to be constant.

Table 3:   Parameters of the SED-fitting analysis (see Sect. 3.3, Fig. 2).

The nebular component of radiation represents a fraction of the hot stellar radiation transformed by the ionization/recombination events throughout the symbiotic nebula. The result of this process depends on the number of ionizing photons ( $L_{\rm ph}$ [s-1]) produced by the hot star and the number of particles on their path that are subject to ionization. In the case of the hydrogen plasma (see Sect. 3.1.2.) characterized with one $T_{\rm e}$ and a mean particle concentration, $\bar{n}$, the equilibrium condition between $L_{\rm ph}$ photons and the number of recombinations can be expressed as

                       $\displaystyle L_{\rm ph}({\rm H})$ = $\displaystyle \int_V \! n_{\rm e}n^{+}
\alpha_{\rm B}({\rm H},T_{\rm e})~{\rm d}V
= \alpha_{\rm B}({\rm H},T_{\rm e})~\bar{n}^2~V$
  = $\displaystyle \alpha_{\rm B}({\rm H},T_{\rm e})~EM,$ (6)

where $\alpha_{\rm B}({\rm H},T_{\rm e})$ [cm3 s-1] is the recombination coefficient to all but the ground state of hydrogen (i.e. the Case B). For parameters of AG Dra during quiescence, the equilibrium condition is satisfied at the locus of points in directions from the hot to/around the cool star, where the flux of  $L_{\rm ph}$ photons are balanced by the flux of the neutral atoms of hydrogen in the wind from the giant. Throughout the remainder part of the nebula, $L_{\rm ph} > \alpha_{\rm B} EM$, which means that a fraction of  $L_{\rm ph}$ photons escapes the nebula without being transformed to the nebular radiation (see Appendix B and Fig. 3 in Skopal 2001). Under these conditions, new particles injected into the nebula will consume the surplus of ionizing photons, which consequently will increase the nebular emission observed during the bursts. This situation can naturally be explained by a strengthened wind from the WD, which also induces an increase in the optical depth in the continuum in the direction of the WD, which we indicate by its larger effective radius in comparison with values from quiescence (Table 3).

According to Eq. (2) and the relatively high values of $\sigma_{\rm X}$ in the supersoft X-ray domain, a small increase in $N_{\rm H}$ between the source and the observer produces a significant attenuation of the $F_{\rm x}(\lambda)$ fluxes. For example, comparison of our XMM-Newton observations from the transition and quiescent phases shows that the increase in the $N_{\rm H}$ value by a factor of only 1.16 (Table 3) produces attenuation of the observed fluxes at $\sim $0.18 keV by a factor of $\sim $5 (see Fig. 2). At the maximum of the 2003 burst, the 0.19-0.4 keV emission was not detectable, in spite of the increase in both the luminosity and the temperature of the hot source (Table 3, Fig. 2). The high limiting quantities of $L_{\rm h}$ and $T_{\rm h}$ are constrained by the minimum flux of photons capable of ionizing hydrogen, $L_{\rm ph}({\rm H}) = 8.9\times 10^{46}$ s-1, which is required to give rise to the observed high amount of the emission measure, $EM = 6.2\times 10^{59}(d/1.1{\rm kpc})^2$ cm-3 (see Eq. (6)). We found that the value of $N_{\rm H} \ga 2.5\times 10^{21}$ cm-2 is sufficient to damp down the model fluxes ($\approx $ $ 5.5\times 10^{-10}$ $\rm ~erg~cm^{-2}~s^{-1}$ within the 0.19-0.4 keV range) below a detection level of around 10-16 $\rm~erg~cm^{-2}~s^{-1}~\AA^{-1}$ for the exposure time used by XMM-Newton on 2003/10/10.

According to the model SEDs, we ascribe the observed flux anticorrelation to variable wind from the hot star. The wind particles enrich the plasma surrounding the WD's photosphere, which increases the number of both the bound-free absorptions (parametrized by $N_{\rm H}$ in the model) and the free-bound emissions. The former attenuates the supersoft X-ray fluxes, while the latter increases the nebular emission.

4.2 Wing profiles and the electron density around the WD

Enhancement of the particle concentration around the hot star is supported independently by our modeling the electron-scattering wing profile of the O VI and He II lines. The model parameter, the optical depth  $\tau_{\rm e}$ of the electron-scattering layer with the thickness r, is related to its mean electron concentration $\bar{n}_{\rm e}$ as

\begin{displaymath}\tau_{\rm e} = \sigma_{\rm T} \bar{n}_{\rm e} r .
\end{displaymath} (7)

In spite of the model simplification (Sect. 3.2), we approximate the thickness r of the scattering layer with the radius of the line emitting zone. Having its radius then allows us to estimate the $\bar{n}_{\rm e}$ quantity with the aid of Eq. (7). For example, the $R_{O {\sc vi}}$ radius can be obtained from the equation of the equilibrium between the flux of $L_{\rm ph}(O {\sc v})$ photons, capable of ionizing O V ions, and the number of recombinations by O VI ions. By analogy with Eq. (6), and assuming spherically symmetric nebular medium around the central ionizing source, the equilibrium condition can be expressed as

\begin{displaymath}L_{\rm ph}(O {\sc v}) = \frac{4\pi}{3}
R_{O {\sc vi}}^3~
A...
...sc vi})~
0.83~\bar{n}_{\rm e}^2~
\alpha_{\rm B}(O {\sc vi}),
\end{displaymath} (8)

where the factor 0.83 is the ratio of protons to electrons, $A(O {\sc vi})$ is the abundance of O VI ions, and $\alpha_{\rm B}(O {\sc vi})$ is the recombination coefficient of a free electron with the O VI ion for the Case B. Substituting the radius of the O VI zone from Eq. (7) to Eq. (8), the electron concentration can be expressed as

\begin{displaymath}\bar{n}_{\rm e} = 0.83\frac{4\pi}{3}\left(
\frac{\tau_{\rm e...
...rac{\alpha_{\rm B}(O {\sc vi})}
{L_{\rm ph}(O {\sc v})} \cdot
\end{displaymath} (9)

The $L_{\rm ph}(O {\sc v})$ quantity as a function of the ionizing source temperature is shown in Fig. B.1 of Skopal et al. (2006).

Our model parameters, $L_{\rm h}$ and $T_{\rm h}$ from the quiescent and transition phases (Table 3), correspond to $L_{\rm ph}(O {\sc v}) = 4.4$ and $1.7\times 10^{44}$ s-1, respectively. Assuming that all oxygen atoms are ionized to O VI within the zone, i.e. $A(O {\sc vi}) = A(O {\sc }) = 4.6\times 10^{-4}$ (Asplund et al. 2004), $\alpha_{\rm B}(O {\sc vi}) =
9.5\times 10^{-12}$ cm3 s-1 (Gurzadyan 1997), and $\tau_{\rm e}$ from Table 2, yield $\bar{n}_{\rm e} = 2.6\times 10^{10}$ cm-3 ( $R_{O {\sc vi}}\sim 50$ $R_{\odot}$), and $1.7\times 10^{11}$ cm-3 ( $R_{O {\sc vi}}\sim 11$ $R_{\odot}$) during quiescence (2004/06/15-24) and the transition from the burst (2003/11/14-19), respectively.

During the optical maximum of the 2003 hot burst, no FUSE observation was available. Instead, we modeled the He II  $\lambda 1640$ line from the maximum of the 1995 hot burst (Table 1), because this line is in its major part also created at a vicinity of the hot star. In contrast to the quiescent phase, an extended wing profile satisfying the electron-scattering broadening developed at the bottom of its intense emission core ($\sim $ $2.1\times 10^{-10}$ $\rm~erg~cm^{-2}~s^{-1}~\AA^{-1}$) at the optical maximum (see Fig. 2, top right). A relatively high optical depth, $\tau_{\rm e} = 0.32$ (Table 2), $L_{\rm ph}(\mbox{He {\sc ii}}) = 2.7\times 10^{46}$ s-1, $\alpha_{\rm B}(\mbox{He {\sc ii}}) =
7.5\times 10^{-13}$ cm3 s-1 (Nussbaumer & Vogel 1987), and $A(\mbox{He {\sc ii}}) = 0.1$ yield $\bar{n}_{\rm e} = 1.1\times 10^{12}$ cm-3 ( $R_{\mbox{He {\sc ii}}}\sim 6.0$ $R_{\odot}$). The presence of the broad wings of the He II  $\lambda 1640$ line was first pointed out by Viotti et al. (1983) on the IUE high-resolution spectra from the 1981 outburst of AG Dra. Simultaneously, they found signatures of the hot star wind suggested by the P Cygni profiles of the N V  $\lambda 1238,~ \lambda 1242$ resonance lines.

4.3 Flux anticorrelation and the nature of bursts

Results of the previous two subsections are mutually complementary. Both the model SEDs and the profile-fitting analysis indicate a significant increase in the particle density around the WD during the bursts of AG Dra. According to other independent analyses (see e.g. the H$\alpha$ method employed by Skopal 2006), this increase in the particle density comes from enhanced wind from the hot star into the surrounding particle-bounded nebula. This also explains the nature of this type of the optical burst, because new emitters will convert the excess of hydrogen ionizing photons in the nebula into the nebular radiation that dominates the optical/near-UV. In turn, this mechanism explains the origin of the X-ray-optical/UV flux anticorrelation as the result of variations in the wind from the hot star during different levels of the star's activity.

Having the result of the reprocessing mechanism, i.e. the parameters of the nebular emission and/or of the wing profiles during bursts and quiescence, we can determine the mass loss rate from the accretor. Generally, the increase in the mass-loss rate via the wind can result from an increase in the mass accretion rate due to an accretion-disk instability. In such a case, the enhanced wind provides an important mechanism for removing the angular momentum of rapidly accreted material onto the WD surface (e.g. Warner 1995; Livio 1997; Duschl 1986). From this point of view, the origin of the inverse flux correlation suggests directions for further investigation of the nature of the Z And-type outbursts.

5 Summary and conclusions

In this paper we have investigated the origin of the supersoft X-ray-optical/UV anticorrelation observed during different levels of activity of the symbiotic binary AG Dra. We modeled the composite continuum from the supersoft X-rays to near-IR during the maximum of the 2003 burst, the following transition to quiescence and a quiescent phase. We determined the physical parameters of individual components of radiation (Fig. 2, Table 3). To support the results obtained by model SEDs, we fitted the broad wings of the O VI  $\lambda 1032, \lambda 1038$ and the He II  $\lambda 1640$ lines by the Thomson-scattering process.

The resulting profile fits and corresponding parameters are shown in Fig. 2 and Table 2, respectively. The main results can be summarized as follows.

1.
During the quiescent phase, the radiation of the hot stellar source can be reproduced by a black body with a radius $R_{\rm h} = 0.031 (d/1.1~ {\rm kpc})$ $R_{\odot}$ and radiating at the temperature $T_{\rm h} = 164~400$ K, which yields the luminosity $L_{\rm h} = 630 (d/1.1~{\rm kpc})^2$ $L_{\odot}$. The X-ray emission was attenuated by absorptions corresponding to the neutral hydrogen column density $N_{\rm H} = 2.82\times 10^{20}$ cm-2 for the ISM abundances, which is equivalent to its interstellar value (cf. Sect. 1). The emission measure of the nebular component of radiation is $EM = 1.3\times 10^{59}(d/1.1{\rm kpc})^2$ cm-3. Fitting parameters for the electron-scattering wings of the O VI doublet (Table 2) and the number of $L_{\rm ph}(O {\sc v})$ photons from the model SED (Sect. 4.2) correspond to the mean electron concentration around the hot star, $\bar{n}_{\rm e} \sim 2.6\times 10^{10}$ cm-3.
2.
During the transition phase, these parameters changed to $R_{\rm h} = 0.036 (d/1.1~{\rm kpc})$ $R_{\odot}$, $T_{\rm h} = 146~200$ K, $L_{\rm h} = 530 (d/1.1{\rm kpc})^2$ $L_{\odot}$, and the absorption of the X-ray fluxes corresponded to $N_{\rm H} = 3.27\times 10^{20}$ cm-2. The larger quantity of the $N_{\rm H}$ parameter reflects an increase in the bound-free absorptions due to an enhanced wind from the hot star. As a result the X-ray fluxes decreased relative to their values from quiescence. In contrast, the nebular emission increased to $EM = 2.2\times 10^{59}(d/1.1~{\rm kpc})^2$ cm-3. Simultaneously, the flux of the broad O VI wings was by a factor of $\sim $2 larger than during quiescence and the model parameters (Tables 2 and 3, Eq. (9)) yield a significantly higher density of $\bar{n}_{\rm e} \sim 1.7\times 10^{11}$ cm-3 around the hot star, within the O VI zone.
3.
During the burst, the high limiting quantities, $T_{\rm h} = 180~000$ K and $L_{\rm h} = 1760~(d/1.1{\rm kpc})^2$ $L_{\odot}$, are required to produce the observed large amount of $EM = 6.2\times 10^{59}(d/1.1{\rm kpc})^2$ cm-3. The negative detection of the supersoft X-ray emission constrains a significant absorption effect that can be parametrized with $N_{\rm H} \ga 2.5\times 10^{21}$ cm-2. The strong and extended wings of the He II $\lambda $1640 line (Fig. 2) imply a large value of $\bar{n}_{\rm e} \sim 1.1\times 10^{12}$ cm-3 (Eq. (9)).
Based on these results we formulate the following conclusions.

(i)
The model SED demonstrated that the supersoft X-ray emission is produced by the WD photosphere. The X-ray and far-UV fluxes allowed us to determine its temperature unambiguously.

(ii)
The WD's continuum spectrum is modified by the circumstellar and interstellar material in the line of sight.

(iii)
We found that the source of the opacity, causing the observed anticorrelation between the X-ray and optical/UV fluxes, can be associated with the hot star wind, which enhances during active phases of symbiotic binaries (see Skopal 2006).

(iv)
The higher mass loss rate increases the particle density in the vicinity of the WD. This event increases the number of bound-free absorptions in the line of sight, which leads to a significant attenuation of the supersoft X-ray photons, and consequently, the free-bound transitions under the Case B increases the nebular emission that dominates the optical/near-UV.

(v)
The origin of the X-ray-optical/UV flux anticorrelation explains the nature of bursts in AG Dra by reprocessing high-energy photons into the optical through the ionization/recombination events. Understanding the inverse relationship between optical and X-ray fluxes represents an important ingredient in the investigation of the Z And-type outbursts.

Acknowledgements
This work is in part based on observations obtained with XMM-Newton, an ESA science mission with instruments and contributions directly funded by ESA Member States and NASA. The far ultraviolet data presented in this paper were obtained from the Multimission Archive at the Space Telescope Science Institute (MAST). They were made with the NASA-CNES-CSA Far Ultraviolet Spectroscopic Explorer. FUSE was operated for NASA by the Johns Hopkins University under NASA contract NAS5-32985. The optical spectra were obtained from the archive of the Loiano Station of the Bologna Atsronomical Observatory. This research was in part supported by a grant of the Slovak Academy of Sciences No. 2/7010/27. The authors are grateful to the anonymous referee for critical comments and constructive suggestions.
