New estimates of the gamma-ray line emission of the Cygnus region from INTEGRAL/SPI observations

P. Martin1,2 - J. Knödlseder1,2 - R. Diehl3 - G. Meynet4

1 - Centre d'Étude Spatiale des Rayonnements, CNRS/UPS, 9 avenue colonel Roche, BP44346, 31028 Toulouse Cedex 4, France
2 - Université de Toulouse (UPS), CNRS, UMR 5187, France
3 - Max Planck Institut für extraterrestrische Physik, Postfach 1312, 85741 Garching, Germany
4 - Geneva Observatory, 1290 Sauverny, Switzerland

Received 25 March 2009 / Accepted 11 June 2009

Abstract
Context. The Cygnus region harbours a huge complex of massive stars at a distance of 1.0-2.0 kpc from us. About 170 O stars are distributed over several OB associations, among which the Cyg OB2 cluster is by far the largest with about 100-120 O stars. As a consequence of their successive nuclear-burning episodes, these massive stars inject large quantities of radioactive nuclei into the interstellar medium such as 26Al and 60Fe. The gamma-ray line signal from the latter is a solid tracer of ongoing nucleosynthesis.
Aims. We want to compare the decay emission from the Cygnus region with predictions of recently improved stellar models. As a first step, we establish observational constraints upon the gamma-ray line emission from 26Al and 60Fe, with particular emphasis placed on separating the emission due to the Cygnus complex from the foreground and background mean Galactic contributions.
Methods. We used the high-resolution gamma-ray spectrometer INTEGRAL/SPI to analyse the 26Al and 60Fe decay signal from the Cygnus region. The weak gamma-ray line emissions at 1809 and 1173/1332 keV have been characterised in terms of photometry, spectrometry, and source morphology.
Results. The 1809 keV emission from Cygnus is centred on the position of the Cyg OB2 cluster and has a typical size of 9$^{\circ}$ or more. The total 1809 keV flux from the Cygnus region is $(6.0 \pm 1.0) \times 10^{-5}$ ph cm-2 s-1, but the flux really attributable to the Cygnus complex reduces to $(3.9 \pm 1.1) \times 10^{-5}$ ph cm-2 s-1. The 1809 keV line centroid agrees with expectations considering the direction and distance of the Cygnus complex, and the line width is consistent with typical motions of the interstellar medium. No decay emission from 60Fe has been observed from the Cygnus region and an upper limit of $1.6 \times 10^{-5}$ ph cm-2 s-1 was derived.
Conclusions. The determination in a coherent way of the gamma-ray line emission of the clustered OB population of the nearby Cygnus complex will allow a more accurate comparison of observations with theoretical expectations based on the most recent stellar models.

Key words: gamma rays: observations - Galaxy: open clusters and associations: individual: Cyg OB - stars: early-type - ISM: bubbles - nuclear reactions, nucleosynthesis, abundances

1 Introduction

When observing our Galaxy across the electromagnetic spectrum, it is remarkable that at nearly all wavelengths, a strong emission arises from the Cygnus region, while most of the radiation otherwise comes from the inner Galaxy (and from a few close objects such as the Crab and Vela pulsars or the Cassiopeia A remnant). Such a strong broad-band emission points to prodigious amounts of mass and energy release in that direction, at intermediate distances from us. Nevertheless, the true nature, scale, and extent of the phenomenon underlying such a powerful radiative output has mostly remained unclear for a long time.

The line of sight to the Cygnus region (assumed in the following to be the part of the Galactic plane located between longitudes 70$^{\circ}$ and 90$^{\circ}$) is tangential to the Local spiral arm. In that direction we are viewing material located close to the solar circle, which strongly compromises a solid evaluation of distances between 0 and 4-5 kpc from kinematic arguments[*] (Schneider et al. 2006). Strong absorption towards the Cygnus area (up to 32 visual magnitudes) has been another hurdle on the way to understanding the layout of the region (see Fig. 1 of Schneider et al. 2006). As a consequence, it has long been debated whether the Cygnus region results from a superposition of several objects/structures distributed along the line of sight between 0.5 and 3.5 kpc (Wendker et al. 1991; Uyaniker et al. 2001; Bochkarev & Sitnik 1985), or whether it is a single physical entity located around 1.5 kpc and likely produced by an unusual concentration of stars (Véron 1965; Cash et al. 1980). The latter scenario was claimed to be proven by the HEAO-1 and ROSAT observations that revealed a large soft X-ray ring in the Cygnus direction, which could result from a gigantic superbubble located at $\sim$2 kpc from us, behind the Great Cygnus Rift, and energised by a series of 30-100 supernova explosions (Cash et al. 1980).

Humphreys (1978) originally inventoried 9 OB associations in the Cygnus region, but subsequent works have cast doubt on the reality of Cyg OB4, 5, and 6. At present, the clustered stellar content of the region is thought to consist of Cyg OB1, 2, 3, 7, 8, and 9 plus a dozen open clusters, most of which may well be related to Cyg OB1 and OB3 (Le Duigou & Knödlseder 2002; Knödlseder et al. 2002). Most of these stellar groups are located between 1 and 2 kpc from us, with typical distance uncertainties of 0.3-0.5 kpc. Recently, a stellar census based on the 2MASS catalogue has revealed that the richness of the Cyg OB2 star cluster actually exceeds the previous estimates by an order of magnitude. Indeed, Cyg OB2 contains about 100-120 O stars and could well be the first example of a young Galactic globular cluster (Comeron & Pasquali 2000; Knödlseder 2000). While this does not constitute a definitive answer to the question of the origin of the strong emission from Cygnus, it seems obvious that such a titanic object will generate a considerable energy output and strongly influences the surrounding interstellar medium. In particular, Lozinskaya et al. (2002) have shown that Cyg OB2, with its increased membership, could alone, through its collective stellar winds, account for the X-ray superbubble and its associated system of giant optical filaments.

Another argument supporting the idea of a single physical entity has been provided by the work of Schneider et al. (2006). From KOSMA sub-millimetre and MSX mid-infrared observations, the authors have shown that the molecular material in Cygnus belongs to two huge complexes of clouds (with masses of 2.8 and $4.8 \times 10^{5}$ $M_{\odot}$), which are very likely the remainder of a giant molecular cloud out of which Cyg OB2, OB9 and possibly OB1 formed. This mass distribution is now influenced by the UV light and winds from these stellar associations and is a site of active star formation. This coherent structure lies at $\sim$1.5 kpc, the approximate distance to the Cyg OB2 cluster.

Although the relation of Cyg OB3, OB7, and OB8 to this structure has not been established, we refer in the following to the 6 OB associations and associated open clusters of the Cygnus region as the ``Cygnus complex''. With this term, we aim at gathering all these rich and nearby stellar groups that are relatively correlated in terms of distance (between 1 and 2 kpc) and that very likely contribute to the specificity of the Cygnus region. Moreover, we note that the current uncertainties on the ages and distances of these stellar clusters do not allow firm exclusion of the scenario of a connexion between them all.

The Cygnus complex amounts to a total of $\sim$170 O stars, among which a dozen WR stars (Knödlseder et al. 2002). The region is therefore quite young, and this is further proven by the lack of radio supernova remnants (SNRs) or pulsars. Indeed, the Green catalogue[*] gives about 10 SNRs between 70$^{\circ}$ and 90$^{\circ}$, but according to a compilation of distances by Kaplan et al. (2004) none of these objects can be related to an association of the Cygnus complex. The closest object to the Cygnus complex is $\gamma$-Cygni (SNR 078.2+2.1), located at 1.2 kpc from us. From the sensitivity of their radio survey of the region, Wendker et al. (1991) concluded that no other SNR exists up to a distance of 10 kpc. Additional evidence for the relative youth of the complex comes from the absence of pulsars towards Cygnus up to 4 kpc, as indicated by the ATNF catalogue[*] (Manchester et al. 2005). These arguments also seem to contradict the scenario considered by Cash et al. (1980) in which 30-100 supernovae over the past few Myr would have blown the Cygnus superbubble (one should note, however, that the SNR ages are typically much lower than a Myr, which could explain the present lack; see Frail et al. 1994).

The Cygnus region therefore constitutes a promising opportunity to look deeper into the physics of massive stars, in particular the nucleosynthetic processes that enrich the interstellar medium (ISM) with new elements. In the work presented here, we study the nucleosynthetic activity in the Cygnus region and its complex of massive stars, as traced by the gamma-ray line emission from the decay of 26Al and 60Fe. These two radio-isotopes are thought to be produced predominantly by massive stars at various stages of their evolution, from the main sequence to the supernova explosion (see Limongi & Chieffi 2006, for a review of the different production sites). The release of 26Al in the ISM occurs via stellar winds (of Wolf-Rayet stars mainly) and supernova explosions, while 60Fe is only ejected by supernova explosions. With lifetimes of 1 and 2 Myr respectively, 26Al and 60Fe accumulate in the ISM and their decay signal builds up to levels that are within reach of gamma-ray instruments. The 1809 keV emission of 26Al from the whole Galaxy has been imaged by CGRO/COMPTEL and INTEGRAL/SPI (Wang et al. 2009; Diehl et al. 2006; Plüschke et al. 2001a) and shows a strong emission from the Cygnus region; the 1173 and 1332 keV Galactic emission from 60Fe has been observed by RHESSI and INTEGRAL/SPI (Smith 2004; Harris et al. 2005; Wang et al. 2007) but no emission from Cygnus has been recorded, which indicates that none or only a few supernovae went off and did release 60Fe in that region.

Because of its strong 1809 keV decay emission, the Cygnus region was soon identified as an interesting target for studying the nucleosynthesis of massive stars. Indeed, the Galactic 1809 keV emission results from a situation involving many uncertain parameters: the distribution of massive stars in the Galactic disk and bulge, the Galactic metallicity profile, the star formation rate, etc. Moreover, there may well be secondary sources of 26Al and 60Fe, like the supernovae of type Ia, the novae, or the AGB stars, with different timescales for the release of both isotopes. All these elements hinder accurate determination of the expected decay fluxes to which the observations could be compared. In contrast, the Cygnus region and its complex of massive stars form a restricted, more homogeneous population, the characteristics of which we know better. In addition, whereas the Galaxy is in a steady-state situation regarding its 1809 keV emission, the Cygnus complex is a young, evolving population, which thus allows assessment of not only the total yields of 26Al and 60Fe but also the history of their ejection in the ISM.

Since the cartography of the Galactic 1809 keV emission was achieved by CGRO/COMPTEL, a number of studies have been devoted to the nucleosynthesis of 26Al and 60Fe in the Cygnus region (see for example Plüschke et al. 2002; del Rio et al. 1996; Knödlseder et al. 2002; Cerviño et al. 2000; Plüschke et al. 2000). The latest studies agree that the observed level of the 1809 keV emission from Cygnus is a factor of 2-3 above the predictions, when the latter are based on the theoretical yields by Meynet et al. (1997) and Woosley & Weaver (1995) and on the proven stellar content of the Cygnus region (including the upward revision of the Cyg OB2 membership). Plüschke et al. (2000) shows that the discrepancy could be alleviated if one includes the enhanced (but highly uncertain) yields from massive close binary systems in the calculation. Alternatively, Plüschke et al. (2002) argues that the problem may well come from underestimating the stellar content of the Cygnus OB associations, because of a strong interstellar extinction, as was proven to be the case for Cyg OB2. In Knödlseder et al. (2002), the authors eventually speculate that future stellar models, especially models including the effects of stellar rotation, could solve the dilemma.

In recent years, the models of massive stars have indeed undergone major improvements, such as the introduction of stellar rotation or the use of revised mass-loss rates or nuclear cross-sections (see for example Meynet & Maeder 2003,2000). The effects of metallicity have also been explored by Meynet & Maeder (2005), while Limongi & Chieffi (2006) computed the contributions of the supernovae of type Ib/c in a consistent way. Meanwhile, the launch in 2002 of the INTEGRAL gamma-ray observatory has provided the community with a new instrument for addressing the problem from the observational side. In particular, INTEGRAL has devoted substantial observing time to the Cygnus region through dedicated programmes, and its high-resolution spectrometer SPI should allow the previous photometric measurements to be confirmed and add spectrometric information about the gamma-ray decay lines.

The aim of our work is to re-evaluate the situation of the gamma-ray line emission from Cygnus, in terms of observations, as well as theoretical predictions. For the present paper, we used the INTEGRAL/SPI observations to characterise in detail the 26Al and 60Fe decay emission from the Cygnus region. The analysis of the SPI data is presented in Sect. 2 and the results will be exposed in Sects. 3 and 4. The observational constraints thus obtained will then be compared in a forthcoming paper to theoretical predictions based on the most recent models of massive stars' nucleosynthesis.

2 Data analysis

The SPI spectrometer is a coded-mask telescope with a large field of view of $16^{\circ}\times16^{\circ}$ and an angular resolution of 2.8$^{\circ}$ (detailed information about the SPI instrument can be found in Roques et al. 2003; Vedrenne et al. 2003). And yet, the complexity of the response function means that reconstructing a given source intensity distribution cannot be achieved from a single exposure using standard correlation methods. Instead, we have to resort to multiple exposures (following a dithering pattern) and then to model-fitting approaches.

Thanks to an array of 19 high-purity germanium detectors, SPI performs spectrometry of gamma radiations with energies between 20 keV and 8 MeV, with a spectral resolution of about 2 keV FWHM at 1 MeV. Interactions of gamma photons with the detectors can be of two types: single events (SE) when the incoming photon deposits energy in one detector only, and multiple events (ME) when the incoming photon deposits energy in several adjacent detectors through Compton diffusion and pair creation. In the following, we only make use of SE data. It should be noted that detector 2 and 17 failed on revolutions 142 and 210.

The data produced by SPI are strongly background-dominated (signal-to-noise ratio of less than 1%) because substantial hadronic interactions and electromagnetic cascades are induced by solar and cosmic-ray particles hitting the satellite. These result in an instrumental background composed of a continuum and a certain number of lines of various intensities, some of which correspond to the same nuclear transitions we are searching for (for example the line at 1809 keV from the de-excitation of 26Mg inside the instrument).

Extracting the weak gamma-ray line signals from astrophysical objects therefore requires an accurate modelling of that background noise; in our work, this is achieved through combinations of activity tracers that are hypothesised to reproduce the various trends and time evolutions of the background. In this effort, the most utilised tracer is the so-called GEDSAT, which corresponds to the rate of saturating events in the detectors (energy deposits above 8 MeV). The GEDSAT has indeed proved to be strongly correlated to the SPI data over a broad energy range; in addition, its count rate ($\sim$200 cts s-1) is about two orders of magnitude higher than the typical count rate measured at gamma-ray line energies, which means that it suffers little statistical uncertainty and can readily be used to draw predictions. Nevertheless, the GEDSAT is not a perfect tracer and it needs to be complemented and adjusted, as we see below. More information about the instrumental background and our methodology for analysing the SPI data can be found in Jean et al. (2003) and Martin et al. (2009), respectively.

2.1 Data set

The data used for this analysis are all-sky data that were collected between revolutions 7 and 494 of the INTEGRAL satellite (the duration of one INTEGRAL orbit is $\sim$3 days). A filtering was applied to exclude all pointings during which abnormally high count rates (due to solar flares and periodic radiation belt crossings) occurred, so they preclude any detection of celestial signals. The total effective observation time eventually amounts to 63.2 Ms, among which 10.8 Ms cover the Cygnus region and 11.2 Ms are high-latitude pointings that we use as empty fields. All SE data with energies in the 1780-1830, 1150-1190, and 1300-1350 keV ranges were selected and binned into 1 keV-wide bins.

2.2 Background models

The physics underlying the instrumental background of the SPI spectrometer is complex and not fully elucidated despite considerable efforts (see for example Weidenspointner et al. 2003). The development of background models based on activity tracers therefore proceeds through trial-and-error and there is no general prescription that works successfully over the entire energy range of the instrument (reflecting that the origins of the background are specific to each energy domain).

When scaled to the mean level of the data, these background models reproduce the time evolution of the instrumental background noise reasonably well. However, as we are looking for gamma-ray signals that are less than 1% of the data, such a global scaling is not accurate enough and the background models need to be finely adjusted.

In the present work, we study three different gamma-ray lines and it turned out that each energy band required a specific model:

1.
1809 keV line: the background model consists of two components, one to account for the background continuum and one for the background lines. The time evolution of each component was assumed to be proportional to the GEDSAT rate in each detector, and the level of the background continuum was taken from two reference energy bands at 1786-1802 and 1815-1828 keV. The continuum component was adjusted over 1 day intervals while the line component was adjusted over 100 days intervals;
2.
1173 keV line: the background model consists of three components, one for the background continuum and two for the background lines. The time variability of the background continuum was assumed to follow the GEDSAT rate and the level of the background continuum was taken from a reference energy band at 1178-1182 keV. The evolution of the background lines intensity is given by the GEDSAT added to a linear increase over time (likely due to the build-up of medium-lived 60Co in the instrument as a result of continuous activation). The continuum component was adjusted over 1 day intervals while the line components were adjusted over three time periods limited by the failures of detectors 2 and 17;
3.
1332 keV line: the background model consists of a single component proportional to the GEDSAT rate and adjusted over 3 days intervals. In this energy range, the variability of the background noise was stronger and thus required to adjust the model on shorter timescales, which decreased the sensitivity of the instrument to the weak celestial signal. As a consequence, the 1332 keV line measurement only marginally contributes to the 60Fe results.
The background models presented above are fitted to the data, with the proper parameter set, simultaneously to models for the celestial contribution.

2.3 Model fitting

As already mentioned, the SPI data cannot be inverted and the astrophysical signals are extracted by fitting models of intensity distributions to the data. This can be done with iterative methods such as Richardson-Lucy or Maximum Entropy that reconstruct the sky intensity distribution pixel by pixel, by setting the flux in each sky element to the value that best accounts for the data (in a statistical sense). An alternative is to set the shape of the source model (from observations at other wavelengths for instance) and to adjust its overall flux. The latter method is the one we used because it ensures that the result will be astrophysically meaningful and compatible with the performances of the instrument (on angular resolution especially), while reconstruction algorithms often generate artefacts from statistical fluctuations and uneven exposure.

In the present work, simple analytical models, such as two-dimensional Gaussian profiles and a ring model for the Galaxy, were used for the sky contributions (the details of these models will be given below). Each of these intensity distributions is mapped into the data space through a convolution with the instrument response function (IRF) for each pointing of the data set and then forms a sky model component. The sky model components and the background models are then fitted simultaneously to the data using a Maximum Likelihood criterion for Poissonian statistics.

Once all models (sky and background) were fitted to the data, the quality of the analysis was assessed by examining the residuals (data counts minus fitted background and sky models counts). Since we are working with background-dominated data, the modelling of the instrumental background can easily introduce systematic errors that might be compensated for by artificial signals from the sky. In addition, the assumption made on the sky intensity distribution might well be inappropriate or incomplete, which would introduce bias or leave unaccounted for events in the data space.

To evaluate the quality of our analysis, we studied the distribution of the residuals after back-projection on the sky. Basically, for all pointings of the data set, the residuals in each detector were uniformly projected across the mask (or more precisely ``across'' the instrument response function) over the sky region intersected by the field of view. The distribution of these sky residuals should then follow a statistical distribution, the shape of which is derived from simulated observations. This method is described in greater detail in Martin et al. (2009) and proved that our hypotheses regarding both the background noise and the sky intensity distribution are satisfactory and that the results obtained are not affected by systematic errors.

3 The gamma-ray line emission from Cygnus

3.1 Morphology of the 1809 keV emission

We have characterised the morphology of the 1809 keV emission from the Cygnus region through a model-fitting approach. Different models, in terms of size and position over the Cygnus region, were fitted to the data (simultaneously to a model for the instrumental background), and after a correction for the number of independent trials, the model with the highest likelihood criterion was selected. This method has been tested on simulated observations with various true source sizes and positions and proved successful.

Due to small statistics on the astrophysical fluxes and poor angular resolution of the instrument, the morphology of the Cygnus 1809 keV emission cannot be determined with a high degree of accuracy. Therefore, we focused on determining of the extent and centre of the 1809 keV emission. We considered 6 model types: point-source and 2D Gaussians with standard deviations $\sigma$ of 1$^{\circ}$, 2$^{\circ}$, 3$^{\circ}$, 4$^{\circ}$, and 5$^{\circ}$ (the typical size of these Gaussian models is given by $\sim$$ 3\sigma$). Each of these 6 models was moved over a grid of 176 positions ranging from 65$^{\circ}$ to 95$^{\circ}$ in longitude and -10$^{\circ}$ to 10$^{\circ}$ in latitude, with 2$^{\circ}$ steps in each direction.

From this analysis, the best-fitting model is a $3^{\circ} \times 3^{\circ}$ Gaussian centred on $(l,b)=(81^{\circ},-1^{\circ})$. Typical uncertainties are $\sim$$3^{\circ}$ on the size of the model and $\sim$$3^{\circ}$ on the position (in both longitude and latitude). However, the maximal extent of the diffuse emission at 1809 keV from Cygnus is poorly constrained because of intrinsic limitations of the coded-mask imaging system. Indeed, a coded-mask instrument is unable to detect a flat intensity distribution because the latter leads to a uniform flux over the detector plane, which cannot be distinguished from instrumental background. Flat or very extended intensity distributions can only be detected by alternating pointings on the source (ON pointings) with pointings to empty fields (OFF pointings), in which case the coded-mask instrument is used as a mere collimator. For the Cygnus extended emission at 1809 keV, it turned out that sources with typical sizes above 8-10$^{\circ}$ cannot be distinguished (provided most of the emission remains within the field of view); therefore, our best-fitting model should formally be considered as a lower limit. It should be noted, however, that the typical size of the Cygnus 1809 keV emission on the COMPTEL map is consistent with our best-fitting model.

3.2 Characteristics of the 1809 keV emission

By representing the 1809 keV emission from the Cygnus region by the $3^{\circ} \times 3^{\circ}$ Gaussian model determined in 3.1, the fit to the data at 1780-1830 keV yields the spectrum of Fig. 1. The centroid of the line is 1808.8 $\pm$ 0.4 keV, which is consistent with the laboratory value of 1808.6 keV and hence indicates that the emitting medium has no or only a small bulk motion with respect to the observer. The width of the line is 3.4 $\pm$ 1.0 keV (FWHM) and is consistent with the 3.0 keV (FWHM) spectral resolution of the SPI spectrometer. Considering the statistical uncertainty on the line width, the emitting medium may be affected by expansion or turbulent velocities with values up to $\sim$200 km s-1.

Based on our Gaussian model, the flux from the Cygnus region in the 1806-1812 keV band is $(6.0 \pm 1.0) \times 10^{-5}$ ph cm-2 s-1. This value, however, gives the total flux seen towards the Cygnus region and thus includes the contribution from the Cygnus complex located at about 1.0-2.0 kpc from the Sun, plus foreground and background contributions from the Galaxy as a whole. If a model for the Galactic 1809 keV emission (to be described in 4.1) is fitted to the all-sky data simultaneously to our Gaussian model, the flux associated with the Gaussian model falls to $(3.9 \pm 1.1) \times 10^{-5}$ ph cm-2 s-1. We interpret the latter flux as being mostly caused by the OB associations and open clusters of the Cygnus complex, while the remaining $\sim$ $ 2.0 \times 10^{-5}$ ph cm-2 s-1 are very likely due to a more diffuse population, distributed all along the line of sight. This population may include, for instance, unclustered WR and OB stars (runaway stars or B stars from previous star formation episodes, see Comerón & Pasquali 2007; and Comerón et al. 2008), or isolated SNRs.

 \begin{figure}
\par\includegraphics[width=9cm]{12178_1.eps}
\end{figure} Figure 1:

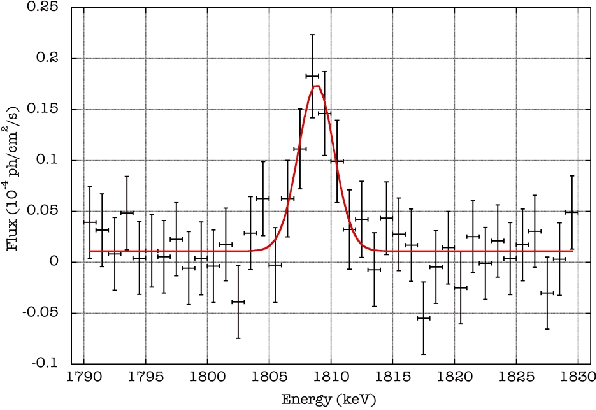

Spectrum of the 1809 keV emission from the Cygnus region, from about 4 years of INTEGRAL/SPI observations. The red line represents the best Gaussian fit to the data points.

Open with DEXTER

3.3 Search for 1173/1332 keV emission

As is shown in 4.2, the Galactic 60Fe decay emission is about 7 times weaker than the Galactic 26Al decay emission. The 1809 keV line allows morphology studies, either over the Galaxy or more specifically in the Cygnus region, which cannot be envisaged with the 60Fe lines. In the case of the Cygnus region, a study of the morphology of the 1173/1332 keV emission may be impossible simply because there may not be any 1173/1332 keV signal at all. Indeed, since the region seems quite young, it may well be that none or few supernova occurred and thus little 60Fe has been released in the ISM, if any.

Using the same model for the Cygnus region as in 3.2 and fitting this model to the data at 1150-1190 and 1300-1350 keV gives the spectrum of Fig. 2. No signal shows up and an upper limit on the flux of $1.6 \times 10^{-5}$ ph cm-2 s-1 can be derived (2$\sigma$ upper limit assuming the line is not broadened, as is the case at 1809 keV). We emphasise here that this upper limit applies to the Cygnus region and is therefore conservative if used for the Cygnus complex.

3.4 Discussion

The characteristics of the gamma-ray line emission from Cygnus agree with the current picture of the region as derived from observations at other wavelengths.

First of all, the absence of 60Fe decay signal from that direction suggests that no or very few supernovae went off in the Cygnus complex, which is compatible with the lack of SNRs or radio pulsars. Then, the extended emission from 26Al decay is centred on a position which is consistent with the position of the Cyg OB2 cluster; the latter is expected to dominate the energetics and nucleosynthesis of the complex given its richness compared to the other OB associations. The negligible shift in the 1809 keV line is in accordance with the expected relative motion due to Galactic rotation for the direction and mean distance of the Cygnus complex, and the width of the line is consistent with typical ISM motions.

The extent of the 1809 keV emission reflects the diffusion of the ejected 26Al in the ISM; in particular, the 26Al is expected to fill to some extent the superbubbles blown by the various OB associations. Inside these low-density cavities, the radioisotope is affected by expansion motions that accompany the growth of the superbubble and may cause some broadening of the decay line.

Our estimate of the total 1809 keV flux from the Cygnus region is $(6.0 \pm 1.0) \times 10^{-5}$ ph cm-2 s-1, in agreement with previous measurements. The flux values obtained with COMPTEL were in the range 7- $8 \times 10^{-5}$ ph cm-2 s-1, depending on the integration region and imaging method used, with a typical uncertainty of about $1.5 \times 10^{-5}$ ph cm-2 s-1 (see for instance del Rio et al. 1996; Plüschke et al. 2001b). Other measurements from SPI are in the range 6- $7 \times 10^{-5}$ ph cm-2 s-1, here again depending on the imaging method and integration region, with a typical uncertainty of about $1.2 \times 10^{-5}$ ph cm-2 s-1 (Wang 2007).

 \begin{figure}
\par\includegraphics[width=9cm,height=6.44cm]{12178_2.eps}
\end{figure} Figure 2:

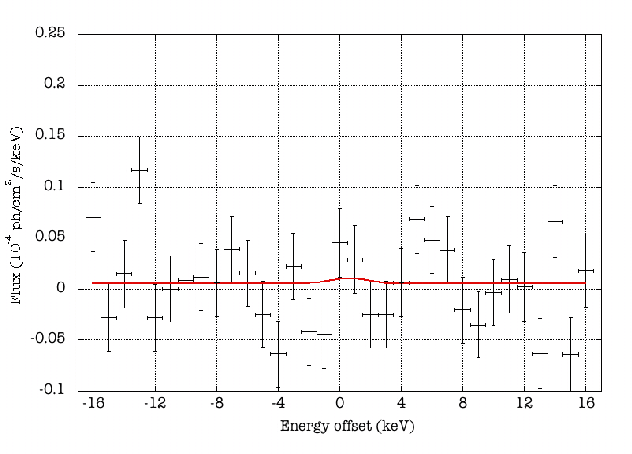

Spectrum of the combined 1173/1332 keV emission from the Cygnus region, from about 4 years of INTEGRAL/SPI observations. The red line represents the best Gaussian fit to the data points.

Open with DEXTER

The most interesting result of our study is that analysing the Cygnus region within a Galactic context has revealed that the 1809 keV flux really attributable to the Cygnus complex of massive stars is only $\sim$65% of the total flux coming from that direction. This point is essential to the comparison of observed fluxes with the theoretical predictions, because the latter are often mostly based on the clustered stellar content, which is better inventoried than the isolated or non-clustered sources. It is interesting to note here that Plüschke et al. (2002) find that the contribution of non-clustered sources may amount to about 20-30%, which tallies with our observational estimate; however, their result was based on an assumed correction of the stellar content of the Cygnus OB associations that has never been observationally substantiated afterward.

Last of all, we want to emphasise that our result is based on the assumption of a Gaussian profile for the emission of the Cygnus complex, whereas the true intensity distribution may well be more structured. As already said, the SPI (or even COMPTEL) data do not allow accurate determination of the morphology of the diffuse 1809 keV emission from Cygnus and, as such, our assumption of a Gaussian profile for the extended source is a potential source of error.

4 The gamma-ray line emission from the Galaxy

4.1 The 1809 keV Galactic emission

The detailed study of the Cygnus gamma-ray line emission required to properly take the mean Galactic emission into account in that direction. Therefore, the following presents the model used for the mean Galactic emission at 1809 keV.

When studying the 26Al Galactic emission, the most important quantities to be determined are the total mass of 26Al and its distribution throughout the Galaxy; and yet, as already stated, the small statistics on the astrophysical fluxes and the poor angular resolution of the instrument severely restrict the information that can be derived from the SPI observations. The main source of Galactic 26Al are the massive stars, the vast majority of which clusters in the spiral arms, but our data do not have the degree of accuracy necessary for unambiguous reconstruction of a sophisticated spiral arm pattern from the intensity distribution observed on Earth. Instead, we focus on global quantities such as the azimuthally-averaged radial distribution of 26Al in the Galaxy.

We used a five-component model in which the Galaxy is divided into five concentric rings, each ring containing a certain mass of 26Al distributed as

\begin{displaymath}
\rho(R_{i} \leq R \leq R_{i+1}) = K_{i} \times {\rm e}^{-\frac{z}{z_0}} \qquad (i= 1, ..., 5)
\end{displaymath} (1)

where R is the galactocentric radius, the Ri values define the edges of the rings, and the Ki are the scaling factors set by the model-fitting process. The distribution of the radio-isotope is assumed to be uniform radially inside each ring and exponential vertically, with a characteristic height z0. We started our analysis with a value of z0=90 pc, which corresponds to the characteristic thickness (within the solar circle) of the molecular gas disk out of which massive stars form (Bronfman et al. 2000). This parameter will be discussed in more detail later on.

This five-component model turned out to be insufficient to account for the data and should be supplemented by two components: the Gaussian model determined in 3.1 for the Cygnus diffuse emission and another Gaussian model for a very extended emission from the Sco-Cen region. The Sco-Cen emission was found to be represented well by a $5^{\circ} \times 5^{\circ}$ Gaussian model centred on $(l,b)=(0^{\circ},30^{\circ})$, which is nearly consistent in position and extent with the superbubble blown by the Upper-Scorpius OB association (see de Geus 1992).

Fitting these seven intensity distributions (five Galactic rings + Cygnus + Sco-Cen) to the data (simultaneously to a model for the instrumental background) gives the 26Al mass distribution summarised in Table 1 (Note that ring 5 is not used in the computation of the total 26Al mass because of its non-physical value and large uncertainty). The total corresponding flux from the Galactic plane in the 1806-1812 keV band amounts to ( $8.4 \pm 1.7$$\times$ 10-4 ph cm-2 s-1. In addition to this azimuthally-averaged radial distribution of 26Al in the Galaxy, the nearby regions of Cygnus and Sco-Cen bring additional emission at a level of ( $3.9 \pm 1.1$) and ( $6.2 \pm 1.6$$\times$ 10-5 ph cm-2 s-1 respectively. This paper focuses on the Cygnus region and the 1809 keV emission from Sco-Cen will be discussed in a forthcoming paper (Diehl 2009).

The spectrum of the 1809 keV emission from the Galactic disk (excluding the Sco-Cen and Cygnus contributions) is shown in Fig. 3. The centroid and width of the line are consistent with no Doppler shift and/or broadening, but it should be emphasised that this spectrum results from the contributions of many regions along the Galactic plane, each region having specific physical properties like the proper motion (relative to us) due to the Galactic rotation pattern. A study of the spectral characteristics of the 1809 keV line along the Galactic plane can be found in Diehl et al. (2006) and Wang et al. (2009).

4.2 The 1173/1332 keV Galactic emission

Due to lower intensity, the decay emission of 60Fe cannot be analysed in as much detail as the emission from 26Al; in particular, the spatial distribution of the 60Fe isotope in the Galaxy cannot be estimated, even for a simple model. The only observational constraint accessible to us is the emission flux, especially the flux from the Galactic centre region (where most of the emission and exposure time are concentrated).

The decay emission at 1173 and 1332 keV from the 60Fe isotope is assumed to follow the distribution of massive stars throughout the Galaxy (it should be remembered here that, in contrast to 26Al, it has never been demonstrated observationally that massive stars are the dominant source of 60Fe). As a tracer of the massive stars, we used the infrared emission from the interstellar dust heated by the strong UV luminosity of OB stars, as observed at 240 $\mu$m by the COBE/DIRBE instrument. Fitting this intensity distribution to the data in the 1150-1190 and 1300-1350 keV bands (simultaneously to a background model for each energy range) and combining the resulting spectra gives the spectrum of Fig. 4 for the Galactic 60Fe decay emission.

The line is too weak to allow for a solid spectrometric study, so we focus on photometric considerations. Assuming the line width is purely instrumental, the flux in the 1173 and 1332 keV decay lines is ( $9.1 \pm 2.$6) $\times$ 10-5 ph cm-2 s-1 for the whole Galaxy and ( $3.5 \pm 1.0$$\times$ 10-5 ph cm-2 s-1 for the central region (defined as a steradian centred on the Galactic centre). It is worth mentioning that the flux value obtained for the Galactic centre region is very likely more reliable than the one for the whole Galaxy. Indeed, due to the weak emission intensity in the Galactic disk and because of the strongly inhomogeneous exposure of INTEGRAL, the scaling of the DIRBE intensity distribution is driven by the Galactic centre region; as a result, the flux at high longitudes is more a consequence of this ``biased'' scaling than a solid measurement.

Table 1:   Galactic mass distribution of 26Al obtained from our analysis of 4 years of INTEGRAL/SPI observations (see text).

4.3 Discussion

The characteristics of the 26Al and 60Fe decay emissions from the Galaxy agree with the results obtained in previous studies using INTEGRAL/SPI or other instruments. The flux values are consistent with all previous measurements. Our analysis of the 1173/1332 keV lines yielded a flux in the inner Galaxy of ( $3.5 \pm 1.0$$\times$ 10-5 ph cm-2 s-1, in agreement with the values of ( $3.6 \pm 1.4$), ( $3.7 \pm 1.1$) and ( $4.4 \pm 0.9$$\times$ 10-5 ph cm-2 s-1 produced from RHESSI (Smith 2004) and SPI (Harris et al. 2005; Wang et al. 2007) observations.

Regarding the Galactic 1809 keV emission, the emission intensity we derived is also consistent with previous estimates (see for instance Wang et al. 2009; Diehl et al. 2006). We found a 26Al stationary mass of $1.7 \pm 0.2$ $M_{\odot}$ (excluding the specific Sco-Cen and Cygnus contributions), most of which is confined between 3 and 6 kpc, at the position of the Giant Molecular Ring. This value, however, is linked to an assumption on the latitudinal extent of the 1809 keV Galactic emission. This parameter cannot be strongly constrained by the SPI observations due to intrinsic limitations of the coded-mask imaging system (see the detailed explanation given in 3.1). Therefore, we adopted a characteristic value of 90 pc for the vertical extent of the 1809 keV emission. This is a ``minimal'' hypothesis since it is the characteristic scale height of the disk of molecular gas out of which massive stars form; since massive stars are the dominant source of 26Al, the vertical extent of the 1809 keV emission cannot be below these 90 pc. Nevertheless, the ejected 26Al will diffuse in the ISM, in particular inside the superbubbles blown by the collective winds and SN explosions of the OB associations, and can travel out to distances of a few hundred pc. The 1809 keV emission is therefore expected to be more extended vertically than 90 pc. To evaluate the importance of this parameter, we performed the analysis of the 1809 keV all-sky emission using as a disk height for the Galactic ring model a value of 300 pc instead of the minimal 90 pc. The fit to the data (using the same background model) was found to be identical in terms of statistical criterion, but the Galactic mass of 26Al rose to $2.0 \pm 0.2$ $M_{\odot}$.

 \begin{figure}
\par\includegraphics[width=9cm]{12178_3.eps}
\end{figure} Figure 3:

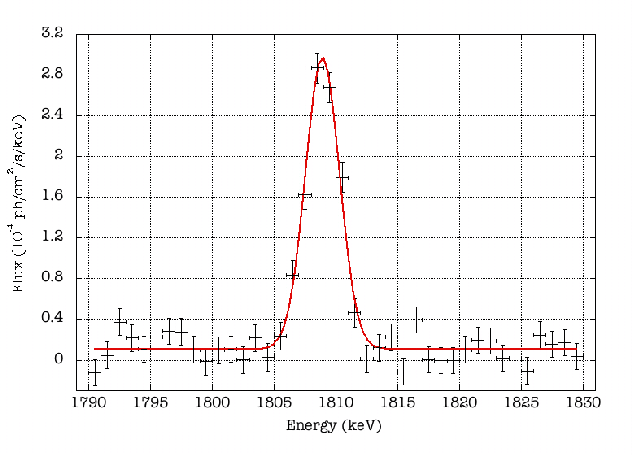

Spectrum of the 1809 keV emission from the Galaxy (Sco-Cen and Cygnus regions excluded), from about 4 years of INTEGRAL/SPI observations. The red line represents the best Gaussian fit to the data points.

Open with DEXTER

Our estimate of the 26Al stationary mass in the Galaxy is lower than but compatible with, within the error bars, the values put forward by Diehl et al. (2006) and Wang et al. (2009), which are respectively $2.8 \pm 0.8$ $M_{\odot}$ and $2.7 \pm 0.7$ $M_{\odot}$. The larger uncertainties associated with these values actually reflect our poor knowledge of the exact sky distribution of the 1809 keV emission and associated three-dimensional Galactic distribution of the 26Al isotope. Indeed, these authors have used, as we did in the present work, a model-fitting approach to extract the photometric (and spectrometric) information about the 1809 keV Galactic emission; in order to evaluate the dependence on the assumed galactic distribution, they have considered a series of plausible models, and the above-cited values reflect the scatter in the inferred 26Al masses. Our work complements this study in that our concentric ring model has not been considered by Diehl et al. (2006) and Wang et al. (2009), and this model implies a 26Al mass at the lower end of the mass range they determined. On that point, it is interesting to note that, among the models tested by Wang et al. (2009), the best fitting ones are actually associated with the lowest 26Al mass values, with a meaningful (but not drastic) statistical improvement (Michael Lang 2008, private communication). A major difference in our analysis is also that we separately modelled the Cygnus and Sco-Cen complexes of massive stars. It may be that these peculiar nearby regions, on which there is considerable SPI exposure, somehow drive the fit of some all-sky models to higher underlying 26Al masses. Ongoing INTEGRAL observations of the Galaxy, and specifically of the Cygnus and Sco-Cen regions, will help refining our perception of the 1809 keV emission and associated 26Al distribution.

As already said in 3.2, a major result of our all-sky analysis of the 1809 keV signal is a better estimate of the 1809 keV decay flux attributable to the Cygnus complex. We indeed disentangled in a coherent way the contribution of the nearby clustered OB population of the Cygnus complex from the contribution of the more diffuse and spatially extended non-clustered population likely to contribute to the emission. Also noteworthy is the non-negligible 1809 keV flux found from the Sco-Cen region. A similar flux was found from almost the same data set and is further discussed by Diehl (2009).

 \begin{figure}
\par\includegraphics[width=9cm,height=6.44cm]{12178_4.eps}
\end{figure} Figure 4:

Spectrum of the combined 1173/1332 keV emission from the Galaxy, from about 4 years of INTEGRAL/SPI observations. The red line represents the best Gaussian fit to the data points.

Open with DEXTER

5 Conclusion

We have analysed about 4 years of data from the INTEGRAL/SPI spectrometer to characterise the 26Al and 60Fe decay emission from the Cygnus region in detail, with the purpose of constraining the nucleosynthesis activity of the Cygnus complex of massive stars located between 1.0 and 2.0 kpc from the Sun.

The 26Al decay emission from Cygnus can be represented as a $3^{\circ} \times 3^{\circ}$ Gaussian centred on $(l,b)=(81^{\circ},-1^{\circ})$, a position consistent with that of the massive Cyg OB2 cluster thought to dominate the energetics and nucleosynthesis of the Cygnus complex. The total 1809 keV flux from the Cygnus region is $(6.0 \pm 1.0) \times 10^{-5}$ ph cm-2 s-1 and the flux really attributable to the Cygnus complex, obtained by properly considering the mean Galactic background and foreground contribution, reduces to $(3.9 \pm 1.1) \times 10^{-5}$ ph cm-2 s-1. This effort to coherently disentangle the contribution of the rather well-identified clustered OB population of the nearby Cygnus complex from the contribution of the more diffuse and less known non-clustered population will allow a more accurate comparison of observations with theoretical expectations based on the most recent stellar models (to be presented in a forthcoming paper).

The 1809 keV line centroid agrees with expectations considering the direction and distance of the Cygnus complex, and the line width is consistent with typical ISM motions. No decay emission from 60Fe was observed from the Cygnus region and an upper limit of $1.6 \times 10^{-5}$ ph cm-2 s-1 was derived.

In the course of our work, a modelling of the Galactic 26Al content and decay emission was performed. In agreement with previous results, we have found a total 1809 keV flux of ( $8.4 \pm 1.7$$\times$ 10-4 ph cm-2 s-1. Our model implies a 26Al stationary mass of 1.7- $2.0 \pm 0.2$ $M_{\odot}$, depending on the ill-constrained vertical extent of the 1809 keV Galactic emission, and most of this mass appears to be located in the Giant Molecular Ring, between 3-6 kpc. We also observed a weaker Galactic 60Fe decay emission with a total flux of ( $9.1 \pm 2.6$$\times$ 10-5 ph cm-2 s-1, which reduces to ( $3.5 \pm 1.0$$\times$ 10-5 ph cm-2 s-1 in the central region of the Galaxy.

Acknowledgements
The SPI project was completed under the responsibility and leadership of CNES. We are grateful to the ASI, CEA, CNES, DLR, ESA, INTA, NASA, and OSTC for their support.
