Observations of three pre-cataclysmic variables from the Edinburgh-Cape blue object survey
C. Tappert1, -
B. T. Gänsicke2 -
M. Zorotovic1 -
I. Toledo1 -
J. Southworth2 -
C. Papadaki3 -
R. E. Mennickent4
1 -
Departamento de Astronomía y Astrofísica, Pontificia Universidad
Católica, Vicuña Mackenna 4860, 782-0436 Macul, Chile
2 -
Department of Physics, University of Warwick, Coventry CV4 7AL, UK
3 -
Vrije Universiteit Brussel, Pleinlaan 2, 1050 Brussels, Belgium
4 -
Departamento de Astronomía, Universidad de Concepción, Casilla 160-C,
Concepción, Chile
Received 12 March 2009 / Accepted 20 May 2009
Abstract
Aims. This study aims at determining the parameters of the three candidate pre-cataclysmic binaries EC 12477-1738, EC 13349-3237, and EC 14329-1625, most importantly their orbital period.
Methods. Time-series photometry reveals orbital modulation in the form of sinusoidal variation due to the reflection effect. Photometric observations are complemented by time-resolved spectroscopy that yields radial velocities of the H
emission line. The combination of both methods allows us to unambiguously determine the orbital periods. The average spectra are used to estimate physical parameters of the primary and secondary stellar components.
Results. We determine the orbital period for EC 12477-1738 as 0.362 d, thus confirming the value previously reported. A similar period, P=0.350 d, is found for EC 14329-1625. Both systems incorporate a medium-hot white dwarf (
T = 15 000-20 000 K) and an M3V secondary star. The third pre-CV, EC 13349-3237, is the youngest of the three, with a hot WD (
K), and it also has the longest period P=0.469 d. It furthermore turns out to be one of the still rare pre-CVs with a comparatively early-type, M1V, secondary star, which will eventually evolve into a CV above the period gap.
Key words: binaries: close - stars: late-type - white dwarfs - novae, cataclysmic variables
1 Introduction
Cataclysmic Variables (CVs) are close interacting binaries with a
white dwarf accreting material from a
Roche-lobe filling, late-type (K-M), main-sequence star. These
systems are thought to form from initially separated binaries that go
through a common-envelope phase as the more massive
one of the two stars expands in the course of its
nuclear evolution. The eventual expulsion of the
common-envelope material leaves a still separated
white dwarf / main-sequence star (hereafter WD/MS) binary.
Angular momentum loss due to magnetic
braking and gravitational radiation shrinks the separation, which
eventually leads to the secondary star filling its Roche lobe, thus
starting mass-transfer. Following Schreiber & Gänsicke (2003), we
call the WD/MS binaries pre-CVs, if the evolution from the expulsion
of the common envelope to the start of mass transfer takes place
within Hubble time (13 Gyr).
![]() |
Figure 1: Finding charts from the Digital Sky Survey (DSS2-red). |
Open with DEXTER |
Recent attempts to solve the discrepancies between the modelled and the observed CV population (e.g., Gänsicke 2005; Stehle et al. 1997; Patterson 1998) emphasise the importance of the pre-CV phase (Schenker et al. 2002; Schenker & King 2002). The detection of anomalous element abundances in a number of CVs (Harrison et al. 2004; Gänsicke et al. 2003; Harrison et al. 2005) raises the question of whether the secondary star undergoes a certain amount of nuclear evolution prior to entering the CV stage, although an examination of 13 pre-CVs gave a negative result (Tappert et al. 2007b).
Since pre-CVs consist of two intrinsically faint stellar components
and - with the exception of eclipsing systems and binary central stars of
planetary nebulae - show only very minor photometric variability (with amplitudes of
typically 0.1 mag), they are not easily detected. Consequently
the number of known pre-CVs is small; applying the criteria from
Schreiber & Gänsicke (2003), i.e.,
and a main-sequence secondary with M2 < M1, we find 56 potential
and confirmed pre-CVs in version 7.9 of the Ritter & Kolb (2003)
catalogue. The Sloan Digital Sky Survey (SDSS) is currently
fundamentally changing this picture, thanks to the vast number of
spectroscopic follow-ups of point sources with non-stellar ugrizcolours (Raymond et al. 2003; Silvestri et al. 2007,2006; Schreiber et al. 2008; Rebassa-Mansergas et al. 2007), and detailed
follow-up observations will eventually provide
2000 new
systems. However, the majority of the SDSS systems will be faint,
requiring large-aperture telescopes for follow-up observations.
Here, we present photometric and spectroscopic studies of three relatively bright pre-CVs, EC 12477-1738, EC 13349-3237, and EC 14329-1625, which were discovered and classified as WD/MS binaries in the Edinburgh-Cape Blue Object Survey (Kilkenny et al. 1997). Coordinates and apparent magnitudes of these systems are collected in Table 1; finding charts are presented in Fig. 1. The first attempts to derive their orbital period photometrically have been described in Tappert et al. (2004) and Tappert et al. (2006). Maxted et al. (2007) used time-resolved spectroscopy to determine the period for one of these systems, EC 12477-1738.
Table 1: General information on the three targets of this study.
2 Observations and data reduction
Table 2: Log of observations.
The photometric data were taken on several occasions in 2003 and 2005
at the 0.9 m CTIO/SMARTS telescope using an R filter. The 2003
observations were part of a survey on a sample of 16 objects that had been
classified as candidate pre-CVs based on their spectral appearance. The aim
was to examine them for potential photometric variability that would
confirm their classification and reveal their orbital period
(Tappert et al. 2004). Since it was unknown if the targets would
show any variation, continuous light curves were taken, i.e. a certain fraction
of the night (usually around 4 h) would be dedicated to a specific
object. For the 2005 observations, the sample was limited to 5 objects with
known or suspected light curve modulations corresponding to periods >6 h.
Thus, targets were cycled throughout the night, with three consecutive data
points being taken per step. In this way, light curves covering 8 h per
night could be measured for three to four targets, yielding a time
resolution of
0.5 h. Unfortunately, the 2005 observing runs were
plagued with bad weather conditions, so that in the end only the data
for the brightest target, EC 14329-1625, proved useful.
From the photometric observations, four systems emerged as confirmed
pre-CVs: LTT 560 (Tappert et al. 2007a) and the three targets
of the present paper. The latter were selected for time-resolved spectroscopy
on 3 nights in April 2007 at the 4.0 m CTIO in order to pin down the
orbital period, since the photometry on its own does not allow for an unambiguous
distinction between sinusoidal (one maximum per orbit due to the secondary star
being irradiated by a hot white dwarf) or ellipsoidal variation (two maxima per orbit
due to the deformed secondary star). We employed the R-C spectrograph and grating
KPGL3 with a 1.0
slit to yield a wavelength range of 3565-7240 Å
at a spectral resolution of 4.8 Å.
Using essentially the same strategy as for the 2005 photometric observations,
after each target spectrum, a HeAr lamp wavelength calibration exposure was taken,
and afterwards the telescope was pointed to the next object.
Flux calibration standards LTT 4816 and
LTT 7379 were observed at the beginning of night 1 and at the end
of night 3, respectively. Since the weather conditions were not
photometric (in fact, the middle night of our observing run was
completely overcast), one expects the respective calibrations not to
be very accurate. However, as we will see below, they still provide
valuable information. A summary of the observations is given in Table 2.
Basic reduction of the photometric and spectroscopic data followed
standard procedures for bias subtraction and flat fielding, using
IRAF tasks. The majority
of the photometric data was analysed with IRAF's apphot/daophot
packages, and the stand-alone daomatch and daomaster routines
(Stetson 1992). The final aperture radius for the photometry was
chosen as the one that gave a minimum noise in the differential light
curve of two non-variable field stars with magnitudes similar to the
target. All field star photometry of a single CCD frame were then
combined to give an average light curve, with variable and noisy stars
being iteratively excluded. The differential light curve for the
target finally was computed by subtracting the averaged field stars
from the target data. In an attempt to reduce the noise in the light
curves, an iterative weighting algorithm (Broeg et al. 2005) was
used to compute the average comparison light curve for the April 2005
data. However, the gain in signal-to-noise ratio (S/N) proved
insufficient to justify a re-evaluation of the other data sets.
The spectroscopic data were optimally extracted (Horne 1986) and
wavelength and flux calibrated. Radial velocities of the Hemission line (and of absorption lines of the secondary star, when
possible) were measured by fitting single Gaussians to the line
profile. The WD absorption lines were found to be too broad and the
S/N too low in order to be measured either by fitting or by using
cross-correlation methods. Additionally, narrow emission lines were
present in the centre of the Balmer absorption in all cases. The
H
radial velocities were corrected for the motion with
respect to the local standard of rest (LSR) as defined in IRAF's
rvcorrect task (the Sun's velocity vector relative to the LSR being
,
,
)
and a potential instrumental flexure was
accounted for by subtracting the variation of the
[O I]
5577
night sky emission line.
Both the photometric and the spectroscopic data were examined for
periodic modulation applying several routines implemented in the
ESO-MIDAS time-series
analysis (tsa) context, namely the Scargle (1982) and
analysis-of-variance (AOV; Schwarzenberg-Czerny 1989)
algorithms, as well as the extension of the latter, which uses
orthogonal trigonometric polynomials to fit the phase-folded data
(ORT; Schwarzenberg-Czerny 1996). After discarding alias
periods (see the respective sections for each system), the error
associated with the selected period was calculated using Eq. (4) from Larsson (1996).
3 Results
3.1 General spectroscopic appearance
![]() |

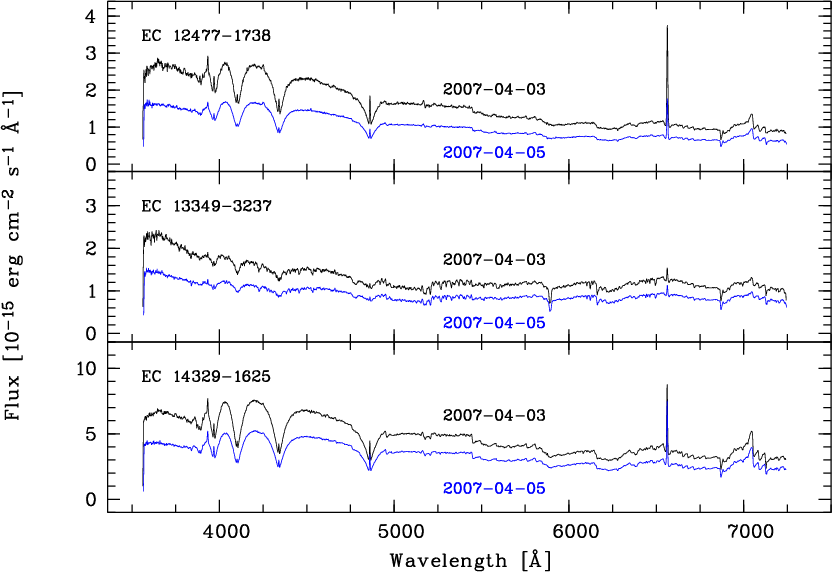

Figure 2: Average spectra from April 3 and April 5, 2007 as labelled. Note the composite nature of all three systems, with the white dwarf dominating the blue part of the spectrum, and the late-type secondary star showing its presence in the red part. The narrow hydrogen emission lines also originate in the secondary star. The brightness and colour differences between the two nights are not intrinsic. See text for more detail. |
Open with DEXTER |
The nightly average spectra for all systems are presented in Fig. 2. While the data for the three targets will be analysed individually in the subsequent sections, here we comment on the common spectroscopic properties. In all three objects, the WD is dominant in the blue part of the spectrum. EC 12477-1738 and EC 14329-1625 present broad and prominent Balmer absorption lines, while in EC 13349-3237 they are not as pronounced due to the system incorporating a much hotter WD (see the respective section).
In the red part, the late-type secondary star shows its presence in the form of a red continuum and molecular absorption bands. Again, while EC 12477-1738 and EC 14329-1625 at first glance present a very similar appearance, in EC 13349-3237 the less pronounced TiO band edge around 7050 Å and the presence of absorption features in the middle part of the spectrum suggest an earlier spectral type for the secondary star than in the other two systems.
We also find comparatively large differences for all spectra between one night
and the other. Specifically, the April 3 data are about 0.4 mag brighter
than the ones from April 5, and the continuum slopes appear redder on the
second night. We have already commented in Sect. 2 on the
non-photometric conditions during the observations, and these therefore can
account for the brightness offset between the two nights. The
difference in colour is probably due to atmospheric refraction, since the
standard stars were observed at significantly different airmasses:
LTT 4816 on April 3 at
and LTT 7379 on April 5 close to the
zenith. In contrast, the targets have been observed
![]() |

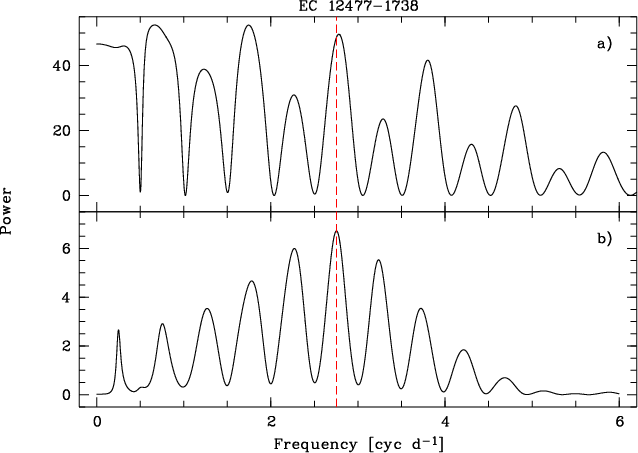

Figure 3:
Scargle periodograms for EC 12477-1738. a) Photometric data.
b) Radial velocities of the H |
Open with DEXTER |
3.2 EC 12477-1738
![]() |

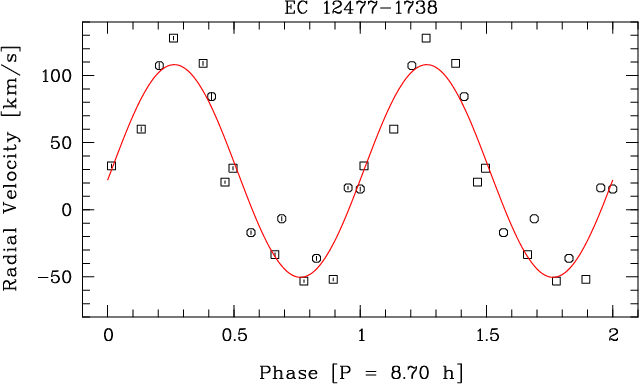

Figure 4:
Radial velocities of the H |
Open with DEXTER |
![]() |

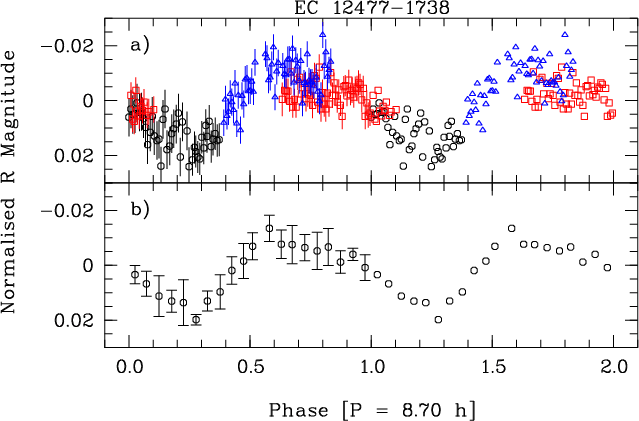

Figure 5: Phase-folded light curves for EC 12477-1738, with phase zero arbitrarily set to the first data point. a) The individual data from April 08 (circles), 09 (squares), and 10 (triangles). Two cycles are shown, the second one without error bars. b) The data averaged into bins of 0.05 phases. The error bar gives the standard deviation with respect to the average value. |
Open with DEXTER |
![]() |

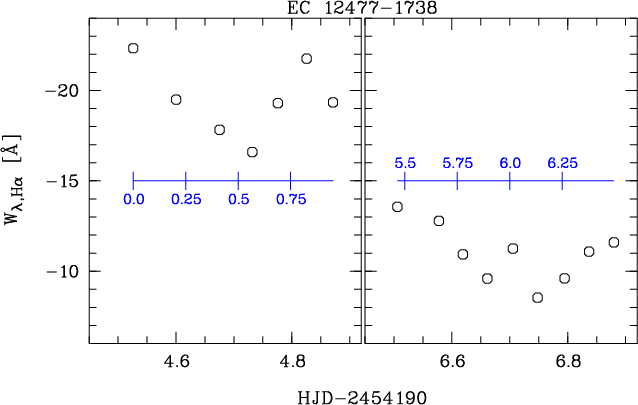

Figure 6:
H |
Open with DEXTER |
![]() |

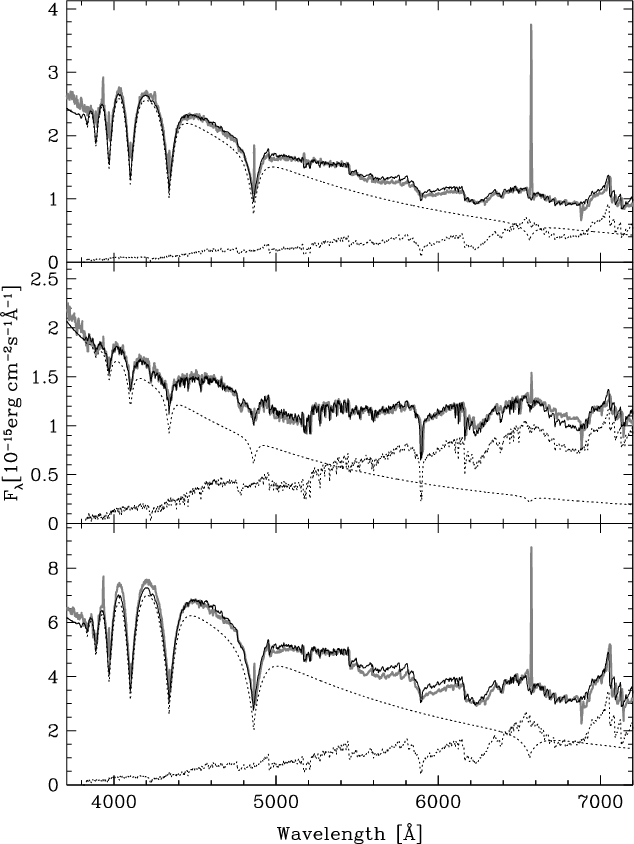

Figure 7: Spectral fits to the spectra of EC 12477-1738 ( top panel), EC 13349-3237 ( middle panel) and EC 14329-1625 ( bottom panel). The observed data are plotted as a thick gray line, the best-fit M-dwarf as a dotted line, and the best-fit white dwarf as hashed line. The sum of both components is overplotted on the data as a thin black line. |
Open with DEXTER |
The photometric data present clear variability, but have insufficient
coverage to pin down the orbital period, as is evident from the
corresponding periodogram (Fig. 3a). The radial
velocities of the H
emission line,
instead, yield a clear main peak at
,
which corresponds to
(Fig. 3b). The spectroscopic periodogram
shows a number of alias periods with peak values larger than half the values
of the strongest signal, which were also tested on the spectroscopic
and photometric data. For all alias periods, at least one of the two
phase-folded data sets showed strong discrepancies, especially regarding
data from different nights, thus leaving the aforementioned period
corresponding to the strongest peak as the only viable choice.
Figures 4 and 5 give the
phase-folded radial velocities and the light curve, respectively. The
corresponding sine fit to the velocities
,
![]() |
(1) |
yields


with E giving the cycle number. This timing corresponds to the inferior conjunction of the emission source, i.e. most probably the secondary star. A recent radial velocity study by Maxted et al. (2007) determined P = 0.3664 d, which agrees well with our result.
As explained in Sect. 3.1, the non-photometric conditions cause differences in brightness and continuum slopes between the two nights (Fig. 2, top). Folding the nightly average spectra with Bessell (1990) passbands, we find V = 16.0 for April 3 and V = 16.5 for April 5, while B-V = 0.2 for both nights. Kilkenny et al. (1997) in their discovery paper give V = 16.20. However, for EC 12477-1738 the emission lines with respect to the continuum also are significantly weaker. In Fig. 6 we see that, while the equivalent widths show some variation throughout both nights that does not appear to be correlated with the orbital period, the average equivalent width drops to almost half its value from April 3 to April 5. The difference in the emission line strengths even probably makes up for the difference in the continuum slope between the two average spectra (as mentioned above, it is slightly bluer for April 3), thus yielding identical photometric colour indices for both nights, while for EC 13349-3237 and EC 14329-1625 the colour indices faithfully reflect the different continuum slopes.
The variable line strength suggests that EC 12477-1738 is another member of the group of pre-CVs with an active secondary star (e.g., Tappert et al. 2007a; O'Donoghue et al. 2003; van den Besselaar et al. 2007, for EC 13471-1258, LTT 560, and DE CVn, respectively). Further long-term photometric or spectroscopic monitoring will be needed for confirmation.
Table 3: Stellar parameters for the white dwarfs and M-dwarfs in EC 12477-1738, EC 13349-3237 and EC 14329-1625 determined from a spectroscopic decomposition of the CTIO spectra.
We have used the spectroscopic decomposition/fit procedure developed
by Rebassa-Mansergas et al. (2007) to estimate the stellar
parameters of the white dwarf and the companion star in
EC 12477-1738. In brief, the observed pre-CV spectrum is first
decomposed into a white dwarf and an M-dwarf component using a
-fit and a set of both white dwarf and M-dwarf template
spectra from the SDSS. After subtracting the best-fit M-dwarf, the
residual spectrum is then subjected to a fit with white dwarf model
spectra computed using the code of Koester et al. (2005). The model
fit is carried out on the normalised Balmer line profiles to avoid
problems due to uncertainties in the response function of the
spectrograph. Finally, the slope of the continuum is used to break the
degeneracy between ``cold'' and ``hot'' model solutions that have
approximatively equally strong Balmer absorption lines. For full
details, we refer the reader to Rebassa-Mansergas et al. (2007). Free parameters in this
decomposition/fit are the white dwarf temperature and surface gravity,
which can be converted to a white dwarf mass using an updated version
of the evolution sequences of Bergeron et al. (1995), the
spectral type of the companion star, as well as distance estimates
based on the flux scaling factors for both stellar components. The
results from the decomposition of both spectra of EC 12477-1738 are
reported in Table 3, and the composite fit to the
April 3 spectrum is shown in Fig. 7 (top panel).
Despite the different (and non-perfect) atmospheric conditions during
both nights, both fits agree well within the errors, and suggest that
EC 12477-1738 contains a white dwarf with a temperature of
K and a mass close to the average mass
of single white dwarfs (e.g. Liebert et al. 2005),
.
The spectral type of the
companion star is M
.
In principle, the two distance
estimates determined from the flux scaling factor of each component
should agree, but we find
.
Rebassa-Mansergas et al. (2007) showed that in about
1/3 of
the systems analysed in their study displayed the same problem. They
discussed possible issues with the adopted spectral type-radius
relation that may be related to stellar activity. Here we note that
EC 12477-1738 exhibits strong emission line which vary on
time scales of days, consistent with substantial chromospheric
activity on the companion star.
3.3 EC 13349-3237
![]() |

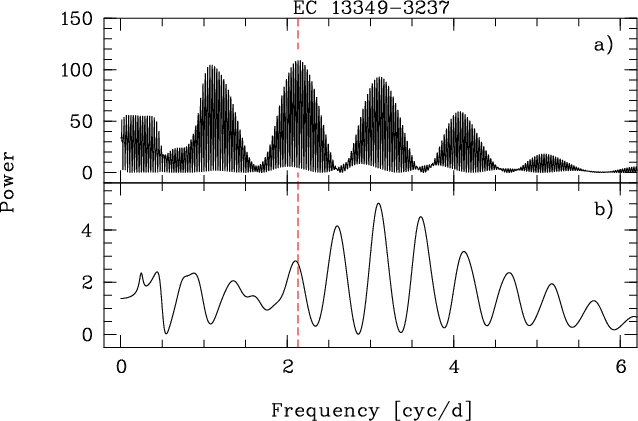

Figure 8:
Scargle periodograms for EC 13349-3237. a) Photometric data.
b) Cross-correlation radial velocities of the absorption forest in-between |
Open with DEXTER |
![]() |

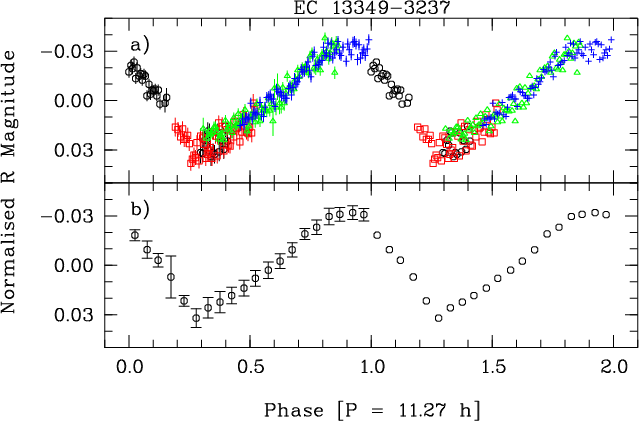

Figure 9: Phase-folded light curves for EC 13349-3237. a) The individual data from May 15 (circles), 16 (squares), June 20 (triangles) and 11 (crosses). Two cycles are shown, the second one without error bars. b) The data averaged into bins of 0.05 phases. The error bar gives the standard deviation with respect to the average value. |
Open with DEXTER |
![]() |

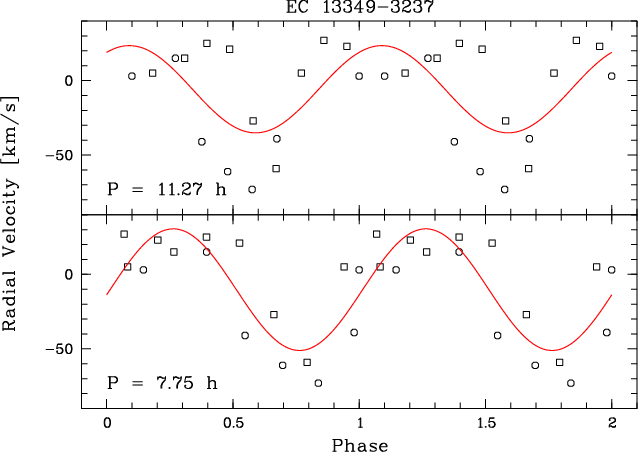

Figure 10: EC 13349-3237 cross-correlation radial velocities folded on the photometric period ( top) and on the ``spectroscopic'' period ( bottom). Symbols are the same as in Fig. 11. The lines shows the best sinusoidal fit with parameters given in Table 4. |
Open with DEXTER |
![]() |

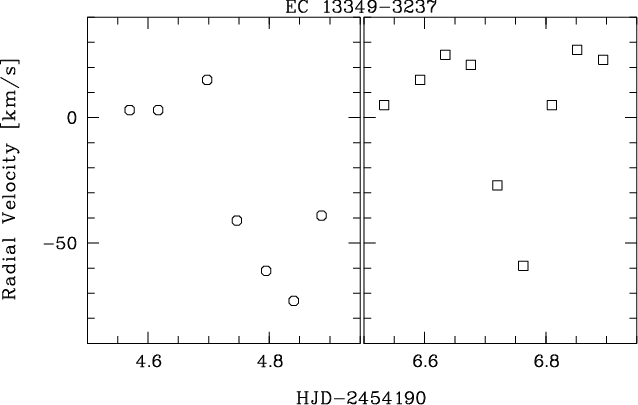

Figure 11:
EC 13349-3237 radial velocities, as determined by a
cross-correlation of the absorption forest in-between |
Open with DEXTER |
Four photometric data sets were taken in two different months, each
time on two subsequent nights. The corresponding periodogram
(Fig. 8, top) presents several hubs of fine-spaced
alias periods. We can discard all hubs longwards of f = 2.5, since
the longest continuous data set of 6.28 h clearly does not represent
2/3 of an orbit (the triangles in Fig. 9). The hub
shortwards of f = 1.5 yields an ellipsoidal light curve at an
orbital period
.
At a spectral type of M1 (see below)
this would require an evolved secondary, and there is no spectroscopic
evidence that would support such a scenario. The hub centred at
f = 2.13 therefore remains as the only possibility. We have folded
the photometric data with all periods with peak values larger
than half the value of the strongest peak, covering a frequency range
.
Based on the criterion of how the
data sets of different nights fit together in the phase-folded data,
we find that only two periods,
and
yield an acceptable light curve. Since P2 is
the slightly stronger one of the two, we adopt as photometric period
.
As a word of caution we
remark that our criterion here assumes that each data set represents
a part of a stable, identical light curve. However, the potential
presence of star spots or activity on the secondary star could induce
a certain variability of the light curve. This applies to all three
targets of this study, but bears special importance for EC 13 349-3237,
as here we are dealing with 4 incomplete parts of a light curve within two
data sets that are separated by one month.
Somewhat surprisingly, the spectroscopic data do not present a similarly
clear variation, and in fact do not appear to reflect the photometric
variation at all. Measuring radial velocities by fitting single Gaussians to
the H
emission line or to a number of absorption lines
(Na I
5893, Ca I
6103 and
6122)
results in very noisy curves without any clear periodic signal. In a second
attempt we measured radial velocities by cross-correlation in the spectral
region 5160-5340 Å, which contains a forest of absorption lines from the
secondary star due to Mg, Cr and Fe. We used a synthetic template spectrum
to avoid introducing additional noise into the results. The template was
calculated using the UCLSYN code (Smalley et al. 2001) and adopting
and
.
This yielded radial
velocities which were less noisy but still did not demonstrate the expected
variations in that they do not appear to follow the photometric period, but
instead prefer
(Fig. 8, bottom).
We have folded the radial velocity data on both the photometric period and the one extracted from the spectroscopic periodogram. As expected, since the photometric period is barely, if at all, present in the spectroscopic data, that period yields a very poor fit (Fig. 10, top). The ``spectroscopic'' period at first glance provides an acceptable fit to the data (Fig. 10, bottom). However, closer inspection reveals that there are systematic differences between the data from the two nights, as, with one exception, the velocities from the first night all lie below the fit. In Fig. 11 we have plotted the radial velocities in sequence versus time, which makes it even more obvious that the velocities do not follow a well-defined sinusoidal variation. We therefore doubt the physical relevance of this signal. Again we point out that the longest photometric data set excludes the ``spectroscopic'' period for the light curve.
Without more and better data, we are not able to clarify this puzzling behaviour. Perhaps it is due to a combination of the low spectral resolution and a low inclination (for the photometric variation the low inclination could be compensated for by a particularly strong reflection effect due to a hot white dwarf). Further investigation of this system clearly requires time-resolved high-resolution spectroscopy.
Folding the nightly average spectra with Bessell filters we obtain V = 16.26 and B-V = 0.36 for April 3, and V = 16.61, B-V = 0.42for April 5. The difference in magnitude is very similar to that found for EC 12477-1738, and we attribute this and the difference in the continuum slope to the non-photometric conditions during the observations. Previously reported values for EC 13 349-3237 are V = 16.34, B-V = 0.36 (Kilkenny et al. 1997).
Using the spectroscopic decomposition/fit technique introduced in
Sect. 3.2, we determine the white dwarf temperature
and mass of EC 13 349-3237,
K, and
(Table 3 and
Fig. 7, middle panel). Taken at face value, the
white dwarf mass is lower than the average mass of single white
dwarfs, suggestive of a He-core as a result of the common envelope
evolution. Only a handful of bona-fide He-core white dwarfs in pre-CVs
are known, and a more detailed study appears warranted to confirm this
hypothesis for EC 13 349-3237. The spectral type of the companion,
Sp(sec) = M
.
Hence, EC 13 349-3237 is a new addition to
the still very small number of pre-CVs with early-type companion stars
that will start mass transfer above the period gap
(Schreiber & Gänsicke 2003). The distances determined for the two
components are in good agreement.
3.4 EC 14329-1625
![]() |

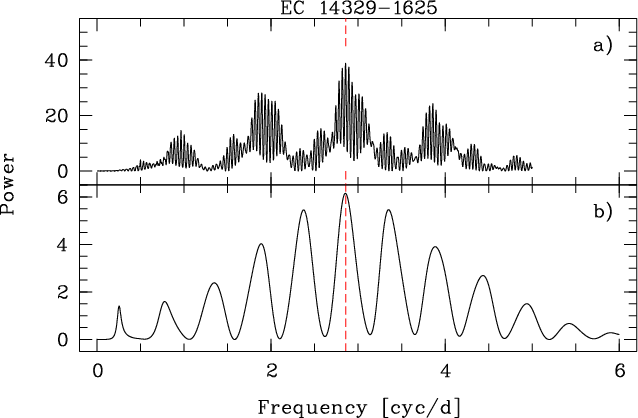

Figure 12:
Scargle periodograms for EC 14329-1625. a) 2005
photometric data. b) H |
Open with DEXTER |
![]() |

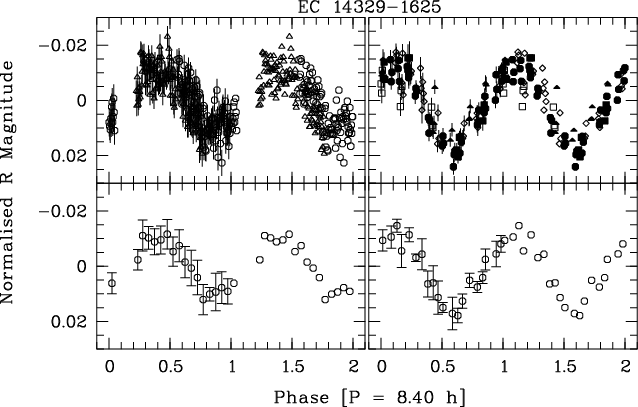

Figure 13: EC 14329-1625 phase-folded light curves from 2003 ( left) and 2005 ( right). Different symbols mark data from different nights. The bottom plots show the respective data averaged into 0.05 phase bins. |
Open with DEXTER |
![]() |

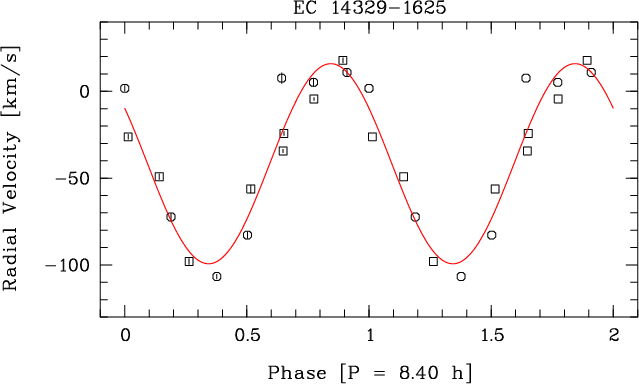

Figure 14:
Phase-folded radial velocities of the H |
Open with DEXTER |
This is the brightest of the three pre-CVs of our study, and this made
it possible to also use the photometric data from the 2005 runs which
suffered from bad weather conditions. Unfortunately, the time
span between both sets (from 2003 and 2005) is too long for a combined
period search. The periodogram of the 2005 data yields as the most
probable period
,
that agrees well with
the result
from the radial
velocities of the H
emission line from the 2007 time-resolved
spectroscopy (Fig. 12). The phase-folded photometric
and spectroscopic data are given in Figs. 13 and 14, respectively. The second highest peak for the
photometric data,
,
yields a visually
equally good light curve, and further observations will be necessary to
definitely break this alias degeneracy. However, since P1 agrees
slightly better with the spectroscopic period, we adopt
as the
orbital period of EC 14329-1625. A sine fit to the radial velocity
data yield the parameters listed in Table 4, and the
corresponding ephemeris is
![]() |
(3) |
with respect to the inferior conjunction of the emission source.
As for the other two targets, the average spectra show a flux difference between the two nights (Fig. 2, bottom). Folding the data with Bessell filter curves yields similar differences as for the other systems, with values V = 14.79, B-V = 0.33 for April 3, and V = 15.13, B-V = 0.38 for April 5. Kilkenny et al. (1997) report V = 14.89, B-V = 0.25, and again the April 3 data agree slightly better with their measurements.
For EC 14 329-1625, the spectroscopic decomposition (see
Sect. 3.2) results in
K
and
(Table 3 and
Fig. 7, middle panel), and similar to
EC 12 477-1738, EC 14 329-1625 has a mass close to the average mass
of single white dwarfs. Another similarity to EC 12 477-1738 is that
we find
,
which may suggest that the
companion star has a radius slightly too large for its spectral type.
As already mentioned in Sect. 3.2, this might be
related to stellar activity on the companion star
(Rebassa-Mansergas et al. 2007). In fact, both EC 12 477-1738 and
EC 14 329-1625 exhibit very strong Balmer emission lines. Given their
long orbital periods and modest white dwarf temperatures, the strength
of the Balmer lines is indicative of chromospheric activity, rather
than irradiation/heating of the companion star.
4 Conclusions
Table 4:
Radial-velocity parameters: the adopted orbital period P, the
semi-amplitude K2, the constant term ,
and the standard deviation of
the fit
.
We have determined the system parameters for the three pre-CVs EC 12477-1738,
EC 13349-3237, and EC 14329-1625. The results of the spectroscopic
decomposition are given in Table 3, the parameters gained from the radial
velocities are summarised in Table 4. When comparing our results
with previously published data we find that Koester et al. (2001) determine
somewhat higher temperatures for the WDs in EC 12477-1738
(
K vs.
K) and in EC 13349-3237
(
K vs.
K). These differences
are explained by the fact that Koester et al. (2001) did
not correct for the contribution of the companion star before fitting
the white dwarf spectrum. Consequently, the equivalent widths of
the white dwarf photospheric Balmer lines are underestimated, which
pulls the spectroscopic fit to higher temperatures (a higher degree of
ionisation).
The secondary spectral types for all three pre-CVs agree well with those obtained
by Tappert et al. (2007b) from absorption line strengths in K-band
spectra: M3V (this study: MV) for EC 12477-1738 and
EC 14329-1625, and K5V-M2V (M
V) for EC 13349-3237.
Two of our systems, EC 12477-1738 and EC 14329-1625, turn out to have very similar parameters: their orbital period is close to 8.5 h, and their stellar components are a medium-hot WD and an M3V secondary. The latter is an unusual combination for the pre-SDSS sample of pre-CVs, which was strongly biased to hotter WDs (Schreiber & Gänsicke 2003), but it is now found quite frequently in pre-CVs discovered in the SDSS (Rebassa-Mansergas et al. 2007). EC 13349-3237, on the other hand, while submitting to the usual observational bias in being a young pre-CV with a hot WD, also incorporates a comparatively early-type, M1V, secondary star. Pre-CVs with an early-type secondary star still represent a minority in the currently known sample. As Schreiber & Gänsicke (2003) point out, this is due to the fact that the secondary star in these systems contributes too much light for the object to appear as a candidate WD or QSO in the colour-colour diagram and thus will not trigger spectroscopic follow-up observations. It is probable that, if EC 13349-3237 contained a cooler WD, it would still remain undiscovered (see also Schreiber et al. 2007).
Based on the spectral type of the secondary stars, we can expect that EC 12477-1738
and EC 14329-1625 will turn into CVs with an orbital period 3-5 h, while
EC 13349-3237 will enter its CV phase at
(e.g., Beuermann et al. 1998). In this context it is worth noticing that
the period regime at 3-4 h is dominated by the high-mass-transfer SW Sex stars,
whose physics and possible magnetic nature are still under debate
(Rodríguez-Gil et al. 2007, and references herein). A detailed
examination of pre-CVs with secondary spectral types
M3V, such as
EC 12477-1738 and EC 14329-1625, might therefore provide valuable insight
into this important subgroup of CVs.
Acknowledgements
We thank the anonymous referee for comments that helped to improve the paper. C.T. and R.E.M. acknowledge financial support by FONDECYT grant 1051078. R.E.M. also acknowledges financial support by the Chilean Center for Astrophysics FONDAP 15010003 and from the BASAL Centro de Astrofísica y Tecnologias Afines (CATA) PFB-06/2007. We thank Detlev Koester for providing us his white dwarf model spectra. This work has made intensive use of the SIMBAD database, operated at CDS, Strasbourg, France, and of NASA's Astrophysics Data System Bibliographic Services. The Digitized Sky Surveys were produced at the Space Telescope Science Institute under US Government grant NAG W-2166, based on photographic data obtained using the Oschin Schmidt Telescope on Palomar Mountain and the UK Schmidt Telescope. IRAF is distributed by the National Optical Astronomy Observatories.
References
- Bergeron, P., Wesemael, F., & Beauchamp, A. 1995, PASP, 107, 1047 [NASA ADS] [CrossRef] (In the text)
- Bessell, M. S. 1990, PASP, 102, 1181 [NASA ADS] [CrossRef] (In the text)
- Beuermann, K., Baraffe, I., Kolb, U., & Weichhold, M. 1998, A&A, 339, 518 [NASA ADS] (In the text)
- Broeg, C., Fernández, M., & Neuhäuser, R. 2005, Astron. Nachr., 326, 134 [NASA ADS] [CrossRef] (In the text)
- Gänsicke, B. T. 2005, The Astrophysics of Cataclysmic Variables and Related Objects, ed. J.-M. Hameury & J.-P. Lasota, ASP Conf. Ser., 330
- Gänsicke, B. T., Szkody, P., de Martino, D., et al. 2003, ApJ, 594, 443 [NASA ADS] [CrossRef]
- Harrison, T. E., Osborne, H. L., & Howell, S. B. 2004, AJ, 127, 3493 [NASA ADS] [CrossRef]
- Harrison, T. E., Osborne, H. L., & Howell, S. B. 2005, AJ, 129, 2400 [NASA ADS] [CrossRef]
- Horne, K. 1986, PASP, 98, 609 [NASA ADS] [CrossRef] (In the text)
- Kilkenny, D., O'Donoghue, D., Koen, C., Stobie, R. S., & Chen, A. 1997, MNRAS, 287, 867 [NASA ADS] (In the text)
- Koester, D., Napiwotzki, R., Christlieb, N., et al. 2001, A&A, 378, 556 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Koester, D., Napiwotzki, R., Voss, B., Homeier, D., & Reimers, D. 2005, A&A, 439, 317 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Larsson, S. 1996, A&AS, 117, 197 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Liebert, J., Bergeron, P., & Holberg, J. B. 2005, ApJS, 156, 47 [NASA ADS] [CrossRef] (In the text)
- Maxted, P. F. L., Napiwotzki, R., Marsh, T. R., et al. 2007, in 15th European Workshop on White Dwarfs, ed. R. Napiwotzki & M. R. Burleigh, ASP Conf. Ser., 372, 471 (In the text)
- Napiwotzki, R., & Burleigh, M. R., 2007, 15th European Workshop on White Dwarfs, ASP Conf. Ser., 372
- O'Donoghue, D., Koen, C., Kilkenny, D., et al. 2003, MNRAS, 345, 506 [NASA ADS] [CrossRef]
- Patterson, J. 1998, PASP, 110, 1132 [NASA ADS] [CrossRef]
- Raymond, S. N., Szkody, P., Hawley, S. L., et al. 2003, AJ, 125, 2621 [NASA ADS] [CrossRef]
- Rebassa-Mansergas, A., Gänsicke, B. T., Rodríguez-Gil, P., Schreiber, M. R., & Koester, D. 2007, MNRAS, 382, 1377 [NASA ADS]
- Ritter, H., & Kolb, U. 2003, A&A, 404, 301 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Rodríguez-Gil, P., Gänsicke, B. T., Hagen, H.-J., et al. 2007, MNRAS, 377, 1747 [NASA ADS] [CrossRef] (In the text)
- Scargle, J. D. 1982, ApJ, 263, 835 [NASA ADS] [CrossRef] (In the text)
- Schenker, K., & King, A. R. 2002, in The Physics of Cataclysmic Variables and Related Objects, ed. B. T. Gänsicke, K. Beuermann, & K. Reinsch, ASP Conf. Ser., 261, 242
- Schenker, K., King, A. R., Kolb, U., Wynn, G. A., & Zhang, Z. 2002, MNRAS, 337, 1105 [NASA ADS] [CrossRef]
- Schreiber, M., Nebot Gomez-Moran, A., & Schwope, A. 2007, in 15th European Workshop on White Dwarfs, ed. R. Napiwotzki & M. R. Burleigh, ASP Conf. Ser., 372, 459 (In the text)
- Schreiber, M. R., & Gänsicke, B. T. 2003, A&A, 406, 305 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Schreiber, M. R., Gänsicke, B. T., Southworth, J., Schwope, A. D., & Koester, D. 2008, A&A, 484, 441 [NASA ADS] [CrossRef] [EDP Sciences]
- Schwarzenberg-Czerny, A. 1989, MNRAS, 241, 153 [NASA ADS] (In the text)
- Schwarzenberg-Czerny, A. 1996, ApJ, 460, L107 [NASA ADS] [CrossRef] (In the text)
- Silvestri, N. M., Hawley, S. L., West, A. A., et al. 2006, AJ, 131, 1674 [NASA ADS] [CrossRef]
- Silvestri, N. M., Lemagie, M. P., Hawley, S. L., et al. 2007, AJ, 134, 741 [NASA ADS] [CrossRef]
- Smalley, B., Smith, K., & Dworetsky, M. 2001, UCLSYN Userguide (In the text)
- Stehle, R., Kolb, U., & Ritter, H. 1997, A&A, 320, 136 [NASA ADS]
- Stetson, P. B. 1992, in Astronomical Data Analysis Software and Systems I, ed. D. M. Worrall, C. Biemesderfer, & J. Barnes, ASP Conf. Ser., 25, 297 (In the text)
- Tappert, C., Gänsicke, B. T., & Mennickent, R. E. 2004, in Compact Binaries in the Galaxy and Beyond, ed. G. Tovmassian & E. Sion, Rev. Mex. Astron. Astrofis. Conf. Ser., 20, 245 (In the text)
- Tappert, C., Gänsicke, B. T., Schmidtobreick, L., et al. 2007a, A&A, 474, 205 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Tappert, C., Gänsicke, B. T., Schmidtobreick, L., Mennickent, R. E., & Navarrete, F. P. 2007b, A&A, 475, 575 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Tappert, C., Toledo, I., Gänsicke, B. T., & Mennickent, R. E. 2006, in XI IAU Regional Latin American Meeting of Astronomy, ed. L. Infante & M. Rubio, Rev. Mex. Astrono. Astrofis. Conf. Ser., 26, 177 (In the text)
- van den Besselaar, E. J. M., Greimel, R., Morales-Rueda, L., et al. 2007, A&A, 466, 1031 [NASA ADS] [CrossRef] [EDP Sciences]
Footnotes
- ...
- New address: Departamento de Física y Astronomía, Universidad de Valparaíso, Avenida Gran Bretaña 1111, Valparaíso, Chile
- ...
IRAF
- NOAO PC-IRAF Revision 2.12.2-EXPORT.
- ...
ESO-MIDAS
- version 07FEBpl1.1 on PC/Linux.
All Tables
Table 1: General information on the three targets of this study.
Table 2: Log of observations.
Table 3: Stellar parameters for the white dwarfs and M-dwarfs in EC 12477-1738, EC 13349-3237 and EC 14329-1625 determined from a spectroscopic decomposition of the CTIO spectra.
Table 4:
Radial-velocity parameters: the adopted orbital period P, the
semi-amplitude K2, the constant term ,
and the standard deviation of
the fit
.
All Figures
![]() |
Figure 1: Finding charts from the Digital Sky Survey (DSS2-red). |
Open with DEXTER | |
In the text |
![]() |
Figure 2: Average spectra from April 3 and April 5, 2007 as labelled. Note the composite nature of all three systems, with the white dwarf dominating the blue part of the spectrum, and the late-type secondary star showing its presence in the red part. The narrow hydrogen emission lines also originate in the secondary star. The brightness and colour differences between the two nights are not intrinsic. See text for more detail. |
Open with DEXTER | |
In the text |
![]() |
Figure 3:
Scargle periodograms for EC 12477-1738. a) Photometric data.
b) Radial velocities of the H |
Open with DEXTER | |
In the text |
![]() |
Figure 4:
Radial velocities of the H |
Open with DEXTER | |
In the text |
![]() |
Figure 5: Phase-folded light curves for EC 12477-1738, with phase zero arbitrarily set to the first data point. a) The individual data from April 08 (circles), 09 (squares), and 10 (triangles). Two cycles are shown, the second one without error bars. b) The data averaged into bins of 0.05 phases. The error bar gives the standard deviation with respect to the average value. |
Open with DEXTER | |
In the text |
![]() |
Figure 6:
H |
Open with DEXTER | |
In the text |
![]() |
Figure 7: Spectral fits to the spectra of EC 12477-1738 ( top panel), EC 13349-3237 ( middle panel) and EC 14329-1625 ( bottom panel). The observed data are plotted as a thick gray line, the best-fit M-dwarf as a dotted line, and the best-fit white dwarf as hashed line. The sum of both components is overplotted on the data as a thin black line. |
Open with DEXTER | |
In the text |
![]() |
Figure 8:
Scargle periodograms for EC 13349-3237. a) Photometric data.
b) Cross-correlation radial velocities of the absorption forest in-between |
Open with DEXTER | |
In the text |
![]() |
Figure 9: Phase-folded light curves for EC 13349-3237. a) The individual data from May 15 (circles), 16 (squares), June 20 (triangles) and 11 (crosses). Two cycles are shown, the second one without error bars. b) The data averaged into bins of 0.05 phases. The error bar gives the standard deviation with respect to the average value. |
Open with DEXTER | |
In the text |
![]() |
Figure 10: EC 13349-3237 cross-correlation radial velocities folded on the photometric period ( top) and on the ``spectroscopic'' period ( bottom). Symbols are the same as in Fig. 11. The lines shows the best sinusoidal fit with parameters given in Table 4. |
Open with DEXTER | |
In the text |
![]() |
Figure 11:
EC 13349-3237 radial velocities, as determined by a
cross-correlation of the absorption forest in-between |
Open with DEXTER | |
In the text |
![]() |
Figure 12:
Scargle periodograms for EC 14329-1625. a) 2005
photometric data. b) H |
Open with DEXTER | |
In the text |
![]() |
Figure 13: EC 14329-1625 phase-folded light curves from 2003 ( left) and 2005 ( right). Different symbols mark data from different nights. The bottom plots show the respective data averaged into 0.05 phase bins. |
Open with DEXTER | |
In the text |
![]() |
Figure 14:
Phase-folded radial velocities of the H |
Open with DEXTER | |
In the text |
Copyright ESO 2009
Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
