The edge of the M 87 halo and the kinematics of the diffuse light in the Virgo cluster core[*]

M. Doherty1 - M. Arnaboldi2,3 - P. Das4 - O. Gerhard4 - J. A. L. Aguerri5 - R. Ciardullo6 - J. J. Feldmeier7 - K. C. Freeman8 - G. H. Jacoby9 - G. Murante3

1 - European Southern Observatory, Santiago, Chile
2 - European Southern Observatory, Garching, Germany
3 - INAF, Osservatorio Astronomico di Pino Torinese, Pino Torinese, Italy
4 - Max-Planck-Institut für extraterrestrische Physik, Garching, Germany
5 - Instituto de Astrofisica de Canarias, Tenerife, Spain
6 - Dept. of Astronomy and Astrophysics, Pennsylvania State University, University Park, PA, USA
7 - Dept. of Physics and Astronomy, Youngstown State University, Youngstown, OH, USA
8 - Mount Stromlo Observatory, Research School of Astronomy and Astrophysics, ACT, Australia
9 - WIYN Observatory, Tucson, AZ, USA

Received 16 December 2008 / Accepted 22 April 2009

Abstract
Aims. We study the kinematics and dynamics of the extreme outer halo of M 87, the central galaxy in the Virgo cluster, and its transition to the intracluster light (ICL).
Methods. We present high resolution FLAMES/VLT spectroscopy of intracluster planetary nebula (PN) candidates, targeting three new fields in the Virgo cluster core with surface brightness down to $\mu_B=28.5$. Based on the projected phase space information (sky positions and line-of-sight velocities) we separate galaxy and cluster components in the confirmed PN sample. We then use the spherical Jeans equation and the total gravitational potential as traced by the X-ray emission to derive the orbital distribution in the outer stellar halo of M 87. We determine the luminosity-specific PN number for the M 87 halo and the ICL from the photometric PN catalogs and sampled luminosities, and discuss the origin of the ICL in Virgo based on its measured PN velocities.
Results. We confirm a further 12 PNs in Virgo, five of which are bound to the halo of M 87, and the remainder are true intracluster planetary nebulas (ICPNs). The M 87 PNs are confined to the extended stellar envelope of M 87, within a projected radius of ${\sim}160$ kpc, while the ICPNs are scattered across the whole surveyed region between M 87 and M 86, supporting a truncation of M 87's luminous outer halo at a $2\sigma$ level. The line-of-sight velocity distribution of the M 87 PNs at projected radii of 60 kpc and 144 kpc shows (i) no evidence for rotation of the halo along the photometric major axis; and (ii) that the velocity dispersion decreases in the outer halo, down to $\sigma_{\rm last}= 78\pm 25$ km s-1 at 144 kpc. The Jeans model for the M 87 halo stars fits the observed line-of-sight velocity dispersion profile only if the stellar orbits are strongly radially anisotropic ( $\beta\simeq0.4$ at $r\simeq 10$ kpc increasing to 0.8 at the outer edge), and if additionally the stellar halo is truncated at ${\simeq} 150$ kpc average elliptical radius. The $\alpha$-parameters for the M 87 halo and the ICL are in the range of values observed for old (>10 Gyr) stellar populations.
Conclusions. Both the spatial segregation of the PNs at the systemic velocity of M 87 and the dynamical model support that the stellar halo of M 87 ends at ${\sim}$150 kpc. We discuss several possible explanations for the origin of this truncation but are unable to discriminate between them: tidal truncation following an earlier encounter of M 87 with another mass concentration in the Virgo core, possibly around M 84, early AGN feedback effects, and adiabatic contraction due to the cluster dark matter collapsing onto M 87. From the spatial and velocity distribution of the ICPNs we infer that M 87 and M 86 are falling towards each other and that we may be observing them just before the first close pass. The new PN data support the view that the core of the Virgo cluster is not yet virialized but is in an ongoing state of assembly, and that massive elliptical galaxies are important contributors to the ICL in the Virgo cluster.

Key words: galaxies: clusters: individual: Virgo - stellar dynamics - ISM: planetary nebulae: general - galaxies: halos - galaxies: elliptical and lenticular, cD - galaxies: formation

1 Introduction

Over the past few years the diffuse intracluster light (ICL) has been the focus of many studies, both in nearby (Mihos et al. 2005; Feldmeier et al. 2004) and in intermediate redshift clusters (Zibetti et al. 2005; Krick & Bernstein 2007). It has been found that the ICL is centrally concentrated and in many cases, including the diffuse outer halos of galaxies, comprises ${\sim}$10% of the total starlight in the cluster (Zibetti et al. 2005), and up to as much as ${\sim}35\%$ (Gonzalez et al. 2007).

Theoretical studies of the diffuse cluster light through simulations predict that the ICL is unmixed and therefore should exhibit a fair amount of sub-structure (Rudick et al. 2006; Napolitano et al. 2003; Murante et al. 2004). An important contribution to the diffuse light in clusters may come from the extended halos of giant galaxies: numerical simulations predict the presence of such halos around isolated galaxies out to several hundred kpc, consisting of stars shed by merging sub-units (Abadi et al. 2006). When these galaxies enter the cluster core, their halos would be stripped first by the tidal fields and later by the tidal shocking in the interaction with the cluster's central core and cD galaxy (Murante et al. 2007; Rudick et al. 2006).

Indeed the deep image of the Virgo cluster core by Mihos et al. (2005), reaching $\mu_V = 28~$mag arcsec-2, shows a variety of features such as streamers, arcs and smaller features associated with individual galaxies. It also shows faint, very extended diffuse halos surrounding the large galaxies. In particular, around the giant elliptical galaxy M 87, the Mihos et al. (2005) photometry reveals an extended stellar envelope at very low surface brightness levels, $\mu_V > 26.5~$mag arcsec-2, with flattened isophotes (noted previously by Kormendy & Bahcall 1974; Weil et al. 1997; Arp & Bertola 1971), and out to ${\sim} 37'$ ( ${\simeq} 161$ kpc) along the semi-major axis.

The Virgo cluster has long been known to be dynamically unmixed, with complex sub-structures. This was first realized from the spatial and velocity distribution of Virgo galaxies (e.g. Binggeli et al. 1987,1993). In particular Binggeli et al. (1993) found tentative evidence from the asymmetry in the velocity distribution of dwarf spheroidal galaxies that even the core of Virgo is not virialized, and suggested that the cluster is dynamically young, with two sub-clumps M 87 and M 86 falling in towards each other in the centre.

From photometry in $z \sim 0.1$ clusters (Krick & Bernstein 2007; Gonzalez et al. 2005) and from kinematic studies of the ICL in nearby clusters (Gerhard et al. 2005,2007; Arnaboldi et al. 2004) we have learned that the genuine ICL component, defined as the light radiated by stars floating freely in the cluster potential, and the extended halos of bright (elliptical) galaxies often overlap spatially, and cannot easily be distinguished from broad-band photometry alone. Kinematic information can complement the photometry. For surface brightness $\mu_B\la 25$ mag/arcsec2, integrated light spectroscopy can be used to measure the mean velocity and velocity dispersion in the outer halos of the brightest cluster galaxies (Kelson et al. 2002; Sembach & Tonry 1996); however, reaching the faint surface brightness level of the true ICL component with this technique is very difficult. Since planetary nebulas (PNs) follow light (e.g. Coccato et al. 2009), the spectroscopic study of these tracers, both in the extended halos and the ICL, offers a way to identify and measure the kinematics of these diffuse stellar components down to very faint surface brightness ( $\mu_B<28.5$ in Virgo), but it is currently limited to clusters with distances <100 Mpc (Gerhard et al. 2005).

For the Virgo cluster, there has been considerable success with a two-step approach of identifying PN candidates with narrow-band imaging followed by multi-object spectroscopy. Arnaboldi et al. (1996) observed the outer regions of the giant elliptical M 86, measuring velocities for 19 objects. Three of these turned out to be true ICPNs, with velocities similar to that of the mean velocity of the Virgo cluster. Subsequently, 23 PNs were detected in a spectroscopic survey with 2dF on the 4 m Anglo-Australian Telescope (Freeman et al. 2000; Arnaboldi et al. 2002). These results were all based on single line identifications, although the second oxygen line was seen with the right ratio in the composite spectrum of 23 PNs observed by Freeman et al. (2000). The first confirmation based on detecting the [OIII] doublet in a single PN spectrum was made in Arnaboldi et al. (2003). Expanding on this early work, we began a campaign to systematically survey PN candidates in the Virgo cluster using multi-object spectroscopy with the FLAMES/GIRAFFE spectrograph on the VLT (Arnaboldi et al. 2004, hereafter A04). A04 presented the first measurements of the velocity distribution of PNs from three survey fields in the Virgo cluster core and concluded that in two of these fields the light is dominated by the extended halos of the nearby giant elliptical galaxies, while the ICL component dominates the diffuse light in only one field, where a ``broad'' line-of-sight velocity distribution is measured, and all PNs are true ``ICPNs''.

We here present PN velocity measurements from a further three pointings in the heart of the cluster core. We emphasize that these pointings are targeting faint surface brightness regions well outside of individual galaxies, in order to trace the ICPNs expected to be moving freely in the cluster potential, and thus to investigate the dynamical state of the ICL and of the core of the Virgo cluster. The photometric/geometric classification of PNs as ICPNs is in fact revised later in the paper according to the dynamical information obtained from the line-of-sight (LOS) velocities of the confirmed PNs.

 \begin{figure}
\par\includegraphics[scale=0.6]{11532/1532fig1.eps}
\end{figure} Figure 1:

Deep image of the Virgo cluster core showing the diffuse light distribution (Mihos et al. 2005), with our target fields superposed. Target fields of the previous spectroscopy (A04) are shown as red circles and our new target fields as well. The blue ellipse shows the boundary used in the dynamical modeling in Sect. 4.4.

Open with DEXTER

In this paper we give a summary of our observations and data reduction in Sect. 2 where we also discuss the sample completeness and show the final emission spectra. The distribution of measured line-of-sight velocities (LOSVD) and the projected phase-space diagram for these PNs are presented in Sect. 3. From these data we distinguish between ICPNs and PNs bound to the halo of M 87. In Sect. 4 we discuss the rotation, velocity dispersion and physical extent of the stellar halo of M 87, using the velocities of the PNs bound to M 87 in the combined data sets of this paper and A04. We then construct a dynamical model based on the gravitational potential obtained from X-ray observations and the combined absorption-line and PN velocity dispersion data for the galaxy. Possible mechanisms for the truncation of M 87's stellar halo are discussed in Sect. 4.5. In Sect. 5 we compute the luminosity-specific PN number $\alpha_{2.5}$ for both the M 87 halo and the ICL in Virgo, and in Sect. 6 we discuss the implications of the ICPN LOSVD for our understanding of the dynamical status of the cluster core and the origin of the ICL in Virgo. Summary and conclusions of the paper are given in Sect. 7.

In what follows, we adopt a distance of 15 Mpc for M 87, equivalent to a distance modulus of 30.88; therefore 1'' = 73 pc.

2 Observations

The observations were taken in service mode (22 h, 076.B-0086 PI: M. Arnaboldi) over the nights 25-28th March 2006 using the FLAMES spectrograph on UT2/VLT in MEDUSA mode which allows spectra to be taken through up to 132 fibers simultaneously[*]. The data were taken in clear conditions with seeing < $0.9\hbox{$^{\prime\prime}$ }$. We used the high resolution grism HR504.8 centred at 504.8 nm and with wavelength coverage 250 Å and spectral resolution 20 000. With this setup, the instrumental broadening of the arc lines is FWHM = 0.29 Å or 17 km s-1, and the error on the wavelength measurements is 0.0025 Å or 150 ms-1 (Royer et al. 2002).

Figure 1 shows the location of the selected fields targeted with FLAMES, including the three previous fields FCJ, CORE and SUB presented in A04, and the three new fields F4, F7_1, F7_2. The photometry used for the selection of PN candidates is from Feldmeier et al. (2003); his fields F4 and F7 contain the FLAMES fields F4 and (F7_1, F7_2), respectively.

2.1 Data reduction and sample completeness

The data were reduced using the GIRAFFE pipeline[*] including bias subtraction, determining fiber location on the CCD, wavelength calibration, geometric distortion corrections and extraction of the one-dimensional spectra. The co-addition was carried out separately as a final step on the one-dimensional spectra as the fibers are allocated in a slightly different order for MEDUSA plates 1 and 2 and the pipeline does not account for this.

Table 1 shows the number of spectroscopically confirmed emission-line objects and planetary nebulas, with respect to the number of candidates targeted ( $N_{\rm tot}$), and the number of candidates targeted above the photometric completeness limit for each field ( $N_{\rm cmp}$).

A histogram showing the number of candidates versus number of confirmed emission-line objects by magnitude is shown in Fig. 2. The photometric completeness limits ( ${\sim} 90\%$) in the two photometric fields F4 ( m5007=26.6) and F7 ( m5007=26.8) are shown as blue dotted lines. These photometric completeness magnitude limits are defined as to where the signal-to-noise over the entire photometric measurement is nine per pixel or greater, corresponding to a photometric error of approximately 0.12 mag (Feldmeier et al. 2003). The confirmation rate for emission-line objects above the completeness limit is then 40-70% depending on the field. This is comparable with the results from A04 (30-80% varying by field), and is a reasonable recovery rate given the following effects.

Firstly, if the astrometry is not very precise or if some rotation error is introduced in positioning the plate, then part or all of the flux from some objects may miss the fibers. This is more serious for faint objects as they will then not be detected above the noise. Indeed, in Fig. 3 the total flux in the [O III] 5007 Å line is not clearly correlated with the magnitude m5007 of the source, indicating that fiber positioning might be problematic. We measure the relative fluxes for the same [O III]5007 Å detection in different frames and find that it can in fact vary by up to a factor of two.

Table 1:   Observed fields and spectroscopic confirmations.

The likelihood of having false candidates above the completeness limit is very low. Each candidate ICPN was hand-inspected, and the code that finds the objects has been extensively tested on closer galaxies. In some cases (e.g., M 51, Durrell et al. 2003), there has been close to 100% recovery, using the same techniques as used to select the candidate ICPNs here.

However, below the photometric completeness limit the uncertainties are clearly much higher. Although many of the fainter objects are still likely to be ICPNs and were hence targeted spectroscopically, the probability for ``spillover'' (Aguerri et al. 2005) increases substantially. Due to the photometric errors in the [OIII] fluxes some objects will be measured with a brighter flux than their real flux. If in addition their broad-band fluxes fall below the limiting magnitude of the off-band image they will be selected as ICPNs when they are in fact very faint continuum stars, due to the fact that they will have erroneously large negative colours.

  2.2 Spectra of PNs and background emission line galaxies

Figure 3 shows all of the spectra for the confirmed PNs, ranked by their photometric magnitude m5007. For most of the PNs brighter than m5007=27 we also detect the second line [O III]$\lambda $4959. The expected location of [O III]$\lambda $4959 is shown by a red dash, where not immediately obvious by eye. The target fields F7_1 and F7_2 overlap and have one source in common. The independently measured velocities for this source agree to within 3 km s-1.

Our weakest believable detection has a total signal-to-noise ratio S/N=3. As an additional check we create the average combined spectrum for the 12 identified PNs (Fig. 4) and measured the equivalent width ratio of the two [OIII] lines. The ratio is 3 as expected if all identifications are real.

In Fig. 5, examples of the other emission-line objects present in the sample are shown: an [O II] doublet, an asymmetric Ly$-\alpha $ line, and an unidentified broad emission line which might be an AGN (for example CIV1550 or CIII]1909). Alternatively, there is a possibility that the line is HeII at 1640 Å in a LBG at higher redshift. Shapley et al. (2003) discuss that this is sometimes seen as nebular emission and also as much broader emission (${\sim}$ $1500~\mbox{km~s$^{-1}$ }$) possibly from stellar winds. The FWHM of the lines we see is about ${\sim}200~\mbox{km~s$^{-1}$ }$ (observed frame). The contamination rate of these other emission-line objects is 7/19, or 37%.

 \begin{figure}
\par\includegraphics[scale=0.35,angle=90]{1532fig2.ps}
\end{figure} Figure 2:

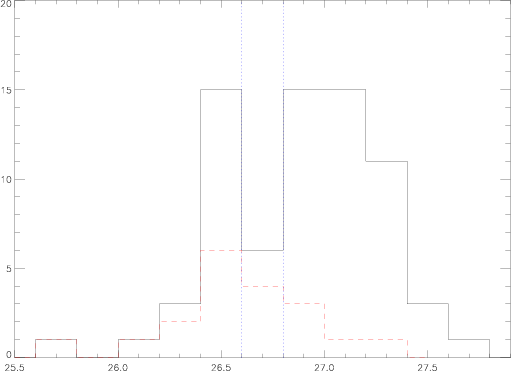

Histogram showing the m5007 mag of all our observed targets (solid black line) over-plotted with those where emission lines were detected (red dashed line). The blue dotted lines show the photometric completeness limits for target fields F4 (26.6) and F7 (26.8).

Open with DEXTER

The PN emission lines are all resolved, and thus we have been able to measure the expansion velocities of these PNs and to derive information on the masses of the progenitor stars. This work is presented in a companion paper (Arnaboldi et al. 2008). Here we concentrate on the kinematics, yielding information on the halo of M 87 and the assembly history of the Virgo cluster.

3 LOSVD and projected phase space

Figure 6 shows the distribution of velocities of the newly identified PNs in the Virgo cluster core. The velocities have not been adjusted for a heliocentric correction, as the observations were almost all taken close to the equinox and the correction is within only ${\pm}3~\mbox{km~s$^{-1}$ }$.

For the subsequent analysis, we combine these velocities with the A04 sample in the FCJ and Core fields. Figure 7 shows the location of these PNs on the deep image of the cluster core from Mihos et al. (2005), and Fig. 8 shows their distribution in the projected phase-space plane defined by projected distance from M 87 center and line-of-sight velocity.

In the phase-space diagram Fig. 8, we can identify two regions with very different characteristics: for projected distances $R<2400\hbox{$^{\prime\prime}$ }$ most of the PNs are strongly clustered around the systemic velocity of M 87, ${v}_{\rm sys}=1307$ km s-1. By contrast, for $R>2400\hbox{$^{\prime\prime}$ }$, the PN velocities spread widely over a velocity range more typical for the Virgo cluster. From the latter, intracluster region we see a string of low PN velocities (800-400 km s-1), extending inwards to the upper FCJ field (see Fig. 7).

In the FCJ field at projected distance $R<1300\hbox{$^{\prime\prime}$ }$ there are two of these intracluster outliers at ${\sim} 400$ km s-1. The remaining PNs are distributed symmetrically around ${v}_{\rm sys}$ and have mean velocity $1276\pm71~\mbox{km~s$^{-1}$ }$ and velocity dispersion $\sigma = 247$ km s-1 (A04); their velocity distribution is shown in the middle panel of Fig. 6.

 \begin{figure}
\par\includegraphics[angle=90,scale=0.75]{1532fig3.ps}
\end{figure} Figure 3:

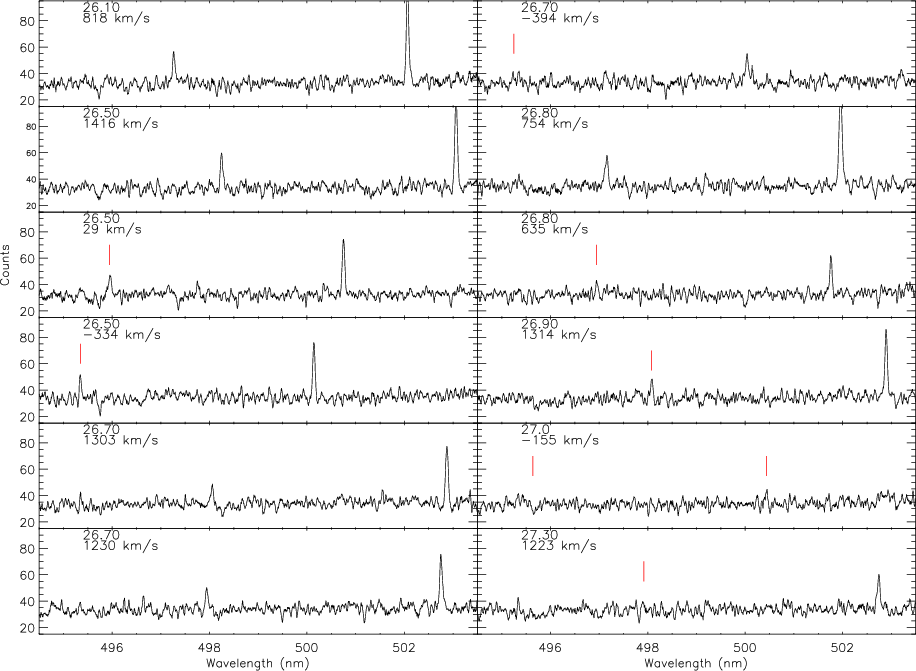

Spectra for the confirmed PNs, ranked by magnitude m5007 and smoothed by a factor 7 to 0.035 nm per pixel. m5007 and the LOS velocities are labelled in the top left corner of each spectrum. The expected location of [O III]$\lambda $4959 is shown by a red dash, in the cases where not immediately obvious. The [O III] 5007 line for the PNs with m5007=27 and ${v}_{\rm los}=-155~\mbox{km~s$^{-1}$ }$ has a signal-to-noise ratio of 3 and this is our weakest believable detection. A typical error in the velocities is 3 km s-1; see Sect. 2.2.

Open with DEXTER

In the combined new F7/F4 fields at $R\sim 2000\hbox{$^{\prime\prime}$ }$ we find five PNs tightly clustered around ${v}_{\rm sys}=1307$ km s-1; these have mean velocity $1297\pm~35~\mbox{km~s$^{-1}$ }$ and an rms dispersion of $78\pm25~\mbox{km~s$^{-1}$ }$. At comparable radii there are two additional PNs with velocities of 753 and 634 km s-1; compared to the previous five, these are $7 \sigma$ and $8
\sigma$ outliers. It is unlikely that one or two of these outliers are part of the same (very asymmetric) distribution as the five PNs clustered around ${v}_{\rm sys}$. By contrast, they fit naturally into the stream leading from the FCJ outliers all the way into the ICL. The probability of finding 5 PNs with velocity dispersion less than 80 km s-1 from a Gaussian velocity distribution with $\sigma= 250$ km s-1 around $\bar{{v}}=1300$ km s-1 as measured at 60 kpc is less than 1%. It is even smaller for larger $\sigma$ or when the two outliers at VLOS=800 km s-1 are also considered as part of the distribution. We therefore identify as PNs bound to the M 87 halo only those PNs which are clustered around the systemic velocity of M 87. These are confined to radii $R<2400\hbox{$^{\prime\prime}$ }$.

The M 87-bound PNs in the FCJ and combined F7/F4 fields are located at mean projected radii of 60 and 144 kpc, respectively. They correspond to the narrow peaks in the line-of-sight velocity distributions (LOSVD) in the lower and middle histograms in Fig. 6.

Outside $R=2400\hbox{$^{\prime\prime}$ }$ in Fig. 8 we find PNs at larger relative velocities to M 87, with an approximately uniform distribution in the range -300 to 2600 km s-1. Those in the radial range $2400\hbox{$^{\prime\prime}$ }<R<3600\hbox{$^{\prime\prime}$ }$ (the F7/F4 field) are confined to negative velocities with respect to M 87. These are probably encroaching stars from M 86 and other Virgo components[*]. By contrast, the PNs further than $3600\hbox{$^{\prime\prime}$ }$ from M 87 (in the Core field) show a broad distribution of velocities, more characteristic of the cluster as a whole (see A04).

In the middle and bottom panels of Fig. 6, the ICL PNs show up as approximately flat velocity distributions in their velocity range, besides the peak of velocities from PNs bound to M 87. A flat distribution of velocities in addition to the peak near M 87's systemic velocity is also seen in the LOSVD of the dwarf spheroidal galaxies in the same region of the Virgo cluster core (Binggeli et al. 1993) which is shown in the top panel of Fig. 6. However, for the dwarf galaxies the flat velocity distribution extends to significantly more redshifted velocities, indicating that the dwarfs and ICL PNs kinematics can only partially be related.

 \begin{figure}
\par\includegraphics[scale=0.35,angle=90]{1532fig4.ps}
\end{figure} Figure 4:

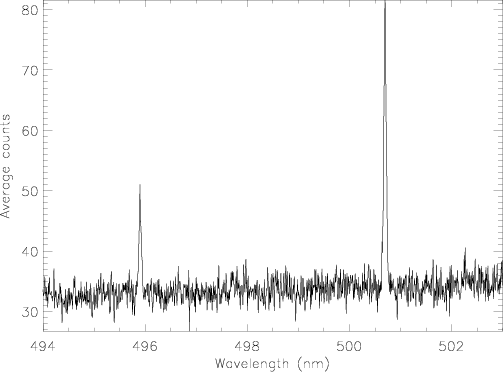

Combined spectrum of all 12 identified PNs, Doppler corrected to the rest-frame.

Open with DEXTER
 \begin{figure}
\par\includegraphics[angle=90,scale=0.53]{1532fig5.ps}
\end{figure} Figure 5:

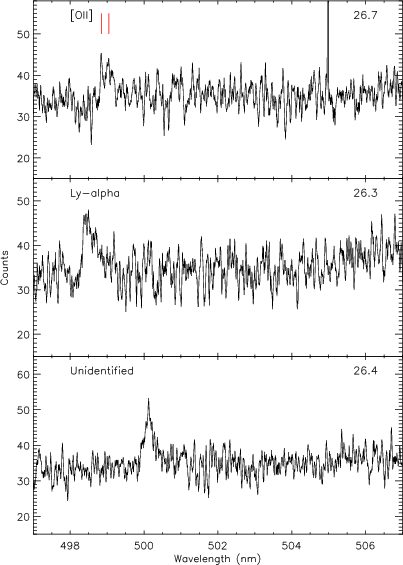

Examples of the other emission-line objects present in the sample, [OII], Ly$-\alpha $, and an unidentified broad emission line which we speculate might be HeII at 1640 Å in a high-z LBG, or alternatively CIV 1550 or [CIII] 1909 from an AGN. The spectra have been smoothed to 0.035 nm per pixel. For comparison to Fig. 3 the m5007 magnitudes are shown in the top right corner.

Open with DEXTER

 \begin{figure}
\par\hspace*{6mm}\includegraphics[scale=0.5]{1532fig6.ps}
\end{figure} Figure 6:

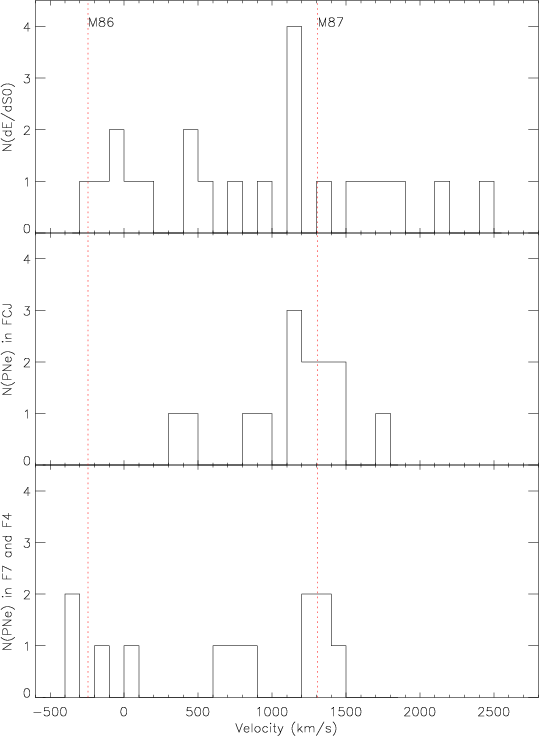

Radial velocity histograms. The bottom panel shows the velocity distribution of all identified PNs in the 3 new fields. The peak at ${\sim}1300~\mbox{km~s$^{-1}$ }$ corresponds to PNs bound to the halo of M 87. They have a mean velocity of $1297\pm~35~\mbox{km~s$^{-1}$ }$ and rms dispersion of $78\pm25~\mbox{km~s$^{-1}$ }$. The middle panel shows the distribution of PN velocities in the previously surveyed FCJ field (A04), and the top panel shows the distribution of dwarf spheroidal LOS velocities in the same region of the Virgo cluster core, for comparison. The systemic velocities of M 87 and M 86 are shown with the dotted lines.

Open with DEXTER

4 The M 87 Halo

We have seen from the phase-space diagram in Fig. 8 that the PNs in the FCJ and F7/F4 fields divide into two components, one associated with the halo of M 87, and the other with the unbound Virgo ICL. All PNs found around the M 87 systemic velocity are within R=161 kpc projected radius from the galaxy's center. In the following subsections we combine our velocity measurements with the kinematic data in the literature, and discuss the rotation, velocity dispersion profile, dynamics and truncation of the outer M 87 halo. Finally we consider possible origins of the truncation.

4.1 Rotation of outer halo?

First we ask whether there is any evidence in our data for rotation in the outer halo of M 87. For the globular cluster (GC) system of M 87, Cohen & Ryzhov (1997) inferred a rotation of about 100 km s-1 for $R\la 35$ kpc, approximately about the minor axis of the galaxy intensity isophotes, using spectra of low resolution with errors for the GC velocities of order 100 km s-1. Cohen (2000) added new data for GCs in the halo at 24<R<43 kpc with smaller errors (typically ${\sim}50~\mbox{km~s$^{-1}$ }$), and inferred a rotation of 300 km s-1. Côté et al. (2001) carried out an independent analysis using a new spectroscopic and photometric database (Hanes et al. 2001) partly based on that of Cohen & Ryzhov (1997) and Cohen (2000), and similarly find ${\sim}160~\mbox{km~s$^{-1}$ }$. Côté et al. (2001) found that the metal rich GCs rotate everywhere about the photometric minor axis of the galaxy, while the metal poor GCs have a more complex behaviour: they rotate about the photometric minor axis of the galaxy between 15<R<40 kpc, and about the major axis at R<15 kpc.

If the PN population in the outer halo of M 87 also rotated about the galaxy's photometric minor axis, similarly to the M 87 GC system at 15<R<40 kpc, we should see a signature along the major axis of the galaxy, that is, the mean velocities of the PN LOSVD peaks associated with M 87 in our two pointings FCJ (A04; this is F3 in Feldmeier et al. 2003) and F7/F4 (Fig. 1) should be offset from the systemic velocity of the galaxy (1307 km s-1). From the extrapolated fit of Côté et al. (2001) to the GC radial velocities we would expect a negative constant offset of about 160 km s-1 at both field positions, i.e., a mean velocity of ${\sim} 1150$ km s-1.

For the M 87 sample of PNs identified in the phase-space diagram in Fig. 8, we find a mean velocity of $\bar{{v}}_{\rm rad}=1297\pm~35~\mbox{km~s$^{-1}$ }$ in the new field (F7/F4) at mean projected radius R=144 kpc. In the previously studied field (FCJ; A04) the mean velocity is $1276\pm71~\mbox{km~s$^{-1}$ }$ at mean R=60 kpc. Thus we see no evidence for rotation of the outer stellar halo around the galaxy's minor axis in either the PN sample at R=60 kpc or at R=144 kpc. The rotation seen in the GCs may thus suggest that they do not trace the main stellar population of M 87, or that they are contaminated with IC GCs with a LOSVD similar to the encroaching stars of M 86 as seen in Fig. 8 (see also Fig. 1 of Côté et al. 2001). We have not surveyed fields along the minor axis, so we cannot check with PNs whether there is rotation about the major axis.

 \begin{figure}
\par\includegraphics[scale=0.8]{11532/1532fig7.eps}
\end{figure} Figure 7:

Deep image of the Virgo cluster core showing the distribution of the intracluster light (Mihos et al. 2005). The spatial distribution of our spectroscopically confirmed PNs are overlaid. The A04 targets are shown in green. Our new targets are shown in red if redshifted with respect to Earth and blue if blueshifted. Objects with velocities higher than the mean velocity of Virgo (1100 km s-1) are shown as crosses and those with lower velocities shown as circles. Dwarf spheroidals are marked as magenta dots. The velocities (in km s-1) are labelled for all objects shown. The nominal ``edge'' of the M 87 halo at ${\approx } 160$ kpc is indicated with a white circle. The pink circle has a 1.5 degree diameter and is centered on the projected midpoint of M 87 and M 86. North is up and East is to the left.

Open with DEXTER

4.2 Velocity dispersion profile

With the new data, we can also now plot the velocity dispersion profile of M 87 all the way out to R=144 kpc from the centre of the galaxy. Figure 9 shows this as a function of projected radius from M 87 centre. In the inner regions ( $R<25\hbox{$^{\prime\prime}$ }$) we use the G-band absorption line measurements from the integrated stellar light of van der Marel (1994). In the region $25\hbox{$^{\prime\prime}$ }<R<80\hbox{$^{\prime\prime}$ }$ we use stellar velocity dispersions from Sembach & Tonry (1996). As these authors discuss, their data is systematically offset from most other datasets by $7{-}10\%$, due to using a larger slitwidth. Romanowsky & Kochanek (2001) calculate that this amounts to an additional instrumental dispersion of 183 km s-1 and so we adjust the velocity dispersion by this amount (subtracting in quadrature) to bring it in line with the van der Marel dataset. We take the average of the velocity dispersions at each positive and negative R, assuming symmetry with respect to the galaxy's center. We exclude the Sembach & Tonry data in radial bins beyond 80 $^{\prime\prime}$ as there is a discrepancy between the velocity dispersions at the corresponding opposite positions in radius along the axis and furthermore the values in those bins have large error bars. This may be due to low S/N in the outer part of the galaxy where the surface brightness is low and/or real anisotropies in the velocity dispersions. Either way we judge it better to exclude these data points as they are less trustworthy.

 \begin{figure}
\par\includegraphics[scale=0.45]{1532fig8.ps}
\end{figure} Figure 8:

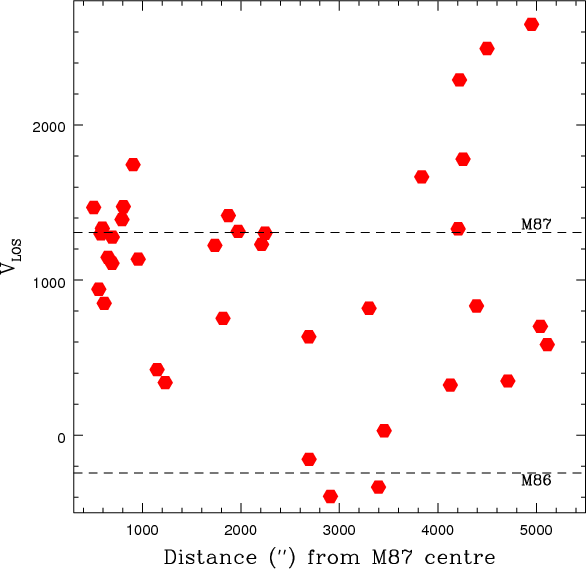

Distribution of line-of-sight velocity versus projected distance from the center of M 87 for all spectroscopically confirmed PNs in the new fields as well as the FCJ and Core fields of A04.

Open with DEXTER

We also show in Fig. 9 the data of Côté et al. (2001) for the metal-rich GCs out to 380 $^{\prime\prime}$. We exclude the outer bins (380 $^{\prime\prime}$-635 $^{\prime\prime}$) where the error bars are close to 100% and therefore do not constrain the shape of the velocity dispersion profile in any way. The metal-poor GC system is more spatially extended than its metal-rich counterpart (see Fig. 10 below and Côté et al. 2001) and may be composed of accreted and/or infalling remains of ``failed'' or disrupted dwarfs: their velocity dispersion data are also shown in Fig. 9, but do not trace the velocity dispersions of the M 87 stars. We also note from Fig. 1 of Côté et al. (2001) that the GC sample is likely to contain intracluster GCs just as our PN sample contains ICPNs, requiring a careful analysis of the GC LOSVDs.

Finally, the two outermost velocity dispersion points are from planetary nebulas presented in A04 and this paper. We note that when we bin the A04 data to be consistent with the binning of the velocity distribution in this work (100 km s-1 bins) the peak around M 87 is resolved into a somewhat narrower peak of 9 objects, with additional two lower velocity and one higher velocity outliers (Fig. 6). The mean and rms velocity of this peak of $\bar{{v}} = 1264$ km s-1 and $\sigma = 247$ km s-1 from A04 would then change to $1292\pm46~\mbox{km~s$^{-1}$ }$ and $139\pm23~\mbox{km~s$^{-1}$ }$ respectively. It is possible that the larger value of $\sigma_{\rm PN}$ obtained by A04 could be due to the inclusion of some ICPNs from the component with uniform LOSVD seen in Fig. 6. We carried out $\chi^2$tests[*] but could not distinguish between both interpretations. The phase space plot in Fig. 8 and the dynamical model discussed below favors the high value of $\sigma_{\rm PN}$ at R=60 kpc.

In any case, the PN velocity measurements show that the halo of M 87 becomes colder at larger radii: the velocity dispersion decreases to 78 km s-1 at $R \sim 140$ kpc.

 \begin{figure}
\par\includegraphics[scale=0.4]{1532fig9.ps}
\end{figure} Figure 9:

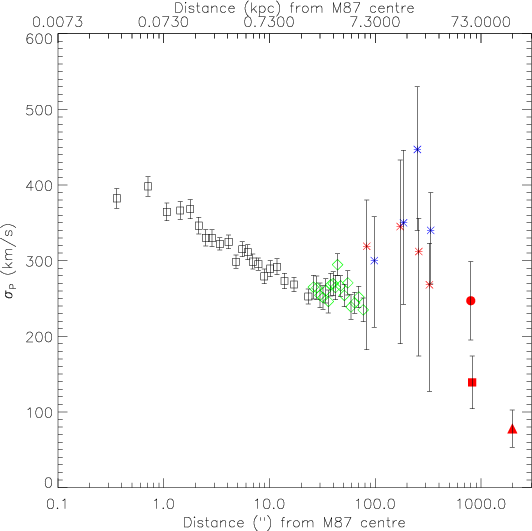

Velocity dispersion profile of M 87, including stellar velocity dispersions from absorption-line spectra and discrete LOS velocity measurements from globular cluster and PN data. The squares are data points from van der Marel (1994), the green diamonds are based on Sembach & Tonry (1996), and the red and blue stars are velocity dispersions for the metal-rich and metal-poor GC samples of Côté et al. (2001), respectively. The filled red circle is the PN velocity dispersion dertermined in A04 and the filled red square shows a recalculation of the velocity dispersion if 3 of the PNs inclued by A04 are considered to be outliers (but see text). The filled red trangle is the outermost velocity dispersion point determined in this paper. These last two points are approximately along the major axis of the outer isophotes, which have ellipticity $\epsilon \simeq 0.43$.

Open with DEXTER

4.3 Truncation of the M 87 stellar halo

In the FCJ field, there are M 87 halo PNs detected throughout, but in the F7/F4 fields, the PNs around the systemic velocity of M 87 (=1307 km s-1) appear to be found only within a projected radius of R= 161 kpc (see the spatial distribution of the spectroscopically confirmed PNs in Fig. 7). At projected radii R > 161 kpc from the center of M 87, we find only the encroaching stars of M 86 and other Virgo components. We now investigate whether this spatial and velocity segregation is significant and indicates that the M 87 stellar halo is truncated.

Kormendy et al. (2008) present a composite V-band surface-brightness profile for M 87 out to 135 kpc along the semi-major-axis. This is shown with black circles in Fig. 10, with the semi-major axis of each isophote replaced by the average ellipse radius, $R_{\rm avg} = ({\rm ab})^{1/2}$ of the isophote. We will use the latter in the construction of the spherical Jeans models in Sect. 4.4. Kormendy et al. (2008) fit a Sérsic profile to the semi-major axis profile excluding the central core and the last two data points (which may have a significant ICL contamination), and obtain the following best-fit parameters: $\mu_{\rm e} = 25.71$, $R_{\rm e} = 704\hbox{$^{\prime\prime}$ }
= 51.2$ kpc, n = 11.885. We use this Sérsic fit to the surface brightness profile (see Fig. 10) to compute the luminosity of the M 87 halo at radii outside the available photometry. We note that the description of M 87 as a classical E0 or E1 galaxy is based on short exposure optical images, while in deep images its isophotes show marked eccentricity. For the extrapolation we assume an ellipticity $\epsilon=0.43$ and position angle ( ${\rm PA}=-25^\circ$), based on the outer parts of the ellipticity and position angle profiles in Kormendy et al. (2008). We then evaluate the M 87 halo luminosities in the regions of overlap between the photometric and spectroscopic fields, in which, respectively, the photometric identification and spectroscopic follow-up of the PNs was carried out. These are shown by the colored regions in Fig. 11. For ellipticity $\epsilon=0.43$, the PNs belonging to M 87 appear to be found within an average ellipse radius $R_{\rm avg}=149$ kpc. We use the isophote corresponding to this radius to demarcate the region containing PNs belonging to M 87 (in red in Fig. 11) from the region containing no PNs belonging to M 87 (in green in Fig. 11). Table 2 gives the areas and the V-band luminosities of the various regions obtained. On the basis of the Sérsic fit, the ratio of the M 87 luminosity in the F7-green and in the F7-red area is 0.92.

 \begin{figure}
\par\includegraphics[scale=0.4]{1532fi10.ps}
\end{figure} Figure 10:

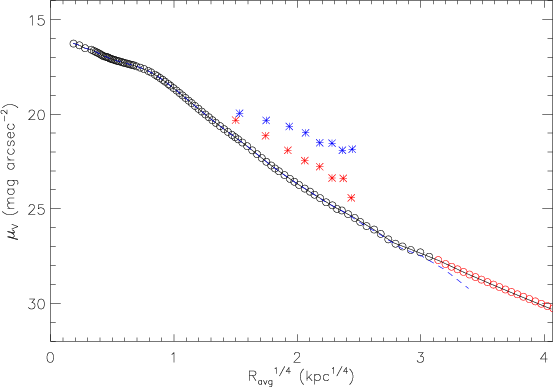

V-band surface brightness profile for M 87 from Kormendy et al. (2008) shown with black circles along average ellipse radii  $R_{\rm avg}$ of the isophotes. Red circles show the extrapolated Sérsic fit. The full line shows the reprojected three-dimensional luminosity model obtained from the extrapolated data, and the dashed line shows the reprojection of the luminosity model when truncated at average ellipse radius  $R_{\rm trunc} = 149$ kpc. For comparison, the number density profiles of the red and blue globular cluster populations from Côté et al. (2001) are also shown with arbitrary scaling as red and blue stars, respectively.

Open with DEXTER

From the number of spectroscopically confirmed M 87 PNs in the F7-red area (i.e., 5), and the ratio of the M 87 halo luminosities from the Sérsic fit (i.e., 0.92), we can then predict the expected number of PNs at the M 87 systemic velocity in the F7-green area, to be $ 5
\times 0.92 = 4.6$ PNs. The observational result of zero M 87 PNs detected in the F7-green area thus implies a truncation of the M 87 stellar halo at $R_{\rm avg} > 149$ kpc, at a ${\simeq} 2\sigma$ level. This radius tells us the location of the outermost PN in terms of the average ellipse radii and we now refer to it as the truncation radius $R_{\rm trunc}$.

 \begin{figure}
\par\hspace*{-1.5mm}\includegraphics[scale=0.307]{1532fi11.ps} %\end{figure} Figure 11:

Left: the red region is the intersection between the photometric field FCJ and the FLAMES (FCJ) pointing. Right: the red region is the part of the intersection between the photometric field F7 from Feldmeier et al. (2003) and the regions jointly covered by the F7_1, F7_2 and F4 FLAMES circular pointings, which is within the isophote with an average ellipse radius, $R_{\rm trunc} = 149$ kpc. This covers the region containing PNs with velocities bound to M 87. The green region is the part of the intersection between the F7 region and the FLAMES pointings as before, but outside $R_{\rm trunc}$, where no PNs associated with the M 87 velocity peak are found.

Open with DEXTER

This is a surprising result: the numerical simulations of Abadi et al. (2006) find that the luminous halos around isolated galaxies should extend to the virial radius, i.e., to several hundred kpc and well beyond their traditional luminous radius. It is therefore not obvious why there should be a truncation of the M 87 stellar halo, see Sect. 4.5. One question is whether the truncation we see occurs only at the targeted $\rm PA$ within an opening angle $\delta\rm
PA$, say, rather than at all azimuths, and whether when azimuthally averaged, the halo light distribution would extend to larger radii. This could be the case if we had reached the radii where the stellar halo of M 87 has a significant amount of substructure, similar to the outer Milky Way halo (Bell et al. 2008). For example, we might explain the spatial segregation of the M 87 halo PNs in terms of a cold stellar shell at our field position, followed by a steeper surface brightness profile at those $\rm PA$ whereas at other $\rm PA$ the profile would be shallower. This would also explain the small $\sigma_{\rm PN}$ that we measure in our fields at R=144 kpc, as the stars populating shells are near to the apocenters of their elongated orbits.

To assess this we must reconsider the photometric structure of M 87. Within a semi-major axis of ${\sim}160$ kpc and $\mu_V \la 27.5$, the surface brightness distribution around M 87 is well approximated by an extended envelope with $c/a \simeq 0.57$ (Kormendy et al. 2008; Mihos et al. 2005). This ellipsoidal component includes the diffuse fan of stellar material, which extends along the projected southeast semi-major axis out to ${\sim} 100$ kpc (Weil et al. 1997; Arp & Bertola 1971), but is otherwise fairly smooth. At larger radii and fainter surface brightnesses, the light distribution is a superposition of the outer halo of M 87 and the ICL and is brightest in the range of $\rm PA$ towards M 86 where our target fields are. At these radii it does show irregular features and some radial streamers, and our fields are large enough to include several of these. In fact, some of our outermost M 87 PNs may be close to an arc-like feature in the Mihos et al. (2005) image beyond which little light is seen. However, both the earlier results of Weil et al. (1997) who reported the apparent lack of sharp-edged fine structures around M 87, and our independent inspection of the Mihos et al. (2005) image near M 87, provide no evidence for a large number of ``shell-like'' features at various azimuths and radii around M 87. This is true both inside and outside our truncation isophote, and in particular around $R \sim
60$ kpc, where the PN data already indicate a falling velocity dispersion profile (see Fig. 9).

Further investigation of the extended luminosity distribution around M 87 would require quantitative photometry of the deep image of Mihos et al. (2005), and a large-area and wide-angle PN velocity survey to separate the outer halo of the galaxy from the ICL with better statistics.

In what follows, we follow an independent approach and test the hypothesis of a truncated stellar halo in M 87 dynamically. We will verify whether we can make a dynamical model for M 87 in which the stellar velocity dispersion reaches low values everywhere around M 87, and the total gravitational potential is traced by the X-ray emission of the hot gas.

Table 2:   M 87 halo PNs and sampled luminosities.

4.4 The mass distribution and anisotropy in the M 87 outer halo

The smooth photometric and X-ray emission profiles indicate that the outer halo of M 87 is in approximate dynamical equilibrium. With the extended velocity dispersion profile we are now able to create dynamical models of M 87 to infer the orbital structure in the outermost halo. In a spherical system, the intrinsic velocity dispersions of a population of stars with density j moving in a potential $\Phi$ are related by the second-order Jeans equation

\begin{displaymath}
\frac{\rm d}{{\rm d}r}\left(j(r)\sigma_r^2(r)\right)
+ \fr...
...\beta}{r}j \sigma_r^2(r)
+ j(r)\frac{\rm d\Phi}{{\rm d}r} = 0
\end{displaymath} (1)

where the anisotropy parameter $\beta(r) = 1 -
(\sigma_{\theta}(r)/\sigma_r(r))^2$ quantifies the orbital structure of the system. Its value spans a range between $- \infty$ signifying purely tangential orbits and 1 signifying purely radial orbits. These intrinsic quantities are now in terms of the three-dimensional radius, r.

Therefore if we know the potential $\Phi$, density of stars j and assume a radial dependence for the anisotropy, we can solve for the intrinsic radial ($\sigma_r$) and tangential ( $\sigma_{\theta}$) velocity dispersion profiles. These can then be projected and compared with the observed projected velocity dispersion profile to fix the parameters of the assumed anisotropy profile. Under the spherical assumption, the radii of the observables will be the average ellipse radii  $R_{\rm avg}$ introduced in Sect. 4.3.

One method of deriving the potential of a galaxy is to use electron density and temperature profiles obtained from X-ray measurements of the thermal bremsstrahlung emission from the hot interstellar medium surrounding massive elliptical galaxies. If the gas is relatively undisturbed then we can assume that the gas is in hydrostatic equilibrium and thus derive the potential.

Nulsen & Böhringer (1995) use ROSAT data and a maximum likelihood method to deduce the most likely mass profile in the Virgo cluster core, extending from the centre of M 87 out to 300 kpc. They parametrize this profile with a model composed of two (approximate) isothermal mass distributions, one attributed to the mass of M 87 with a mass per unit length $\mu = 3.6\times 10^{10}~ M_{\odot}$ kpc-1and the other to the dark matter of the cluster with a mass per unit length $M_0/a = 12.4\times 10^{10}~ M_{\odot}$ kpc-1 and a core radius a = 42 kpc. This parametrization is given as

\begin{displaymath}
M(r) = \mu r + M_0 [(r/a) - \arctan(r/a)].
\end{displaymath} (2)

This mass profile is related to the potential through ${\rm d}\Phi(r) /{\rm d}r
= {v}_{\rm c}^2(r)/r = GM(r)/r^2$, where ${v}_{\rm c}(r)$ is the circular velocity at r. It is more easily calculated than the potential but also independent of distance. The circular velocity profile is shown in Fig. 12 and increases from a minimum circular velocity of 393 km s-1 to eventually a maximum velocity of 830 km s-1. For comparison the same profile is shown with M0adjusted so that the maximum velocity reached is 700 km s-1, the value suggested by the extrapolation of newer observations taken with XMM-Newton (Matsushita et al. 2002).

 \begin{figure}
\par\includegraphics[scale=0.4]{1532fi12.ps}

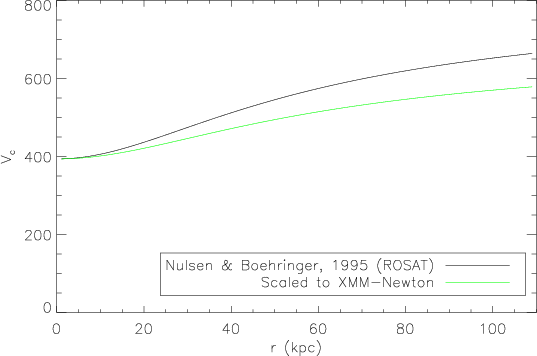

\end{figure} Figure 12:

Circular velocity profiles for M 87 from X-ray data.

Open with DEXTER

The density of the stars was obtained through the deprojection of the surface-brightness profile of M 87. To obtain the intrinsic luminosity density, we adopt the Kormendy et al. (2008) profile (also missing the last two data points), and using their Sérsic fit, extrapolate to very large radii, see Sect. 4.3; then we employ the standard deprojection formula. In Fig. 10, the Sérsic extrapolation is shown by the red circles and the reprojection of the intrinsic luminosity density is shown by the solid black line which follows the circles very well.

Finally, the radial dependence we adopt for the anisotropy profile is given by

\begin{displaymath}
\beta(r) = \beta_m \frac{r + r_1}{r + r_2}
\end{displaymath} (3)

where r1<r2, $\beta_m$ is the maximum anisotropy reached at large r, $\beta_m r_1/r_2$ is the minimum anisotropy and r2 represents the scale of the transition from the minimum anisotropy to the maximum anisotropy. This solves the Jeans Eq. (1) as a first-order differential equation with the integrating factor

\begin{displaymath}
\textrm{I.F.} = j(r) r^{2\beta_m x} (r + r_2)^{2\beta_m(1-x)}
\end{displaymath} (4)

where x = r1/r2 so that

\begin{displaymath}
\sigma_r^2(r) = \frac{1}{\textrm{I.F.}} \int_r^{\infty} \textrm{I.F.}
\frac{{v}_c^2}{r'} {\rm d}r'.
\end{displaymath} (5)

Then the projected velocity dispersion, $\sigma_P$, is obtained by projecting the intrinsic velocity dispersions along the line of sight. These integrals were determined numerically.

To obtain a dynamical model for the Sérsic light distribution in the potential implied by Fig. 12, we fixed the minimum and maximum anisotropy using constant anisotropy models and then employed a $\chi^2$ minimization approach to deduce the best-fit r2for the solution in Eq. (5). This minimization takes into account the long-slit data, the $\sigma_{\rm PN}$ point at 60 kpc from A04, and the new $\sigma_{\rm PN}$ point at 144 kpc, but not the globular cluster data. The best-fit model is shown by the solid black line in Fig. 13. It fits the data very well within 6 kpc but it is unable to reproduce the low PN velocity dispersions in the outer parts, at $R_{\rm avg}=52$ kpc and $R_{\rm avg}=131$ kpc, where it would predict LOSVDs with dispersions of 350-400 km s-1.

On the basis of the results in Sect. 4.3, we assume now that the galaxy's intrinsic luminosity density is truncated at $r=R_{\rm trunc}=149$ kpc (i.e., in a spherical system the intrinsic truncation radius is the same as the projected truncation radius). The reprojection of this truncated intrinsic luminosity density is also shown in Fig. 10 by the blue dashed line. We construct a Jeans model for the truncated luminosity distribution in the same way as above. Finally, to check the influence of the assumed potential on the results, we have evaluated one further model, also assuming a truncation in the luminosity density but using the circular velocity that was adjusted to the analysis of XMM-Newton observations in Matsushita et al. (2002). The corresponding Jeans models are shown in Fig. 13 with the blue and green dashed lines respectively, with the second model dipping slightly lower in the outer parts, reflecting the lower potential in this region.

Both truncated models behave as the untruncated Sérsic model in the center, but fall much more steeply at radii $R_{\rm avg} > 30$ kpc, thus being able to reproduce the outermost $\sigma_{\rm PN}$ data points at $R_{\rm avg}=52$ and $R_{\rm avg}=131$ kpc (corresponding to projected radii R=60 and R=144 kpc). At $R_{\rm avg}=52$ kpc, the truncated models predict a velocity dispersion which favours the higher value of $\sigma_{\rm PN}$, i.e., 247 km s-1. Figure 14 shows that the best-fit models imply a mildy radially anisotropic orbital distribution ( $\beta \approx 0.15$) in the centre that becomes highly radially anisotropic in the outer halo ( $\beta \approx 0.8$).

We conclude that, under the assumption of spherical symmetry, the Jeans models can only reproduce the low PN velocity dispersion measurements in the outer halo of M 87 at $R_{\rm avg} > 30$ kpc only with a truncation of the intrinsic luminous density.

In principle, this dynamical argument could be circumvented if at the position of our outer fields the stellar halo of M 87 was strongly flattened along the line-of-sight. In this case $\sigma_{\rm PN}$ could be low at these radii independent of a truncation. However, at ${\sim} 150$ kpc radius such a flattening is likely to be local and would have arisen from the geometry of accretion, rather than signifying an angular momentum supported global structure collapsed from even $\lambda^{-1}\simeq 20$ times further out. Thus the well-mixed, three-dimensional stellar halo of M 87 would then have ended at even smaller radii. Also note that in this case we could still not explain the lack of PNs at the M 87 systemic velocities for radii greater than $R_{\rm trunc}$ (see Fig. 8 and the discussion in Sect. 4.3.)

 \begin{figure}
\par\includegraphics[scale=0.4]{1532fi13.ps}
\end{figure} Figure 13:

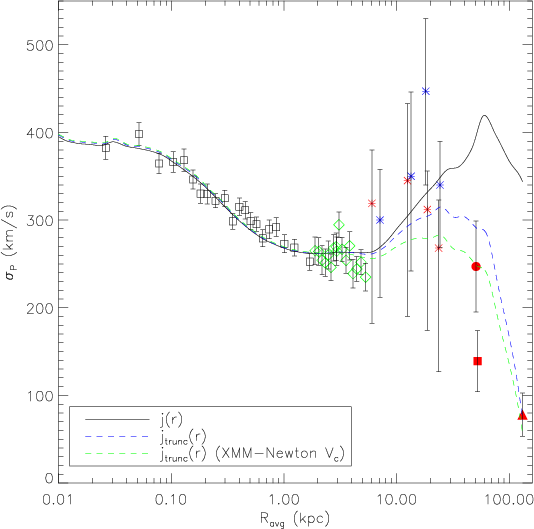

Velocity dispersion profiles derived for Jeans models with spherical symmetry and surface brightness profiles as in Fig. 10; see text. The velocity dispersion data points are shown at their average ellipse radii $R_{\rm avg}$, computed with the ellipticity profile. For the globular cluster velocity dispersions this is not possible; these are not used in constructing the Jeans models. Symbols are as in Fig. 9.

Open with DEXTER

 \begin{figure}
\par\includegraphics[scale=0.4]{1532fi14.ps}
\end{figure} Figure 14:

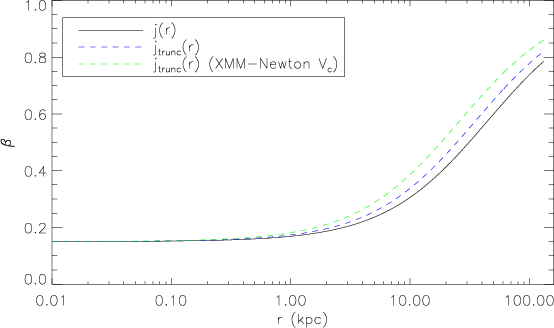

Anisotropy profiles for the best-fit models: they imply a mildy radially anisotropic orbital distribution ( $\beta \approx 0.15$) in the centre that becomes highly radially anisotropic in the outer halo ( $\beta \approx 0.8$).

Open with DEXTER

4.5 On the possible origin of a truncated stellar halo in M 87

Summarizing the last two sections, there are two independent and mutually consistent pieces of evidence that the stellar halo of M 87 ends at $R_{ \rm trunc}\simeq 150$ kpc: the lack of PNs around the systemic velocity of M 87 beyond this radius, and the very low velocity dispersion in the outer halo.

In well-mixed, dense galaxy clusters it is expected that galaxies are tidally truncated by the cluster's tidal field (Merritt 1984; Ghigna et al. 1998). The tidal effects are strongest near the cluster core radius and the approximation $r_{\rm tidal}\simeq r_{\rm
peri} \sigma_{\rm halo} / \sigma_{\rm clus}$ for the tidal radius is found to work well. Here $r_{\rm peri}$ is the pericenter of the galaxy's orbit in the cluster, and $\sigma_{\rm halo}$ and $\sigma_{\rm clus}$ are the velocity dispersions of the galaxy halo and the cluster, respectively. The tidal truncation of the dark matter halos of galaxies has been detected with combined strong and weak lensing observations in several dense clusters (Halkola et al. 2007; Natarajan et al. 1998,2002; Limousin et al. 2007). Tidal radii of between 15 and 60 kpc have been found, in agreement with predictions.

The case of M 87 is not so simple though. M 87 is at the center of at least a subcluster potential well, traced by the X-ray emission and the dark matter mass profile derived from it (Nulsen & Böhringer 1995; Schindler et al. 1999, see Fig. 12). A galaxy at the center of its cluster experiences a symmetric gravitational field from the cluster dark matter, and is consequently not gravitationally truncated (Merritt 1984). On the other hand, M 87 has a relative motion of ${\sim} 300$ km s-1 with respect to the galaxies in the cluster core (Binggeli et al. 1993), and the galaxy distribution in the core is complicated and not centered on M 87, containing a strong concentration around M 84/M 86 (Binggeli et al. 1987). It is possible that the M 84/M 86 concentration including the associated dark matter exerts a significant tidal field on M 87. There is no obvious feature in the density of the X-ray emitting gas at $R_{\rm trunc} \sim 150$ kpc around M 87, but because the total mass within the truncation radius appears to be already dominated by cluster dark matter, a tidal truncation of the M 87 mass distribution may be difficult to see in X-ray observations. However, if M 87 was currently tidally truncated by a tidal field with assumed mass center towards M 84/M 86, we would expect to see some of the tidally dissolved stars as PNe in our outer F7 fields at slightly redshifted velocities with respect to the systemic velocity. Within the limited statistics, we do not see any PNs with such velocities outside a projected radius of 161 kpc, see Sect. 4.3. This suggests that if there has been a tidal truncation, it would have occurred some time ago during the interaction with another mass concentration. The most likely candidate in the Virgo core may be that around M 84; at a relative velocity with respect to M 87 of about 300 km s-1, M 84 could have travelled their current projected separation in ${\sim} 1$ Gyr.

On the other hand, due to the dynamical youth of the Virgo cluster, it is also possible that M 87 has not been tidally affected yet, and is more similar to an isolated massive elliptical galaxy. As already mentioned in Sect. 4.3, the luminous halos around isolated galaxies are expected from numerical simulations (Abadi et al. 2006) to extend to the virial radius, i.e., to several hundred kpc, and well beyond their traditional luminous radius. Hence we now consider the possible origins of the truncation of the M 87 stellar halo in the context of isolated galaxies.

One possible explanation might lie in the fact that M 87 is an old galaxy with a massive nuclear black hole, which points to much stronger AGN activity in the past than is apparent now. The feedback from its AGN through the surrounding hot gas might at some redshift zf have stopped the star formation in nearby satellite galaxies through, e.g., ram pressure stripping. When these satellites later accreted onto the galaxy, they would have predominantly added dark matter to the outer halo, so that the virial radius RV of M 87 kept growing, but the luminous radius stalled at RV(zf). On this assumption, we can estimate zf from the redshift dependence of the virial radius.

The X-ray observations show that the hot gas extends out to 300 kpc (Matsushita et al. 2002; Nulsen & Böhringer 1995). The derived integrated mass profile of the total gravitating matter shows a change in slope at about 30 kpc (Matsushita et al. 2002), and then increases linearly at large radii (see Fig. 12 above). The mass distribution inferred from the X-ray measurements thus provides evidence for two components: a galaxy dark matter component and a cluster dark matter component. From the modeling of Nulsen & Böhringer (1995) and the rotation curve in Fig. 12 we can estimate the maximum circular velocity generated by the M 87 galaxy halo now to be ${v}_{\rm max,~M~87}\simeq
400~\mbox{km~s$^{-1}$ }$. Using the results of Bullock et al. (2001), this corresponds to a present-day virial mass $M_V(z\!=\!0)\simeq
2.0\times10^{13}~\mbox{$M_{\odot}$ }$ and virial radius $R_V(z\!=\!0)\simeq 470$ kpc, several times larger than the truncation radius inferred from both the PN number counts and the outer halo dynamics, $R_{\rm trunc}\simeq 149$kpc. For the same ${v}_{\rm max,M~87}$, the virial radius of M 87 would have been 149 kpc at redshift $z_f\simeq 2.9$, arguing that feedback would need to have been effective quite early-on to explain the observed truncation radius.

A second possible explanation would assume that the accretion of dark matter and satellites onto M 87 ceased with the collapse of the Virgo cluster core. In the new potential after the collapse, the satellites would both have been deflected from their nearly radial orbits with respect to M 87, and have significantly larger impact velocities than previously, making accretion and merging with M 87 suddenly less likely. The total mass of M 87 would thus not increase any further, stalling at the virial mass at that redshift. Moreover, the rotation curve in Fig. 12 shows that with the on-going collapse of the Virgo cluster a substantial cluster dark matter cusp has since built up within the halo of M 87. The likely effect of this is an adiabatic contraction of the galaxy's luminous and dark halo.

The two-component mass model of Nulsen & Böhringer (1995) (see Eq. (2)) for the present-day mass distribution predicts within $R_{\rm trunc}\simeq 149$ kpc, a galaxy mass of $M(R_{\rm trunc})_{\rm
M~87}\simeq 5.4\times 10^{12}~\mbox{$M_{\odot}$ }$ and a cluster dark matter mass of $M(R_{\rm trunc})_{\rm Virgo}=1.2\times 10^{13}~\mbox{$M_{\odot}$ }$, assuming a flat rotation curve for the galactic contribution to the mass. The luminous mass of M 87, (4-5)  $\times 10^{11}~\mbox{$M_{\odot}$ }$(Cappellari et al. 2006), is consistent with the estimated total galaxy mass. As an example, consider truncation of the accretion onto M 87 by the collapse of the Virgo core at redshift $z\!=\!0.5$. Using a lower ${v}_{\rm c,mx,M~87}\simeq 300~\mbox{km~s$^{-1}$ }$ for the M 87 halo before adiabatic contraction and again the results of Bullock et al. (2001), the virial mass and radius at that redshift become $M_V(z\!=\!0.5)\simeq
6.2\times10^{12}~\mbox{$M_{\odot}$ }$ and virial radius $R_V(z\!=\!0.5)\simeq 300$ kpc. An (over)estimate of the adiabatic contraction can be obtained from angular momentum conservation at the outer radius, i.e., $G
M_V(z\!=\!0.5) R_V(z\!=\!0.5) = G [M(R_{\rm trunc})_{\rm M~87} +
M(R_{\rm trunc})_{\rm Virgo}] R_{\rm trunc}$, giving $R_{\rm trunc}/R_V(z\!=\!0.5)=0.3$. This suggests that the observed truncation radius could well be the relic of the virial radius from the time when the cluster core collapsed.

It is clear that more data are needed to pursue this question further. In particular, a larger number of PNs all around M 87 would be very useful to set stronger constraints on the tidal hypothesis.

5 The luminosity-specific PN number for the M 87 halo and the ICL in Virgo

The physical quantity which ties a PN population to the luminosity of its parent stars, is the luminosity-specific PN number $\alpha =
N_{\rm PN} / L_{\rm gal}$, where $N_{\rm PN}$ is the number of all PNs in the population[*] and $L_{\rm gal}$ is the bolometric luminosity of the parent stellar population. Observations show that this quantity varies with the (B-V) color of the stellar continuum light (Hui et al. 1993), and simple stellar population models predict that it is a function of the age and metallicity of the parent stellar population (Buzzoni et al. 2006). Furthermore, within the framework of single stellar populations models, the $\alpha$ parameter quantifies the average PN lifetime $\tau_{\rm PN}$ (Ciardullo et al. 2005; Villaver et al. 2002) via the relation $\alpha =
{\cal B} \tau_{\rm PN}$, where ${\cal B}$ is the ``specific evolutionary flux'' and is nearly constant (see Buzzoni et al. 2006, for a detailed discussion). The PN samples in elliptical galaxies and the ICL are all confined to the brightest 1 to 2.5 mag of the PNLF. Therefore we use the $\alpha_{2.5}$ parameter, defined in terms of N2.5, the number of PNs down to 2.5 mag below the PNLF cut-off: $\alpha_{2.5}$ equals about one tenth of $\alpha$ according to the double exponential formula of Ciardullo et al. (1989) for the PNLF.

We can use the number of photometrically detected PNs in the FCJ, F7/F4 fields, and the luminosities of both the M 87 halo and the ICL populations sampled in the surveyed areas, to compute the  $\alpha_{2.5}$ values for these two components. Since the M 87 halo and the ICL coexist at the two field positions, we determine the fraction of the PNs in the photometric sample bound to the M 87 halo or in the ICL according to the fraction of spectroscopically confirmed PNs associated with each component in the LOSVD, i.e., with the narrow M 87 peak or the nearly uniform velocity distribution for the ICL.

Luminosity of the ICL - We estimate the luminosities of the ICL stellar population in our fields from the deep photometry of Mihos et al. (2005). Such surface brightness measurements for the diffuse light generally contain the cumulative contributions from extended galaxy halos, the true ICL, and from excess unresolved background galaxies above that adopted from the sky subtraction. Depending on the method of sky subtraction, the homogeneous part of the last component may be included in the sky measurement. The photometry of Mihos et al. (2005) shows a ``plateau'' of the surface brightness at a value of $\mu_V = 27.7$ half way between M 87 and M 86, where the F7/F4 fields are situated. As we have seen in Sects. 4.3 and 4.4, there is no contribution from the halo of M 87 to the plateau. Williams et al. (2007) estimate the surface brightness of background galaxies from their deep imaging survey with the Hubble Space Telescope's Advanced Camera for Surveys (ACS), in a small (intracluster) field within our field F4. These galaxies, which are resolved in the ACS data, would contribute a diffuse surface brightness of $\mu_V \simeq 28.6$ in ground-based data. The sky subtraction procedure adopted by Mihos et al. (2005) would have already subtracted this component if its surface brightness is similar in the edges of the mosaic where the sky was measured. In the following, we therefore use $\mu_V = 27.7$ for the ICL surface brightness in this region, with a possible uncertainty of a few tenths of a magnitude due to a possible inhomogeneity of the background sources.

The $\alpha_{2.5}$ values and their implications - In what follows we make the assumption that the ICL surface brightness is constant in the FCJ, F7/F4 fields at this value of $\mu_V \sim 27.7$ mag arcsec-2. In Table 3 we give the corresponding ICL luminosities and the number of spectroscopically confirmed PNs from the ICL in these fields, $N_{\rm spectr}$. In Table 4 we give the number of PNs in the complete photometric samples in the overlap area covered by the spectroscopic follow-up, $N_{\rm phot}$, and the fraction of PNs in the M 87 halo and the ICL according to their measured LOSVDs. Because of the small number statistics, we compute $\alpha_{2.5}$ for the M 87 halo in FCJ, and for the ICL in F7, where their respective contributions are largest.

Table 3:   ICL PNs and sampled luminosities in the colored regions of Fig. 11.

Table 4:   Number of PNs in the photometric samples, for the M 87 halo and the ICL.

The $N_{\rm phot}$ of each field is scaled by a factor

\begin{displaymath}\Delta=\frac{\int^{M^{*}+2.5}_{M^{*}} PNLF(m) {\rm d}m}{\int^{m_{lim}}_{m^{*}}
PNLF(m) {\rm d}m}
\end{displaymath} (6)

where PNLF(m) is the analytic expression for the PNLF (Ciardullo et al. 1989), M* and m* denote the absolute and apparent magnitude of its bright cutoff, respectively, and $m_{\rm lim}$is the photometric m5007 limiting magnitude in each field. This scaling ensures that we account for all PNs within 2.5 mag of M*.

The V-band luminosities in each field are converted to bolometric luminosities according to

\begin{displaymath}L_{\rm bol} = L_{V,\odot}10^{-0.4(BC_V+0.07)}.
\end{displaymath} (7)

According to Buzzoni et al. (2006), a value of BCV = -0.85 mag can be taken as a representative correction for all galaxy types within 10% uncertainty.

Finally, we obtain the bolometric luminosity-specific PN number $\alpha_{2.5}$: for the M 87 halo light at the FCJ position it is $\alpha_{2.5,\rm M~87}= 3.1\times 10^{-9}$ PN  $L_\odot^{-1}$, and for the ICL at the F7 position it is $\alpha_{2.5,\rm ICL}= 7.2 \times 10^{-9}$ PN  $L_\odot^{-1}$. The values of $\alpha_{2.5}$ for different stellar populations are well documented (Ciardullo et al. 2005; Coccato et al. 2009; Buzzoni et al. 2006): $\alpha_{2.5}$ in the range $3{-}10\times 10^{-9}$ PN $L_\odot^{-1}$ are observed for bright ellipticals and S0s. Both the $\alpha_{2.5}$values obtained for the ICL and for the M 87 halo stars are consistent with those of old (> 10 Gyr) stellar populations.

Uncertainties in the $\alpha_{2.5}$ values - The luminosity of the M 87 halo is computed using Monte Carlo integration of the Sérsic fit to the surface brightness from Kormendy et al. (2008) in the FCJ field, and the errors here are of the order of few percent.

The luminosity of the ICL is computed using $\mu_V = 27.7$ from Mihos et al. (2005). We independently estimated the ICL surface brightness by comparing the reprojected surface brightness profile of the M 87 halo with the Sérsic fit of Kormendy et al. (2008) in the F7 field. This results in an azimuthally averaged ICL $\mu_V = 28.5$. While $50\%$ fainter than the measurement of Mihos et al. (2005), the two values may be quite consistent when taking into account that the ICL is observed mostly on the side of M 87 towards M 86/M 84.

Considering the uncertainties in the surface brightness for the M 87 halo and ICL, and the statistical errors in the number of detected PNs, the $\alpha_{2.5}$ values for M 87 and ICL differ at the ${\sim}$$2\sigma$ level. We speculate that $\alpha_{2.5,\rm ICL}$ is a factor 2 larger than $\alpha_{\rm {2.5,M~87}}$ because of different metallicity distributions in the ICL and the M 87 halo, with a larger fraction of metal-poor stars in the intracluster component, as shown by Williams et al. (2007).

6 ICL and the dynamics of the Virgo cluster core

6.1 ICPNs and dwarf spheroidals

The LOSVDs in Fig. 6 show the dynamical components in the Virgo cluster core: the halo of M 87, and the ICL component traced by a broad PN velocity distribution. This component covers the velocity range from 1300 km s-1 down to the systemic velocity of M 86 at -244 km s-1. Overlaying the spatial coordinates of the PNs on the deep image of the Virgo cluster core (Fig. 7; Mihos et al. 2005) we can easily see the association of the PN components identified in the velocity - position space, with the morphological components of the surface brightness distribution in the Virgo core. The M 87 PNs are confined to still relatively bright regions covered by the M 87 halo, while the ICL PNs are scattered across the whole region.

For comparison, we examine the phase space distribution of dwarf elliptical galaxies in a region covering our target fields for the PNs spectra, i.e., in a 1.5 degree diameter circle centred on the midpoint of M 87 and M 86 (Fig. 7). The aim is to search for possible associations between our ICPNs and the positions and velocities of the dwarf galaxies. The top panel of Fig. 6 shows a histogram of the LOS velocities for all dwarfs in the region marked in Fig. 7. The velocities form a flat, uniform distribution extending to larger positive velocities than the ICPNs. We ask whether any of the PNs could be physically associated with the dwarf galaxies. There are only two potential associations: one is between a PN with velocity 818 km s-1 and a close-by dE at 791 km s-1. This dE has total blue apparent magnitude 15.4, i.e., MB=-15.48 (using the assumed distance) or $L_B=1.4\times10^8~\mbox{$L_{\odot}$ }$. According to Ciardullo et al. (2005), galaxies fainter than $M_B\sim-19$ and bluer than V-I<1.1 produce about one [O III]-bright PN in every $4\times10^8~\mbox{$L_{\odot}$ }$. It is therefore unlikely that the dwarf galaxy in question produced the PN detected here (as the expected number is 0.35) although it cannot be ruled out completely. On the other hand, the second association may well be genuine: this is of a PN with velocity +28 km s-1 and a close-by Sb spiral galaxy to its west, which has velocity 30 km s-1 and $B_{\rm tot}=10.91$ (and therefore is capable of producing between 85 and 2000 PNs depending on its age, see Buzzoni et al. 2006).

Although the majority of the ICPNs do not appear to be physically associated with the dwarf galaxies (i.e., the PNs are unlikely to originate in the dwarfs), their distribution in velocity space is at least partially similar, indicating that they follow similar dynamics.

6.2 Dynamical status of the Virgo core

The velocity distribution of dwarf spheroidals (dE+dS0) in a $2^\circ$radius circular region centred on M 87 is very flat and broad, with the peak of the distribution at 1300 km s-1 and a long tail of negative velocities (Binggeli et al. 1993). The LOSVD of the ICPNs now confirms that this asymmetry is also present in the very center of the Virgo core, in a region of $1^\circ$ diameter. Figure 8 shows that velocities near the systemic velocity of M 86 are seen to about half-way from M 86 to M 87.

The asymmetry and skewness of the LOSVD may arise from the merging of subclusters along the LOS as described by Schindler & Böhringer (1993). In their simulations of two merging clusters of unequal mass, the LOSVD is found to be highly asymmetric with a long tail on one side and a cut-off on the other side, shortly ( ${\sim} 10^9$ yr) before the subclusters merge.

The observed LOSVDs of the PNs, GCs (Côté et al. 2001), and (dE+dS0) in the Virgo core may therefore be interpreted as additional evidence that the two massive subclusters in the Virgo core associated with the giant ellipticals M 87 and M 86 are currently falling towards each other - more or less along the LOS, with M 87 falling backwards from the front and M 86 forwards from the back - and will eventually merge, i.e. the entire core of the Virgo cluster must then be out of virial equilibrium and dynamically evolving.

The distribution of the brightest galaxies in Virgo also favors a recent and on-going assembly: West & Blakeslee (2000) found that Virgo's brightest elliptical galaxies tend to be aligned along the principal axis of the cluster (which is inclined by only about 10-15 degrees to the line of sight) and which on larger scales connects Virgo to the rich cluster Abell 1367. This work suggests that the formation of the cluster is driven by infall along this filament.

Do the halos of M 87 and M 86 already touch each other, or are they just before their close pass? PNLF distances (Jacoby et al. 1990) and ground-based surface brightness fluctuation distances (Tonry et al. 2001) indicate that M 86 is behind M 87 by just under ${\sim}$0.15 mag. The globular cluster LF turnover also suggests that M 86 is likely 0.1 to 0.2 mag more distant than the main body of Virgo (Kundu & Whitmore 2001). However, the most recent surface brightness fluctuation measurements by Mei et al. (2007) find that M 87 and M 86 are only at very slightly different distances. Within the errors, the distance moduli (M 87: $31.18\pm0.07$, M 86: $31.13\pm0.07$) are consistent with being either at the same distance or separated by 1-2 Mpc. Unfortunately the evidence from the relative distances of M 87/M 86 is not conclusive at this stage.

6.3 Implications for the formation of the ICL

The observational facts concerning the ICL in the Virgo cluster core are:

1.
The LOSVD of the ICPNs is not symetrically distributed around the systemic velocity of M 87. Those between M 87 and M 86 are mostly at ``bluer'' velocities, i.e., <800 km s-1. ``Red'' velocities are only seen in the field $0.^\circ8$ north of the line connecting M 87 with M 86; see Fig. 7;
2.
While the dwarf spheroidals' (dE+dS0) LOSVD in the region marked in Fig. 7 extend into ``red'' velocities, up to 2500 km s-1, ICPNs with velocities greater than 1800 km s-1 are seen only at its northern perimeter, while those in the region between M 87 and M 86 are confined to <800 km s-1 (see Figs. 6, 7, 8). This is not a consequence of the filter used in the photometric selection of these objects, which still has a transmission of 50% to [OIII]$\lambda $5007 at ${\sim}$2275 km s-1 (Feldmeier et al. 2003)[*];
3.
The morphology of the ICL between M 87 and M 86 is ``diffuse''; it is mostly not in tidal tails or streams (Mihos et al. 2005);
4.
The measured $\alpha_{2.5}$ parameter for the ICL is in the observed range for old stellar populations;
5.
The metallicity distribution of the RGB stars associated with the ICL in the Williams et al. (2007) field is broad, with a peak at about 0.1 solar, and the best model of Williams et al. (2007) indicates an old stellar population (>10 Gyr).
Point 1) indicates that the ICL did not have the time to phase mix yet, supporting the idea that much of this diffuse component is falling towards M 87 together with the M 86 group. Points 2) and 3) argue against the origin of this ICL from current harrassment of dwarf irregulars by the cluster potential (Moore et al. 1996), firstly because none of the ICPNs between M 87 and M 86 are found at velocities redder than 800 km s-1, while we see nearby dwarf galaxies in the $ 1800 <
{v}_{\rm LOS} < 2500$ km s-1 range, and secondly because the diffuse morphology of the ICL suggests that it has not recently been dissolved from the dwarfs, but had time to phase mix at earlier times in the sub-component of the Virgo cluster which is now falling towards M 87. Points 4) and 5) indicate that the parent stellar population of the ICPNs is an old population, and point 5) makes dwarf spheroidals unlikely progenitors (recall that the dSph analyzed by Durrell et al. (2007) had a narrow metallicity distribution at $\rm [Fe/H]\simeq-2$). Dwarf elliptical galaxies have a wider metallicity distribution, and they could be disrupted during passages through the high-density regions around M 87. Some of the observed ICPNs could trace stars on a stream from such a disruption event (particularly, those at ${v}_{\rm LOS}\sim 800$ km s-1), but those at low velocities in Fig. 8 are falling in with M 86, so have not crossed the dense regions yet. Point 3) then implies that these must have been part of the diffuse halo of the M 86 group.

We conclude that we have found observational evidence in the Virgo core for the mechanism described by Rudick et al. (2006): we observe the diffuse component ``pre-processed'' in the M 86 sub-group, which is or has been gravitationally unbound from M 86 as this substructure is being accreted by M 87. The idea that the diffuse light is being stripped from the M 86 sub-group is consistent with the observed highly skewed LOSVD and with the predictions from the simulations of Schindler & Böhringer (1993). Note that the light in the M 86 subgroup is tidally stripped by the more massive M 87 component, while these two sub-structures merge along the LOS; we do not see a diffuse ICL with a broad velocity component redwards of the systemic velocity of M 87, because it has not yet been formed.

This scenario is also consistent with the simulations of Murante et al. (2007). Their statistical analysis of the diffuse star particles in a hydrodynamical cosmological simulation indicates that most of the ICL is associated with the merging tree of the brightest cluster galaxy, and about 80% of the ICL is liberated shortly before, during and shortly after major mergers of massive galaxies. The results from Murante et al. (2007) imply that the main contribution to the ICL comes from merging in earlier sub-units whose merger remnants later merge with the final cD galaxy. Similarly, Rudick et al. (2006) predict that violent merging events quickly add ICL, and without or between these events, the ICL fraction rises only slowly. Once the M 86 subgroup has finally merged with M 87, this will have created the most massive galaxy in the then Virgo cluster, and the ICL in the future Virgo core will indeed have originated mainly from the progenitors associated with its merging tree.

7 Summary and conclusions

Using high resolution multi-object spectroscopy with FLAMES/MEDUSA on the VLT we confirm a further 12 PNs in the Virgo cluster, located between 130 and 250 kpc from the center of M 87, and obtain their radial velocities. For most of these objects we also detect the second line [O III]$\lambda $ 4959 Å. These PNs trace the kinematics of diffuse light in Virgo, at typical surface brightness of $\mu_V=27.5$.

The phase-space distribution for the new sample of PN velocities combined with earlier measurements at 60 and 150 kpc from M 87 illustrates the hierarchical nature of structure formation. One group of PNs has an unrelaxed distribution of velocities with a range characteristic for the still assembling Virgo cluster core, while the second group has a narrow velocity distribution which traces the bound, cold outer halo of M 87. We summarize our results for these two groups in turn.

7.1 Dynamical status of the Virgo cluster and origin of the ICL

Seven of the newly confirmed PNs are genuine intracluster PNs in the Virgo core, not bound to M 87. Their spatial and velocity distribution indicates that we are witnessing the gravitational stripping of the diffuse light component around the M 86 group, as this sub-structure is being accreted by the more massive M 87. We do not see a diffuse ICL with a broad velocity distribution including red-shifted velocities around M 87, because it presumably has not been formed yet.

On the basis of the LOSVDs of ICPNs and galaxies in the Virgo core, we surmise that M 87 and M 86 are falling towards each other nearly along the line of sight, and that we may be observing them in the phase just before the first close pass. We thus conclude that the heart of the Virgo cluster is still far from equilibrium.

Finally, the $\alpha_{2.5}$ values determined for the ICL indicate an old stellar population. This is consistent with the analysis by Williams et al. (2007) of the colour-magnitude diagram (CMD) for ICL red giant stars, which showed an old stellar population ($\ga$10 Gyr) with a large spread of metallicities. Differently, the CMD for a nearby dwarf spheroidal galaxy indicates a similarly old, but metal-poor stellar population (Durrell et al. 2007). Together with the observed ${v}_{\rm LOS}$distribution of the ICPNs, these results suggest that at least some of the ICL in Virgo originates from stars unbound from the brightest and most massive galaxies.

7.2 The M 87 halo

The other five of the newly confirmed PNs are associated with the bound halo of M 87, at a mean projected radius R=144 kpc from the centre of the galaxy. These PNs have velocities close to the systemic velocity of M 87, with a small dispersion, and are furthermore segregated spatially from the rest of the (intracluster) PNs, as shown in Figs. 7 and 8.

The LOSVDs of the M 87 PNs both in the new fields and in the FCJ field of A04 are consistent with no rotation of the outer halo around the photometric minor axis, outside R = 15 kpc. We cannot test whether the halo is rotating around the major axis. The rms velocity dispersion for the 5 M 87 PNs at 144 kpc is $78~\pm~25$ km s-1, much smaller than the central velocity dispersion. Together with the results of A04, this indicates that the M 87 halo becomes ``dynamically'' cold beyond 50 kpc radius.

The PNs around the systemic velocity of M 87 are confined to radii $R\le161$ kpc. The absence of M 87 PNs at larger radii with respect to the extrapolated Sérsic fit to the surface brightness profile from Kormendy et al. (2008), despite being based on small numbers, is significant at the ${\sim} 2\sigma$ level. This suggests that the edge of M 87 has been detected, and it occurs at quite a large average ellipse radius - $R_{\rm trunc} = 149$ kpc.

We have tested the hypothesis of a truncated stellar halo dynamically, using the observed stellar kinematics of the M 87 halo. Combining all the velocity dispersion data available in the literature with our new M 87 $\sigma_{\rm PN}$ data, we have solved the spherical Jeans equation assuming a total gravitational potential as traced by the X-ray emission. Within this framework, the Jeans model is able to reproduce the ``cold'' PN velocity dispersion in the outer halo of M 87 only if (i) the orbital structure in the outer halo becomes highly radially anisotropic, with $\beta > 0.4$ at r > 10 kpc; and (ii) the intrinsic luminous density is truncated. This dynamical argument can be circumvented only if the stellar distribution were strongly flattened along the line-of-sight in the surveyed fields. At these radii this flattening would be local and imply that the spheroidal stellar halo would end at even smaller radii.

The evidence for the truncation of the luminous halo of M 87 thus comes from both the spatial distribution of the PNs with velocities near the systemic velocity of M 87 (Fig. 8), and from the small velocity dispersions in both the A04 field and in the new fields near the outer edge.

The reason for the truncation is not obvious; we discuss possible mechanisms in Sect. 4.5. Differently from some dense clusters where lensing analysis indicates that galaxies outside the cluster center are tidally truncated by the dark matter cusp of the cluster, M 87 in Virgo is located at the center of the deepest potential well traced by the X-ray isophotes. We also do not see unbound PNs with velocities near 1300 km s-1 further out from M 87. This suggests that if there has been a tidal truncation, it would have occurred some time ago during the interaction with another mass concentration, such as around the other massive galaxy in the Virgo core, M 84. Alternatively, due to the dynamical youth of the Virgo cluster, it is also possible that M 87 has not been tidally disturbed yet, and is more similar to an isolated massive elliptical galaxy and should thus still be accreting matter (Abadi et al. 2006). In this case possible explanations for the truncation could be early AGN feedback effects that indirectly truncate star formation in accreting satellites, or adiabatic contraction of the M 87 halo due to cluster dark matter collapsing onto the galaxy.

The existing data cannot discriminate between these scenarios. The next step in this project is therefore to obtain a sample of at least a few hundred measured PN velocities covering the whole M 87 halo. This is required to verify that the velocity dispersion decreases everywhere around the galaxy, and to obtain statistically better constraints on phase-space structures in the surrounding ICL, including possible stars tidally dissolved from M 87. With a homogenous imaging and spectroscopic PN survey covering the whole halo of M 87 out to 40 arcmin we will be able to accurately measure the rotation, radial anisotropy of the orbits, and truncation of the outer halo of M 87.

Acknowledgements
We wish to thank Nando Patat for carrying out the observations in service mode, and Marina Rejkuba and Sandro Villanova for advice in using the GIRAFFE pipeline. We thank Ken Sembach for providing his velocity dispersion data in digital format, John Kormendy for giving us the surface brightness profile data for M 87 and the parameters of the best Sérsic fit before publication, and Ralf Bender, James Binney and Karl Gebhardt for useful discussions. P.D. was supported by the DFG Cluster of Excellence.

References

Footnotes

... core[*]
Based on data collected with VLT Kueyen at Cerro Paranal, Chile, operated by ESO during observing run 076.B-0086(A).
... simultaneously[*]
See http://www.eso.org/sci/facilities/paranal/instruments/flames/overview.html
... pipeline[*]
The GIRAFFE pipeline is available at http://girbldrs.sourceforge.net
... components[*]
They cannot be in the Local Group: the faintest PNs in the SMC have m5007=23 (Jacoby & De Marco 2002) so are still much brighter than the brightest Virgo PNs at m5007=26.3.
...$\chi^2$tests[*]
We carried out a $\chi^2$ test for the (FCJ; A04) sample and i) a broad Gaussian ( $\bar{{v}} = 1264$ km s-1 and $\sigma = 247$ km s-1); ii) a uniform distribution plus a narrow Gaussian ( $\bar{{v}} = 1264$ km s-1 and $\sigma = 139$ km s-1). Because of the limited statistics of the PN sample in this field, the results depend on the velocity range chosen for the test. In a 700 - 1650 km s-1 range, the two distributions fit the data equally well with $80\%$ probability, while the broad Gaussian is ruled out in a 350 - 1650 km s-1 range.
... population[*]
This is given by the integral over the whole eight magnitude range of the Planetary Nebula Luminosity Function (PNLF).
...(Feldmeier et al. 2003)[*]
There may be a different, small selection effect due to the finite limiting magnitude of the photometric PN survey, as the ICPN that we detect are slightly biased towards objects on the near side of the cluster core.

All Tables

Table 1:   Observed fields and spectroscopic confirmations.

Table 2:   M 87 halo PNs and sampled luminosities.

Table 3:   ICL PNs and sampled luminosities in the colored regions of Fig. 11.

Table 4:   Number of PNs in the photometric samples, for the M 87 halo and the ICL.

All Figures

  \begin{figure}
\par\includegraphics[scale=0.6]{11532/1532fig1.eps}
\end{figure} Figure 1:

Deep image of the Virgo cluster core showing the diffuse light distribution (Mihos et al. 2005), with our target fields superposed. Target fields of the previous spectroscopy (A04) are shown as red circles and our new target fields as well. The blue ellipse shows the boundary used in the dynamical modeling in Sect. 4.4.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[scale=0.35,angle=90]{1532fig2.ps}
\end{figure} Figure 2:

Histogram showing the m5007 mag of all our observed targets (solid black line) over-plotted with those where emission lines were detected (red dashed line). The blue dotted lines show the photometric completeness limits for target fields F4 (26.6) and F7 (26.8).

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[angle=90,scale=0.75]{1532fig3.ps}
\end{figure} Figure 3:

Spectra for the confirmed PNs, ranked by magnitude m5007 and smoothed by a factor 7 to 0.035 nm per pixel. m5007 and the LOS velocities are labelled in the top left corner of each spectrum. The expected location of [O III]$\lambda $4959 is shown by a red dash, in the cases where not immediately obvious. The [O III] 5007 line for the PNs with m5007=27 and ${v}_{\rm los}=-155~\mbox{km~s$^{-1}$ }$ has a signal-to-noise ratio of 3 and this is our weakest believable detection. A typical error in the velocities is 3 km s-1; see Sect. 2.2.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[scale=0.35,angle=90]{1532fig4.ps}
\end{figure} Figure 4:

Combined spectrum of all 12 identified PNs, Doppler corrected to the rest-frame.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[angle=90,scale=0.53]{1532fig5.ps}
\end{figure} Figure 5:

Examples of the other emission-line objects present in the sample, [OII], Ly$-\alpha $, and an unidentified broad emission line which we speculate might be HeII at 1640 Å in a high-z LBG, or alternatively CIV 1550 or [CIII] 1909 from an AGN. The spectra have been smoothed to 0.035 nm per pixel. For comparison to Fig. 3 the m5007 magnitudes are shown in the top right corner.

Open with DEXTER
In the text

  \begin{figure}
\par\hspace*{6mm}\includegraphics[scale=0.5]{1532fig6.ps}
\end{figure} Figure 6:

Radial velocity histograms. The bottom panel shows the velocity distribution of all identified PNs in the 3 new fields. The peak at ${\sim}1300~\mbox{km~s$^{-1}$ }$ corresponds to PNs bound to the halo of M 87. They have a mean velocity of $1297\pm~35~\mbox{km~s$^{-1}$ }$ and rms dispersion of $78\pm25~\mbox{km~s$^{-1}$ }$. The middle panel shows the distribution of PN velocities in the previously surveyed FCJ field (A04), and the top panel shows the distribution of dwarf spheroidal LOS velocities in the same region of the Virgo cluster core, for comparison. The systemic velocities of M 87 and M 86 are shown with the dotted lines.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[scale=0.8]{11532/1532fig7.eps}
\end{figure} Figure 7:

Deep image of the Virgo cluster core showing the distribution of the intracluster light (Mihos et al. 2005). The spatial distribution of our spectroscopically confirmed PNs are overlaid. The A04 targets are shown in green. Our new targets are shown in red if redshifted with respect to Earth and blue if blueshifted. Objects with velocities higher than the mean velocity of Virgo (1100 km s-1) are shown as crosses and those with lower velocities shown as circles. Dwarf spheroidals are marked as magenta dots. The velocities (in km s-1) are labelled for all objects shown. The nominal ``edge'' of the M 87 halo at ${\approx } 160$ kpc is indicated with a white circle. The pink circle has a 1.5 degree diameter and is centered on the projected midpoint of M 87 and M 86. North is up and East is to the left.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[scale=0.45]{1532fig8.ps}
\end{figure} Figure 8:

Distribution of line-of-sight velocity versus projected distance from the center of M 87 for all spectroscopically confirmed PNs in the new fields as well as the FCJ and Core fields of A04.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[scale=0.4]{1532fig9.ps}
\end{figure} Figure 9:

Velocity dispersion profile of M 87, including stellar velocity dispersions from absorption-line spectra and discrete LOS velocity measurements from globular cluster and PN data. The squares are data points from van der Marel (1994), the green diamonds are based on Sembach & Tonry (1996), and the red and blue stars are velocity dispersions for the metal-rich and metal-poor GC samples of Côté et al. (2001), respectively. The filled red circle is the PN velocity dispersion dertermined in A04 and the filled red square shows a recalculation of the velocity dispersion if 3 of the PNs inclued by A04 are considered to be outliers (but see text). The filled red trangle is the outermost velocity dispersion point determined in this paper. These last two points are approximately along the major axis of the outer isophotes, which have ellipticity $\epsilon \simeq 0.43$.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[scale=0.4]{1532fi10.ps}
\end{figure} Figure 10:

V-band surface brightness profile for M 87 from Kormendy et al. (2008) shown with black circles along average ellipse radii  $R_{\rm avg}$ of the isophotes. Red circles show the extrapolated Sérsic fit. The full line shows the reprojected three-dimensional luminosity model obtained from the extrapolated data, and the dashed line shows the reprojection of the luminosity model when truncated at average ellipse radius  $R_{\rm trunc} = 149$ kpc. For comparison, the number density profiles of the red and blue globular cluster populations from Côté et al. (2001) are also shown with arbitrary scaling as red and blue stars, respectively.

Open with DEXTER
In the text

  \begin{figure}
\par\hspace*{-1.5mm}\includegraphics[scale=0.307]{1532fi11.ps} %\end{figure} Figure 11:

Left: the red region is the intersection between the photometric field FCJ and the FLAMES (FCJ) pointing. Right: the red region is the part of the intersection between the photometric field F7 from Feldmeier et al. (2003) and the regions jointly covered by the F7_1, F7_2 and F4 FLAMES circular pointings, which is within the isophote with an average ellipse radius, $R_{\rm trunc} = 149$ kpc. This covers the region containing PNs with velocities bound to M 87. The green region is the part of the intersection between the F7 region and the FLAMES pointings as before, but outside $R_{\rm trunc}$, where no PNs associated with the M 87 velocity peak are found.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[scale=0.4]{1532fi12.ps}
\end{figure} Figure 12:

Circular velocity profiles for M 87 from X-ray data.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[scale=0.4]{1532fi13.ps}
\end{figure} Figure 13:

Velocity dispersion profiles derived for Jeans models with spherical symmetry and surface brightness profiles as in Fig. 10; see text. The velocity dispersion data points are shown at their average ellipse radii $R_{\rm avg}$, computed with the ellipticity profile. For the globular cluster velocity dispersions this is not possible; these are not used in constructing the Jeans models. Symbols are as in Fig. 9.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[scale=0.4]{1532fi14.ps}
\end{figure} Figure 14:

Anisotropy profiles for the best-fit models: they imply a mildy radially anisotropic orbital distribution ( $\beta \approx 0.15$) in the centre that becomes highly radially anisotropic in the outer halo ( $\beta \approx 0.8$).

Open with DEXTER
In the text


Copyright ESO 2009

Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.

Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.

Initial download of the metrics may take a while.
