CNONa and ${\sf ^{12}}$C/ ${\sf ^{13}}$C in giant stars of 10 open clusters[*],[*],[*]

R. Smiljanic1 - R. Gauderon2 - P. North2 - B. Barbuy1 - C. Charbonnel3,4 - N. Mowlavi5

1 - Universidade de São Paulo, IAG, Rua do Matão 1226, Cidade Universitária, 05508-090, São Paulo, SP, Brazil
2 - Laboratoire d'astrophysique, École Polytechnique Fédérale de Lausanne (EPFL), Observatoire de Sauverny, 1290 Versoix, Switzerland
3 - Geneva Observatory, University of Geneva, Chemin des Maillettes 51, 1290 Versoix, Switzerland
4 - LATT, CNRS UMR 5572, Université de Toulouse, 14 avenue Edouard Belin, 31400 Toulouse Cedex 04, France
5 - Observatoire de Genève, Integral Science Data Center, Chemin d'Ecogia 16, 1290 Versoix, Switzerland

Received 9 October 2008 / Accepted 10 April 2009

Abstract
Context. Evolved low-mass stars ( $0.8 \leq M/M_{\odot} \leq 2.5$) of a wide range of metallicity bear signatures of a non-standard mixing event in their surface abundances of Li, C, and N, and in their 12C/13C ratio. A Na overabundance has also been reported in some giants of open clusters but remains controversial. The cause of the extra-mixing has been attributed to thermohaline convection that should take place after the RGB bump for low-mass stars and on the early-AGB for more massive objects.
Aims. To track the occurrence of this process over a wide mass range, we derive in a homogeneous way the abundances of C, N, O, and Na, as well as the 12C/13C ratio in a sample of 31 giants of 10 open clusters with turn-off masses from 1.7 to 3.1 $M_{\odot }$. The sample includes red giants, clump giants, and early-AGB stars. We study the observational behavior of the abundances as well as the possible correlations between different elements and between the chemical abundances and stellar mass.
Methods. A model atmosphere analysis is conducted using high signal-to-noise ratio, high-resolution FEROS and EMMI spectra. We derive atmospheric parameters using Fe I and Fe II lines. We calculate abundances for Na, C, N, and O, as well as the 12C/13C ratio using spectral synthesis. For the elements Mg, Ca, Si, Sc, Ti, V, Cr, Co, and Ni, abundances are derived using equivalent widths.
Results. A group of first ascent red giants with $M/M_{\odot}\leq 2.5$ exhibits lower [N/C] ratios than those measured in clump giants of the same mass range, suggesting an additional increase in the [N/C] ratio after the first dredge-up. The sodium abundances corrected from NLTE are found to be about solar. [Na/Fe] shows a slight increase of 0.10 dex as a function of stellar mass in the 1.8 to 3.2 $M_{\odot }$ range covered by our sample, in agreement with standard first dredge-up predictions. Our results do not support previous claims of sodium overabundances as high as +0.60 dex. An anti-correlation between 12C/13C and turn-off mass is identified and interpreted as being caused by a post-bump thermohaline mixing. Moreover, we find low 12C/13C ratios in a few intermediate-mass early-AGB stars, confirming that an extra-mixing process also operates in stars that do not experienced the RGB bump. In this case, the extra-mixing possibly acts on the early-AGB, in agreement with theoretical expectations for thermohaline mixing.

Key words: stars: abundances - stars: evolution - stars: interiors - stars: atmospheres - open clusters and associations: general

1 Introduction

In the standard model of stellar evolution, convection is the only mechanism that can drive mixing in stellar interiors. In this context, the only expected mixing episode between the main sequence (MS) and the tip of the red giant branch (RGB) is the so-called first dredge-up (Iben 1965), a deep convective envelope that transports nuclear-processed material to the surface, as the star approaches and begins to climb the RGB.

During the MS, hydrogen burns by means of the pp-chain and the CNO-cycle. Proton-capture cycles that require higher temperatures, i.e., the NeNa and MgAl cycles, remain ineffective (Weiss & Charbonnel 2004), except in stars more massive than $\sim$25 $M_{\odot }$ (Decressin et al. 2007; Prantzos et al. 2007). Thus, in low-mass stars, the material mixed by the first dredge-up increases the photospheric abundances of 3He, 13C, and 14N and decreases that of 12C as a function of the initial stellar mass and metallicity (Charbonnel 1994). The surface abundance of these elements can thus be used to test our understanding of the stellar evolutionary mixing processes.

The observed surface abundances of subgiants and low-luminosity RGB stars have been shown to agree with values predicted by first dredge-up models (Charbonnel et al. 1998; Gratton et al. 2000). However, accumulating observational evidence indicates a further increase in N and decrease in Li, C, and 12C/13C for low-mass RGB stars just after the luminosity bump. This extra-mixing phenomenon has been detected in giants of both open (Gilroy & Brown 1991; Gilroy 1989; Luck 1994; Tautvaisiene et al. 2000,2005) and globular clusters (Recio-Blanco & de Laverny 2007; Shetrone 2003; Pilachowski et al. 2003, and references therein), as well as in field stars (Sneden et al. 1986; Charbonnel et al. 1998; Gratton et al. 2000), including extremely metal-poor giants (Spite et al. 2006; Cohen et al. 2006), and in extragalactic systems such as the LMC (Smith et al. 2002) and Sculptor (Geisler et al. 2005). These observations suggest that we are witnessing the effects of a universal process that is independent of environment, able to operate at all metallicities (although possibly with different efficiencies), and connected to the luminosity bump (Charbonnel & Do Nascimento 1998).

Effects connected to rotation have long been suspected as being the origin of the extra-mixing, as first suggested by Sweigart & Mengel (1979). In particular, the most probable mechanism has been proposed to be the interaction between meridional circulation and turbulence induced by rotation, as derived by Zahn (1992; see also Charbonnel 1995). However, the maximum-rotation induced mixing scenario developed by Chanamé et al. (2005), as well as the evolutionary models for low-mass, low-metallicity stars of Palacios et al. (2006), which take into account the transport of both angular momentum and chemicals induced by meridional circulation and shear turbulence self-consistently, show that these processes alone cannot explain the observations.

The 3D modeling of a low-mass RGB star by Dearborn et al. (2006) provided fresh insight into the physical mechanism involved. Based on these simulations, Eggleton et al. (2006) suggested that the process responsible was a molecular-weight inversion created by the 3He(3He, 2p)4He reaction in the external part of the hydrogen-burning shell. Charbonnel & Zahn (2007a) identified the related transport mechanism as the double diffusive instability often referred to as thermohaline convection (Ulrich 1972; Kippenhahn et al. 1980; Stern 1960), and showed it to be able to reproduce the observed Li, C, and N abundances, as well as the carbon isotopic ratio in RGB stars after the bump, while simultaneously destroying most of the 3He produced on the MS.

In addition to the extra-mixing event in low-mass stars at the RGB bump, Charbonnel & Balachandran (2000) suggested a possible extra-mixing episode in intermediate-mass stars (2.5 $\leq$ $M/M_{\odot}$ $\leq$ 5.0) that undergo the equivalent of the bump only during the early-AGB phase, after He-core exhaustion. As discussed in Charbonnel & Balachandran (2000), these two instances of extra-mixing would be connected to the nature of the lithium-rich giants. Cantiello & Langer (2008) reported that thermohaline mixing can indeed be present during core helium-burning and beyond in stars that still have a 3He reservoir.

On the observational side, it has long been discussed whether RGB extra-mixing could modify the abundances of heavier elements, namely Na, whose abundance in red giants has received considerable attention (Sestito et al. 2008; Hamdani et al. 2000; Jacobson et al. 2007, and references therein). Although some works have detected a sodium overabundance, some controversy still exists. For example, while Tautvaisiene et al. (2000) found giants of M 67 to be sodium-enriched, Randich et al. (2006) did not find these overabundances and, moreover, showed unevolved stars in this same cluster to have the same sodium abundance as the evolved stars.

Additionally, few works in the literature determined carbon isotopic ratios in giant stars of open clusters (Gilroy & Brown 1991; Gilroy 1989; Luck 1994; Tautvaisiene et al. 2000,2005). Only the last three of these studies also derived abundances of C, N, O, and Na. Obviously the simultaneous determination of all these elements in a homogeneous analysis is important in constraining the mixing mechanisms as well as their possible dependence on stellar mass. Gilroy (1989) and Gilroy & Brown (1991) found that giant stars in open clusters with turn-off masses lower than 2.2 $M_{\odot }$ showed a decreasing carbon isotopic ratio with decreasing turn-off mass. On the other hand, Luck (1994) also found some stars with low carbon isotopic ratio among clusters with turn-off masses higher than 2.2 $M_{\odot }$. The latter stars might be connected to the extra-mixing during the early-AGB, as suggested by Charbonnel & Balachandran (2000). Tautvaisiene et al. (2000) found a small difference between the isotopic ratios of clump star and red giants in M 67, although a similar difference was not found in stars of NGC 7789 by Tautvaisiene et al. (2005).

It is clear that much work is required both on the theoretical and observational sides to improve our knowledge of the mixing processes in low- and intermediate-mass giant stars. In the present paper, we increase significantly the number of giants in Galactic open clusters analyzed so far. We derive abundances of several elements, in particular C, N, O, and Na, as well as the 12C/13C ratio for a sample of clump and red giants of 10 open clusters. In Sect. 2, the observations are described. In Sect. 3, we discuss the determination of the atmospheric parameters, and in Sect. 4, we present the abundances. In Sect. 5, we determine the evolutionary state of each sample star, and in Sect. 6, we discuss the results and their implications. Our conclusions are drawn in Sect. 7.

Table 2:   Physical data of the open clusters adopted from the literature or calculated in this work (see text).

2 Observations

Observations of 24 giants were conducted with the FEROS spectrograph (Kaufer et al. 1999) at the ESO 1.52 m telescope at La Silla (Chile). FEROS is a fiber-fed echelle spectrograph that provides a full wavelength coverage of $\lambda\lambda$ 3500-9200 Å  over 39 orders at a resolving power of R = 48 000. All spectra were reduced using the FEROS pipeline software. Typical signal-to-noise ratios (S/N) ranged between 125 and 370 at 6700 Å.

 \begin{figure}
\par\includegraphics[angle=-90,width=14.2cm,clip]{11113f01.eps}
\end{figure} Figure 1:

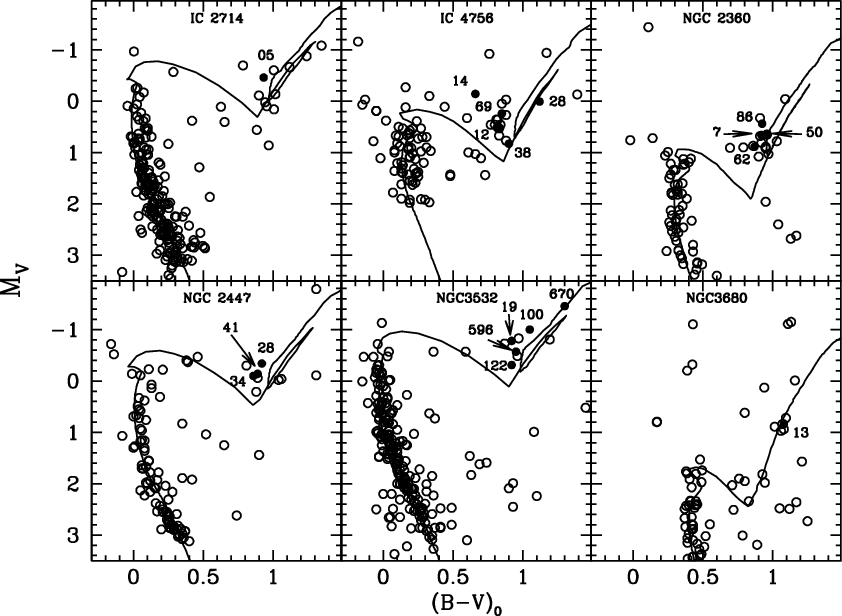

The fitting of the color-magnitude diagrams of the clusters IC 2714, IC 4756, NGC 2360, NGC 2447, NGC 3532, and NGC 3680 with the isochrones by Schaller et al. (1992), used to determine the turn-off mass of the clusters (except for NGC 2360 and NGC 2447, see text). The observed stars are shown as full circles and are identified by their numbers. The parameters adopted for the fittings are the ones listed in Table 2.

Open with DEXTER

We also reanalyzed spectra of the seven red giants of NGC 2360 and NGC 2447 first analyzed by Hamdani et al. (2000). These spectra were obtained in 1995 using the EMMI spectrograph attached to the ESO NTT 3.5 m telescope at La Silla. The spectra have a wavelength coverage of $\lambda\lambda$ 4050-6650 Å with R = 28 000. The S/N varies between 73 to 236 at 6600 Å. The log book of the observations is given in Table 1. The table includes the V magnitude of the Geneva photometry when available, and from UBV photometry otherwise, the [B-V] index of the Geneva photometry, the B-V of the Johnson UBV photometry, and the signal-to-noise ratio per pixel of the extracted spectra for the specified wavelength. The adopted numbering follows the WEBDA database[*]. We also give the HD, DM or Tycho-2 identifications when available, or numbers in the system of (Eggen 1968) for NGC 2360. The Julian Dates refer to the middle of the exposure. The exposure times are also listed.

2.1 Sample clusters

The data of the open clusters included in the sample are listed in Table 2. The [Fe/H][*] value is the average of all values obtained for individual stars in this work. The other adopted parameters, (m-M), E(B-V), age, and distance, of NGC 2360 and NGC 2447, are the same as those listed by Hamdani et al. (2000). For NGC 6134, we adopt the parameters determined by Bruntt et al. (1999). For the other clusters, new parameters were determined in this work using UBV photometry obtained from the WEBDA database, and Geneva isochrones (Schaller et al. 1992) with metallicity Z = 0.020. Two values of the turn-off mass were determined using the corresponding Schaller et al. (1992) isochrone. The blue turn-off was defined to be the bluest limit of the isochrone, excluding the very short-lived phase just after core-H exhaustion, as indicated by point B in Fig. 1 of Maeder & Meynet (1991). The red turn-off is defined to be the reddest point just before the short blueward excursion, as indicated by point R in Fig. 1 of Maeder & Meynet (1991). We also list the mass at the clump as given by the isochrones, where the clump is defined as the point of lowest luminosity after He ignition. Finally, the Galactocentric distance of the cluster given by Chen et al. (2003) is given. The color-magnitude diagrams and isochrones of all clusters are shown in Figs. 1 and 2, where our sample stars are identified as black dots.

 \begin{figure}
\par\includegraphics[angle=-90,width=13cm,clip]{11113f02.eps}
\end{figure} Figure 2:

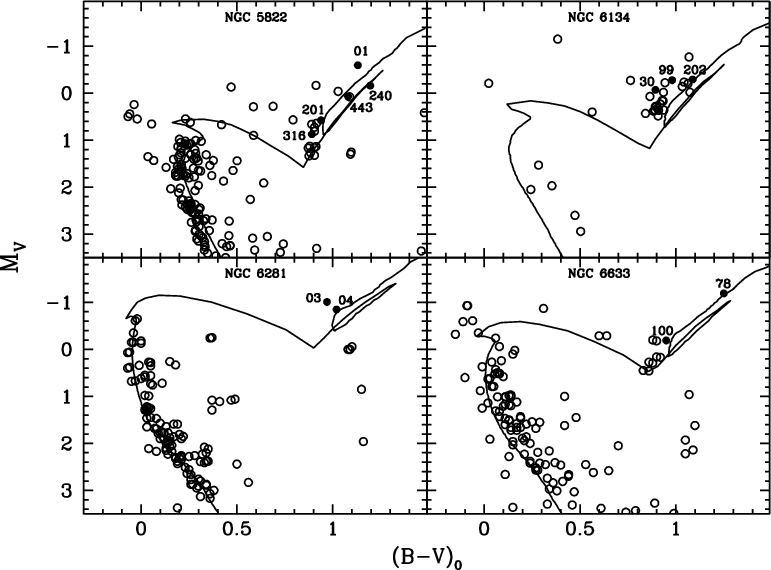

The fitting of the color-magnitude diagrams of the clusters NGC 5822, NGC 6134, NGC 6281, and NGC 6633 with the isochrones by Schaller et al. (1992), used to determine the turn-off mass of the clusters (except for NGC 6134, see text). The observed stars are shown as full circles and identified by their numbers. The parameters adopted for the fittings are those listed in Table 2.

Open with DEXTER

3 Atmospheric parameters

3.1 Equivalent widths and atomic data

The atomic-line list adopted in this work is the same as the one used by Hamdani et al. (2000) with the addition of a few Fe II lines. For elements other than Fe, the same oscillator strengths (gfs) as used by Hamdani et al. (2000) were adopted. For the Fe II lines, the gfs are those renormalized by Meléndez & Barbuy (2009), and also used in Smiljanic et al. (2006). The Fe I gfs are preferentially taken from the critical compilation of data by Fuhr & Wiese (2006) complemented by values from the NIST web database (Ralchenko et al. 2005). The solar iron abundance adopted for the calculations is the one recommended by Grevesse & Sauval (1998), $A{\rm (Fe)} = 7.50$.

For the stars in common with Hamdani et al. (2000), new equivalent widths (Ws) were measured only for the additional Fe II lines, while the original measurements for the remaining lines were adopted. The new Ws were measured by fitting Gaussian profiles to the lines using IRAF[*]. The same normalization of the continuum as used in previous measurements was adopted, to ensure consistency between them. We refer the reader to the original work for further details of the line list and the data reduction.

For the new data, the fitting of the continuum and the measurement of the Ws were conducted using the PeakFit software. New Fe II lines were then added to the line list after these measurements, and in this case, new Ws of the Fe II lines were also determined by fitting Gaussian profiles with IRAF. The same continuum normalization was adopted in both cases. A comparison between the Fe II Ws measured with Peak Fit and IRAF showed excellent agreement. Lines with equivalent widths smaller than 10 mÅ and larger than 150 mÅ were not used in our analysis. The new equivalent widths measured in this work are listed in Table A.1.

3.2 Determination of the atmospheric parameters

Atmospheric parameters of the sample stars were determined using the standard spectroscopic approach. The effective temperature ( $T_{\rm
eff}$) was calculated by assuming the excitation equilibrium of the Fe I lines (Fig. 3), i.e., requiring a null correlation between the iron abundance and the lower level excitation potential ($\chi$). The surface gravity was found by assuming the ionization equilibrium of Fe, requiring both Fe I and Fe II lines to have the same mean abundance (Fig. 3). The microturbulence velocity ($\xi$) was found by requiring the Fe I abundance to have a null correlation with the equivalent widths (Fig. 4). When these parameters are simultaneously constrained, the value of the metallicity, [Fe/H], is also determined. The parameters thus obtained are listed in Table 3.

When following this procedure, each time we converge to a set of parameters constrained by these criteria, the line list is checked for lines that indicate an abundance that departs by more than 2$\sigma$ from the average value. These lines are then excluded and a new set of parameters is calculated. The entire procedure is repeated until the abundance given by all lines agree to within 2$\sigma$. Thus, we believe to be excluding lines that are strongly affected by uncertain gfs or defective equivalent widths, and expect the mean abundance given by the remaining set of lines to be more reliable.

 \begin{figure}
\par\includegraphics[width=7.5cm,clip]{11113f03.eps}
\end{figure} Figure 3:

Iron abundance of both Fe I (full circles) and Fe II lines (open circles) versus the line excitation potential for the star NGC 3532_100. The solid line is a linear fit to the Fe I lines indicating that the excitation equilibrium was fulfilled. The ionization equilibrium was also obtained by setting the Fe I and Fe II abundances to be equal, determining the surface gravity.

Open with DEXTER

For these calculations, we adopted the grids of model atmospheres computed with the ATLAS9 code (Castelli & Kurucz 2003), without overshooting. The ATLAS9 models assume local thermodynamic equilibrium (LTE), plane-parallel geometry, and hydrostatic equilibrium.

 \begin{figure}
\par\includegraphics[width=7.5cm,clip]{11113f04.eps}

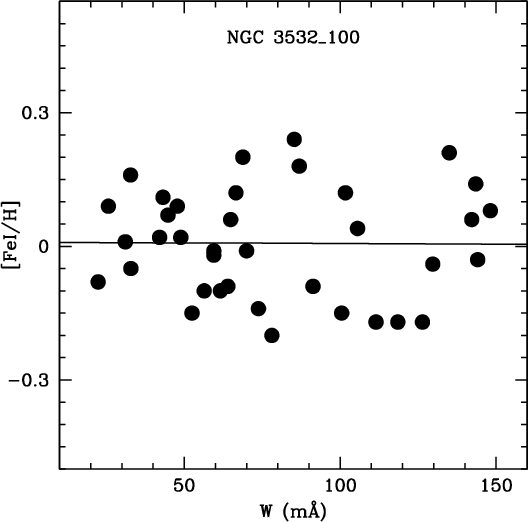

\end{figure} Figure 4:

Iron abundance versus W for the Fe I lines of NGC 3532_100. This plot was used to determine the microturbulence velocity by requiring a null correlation between [Fe I/H] and the Ws.

Open with DEXTER

3.3 Photometric temperatures

We calculated a photometric estimate of the effective temperature using the (B-V)0 color as a way of testing our spectroscopically determined effective temperatures. The Johnson (B-V) color was obtained from the WEBDA database and is listed in Table 1. The color excess listed in Table 2 was used to correct the observed color. Temperatures were calculated using the calibrations by Alonso et al. (1999) and Houdashelt et al. (2000). The average of these two estimates is listed in Table 3.

Temperatures calculated using the two photometric calibrations are in good agreement. The mean difference between them is 42 K. There is also good agreement between our spectroscopically determined $T_{\rm
eff}$ and the average photometric value. The differences vary between 1 and 160 K, excluding the star IC 4756 14. The mean difference in the temperatures is 56 K. As detailed below, this is close to the uncertainty that we estimate for the spectroscopic temperature.

For star IC 4756 14, the difference between the photometric and spectroscopic temperatures is $\sim$900 K, probably due to an incorrect (B-V) color. The cluster IC 4756 is affected by differential reddening (Smith 1983; Schmidt 1978). We note that using a higher temperature we would infer a far higher metallicity, incompatible with the other cluster members. Therefore, the spectroscopic estimate is to be preferred.

This comparison shows that the spectroscopic method provides a reliable temperature scale. We therefore adopt these temperatures throughout the paper.

3.4 Evolutionary gravities

To test the spectroscopically determined gravities, we also determined log g values using the stellar masses obtained from the isochrone fittings. For this test, the stellar mass was considered to be equal to the stellar mass of the clump at the given isochrone. Since there is little variation in mass between the red turn-off and the clump, this choice should introduce no important effect.

The evolutionary gravities were calculated using the classical equation, log $g_{\star}$ = log $g_{\odot}$ + log ($M_{\star}$/$M_{\odot }$) + 4 log ( $T_{\rm
eff}$$_{\star}$/ $T_{\rm
eff}$ $_{\odot})~-$ log ($L_{\star}$/$L_{\odot}$), where log ($L_{\star}$/$L_{\odot}$) = -0.4 ( $M_{\rm bol}$$_{\star}$ - $M_{\rm Bol}$$_{\odot}$). Luminosities were calculated with the parameters listed in Table 2 and bolometric corrections calculated with the relations by Alonso et al. (1999). For the Sun, we adopted $T_{\rm eff} = 5777$ K, log g = 4.44 dex, and $M_{\rm bol} = 4.75$ mag. The gravities calculated in this way are given in Table 3.

The evolutionary log g is in good agreement with the spectroscopically determined log g. The differences vary between 0.01 and 0.42 dex. The mean difference between the gravities is on the order of 0.14 dex. As discussed below, this is close to the uncertainty that we estimate for the spectroscopic gravity. Most of the spectroscopic values are systematically higher than the evolutionary ones. The disagreement between these two methods is well known in the literature and is also found for field giants when parallaxes are used to derive log g (da Silva et al. 2006; Allende Prieto et al. 1999). The precise reasons remain unknown, although departures from LTE are usually blamed. We consider it to be possible that our gravity values are systematically overestimated by an amount close to its associated uncertainty. This has little effect on the metallicities, since these are mainly derived from the gravity-insensitive Fe I lines.

This comparison again shows that the use of the spectroscopic method establishes a reliable gravity scale. We therefore adopt these gravities throughout the paper.

3.5 Uncertainties in the atmospheric parameters

The uncertainties in the atmospheric parameters were calculated for a representative star, IC 4756_14, whose atmospheric parameters are close to the median value for the entire sample. The 1$\sigma$ uncertainties in $T_{\rm
eff}$ and $\xi$ were determined by the uncertainties in the linear fits used to constrain these parameters. The uncertainties were given by the variation in these parameters necessary to match the angular coefficient value of the linear fit to the value of its own uncertainty, in the diagram of Fe I abundance versus the line excitation potential for $T_{\rm
eff}$, and in the Fe I abundance versus W diagram for $\xi$. The 1$\sigma$ uncertainty in the surface gravity was found by changing the gravity value until the difference between the mean abundances from Fe I and Fe II equals the larger of the standard deviation values.

Table 4:   Uncertainties in the adopted atmospheric parameters.

The atmospheric parameters are not trully independent of each other and thus, for example, an error in the effective temperature may also introduce an error in the gravity. We thus also evaluated the influence of the uncertainty in each parameter on the remaining ones. This cross-terms were combined with the uncertainties calculated above to produce the total uncertainties caused by the analysis method, listed in the second column of Table 4.

Uncertainties in the measurement of the equivalent widths of the Fe I lines, caused by the S/N and the accuracy of the continuum definition, can also affect the calculation of the atmospheric parameters. After conducting some tests, we determined that the equivalent widths are affected by at most an uncertainty of $\sigma = \pm$3.0 mÅ. This uncertainty propagates into the atmospheric parameters at a level listed in the third column of Table 4.

In addition, we recalculated the parameters of three stars using a 2.5$\sigma$ clipping factor, to test the influence of this choice on the derived atmospheric parameters. Some of the lines excluded before with 2$\sigma$ were still excluded when using 2.5$\sigma$. After increasing the clipping factor, only a few extra lines were taken into account (from 3 to 9 Fe I lines), resulting mostly in similar parameters. The average differences in the atmospheric parameters calculated by adopting each of the two clipping factors are listed in the fourth column of Table 4. This was considered another source of uncertainty inherent to the method, and thus added to the other ones to calculate the final total uncertainty in the parameters.

The microturbulence velocity and the temperature were found to be mostly insensitive to the choice clipping factor, while log g was found to vary by a significant amount. This result shows that the addition of a few extra lines does not significantly affect the excitation equilibrium or the method used to constrain $\xi$. On the other hand, these extra lines do affect the mean abundances of Fe I and Fe II and thus force a change in log g to maintain the ionization equilibrium.

As a typical error in metallicity, we adopt the standard deviation in the Fe I values of star IC 4756 14, $\sigma_{[{\rm Fe/H}]} = \pm$0.14. This is one of the largest standard deviations, as seen in Table 3, and can thus be seen as a rather conservative choice. The effect of uncertainties related to the cross-terms ($\pm$0.04), both the S/N and continuum ($\pm$0.05), and the sigma-clipping procedure ($\pm$0.03) have an almost negligible effect on the final total uncertainty in the metallicity (which would increase to $\pm$0.16).

Other systematic effects might be present, because of the use of 1D stellar atmospheres, and the neglect of departures from the LTE, among others effects. These, however, are likely to affect all the sample stars in much the same way. Since we are mostly interested in a relative comparison between the stars, these effects do not significantly affect either the analysis or the conclusions. They might be important, however, when the results obtained here are compared to those obtained by other works in the literature.

3.6 Comparison with previous results

3.6.1 The sample of Hamdani et al. (2000)

Although we use almost the same data as Hamdani et al. (2000), the methods that we employ to determine the atmospheric parameters are different. Hamdani et al. (2000) followed an iterative procedure, where the $T_{\rm
eff}$ is given by minimizing the spread in the abundances of the iron-peak elements, and the surface gravity is calculated for this temperature and the masses given by the isochrones (see more details in the original paper). For reference, we list the parameters found by Hamdani et al. (2000) in Table 5.

Table 5:   Atmospheric parameters derived by Hamdani et al. (2000) for the stars in common with our sample.

Our temperatures are systematically lower than those found by Hamdani et al. (2000). The difference varies from 75 K to 170 K, with an average of $\sim$125 K, larger than the estimated uncertainty. We believe that this systematic difference is related to a combination of the method and the final linelist. In particular, we note that, although we employ the same equivalent widths, our gf list is different. Our final Fe I mean abundance is also based on fewer lines. The first reason for that is the exclusion from the analysis of lines in the saturated part of the curve of growth, $W \geq 150$ mÅ. A second reason is the $\sigma$-clipping procedure explained above. It seems that the lines we systematically exclude, in both the 2 or 2.5$\sigma$ clipping, are the most significant causes for the different temperatures that we derive.

On the other hand, with the exception of one star, the gravities derived in this work are systematically higher than those adopted by Hamdani et al. (2000). The differences vary from 0.04 to 0.21 dex, with an average of 0.13 dex. The average difference is very close to the 1$\sigma$ uncertainty estimated for log g. While we rely on the ionization equilibrium, Hamdani et al. (2000) calculated the log g using the mass given by the isochrones and the known cluster distances. As discussed before, the spectroscopic method is known to result in systematically higher gravities. In addition, we note that this difference in log g does not seem to be related to the difference in temperature. An increase in the temperature of our stars would be followed by an increase in our log g values, which would only increase the discrepancies. The derived microturbulence velocity values behave in a similar way to the temperatures, probably for the same reason. We note that the range of our values is in excellent agreement with that found, for example, by da Silva et al. (2006) for field giants with a similar range of gravities and temperatures.

In spite of the different parameters, the metallicities ([Fe/H]) of the stars show good agreement with those of Hamdani et al. (2000). The average difference is +0.05 dex, a value well within the uncertainties. We believe this result to be evidence that reliable abundances can be derived regardless of small-scale differences introduced by the different methods of atmospheric-parameter calculation.

Gilroy (1989) appears to be the only other work that included another member of NGC 2360, star 12. It was found to have [Fe/H] = +0.20, a value that seems too high when compared with most of the metallicities obtained by us and by Hamdani et al. (2000). For NGC 2447, the only previous high-resolution analysis seems to be the one by Hamdani et al. (2000).

3.6.2 The new sample

In this section, we compare our results with literature data. We restrict the discussion to other analyses based on high-resolution spectra. In cases where the sample stars were targets of other analyses, the entire set of parameters is compared. A comparison of cluster metallicity is presented in cases where different cluster members were analyzed. To the best of our knowledge, this is the first time that atmospheric parameters and abundances have been derived for members of IC 2714 and NGC 6281 with high-resolution spectroscopy.

Members of IC 4756 were analyzed by Gilroy (1989), Luck (1994), and Jacobson et al. (2007). We have no star in common with Luck (1994) and only IC 4756_69 in common with both Gilroy (1989) and Jacobson et al. (2007). While Gilroy (1989) found $T_{\rm eff} = 5200$ K, log g = 3.20, $\xi = 2.00$ km s-1, and [Fe/H] = 0.00, in reasonable agreement with our parameters, except for the microturbulence, Jacobson et al. (2007) derived $T_{\rm eff} = 5000$ K, log g = 2.20, $\xi = 1.50$ km s-1, and [Fe/H] = -0.15. While $T_{\rm
eff}$ and $\xi$ have close values, log g and [Fe/H] are clearly discrepant. The reasons for this large discrepancy are probably related to the small number of Fe II lines used by Jacobson et al. (2007), only three. Our mean cluster metallicity, [Fe/H] = +0.04, is in good agreement with the ones found by Luck, [Fe/H] = -0.03, and Gilroy (1989), [Fe/H] = +0.04, while the mean metallicity derived by Jacobson et al. (2007), [Fe/H] = -0.15, disagrees with ours and those of other authors.

Three of the stars from NGC 3532, stars 19, 596, and 670, were also analyzed by Luck (1994). The parameters found by Luck (1994) are $T_{\rm eff} = 5000$ K, log g = 2.36, $\xi = 2.00$ km s-1, [Fe/H] = +0.13 for star 19, $T_{\rm eff} = 5000$ K, log g = 2.25, $\xi = 2.00$ km s-1, [Fe/H] = +0.08 for star 596, and $T_{\rm eff} =
4500$ K, log g = 2.00, $\xi = 2.40$ km s-1, [Fe/H] = +0.09 for star 670. Temperatures and particularly the metallicities show good agreement, while our log g differ by 0.20 to 0.35 dex and the microturbulence velocities are systematically lower. The reason for this difference is unclear since the methods used in estimating log g and $\xi$ were the same and the derived temperatures are similar. Our mean cluster metallicity is [Fe/H] = +0.04 in good agreement with the mean [Fe/H] = +0.07 found by Luck (1994).

Two high-resolution analysis of NGC 3680 members are reported in the literature, Pasquini et al. (2001) and Pace et al. (2008). The first work found an average of [Fe/H] = -0.27, although they considered the most accurate estimate to be [Fe/H] = -0.17 probably due to systematic effects. The latter work found [Fe/H] = -0.04, for two main-sequence stars. Our value for the only star that we analyze that is not included in these works, NGC 3680_13, is [Fe/H] = +0.04, which agrees with Pace et al. (2008) within the uncertainties.

Among our sample stars in NGC 5822, only star 01 had been analyzed before with high-resolution spectroscopy by Luck (1994). The parameters adopted by Luck (1994) are $T_{\rm eff} = 4800$ K, log g = 2.50, $\xi = 2.50$ km s-1, and [Fe/H] = +0.13, which are clearly different from ours. An increase of 300 K in our temperature would still cause disagreement between the parameters including a very high metallicity of [Fe/H] = +0.33. We favor our lower value of temperature, which would be in excellent agreement with the two photometric estimates, 4500 and 4450 K also listed but not adopted by Luck (1994).

None of the stars that we studied in NGC 6134 had been previously analyzed with high-resolution spectroscopy. Carretta et al. (2004) analyzed 6 stars in this cluster and found a mean metallicity of [Fe/H] = +0.15 in very good agreement with our mean metallicity, [Fe/H] = +0.12.

Of the two stars that we analyze in NGC 6633, star 100 was analyzed by both Gilroy (1989) and Valenti & Fischer (2005). Gilroy (1989) derived $T_{\rm eff} = 4800$ K, log g = 2.70, $\xi = 1.80$ km s-1, and [Fe/H] = 0.00, while Valenti & Fischer (2005) derived $T_{\rm eff} = 5245$ K, log g = 3.11, and [Fe/H] = +0.35. Our results are in closer agreement with those of Gilroy (1989), although our microturbulence is smaller and the metallicity is higher.

4 Abundances

4.1 Abundances using equivalent widths

Abundances were calculated for the elements Mg, Si, Ca, Sc, Ti, V, Cr, Co, and Ni using equivalent widths. Lines weaker than 10 mÅ, largely affected by the S/N and uncertainties in the continuum normalization, and stronger than 150 mÅ, on the saturated part of the curve of growth, were not used. The resulting abundances are listed in Table 6. We adopt the solar abundances reported in Grevesse & Sauval (1998).

In this analysis, the hyperfine structure (HFS) of the lines of elements such as Mg, Sc, V, Mn, and Co was not taken into account. Thus, caution is necessary when comparing these abundances with those obtained in other analyses. A reliable comparison is possible only within the sample analyzed here.

Table 6 includes the standard deviation of the mean values when possible. In these cases, it is possible to note that all abundances agree with the solar ones to within 2$\sigma$. The only exception is the Cr abundances given by the Cr II lines in some stars. The abundance given by the ionized Cr lines is always higher than the one given by the neutral species. The same is also seen in the case of V. As discussed before, it is possible that our spectroscopic log g values are slightly overestimated. This would also overestimate the abundances given by the ionized lines. In the cases of Cr and V, the abundance given by the neutral species is more reliable and should be preferred.

Star IC 4756_69 was found by Mermilliod & Mayor (1990) to be a spectroscopic binary. This system has a long period, 1994 days, but a very circularized orbit of eccentricity 0.0043 (Mermilliod et al. 2007). Assuming a mass of 2.37 $M_{\odot }$ for the primary, a minimum mass of 0.59 $M_{\odot }$ is estimated for the secondary, which is consistent with a possible white-dwarf nature.

The possible white-dwarf nature of the secondary, the extremely circularized orbit, and the abundance anomalies (in C and N, see below) are all consistent with there having been a past mass-transfer event in the system. The orbital elements, in particular, are consistent with those observed for barium stars by Jorissen et al. (1998). Barium stars are also enriched in carbon and s-process elements (see Smiljanic et al. 2007, and references therein). Star 69, however, was not found to be enriched in carbon and s-process elements compared to the other stars in the same cluster. This implies that the mass-transfer event occurred before the companion star reached the thermal pulses in the AGB phase and enriched itself with the products of s-process nucleosynthesis.

4.2 Abundances using spectrum synthesis

The 12C/13C ratio and the abundances of C, N, O, and Na were derived using spectrum synthesis. The codes for calculating synthetic spectra are described by Barbuy et al. (2003) and Coelho et al. (2005). We adopted the solar abundances for C, N, and Na as recommended by Grevesse & Sauval (1998), A(C) = 8.52, A(N) = 7.92, and A(Na) = 6.33. For O, we adopted the abundance suitable to the 1D atmospheric models recommended by Allende Prieto et al. (2001), A(O) = 8.77.

The carbon abundance was calculated using the C2(0, 1) bandhead of the Swan system at $\lambda $ 5135 Å. The data of the C2 molecule are those adopted by Barbuy (1985), i.e., dissociation potential D0(C2) = 6.21 eV and electronic-vibrational oscillator strength f00 = 0.0184. We consider the C abundance derived from this feature to be the sum 12C+13C. An example of the fit is shown in Fig. 5.

The nitrogen abundance was derived using the CN(5,1) $\lambda $ 6332.18 Å bandhead of the A$^2\Pi$-X$^2\Sigma$ red system. The parameters for the molecular lines are the same as those used by Smiljanic et al. (2006) and Milone et al. (1992), i.e., dissociation potential D0(CN) = 7.65 eV and electronic oscillator strength $f_{\rm el} =
6.76 \times 10^{-3}$. An example of the fit is shown in Fig. 6.

 \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f05.eps}

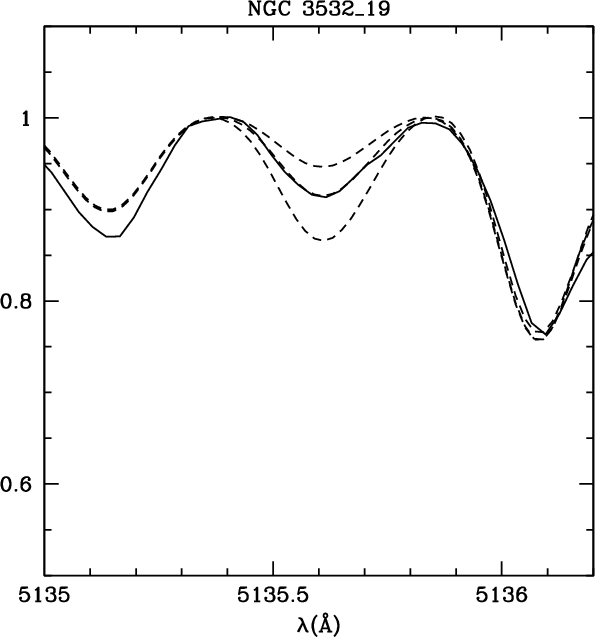

\end{figure} Figure 5:

Fit to the C2 $\lambda $ 5135.62 Å feature in NGC 3532_19. The observed spectrum is shown as a solid line. Synthetic spectra with [C/Fe] = -0.11, -0.21, and -0.31 are shown as dashed lines.

Open with DEXTER

 \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f06.eps}
\end{figure} Figure 6:

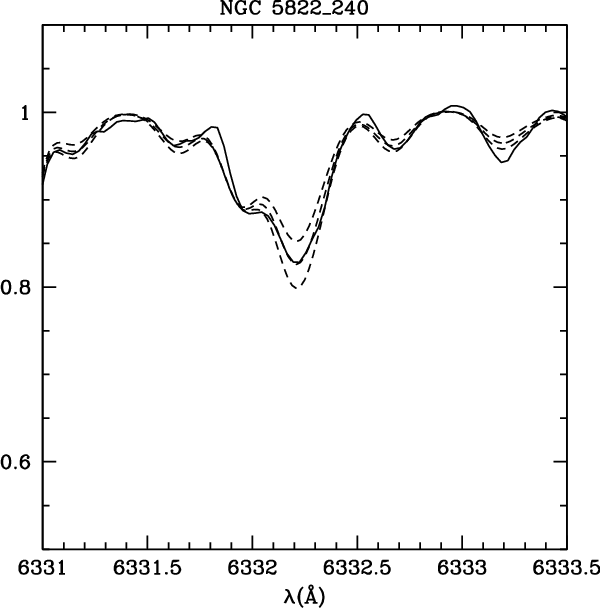

Fit to the CN $\lambda $ 6332.18 Å feature in NGC 5822_240. The observed spectrum is shown as a solid line. Synthetic spectra with [N/Fe] = +0.23, +0.33, and +0.43 are shown as dashed lines.

Open with DEXTER

 \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f07.eps}

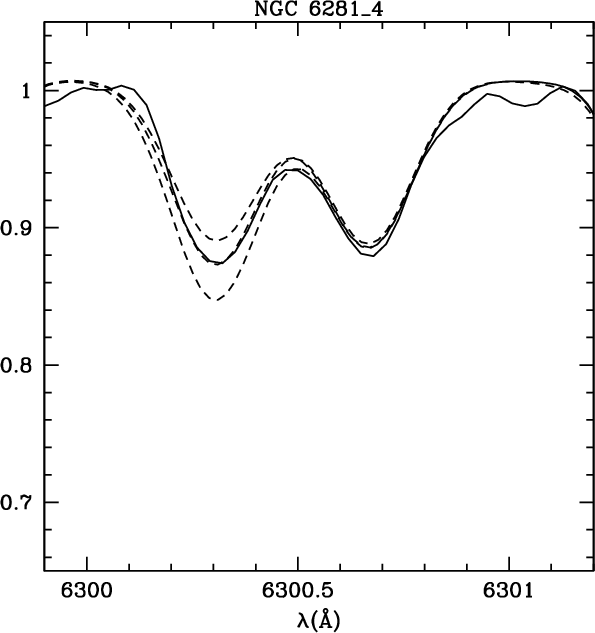

\end{figure} Figure 7:

Fit to the forbidden [O I] feature in $\lambda $ 6300 Å in NGC 6281_4. The observed spectrum is shown as a solid line. Synthetic spectra with [O/Fe] = -0.18, -0.08, and +0.02 are shown as dashed lines.

Open with DEXTER

The oxygen abundance was calculated from the [OI] 6300.311 Å forbidden line. The forbidden line is blended with a weak Ni I line at $\lambda $ 6300.34 Å, which is included in the synthesis with parameters recommended by Allende Prieto et al. (2001). It also has a nearby Sc II line at $\lambda $ 6300.70 Å  for which we adopted the hyperfine structure by Spite et al. (1989). An example of the fit is shown in Fig. 7.

The 12C/13C ratio was derived by fitting the 12CN and 13CN lines in the $\lambda\lambda$ 8000-8006 Å region. The molecular data are the same as those adopted by da Silva et al. (1995) and described in Barbuy et al. (1992). An example of the fit to this region is shown in Fig. 8. As a check, we determined the 12C/13C ratio in the spectrum of Arcturus, adopting the atmospheric parameters and CNO abundances by Meléndez et al. (2003). The value that we obtained is 12C/13C = 6, in excellent agreement with other literature results (see for example Charbonnel et al. 1998, and references therein).

The Na abundance was derived by fitting the Na I lines at $\lambda $ 6154.23 Å and 6160.753 Å. We adopted the line parameters determined by Barbuy et al. (2006) by fitting the solar spectrum, i.e., log gf = -1.56, C6 = 0.90 $\times 10^{-31}$ and log gf = -1.26, C6 =  $0.30 \times
10^{-31}$, respectively. An example of the fit to the line $\lambda $ 6154 Å is shown in Fig. 9.

Several works have estimated the influence of departures from the LTE on sodium abundances. In general, it is found that the lines at $\lambda $ 6154/6160 Å are less affected and that the effects are stronger for metal-poor stars (Gratton et al. 1999; Takeda et al. 2003; Mashonkina et al. 2000; Shi et al. 2004; Baumueller et al. 1998). For these two lines, Baumueller et al. (1998) estimated a correction between 0.00 and -0.04 dex for the Sun, in good agreement with the -0.04 dex, for $\lambda $ 6154 Å, and -0.06 dex, for $\lambda $ 6160 Å, estimated by Takeda et al. (2003), who tabulated an extensive grid of NLTE corrections for a large range of atmospheric parameters. From these same grids, an average correction of -0.07 dex to $\lambda $ 6154 Å and -0.11 dex to $\lambda $ 6160 Å would correspond to the range in parameters of our sample, or -0.03 and -0.05 in the comparison with the Sun for the lines $\lambda $ 6154 Å and 6160 Å, respectively. In Table 7, we list the mean [Na/Fe] already corrected for NLTE effects.

 \begin{figure}
\par\includegraphics[width=9cm,clip]{11113f08.eps}

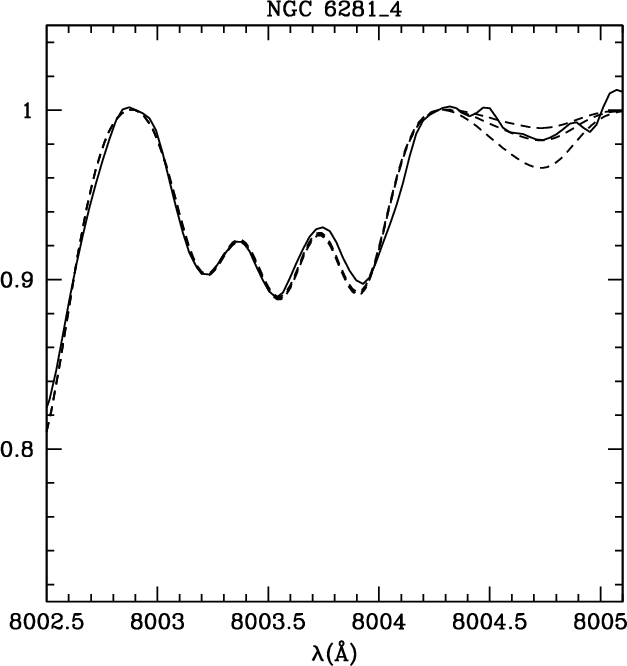

\end{figure} Figure 8:

Fit to the 12CN and 13CN features in the region of 8005 Å in NGC 6281_4. The observed spectrum is shown as a solid line. Synthetic spectra with 12CN/13CN = 06, 12, and 20 are shown as dashed lines.

Open with DEXTER

 \begin{figure}
\par\includegraphics[width=9cm,clip]{11113f09.eps}
\end{figure} Figure 9:

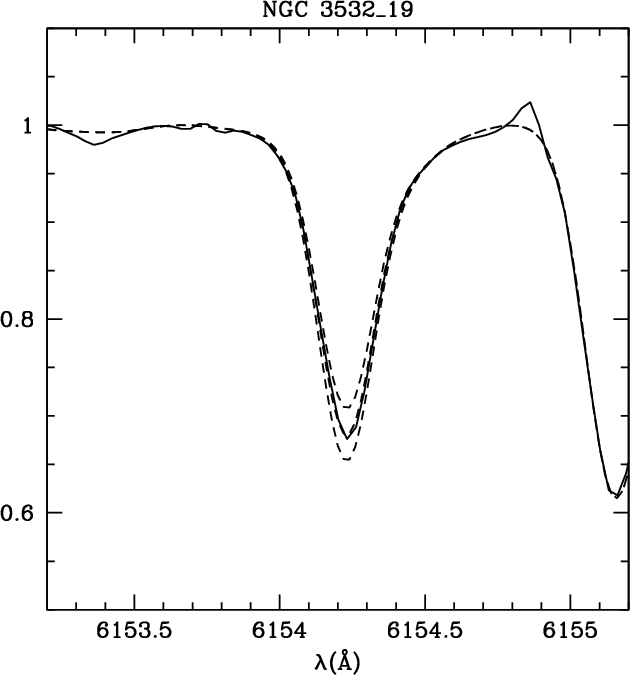

Fit to the Na I line at 6154 Å in NGC 3532_19. The observed spectrum is shown as a solid line. Synthetic spectra with [Na/Fe] = -0.10, 0.00, and +0.10 are shown as dashed lines.

Open with DEXTER

4.3 Uncertainties in the abundances

An important source of uncertainties in the abundances are the uncertainties in the determination of the atmospheric parameters. These were estimated by changing each atmospheric parameter by its uncertainty, keeping the others to their adopted values, and recalculating the abundances. In this way, we measured the effect of the parameter uncertainty on the abundance. The results are listed in Table 8. The total uncertainty was calculated by quadratically adding the individual uncertainties.

The carbon isotopic ratio is rather robust, as can be seen from Table 8, since both isotopic species are expected to react in similar ways to the change in the parameters. It is well known that only the uncertainty in the microturbulence velocity is usually important. In our case, however, the uncertainties that we estimate for these parameters are too small to introduce significant changes in the carbon isotopic ratio. For this ratio, the most important sources of uncertainties are the photon noise and the placement of the continuum.

The uncertainty due to photon noise was estimated as follows. The star IC 4756_14 was again used as a template, since its parameters lie close to the median defined by the sample. Using its atmospheric parameters and abundances, two synthetic spectra were calculated, one with 12C/13C = 10 and the other with 12C/13C = 20. Then, a Gaussian noise level equivalent to signal-to-noise ratios of 100, 200, and 350 (the range of S/N of the observed spectra) were introduced into each spectrum, producing six synthetic spectra. The 12C/13C ratio was then measured for each spectrum by searching for lower and upper values that would be considered reasonable fits. The difference between the original ratio and the upper and lower limits determined in this way therefore provided a measurement of the uncertainty introduced by the photon noise and is listed in Table 9.

Table 8:   The uncertainties in the abundances introduced by the uncertainties in the atmospheric parameters.

The uncertainty caused by the continuum placement was, again, estimated using the star IC 4756_14. The approach in this case was straightforward. The normalization of the continuum was repeated in the region of the 13CN line, adopting different but yet reasonable points to define the pseudo-continuum. The carbon isotopic ratio was then redetermined in each case. The uncertainty related to the variations in the the continuum was estimated to be $\sigma = \pm$2.

Table 9:   Uncertainty in the 12C/13C ratio caused by the photon noise.

5 Evolutionary state of the sample stars

We used the isochrone fitting shown in Figs. 1 and 2 to derive the evolutionary status of each of the sample stars. The luminosity, evolutionary state, membership, and multiplicity of each of the sample stars are listed in Table 10.

Table 10:   Luminosities, evolutionary stage, membership, and binarity of the sample stars.

IC 2714

For the relatively poorly studied southern Galactic cluster IC 2714, we adopted the numbering system of Becker (1960). Only the star IC 2714_5 was included in our sample. According to Clariá et al. (1994), IC 2714_5 is a confirmed member of the cluster based on kinematic and photometric criteria. As already noted by them, its position in the CMD (Fig. 1) indicates that the star is a clump giant in the core helium-burning phase.

IC 4756

Five stars of the Galactic cluster IC 4756 were included in our sample, IC 4756_12, 14, 28, 38, and 69, where we adopt the numbering system of Kopff (1943). Based on proper motions, Herzog et al. (1975) concluded that stars 38 and 69 have high probabilities of being members, while star 28 is a non-member. However, the values of its radial velocity measured in this work and by Mermilliod & Mayor (1990) implies that this star is a member of the cluster. All five sample stars were considered to be members by Mermilliod & Mayor (1990). The radial velocity monitoring by Mermilliod & Mayor (1990) also indicated that stars 12, 14, 28, and 38 are most probably single stars, while star 69 was shown to be a binary system with a period of 2000 days.

The color-magnitude diagram (Fig. 1) of this cluster should be interpreted with caution because it is affected by differential reddening (Smith 1983; Schmidt 1978). On the basis of their positions in the CMD, stars 12, 14, and 69 are possible clump giants, while star 28 seems to be a first-ascent red giant. Star 38 is either at the base of the RGB or in the clump.

NGC 2360

The four stars analyzed by Hamdani et al. (2000), NGC 2360_7, 50, 62, and 86, were included in our sample, where the numbering system of Becker et al. (1976) was adopted. All four stars were considered to be cluster members by Mermilliod & Mayor (1990). They also found that stars 7, 50, and 86 are most probably single stars while, star 62 is a spectroscopic binary. Stars 7 and 86 were found by Baumgardt et al. (2000) to have a 72% probability of membership based on Hipparcos (ESA 1997) proper motions. The positions of the stars in the CMD (Fig. 1) seem to indicate that stars 07, 50, and 62 are clump giants, while star 86 might be a clump or an early-AGB star.

NGC 2447

The three stars of this cluster analyzed by Hamdani et al. (2000) were included in our sample, NGC 2447_28, 34, and 41, where the numbering system from Becker et al. (1976) was also adopted. Mermilliod & Mayor (1989) found that the three stars were cluster members with no evidence of binarity. The position of the stars in the CMD (Fig. 1) seems to indicate that they are clump giants (Clariá et al. 2005).

NGC 3532

Five stars in this cluster were also included in our sample, stars NGC 3532_19, 100, 122, 596, and 670, where we adopt the numbering system of Fernandez & Salgado (1980). According to González & Lapasset (2002), stars 19, 122, and 670 show probable variations in the radial velocities and might be binaries. Stars 100 and 596 do not exhibit radial-velocity variability and are possible single stars. Kinematically, González & Lapasset (2002) consider all five stars to be cluster members, although they flag star 670 with a doubtful membership because of its large distance from the cluster center. The photometric criteria by Clariá & Lapasset (1988) for assigning membership indicate that all stars except star 122 are cluster members.

As noted by Clariá & Lapasset (1988), the positions of the stars in the CMD (Fig. 1) seem to indicate that stars 19 and 596 are possible clump giants in the core helium-burning phase. Star 122 might be either a clump or an RGB star. Star 100 seems to be slightly more evolved, possibly on the early AGB. Star 670 is the most luminous star of our sample. It is above the luminosity expected for the end of the core helium-burning and is thus probably an AGB star. We note however that Clariá & Lapasset (1988) classified this same star as a tip RGB object, a possibility that we cannot exclude.

NGC 3680

Only one star of this cluster was included in our analysis, star NGC 3680_13, adopting the numbering system of Eggen (1969). Based on proper motions, Kozhurina-Platais et al. (1995) concluded that star 13 is a member of the cluster. Mermilliod et al. (1995) found no evidence of binarity and thus we consider star 13 to be a single star. Clariá & Lapasset (1983) classified the object as a core He-burning clump star. The isochrone that we used from Schaller et al. (1992) does not extend beyond the He flash. Based only in the CMD (Fig. 1), we identify NGC 3680_13 instead as a bump RGB star. However, we do not exclude the possibility of it being a clump giant.

NGC 5822

Five stars of this open cluster were included in our analysis, stars NGC 5822_1, 201, 240, 316, and 443, where we adopt the numbering system of Bozkurt (1974). According to Mermilliod & Mayor (1990), all five stars seem to be true members of the cluster. In this same work, star 201 was found to be a spectroscopic binary and all other sample stars are most probably single stars. According to the CMD (Fig. 2), we classified stars 240 as a first ascent giant, stars 201 and 316 as clump stars, and star 01 as an early-AGB star. Star 443 might be either a RGB or an early-AGB star.

NGC 6134

Three stars in this cluster were included in our analysis, NGC 6134_30, 99, and 202, according to the numbering system of Lindoff (1972). According to Clariá & Mermilliod (1992), all three stars are members of the cluster, stars 99 and 202 are single stars and star 30 is a spectroscopic binary. According to their positions in the CMD (Fig. 2), stars 30 and 99 are probable clump or early-AGB stars, while star 202 might be a RGB or an early-AGB star.

NGC 6281

Two stars in this open cluster were included in our sample, NGC 6281_3 and 4, according to the numbering system of Feinstein & Forte (1974). The photometric criteria of Clariá et al. (1989) and the proper motions of Dias et al. (2001) indicate that both stars are cluster members. In the CMD (Fig. 2), both stars seem to be clump giants.

NGC 6633

Two stars of this open cluster are included in our sample, NGC 6633_78 and 100, where we adopt the numbering system of Kopff (1943). The proper motion study by Vasilevskis et al. (1958) indicated that star 100 is a member. The radial velocity measurements of Mermilliod & Mayor (1989) indicated that both stars are single stars and true members. According to their positions in the CMD (Fig. 2), star 100 is a clump giant and star 78 might be an early-AGB star.

6 Discussion

6.1 Carbon, nitrogen, and oxygen

When the material is processed by the CNO-cycle, the relative abundances of C, N, and O change, but the sum C+N+O should remain constant. In Table 7, we list the sums C+N, O+N, C+O, and C+N+O for the sample stars. The sum of C+N+O in our sample varies slightly from 8.79 to 8.98, with an average of 8.88 $\pm$ 0.06. This value is close to the solar one, 9.00, and agrees with the almost solar average metallicity of our sample, [Fe/H] = +0.05 $\pm$ 0.06. The agreement between stars in a given cluster is also excellent, confirming that the observed mixing effects on CNO abundances are the result of the CNO-cycle.

In Fig. 10, we plot the nitrogen abundances of the sample stars as a function of the carbon abundances. The isolated open square with high N and low C is star IC 4756_69, a binary star with a low-mass companion, probably a white dwarf. For this object, the observed CNO abundances (in reality, an upper limit for carbon and a lower limit for nitrogen) are compatible with those observed in more massive giants (Smiljanic et al. 2006) and are probably caused by a mass-transfer event in the system. We thus excluded IC 4756_69 from the following plots and discussion. The star with the lowest N content is NGC 2360_62 (starred symbol in Fig. 10), which is also a binary star. However, the reason for its low nitrogen abundance is unclear.

 \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f10.eps}

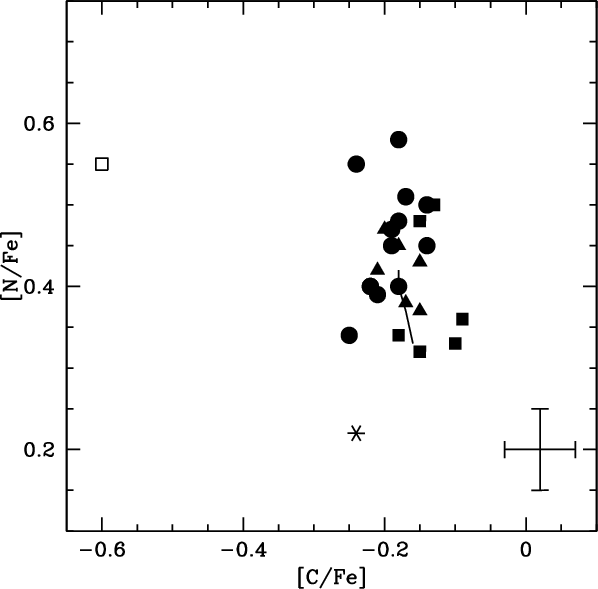

\end{figure} Figure 10:

Nitrogen abundances, [N/Fe], as a function of the carbon abundances, [C/Fe], for the sample stars. Star IC 4756_69 is shown as an open square, star NGC 2360_62 as a starred symbol. Possible RGB stars, including the ones with dubious classification, are shown as full squares, clump giants as full circles, and possible early-AGBs as full triangles. The solid line connects the values expected for stars between 1.7 and 4.0 $M_{\odot }$ in the models of Schaller et al. (1992). A typical error bar is shown.

Open with DEXTER

Excluding these 2 stars, one can note that there is no correlation between C and N; a correlation coefficient of $\rho$ = -0.14 is found. The remaining stars have an average [C/Fe] = -0.17 $\pm$ 0.04 and an average [N/Fe] = +0.43 $\pm$ 0.07. The low rms values imply that the stars have very similar abundances. To discuss mixing, however, it is more appropriate to use the [N/C] ratio rather than the N or C abundances. This ratio is given in Table 7. The sample has an average of [N/C] = +0.61 $\pm$ 0.08, in excellent agreement with the ratio predicted after the first dredge-up by the models of Schaller et al. (1992) for a star with 2.5 $M_{\odot }$, [N/C] = +0.58 (Charbonnel 1994).

In Fig. 11, we plot the [N/C] ratio as a function of the stellar mass at the clump of each cluster. The clump mass must be very close to the mass of the sample stars in the individual clusters. Only small differences are expected, as can be seen by comparing the mass at the red turn-off and the mass at the clump, as listed in Table 2. In the same figure, we show as a solid line the [N/C] predicted by the models of Schaller et al. (1992) as a function of mass after the first dredge-up. A small increase in [N/C] with stellar mass is predicted, in agreement with the observed behavior. A small difference in the average abundances on each side of the mass gap, between 2.4 and 2.8 $M_{\odot }$, is suggested by the figure. The stars of lower mass have, on average [N/C] = +0.57 $\pm$ 0.08, while the stars of higher mass have [N/C] = +0.64 $\pm$ 0.08. Given the observational uncertainties, it is however difficult to judge whether this difference is real.

 \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f11.eps}

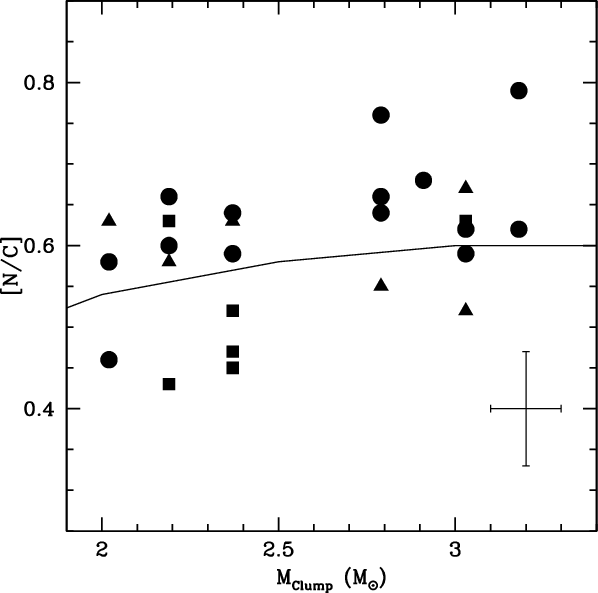

\end{figure} Figure 11:

[N/C] ratio as a function of the stellar mass at the clump. Possible RGB stars are shown as full squares, clump giants as full circles, and possible early-AGBs as full triangles.The solid line represents the predicted [N/C] as a function of initial stellar mass given by the models of Schaller et al. (1992).

Open with DEXTER

The stars in all figures of this section are plotted with different symbols according to their possible evolutionary stages. The group of stars with higher mass in Fig. 11 (>2.5 $M_{\odot }$) mostly consist of more evolved clump (circles) and early-AGB stars (triangles). On the other hand, most less evolved RGB stars (squares) have masses lower than 2.5 $M_{\odot }$. These less evolved stars tend to have lower [N/C] ratios than clump and early-AGBs of the same mass.

The four RGB stars in the lower mass range with smaller [N/C] are IC 4756_28, IC 4756_38, NGC 5822_240, and NGC 6134_202. The circle with low [N/C] is star NGC 2360_62, the binary with an anomalous low N abundance. This group of four stars has an average of [N/C] = +0.47 $\pm$ 0.04. The remaining, and possibly more evolved, stars with masses lower than 2.4 $M_{\odot }$ have [N/C] = +0.63 $\pm$ 0.03. In case the difference in the abundances is real, it might be related to the evolutionary status of the stars.

There are three other stars in the sample that could potentially be RGB stars based on the CMDs, NGC 3532_122, NGC 3680_13, and NGC 5822_443. We do not have the [N/C] ratio for NGC 3680_13. Both of the other stars have [N/C] = +0.63. The higher [N/C] value of these last two stars might argue they are not RGB stars but more evolved giants.

We note that the models by Schaller et al. (1992) may overestimate the effect of the first dredge-up for stars with $\sim$2.2 $M_{\odot }$. For a 1.5 $M_{\odot }$ star, Schaller et al. (1992) predict [N/C] = +0.44, closer to the average value of the RGB stars discussed above. Observations must thus be compared to predictions of models that include up-to-date initial abundances and solar mixtures. Work is in progress in that direction.

 \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f12.eps}
\end{figure} Figure 12:

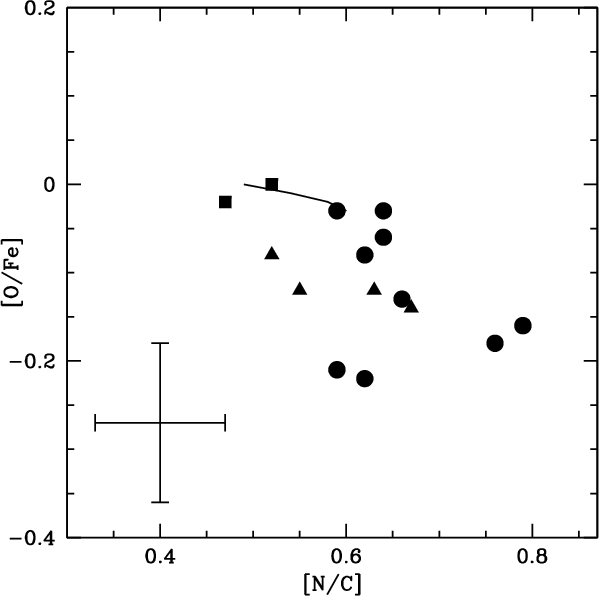

The oxygen abundance of the sample stars as a function of the [N/C] ratio. Star IC 4756_69 is not shown. Symbols are as in Fig. 11. The solid line connects the values expected for stars between 1.7 and 4.0 $M_{\odot }$ in the models of Schaller et al. (1992). A typical error bar is shown.

Open with DEXTER

In Fig. 12, we show the oxygen abundances of the sample stars as a function of the [N/C] ratio. A weak anti-correlation is evident with $\rho$ = -0.53. This correlation was not detected by Smiljanic et al. (2006) for more massive stars, $M/M_{\odot}\geq 4$. However, the correlation was seen by Luck et al. (2006) for these more massive stars. Given the uncertainties, one needs to be cautious in these interpretations. Further analyses with larger samples are necessary before a conclusion can be made.

In Fig. 13, we show the [O/Fe] ratio as a function of the stellar mass. The solid line represents the oxygen abundance in the models of Schaller et al. (1992) after the first dredge-up. Only a small change in [O/Fe] is expected. Our results suggest a slightly more pronounced dependence with the mass. However, it is interesting that the stars on the theoretical curve belong to the same cluster, IC 4756. This includes two of the RGB stars, IC 4756_28 and 38, but also the clump giants IC 4756_12 and 14. If the effect that we observe is real, it seems to be an effect related to the stellar mass and not to an extra-mixing affecting giants with different evolutionary stages.

 \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f13.eps}
\end{figure} Figure 13:

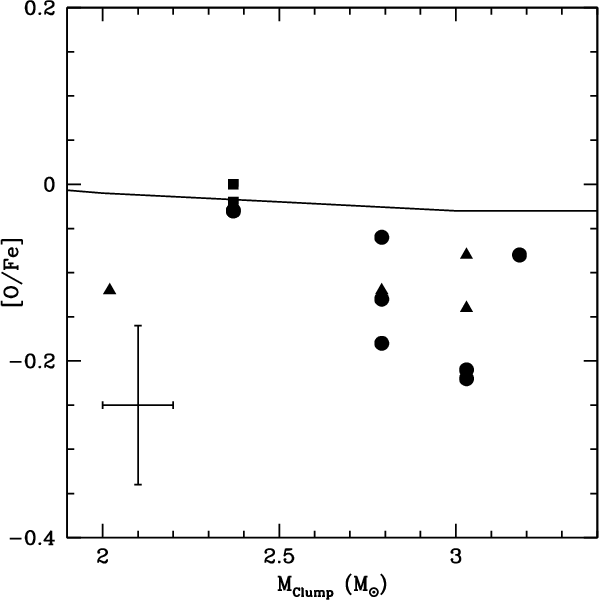

The oxygen abundance of the sample stars as a function of the stellar mass at the clump. Symbols are as in Fig. 11. The solid line represents the predicted [O/Fe] as a function of initial stellar mass given by the models of Schaller et al. (1992).

Open with DEXTER

6.2 Sodium

Sodium abundances have been calculated for giants in a number of open clusters. Very different results have however been reported in the literature. Some works measured sodium overabundances of as high as [Na/Fe] = +0.60 (Jacobson et al. 2007), some reported only a mild overabundance of [Na/Fe] = +0.20 (Hamdani et al. 2000), and others reported solar or almost solar abundances (Sestito et al. 2007). Among the factors responsible for this discrepancy was the adoption of different gfs for the Na lines. For example, the values of gfs that we adopt were derived with respect to the Sun for the lines $\lambda $ 6154 Å and 6160 Å and by using a solar sodium abundance of A(Na) = 6.33 (Grevesse & Sauval 1998). These values are the same as those reported in the NIST database. They are 0.18 and 0.24 dex higher, respectively, than the values adopted by Jacobson et al. (2007), which had been derived with respect to Arcturus. Another factor is the adoption of different NLTE corrections, or even no correction. As discussed before, we adopted corrections in our analysis that are based on the work by Takeda et al. (2003).

In Fig. 14, we plot the sodium abundances derived in this work as a function of [N/C]. We obtain a correlation coefficient of $\rho$ = 0.49, which indicates if anything only a weak correlation. The average sodium abundance of the sample is [Na/Fe] = 0.01 $\pm$ 0.05, for the complete interval of [N/C].

 \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f14.eps}

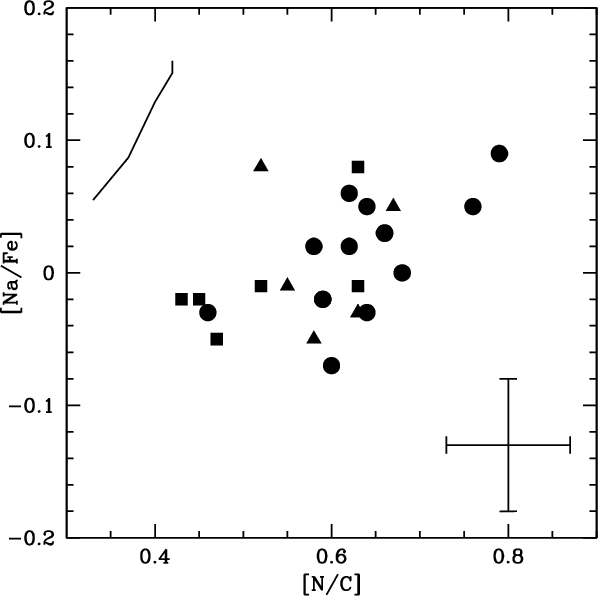

\end{figure} Figure 14:

Sodium abundance, [Na/Fe], as a function of the [N/C] ratio for the sample stars. Symbols are as in the previous figures. The solid line connects the values for [Na/Fe] expected for stars between 1.8 and 4.0 $M_{\odot }$ in the models of Mowlavi (1999) to the [N/C] values of Schaller et al. (1992). A typical error bar is shown.

Open with DEXTER

The sodium abundances are displayed in Fig. 15 as a function of stellar mass, together with the first dredge-up predictions from a standard evolution code (Mowlavi 1999; Hamdani et al. 2000). Both the observed and predicted abundances show an increase of about 0.10 dex over the mass range covered by our sample. A $2 \times 2$ contingency table was compiled with the limits $M_{\rm clump}$ = 2.5 and [Na/Fe] = 0.00. The two-tailed Fisher test yields a probability P = 0.011 that the samples are drawn from the same parent population, which demonstrates that the correlation is significant. The agreement would be perfect were it not for a slight offset of about 0.08 dex between the observed and predicted data. Since we do not expect the sodium surface abundance to decrease during the evolution of a star by means of the first and second dredge-ups, we may argue that our observed values are, on average, slightly underestimated by about 0.08 dex. While this remains within the margins of error, the most significant result of our data is the relative increase in the Na abundances as a function of stellar mass by an amount that agrees with model predictions.

In summary, our results do not support the claim by Jacobson et al. (2007, and references therein) of sodium overabundances as high as +0.60 in giants of open clusters, in agreement with the conclusions of Randich et al. (2006) and Sestito et al. (2008,2007). Our results instead are consistent with a slight dependence, as predicted by standard stellar evolution models, of the sodium abundance at the surface of red giants on stellar mass.

 \begin{figure}
\par\includegraphics[width=9cm,clip]{11113f15.eps}

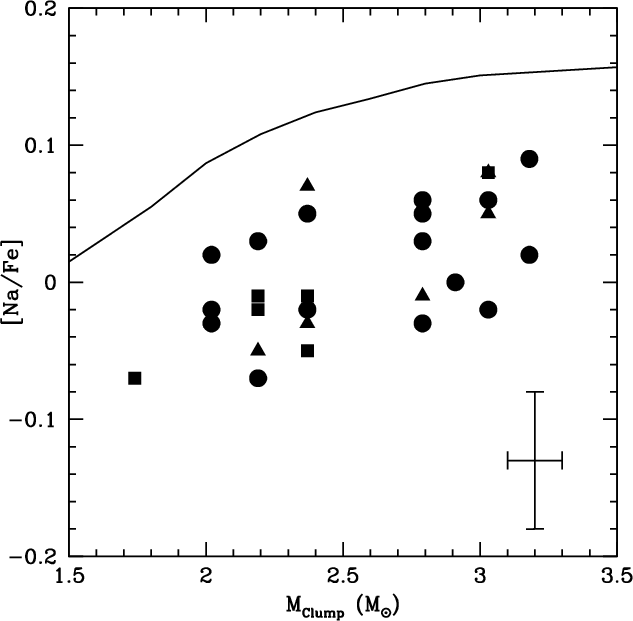

\end{figure} Figure 15:

Sodium abundances, [Na/Fe], as a function of the stellar mass at the clump. A typical error bar is shown. The solid line represents the predicted [Na/Fe] as a function of initial stellar mass, given by the models of Mowlavi (1999).

Open with DEXTER

6.3 12C/13C

Gilroy (1989) and Gilroy & Brown (1991) analyzed stars from 20 open clusters and showed that the 12C/13C ratio in giants of clusters with turn-off masses higher than $\sim$2.2 $M_{\odot }$ agree with the expected behavior from standard first dredge-up models, 12C/13$\sim$ 20 (Schaller et al. 1992; see also Fig. 6 of Charbonnel 1994). They also found, on the other hand, that giants in clusters with turn-off masses lower than $\sim$2.2 $M_{\odot }$ have a decreasing carbon isotopic ratio with decreasing turn-off mass.

Although Gilroy & Brown (1991) found no evidence in M67 for different carbon isotopic ratios between red giants and clump giants, Tautvaisiene et al. (2000) analyzing a larger sample of M 67 clump giants found a small difference between the isotopic ratios of these two groups. A possible additional mixing after the He-core flash was suggested. A similar difference between clump and red giants, however, was not found by Tautvaisiene et al. (2005) in NGC 7789.

 \begin{figure}
\par\includegraphics[width=9cm,clip]{11113f16.eps}

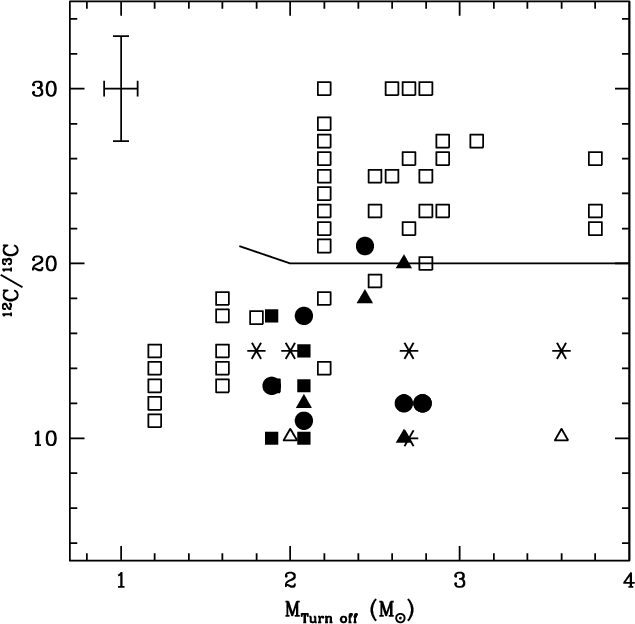

\end{figure} Figure 16:

The carbon isotopic ratio, 12C/13C, as a function of turn-off mass. Stars analyzed in this work are plotted as in the previous figures: the stars analyzed by Gilroy (1989) are shown as open squares, and the stars analyzed by Luck (1994) are shown as starred symbols, or as an open triangle when only a lower limit was available. The theoretical value of 12C/13C as a function of the initial stellar mass from the models of Schaller et al. (1992) is shown as a solid line.

Open with DEXTER

In Fig. 16, we plot the carbon isotopic ratios of our sample as a function of the turn-off mass. The isotopic ratios of the cluster stars analyzed by Gilroy (1989) and Luck (1994) are also shown. In this figure, we decided to plot turn-off mass and not the clump mass, which is a more reliable indicator of the true stellar mass, to facilitate the comparison with previous results. This figure shows that part of our determinations are in good agreement with the relation between 12C/13C and turn-off mass found by Gilroy (1989). However, it is also clear that some stars have lower 12C/13C ratios than previously found. In the case of the cluster stars with $M_{\rm TO} \sim 2.0$ $M_{\odot }$, we find additional stars with low carbon isotopic ratios. The mean ratio for stars in this region is 12C/13C = 13.1 $\pm$ 2.6. The second group of low 12C/13C stars, however, have higher masses, which cannot be explained by the observational scatter. Four stars in clusters with $M_{\rm TO} \geq 2.6$ $M_{\odot }$ have an average of 12C/13C = 11.5 $\pm$ 1.0. These stars, NGC 3532_19, NGC 3532_100, NGC 6281_3, and NGC 6281_4, deviate considerably from other stars in the same mass range. This behavior has not been clearly detected or reported before. This result shows that intermediate-mass stars may also experience an extra-mixing episode, which produces a drop of the 12C/13C ratio.

In low-mass RGB stars, the low carbon isotopic ratio is attributed to thermohaline mixing operating immediately after the RGB bump (Charbonnel & Zahn 2007a). For intermediate-mass stars, thermohaline mixing is not expected to occur during the RGB because these stars ignite central helium-burning before reaching the bump. However, as suggested by Charbonnel & Balachandran (2000), a similar mechanism might operate in higher mass stars during the early-AGB phase (see also Cantiello & Langer 2008). This effect might explain the observed low 12C/13C ratio in these stars.

However, when we consider the stellar evolutionary status that we have determined, some difficulties remain. Indeed of the four stars with $M/M_{\odot} \geq
2.0$ and low 12C/13C, only NGC 3532_100 was classified as an early-AGB, the remaining three stars being classified as clump stars. Furthermore, the two stars classified as AGBs with $M/M_{\odot} \geq
2.0$ have high 12C/13C (NGC 3532_670 and NGC 6633_78). This could imply that not all of these stars will develop a low 12C/13C ratio. As discussed by Charbonnel & Zahn (2007b), thermohaline mixing could indeed be inhibited by fossil magnetic fields in stars that are descendants of Ap stars. On the other hand, one should also keep in mind that a reliable classification of these stars is not an easy task and this could affect our findings.

The 12C/13C ratio of the four probable RGB stars was determined and found to be low for three of them, IC 4756_28, 38, and NGC 5822_443. In the CMD two of the stars seem to be post-bump giants, which explains their low ratio. However, IC 4756_38 was classified as a pre-bump giant or alternatively as a clump star in spite of its low [N/C]. We note that the cluster IC 4756 is affected by differential reddening, which complicates the classification of its member stars.

7 Conclusions

We have reported the observational results of a homogeneous abundance analysis of elements affected by evolutionary mixing in giants of open clusters. Abundances of C, N, O, Na and the 12C/13C ratio are derived from high resolution, high S/N spectra using spectrum synthesis. Our sample consists of 31 objects, including red giants, clump giants, and early-AGB stars, in 10 open clusters.

The average [N/C] ratio of the sample, [N/C] = +0.61, is in very good agreement with the values predicted by the Schaller et al. (1992) models after the first dredge-up. However, we identify a group of first ascent red giants with average [N/C] = +0.43 $\pm$ 0.04, which is lower than for the more evolved stars, with [N/C] = +0.63 $\pm$ 0.03. This result might indicate a real difference in mixing between red giants and clump or early-AGB giants, in contrast to that expected in the standard stellar models, but in agreement with models including thermohaline convection (Charbonnel & Zahn 2007a; Charbonnel et al., in preparation).

A weak trend with mass, in the sense of smaller [O/Fe] for higher mass stars, is also suggested. This must however be interpreted with caution because of the observational error bars.

The sodium abundances derived in our sample are between the values [Na/Fe] = -0.08 and 0.10 dex. We thus do not measure any high sodium overabundance, i.e., values of up to +0.60 dex, as previously reported in the literature. However, the strength of our analysis is the range of stellar masses covered by our stars, inbetween 1.8 and 3.2 $M_{\odot }$, in which stellar evolution models predict an increase of 0.10 dex in the surface sodium enhancement as a function of stellar mass. Our results agree with both the continuous increase in [Na/Fe] predicted as a function of stellar mass and the predicted amplitude of this increase of 0.10 between 1.8 and 3.2 $M_{\odot }$.

The well-known correlation between 12C/13C and mass, for stars with $M/M_{\odot}$ $\leq$ 2.5, is also seen in our results. However, we also discuss for the first time a group of slightly more massive stars with low 12C/13C. Since these more massive stars do not go through the bump while on the RGB, the extra-mixing events that modify their surface abundances do not occur at the same evolutionary phase as for stars with $M/M_{\odot}$ $\leq$ 2.5. However, as discussed by Charbonnel & Balachandran (2000), an extra-mixing event might take place in these stars during the early-AGB and could be related to thermohaline convection (see Charbonnel & Zahn 2007a; Cantiello & Langer 2008).

A detailed comparison of these observational results with the predictions of evolutionary models that include the effects of the thermohaline mixing, will be presented in a forthcoming paper.

Acknowledgements
We are indebted to Dr. Daniel Erspamer, former Ph.D. student at Institut d'Astronomie de l'Universit de Lausanne, for having carried out the observations. This research has made use of the WEBDA database, operated at the Institute for Astronomy of the University of Vienna and of the Simbad database operated at CDS, Strasbourg, France. R.S. acknowledges a FAPESP PhD fellowship (04/13667-4). R.G., P.N., and C.C. thank the Swiss National Science Foundation for its support.

Appendix A: Equivalent widths

The equivalent widths (EWs) of the 31 giants analyzed in this work are given in Table A.1, available in electronic form at the CDS.

References

Online Material

Table 1:   Log book of the observations.

Table 3:   The atmospheric parameters of the sample stars. The values for [Fe I/H] and [Fe II/H] are followed by the standard deviation and the number of lines on which the abundance is based. The spectroscopic values are the ones adopted throughout this work.

Table 6:   Mean elemental abundances for the program stars, followed by the standard deviation, when applicable, and the number of lines on which the abundance is based.

Table 7:   Abundances of Na, C, N, and O, and the 12C/13C ratio. We list the NLTE sodium abundances already corrected, as discussed in the text. The [N/C] ratio and the sums C+N, O+N, C+O, and C+N+O are also given.


Footnotes

... clusters[*]
Observations collected at ESO, La Silla, Chile (programmes 56.A-0285 and 65.L-0026A).
...[*]
Tables 1, 3, 6 and 7 are only available in electronic form at http://www.aanda.org
...[*]
Table A.1 is only available in electronic form at the CDS via anonymous ftp to cdsarc.u-strasbg.fr (130.79.128.5) or via http://cdsweb.u-strasbg.fr/cgi-bin/qcat?J/A+A/502/267
... database[*]
The WEBDA database is a large database for stars in Galactic open clusters developed by Jean-Claude Mermilliod and now maintained by Ernst Paunzen of the Institute of Astronomy of the University of Vienna. The database can be accessed in the internet at the address: http://www.univie.ac.at/webda/
... [Fe/H][*]
[A/B] = log [N(A)/N(B)] $_{\rm\star}$ - log [N(A)/N(B)] $_{\rm\odot}$.
... IRAF[*]
IRAF is distributed by the National Optical Astronomy Observatory, which is operated by the Association of Universities for Research in Astronomy, Inc., under cooperative agreement with the National Science Foundation of the USA.

All Tables

Table 2:   Physical data of the open clusters adopted from the literature or calculated in this work (see text).

Table 4:   Uncertainties in the adopted atmospheric parameters.

Table 5:   Atmospheric parameters derived by Hamdani et al. (2000) for the stars in common with our sample.

Table 8:   The uncertainties in the abundances introduced by the uncertainties in the atmospheric parameters.

Table 9:   Uncertainty in the 12C/13C ratio caused by the photon noise.

Table 10:   Luminosities, evolutionary stage, membership, and binarity of the sample stars.

Table 1:   Log book of the observations.

Table 3:   The atmospheric parameters of the sample stars. The values for [Fe I/H] and [Fe II/H] are followed by the standard deviation and the number of lines on which the abundance is based. The spectroscopic values are the ones adopted throughout this work.

Table 6:   Mean elemental abundances for the program stars, followed by the standard deviation, when applicable, and the number of lines on which the abundance is based.

Table 7:   Abundances of Na, C, N, and O, and the 12C/13C ratio. We list the NLTE sodium abundances already corrected, as discussed in the text. The [N/C] ratio and the sums C+N, O+N, C+O, and C+N+O are also given.

All Figures

  \begin{figure}
\par\includegraphics[angle=-90,width=14.2cm,clip]{11113f01.eps}
\end{figure} Figure 1:

The fitting of the color-magnitude diagrams of the clusters IC 2714, IC 4756, NGC 2360, NGC 2447, NGC 3532, and NGC 3680 with the isochrones by Schaller et al. (1992), used to determine the turn-off mass of the clusters (except for NGC 2360 and NGC 2447, see text). The observed stars are shown as full circles and are identified by their numbers. The parameters adopted for the fittings are the ones listed in Table 2.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[angle=-90,width=13cm,clip]{11113f02.eps}
\end{figure} Figure 2:

The fitting of the color-magnitude diagrams of the clusters NGC 5822, NGC 6134, NGC 6281, and NGC 6633 with the isochrones by Schaller et al. (1992), used to determine the turn-off mass of the clusters (except for NGC 6134, see text). The observed stars are shown as full circles and identified by their numbers. The parameters adopted for the fittings are those listed in Table 2.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=7.5cm,clip]{11113f03.eps}
\end{figure} Figure 3:

Iron abundance of both Fe I (full circles) and Fe II lines (open circles) versus the line excitation potential for the star NGC 3532_100. The solid line is a linear fit to the Fe I lines indicating that the excitation equilibrium was fulfilled. The ionization equilibrium was also obtained by setting the Fe I and Fe II abundances to be equal, determining the surface gravity.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=7.5cm,clip]{11113f04.eps}
\end{figure} Figure 4:

Iron abundance versus W for the Fe I lines of NGC 3532_100. This plot was used to determine the microturbulence velocity by requiring a null correlation between [Fe I/H] and the Ws.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f05.eps}
\end{figure} Figure 5:

Fit to the C2 $\lambda $ 5135.62 Å feature in NGC 3532_19. The observed spectrum is shown as a solid line. Synthetic spectra with [C/Fe] = -0.11, -0.21, and -0.31 are shown as dashed lines.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f06.eps}
\end{figure} Figure 6:

Fit to the CN $\lambda $ 6332.18 Å feature in NGC 5822_240. The observed spectrum is shown as a solid line. Synthetic spectra with [N/Fe] = +0.23, +0.33, and +0.43 are shown as dashed lines.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f07.eps}
\end{figure} Figure 7:

Fit to the forbidden [O I] feature in $\lambda $ 6300 Å in NGC 6281_4. The observed spectrum is shown as a solid line. Synthetic spectra with [O/Fe] = -0.18, -0.08, and +0.02 are shown as dashed lines.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=9cm,clip]{11113f08.eps}
\end{figure} Figure 8:

Fit to the 12CN and 13CN features in the region of 8005 Å in NGC 6281_4. The observed spectrum is shown as a solid line. Synthetic spectra with 12CN/13CN = 06, 12, and 20 are shown as dashed lines.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=9cm,clip]{11113f09.eps}
\end{figure} Figure 9:

Fit to the Na I line at 6154 Å in NGC 3532_19. The observed spectrum is shown as a solid line. Synthetic spectra with [Na/Fe] = -0.10, 0.00, and +0.10 are shown as dashed lines.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f10.eps}
\end{figure} Figure 10:

Nitrogen abundances, [N/Fe], as a function of the carbon abundances, [C/Fe], for the sample stars. Star IC 4756_69 is shown as an open square, star NGC 2360_62 as a starred symbol. Possible RGB stars, including the ones with dubious classification, are shown as full squares, clump giants as full circles, and possible early-AGBs as full triangles. The solid line connects the values expected for stars between 1.7 and 4.0 $M_{\odot }$ in the models of Schaller et al. (1992). A typical error bar is shown.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f11.eps}
\end{figure} Figure 11:

[N/C] ratio as a function of the stellar mass at the clump. Possible RGB stars are shown as full squares, clump giants as full circles, and possible early-AGBs as full triangles.The solid line represents the predicted [N/C] as a function of initial stellar mass given by the models of Schaller et al. (1992).

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f12.eps}
\end{figure} Figure 12:

The oxygen abundance of the sample stars as a function of the [N/C] ratio. Star IC 4756_69 is not shown. Symbols are as in Fig. 11. The solid line connects the values expected for stars between 1.7 and 4.0 $M_{\odot }$ in the models of Schaller et al. (1992). A typical error bar is shown.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f13.eps}
\end{figure} Figure 13:

The oxygen abundance of the sample stars as a function of the stellar mass at the clump. Symbols are as in Fig. 11. The solid line represents the predicted [O/Fe] as a function of initial stellar mass given by the models of Schaller et al. (1992).

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=8.5cm,clip]{11113f14.eps}
\end{figure} Figure 14:

Sodium abundance, [Na/Fe], as a function of the [N/C] ratio for the sample stars. Symbols are as in the previous figures. The solid line connects the values for [Na/Fe] expected for stars between 1.8 and 4.0 $M_{\odot }$ in the models of Mowlavi (1999) to the [N/C] values of Schaller et al. (1992). A typical error bar is shown.

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=9cm,clip]{11113f15.eps}
\end{figure} Figure 15:

Sodium abundances, [Na/Fe], as a function of the stellar mass at the clump. A typical error bar is shown. The solid line represents the predicted [Na/Fe] as a function of initial stellar mass, given by the models of Mowlavi (1999).

Open with DEXTER
In the text

  \begin{figure}
\par\includegraphics[width=9cm,clip]{11113f16.eps}
\end{figure} Figure 16:

The carbon isotopic ratio, 12C/13C, as a function of turn-off mass. Stars analyzed in this work are plotted as in the previous figures: the stars analyzed by Gilroy (1989) are shown as open squares, and the stars analyzed by Luck (1994) are shown as starred symbols, or as an open triangle when only a lower limit was available. The theoretical value of 12C/13C as a function of the initial stellar mass from the models of Schaller et al. (1992) is shown as a solid line.

Open with DEXTER
In the text


Copyright ESO 2009

Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.

Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.

Initial download of the metrics may take a while.
