High-energy characteristics of the schizophrenic pulsar PSR J1846-0258 in Kes 75 - Multi-year RXTE and INTEGRAL observations crossing the magnetar-like outburst

L. Kuiper; W. Hermsen

doi:10.1051/0004-6361/200811580

Home

All issues

Volume 501 / No 3 (July III 2009)

A&A, 501 3 (2009) 1031-1046

Full HTML

Free Access

Issue		A&A Volume 501, Number 3, July III 2009


Page(s)		1031 - 1046
Section		Stellar structure and evolution
DOI		https://doi.org/10.1051/0004-6361/200811580
Published online		13 May 2009

High-energy characteristics of the schizophrenic pulsar PSR J1846-0258 in Kes 75

Multi-year RXTE and INTEGRAL observations crossing the magnetar-like outburst

L. Kuiper¹ - W. Hermsen^1,2

1 - SRON-Netherlands Institute for Space Research, Sorbonnelaan 2, 3584 CA, Utrecht, The Netherlands
2 - Astronomical Institute ``Anton Pannekoek", University of Amsterdam, Kruislaan 403, 1098 SJ Amsterdam, The Netherlands

Received 23 December 2008 / Accepted 22 April 2009

Abstract
Context.
Aims. PSR J1846-0258 is a young rotation-powered pulsar with one of the highest surface magnetic field strengths, located in the centre of SN-remnant Kes-75. In June 2006 a magnetar-like outburst took place. Using multi-year RXTE and INTEGRAL observations covering the epoch of the outburst, we aim to study the temporal and spectral characteristics of PSR J1846-0258 over a broad $\sim$ 3-300 keV energy range to derive constraints on theoretical scenarios aiming to explain this schizophrenic behaviour.
Methods. We explored all publically available RXTE observations of PSR J1846-0258 to generate accurate ephemerides over the period January 30, 2000-November 7, 2007. Phase-folding procedures yielded pulse profiles for RXTE PCA ( $\sim$ 3-30 keV), RXTE HEXTE ( $\sim$ 15-250 keV) and INTEGRAL ISGRI ( $\sim$ 20-300 keV). The pulsed spectrum over the full $\sim$ 3-300 keV energy range was derived, as well as the total spectrum (including the pulsar wind nebula) over the 20-300 keV band with the ISGRI. The timing, spatial, and spectral analyses were applied for epochs before, during, and after the magnetar-like outburst to study the evolution of the high-energy characteristics.
Results. ISGRI detected PSR J1846-0258/Kes-75 before outburst during 2003-2006 with a power-law-shape spectrum over the 20-300 keV energy range with photon index $\Gamma$ = $1.80\pm0.06$ and energy flux (20-300 keV) of $(6.62\pm 0.35)\times 10^{-11}$ erg/cm² s. More than 90 days after the onset of the outburst, still during the decay phase, the same spectral shape was measured ( $\Gamma = 1.75_{-0.31}^{+0.27}$ ) with an indication for a 52% (2.3 $\sigma$ ) enhanced total emission, while one year after the outburst the hard X-ray non-thermal emission of PSR J1846-0258/Kes-75 was found to be back to its pre-outburst values. PCA monitoring of PSR J1846-0258 before the outburst yielded phase-coherent ephemerides confirming the earlier derived breaking index of the spindown. During the outburst, incoherent solutions have been derived. We show that the radiative outburst was triggered by a major spin-up glitch near MJD $53~883\pm 3$ with a glitch size $\Delta\nu/\nu$ in the range $(2.0{-}4.4)\times 10^{-6}$ . Using all pre-outburst observations of ISGRI and HEXTE for the first time pulse profiles have been obtained up to 150 keV with a broad single asymmetric pulse. The pulse shape did not vary with energy over the 2.9-150 keV energy range, nor did it change during the magnetar-like outburst. The time-averaged pre-outburst $\sim$ 3-300 keV pulsed spectrum measured with the PCA, HEXTE, and ISGRI was fitted with a power-law model with $\Gamma = 1.20\pm 0.01$ . A fit with a curved power-law model gives an improved fit. Around 150 keV the pulsed fraction approaches 100%. For the first 32 days of the magnetar-like outburst, the 3-30 keV pulsed spectrum can be represented with two power laws, a soft component with index $\Gamma_{\rm s} = 2.96\pm 0.06$ and a hard component with the pre-outburst value $\Gamma_{\rm h} \sim 1.2$ . Above $\sim$ 9 keV, all spectra during outburst are consistent with the latter single power-law shape with index $\sim$ 1.2. The 2-10 keV flux increased by a factor $\sim$ 5 and the 10-30 keV flux increased with only 35%. After $\sim$ 120 days the soft outburst and the enhancement of the hard non-thermal component both vanish.
Conclusions. The varying temporal and spectral characteristics of PSR J1846-0258 can be explained in a scenario of a young high-B-field pulsar in which a major glitch triggered a sudden release of energy. Resonant cyclotron upscattering could subsequently generate the decaying/cooling soft pulsed component measured during outburst between 3 and 10 keV. The (variation in the) non-thermal hard X-ray component can be explained with synchrotron emission in a slot-gap or outer-gap pulsar model.

Key words: pulsars: individual: PSR J1846-0258 - pulsars: individual: PSR B1509-58 - pulsars: individual: 4U 0142+61 - pulsars: individual: 1RXS J170849-400910 - X-rays: general - gamma rays: observations

1 Introduction

PSR J1846-0258 was discovered in a timing analysis of X-ray data from RXTE and ASCA by Gotthelf et al. (2000). It is a relatively slow rotation-powered pulsar, $P \sim 324$ ms, and has one of the highest surface magnetic field strengths, $B \sim 4.9 \times 10^{13}$ G, assuming standard magnetic dipole breaking, just above the quantum critical field strength $B_{\rm cr}=m_{\rm e}c^3/e\hbar$ of $4.413 \times 10^{13}$ G. Furthermore, it has the smallest characteristic age, $\tau \sim 723$ y, of all known pulsars and a spin-down luminosity ( $\dot{E}_{\rm sd}$ ) of $8.2\times 10^{36}$ erg/s. It remains undetected at radio frequencies (Archibald et al. 2008). PSR J1846-0258 is located at the centre of supernova remnant (SNR) Kes 75 (G29.7-0.3, Kesteven 1968) and was resolved in a Chandra observation as a bright X-ray source surrounded by a diffuse pulsar wind nebula (PWN, Helfand et al. 2003). The distance of SNR Kes 75 and PSR J1846-0258 has been under discussion for a long time. The most recent estimates are by Leahy & Tian (2008), 5.1 to 7.5 kpc, and Su et al. (2009), $\sim$ 10.6 kpc. For a discussion on earlier estimates we refer to their papers. In this work we adopt a distance of 10 kpc, and write the distance to Kes 75 as $d=d_{10}\times 10$ kpc.

Table 1: INTEGRAL observation characteristics for PSR J1846-0258.

Based on analysis of more than five years of RXTE monitoring data it appeared that PSR J1846-0258 behaves as a very stable rotator with a breaking index of $n=2.65\pm 0.01$ ( $\dot\nu\propto\nu^{n}$ , Livingstone et al. 2006). INTEGRAL detected hard X-ray point-source emission from the PWN plus PSR J1846-0258 up to $\sim$ 200 keV (McBride et al. 2008), and HESS discovered the PWN in the TeV band (Djannati-Atai et al. 2008).

Recently, Kumar & Safi-Harb (2008) reported the detection of a dramatic brightening of the pulsar during June, 7-12, 2006 in Chandra observations of Kes 75. The pulsar's spectrum (pulsed plus DC emission) softened considerably from a power-law index $\Gamma \sim 1.32$ measured in 2000 to 1.97 during the outburst in 2006. Gavriil et al. (2008) used RXTE observations to show that this prompt radiative event exhibited a recovery from the pulsed-flux enhancement which can be modeled as an exponential decay with 1/e time constant of $55.5 \pm 5.7$ day and a total 2-60 keV energy release of $(3.8{-}4.8)\times 10^{41}$ erg, adopting a distance of 6 kpc (Leahy & Tian 2008) and assuming isotropic emission. For the revised distance estimate of $\sim$ 10 kpc the released energy becomes $(1.1{-}1.3)\times 10^{42}d_{10}^2$ . Such an energy release is of similar magnitude as has been detected from a few Anomalous X-ray Pulsars (AXPs). The outburst was accompanied by an unprecedented change in timing behaviour. Furthermore, Gavriil et al. (2008) also discovered short (<0.1 s) magnetar-like bursts during the outburst, 4 at the beginning and 1 near the end. This otherwise very stably behaving rotating neutron star, both temporally and spectrally, switched suddenly to unpredictable magnetar-like behaviour. This is the first time that such dual characteristics have been seen. Therefore, the magnetar-like outburst of PSR J1846-0258 warrants a more detailed study to obtain tighter constraints for modelling this temporary magnetar-like manifestation of a rotation-powered pulsar.

The main motivation of this paper is to study the X-ray spectral and timing characteristics before, during and after the outburst including for the first time the hard X-ray regime 10-300 keV. In Sect. 2 we introduce the instruments used in this work, the PCA and HEXTE aboard NASA's Rossi X-ray Timing Explorer (RXTE) and IBIS-ISGRI aboard ESA's INTErnational Gamma-Ray Astrophysics Laboratory (INTEGRAL). In Sect. 3 we present an INTEGRAL deep-exposure sky map of the Scutum region (20-70 keV) revealing PSR J1846-0258 /Kes 75 surrounded by several near-by sources, and derive for energies above 20 keV three spectra for the total emission, PWN and PSR J1846-0258, namely, pre-outburst, during outburst and post-outburst. Section 4 deals with the timing studies. First, the high statistics in the PCA data are exploited to derive phase-coherent ephemerides for PSR J1846-0258, pre-outburst, for part of the outburst and post-outburst, as well as incoherent solutions during the outburst, revealing a major spin-up glitch at the start of the outburst. These (in)coherent timing solutions are subsequently used to derive pulse profiles over the energy windows covered by the PCA, HEXTE and ISGRI for the pre-outburst observations, and using just the PCA for the outburst period. In Sect. 5 we derive the spectrum of the pre-outburst total-pulsed emission using PCA, HEXTE and ISGRI data and compare this with the total, PWN and PSR J1846-0258, spectra measured with Chandra and INTEGRAL-ISGRI. Furthermore, we use PCA data to study the evolution of the spectrum of the pulsed signal pre-outburst, during the outburst and post outburst. Finally, the results are summarized in Sect. 6 and discussed in Sect. 7.

2 Instruments

2.1 RXTE

In this study extensive use is made of data from monitoring observations of PSR J1846-0258 with the two non-imaging X-ray instruments aboard RXTE, the Proportional Counter Array (PCA; 2-60 keV) and the High Energy X-ray Timing Experiment (HEXTE; 15-250 keV). The PCA (Jahoda et al. 1996) consists of five collimated xenon proportional counter units (PCUs) with a total effective area of $\sim$ 6500 cm² over a $\sim$ $1\hbox{$^\circ$ }$ (FWHM) field of view. Each PCU has a front Propane anti-coincidence layer and three Xenon layers which provide the basic scientific data, and is sensitive to photons with energies in the range 2-60 keV. The energy resolution is about 18% at 6 keV. All data used in this work have been collected from observations in GoodXenon or GoodXenonwithPropane mode allowing high time resolution ( $0.9~\mu$ s) studies in 256 spectral channels.

The HEXTE instrument (Rothschild et al. 1998) consists of two independent detector clusters, each containing four Na(Tl)/ CsI(Na) scintillation detectors. The HEXTE detectors are mechanically collimated to a $\sim$ $1\hbox{$^\circ$ }$ (FWHM) field of view and cover the 15-250 keV energy range with an energy resolution of $\sim$ 15% at 60 keV. The collecting area is 1400 cm² taking into account the loss of the spectral capabilities of one of the detectors. The best time resolution of the tagged events is $7.6~\mu$ s. In its default operation mode the field of view of each cluster is switched on and off source to provide instantaneous background measurements. Due to the co-alignment of HEXTE and the PCA, they simultaneously observe the same field of view.

2.2 INTEGRAL

The INTEGRAL spacecraft (Winkler et al. 2003), launched 17 October 2002, carries two main $\gamma$ -ray instruments: a high-angular-resolution imager IBIS (Ubertini et al. 2003) and a high-energy-resolution spectrometer SPI (Vedrenne et al. 2003). Both instruments are equiped with coded aperture masks enabling image reconstruction in the hard X-ray/soft $\gamma$ -ray band.

Driven by sensitivity considerations, we used only data from the INTEGRAL Soft Gamma-Ray Imager ISGRI (Lebrun et al. 2003), the upper detector layer of IBIS, sensitive to photons with energies in the range $\sim$ 20 keV-1 MeV. With an angular resolution of about $12\hbox{$^\prime$ }$ and a source location accuracy of better than $1\hbox{$^\prime$ }$ (for a > $10\sigma$ source) this instrument is able to locate and separate high-energy sources in crowded fields within its $19\hbox{$^\circ$ }\times 19\hbox{$^\circ$ }$ field of view (50% partially coded) with an unprecedented sensitivity ( $\sim$ 960 cm² at 50 keV). Its energy resolution of about 7% at 100 keV is amply sufficient to determine the (continuum) spectral properties of hard X-ray sources in the $\sim$ 20-300 keV energy band.

The timing accuracy of the ISGRI time stamps recorded on board is about $61~\mu$ s. The time alignment between INTEGRAL and RXTE is better than $\sim$ $25~\mu$ s (see e.g. Kuiper et al. 2003; Falanga et al. 2005). Given the fact that the accuracy of the RXTE clock in absolute time is about $2~\mu$ s (Rots et al. 2004), this implies that the INTEGRAL absolute timing is better than $\sim$ $27 ~\mu$ s. Data from regular INTEGRAL Crab monitoring observations show that the clock behaviour is stable, allowing timing studies of weak pulsars by accumulating data taken over many years.

In its default operation mode INTEGRAL observes the sky in a dither pattern with $2\hbox{$^\circ$ }$ steps, which could be rectangular e.g. a $5 \times 5$ dither pattern with 25 grid points, or hexagonal with 7 grid points (target in the middle). Typical integration times for each grid point (pointing/sub-observation) are in the range 1800-3600 s. This strategy drives the structure of the INTEGRAL data archive which is organised in so-called science windows (Scw) per INTEGRAL orbital revolution (lasting for about 3 days) containing the data from all instruments for a given pointing.

3 ISGRI imaging and total spectra

3.1 Deep isgri sky map of scutum region

In this work we exploited the good imaging capability of ISGRI, which allowed us to separate PSR J1846-0258/Kes 75 from nearby sources in this crowded region in the first Galactic quadrant. ISGRI sky mosaics (a combination of deconvolved images of single science windows) were produced in 10 logarithmically binned energy bands covering the 20-300 keV energy window. We used the imaging software tools (Goldwurm et al. 2003) of the Offline Scientific Analysis (OSA) package version 5.1 distributed by the INTEGRAL Science Data Centre (ISDC, see e.g. Courvoisier et al. 2003). The end product of this analysis provides the count rate, its variance, exposure and significance for all 10 energy bands over the (deconvolved) mosaiced sky field.

In the observation selection we only accepted science windows with instrument pointings within $14\hbox{$.\!\!^\circ$ }5$ from the PSR J1846-0258 position. This ensures that (a part of) the detector plane is illuminated by the target. The resulting list is further screened on erratic count rate variations, indicative for particle-induced effects due to Earth-radiation-belt passages or solar-flare activities, by inspecting visually the count rate in 20-30 keV band versus time. Science windows showing erratic count-rate variations are excluded for further analysis. In the event-selection process we only use events with rise times between 7 and 90 (see Lebrun et al. 2003, for definition), detected in non-noisy ISGRI detector pixels.

$\begin{figure} \par\includegraphics[angle=90,width=18cm,height=9cm,clip]{1580fig1.ps} \end{figure}$

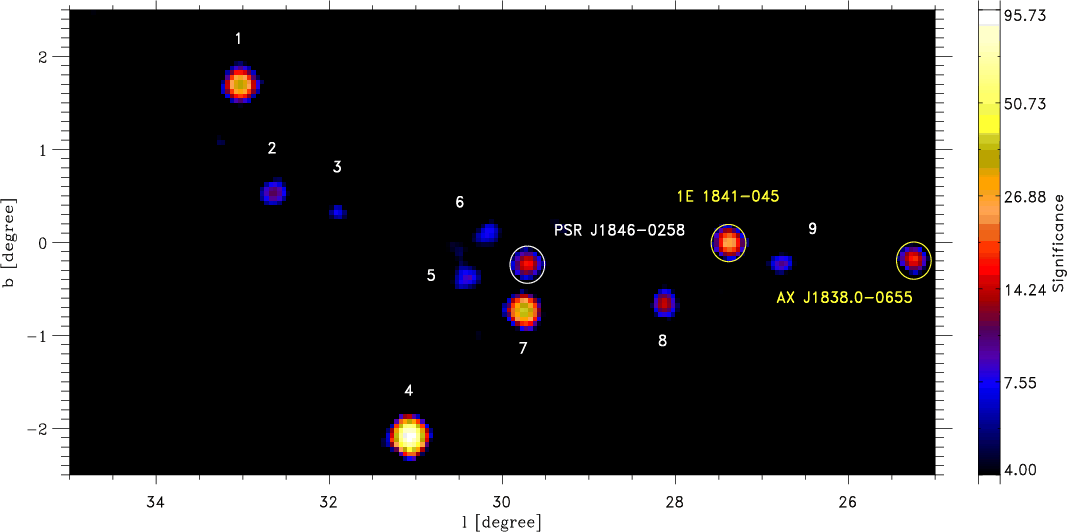

Figure 1:

A 20-70 keV image in Galactic coordinates of the Scutum region centered on (l,b)=(30,0) combining IBIS ISGRI data from INTEGRAL revolutions 49 up to and including 603 (March 10, 2003-Sep. 23, 2007). The total GTI exposure amounts 7.35 Ms for this mosaic image, while the effective exposure on PSR J1846-0258 equals 3.63 Ms. Only source features with significances above $4\sigma$ are shown. The white circle indicates PSR J1846-0258/Kes 75. The yellow encircled sources are AXP 1E 1841-045 (see Kuiper et al. 2004,2006) and the rotation-powered pulsar AX J1838.0-0655 (Gotthelf & Halpern 2008; Kuiper et al. 2008). The other sources indicated by numbers are: [1] - GS 1843+009, [2] - IGR J18490-0000, [3] - IGR J18485-0047, [4] - XTE J1855-026, [5] - 3A 1845-024, [6] - IGR J18462-0223, [7] - IGR J18483-0311, [8] - IGR J18450-0435 and [9] - AX J1841.0-0535.

Open with DEXTER

The INTEGRAL observations used in this work are listed in Table 1. Combining all these publicly available data from INTEGRAL revolutions 49 up to and including 603 we obtained a total exposure of 7.35 Ms (Good-Time-Intervals, GTI). Figure 1 shows for the 20-70 keV range (weighted sum of 5 energy bands) the significance image of the field surrounding PSR J1846-0258/Kes 75. In this image we adopted a detection significance threshold of $4\sigma$ . Clearly visible at the center of the image with high significance ( $17.4\sigma$ ) is the emission from PSR J1846-0258 and its PWN (not resolved). Other interesting high-energy sources are also indicated in this $10\hbox{$^\circ$ }\times5\hbox{$^\circ$ }$ image of the Scutum field, particularly Anomalous X-ray Pulsar 1E 1841-045, embedded in SNR Kes 73, and AX J1838.0-0655, which harbours a young energetic pulsar as found recently by Gotthelf & Halpern (2008). The identifications of the other sources are given in the figure caption.

The total spectrum of PSR J1846-0258 and Kes 75 can be constructed from the 10 count-rate and variance maps by extracting the (dead-time corrected) rates and uncertainties at the location of PSR J1846-0258. These values are normalized to the count rates measured for the total (nebula and pulsar) emission from the Crab in similar energy bands using Crab calibration observations during INTEGRAL revolutions 102 and 103. From the ratios and the photon spectrum of the total emission from the Crab, we can derive the total high-energy photon spectrum of the PWN plus PSR J1846-0258 (pulsed and any unpulsed point source component) without detailed knowledge of the ISGRI energy response. For the total Crab photon spectrum we use the broken-power-law spectrum derived by Jourdain & Roques (2008) based on INTEGRAL-SPI observations of the Crab at energies between 23 and 1000 keV. The latest Crab cross calibrations between SPI and IBIS-ISGRI provided consistent results.

3.2 Total pre-outburst spectrum in 20-300 keV band

Following the above procedure, the pre-outburst (Revs. 49-441, see Table 1) IBIS-ISGRI spectrum was derived and can be fitted with a power-law model over the 20-300 keV energy range yielding a photon index $\Gamma = 1.80\pm0.06$ and an energy flux (20-300 keV) of $(6.62\pm 0.35)\times 10^{-11}$ erg/cm² s ( $\chi^2_{\nu}=0.878$ for 10-2 degrees of freedom; errors are $1\sigma$ , throughout this paper). This index is a slightly harder, but consistent with the value $2.0\pm0.2$ obtained by McBride et al. (2008), who used less data. The 20-100 keV energy flux derived in this work $(3.47\pm 0.19)\times 10^{-11}$ erg/cm² s, however, is about 20% higher than the value, $(2.9_{-0.1}^{+0.2})\times 10^{-11}$ erg/cm² s, obtained by McBride et al. (2008). This discrepancy can be fully attributed to their use of obsolete energy response matrices for IBIS ISGRI in the OSA 5.1 environment, which yield inconsistent spectral results for the total Crab spectrum. Our ISGRI flux measurements for the total pre-outburst emission between 20 and 300 keV from the PWN plus PSR J1846-0258 are shown in Fig. 6 as purple data points with the best power-law fit superposed, and will be discussed later together with the spectrum of the pulsed emission.

3.3 Total spectrum (20-300 keV) during outburst decay

Unfortunately, INTEGRAL was not pointing to the Scutum region during the early phase of the outburst. The first exposure started on MJD 53 978 (Rev. 474), more than 90 days after the onset of the outburst, with the source still showing enhanced pulsed flux levels about 40% higher than the pre-outburst level (see e.g. top panel of Fig. 7). A spectrum of the total emission from PSR J1846-0258/Kes 75 from INTEGRAL observations taken between revolutions 474 and 501 (0.2135 Ms effective on-source exposure time; more than 95% of the exposure has been accumulated during Revs. 474 & 475) could adequately be described by a power-law with photon index $\Gamma = 1.75_{-0.31}^{+0.27}$ and energy flux (20-100 keV) of $(5.27_{-0.7}^{+0.8})\times 10^{-11}$ erg/cm² s. The spectral index is fully consistent with that of the pre-outburst spectrum, but the total flux is about 52% higher than the pre-outburst flux value, in line with the increased pulsed flux level shown in PCA data at the same epoch at lower energies. The increase, however, represents only a $\sim$ $2.3\sigma$ effect relative to its pre-outburst value. Therefore, we can not claim a significant increase of the total 20-100 keV flux, but only an indication for enhanced total emission in the 20-100 keV band.

3.4 Total post-outburst spectrum in 20-300 keV band

About one year after the onset of the outburst INTEGRAL observed PSR J1846-0258/Kes 75 for an effective exposure of 0.415 Ms during MJD 54 166-54 366 (INTEGRAL Revs. 537-603, see Table 1). Its derived total 20-300 keV spectrum could be described by a power-law model with $\Gamma = 1.90_{-0.35}^{+0.33}$ and a 20-100 keV energy flux of $(3.64_{-0.54}^{+0.59})\times 10^{-11}$ erg/cm² s, fully consistent with the pre-outburst measurement.

Table 2: Phase-coherent ephemerides for PSR J1846-0258 as derived from RXTE PCA (monitoring) data.

4 Timing

4.1 Timing solutions: ephemerides

RXTE observed PSR J1846-0258 for the first time in the period April 18-21, 1999 (MJD 51 286-51 290) for about 39 ks. The observation was split in 11 short observations (sub-observations) of duration ranging from 2.5 to 19.9 ks. We barycentered the PCA event arrival times using the Chandra X-ray observatory (CXO) sub-arcsecond position of PSR J1846-0258, $(\alpha,\delta)=(18^{\hbox{\scriptsize h}}46^{\hbox{\scriptsize m}}24\hbox{$.\!\!^{\rm s}$ }94,-02\degr58\hbox{$^\prime$ }30~\hbox{$.\!\!^{\prime\prime}$ }1)$ for epoch J2000 (Helfand et al. 2003), which corresponds to (l,b)=(29.712015,-0.240245) in Galactic coordinates. In each of these sub-observations a coherent pulsed signal at a rate of $\sim$ 3.0827 Hz (see also Gotthelf et al. 2000) could be detected in the barycentered time series. We used a Z₁²-test (Buccheri et al. 1983) search in a small, typically 5 independent Fourier steps ( $\Delta\nu_{\hbox{\scriptsize IFS}}=1/\tau$ , in which $\tau$ represents the time span of the data period), window around the predicted pulse frequency. The restricted search yielded for each sub-observation a best estimate of the rotation rate at the gravity point of the sub-observation. Because the Z₁²-test is distributed as a $\chi^2$ for $2\times 1$ degrees of freedom a $1\sigma$ error estimate on this optimum value can easily be derived by determining the intersection points of the measured Z₁²-test distribution near the optimum with the value of $Z_{\hbox{\scriptsize 1,max}}^2-2.296$ . The set of optimum pulse frequencies and $1\sigma$ uncertainties versus time can be used to obtain an incoherent timing solution $\nu_{\rm inc}(t)$ for the rotation behaviour of the pulsar. Phase folding the arrival times of each sub-observation on the appropriate optimum frequency results in pulse profiles for each sub-observation. In order to derive the mutual phase relation of the pulse maxima we use cross-correlation techniques to obtain a high-statistics pulse-profile template. This template, based on 11 sub-observations, was subsequently used in the time of arrival (TOA) determination procedure, described below.

The accuracy of the timing parameters $(\nu,\dot\nu,\ddot\nu)$ can be improved considerably relative to the incoherent set by maintaining pulse-phase coherence over the entire time interval of the considered set of sub-observations. This requires an accurate determination of pulse arrival times for each sub-observation in the time interval considered. These times are obtained by cross-correlating the pulse profiles of each sub-observation with the high-statistics template. The global maximum in the correlation diagram determines the time shift ( $\Delta\Phi_{\hbox{\scriptsize max}}/\nu$ ) to be applied to the chosen time zero point of the sub-observation (normally the gravity point) to align it with the template. The global maximum of the correlation function is derived by fitting a truncated Fourier series (typically 5 harmonics are used) to the measured correlation function, evaluated at discrete step points, in order to suppress fluctuations. The latter could be significant in case of weak pulsed signals. An error estimate $\delta\Phi$ on $\Delta\Phi_{\hbox{\scriptsize max}}$ has been obtained by bootstrapping both the pulse-profile of the active sub-observation and that of the template assuming an underlying Gaussian distribution. Typically 1000 resamplings are used in subsequent correlation analysis. The $1\sigma$ error on $\Delta\Phi_{\hbox{\scriptsize max}}$ corresponds to the width of the distribution of the correlation maxima. Thus, we obtained a set of n pulse-arrival times with corresponding error estimates, $(t_{\hbox{\scriptsize p}}^n,\Delta t_{\hbox{\scriptsize p}}^n)$ . Next, the arrival times were folded upon the incoherent or any other reasonable timing solution to obtain the residuals

$\begin{displaymath}\Delta\Phi_k=\nu_{\rm inc}\cdot\left(t_{\hbox{\scriptsize p}}... ..._{\hbox{\scriptsize p}}^k-t_{\hbox{\scriptsize p}}^0\right)^3. \end{displaymath}$

Finally, we determined the increments $\Delta\nu,\Delta\dot\nu$ and $\Delta\ddot\nu$ which minimize the $\chi^2$ statistics $\sum_{k=1}^{n-1}(\frac{\Delta\Phi_k}{\delta\Phi_k})^2$ taking into account the statistical weights of the individual points. This approach yields a phase-coherent (or phase-connected) timing solution $(\nu_{\rm c},\dot\nu_{\rm c},\ddot\nu_{\rm c})$ describing every revolution of the pulsar over the time span for which the solution is valid.

As of January 30, 2000 RXTE monitors PSR J1846-0258 regularly, and from observations performed till November 7, 2007 (MJD 51 574-54 411) we derived phase coherent timing solutions (ephemerides) when possible. Table 2 lists the current set of phase-coherent ephemerides, as derived in this work using the method described above, including the one (entry # 0) covering the four days of the very first RXTE observations of PSR J1846-0258.

Livingstone et al. (2006) presented equivalent timing solutions for the range MJD 51 574-53 578, covering about 5.5 year of X-ray timing data. Our timing results cross the magnetar-like radiative outburst event that occurred between May 24-31, 2006 (see e.g. Kumar & Safi-Harb 2008; Gavriil et al. 2008). Entries 1 till 5 of Table 2 cover the so-called pre-outburst period, which is characterized by very stable and highly predictable timing behaviour allowing an accurate measurement of the breaking index of the pulsar spin-down of $2.65\pm0.01$ (Livingstone et al. 2006). Our timing results for the pre-outburst period (MJD 51 574-53 880) are fully compatible with those obtained by Livingstone et al. (2006) for a slightly smaller time span (MJD 51 574-53 578). It demonstrates that PSR J1846-0258 continued to slow-down very predictably from MJD 53 578 till MJD 53 880, the date of the last sub-observation before the magnetar-like outburst.

4.2 A small and a major spin-up glitch

We also confirm the loss of phase-coherence beyond MJD 52 237, attributed by Livingstone et al. (2006) to a small glitch of size $\Delta\nu/\nu=2.5(2)\times 10^{-9}$ and $\Delta\dot\nu/\dot\nu\sim9.3(1)\times10^{-4}$ near MJD $52~210\pm 10$ . Note, however, that the TOA for the sub-observation on MJD 52 237 can still perfectly be predicted by the timing parameters of entry # 1 of Table 2, indicating that the small glitch very likely occured beyond MJD 52 237, but before MJD 52 253, the next sub-observation, thus later than the glitch epoch of $52~210\pm 10$ reported by Livingstone et al. (2006).

$\begin{figure} \par\includegraphics[width=9cm,height=6.5cm,clip]{1580fig2.ps} \end{figure}$

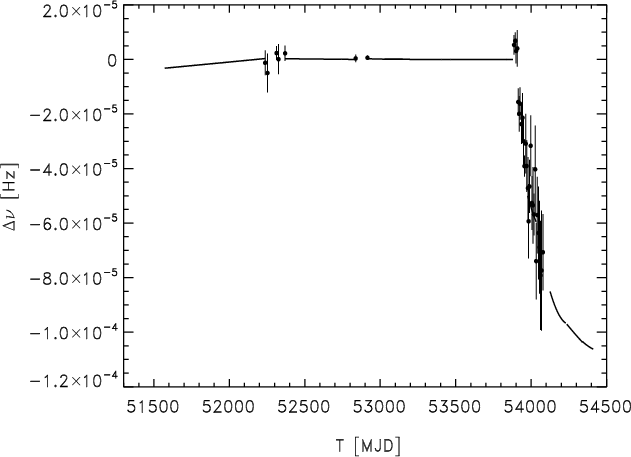

Figure 2:

The rotation behaviour of PSR J1846-0258 from Jan. 30, 2000 to Nov. 7, 2007 as determined from RXTE monitoring observations relative to the pre-outburst timing model (entry # 5 of Table 2). Note the dramatic change during the radiative outburst and its subsequent decay (e-folding time scale $\sim$ 55 days). The presence of a huge spin-up glitch near MJD $53~883\pm 3$ is clearly visible. Phase coherence is caught-up again as of MJD 54 126. Lines: phase-coherent timing models. Data points with 1- $\sigma$ errors: incoherent solutions.

Open with DEXTER

As of the onset, beyond MJD 53 880, of the radiative outburst till MJD 54 126 (January 26, 2007) phase coherence is completely lost due to highly increased timing noise (see also Gavriil et al. 2008). The sparse sampling in this period and the high timing noise exclude the construction of a phase coherent solution during the outburst and its subsequent decay except for a small period of 55 days from MJD 53 978 till 54 033 (entry #6 of Table 2). Phase coherence is caught-up again on MJD 54 126 (entries #'s 7 and 8 of Table 2). Note the very high value of $\ddot\nu$ and the increased $\vert\dot\nu\vert$ values of entries #'s 6 and 7. All timing information both coherent and incoherent, if the former is lacking, is shown in Fig. 2. In this figure the frequencies (coherent, solid lines; incoherent, data points) are relative to the timing model valid just before the radiative outburst (entry # 5 of Table 2).

From Fig. 2 it is clear that the radiative outburst was accompanied by a huge spin-up glitch near MJD $53~883\pm 3$ as suspected already by Gavriil et al. (2008), but now clearly demonstrated. Depending on the number of sub-observations used in the construction of an incoherent timing model since the onset of the outburst we obtain a glitch size $\Delta\nu/\nu$ in the range $(2.0{-}4.4)\times 10^{-6}$ . This fractional-frequency-jump size ranks in the top of the glitch-size distribution for rotation-powered pulsars, but is typical for AXP glitches (Dib et al. 2008), although the number of observed AXP glitches is still too small to securely establish the underlying distribution.

$\begin{figure} \par\includegraphics[height=7cm,width=9cm,clip]{1580fig3.ps} \end{figure}$

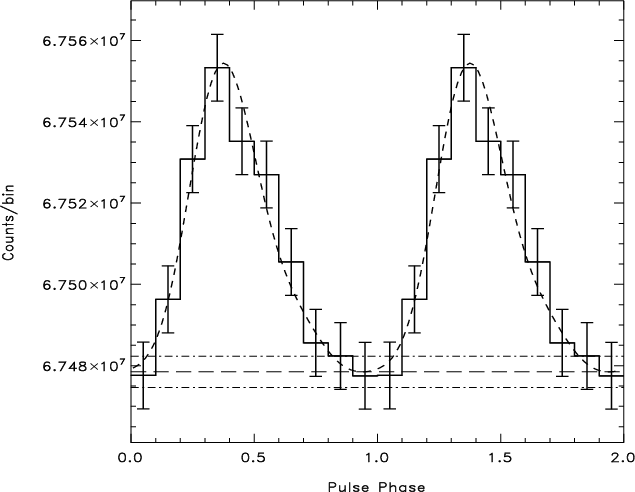

Figure 3:

The pre-outburst (Revs. 49-441) pulse profile of PSR J1846-0258 as observed by IBIS ISGRI in the 20-150 keV energy band with a detection significance of $9.6\sigma$ . Error bars are $1\sigma$ on measured counts. Superposed is the best fit model composed of a PCA-template profile for the $\sim$ 2.9-8.3 keV band (dashed line) and a DC-level (long dashes; horizontal line) with its $1\sigma$ -error estimates (see Sect. 5.1). There is no significant difference in shape.

Open with DEXTER

$\begin{figure} \par\includegraphics[angle=90,width=15cm,height=9.8cm,clip]{1580fig4} \end{figure}$

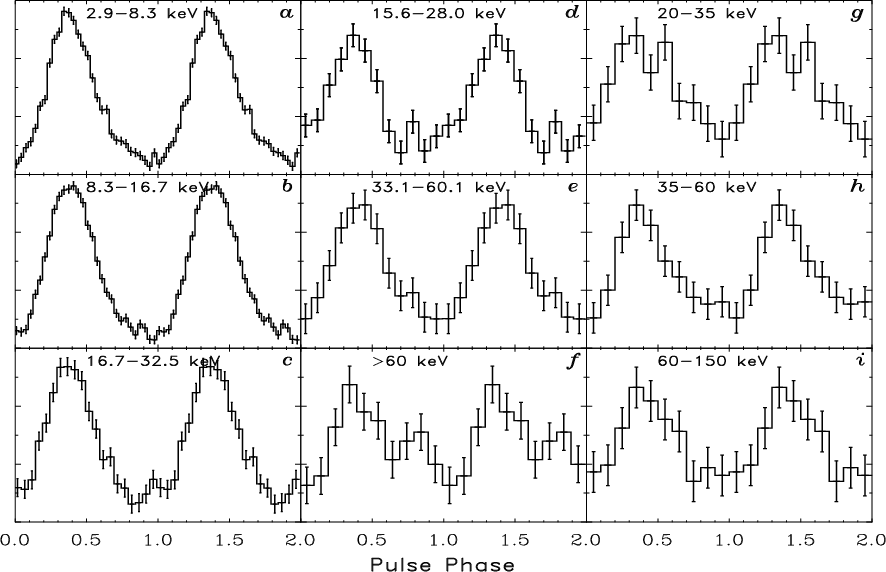

Figure 4:

Collage of pulse profile of PSR J1846-0258 using pre-outburst data from RXTE PCA (3-35 keV: a- c), HEXTE (15-250 keV: d- f) and INTEGRAL ISGRI (20-300 keV: g- i). The pulse signal is detected for the first time up to $\sim$ 150 keV making PSR J1846-0258 the fifth pulsar showing up at soft $\gamma$ -rays. The pulse profile shape is energy independent: a broad single-peak asymmetric pulse. Error bars are $1\sigma$ on measured counts.

Open with DEXTER

4.3 Pre-outburst pulse profiles: INTEGRAL ISGRI, RXTE PCA and HEXTE

The timing analysis of INTEGRAL ISGRI data consists of selecting, screening and finally phase folding barycentered time series with appropriate ephemerides. The observation and event selection procedures are identical to those applied for the imaging studies of ISGRI data. In order to reduce in the timing analysis the backgound level consisting of non-source counts, only detector pixels are considered which have been illuminated by the source for at least 25%. In this work, we further screen the data on short duration (lasting less than a second) bursts, particularly those originating from the soft gamma-ray repeater SGR 1806-20, which pollute the genuine pulsed signal from PSR J1846-0258. Then, the on-board-registered event-time stamps of the selected events are corrected for known instrumental (fixed), ground station and general time delays in the on-board-time versus Terrestrial-Time (TT or TDT) correlation (see e.g. Walter et al. 2003). The resulting event times in TT are barycentered (using the JPL DE200 solar system ephemeris) adopting the CXO position of PSR J1846-0258 and the instantaneous INTEGRAL orbit information. These barycentered events (in TDB time scale) are finally folded upon the appropriate timing model composed of $\nu,\dot\nu,\ddot\nu$ and the epoch t₀, as obtained in the phase-coherence analysis of RXTE PCA data (see Table 2). The TDB-time to pulse-phase conversion taking into account consistent profile alignment by subtracting $\Phi_{0}$ is provided by the following formula:

$\begin{displaymath}\Phi(t)=\nu\cdot (t-t_0) + \frac{1}{2}\dot\nu\cdot (t-t_0)^2+\frac{1}{6}\ddot\nu\cdot (t-t_0)^3 - \Phi_0. \end{displaymath}$

Thus, we produced pulse-phase distributions for differential energy bands of width 1 keV between 15 and 300 keV. For the ``stable-timing-behaviour'' period before the onset of the magnetar-like outburst we obtained a $9.6\sigma$ signal (Z₁²-test) in the 20-150 keV band (see Fig. 3) combining all timing data from INTEGRAL observations performed between revolutions 49 and 441 (see Table 1). The total Good-Time-Interval (GTI) exposure of the 2599 Scw's included in this combination amounts $\sim$ 6 Ms, which translates in an effective on-source exposure of $\sim$ 3 Ms. The right hand panels g, h and i of Fig. 4 show the ISGRI pulse profiles in the three differential energy bands, 20-35 keV, 35-60 keV and 60-150 keV. The pulsed-signal detection significances are $5.6\sigma, 7.0\sigma$ and $4.2\sigma$ , respectively, making PSR J1846-0258 the fifth pulsar detected in the soft $\gamma$ -ray band, after the Crab, Vela, PSR B1509-58 and PSR B0540-69 pulsars.

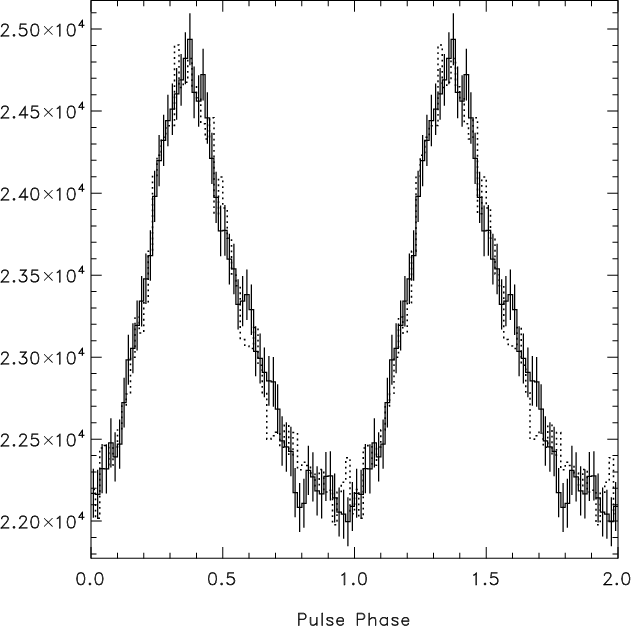

We wish to compare the ISGRI pulse-phase distributions with the time-averaged HEXTE and PCA pulse profiles from all RXTE observations performed before the magnetar-like outburst. The timing analysis of HEXTE data, covering an energy window comparable to ISGRI, is equivalent to the approach followed by Kuiper et al. (2006, see Sect. 3.1 of that paper). We collected 344.122 ks and 335.770 ks exposure, both corrected for dead time and reduction in efficiency due to off-axis observations, for HEXTE cluster A and B, respectively. Phase folding HEXTE barycentered-time series with the ephemerides derived from the simultaneously taken PCA data (see Table 2) yields the high-energy phase distributions from HEXTE. Differential HEXTE profiles are shown in panels d-f of Fig. 4 for the 15.6-28 keV, 33.1-60.1 keV and >60.1 keV energy bands, respectively. The corresponding significances are $11.0\sigma, 8.7\sigma$ and $4.3\sigma$ . The ISGRI and HEXTE profile shapes are fully consistent. Finally, we also included in Fig. 4 the PCA pulse profiles from pre-outburst observations for energies between $\sim$ 2.9 and $\sim$ 32.5 keV. As can be seen, the morphology of the pulse profile for energies above $\sim$ 2.9 keV appears to be energy independent: a broad single-peak asymmetric pulse with a somewhat steeper rise than fall.

4.4 Pulse-profile morphology during the outburst

To investigate whether the radiative outburst, most pronounced at soft X-rays, was accompanied by a pulse-morphology change we compared the high-statistics pre-outburst PCA profile with the profile from RXTE-PCA observations during the early phase of the outburst. For the latter we used data collected between MJD 53894 and 53970 (Outburst A1 + A2, see Table 3 and also Fig. 7), omitting those observations in which the reported five short (0.1 s) magnetar-like bursts occurred. We selected only events from PHA channels 7 to 19, roughly corresponding to 2.9-8.3 keV. Because phase coherence was lost after the onset of the outburst, we generated the ``outburst'' profile by stacking the properly shifted profiles from individual observations applying a cross-correlation analysis which yields the required phase shifts (see e.g. Sect. 3.1 of Kuiper et al. 2004, for a similar analysis). Figure 5 shows the superposed aligned pre-outburst and outburst profiles. We fitted the outburst profile in terms of a constant and the shape of the pre-outburst profile with a free scale. The absolute values and signs of the deviations from the best fit were used in a combination of two independent statistical tests, a Pearson $\chi^2$ test and a run test. The combined probability of these tests is 3.2%, i.e. both profiles are different at a $2.15\sigma$ significance level, indicating that there is no significant change in shape between the pre-outburst and outburst profile.

$\begin{figure} \par\includegraphics[width=9cm,clip]{1580fig5.ps} \end{figure}$	Figure 5: Comparison of the pulse-profiles accumulated in the PCA PHA band 7-19 ( $\sim$ 2.9-8.3 keV) during the early phase of the outburst (Outburst A1+A2, see Table 3, solid histogram with $1\sigma$ error bars) and from the pre-outburst observations (high-statistics dotted histogram). No significant shape change is observed, see text. The Y-axis specifies the number of counts per bin.
Open with DEXTER

5 Pulsed emission spectra

5.1 Analysis methods

From the pulse-phase distributions, $F(\Phi,E_{\hbox{\scriptsize PHA}})$ , derived for RXTE PCA, HEXTE and INTEGRAL IBIS ISGRI, we extracted pulsed excess counts by fitting two different model functions to the measured pulse-phase distributions in selected energy bands:

1): a truncated Fourier series with N-1 harmonics,
$N(\Phi)=a_0+\sum_{k=1}^{N}a_k\cos(2\pi k\Phi)+b_k\sin(2\pi k\Phi)$ ;
2): a PCA-template model, $N(\Phi)=a+b\times T(\Phi)$ .

For model 1, a number of N=3 was sufficient to adequately describe the measured profiles. The template function $T(\Phi)$ used for model 2 is based on a high-statistics PCA pulse profile for energies between $\sim$ 2.9-8.3 keV.

The fit function minimum plus its error are subsequently used to determine the number of pulsed excess counts i.e. the number of counts above this minimum (=unpulsed or DC level) along with an error estimate. For pulse profiles with a strong pulsed signal both methods yielded consistent results, however, for weak pulsed signals method 1 overestimates the number of pulsed excess counts slightly (a small positive bias). Therefore, we have used the template fit model subsequently, assuming thus that the genuine underlying pulse profile did not vary with energy which is a very reasonable approximation (see e.g. Fig. 3).

For the PCA we constructed time-averaged energy response matrices for each PCU separately taking into account the different (screened) exposure times of the involved PCU's during the time period of interest. For this purpose we used the ftools version 6.4 programs pcarsp and addrmf. To convert PHA channels to measured energy values, $E_{\rm PHA}$ , for PCU combined/stacked products we also generated a weighted PCU-combined energy response matrix.

For HEXTE we employed cluster A and B energy-response matrices separately, taking into account the different screened on-source exposure times and the reduction in efficiency in case of off-axis observations. The on-source exposure times for both clusters have been corrected for considerable dead-time effects.

We assume simple power-law models, $F_{\gamma}= K\cdot (E_{\gamma}/E_0)^{-\Gamma}$ with $\Gamma$ the photon-index and K the normalization in ph/cm² s keV at the pivot energy E₀, for the underlying photon spectra. In case of RXTE PCA and HEXTE these models have been fitted in a forward folding procedure using appropriate response matrices to obtain the optimum spectral parameters, K and $\Gamma$ , and the reconstructed spectral flux points from the observed pulsed count rates.

A different approach has been used for IBIS ISGRI: For each energy band we scaled the derived pulsed excess counts by the number of pulsed excess counts extracted for the Crab pulsar in exactly the same measured energy window. These ratios were subsequently multiplied by the pulsed photon spectrum of the Crab as derived from deep HEXTE observations (see Sect. 3.4 of Kuiper et al. 2006, for details) taking into account the different effective on-source exposures for both PSR J1846-0258 and the Crab.

$\begin{figure} \par\includegraphics[width=9cm,clip]{1580fig6.ps} \end{figure}$

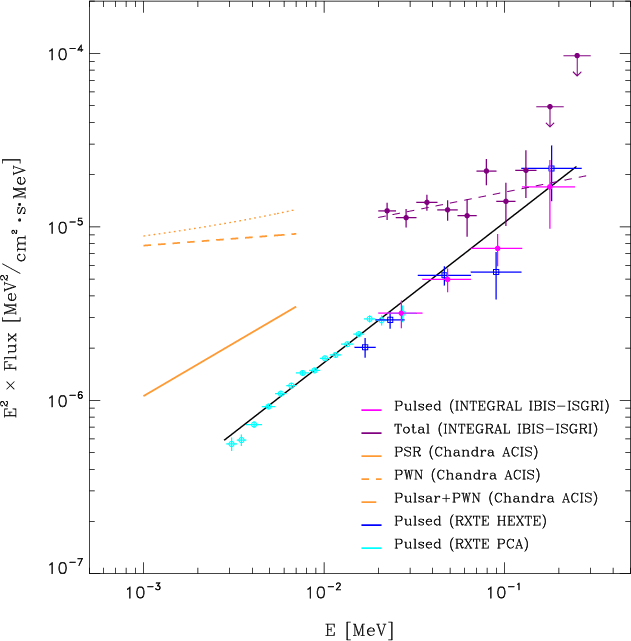

Figure 6:

Total and pulsed (unabsorbed) high-energy spectrum ( $\sim$ 1-300 keV) of Kes75/PSR J1846-0258 from pre-outburst RXTE PCA and HEXTE (both pulsed) and INTEGRAL IBIS ISGRI (pulsed and total) observations in an E²F representation. The spectral coverage is extended towards 1 keV using the Chandra spectral-fit results (1-7 keV; unabsorbed) obtained by Helfand et al. (2003) for the total emission spectrum of the pulsar and the PWN. Note that both the PWN contribution and DC emission from PSR J1846-0258 drop to undetectable levels at energies near 150 keV: the total emission is consistent with being 100% pulsed above $\sim$ 150 keV. Error bars on data points are $1\sigma$ .

Open with DEXTER

5.2 Pulsed pre-outburst 3-300 keV spectrum

The reconstructed pulsed emission spectra from pre-outburst RXTE and INTEGRAL observations are shown in Fig. 6 as aqua coloured data points for the PCA ( $\sim$ 3-30 keV), blue data points for HEXTE (15-250 keV) and magenta coloured symbols for INTEGRAL ISGRI (20-300 keV). The individual PCA, HEXTE and ISGRI spectra are mutually consistent in overlapping energy bands.

A single power-law model fit to the PCA data points ( $\sim$ 3-30 keV) alone gave an optimum photon index $\Gamma$ of $1.161\pm 0.004$ . However, the obtained reduced $\chi_{\hbox{\scriptsize {r}},13}^2$ of 2.38 for 13 degrees of freedom is poor, and fitting a power-law with an energy dependent index, a so-called ``curved power-law model'' $F_{\gamma}= K\cdot (E_{\gamma}/E_0)^{-\tilde{\Gamma}-\delta\cdot\ln(E_{\gamma}/E_0)}$ , provided a significant improvement of $3.4\sigma$ over the simple power-law model, mainly due to better describing the flux measurements below 4.5 keV.

In order to obtain an accurate description of the pulsed spectrum over two decades in energy we also fitted a power-law and curved power-law model over the full $\sim$ 3-300 keV energy band to the combined PCA, HEXTE and ISGRI pulsed flux measurements. The best-fit power-law model, shown as a solid black line in Fig. 6, has a photon index $\Gamma$ of $1.20\pm 0.01$ , slightly softer than the fit to just the fluxes below 30 keV. The energy fluxes of the pulsed emission (unabsorbed) in the 2-10 keV and 20-100 keV bands are $(2.38\pm0.02)\times 10^{-12}$ erg/cm² s and $(15.2\pm0.14)\times 10^{-12}$ erg/cm² s, respectively. Assuming a 1 steradian beam size for the pulsed emission and a distance of 10 kpc the luminosities in the 2-10 and 20-100 keV bands are $L_{X}^{2-10}=2.27(2)\times 10^{33}\cdot \eta \cdot d_{10}^2$ erg/s and $L_{\rm X}^{20{-}100}=1.45(1)\times 10^{34}\cdot \eta \cdot d_{10}^2$ erg/s ( $\eta$ is the beamsize), respectively. These numbers convert into the following efficiencies ( $L_X/\dot{E}_{\rm sd}$ ), $\epsilon_{\rm X}^{2-10} = 0.027{\%} \cdot \eta \cdot d_{10}^2$ and $\epsilon_{\rm X}^{20-100} = 0.18{\%} \cdot \eta\cdot d_{10}^2$ , respectively. The fit with a curved power-law model was again better ( $4.9\sigma$ improvement over the power-law model; it is shown in Fig. 11) for the following best-fit parameter values: $K=(8.40\pm0.12)\times 10^{-6}$ ph/cm² s keV, $\tilde{\Gamma}=1.295\pm0.016$ and $\delta=0.096\pm0.014$ for a pivot energy of 17.6209 keV.

5.3 Pulsed fractions

In Fig. 6 the total (i.e. PSR J1846-0258 pulsed plus unpulsed/DC and PWN contribution) pre-outburst ISGRI spectrum (see Sect. 3.2) is presented as purple data points across the 20-300 keV band as well as the best fit power-law model to these measurements (purple dashed line). Using the energy fluxes of pulsed and total emission in the 20-100 keV band we could derive a lower-limit on the pulsed fraction of 44% in the 20-100 keV band. Moreover, it is evident that near 150 keV the pulsed emission becomes consistent with the total emission i.e. 100% pulsation. As a result, both, the spectra of the DC-emission from the pulsar and of the PWN must bend down between 20 and 100 keV to significantly lower levels.

To extend the spectral coverage to lower energies we included in Fig. 6 the spectral model fits obtained from Chandra data in the soft X-ray band (1-7 keV) by Helfand et al. (2003) (see for recent analyses Ng et al. 2008; Kumar & Safi-Harb 2008) for the total emission from PSR J1846-0258 ( $\Gamma = 1.39\pm 0.04$ ; pulsed plus unpulsed/DC; solid orange line) and the PWN ( $\Gamma = 1.92\pm 0.04$ ; dashed orange line), separately. We also show the sum of these two models as a dotted orange line representing the total emission from PSR J1846-0258/PWN in the 1-7 keV band, to be compared with the total emission as measured by ISGRI above 20 keV. Dividing the pulsed emission estimated in the 0.5-10 keV band through extrapolation to lower energies of the $\sim$ 3-300 keV pulsed spectrum, $(2.98\pm0.03)\times 10^{-12}$ erg/cm²s, by the total point-source emission $9.50 \times 10^{-12}$ erg/cm²s (Helfand et al. 2003) from PSR J1846-0258 in the Chandra 0.5-10 keV band we obtained an average pulsed fraction of 31%. Therefore, comparing this value with the lower-limit of 44% derived for the 20-100 keV band, the pulsed fraction is steadily growing with energy to become within the large errors consistent with $\sim$ $100{\%}$ near 150 keV. This is primarily an indication that the DC spectra have to bend down.

$\begin{figure} \par\includegraphics[height=12cm,width=9cm,clip]{1580fig7.ps} \end{figure}$

Figure 7:

Pulsed-flux lightcurve (PCA 2-60 keV) around the outburst ( top panel) adapted from Gavriil et al. (2008). The pre-outburst averaged pulsed-flux level is shown by the horizontal dashed line along with its tiny $1\sigma$ error (plotted at MJD 53 400). The coverage of the INTEGRAL observations near the outburst period are indicated with revolution-number intervals in the upper part of the top panel. In the lower part of the top panel are shown the time segments used in the spectral-evolution study of the pulsed signal using 3-30 keV PCA data. The lower panel displays the pulse frequency evolution across the outburst period (zoom-in of Fig. 2). The phase-coherent solution in the time interval of 55 days around MJD 54 000 is indicated. Errors are $1\sigma$ .

Open with DEXTER

$\begin{figure} \par\includegraphics[width=12cm]{1580fig8.ps} \end{figure}$

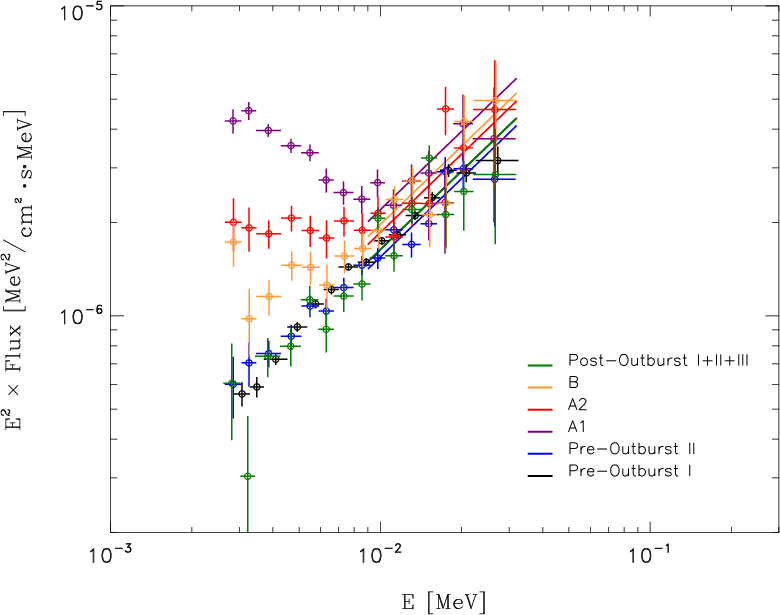

Figure 8:

Evolution of the (unabsorbed) pulsed spectrum ( $\sim$ 3-30 keV) of PSR J1846-0258 as derived from RXTE PCA data. Note the dramatic softening of the spectrum during the early phase of the outburst (purple data points) and the gradual return to its pre-outburst spectrum (black data points). Also indicated for each time segment are the power-law model fits obtained from >9 keV data. Data points are given with $1\sigma$ errors.

Open with DEXTER

Table 3: Time intervals used in the spectral analysis of the RXTE PCA data.

5.4 Spectral evolution (3-30 keV) before, during and after the outburst

The X-ray spectral index of the total emission from PSR J1846-0258 (pulsed plus DC emission) measured with Chandra between 1 and 7 keV changed from a pre-burst value in 2000 of $\Gamma \sim 1.35$ (Helfand et al. 2003; Kumar & Safi-Harb 2008) to a value of $\Gamma \sim 1.93$ (Kumar & Safi-Harb 2008; Gavriil et al. 2008) during the magnetar-like outburst in 2006. In order to better characterize the spectral evolution we took advantage of the high-statistics 3-30 keV PCA data to derive spectra for the pulsed emission before, during and after the outburst.

Figure 7 indicates in the top panel the selected time segments for the PCA analysis in comparison with the count-rate lightcurve (2-60 keV) of PSR J1846-0258 published by Gavriil et al. (2008): Segment Pre-II covers an interval just before the outburst; segments A1, A2 and B cover the reported outburst; Post-I to Post-III are time intervals after the outburst for which the count-rate lightcurve indicates that PSR J1846-0258 returned to its pre-burst flux level. Table 3 shows the details of the PCA time segments including the identifiers of the first and last sub-observation along with the corresponding start and end time in MJD. Also, the screened exposure time per PCU is listed together with the name of the time segment.

The bottom panel of Fig. 7 shows that we derived for each of these time segments coherent or incoherent timing solutions, allowing us to produce pulse profiles and subsequently spectra of the pulsed emission for each segment. Comparing the upper and bottom panel of Fig. 7, it is clear that the major glitch triggered the radiative outburst.

For each PCA observation-time segment we had sufficient counting statistics to produce pulsed spectra ( $\sim$ 3-30 keV). Figure 8 shows the (unabsorbed) pulsed spectra for all time segments listed in Table 3, including the multi-year-average spectrum of Pre-outburst I, but combining the three post-outburst spectra. The latter three spectra are combined, because these are statistically identical and the individual flux values could not be distinguished when plotted in this figure. It is immediately evident that the pulsed spectrum evolved smoothly in flux and shape during the burst. A dramatically softer pulsed spectrum was measured directly after the glitch (time interval A1, purple data points). Obviously, a strong soft component was added to the pre-burst hard ( $\Gamma\sim 1.16$ ) non-thermal spectrum, totally dominating the pulsed emission below $\sim$ 10 keV. During time segment A1 the pulsed (energy) flux for energies 2-10 keV increased by a factor $\sim$ 5. This soft component quickly reduced in intensity during the outburst (A2, red; B, orange data points), and is not detected anymore in the post-outburst spectra which are within statistics identical to the Pre-outburst I and II spectra. In Fig. 8 one can see that the time variability is less pronounced for energies above $\sim$ 9 keV. In fact, we verified that for all selected time intervals the spectra above 9 keV are fully compatible with a single power-law model shape with the pre-outburst index $\Gamma = 1.16$ . In Fig. 8 these power-law model fits, all with a fixed photon index $\Gamma$ of 1.16, are superposed for each time segment. The corresponding pulsed fluxes (10-30 keV) are shown in Fig. 9, including also the individual data points for the three post-outburst time segments. We see, that also in this case the flux enhancement was maximal directly after the glitch in time segment A1, but amounts only $\sim$ 35%, which represents a 4.3 $\sigma$ enhancement.

$\begin{figure} \par\includegraphics[width=9cm]{1580fig9.ps} \end{figure}$	Figure 9: Evolution of the pulsed flux of PSR J1846-0258 in the 10-30 keV band as derived from a power-law fit to RXTE PCA >9 keV spectra (photon index fixed to its pre-outburst value of 1.16). Error bars are 1 $\sigma$ . The average flux level in the Pre-outburst I time segment (duration $\sim$ 5.6 yrs) is indicated with the broken line together with its $\pm 1\sigma$ uncertainty (dotted lines).
Open with DEXTER

It is evident that during the outburst the spectral shape over the 3-30 keV band varied. A single power-law model fit for time segment A1 gave a poor fit ( $\Gamma = 2.46\pm 0.01$ with a reduced $\chi^2_{\rm r}=1.69$ for 13 degrees of freedom). A model fit with two (free) power-laws rendered a $3.2\sigma$ improvement. An excellent fit is obtained with a soft power-law index $\Gamma_{\rm s} = 2.96\pm 0.06$ along with a hard photon index of $\Gamma_{\rm h} = 1.16$ , fixed at the pre-outburst value. The pulsed spectra in time segments A2 and B have larger statistical errors and can be fitted with single power-laws. However, when fitted with two power-laws, these are also consistent with the sum of two spectral components, a soft one with index $\Gamma_{\rm s} = 3.27\pm 0.27$ (segment A2) and $\Gamma_{\rm s} = 4.74\pm 0.71$ (segment B), along with $\Gamma_{\rm h} = 1.16$ . Note the apparent gradual softening of the soft component below $\sim$ 10 keV during the decay of the outburst, indicative for cooling.

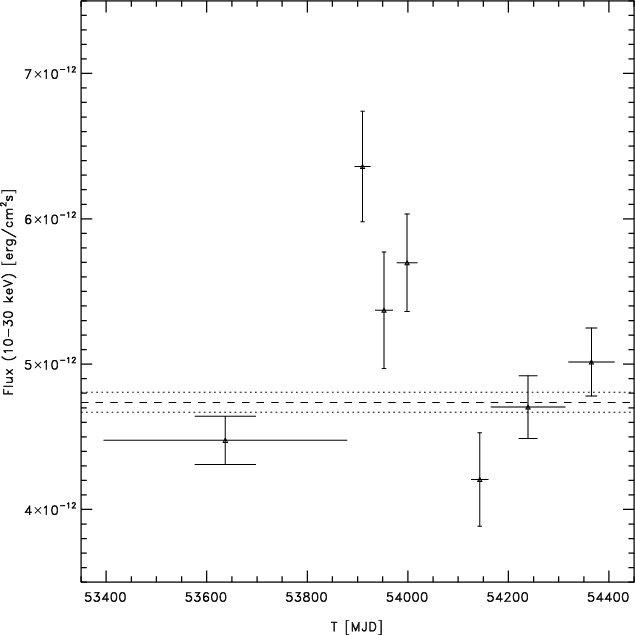

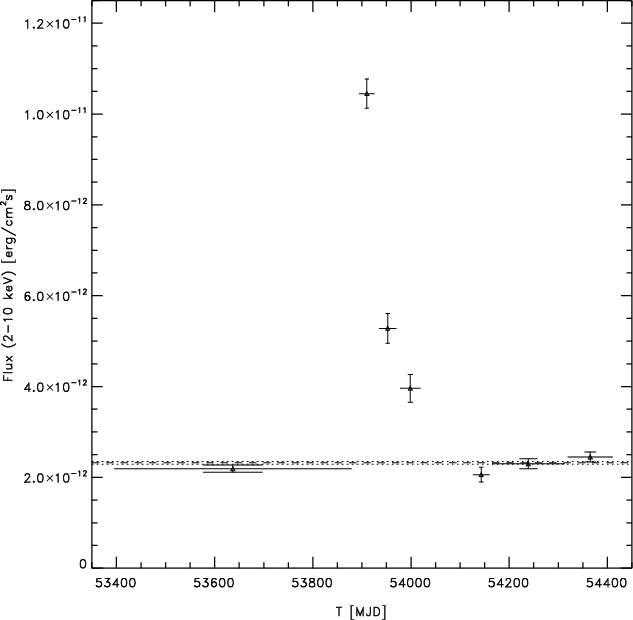

In Fig. 10 we present the variation of the measured pulsed fluxes below 10 keV. These are derived using the above two-power-law fits in the outburst time segments, and the single power-law fit (index 1.16) for pre- and post-outburst. The decay of the excess photon flux measured above the non-thermal pre-outburst flux level (indicated in Fig. 10) is consistent with the exponential decay with 1/e time constant of $\sim$ 55.5 day reported by Gavriil et al. (2008).

$\begin{figure} \par\includegraphics[width=9cm]{1580fig10.ps} \end{figure}$	Figure 10: Evolution of the pulsed flux of PSR J1846-0258 in the 2-10 keV band as derived from RXTE PCA data. Error bars are 1 $\sigma$ . The average non-thermal flux level in the Pre-outburst I time segment (duration $\sim$ 5.6 yrs) is indicated with its $\pm 1\sigma$ uncertainty like in Fig. 9, but the levels practically coincide.
Open with DEXTER

6 Summary

In this paper we have presented detailed high-energy characteristics of the enigmatic PSR J1846-0258 and its PWN, using the complementary spatial, spectral and timing capabilities of RXTE PCA and HEXTE and INTEGRAL's IBIS/ISGRI. Particularly important is to see how the characteristics compare before, during and after the unique magnetar-like outburst in order to recognize constraints which are important for the interpretation of the transient magnetar-like behaviour of PSR J1846-0258.

6.1 Total spectra above 20 keV of PSR J1846-0258/Kes 75, before, during and after outburst

1 -: Using all available INTEGRAL data taken with ISGRI during 2003-2006 before the magnetar-like outburst in June 2006, adding up to 3.0 Ms effective on-source exposure, the time-averaged 20-300 keV spectrum for the total emission of PSR J1846-0258/Kes 75 can be represented by a power-law with photon index $\Gamma = 1.80\pm0.06$ and an energy flux (20-300 keV) of $(6.62\pm 0.35)\times 10^{-11}$ erg/cm² s (Sect. 3.2).
2 -: ISGRI observed PSR J1846-0258/Kes 75 unfortunately only towards the end of the outburst for 214 ks. No change in spectral shape was observed ( $\Gamma = 1.75_{-0.31}^{+0.27}$ ), but there is an indication at the $2.3\sigma$ level for an enhanced flux level (by $\sim$ $52{\%}$ ) during outburst decay (Sect. 3.3).
3 -: About one year after the onset of the outburst, the measured (415 ks) total post-outburst spectrum in the 20-300 keV band is within 1 $\sigma$ errors of $\sim$ 15% consistent in shape and flux with the pre-outburst spectrum (Sect. 3.4).

6.2 Ephemerides of PSR J1846-0258 before, during and after outburst; glitches

1 -: Exploiting the multi-year monitoring observations of RXTE and the high count rate of the PCA we derived phase-coherent ephemerides for the 6.5 years before the outburst, consistent with the results reported by Livingstone et al. (2006). PSR J1846-0258 was manifesting itself as a stable young high B-field pulsar with a breaking index of the spin-down of $2.65\pm0.01$ (Sect. 4.1, Table 2).
2 -: During the outburst phase coherence was lost (see also Gavriil et al. 2008), except for a short period of 55 days from MJD 53 978 till 54 033 in which we found a phase-coherent solution. Nevertheless, incoherent solutions have been derived over the full duration of the outburst. Phase coherence was caught-up again after the burst on MJD 54126, when the PCA (2-60 keV) pulsed flux was back to its average pre-burst value (Sect. 4.2, Table 2, Fig. 7).
3 -: We showed that the onset of the radiative outburst was accompanied by a huge spin-up glitch near MJD $53~883\pm 3$ with a glitch size $\Delta\nu/\nu$ in the range $(2.0{-}4.4)\times 10^{-6}$ . This fractional-frequency-jump size ranks in the top of the glitch-size distribution for rotation-powered pulsars. Furthermore, we confirm the occurrence of a small glitch near MJD $52~210\pm 10$ (Livingstone et al. 2006), however, for a slightly different epoch somewhere between MJD 52 237 and 52 253 (Sect. 4.2, Fig. 7).

6.3 Pulse profiles

1 -: Using the high statistics of all pre-outburst observations, ISGRI and RXTE HEXTE both measure significant and consistent pulse profiles up to 150 keV. Namely, a broad single asymmetric pulse, making PSR J1846-0258 the fifth rotation-powered pulsar detected at hard X-rays/soft gamma rays (Sect. 4.3, Fig. 3).
2 -: Comparison of the pulse profiles measured with the PCA, HEXTE and ISGRI between 2.9 and 150 keV shows that the pulse shape does not change with energy (Sect. 4.3, Figs. 3 and 4).
3 -: The shape of the profile measured with the PCA between 2.9 and 8.3 keV during the magnetar-like outburst, when the soft component dominated the emission, exhibits a shape which is fully consistent with the high-statistics pre-outburst pulse profile in the same energy band. This is evidence for a stable geometry (Sect. 4.4, Fig. 5).

6.4 Pre-outburst pulsed spectra and pulsed fractions; PWN-DC spectrum

1 -: The time-averaged spectra of the pre-outburst pulsed emission as measured with the PCA, HEXTE and ISGRI between $\sim$ 3 keV and 300 keV are consistent in overlapping energy bands. The best-fit power-law model has a photon index $\Gamma = 1.20\pm 0.01$ . The energy fluxes of the pulsed emission in the 2-10 keV and 20-100 keV bands are $(2.38\pm0.02)\times 10^{-12}$ erg/cm² s and $(15.2\pm0.14)\times 10^{-12}$ erg/cm² s, respectively. Fitting a curved power-law model to just the PCA spectrum (3-30 keV) and to the total combined pulsed spectrum (3-300 keV) gives a significantly better fit (Sect. 5.2, Figs. 6 and 11).
2 -: Comparing the measured pulsed flux (only PSR J1846-0258 pulsed) and the total (PSR J1846-0258 pulsed + DC + PWN) measured by ISGRI in the band 20-100 keV gives a lower limit to the pulsed fraction of 44% for the emission from the compact object. Around 150 keV the measured pulsed and total fluxes are consistent with a pulsed fraction of 100%, however the statistical uncertainties are large at these energies. Comparing the PCA pulsed flux with the total point-source (PSR J1846-0258 pulsed + DC) flux measured with Chandra, gives an estimated pulsed fraction of 31% for the 0.5-10 keV band (Sect. 5.3, Fig. 6).
3 -: The above discussed variation of pulsed fraction with energy implies that the high-energy spectrum of the PWN, as well as that of the point-source DC emission of PSR J1846-0258 measured by Chandra below 7 keV will strongly bend down in the INTEGRAL energy window above 20 keV to drastically lower (E²F) levels at 100 keV (Sect. 5.3, Fig. 6).

6.5 Spectral evolution (3-30 keV) during magnetar-like outburst

1 -: In the first 32 days after the major glitch (time segment A1) the 3-30 keV pulsed spectrum can be represented with two power-law models, a soft component with index $\Gamma_{\rm s} = 2.96\pm 0.06$ and a hard component with the pre-outburst value $\Gamma_{\rm h} = 1.16$ . The 2-10 keV (energy) flux increased by a factor $\sim$ 5 and the 10-30 keV (energy) flux increased with only 35% (Sect. 5.4, Figs. 9 and 10).
2 -: Above 9 keV all spectra during outburst and also the 3-30 keV pre- and post-outburst spectra are consistent with a single power-law shape with the same index 1.16 (Sect. 5.4, Fig. 8).
3 -: After $\sim$ 120 days the strong soft outburst and the modest enhancement of the hard non-thermal component both vanish (Sect. 5.4, Figs. 9 and 10).

7 Discussion

The high-B-field radio-quiet X-ray pulsar PSR J1846-0258 appears to be a unique object. Ever since the discovery of high-energy X-ray and gamma-ray emission from rotation-powered (radio) pulsars, they have been known as stable high-energy emitters. PSR J1846-0258 is the first rotation-powered pulsar exhibiting a magnetar-like radiative outburst together with short <0.1 s bursts (Kumar & Safi-Harb 2008; Gavriil et al. 2008). This schizophrenic behaviour triggered the discussion whether high-B-field rotation-powered pulsars represent a transition between normal, lower-field pulsars and magnetars. In this discussion we will first address its manifestation as a genuine rotation-powered pulsar and whether its high-energy characteristics are commensurate with those of other young rotation-powered pulsars and theoretical scenarios discussed in literature for the production of non-thermal emission in pulsar magnetospheres. Then, we will discuss how the characteristics which we determined for its magnetar-like outburst point to a likely production site and scenarios in the dipole geometry discussed in models for rotation-powered pulsars.

7.1 PSR J1846-0258 as a rotation-powered pulsar

Before its brightening and since its discovery in X-rays by Gotthelf et al. (2000), PSR J1846-0258 manifested itself for many years as a stable pulsar emitting X-rays with energies above 0.5 keV. The total spectrum (Kes 75 plus the PSR J1846-0258/PWN system) measured with INTEGRAL above 20 keV has a photon index $\Gamma = 1.80\pm0.06$ and an X-ray luminosity (20-300 keV) of $L_{\rm X,tot}^{20-300}=6.3(3)\times 10^{34}\cdot \eta \cdot d_{10}^2$ erg/s. This luminosity amounts $\sim$ $9.7{\%}$ of the available spin-down luminosity assuming isotrope emission ( $\eta=4\pi$ ) and a distance of 10 kpc (d₁₀=1) and is of the same magnitude, but slightly higher than what has been measured for other young pulsars such as the Crab (3.0%; adopting a distance of 2 kpc and the high-energy model, a broken power-law, given in Jourdain & Roques 2008) and PSR B1509-58 (5.7%; adopting a distance of 5.2 kpc) in the same energy band. Also for energies below 10 keV the total luminosity of PSR J1846-0258 is similar to that of other young pulsars as discussed by Su et al. (2009). Obviously, adoption of a significantly different distance to PSR J1846-0258 (e.g. 19 kpc by McBride et al. 2008) will lead to different conclusions.

The time-averaged non-thermal pulsed spectrum has a photon index $\Gamma = 1.20\pm 0.01$ (3-300 keV, this work) and the X-ray luminosity (2-100 keV) of the pulsed emission amounts $L_{\rm X}^{2{-}100}=1.90(2)\times 10^{34}\cdot \eta \cdot d_{10}^2$ erg/s, which translates in a spin-down luminosity efficiency of 0.23% assuming emission into one steradian ( $\eta=1$ ) and a distance of 10 kpc (d₁₀=1). These values are in the wide range measured for other young rotation powered pulsars emitting at hard X-rays e.g. Crab, PSR 1509-58 and PSR B0540-69. For example, PSR J1846-0258 can be compared with the young radio pulsar PSR B1509-58, which also harbours a strong polar surface magnetic field with strength of $\sim$ $1.5 \times 10^{13}$ G, in this case below the quantum critical field strength. Furthermore, PSR B1509-58 has a similar broad single-pulse profile at soft and hard X-rays, and is detected up to at least 10 MeV (Cusumano et al. 2001; Kuiper et al. 1999). In the 3-300 keV energy band, the shapes of the pulsed non-thermal spectra of both pulsars are similarly curved (see Fig. 11).

$\begin{figure} \par\includegraphics[height=9cm,width=9cm]{1580fig11.ps} \end{figure}$

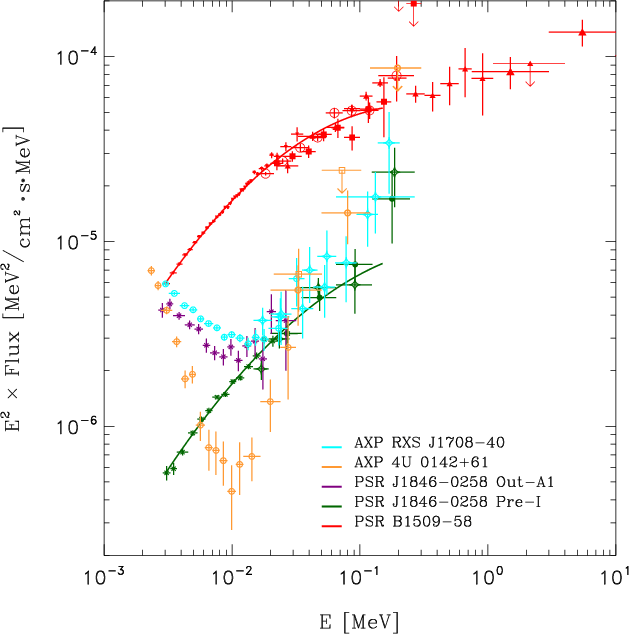

Figure 11:

The high-energy pulsed spectra of PSR J1846-0258 from pre-outburst observations with RXTE and INTEGRAL (green data points; green curved line) and from observations performed during the early phase of the outburst (A1) from RXTE PCA data (purple data points). For comparison purposes the pulsed spectrum of the young rotation-powered high-B field pulsar PSR B1509-58 is superposed (red data points from RXTE PCA and HEXTE, INTEGRAL ISGRI and CGRO BATSE and COMPTEL; red curved line, fit to RXTE PCA and HEXTE data) along with the pulsed spectra (RXTE and INTEGRAL) of AXPs 4U 0142+61 (orange data points) and 1RXS J1708-4009 (aqua data points). Error bars are $1\sigma$ . All spectra are corrected for interstellar absorption (unabsorbed).

Open with DEXTER

The main difference is that the pulsed flux of PSR J1846-0258 is about a factor of ten lower than the pulsed flux from PSR B1509-58 (see Fig. 11). Taking the different source distances into account, $5.2\pm1.4$ kpc for PSR B1509-58 and $\sim$ 10 kpc (Su et al. 2009) for PSR J1846-0258, the luminosities differ only by a factor of $\sim$ 2.7. However, the efficiencies to convert spin-down energy into X-rays are (very) comparable, $\epsilon_{1846}/\epsilon_{1509} \sim 0.8$ (the spin-down luminosity of PSR B1509-58 amounts $1.77\times 10^{37}$ erg/s, and that of PSR J1846-0258 $8.19\times 10^{36}$ erg/s). Therefore, PSR J1846-0258 does not appear to be intrinsicly different from other young normal rotation-powered (radio) pulsars.

The scenario responsible for the production of non-thermal X-ray and gamma-ray emission from rotation-powered (radio) pulsars has been under debate for decades. There is still no consensus on the origin of the high-energy electrons and/or positrons that are responsible for the high-energy photons, and how and where they are accelerated in the open zone along the magnetic-field-aligned electric field. For many years the discussion was between polar-cap scenarios in which the acceleration was proposed to take place near the neutron star at the magnetic poles (Daugherty & Harding 1982; Arons & Scharlemann 1979), and outer gap models placing the site of acceleration and emission between the null-charge surface on which the magnetic field becomes perpendicular to the rotation axis and the light cylinder on which the plasma corotates with the speed of light (Hirotani & Shibata 2001; Cheng et al. 1986b; Romani 1996; Cheng et al. 1986a). Both approaches encountered problems, e.g. the low-latitude polar-cap emission was difficult to reconcile with double-peaked or wide pulse profiles and the outer-gap scenario faced difficulties in reproducing e.g. the shape of the Vela pulse profile.

For the polar-cap approach the solution was found with the slot gap (Arons 1983), a narrow bundle of field lines bordering the closed-field region in which acceleration and pair cascades can occur at altitudes up to several stellar radii (Muslimov & Harding 2004; Dyks et al. 2004; Muslimov & Harding 2003). Slot gaps are predicted to exist only in the young and/or fast pulsars. In the latest version Harding et al. (2008) presented results from a 3D model in which they include emission produced by primary electrons accelerated to high-altitudes in the unscreened electric field of the slot gap, as well as by higher-generation electron-positron pairs cascading from lower altitudes along field lines interior to the slot gap. Curvature, synchrotron and inverse Compton radiation of both primary electrons and pairs contribute to the total broad-band emission. Harding et al. (2008) show that the slot-gap model can reasonably well reproduce the Crab-pulsar profiles and (phase-resolved) spectra. The optical to hard X-ray component for this young pulsar is produced by synchrotron radiation of the unaccelerated pairs flowing along the interior field lines of the slot gap to high altitudes. Applying a slot-gap model also for the young PSR J1846-0258 synchrotron radiation of pairs is then responsible for the stable time-averaged pulsed hard-X-ray spectrum (pre- and post-outburst) shown in Fig. 6. The broad single pulse profile of PSR J1846-0258 can be modelled in this scenario for different viewing directions (angle between observer and rotation axis, and angle between rotation- and magnetic field axis) than those modelled for the Crab pulsar (Harding et al. 2008).

For the traditional outer-gap scenario, in which the non-thermal emission is produced above the null-charge surface, Zhang & Cheng (2000) showed in a 3D model that they could reasonably well reproduce for the two young pulsars PSR B1509-58 and PSR B0540-69 both their broad pulse profiles (similar to PSR J1846-0258 ) was well as their soft to hard X-ray spectra. However, in the traditional outer-gap model the existence of the outer gap had been hypothesized. Hirotani & Shibata (1999) demonstrated in a one-dimensional analysis of a pair-production cascade along the magnetic field line, that the outer gap does exist as solution of the Maxwell and Boltzmann equations. This model was further elaborated in a 2D scenario (Takata et al. 2007; Hirotani 2006; Takata et al. 2006) and finally the photon propagation and pair production is solved in the full 3D magnetosphere (Hirotani 2008; Takata & Chang 2007). For these self-consistent solutions the gap extends past the null-charge surface toward the neutron star. Takata & Chang (2007) and Hirotani (2008) showed that the modified outer-gap model can also reproduce the pulse profile and phase-resolved spectra of the Crab. In addition, Takata & Chang (2007) reproduced the spectrum and broad structured pulse profile for the young PSR B0540-69. Like for the slot-gap scenario, in the framework of the outer-gap accelerator synchrotron emission is responsible for the emission in the X-ray band. This synchrotron component is dominated by the emissivity of accelerated primary pairs, with a substantial contribution from secondary pairs. Notably, Takata & Chang (2007) show that hard X-ray synchrotron emission from secondary pairs below the null-charge surface, thus close to the neutron-star surface, contributes up to energies above 1 MeV. At MeV energies this latter synchrotron component even dominates over the synchrotron contribution from primary pairs.

In fact, the geometry of the modified outer-gap model and that of the slot-gap model are now very similar, but the radiation mechanisms are still very different. Both models appear to be reasonably capable of reproducing spectra and pulse profiles of young pulsars. The X-ray spectral and temporal characteristics measured for PSR J1846-0258 before and after the magnetar-like outburst are very similar to those seen for other young pulsars, e.g. PSR 1509-58 and PSR B0540-69, and can also be explained with either model.

7.2 PSR J1846-0258 exhibiting magnetar-like behaviour

We were able to study the magnetar-like outburst in detail rendering important directions on what most likely caused the event, where the initial trigger happened, and what are likely scenarios in the magnetosphere for the production of the outburst emission above 3 keV.

7.2.1 Magnetar-like outburst below 10 keV

Firstly, the evolution of the spectral shape of the pulsed emission over the outburst time interval (see Fig. 8) clearly shows that the major glitch of size $\Delta\nu/\nu$ $(2.0{-}4.4)\times 10^{-6}$ instantly triggered the ejection of a soft component with an initial flux increase by a factor $\sim$ 5 for energies 2-10 keV. The pulsed spectrum between 3 and 30 keV can be described for the first 125 days (time interval A1, A2 and B in Fig. 7 and Table 3) with the sum of 1) a new soft component which appeared to soften over the burst duration (the photon index evolved from $2.96\pm 0.06$ via $3.27\pm 0.27$ to $4.74\pm 0.71$ , indicative for cooling), and 2) a non-thermal component with the same photon index of $\sim$ 1.2 as the pre-outburst pulsed spectrum, but initially enhanced in flux by $\sim$ $35{\%}$ . The new soft component vanished at post-outburst epochs and the non-thermal component returned back to its pre-outburst flux levels. We do not have spectral information on the pulsed emission below 3 keV, but Kumar & Safi-Harb (2008) and Ng et al. (2008) show evidence for a black-body (BB) component in the Chandra total point-source spectrum (pulsar plus DC) seven days after the start of the outburst (during interval A1 in Fig. 7). The estimated temperatures were in the range $kT \sim 0.7$ -1.1 keV with BB radii in the range $\sim$ 0.2-0.6 km, in agreement with the conventional polar-cap radius. These authors did not detect a BB component in 2000, when PSR J1846-0258 was in its low persistent state. We do not consider this non-detection as being due to low statistics, because the high-energy X-ray and gamma-ray spectra of young pulsars are known to be dominated by non-thermal emission and do not exhibit a BB enhancement. The latter becomes apparent for middle-aged pulsars like Vela and older pulsars. An exception is PSR J1119-6127, which is also a young high-magnetic-field pulsar with spin properties very similar to those of PSR J1846-0258, but with different X-ray properties. Safi-Harb & Kumar (2008) show that the spectrum of PSR J1119-6127 has a thermal component which can be fitted by either a BB model with a temperature $kT \sim 0.21$ keV, or a neutron star atmospheric model with temperature $kT \sim 0.14$ keV. Both temperatures are significantly lower than that measured during outburst for PSR J1846-0258. Therefore, we conclude that the BB component of PSR J1846-0258 during outburst is like the soft component measured with RXTE initiated by the major timing glitch and cools down in $\sim$ 120 days. Then, the measured soft transient component of the pulsed emission between 3 and 10 keV in excess to the underlying hard non-thermal component can be due to resonant cyclotron scattering (RCS) thereof, as has been proposed for e.g. magnetars for their persistent and transient emissions (Beloborodov & Thompson 2007; Thompson et al. 2002). For example, Rea et al. (2008) applied this model to the total X-ray spectra of 10 magnetars, including canonical and transient AXPs and SGRs. Figure 11 shows also the pulsed high-energy spectra of AXPs 4U 0142+61 and 1RXS J170849-400910, again measured with RXTE and INTEGRAL (den Hartog et al. 2008b,a), to be compared with the pulsed spectrum of PSR J1846-0258 directly after the major glitch. The similarity in shape is evident. The pulsed spectra between 3 and 30 keV of 4U 0142+61 and 1RXS J170849-400910 can also be represented by the sum of two, a soft and a hard, power-law components. The soft component can plausibly be explained with a resonant cyclotron scattering origin. The hard non-thermal power-law spectra of 4U 0142+61 and 1RXS J170849-400910 have been measured with INTEGRAL up to $\sim$ 200 keV and could have a similar origin in the outer magnetosphere as the hard non-thermal X-ray spectra measured for young radio pulsars, as has been discussed in den Hartog et al. (2008b). Furthermore, and most interestingly, we found that during the outburst the pulse profile in this energy range below $\sim$ 9 keV, while completely dominated by the soft flux enhancement, is identical to the pulse profile before and after the outburst when the emission was purely non-thermal (Fig. 5). This means that the soft enhancement is produced in the same viewing direction through the pulsar magnetosphere. Unfortunately, there is no measurement of the profile shape during outburst below 3 keV, where the soft component dominates.

7.2.2 Flux enhancement above 10 keV

In Sect. 5.4 we showed that above 10 keV, the evolution over the outburst period of the pulsed spectrum differs from that below 10 keV. Namely, the pulsed flux (10-30 keV) increased after the glitch by only $\sim$ 35%, returning to the pre-outburst level in $\sim$ 120 days together with the quenching of the new soft component. The pulsed spectrum (10-30 keV) remained hard during the outburst, consistent with the pre- and post-outburst index value of $\sim$ 1.2. Unfortunately, INTEGRAL did not observe PSR J1846-0258 when the glitch triggered the outburst. Nevertheless, INTEGRAL observations during the tail of the outburst covered also PCA observation-time window B (Table 3 and see overlap in Fig. 7), but the statistics were insufficient for extracting the pulsed signal. They revealed, however, an increase of the total flux (20-100 keV) with ( $52 \pm 23$ )% and no change in spectral index. This is a indication that the hard X-ray spectrum from PSR J1846-0258 changed only in normalization and not in shape over the broad 10-100 keV energy window, suggesting that the production mechanism of the non-thermal emission in the pulsar magnetosphere did not change during the outburst. Furthermore, the shape of the pulse profile above 10 keV, as measured with the PCA, also did not change, suggesting that the geometry of the production site of the non-thermal emission in the pulsar magnetosphere did not alter either.

7.2.3 Production scenarios during magnetar-like outburst

Summarizing, our results strongly suggest that during the outburst, there are two pulsed components: 1) a transient soft component which dominates the pulsed emission below 10 keV, and exhibits the same pulse profile as the pre-outburst non-thermal emission; 2) a non-thermal hard component with the same characteristics (spectral shape and pulse profile) as the pre- and post-outburst pulsed emission, but with an $\sim$ 35-% enhanced flux averaged over 32 days after the major glitch. Apparently, the geometry of the magnetic field in the magnetosphere did not vary, i.e. the assumed pulsar dipole field did not change during the magnetar-like outburst.

During the outburst, the pulsed spectrum of PSR J1846-0258 looks very much like the spectra of the persistent emissions from AXPs, as we showed in Fig. 11 for AXP 4U 0142+61 and 1RXS J170849-400910. For AXPs strong variability and outbursts were detected for energies below $\sim$ 10 keV, while the hard non-thermal power-law emissions measured with INTEGRAL up to $\sim$ 200 keV remained stable within $\sim$ 20% on time scales of 0.5-1 year (den Hartog et al. 2008b,a). Attempts to see correlated flux variability between the soft emission below 10 keV and the hard emission above 10 keV on shorter time scales were not succesful due to the poor statistics in all observations above 10 keV with RXTE HEXTE and INTEGRAL ISGRI. Therefore, similar correlated flux variability for AXPs can not be excluded. The abrupt flux enhancements of AXPs (and SGRs) below $\sim$ 10 keV have been interpreted as a sudden release of energy, either from below the crust or above. Apparently, we witness here for the first time a similar event in the case of a high-B-field rotation-powered pulsar, and the following scenarios emerge, which can explain the soft-hard-correlated flux variability. Namely, sufficient stress has been built up in the crust to cause cracking, resulting in a major glitch, releasing at the same time a significant amount of energy, generating the BB-component measured with Chandra in the total emission during the outburst. Resonant cyclotron upscattering thereof subsequently generates the decaying/cooling soft pulsed component measured below 10 keV at the phase of the pulse of the non-thermal component. This suggests that the event causing the abrupt rise, occured near the polar cap (no change in pulse profile). In the two models discussed above for rotation-powered pulsars, slot-gap and out-gap models, the generation of the pulsed non-thermal emission starts above the polar cap near the neutron star surface. The modest flux increase of the non-thermal emission can then be explained in both model scenarios: 1) in the case of the slot-gap model, an abrupt increase in the number of electron-positron pairs above the polar cap, will temporaly increase the number of unaccelerated pairs flowing along the interior field lines of the slot gap to high altitudes producing the synchrotron radiation responsible for the non-thermal hard X-rays. This provides a natural explanation for the stable pulse profile, because the geometry did not change; 2) for the extended-outer-gap model we are similarly dealing with enhanced synchrotron emission, namely from the abrupt enhancement of secondary pairs created above the polar cap below the null-charge surface, which are accelerated in the extended gap and contribute up to energies above 1 MeV.

The above scenarios would imply that PSR J1846-0258 did not transform from a rotation-powered pulsar into a magnetar, rather that rotation-powered pulsars with a strong B field can occasionally experience major glitches, releasing significant amounts of energy from below the crusts, following subsequently one of the above sketched scenarios. With the increase of the B-field strengths going from rotation-powered pulsars to AXPs and SGRs, the frequency of such events increases.

Acknowledgements

We thank Fotis Gavriil for providing the PCA pulsed flux measurements of PSR J1846-0258 as shown in Fig. 2 of Gavriil et al. (2008). This research has made use of data obtained from the High Energy Astrophysics Science Archive Research Center (HEASARC), provided by NASA's Goddard Space Flight Center, and of data obtained through the INTEGRAL Science Data Centre (ISDC), Versoix, Switzerland. INTEGRAL is an ESA project with instruments and science data centre funded by ESA member states (especially the PI countries: Denmark, France, Germany, Italy, Switzerland, Spain), Czech Republic and Poland, and with the participation of Russia and the USA. We have extensively used NASA's Astrophysics Data System (ADS).

References

Archibald, A. M., Kaspi, V. M., Livingstone, M. A., & McLaughlin, M. A. 2008, ApJ, 688, 550 [NASA ADS] [CrossRef] (In the text)
Arons, J. 1983, ApJ, 266, 215 [NASA ADS] [CrossRef] (In the text)
Arons, J., & Scharlemann, E. T. 1979, ApJ, 231, 854 [NASA ADS] [CrossRef]
Beloborodov, A. M., & Thompson, C. 2007, ApJ, 657, 967 [NASA ADS] [CrossRef]
Buccheri, R., Bennett, K., Bignami, G., et al. 1983, A&A, 128, 245 [NASA ADS] (In the text)
Cheng, K. S., Ho, C., & Ruderman, M. A. 1986a, ApJ, 300, 500 [NASA ADS] [CrossRef]
Cheng, K. S., Ho, C., & Ruderman, M. A. 1986b, ApJ, 300, 522 [NASA ADS] [CrossRef]
Courvoisier, T. J.-L., Walter, R., Beckmann, V., et al. 2003, A&A, 411, L53 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
Cusumano, G., Mineo, T., Massaro, E., et al. 2001, A&A, 375, 397 [NASA ADS] [CrossRef] [EDP Sciences]
Daugherty, J. K., & Harding, A. K. 1982, ApJ, 252, 337 [NASA ADS] [CrossRef]
den Hartog, P. R., Kuiper, L., Hermsen, W., et al. 2008a, A&A, 489, 245 [NASA ADS] [CrossRef] [EDP Sciences]
den Hartog, P. R., Kuiper, L., & Hermsen, W. 2008b, A&A, 489, 263 [NASA ADS] [CrossRef] [EDP Sciences]
Dib, R., Kaspi, V. M., & Gavriil, F. P. 2008, ApJ, 673, 1044 [NASA ADS] [CrossRef] (In the text)
Dyks, J., Harding, A. K., & Rudak, B. 2004, ApJ, 606, 1125 [NASA ADS] [CrossRef]
Djannati-Atai, A., de Jager, O. C., Terrier, R., et al. 2008, in Proc. 30th Int. Cosmic Ray Conf., Mérida, Vol. 2 (OG part 1), 823 (In the text)
Falanga, M., Kuiper, L., Poutanen, J., et al. 2005, A&A, 444, 15 [NASA ADS] [CrossRef] [EDP Sciences]
Gavriil, F. P., Gonzalez, M. E., Gotthelf, E. V., et al. 2008, Science, 319, 1802 [NASA ADS] [CrossRef] (In the text)
Goldwurm, A., David, P., Foschini, L., et al. 2003, A&A, 411, L223 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
Gotthelf, E. V., Vasisht, G., Boylan-Kolchin, M., & Torii, K. 2000, ApJ, 542, L37 [NASA ADS] [CrossRef] (In the text)
Gotthelf, E. V., & Halpern, J. P. 2008, A&A, 681, 515 [NASA ADS]
Harding, A. K., Stern, J. V., Dyks, J., & Frackowiak, M. 2008, ApJ, 680, 1378 [NASA ADS] [CrossRef] (In the text)
Helfand, D., Collins, B. F., & Gotthelf, E. V. 2003, ApJ, 582, 783 [NASA ADS] [CrossRef] (In the text)
Hirotani, K. 2006, ApJ, 652, 1475 [NASA ADS] [CrossRef]
Hirotani, K. 2008, Open Astron. J., submitted [arXiv:809.1283]
Hirotani, K., & Shibata, S. 1999, MNRAS, 308, 54 [NASA ADS] [CrossRef] (In the text)
Hirotani, K., & Shibata, S. 2001, MNRAS, 325, 1228 [NASA ADS] [CrossRef]
Jahoda, K., Swank, J. H., Giles, A. B., et al. 1996, Proc. SPIE, 2808, 59 [NASA ADS] (In the text)
Jourdain, E., & Roques, J. P. 2008, Proceedings of Science (Integral08), 143 (In the text)
Kesteven, M. J. L. 1968, Australian J. Phys., 21, 369 [NASA ADS] (In the text)
Kuiper, L., Hermsen, W., Krijger, J. M., et al. 1999, A&A, 351, 119 [NASA ADS]
Kuiper, L., Hermsen, W., Walter, R., et al. 2003, A&A, 411, L31 [NASA ADS] [CrossRef] [EDP Sciences]
Kuiper, L., Hermsen, W., & Mendez, M. 2004, A&A, 613, 1173 [NASA ADS]
Kuiper, L., Hermsen, W., den Hartog, P. R., & Collmar, W. 2006, A&A, 645, 556 [NASA ADS]
Kuiper, L., Hermsen, W., Klein-Wolt, M., et al. 2008, ATEL, 1405
Kumar, H. S., & Safi-Harb, S. 2008, ApJ, 678, L43 [NASA ADS] [CrossRef] (In the text)
Leahy, D. A., & Tian, W. W. 2008, A&A, 480, L25 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
Lebrun, F., Leray, J. P., Lavocat, P., et al. 2003, A&A, 411, L141 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
Livingstone, M. A., Kaspi, V. M., Gotthelf, E. V., & Kuiper, L. 2006, A&A, 647, 1286 [NASA ADS] (In the text)
McBride, V. A., Dean, A. J., Bazzano, A., et al. 2008, A&A, 477, 249 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
Muslimov, A. G., & Harding, A. K. 2003, ApJ, 588, 430 [NASA ADS] [CrossRef]
Muslimov, A. G., & Harding, A. K. 2004, ApJ, 606, 1143 [NASA ADS] [CrossRef]
Ng, C.-Y., Slane, P. O., Gaensler, B. M., & Hughes, J. P. 2008, ApJ, 686, 508 [NASA ADS] [CrossRef]
Rea, N., Zane, S., Turolla, R., et al. 2008, ApJ, 686, 1245 [NASA ADS] [CrossRef] (In the text)
Romani, R. W. 1996, ApJ, 470, 469 [NASA ADS] [CrossRef]
Rothschild, R. E., Blanco, P. R., Gruber, D. E., et al. 1998, ApJ, 496, 538 [NASA ADS] [CrossRef] (In the text)
Rots, A., Jahoda, K., & Lyne, A. G. 2004, ApJ, 605, L129 [NASA ADS] [CrossRef] (In the text)
Safi-Harb, S., & Kumar, H. S. 2008, ApJ, 684, 532 [NASA ADS] [CrossRef] (In the text)
Su, Y., Chen, Y., Yang, J., et al. 2009, ApJ, 694, 376 [NASA ADS] [CrossRef] (In the text)
Takata, J., & Chang, H.-K. 2007, ApJ, 670, 677 [NASA ADS] [CrossRef]
Takata, J., Shibata, S., Hirotani, K., & Chang, H.-K. 2006, MNRAS, 366, 1310 [NASA ADS]
Takata, J., Chang, H.-K., & Cheng, K. S. 2007, ApJ, 656, 1044 [NASA ADS] [CrossRef]
Thompson, C., Lyutikov, M., & Kulkarni, S. R. 2002, ApJ, 574, 332 [NASA ADS] [CrossRef]
Ubertini, P., Lebrun, F., Di Cocco, G., et al. 2003, A&A, 411, L131 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
Vedrenne, G., Roques, J.-P., Schönfelder, V., et al. 2003, A&A, 411, L63 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
Walter, R., Favre, P., Dubath., P., et al. 2003, A&A, 411, L25 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
Winkler, C., Courvoisier, T. J.-L., Di Cocco, G., et al. 2003, A&A, 411, L1 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
Zhang, L., & Cheng, K. S. 2000, A&A, 363, 575 [NASA ADS] (In the text)

Footnotes

... parameters: In this work we limited ourselves to a maximum of three timing parameters or less in case of small time spans.
... bands: Spectral data from the 28-33.1 keV HEXTE band have been ignored because of the presence of a huge background line due to the activation of iodine.
... PCA: An absorbing hydrogen column of $N_{\hbox{\scriptsize H}}=3.96\times 10^{22}$ cm^-2 has been assumed for the PCA spectral analysis (see Helfand et al. 2003) and in all PCA spectra shown in this paper the interstellar absorption has been modeled out.

All Tables

Table 1: INTEGRAL observation characteristics for PSR J1846-0258.

Table 2: Phase-coherent ephemerides for PSR J1846-0258 as derived from RXTE PCA (monitoring) data.

Table 3: Time intervals used in the spectral analysis of the RXTE PCA data.

All Figures

$\begin{figure} \par\includegraphics[angle=90,width=18cm,height=9cm,clip]{1580fig1.ps} \end{figure}$	Figure 1: A 20-70 keV image in Galactic coordinates of the Scutum region centered on (l,b)=(30,0) combining IBIS ISGRI data from INTEGRAL revolutions 49 up to and including 603 (March 10, 2003-Sep. 23, 2007). The total GTI exposure amounts 7.35 Ms for this mosaic image, while the effective exposure on PSR J1846-0258 equals 3.63 Ms. Only source features with significances above $4\sigma$ are shown. The white circle indicates PSR J1846-0258/Kes 75. The yellow encircled sources are AXP 1E 1841-045 (see Kuiper et al. 2004,2006) and the rotation-powered pulsar AX J1838.0-0655 (Gotthelf & Halpern 2008; Kuiper et al. 2008). The other sources indicated by numbers are: [1] - GS 1843+009, [2] - IGR J18490-0000, [3] - IGR J18485-0047, [4] - XTE J1855-026, [5] - 3A 1845-024, [6] - IGR J18462-0223, [7] - IGR J18483-0311, [8] - IGR J18450-0435 and [9] - AX J1841.0-0535.
Open with DEXTER
In the text

$\begin{figure} \par\includegraphics[width=9cm,height=6.5cm,clip]{1580fig2.ps} \end{figure}$	Figure 2: The rotation behaviour of PSR J1846-0258 from Jan. 30, 2000 to Nov. 7, 2007 as determined from RXTE monitoring observations relative to the pre-outburst timing model (entry # 5 of Table 2). Note the dramatic change during the radiative outburst and its subsequent decay (e-folding time scale $\sim$ 55 days). The presence of a huge spin-up glitch near MJD $53~883\pm 3$ is clearly visible. Phase coherence is caught-up again as of MJD 54 126. Lines: phase-coherent timing models. Data points with 1- $\sigma$ errors: incoherent solutions.
Open with DEXTER
In the text

$\begin{figure} \par\includegraphics[height=7cm,width=9cm,clip]{1580fig3.ps} \end{figure}$	Figure 3: The pre-outburst (Revs. 49-441) pulse profile of PSR J1846-0258 as observed by IBIS ISGRI in the 20-150 keV energy band with a detection significance of $9.6\sigma$ . Error bars are $1\sigma$ on measured counts. Superposed is the best fit model composed of a PCA-template profile for the $\sim$ 2.9-8.3 keV band (dashed line) and a DC-level (long dashes; horizontal line) with its $1\sigma$ -error estimates (see Sect. 5.1). There is no significant difference in shape.
Open with DEXTER
In the text

$\begin{figure} \par\includegraphics[angle=90,width=15cm,height=9.8cm,clip]{1580fig4} \end{figure}$	Figure 4: Collage of pulse profile of PSR J1846-0258 using pre-outburst data from RXTE PCA (3-35 keV: a- c), HEXTE (15-250 keV: d- f) and INTEGRAL ISGRI (20-300 keV: g- i). The pulse signal is detected for the first time up to $\sim$ 150 keV making PSR J1846-0258 the fifth pulsar showing up at soft $\gamma$ -rays. The pulse profile shape is energy independent: a broad single-peak asymmetric pulse. Error bars are $1\sigma$ on measured counts.
Open with DEXTER
In the text

$\begin{figure} \par\includegraphics[width=9cm,clip]{1580fig5.ps} \end{figure}$	Figure 5: Comparison of the pulse-profiles accumulated in the PCA PHA band 7-19 ( $\sim$ 2.9-8.3 keV) during the early phase of the outburst (Outburst A1+A2, see Table 3, solid histogram with $1\sigma$ error bars) and from the pre-outburst observations (high-statistics dotted histogram). No significant shape change is observed, see text. The Y-axis specifies the number of counts per bin.
Open with DEXTER
In the text

$\begin{figure} \par\includegraphics[width=9cm,clip]{1580fig6.ps} \end{figure}$	Figure 6: Total and pulsed (unabsorbed) high-energy spectrum ( $\sim$ 1-300 keV) of Kes75/PSR J1846-0258 from pre-outburst RXTE PCA and HEXTE (both pulsed) and INTEGRAL IBIS ISGRI (pulsed and total) observations in an E²F representation. The spectral coverage is extended towards 1 keV using the Chandra spectral-fit results (1-7 keV; unabsorbed) obtained by Helfand et al. (2003) for the total emission spectrum of the pulsar and the PWN. Note that both the PWN contribution and DC emission from PSR J1846-0258 drop to undetectable levels at energies near 150 keV: the total emission is consistent with being 100% pulsed above $\sim$ 150 keV. Error bars on data points are $1\sigma$ .
Open with DEXTER
In the text

$\begin{figure} \par\includegraphics[height=12cm,width=9cm,clip]{1580fig7.ps} \end{figure}$	Figure 7: Pulsed-flux lightcurve (PCA 2-60 keV) around the outburst ( top panel) adapted from Gavriil et al. (2008). The pre-outburst averaged pulsed-flux level is shown by the horizontal dashed line along with its tiny $1\sigma$ error (plotted at MJD 53 400). The coverage of the INTEGRAL observations near the outburst period are indicated with revolution-number intervals in the upper part of the top panel. In the lower part of the top panel are shown the time segments used in the spectral-evolution study of the pulsed signal using 3-30 keV PCA data. The lower panel displays the pulse frequency evolution across the outburst period (zoom-in of Fig. 2). The phase-coherent solution in the time interval of 55 days around MJD 54 000 is indicated. Errors are $1\sigma$ .
Open with DEXTER
In the text

$\begin{figure} \par\includegraphics[width=12cm]{1580fig8.ps} \end{figure}$	Figure 8: Evolution of the (unabsorbed) pulsed spectrum ( $\sim$ 3-30 keV) of PSR J1846-0258 as derived from RXTE PCA data. Note the dramatic softening of the spectrum during the early phase of the outburst (purple data points) and the gradual return to its pre-outburst spectrum (black data points). Also indicated for each time segment are the power-law model fits obtained from >9 keV data. Data points are given with $1\sigma$ errors.
Open with DEXTER
In the text

$\begin{figure} \par\includegraphics[width=9cm]{1580fig9.ps} \end{figure}$	Figure 9: Evolution of the pulsed flux of PSR J1846-0258 in the 10-30 keV band as derived from a power-law fit to RXTE PCA >9 keV spectra (photon index fixed to its pre-outburst value of 1.16). Error bars are 1 $\sigma$ . The average flux level in the Pre-outburst I time segment (duration $\sim$ 5.6 yrs) is indicated with the broken line together with its $\pm 1\sigma$ uncertainty (dotted lines).
Open with DEXTER
In the text

$\begin{figure} \par\includegraphics[width=9cm]{1580fig10.ps} \end{figure}$	Figure 10: Evolution of the pulsed flux of PSR J1846-0258 in the 2-10 keV band as derived from RXTE PCA data. Error bars are 1 $\sigma$ . The average non-thermal flux level in the Pre-outburst I time segment (duration $\sim$ 5.6 yrs) is indicated with its $\pm 1\sigma$ uncertainty like in Fig. 9, but the levels practically coincide.
Open with DEXTER
In the text

$\begin{figure} \par\includegraphics[height=9cm,width=9cm]{1580fig11.ps} \end{figure}$	Figure 11: The high-energy pulsed spectra of PSR J1846-0258 from pre-outburst observations with RXTE and INTEGRAL (green data points; green curved line) and from observations performed during the early phase of the outburst (A1) from RXTE PCA data (purple data points). For comparison purposes the pulsed spectrum of the young rotation-powered high-B field pulsar PSR B1509-58 is superposed (red data points from RXTE PCA and HEXTE, INTEGRAL ISGRI and CGRO BATSE and COMPTEL; red curved line, fit to RXTE PCA and HEXTE data) along with the pulsed spectra (RXTE and INTEGRAL) of AXPs 4U 0142+61 (orange data points) and 1RXS J1708-4009 (aqua data points). Error bars are $1\sigma$ . All spectra are corrected for interstellar absorption (unabsorbed).
Open with DEXTER
In the text

Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.

Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.

Initial download of the metrics may take a while.
