The symbiotic star CH Cygni

The broad Ly$\alpha $ emission line explained by shocks

M. Contini1,2 - R. Angeloni1,2 - P. Rafanelli1

1 - Dipartimento di Astronomia, University of Padova, Vicolo dell'Osservatorio 2, 35122 Padova, Italy
2 - School of Physics and Astronomy, Tel-Aviv University, 69978 Tel-Aviv, Israel

Received 19 December 2007 / Accepted 1 April 2008

Context. In 1985, at the end of the active phase 1977-1986, a broad (4000  $\rm km~s^{-1}$) Ly$\alpha $ line appeared in the symbiotic system CH Cygni that had never been observed previously.
Aims. In this work we investigate the origin of this anomalous broad Ly$\alpha $ line.
Methods. We suggest a new interpretation of the broad Ly$\alpha $ based on the theory of charge transfer reactions between ambient hydrogen atoms and post-shock protons at a strong shock front.
Results. We have found that the broad Ly$\alpha $ line originated from the blast wave created by the outburst, while the contemporary optical and UV lines arose from the nebula downstream of the expanding shock in the colliding-wind scenario.

Key words: stars: binaries: symbiotic - stars: individual: CH Cyg

1 Introduction

Symbiotic stars (SSs) were introduced as spectroscopically peculiar objects by Merrill (1919). Nowadays they are interpreted as binary systems composed of a compact hot star, generally a white dwarf (WD), and a cool giant star, whose mutual interaction via accretion processes is at the origin of complex spectra recorded at all wavelengths, from radio to X-rays.

The first models attempted to explain the symbiotic spectra in the light of a binary star configuration in which the nebular emission arose from the photoionized portion of the cool giant wind. The photoionizing source was played by the WD alone. This simple scenario was fairly able to explain the first optical and radio data, but became inadequate for the detailed modeling of line emission (Nussbaumer & Vogel 1990) and for observations in new spectral ranges (Li & Leahy 1997). The observational evidence that actually both stars lose mass through important winds (Nussbaumer et al. 1995) led to the colliding-wind models (Girard & Willson 1987; Li et al. 1998; Kenny & Taylor 2005). A complex network of shock waves throughout the symbiotic systems could finally explain the observations, particularly in the high energy spectral ranges. The coupled effect of shocks and photoionization was therefore accounted for in the modeling of the line and continuum spectra (e.g. Contini 1997). Moreover, the network of gas and dust nebulae within specific SSs could be distinguished by composite models (Angeloni et al. 2007a-c).

CH Cygni (CH Cyg) is amongst the most studied yet still discussed SSs (e.g. Skopal et al. 2004, 2005, 2007, 2008, and references therein).

In particular, in 1977, CH Cyg underwent a powerful outburst that lasted until 1986. Towards the end, bipolar radio and optical jets appeared (Solf 1987) and spectral variations were observed in the UV and optical ranges. A remarkable characteristic of the 1985 spectrum was the appearance of a broad, strong Ly$\alpha $ emission line (Fig. 1), never evident in previous spectra (Selvelli & Hack 1985). However, this very peculiar spectral feature was generally disregarded because it could not be satisfactorily explained by the most common models.

In this paper, we discuss the origin of the Ly$\alpha $ line appearance in 1985 and suggest an alternative interpretation accounting for shock waves that accompany the WD outburst during the active phase. In Sect. 2 we briefly review the observational trend and the previous theories suggested to explain the composite Ly$\alpha $ line profile. In Sect. 3 we describe the colliding-wind scenario and the resulting picture at the end of the 1977-1986 active phase: adopting Chevalier's (1982) theory on the interaction of the outburst with the circumstellar medium, we apply the results by Heng & Sunyaev (2008, hereafter HS08) about the Ly$\alpha $  broad line formation at high-velocity shock fronts. A discussion appears in Sect. 4, while concluding remarks follow in Sect. 5.

\end{figure} Figure 1:

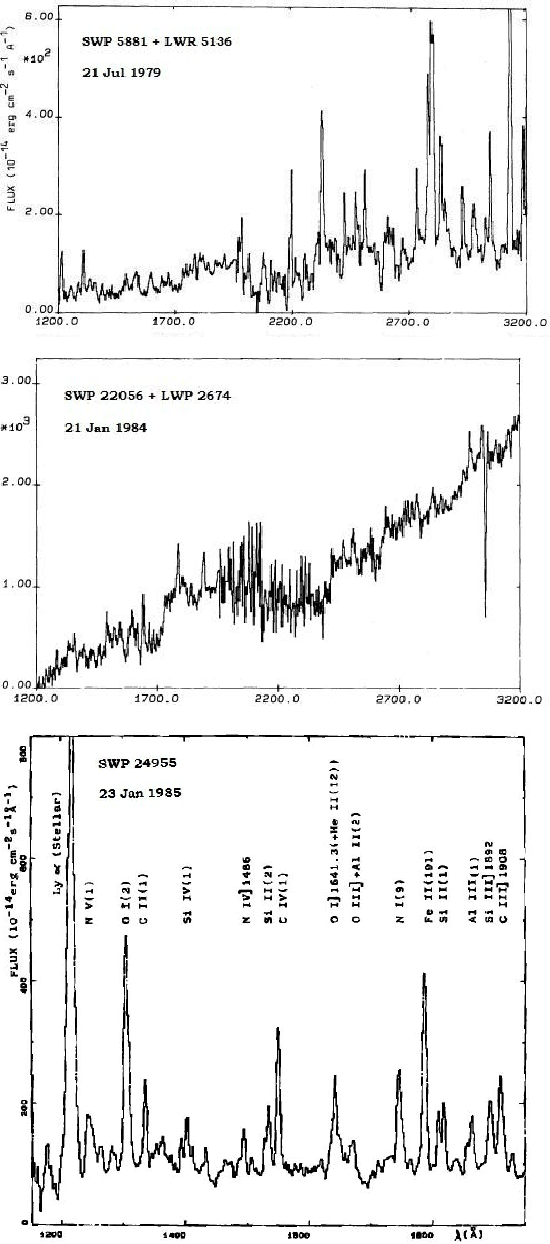

IUE spectra of CH Cyg, showing the appearance of a strong and unusually broad Ly$\alpha $ in 1985, at the end of the 1977-86 active phase (adapted from: MSH88, top and central panels - Selvelli & Hack 1985, bottom panel).

Open with DEXTER

\end{figure} Figure 2:

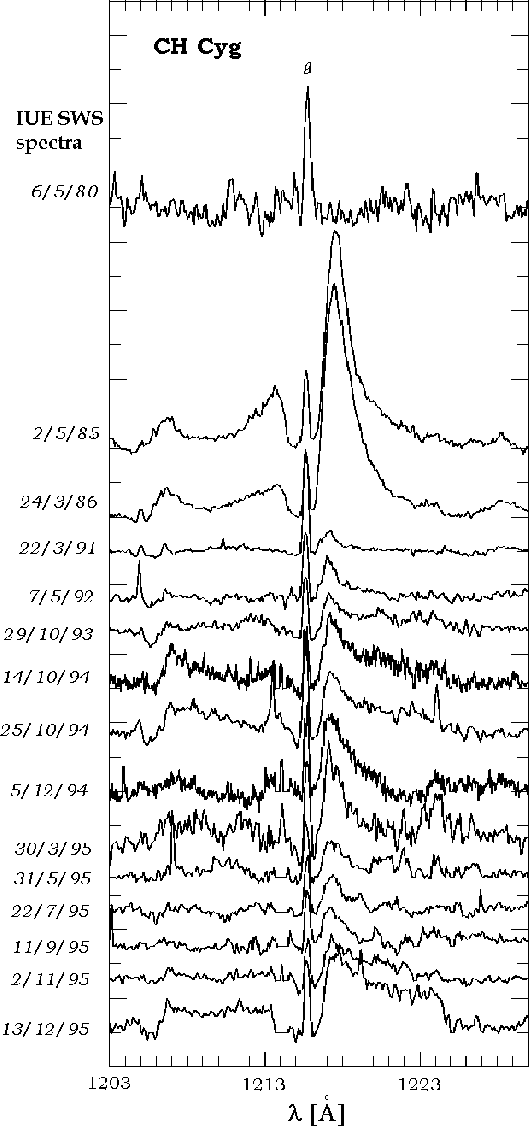

Evolution of the Ly$\alpha $ profile in the high-resolution IUE spectra, from 1980 to 1995. On the left, the observation dates are indicated; the g marks the position of the narrow Ly$\alpha $ geocoronal emission (adapted from Skopal et al. 1998).

Open with DEXTER

2 The broad Ly$\alpha $ line: observations and former interpretations

During the outburst started in 1977, no Ly$\alpha $ emission from CH Cyg was recorded. Then, towards the end of the active phase (January 1985), a strong and broad Ly$\alpha $ emission line, as wide as 20 Å, appeared (Figs. 1 and 2), with a strong redward-shifted wing, suggesting expansion velocities up to 4000  $\rm km~s^{-1}$. This outstanding behavior has not been repeated during the subsequent evolution throughout the active and quiescent phases. For instance, during the 1990-91 and 1995 quiescent stages, the Ly$\alpha $ virtually disappeared, together with the hot UV and optical continuum, while during the active phase 1992-1995 the Ly$\alpha $ line was similar in profile (Fig. 2), but 2-3 times weaker than in 1985 (Skopal et al. 1998).

The standard Ly$\alpha $ profile has been decomposed into two - stable and variable - components (Skopal et al. 1998). While the former emission has usually been attributed either to the atmosphere of the red giant (Selvelli & Hack 1985) or to some circumbinary material (Skopal et al. 1998), the latter, i.e. the variable part of the profile that extends up to a high velocity ($\sim$2200  $\rm km~s^{-1}$), has been explained as a fast outflow in the vicinity of the hot star. An asymmetric high-velocity outflow (2000  $\rm km~s^{-1}$) was also indicated by the broad Balmer lines occurring in the spectrum on short time scales (Iijima et al. 1994). Such velocities and variabilities are similar to those characteristic of the shock between the stars created by collision of the winds (e.g. in HM Sge Angeloni et al. 2007, and references therein). Therefore, they are less anomalous than the broad (4000  $\rm km~s^{-1}$) Ly$\alpha $ line observed at the end of the 1977-1986 active phase.

A mechanism for explaining this broadening was proposed by MSH88 who claimed that, according to Johansson & Jordan (1984), the Ly$\alpha $ line with an enhanced red wing, typical of line formation in an acceleration outflow, may be broadened by scattering by a high opacity. However, a stellar origin is difficult to reconcile with the sudden appearance of the broad Ly$\alpha $ line. MSH88 then proposed a formation region displaced from the orbital plane, connected with outflowing material, while the Balmer lines might originate in an accretion disk.

3 Theoretical scenarios

We would like to explain the exceptionally broad Ly$\alpha $ line emission in the frame of the shock-front network in CH Cyg. The results of the wind-collision model (Girard & Willson 1987; Kenny & Taylor 2005) led to a detailed physical and morphological picture of the emitting nebulae within the SS.

In January 1985, at the end of the active phase that started in 1977, the UV and optical line ratios (Mikolajewska et al. 1988) revealed that we were facing the circumstellar medium of the WD opposite the red giant, on the basis of the FWHM of the forbidden lines and of the densities that must avoid collisional deexcitation of the forbidden lines. In this region, the dynamical consequences of the WD outburst can be compared with those of a supernova explosion, though on a different scale. Following Chevalier (1982), 8 years after the burst, the expanding blast wave reached a relative large radius and the velocity of the shock front is in the range of those characteristic of broad Ly$\alpha $ line emission by charge-transfer reactions (HS08).

3.1 Results of the colliding-wind model

Collision of the winds (Girard & Willson 1987; Kenny & Taylor 2005) from the two-component stars leads to two main shocks: the head-on shock between the stars, facing the WD, and the head-on-back shock expanding from the system outwards (the reverse and expanding shocks, respectively - Angeloni et al. 2007a).

According to the colliding-wind model, during the active phase, the broad H$\beta$ lines with FW0M of 400-1200  $\rm km~s^{-1}$ were emitted downstream of the head-on shock between the stars (Angeloni et al. 2007a). Although this shock is actually a standing shock, it may be accelerated throughout the decreasing density of the atmosphere by the massive wind from the red giant. The broad Balmer lines emitted downstream are particularly strong because the intensity of permitted lines depends on the temperature of the star T*  and on the ionization coefficient U. T*  can reach more than 100 000 K during the outburst and U is relatively high (>1) because the emitting gas is close to the hot star. The broad lines decline both in intensity and width during quiescence because T*  becomes $\leq$30 000 K and the high-velocity wind slows down. In a shock-dominated regime, Rayleigh-Taylor (R-T), Richtmyer-Meshkov (R-M), and Kelvin-Helmholtz (K-H) instabilities at the shock fronts lead to fragmentation. Adopting a filling factor between 0.001 and 1, a maximum geometrical thickness of the filaments $\sim$1014 cm, and an average velocity of 600  $\rm km~s^{-1}$ during outburst, the variability time scale is between $\leq$1 h and $\leq$1 month. The time scale increases during quiescence depending on the velocity decrease.

The sudden appearance of the broad (4000  $\rm km~s^{-1}$) Ly$\alpha $ line looks quite anomalous. Such a broad line could not even come from the nebula downstream of the expanding shock, which generally corresponds to $V_{\rm s}$ $\leq$ 150  $\rm km~s^{-1}$. Interestingly, the broad Ly$\alpha $ line appeared at about the same time as the line spectrum observed after November 1984, when the outburst was almost over. The spectrum revealed [OIII] 4363 and [OIII] 5007 lines, as well as high ionization UV emission lines, e.g. NV, CIV, SiIV, HeII, OIII] (Selvelli & Hack 1985, MSH88). Forbidden optical lines cannot survive the densities of 108-109 3 that are characteristic of the shock between the stars. They must have been emitted from the nebula downstream of the shock expanding outward throughout the external region of the system, which in accordance with the colliding-wind model (Girard & Willson 1987), is located on the side of the WD circumstellar region opposite the red giant. Consequently, the Ly$\alpha $ line, appearing at this very epoch, was emitted from high-velocity gas outflowing throughout the extended hemispherical region on the side of the WD less disturbed by the dynamical effects of the red giant wind.

3.2 The blast wave from the outburst

We adopt MSH88 suggestion that the broad Ly$\alpha $ emission region is connected with the outflow material.

Following Chevalier (1982), we consider the interaction of the outburst with circumstellar matter on the assumption that is built up by a steady wind. If the ambient density is described by $\rho\propto r^{-s}$ ( $\rho= 1.4~m_{\rm H} n$, where n is the density in number 3 and $m_{\rm H}$ the mass of the H atom), the steady wind corresponds to s=2. The interaction of the freely expanding matter with the surrounding medium gives rise to a high-energy density region bounded by shock waves. Two shock fronts develop, one proceeding inward in the high-density region, the other expanding outward in the circumstellar medium.

The case of uniform expansion gas is described by s=2 and $\gamma=5/3$. For s=2 the radius of the outer shock is given by the Primakoff solutions: $R_{\rm BW}=(3 E/2 \pi A)^{1/3}$ t2/3 (Chevalier 1982, Eq. (5)), where E is the total energy, $\rho_0 = A R^{-2}$( $\rho_0= 1.4~m_{\rm H}$ 0, where 0 is the pre-shock density of the gas upstream), and t is the time elapsed from the burst.

This equation is valid for times longer than the time of change $t_{\rm s} = 0.677 M^{3/2}/A E^{1/2}$, between that of the interaction of freely expanding matter with the surrounding medium and the following one, i.e. when the flow tends toward the self-similar solution for a point explosion in a power-low density profile (Sedov 1959). Here M stands for the ejected mass.

The velocity $V_{\rm s}$ = dR/dt is constrained by the observed FW0M of the Ly$\alpha $ line 8 years after the burst. After some algebra we obtain 0 =  $1.45\times 10^{-47}~E$. The mass ejected by the WD in the CH Cyg system during the 1977-86 outburst is about a few $(2{-}3)\times 10^{-6}$ $M_{\odot}$ (Taylor & Seaquist 1985). The total energy is half thermal and half kinetic (Chevalier 1982). The high velocity observed after January 1985 presumes that the velocity of the ejecta was $\sim$14 000  $\rm km~s^{-1}$ at t=1 year. If all the ejecta had a velocity of 14 000  $\rm km~s^{-1}$, the associated kinetic energy would amount to $6\times 10^{45}$ erg, the total energy $E=1.2\times 10^{46}$ erg, and consequently 0 = 0.2 3. This in turn gives $R_{\rm BW}=2.25\times 10^{17}$ cm.

To check this result we calculate for instance, 0 close to the WD ( $n_{0_{\rm WD}}$) at a radius  $R_{0_{\rm WD}} = 2~\times 10^{13}$ cm. We choose the average distance that was found for the standing shock between the stars in SS (Angeloni et al. 2007, and references therein). Although the interbinary region shows mixing of the winds from the stars, the standing shock facing the WD reflects the composition of the WD (e.g. Contini 1997). From $n_{0_{\rm WD}} =n_{0_{\rm BW}}$ $R_{\rm BW}^2$/ $R_{0_{\rm WD}}^2$ where $n_{0_{\rm BW}} = 0.2$ 3, we find $n_{0_{\rm WD}} = 2.5\times 10^7$ 3 in good agreement with the preshock densities 0 =  $5\times 10^7$ 3 adopted to explain the continuum SED in SSs (Angeloni et al. 2007a-c). Constraining $t_{\rm s}$ within a maximum radius of $\sim$ $2\times 10^{17}$ cm and adopting 0 = 0.2 3, we find $t_{\rm s}= 5.2$ years, confirming that Chevalier's model is valid in this case.

We can now adopt the theory of HS08, who treated the blast wave shocks in the SNR case. Their results show that broad Balmer and Lyman lines are produced by charge transfer reactions between the post-shock protons and the ambient atoms. A population of post-shock atoms follows with a broad velocity distribution (broad neutrals). For $V_{\rm s}$ $\geq$ 500  $\rm km~s^{-1}$ the broad neutrals can produce Ly$\alpha $ that is blue- or red- shifted by resonance with the stationary atoms, hence providing an escaping way for the protons. For shocks with $V_{\rm s}$ $\geq$ 4000  $\rm km~s^{-1}$, the luminosity ratio $\Gamma_{\rm Ly\alpha/H\alpha}$ is $\geq$10 (HS08, Fig. 1), so the Ly$\alpha $ line would be strong.

4 Discussion

As previously mentioned (Sect. 3.1), the broad Ly$\alpha $ appeared at about the same phase as the expanding shock within the colliding-wind scenario. The radius of the expanding nebula $R_{\rm exp} \sim8\times 10^{16}$ cm results from modeling the observed spectral energy distribution of the continuum. Notice that the radius of the blast wave $R_{\rm BW}$ calculated in Sect. 3.2, is about three times that of $R_{\rm exp}$, while the physical parameters, $V_{\rm s}$ = 4000  $\rm km~s^{-1}$ and 0 = 0.2 3 of the blast wave, and $V_{\rm s}$ = 150  $\rm km~s^{-1}$ and 0 = 105 3 of the expanding shock, are very different. This is not surprising, considering that the blast wave stems from the outburst, while the expanding shock derives from the wind collision. The two shock fronts will hardly interfere even in the orbital plane, because R-T and K-H instabilities lead to fragmentation of matter at the shock fronts with filling factors <0.01 (Contini & Formiggini 2001).

A velocity of $\sim$4000  $\rm km~s^{-1}$ was evident from the Ly$\alpha $ line profile after January 1985 in CH Cyg. The other UV and optical lines showed narrow FWHM profiles. In contrast, UV lines indicating expansions of 3000-4000  $\rm km~s^{-1}$ were observed after the 1985 eruption of the recurrent nova RS Ophiuci (Snijders 1987; Shore et al. 1996) and also optical lines after the last outburst in 2006 (Bode et al. 2007, and references therein) showed high-velocity expansion. The UV and optical lines strong enough to be observed can be emitted downstream of a strong shock if the preshock density is high enough to speed up the cooling rate ($\propto$n2) downstream. Consequently the temperature will drop below 106 K, leading to recombination. However, the densities are constrained by the critical densities for collisional deexcitation of the different ions, which are relatively low (<106 3) for forbidden lines. In order to emit strong enough forbidden lines (e.g. [OIII]), a shock with $V_{\rm s}$ = 4000  $\rm km~s^{-1}$ should propagate throughout a medium with 0 $\leq$ 104 3 The lines are emitted from the gas beyond the temperature drop characteristic of shock-dominated regimes downstream, at a distance from the shock front of $\geq$ $7\times 10^{16}$ cm. Lower densities correspond to stronger forbidden lines at larger distances from the shock front. Strong [FeVII] 6087, [FeX] 6375, and even [FeXI] 6986 are predicted at such high $V_{\rm s}$. The UV lines are generally permitted or semi-forbidden, therefore they can also be emitted at higher densities. The OVI 1034 and CIV 1500 lines will be particularly strong. These predictions imply a preshock magnetic field of 0 = 10-3 Gauss.

Such densities are not unusual in the circumstellar medium, as they were found by modeling the [OII] and [NII] lines in SS (e.g. Contini & Formiggini 2001). The high preshock density would indicate that the shock is interacting with mass lost by either the progenitor star or by the SS in a previous burst. However, such high velocities were never seen in the line profiles of CH Cyg, except for the broad Ly$\alpha $ in 1985.

Interestingly, the energies calculated from the temperature ($\sim$ $2.94\times 10^9$ K) downstream of this strong shock front correspond to $\sim$250 keV, not far from the gamma-ray energy range, while energies of $\sim$21 keV ( $2.4\times 10^8$ K) correspond to $V_{\rm s}$ = 4000  $\rm km~s^{-1}$. We suggest that the observations of symbiotic star outbursts beyond hard X-rays might lead to interesting results.

The escape velocity of the WD is $v_{\rm esc} =(2 G M_{\rm WD}$/ $R_{\rm WD}$) $^{1/2} \sim 1.6\times 10^{13}$/ $R_{\rm WD}^{1/2}$, adopting a mass $M_{\rm WD}\sim 1$ $M_{\odot}$. We recover a velocity of 14 000  $\rm km~s^{-1}$ similar to what is predicted at early times for the Ly$\alpha $ line FW0M profile, adopting a WD radius $R_{\rm WD} \sim 1.36\times 10^8$ cm in the CH Cygni system.

5 Concluding remarks

In 1985, at the end of the active phase 1977-1986, a broad (4000  $\rm km~s^{-1}$) Ly$\alpha $ line was observed that had never been present in previous spectra from the symbiotic system CH Cygni.

We have noticed that the broad Ly$\alpha $ line appeared contemporaneously with the optical-UV spectrum emitted downstream of the shock created by collision of the winds from the stars. This shock expands throughout the extended circumbinary region located on the side of the WD circumstellar region opposite to the red giant; as a result, the Ly$\alpha $ line originates somewhere in the hemispherical region opposite the WD, where the dynamical consequences of the burst are less affected by the red giant wind. The overall situation is similar to that of a SN explosion. This suggests that the broad Ly$\alpha $ emission line and the other optical and UV lines observed at the same phase could be emitted from different shocked nebulae. We consider that the broad Ly$\alpha $ line stems from the WD outburst.

Applying the theory developed by Chevalier (1982) for type II supernovae to the interaction of the WD outburst with circumstellar matter, we have found that the expanding blast wave had reached a radius $R_{\rm BW} \sim
2.25\times 10^{17}$ cm 8 years after the burst for a shock velocity of 4000  $\rm km~s^{-1}$. We then applied the theory developed by HS08 for high-velocity shock fronts in SNR, namely, the broad Ly$\alpha $ line is produced by charge transfer reactions between the blast wave post-shock protons and the ambient pre-shock atoms. For shocks with $V_{\rm s}$ $\geq$ 4000  $\rm km~s^{-1}$, the luminosity ratio $\Gamma_{\rm Ly\alpha/H\alpha}$ is $\geq$10 (HS08), so the observed Ly$\alpha $ line is strong.

The energy involved with the outburst is $E \sim 1.2\times 10^{46}$ erg, and the ambient density consistent with a velocity of 4000  $\rm km~s^{-1}$ is 0 $\sim$ 0.2 3. Higher velocities of about 14 000  $\rm km~s^{-1}$ predicted by the Sedov solution at early times, lead to temperatures in the downstream region of such a strong-shock front, corresponding to emission in the near gamma-ray frequency range. Such emission was not observed at that time, first because of technical inadequacy and also because, during the active phase, the WD circumstellar region opposite the red giant only became visible in 1985 when the broad Lya appeared. The velocities had already decreased to about 4000  $\rm km~s^{-1}$. Actually, the SEDs in the UBV range during the 1977-86 period, show that the black body flux from the hot star does not appear.

According to previous results in SSs (Angeloni et al. 2007b), the hard X-rays are emitted from a small region between the two component stars, while the soft X-ray are emitted from the extended circumbinary region. The results of this paper suggest that the hardest radiation ($\sim$250 keV) comes from the WD circumstellar region on the opposite side of the giant star, while hard X-rays could also be observed at distances $\leq$0.08 pc from CH Cyg.

Finally, the complex light curves of CH Cyg (Eyres et al. 2002) show that the nebulae created by collision of the winds and the dusty shells ejected from the red giant, expanding outward beyond the binary system, lead to temporary obscuration. We suggest that the shock front at a relatively large radius corresponding to the blast wave may also contribute to obscuration episodes.
