Accurate rest frequencies for the submillimetre-wave lines of the 15N-containing isotopologues of N2H+ and N2D+
L. Dore - L. Bizzocchi - C. Degli Esposti - F. Tinti
Dipartimento di Chimica ``G. Ciamician'', via F. Selmi 2, 40126 Bologna, Italy
Received 27 October 2008 / Accepted 13 January 2009
Abstract
The submillimetre-wave spectrum of the molecular ions N15NH+, 15NNH+,
N15ND+, and 15NND+ have been investigated in the laboratory using
a source-modulation microwave spectrometer equipped with a negative glow discharge
cell.
The diazenylium ion was produced in a Ar/N2/H2(D2) discharge plasma
and the 15N-containing isotopologues were observed in natural abundance.
Six new rotational transitions for the protonated species and seven for the deuterated ones were accurately measured
in the frequency range 270-760 GHz.
These new laboratory measurements of the rare isotopologues of N2H+ provide very precise rest frequencies at millimetre
and submillimetre wavelengths useful for the
radioastronomical identification of their rotational lines in the ISM.
Key words: molecular data - methods: laboratory - techniques: spectroscopic - radio lines: ISM
1 Introduction
Samples of primitive solar system materials, such as meteorites that reached the Earth's surface and the interplanetary dust particles (IDPs) returned by the Stardust mission, have shown anomalies and enhancements in various elemental isotopic ratios (e.g. Ehrenfreund & Charnley 2000; Clayton & Nittler 2004; McKeegan et al. 2006). In particular, the laboratory analyses have provided evidences of large D/H and 15N/14N ratios, which have been attributed to the survival of D- and 15N-enriched material from the interstellar medium (ISM; Messenger 2000; Maret et al. 2006).
It has long been established that low-temperature gas-phase ion-molecule reactions and
catalysis on the surface of cold interstellar dust grains lead to large D fractionation.
In contrast, for nitrogen the situation is less clear due the scarcity of observational
data and also because models of the 15N fractionation in typical dense clouds predict
only modest enhancements (Terzieva & Herbst 2000).
Charnley & Rodgers (2002) has suggested that a significant increase of the
15N-fractionation can occur if CO is depleted onto dust grains; the key fractionation
process involves diazenylium ion via the exotermic reactions:
which preferentially drive 15N into molecular nitrogen through the main dissociative recombination channel N2H

However, if CO is frozen out, OH is unavailable, the cycle (2) is broken, and the processes (1) produce a larger 15N-enhancement, which might explain the high 15N/14N ratio of the IDPs and meteoritic data (Rodgers & Charnley 2008). This picture, also predicts enhanced abundances of 15N-bearing diazenylium in CO-depleted cores, thus the observation of N2H+, N15NH+, and 15NNH+, and the determination of their isotopic ratio provides a very effective test for the reliability of the model (Charnley & Rodgers 2002)
Previous searches of N15NH+ and 15NNH+ have been carried out long time ago (Womack et al. 1992; Linke et al. 1983) and the detection has been successful only toward massive star forming region, owing to the low sensitivity achieved and also because of the selection of sources, which did not focuse on cold, centrally concentrated cores showing heavy CO depletion, which were not known at that time. In CO-depleted regions, also deuterium fractionation increases, therefore N2D+ can be easily detected (see Dore et al. 2004), however its 15N-containing isotopologues have not been observed until now, owing also to the lack of any accurate spectral data.
As for the laboratory spectroscopy of N15NH+ and 15NNH+ is concerned,
Gudeman (1982) reported the
transitions; the spectrum of the
former species was split into three components due to the quadrupole coupling of the external
14N nucleus, while for the other species no hyperfine structure could be resolved.
The only other transition detected in laboratory was the
(Havenith et al. 1990), but with a
1 MHz accuracy.
No spectra, instead, are reported for the deuterated species N15ND+ and 15NND+.
In order to provide reliable spectroscopic information for these species, we measured, in the
region 270-760 GHz, transitions from
to
of N15NH+and 15NNH+, and from
to
of N15ND+ and
15NND+.
The newly obtained laboratory data, together with the previously determined 14N-hyperfine
constants (Caselli et al. 1995; Dore et al. 2004) allowed for the calculation of very
accurate rest frequencies for all four 15N-containing variants of N2H+ and N2D+at millimetre and submillimetre wavelengths, the predicted uncertainties being less that
0.005 km
s-1 up to 1 THz.
2 Experimental details and data analysis
![]() |

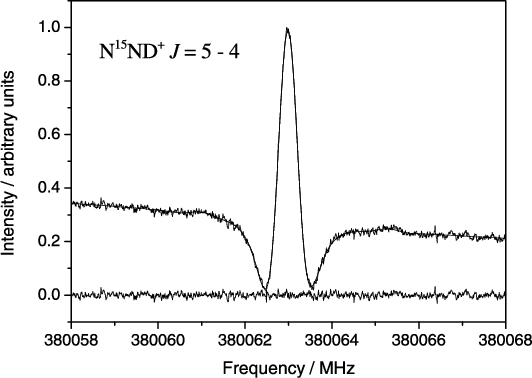

Figure 1: Spectrum of the J = 5-4 rotational transition of N15ND+; total integration time 99 s at 1.6 MHz/s with time constant of 10 ms. The spectral profile has been fit to a sum of five hyperfine components; fit residuals are shown at the bottom of the plot. |
Open with DEXTER |
Table 1: Rotational transition frequencies and spectroscopic constants of N15NH+.
Table 2: Rotational transition frequencies and spectroscopic constants of 15NNH+.
Table 3: Rotational transition frequencies and spectroscopic constants of N15ND+.
Table 4: Rotational transition frequencies and spectroscopic constants of 15NND+.
Table 5:
Predicted rest-frequencies, estimated
uncertainties, and line strengths
for N15NH+.
Table 6:
Predicted rest-frequencies, estimated
uncertainties, and line strengths
for 15NNH+.
Table 7:
Predicted rest-frequencies, estimated
uncertainties, and line strengths
for N15ND+.
Table 8:
Predicted rest-frequencies, estimated
uncertainties, and line strengths
for 15NND+.
The rotational spectra of the four isotopologues of N2H+ and N2D+ containing
15N were observed with a frequency-modulated millimetre-wave spectrometer (Cazzoli & Dore 1990)
equipped with a negative glow discharge cell made of a Pyrex tube, 3.25 m long and 5 cm in diameter,
with two cylindrical hollow electrodes 25 cm in length at either end.
The radiation source was a frequency multiplier, built by a doubler in cascade with a multiplier
(RPG - Radiometer Physics GmbH), which was driven by Gunn oscillators working in the region
67-105 GHz (Farran Technology Limited, RPG - Radiometer Physics GmbH).
Two phase-lock loops allow the stabilisation of the Gunn oscillator with respect to a frequency
synthesizer, which is driven by a 5-MHz rubidium frequency standard.
The frequency modulation of the radiation is obtained by sine-wave modulating at 16.66 kHz the
reference signal of the wide-band Gunn-synchronizer (total harmonic distortion less than
).
The signal, detected by a liquid-helium-cooled InSb hot electron bolometer (QMC Instr. Ltd. type QFI/2),
is demodulated at 2f by a lock-in amplifier.
N2H+ (or N2D+) was produced in a DC discharge by flowing a 1:1 mixture of N2 and H2 (D2) (3 mTorr, 0.4 Pa) with addition of Ar buffer gas for a total pressure of about 10 mTorr (1.3 Pa). The 15N-containing species were observed in natural abundance. The discharge current was a few mA, the Pyrex cell was cooled at about 80 K by liquid nitrogen circulation in an external plastic pipe tightly wound around it, and an axial magnetic field up to about 110 G was applied throughout the length of the discharge. It is well established (see Tinti et al. 2007) that, with this magnetic confinement, the ions are produced and observed in a nearly field free region, the negative glow, thus they do not show any Doppler shift due to the drift velocity.
The spectra were recorded by sweeping the frequency up and down (several times if signal averaging is needed) in steps of 5 or 10 kHz with an acquisition time of 8-18 ms per step: the lock-in amplifier time constant was set at 10 ms.
It has to be pointed out that low-J rotational lines of 14N15NH+ and
14N15ND+, with the quadrupolar 14N nucleus in the external position,
are split by hyperfine interactions; however, the transitions recorded in the present work
appear as a main blended peak, produced by the collapsed
triplet, with two
very weak
features at its both sides apparent only with a high signal to
noise ratio. Therefore, the unperturbed line frequency was recovered by a line shape analysis
of the spectral profile modeled as a sum of hyperfine components with their frequency shift
and intensity fixed at the values accurately predicted using the hyperfine constants known from
literature (Caselli et al. 1995; Dore et al. 2004).
Figure 1 illustrates a recording of the
transition of the N15ND+ isotopologue analyzed in this way.
The same procedure, which also accounts for the frequency modulation and the line asymmetry due
to etalon effects in the cell (see Dore 2003), was used to analyze the
spectra of 15N14NH+ and 15N14ND+ as well.
Since each transition was recorded several times, its frequency was derived as the mean of the determined unperturbed line centers, with an uncertainty estimated from the root mean square error of their distribution. When such uncertainty resulted to be less than 5 kHz, it was given a 5 kHz value, to account for a possible tiny pressure shift, whose value and sign are difficult to estimate, which, for instance for HCO+ broadened by Argon, has an absolute value less than 1 kHz/mTorr (Buffa et al. 2006).
The determined experimental transition frequencies were fitted, in a weighted-least-squares procedure, to the
standard frequency expression of the rotational transition
:
where B0 and DJ are the ground-state rotational and quartic centrifugal distortion constants, respectively; the weights were the inverse-square of the uncertainties. The values of the spectroscopic constants of N15NH+, 15NNH+, N15ND+, and 15NND+ derived from the fits are reported in Tables 1-4.
3 Discussion
This paper reports new laboratory measurements of the the rotational spectra of 15N-containing variants of diazenylium ion at millimetre and submillimetre wavelengths (270-760 GHz). Six and seven rotational transitions were accurately determined for the H- and D-containing pairs of isotopic species, respectively. Efforts were made in order to minimize the significance of the the most common sources of systematic error in the determination of the line positions. The precision of the data is also excellent: only in few instances the least-squares residuals exceed 5 kHz, which is a very low value for Doppler limited measurements.
The accuracy of the determined spectroscopic constants is even higher than that attained by Amano et al. (2005) in their paper concerning the main isotopologues 14N2H+ and 14N2D+.
Thus, the present rotational, B0, and quartic centrifugal distortion, DJ, constants allow the calculation of a very reliable set of rest frequencies for the four isotopologues N15NH+, 15NNH+, N15ND+, and 15NND+at millimetre and submillimetre wavelengths.
The predicted
uncertainties at 1 THz are, even in the less favourable case, less than
0.01 km s-1, whereas they are only few thousandths of km s-1 for the 3 mm
band J = 1-0 transition of all species.
Tables 5-8 collect
a list of rest frequencies up to 1 THz calculated from the spectroscopic constants of
Tables 1-4 and include also the estimated uncertainty at
level
obtained by propagation of the standard errors of spectroscopic and hyperfine constants.
The hyperfine structure of each transition has been predicted, assuming the hyperfine constants of
Caselli et al. (1995) and Dore et al. (2004), by means of the SPCAT prediction
program (Pickett 1991), and the hyperfine components included in each multiplet collect at
least the 90% of the total intensity of the relevant J+1 - J rotational transition.
The line strength value, Sij, is defined as the square of the reduced matrix element
of the rotation matrix (Brown & Carrington 2003)
The intensity of a line in absorption can be obtained by multiplying the line strength Sijby the square of the dipole moment

Acknowledgements
This work has been supported by MIUR (PRIN 2007 funds, project ``Trasferimenti di energia, carica e molecole in sistemi complessi'') and by University of Bologna (RFO funds).
References
- Amano, T., Hirao, T., & Takano, J. 2005, J. Mol. Spectrosc., 234, 170 [NASA ADS] [CrossRef]
- Brown, J., & Carrington, A. 2003, Rotational Spectroscopy of Diatomic Molecules (Cambridge) (In the text)
- Buffa, G., Dore, L., Tinti, F., & Meuwly, M. 2006, Chem. Phys. Chem., 7, 1764 (In the text)
- Caselli, P., Myers, P. C., & Thaddeus, P. 1995, ApJ, 455, L77 [NASA ADS] [CrossRef]
- Cazzoli, G., & Dore, L. 1990, J. Mol. Spectrosc., 141, 49 [NASA ADS] [CrossRef]
- Charnley, S. B., & Rodgers, S. D. 2002, ApJ, 569, L133 [NASA ADS] [CrossRef] (In the text)
- Clayton, D. D., & Nittler, L. R. 2004, ARA&A, 42, 39 [NASA ADS] [CrossRef]
- Dore, L. 2003, J. Mol. Spectrosc., 221, 93 [NASA ADS] [CrossRef] (In the text)
- Dore, L., Caselli, P., Beninati, S., et al. 2004, A&A, 413, 1177 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Ehrenfreund, P., & Charnley, S. B. 2000, ARA&A, 38, 427 [NASA ADS] [CrossRef]
- Gudeman, C. S. 1982, Ph.D. Thesis, University of Winsconsin-Madison (In the text)
- Havenith, M., Zwart, E., Meerts, W. L., & ter Meulen, J. J. 1990, J. Chem. Phys., 93, 8446 [NASA ADS] [CrossRef] (In the text)
- Maret, S., Bergin, E. A., & Lada, C. J. 2006, Nature, 442, 425 [NASA ADS] [CrossRef]
- McKeegan, K. D., Aléon, J., Bradley, J., et al. 2006, Science, 314, 1724 [NASA ADS] [CrossRef]
- Messenger, S. 2000, Nature, 404, 968 [NASA ADS] [CrossRef]
- Molek, C. D., McLain, J. L., Poterya, V., & Adams, N. G. 2007, J. Phys. Chem. A, 111, 6760 [CrossRef] (In the text)
- Pickett, H. M. 1991, J. Mol. Spectrosc., 148, 371 [NASA ADS] [CrossRef] (In the text)
- Rodgers, S. D., & Charnley, S. B. 2008, MNRAS, 385, L48 [NASA ADS] (In the text)
- Terzieva, R., & Herbst, E. 2000, MNRAS, 317, 563 [NASA ADS] [CrossRef] (In the text)
- Tinti, F., Bizzocchi, L., Esposti, C. D., & Dore, L. 2007, ApJ, 669, L113 [NASA ADS] [CrossRef] (In the text)
