An X-ray spectral survey of the disc of M 31 with XMM-Newton[*]

L. Shaw Greening1 - R. Barnard1 - U. Kolb1 - C. Tonkin1 - J. P. Osborne2


1 - The Department of Physics and Astronomy, The Open University, Walton Hall, Milton Keynes, MK7 6AA, UK
2 - The Department of Physics and Astronomy, The University of Leicester, Leicester, LE1 7RH, UK

Received 27 March 2008 / Accepted 15 July 2008

Abstract
Aims. We present the results of a complete spectral survey of the X-ray point sources detected in five XMM-Newton observations along the major axis of M 31 but avoiding the central bulge, aimed at establishing the population characteristics of X-ray sources in this galaxy.
Methods. We obtained background subtracted spectra and lightcurves for each of the 335 X-ray point sources detected across the five observations from 2002. We also correlate our source list with those of earlier X-ray surveys and radio, optical and infra-red catalogues. Sources with more than 50 source counts are individually spectrally fit in order to create the most accurate luminosity functions of M 31 to date.
Results. Based on the spectral fitting of these sources with a power law model, we observe a broad range of best fit photon index. From this distribution of best fit index, we identify 16 strong high mass X-ray binary system candidates in M 31. We show the first cumulative luminosity functions created using the best fit spectral model to each source with more than 50 source counts in the disc of M 31. The cumulative luminosity functions show a distinct flattening in the X-ray luminosity $L_{\rm X}$ interval $37.0 \lesssim \log L_{\rm X}$ erg s $^{-1} \lesssim 37.5$. Such a feature may also be present in the X-ray populations of several other galaxies, but at a much lower statistical significance. We investigate the number of AGN present in our source list and find that above $L_{\rm X}\sim 1.4 \times 10^{36}$ erg s-1 the observed population is statistically dominated by the point source population of M 31.

Key words: galaxies: individual: M 31 - X-rays: general - X-rays: binaries

1 Introduction

The Andromeda Galaxy (M 31) is the nearest spiral galaxy to our own, lying at a distance of 760 kpc (van den Bergh 2000). The sources in M 31 are observed at a nearly uniform distance and through an absorption column significantly lower than for sources in the Galactic plane. Thus M 31 is an ideal target for studying the emission from the X-ray point sources in a galaxy similar to the Milky Way.

M 31 has been observed with many X-ray observatories since Einstein, when van Speybroeck et al. (1979) observed 69 point sources above $5\times10^{36}$ erg s-1. Two ROSAT surveys (Supper et al. 2001,1997) covered most of the M 31 disc and found 560 sources above $5 \times 10^{35}$ erg s-1. There have also been many Chandra (e.g. Kong et al. 2003,2002; Williams et al. 2004) and XMM-Newton (e.g. Shirey et al. 2001; Trudolyubov et al. 2006; Osborne et al. 2001; Pietsch et al. 2005) surveys of both the disc and central region of M 31.

The X-ray emission from M 31 is dominated by point sources mostly consisting of X-ray binary systems (XBs). Trudolyubov et al. (2006) surveyed 123 sources in the central region of M 31 and reported that the majority have X-ray properties reminiscent of Galactic low mass XBs (LMXBs), and labelled 44 sources as XB candidates based on their spectral properties and variability.

Six neighbouring, slightly overlapping XMM-Newton observations along the major axis of M 31 were made in January and June 2002. These observations, along with others taken between 2000 and 2007, form part of a survey of the whole optical D25 ellipse of M 31. Since the central region of M 31 is well studied and the wider survey has not been completed at the time of this work, we have investigated the five remaining major axis observations that exclude the core region. Henceforth we refer to these fields as the M 31 disc fields. These observations were long and uninterrupted; together with the unprecedented effective area of XMM-Newton, they yielded up to 40 times the photon counts of the best previous observations. Previous work on these XMM-Newton fields (see e.g. Trudolyubov et al. 2002; Pietsch et al. 2005) has derived only spectral properties for the brightest few sources.

Table 1:   Journal of XMM-Newton Observations of M 31. The field, observation number, date, pointing direction, filter used, total exposure (Exp) and exposure of the good time interval (GTI) and the number of sources detected are given.

In this paper we re-analyse the five M 31 disc fields. For the first time we extend the spectral analysis to sources down to $L_{\rm X} \gtrsim 10^{36}$ erg s-1. We create a new source list, derive the spectral parameters of each source and create spatially resolved cumulative X-ray luminosity functions (CLFs). In Sect. 2 we give details of the observations and data reduction, Sect. 3 covers the analysis and the results of cross correlations with the Pietsch et al. (2005) catalogue and catalogues at other wavelengths. In Sect. 4 we give details of the analysis of our spectral fitting including the creation of CLFs and comments on the contamination of the CLF by background AGN. Finally, Sect. 5 summarises our findings.

2 Observations and data reduction

One observation of each disc field of M 31 was taken using the EPIC pn (Strüder et al. 2001) and MOS (Turner et al. 2001) cameras on XMM-Newton in January and June 2002; a journal of the observations is presented in Table 1. From north to south, we refer to the fields as North 3, North 2, North 1, South 1 and South 2. Data were processed using XMM-Newton SAS (version 6.5.0) tasks epproc and emproc with up to date calibration. There are also multiple observations of the central region taken between 2000 and 2005; these have been analysed by Trudolyubov et al. (2002), Pietsch et al. (2005) and Trudolyubov et al. (2006) and are not covered here.

2.1 Source detection

For the purposes of source detection, the observations were screened for periods of high background counts in each camera. Lightcurves including all counts above 10 keV were created for each camera, and intervals with levels above 1 count s-1 for the pn and 0.5 counts s-1 for each of the MOS cameras were excluded. Observations were then synchronised and source detection carried out. For the source detection the data were split into 5 energy bands: (0.2-0.5) keV, (0.5-2) keV, (2-4.5) keV, (4.5-7) keV and (7-12) keV. For the pn data we used only ``single'' events (PATTERN = 0) in the first energy band and for the other bands ``singles and doubles'' were selected ( ${\rm PATTERN} <=4$). Additionally, for the pn, only events with (RAWY >12) for the pn were used and to avoid emission from the spatially inhomogeneous Copper fluorescent line, the energy range (7.8-8.2) keV was omitted from band 5. For MOS data ``singles'' to ``quadruples'' ( ${\rm PATTERN} <=12$) were selected. For each camera, source lists were constructed in each energy band using edetect_chain[*] with a minimum likelihood threshold of 10. These lists were then combined to form a final source list. All source regions were then set to have a radius of 40'' as this corresponds to $\sim$88% encircled energy at 1.5 keV. Finally the sources in this list were visually inspected for overlapping source regions. When a 40'' source extraction region contained more than one source, the region was reduced to 20''. Any 20'' extraction region containing more than one source was deleted.

2.2 Background selection

Backgrounds were selected for each source based on the following criteria. Suitable backgrounds must be on the same CCD as the source, have no sources within the background region, and must have a lower count density (fewer counts per unit area) than the source region. The latter criterion ensures that there are no unresolved faint sources or areas of diffuse emission in the background region that combine to an anomalously high count density. For source regions on a chip gap or chip edge background regions must be on the same chip edge or gap and have the same percentage of off-chip area as the source region. Finally, background regions have a radius between one and four times the radius of the source extraction region.

2.3 Scientific product extraction

Following Barnard et al. (2007b), synchronised source and background lightcurves with 2.6 s time resolution were extracted from each of the three detectors. These were summed to give a combined, background subtracted EPIC lightcurve for every source.

Energy spectra were extracted from the source and background regions with 5 eV binning for the pn camera and with 15 eV binning for the MOS cameras. A response matrix (RMF) and ancillary response file (ARF) were also generated for each source spectrum. For any source with spectra from both the MOS cameras we added together the two spectra to form a combined MOS spectrum, otherwise just the one MOS spectrum was used in the following analysis. Counts outside the 0.3-10 keV range were rejected.

3 Analysis

There were 335 point source detections with a minimum likelihood of 10 in the 5 disc fields of M 31. These sources are ordered by RA and we present their positions and X-ray properties in Table A.1. Of these 335 detections, 6 sources were detected in two observations and so there are 329 distinct point sources across the disc. Their count rates range from $3.42 \times 10^{-5}$ to 0.403 counts per second.

3.1 Lightcurves

Lightcurves were binned to 100, 200 and 400 s bins and checked for variability by examining how well they were fit by a line of constant intensity. Sources with a null hypothesis probability of >5% in any of the lightcurves were classed as variable. This is a conservative approach that may miss variability in the data, but reduces the number of sources with spurious variability. Around 300 of the M 31 disc sources were too faint to detect variability on the timescales sampled. The lightcurves were also visually inspected for bursts, dips or other behaviour. Only source 238 identified as a flare star by Pietsch et al. 2005 (their source 663) and by Trudolyubov et al. 2005 (their source 22) was found to be variable, with $30 \pm 3 \%$ rms variability.

Table 2:   Best fit parameters for power law models applied to the summed spectra of the faint sources in each of the disc fields. We show the total number of faint sources in each field, the power law photon index, $\Gamma $, $\chi ^2/$d.o.f. and for which camera this fit was found. The absorption was fixed to $0.10 \times 10^{22}$ H atom cm-2 for each field. The bracketed numbers are the error in the last significant figure. Where we quote two conversion factors, the first is for the pn camera and the second for the MOS. Errors are unavailable for the best fit power law index to South 1 as the $\chi ^2/$d.o.f. is >2.

3.2 Energy spectra

222 of the sources in the disc of M 31 have spectra with sufficient photons (>50 source counts in the pn or combined MOS) to allow spectral fitting, the results of which are given in Table A.1.

We binned the pn and MOS spectra depending on source intensity. Spectra exceeding 500 source counts over the observation were grouped to a minimum of 50 counts per bin. Spectra containing between 200 and 499 source counts were grouped to a minimum of 20 counts per bin. Spectra with between 50 and 199 source counts and with more than 50% of the total counts from the source were grouped to a minimum of 10 counts per bin, while those with between 50 and 199 source counts but with less than 50% of the total counts from the source were also grouped to a minimum of 20 counts per bin. Each grouped energy spectrum was freely fit by three spectral models: blackbody, bremsstrahlung and power law emission models, using xspec 11.3.1[*]. Sources which have very few or no counts above 2 keV were also fit with a neutron star atmosphere (nsa) model which resembles the emission from a super soft source. For all the models the absorption was a free parameter but with a minimum of at least $0.1 \times 10^{22}$ cm-2, the Galactic foreground absorption (Dickey & Lockman 1990). The source flux was calculated from the best fit model. The spectral parameters of each source give a greater insight into its properties than its X-ray hardness ratios or variability alone. Sources with less than 50 source counts in both cameras are dealt with on a field by field basis as described below.

3.3 Faint sources

For the 95 detections with too few photons to allow spectral fitting (<50 source counts in both cameras), the parameters of the best fit absorbed power law for the field were used. First we grouped the spectra according to field and camera (pn or MOS), creating 10 groups. The spectra of the faint sources in each group were then summed to give one spectrum for each camera's observation of every field. The absorption was fixed to $0.1 \times 10^{22}$ H atoms cm-2 and the best fit photon index to the summed spectrum was used to calculate a count rate to flux conversion for that camera's observation of the field. For South 1 we do not quote errors on the photon index because the $\chi ^2/$d.o.f. is >2. Although this is not a good fit to the South 1 sources, it is the best fit power law and so we have used it to maintain consistency across the fields.

Some sources are detected only on the pn or one of the MOS cameras and not in all three. For some fields only one of the two summed spectra (pn or MOS) could be well fit using a power law model. Where a faint source is detected in one camera but a good fit to the summed faint source spectrum for that field is only available for the other camera we do not give a source luminosity.

The parameters of the best fit power law to each field are given in Table 2. For the faint sources the quoted conversion factor was applied to the exposure corrected count rate. There is an obvious change in the photon index in the northern disc: with increasing distance from the centre of M 31 the best fit power law becomes softer. However we caution against drawing conclusions from this as it is based on the summed spectrum of a small number of faint sources and the photon indicies are consistent with each other within errors.

Table 3:   Summary of classifications of our sources from Pietsch et al. (2005).

We have calculated the 0.3-10 keV luminosity from either a source spectrum or from an average model for the relevant field, for 317 of the 329 sources, and these are given in Table A.1.

3.4 Cross-correlations with other M 31 catalogues

We searched for cross-correlations within a radius of $3({(\sigma_{\rm statistical})^2 + (\sigma_{\rm systematic})^2})^{1/2}$, where, for the uncorrected XMM-Newton positions from this survey, $\sigma_{\rm statistical}=1''$ and $\sigma_{\rm systematic}=3''$. The statistical error is taken from the 2XMM catalogue[*]. This error is strongly dependent on source counts, however for our range of source count rates we have assumed a representative value of 1 arcsecond for the statistical error. The systematic error is derived from the offset to each field. The most accurate XMM-Newton positions have residual systematic errors of around 0.5'', and it can be seen from Pietsch et al. (2005) that the M 31 disc fields each have an additional offset of 0.3-2.3''. Thus we have used a conservative systematic error of 3''. This gives a search radius of 10''. For 295 out of our 329 sources we found a source within the search radius in the Pietsch et al. (2005) catalogue, and a summary of the classifications of these sources as determined in Pietsch et al. (2005) are given in Table 3. Sources are either classed as ``candidates'' or ``members of'' each class in Pietsch et al. (2005), but here they are grouped together. The hard class contains all the sources with ${\rm HR2-EHR2} > -0.2$ or only HR3 and/or HR4 defined, and no other classification (see Pietsch et al. 2005, for the definitions of hardness ratios HR2, HR3, HR4 and EHR2 and full details).

Table 4:   Overview of the source spectral analysis for each field. ``Faint'' denotes the number of sources with <50 source counts, in brackets is the number of sources for which we cannot quote a luminosity. For details on the HMXB candidates see text. The faint limit is the luminosity below which all sources have less than 50 source counts.

For the 34 sources not in Pietsch et al. (2005) we searched the following catalogues for counterparts:

(i)
X-ray sources: the Einstein (Trinchieri & Fabbiano 1991), ROSAT/PSPC (Supper et al. 2001,1997) and Chandra (Kaaret 2002; Williams et al. 2004) catalogues.

(ii)
Stellar objects: USNO-B1 (Monet et al. 2003), 2MASS (Cutri et al. 2003) and the Local Group Survey (Massey et al. 2006).

(iii)
Radio sources: VLA all sky catalogue (Condon & Kaplan 1998) and catalogue of sources within M 31 (Walterbos et al. 1985).

(iv)
Globular cluster candidates: the Bologna catalogue (Galleti et al. 2004) and the catalogue by Kodaira et al. (2004).

(v)
Supernova remnant candidates: catalogues by Magnier et al. (1995) and Ford & Jacoby (1978).
Only 2 of the 34 sources in this survey are not found in any other catalogue listed above. Eight sources are identified in either Supper et al. (1997) or Supper et al. (2001), one of which (source 184) is identified as a variable supernova remnant (SNR). Two radio sources were found in (Condon & Kaplan 1998, Sources 184 and 23), both of these are also in the Supper et al. (1997) or Supper et al. (2001) source lists. All the other sources have potential counterparts in the optical catalogues and are classified as $\langle{\rm hard}\rangle$ following the convention of Pietsch et al. (2005).

The classification for all 327 sources are given in Table A.1; we distinguish the sources classified in this work by a (1) beside their classification.

4 Results

We present a summary of the results of our spectral analysis, with the number of detections and faint sources per field as well as a breakdown of the best fit models in each field, in Table 4. The quoted luminosity of the faint limit in Table 4 is the luminosity of the brightest source with less than 50 source counts. Full details of the source positions, spectral fitting and classification (see Sect. 3.4) of each source are listed in Table A.1.

4.1 Spectral properties

Table 4 shows that a power law model is the best fit model in the majority of cases, although Fig. 1 shows a wide range of best fit photon index. Only four sources with more than 50 source counts have few or no counts above 2 keV. These are fit with the nsa model. Of these four only two sources are best fit with the nsa model, accordingly these sources are described as supersoft. Of the three models tested in this survey (see Sect. 3.2) foreground sources would be best fit by a blackbody model; in fact 10 of the 27 sources best fit by a blackbody model in this work are classified as foreground stars in Pietsch et al. (2005) (see Table A.1).

Following the work of Trudolyubov et al. (2006) on the central region of M 31, we investigated the distribution of photon index for all sources, not just those for which a power law was the best fit. Figure 1 shows the distribution of the best fit power law photon index ($\Gamma $) to every source. We have compared the data from the disc to sources in the central region from Trudolyubov et al. (2006), who used the same method to derive the spectral indices except that they have presented a weighted mean of the spectral indices derived from multiple observations. There are 33 disc sources with extremely soft spectra ( $\Gamma > 4$) which are not plotted.

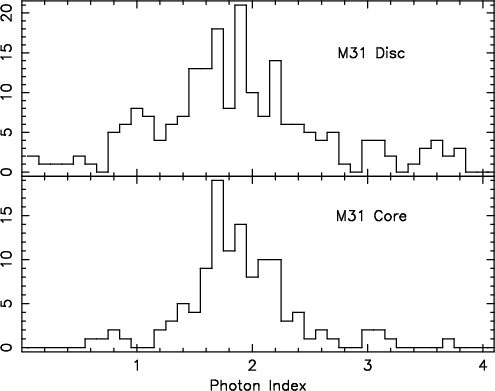

 \begin{figure} \par\includegraphics[angle=-90,width=7cm,clip]{panel_disc_core_histo} \end{figure} Figure 1:

Distribution of photon index derived from the best fit power law model for each source, with the exception of very soft sources ( $\Gamma > 4$). The M 31 disc data is shown in the top panel and the data from the central region from Trudolyubov et al. (2006) is shown in the lower panel. The bin width is 0.1.
Open with DEXTER

Figure 1 shows a broad peak in both the central region and the disc fields at $\Gamma \sim 1.7$ which is expected for low mass X-ray binary systems (see Trudolyubov et al. 2006). However the disc sources also show a peak at $\Gamma \sim 1$, a feature which is absent in the central region. While this excess is seen most obviously in the full disc sample, it is also seen in each field individually. The excess is suggestive but a KS test does not rule out that both samples in Fig. 1 are drawn from the same parent population (KS probability 0.36)

Table 5:   X-ray properties of the 18 candidate HMXBs with a photon index between 0.8 and 1.2. Coordinates are astrometrically corrected. The parameters of the best fit power law model are quoted in Cols. 5 & 6. The symbol f signifies that the absorption was fixed to $0.1 \times 10^{22}$ H atoms cm-2. 90% confidence interval errors are quoted for both the absorption and photon index. Next we give the luminosity derived from the best fit model, the bracketed numbers are the error in the last significant figure. The luminosity and its errors are calculated from the 90% confidence interval. We also give the V magnitude absorption at the distance of M 31. The final column indicates the Massey et al. (2006) designation of any optical source within 3.3'' of the astrometrically corrected position. The strong candidates are listed in the top section of the table and the secondary candidates in the lower section.

There are 23 disc sources with $0.8 \leq \Gamma \leq 1.2$ and seven of these have very large errors to the best fit photon index. The variation in $\chi^2$ around the best fit photon index was investigated for all 23 sources. Five of the seven with large errors were found to have a very shallow variation in $\chi^2$. This indicates that the best fit $\Gamma $ is not well defined, we thus exclude these sources from the group with $0.8 \leq \Gamma \leq 1.2$. A photon index of around 1 is expected from magnetically accreting neutron stars (White et al. 1995) and thus indicates the presence of highly magnetic neutron stars in the disc of M 31. Since the magnetic field of the neutron star is expected to be weaker in LMXBs than HMXBs (Tauris & van den Heuvel 2006), these sources are strong HMXB candidates - the first such candidates in M 31. The 18 HMXB candidates are given in Table 5; we have 16 good candidates with small errors and two secondary candidates with a large 90% confidence interval but a sharply defined minimum. Table 5 gives astrometrically corrected positions from the source catalogue of Pietsch et al. (2005) where available. For the three HMXB candidates not in the source catalogue of Pietsch et al. (2005), we apply the appropriate astrometric corrections as given by Pietsch et al. (2005) to calculate the positions quoted in Table 5. For each of the HMXB candidates we also give the details of the best fit power law model ($n_{\rm H}$ and $\Gamma $), the luminosity derived from that fit and the V magnitude extinction, calculated from the X-ray band absorption via $A_{\rm v} = n_{\rm H}$/( $1.79\times10^{21}$) cm-2, see Predehl & Schmitt (1995). From the V magnitude extinction it is also possible to calculate the B-V colour excess $E(B-V) = A_{\rm v}$/3.24.

The most recent complete optical survey of M 31 has been the UBVRI Local Group Survey of Massey et al. (2006). This survey consists of UBVRI and various narrow band coverage of the entire optical D25 ellipse of M 31 down to a limiting magnitude of V=24.9. To search for optical counterparts to our 18 HMXB candidates we adapted the criteria for Galactic luminous Be stars from Sabogal et al. (2005). Galactic Be stars have V-band absolute magnitudes between $M_{\rm V} -6$ and 0, as well as both -0.4< B-V <0.8 and -0.35< V-I <0.8 colour restrictions. After correcting these criteria for the distance to M 31 (V magnitude >18 and ( B-V) < 0.8) we searched the catalogue of Massey et al. (2006) for possible counterparts within 3.3'' of the astrometrically corrected positions. This search radius is calculated as in Sect. 3.4 where, for the astrometrically corrected XMM-Newton positions, $\sigma_{\rm satistical}=1''$ and $\sigma_{\rm systematic}=0.5''$. Eight of the 16 good HMXB candidates and one of the two secondary candidates have counterparts within this search radii in Massey et al. (2006), four of these have the magnitudes and colours that we would expect for a Be-type star in M 31. All potential counterparts are listed in Table 5.

Using the method described below we investigated the possible contamination of this potential HMXB population by background AGN. We find that AGN could make up $\sim$60% of the total disc population with $L_{\rm X} > 10^{36}$ erg s-1. However Giacconi et al. (2001) found that the average AGN spectrum of sources in the Chandra Deep Field South (CDFS) was softer than the sources considered here. Even the faintest (hardest) group of sources in the CDFS are found to have $\Gamma = 1.35 (\pm 0.20)$, which is softer than the interval $0.8 \le \Gamma \le 1.2$ we focus on. We conclude that only few, if any, of the HMXB candidates are AGN. All 18 of these sources should be followed up with further optical observations to investigate the nature of the donor star and confirm their status as HMXBs in M 31.

4.2 Luminosity functions

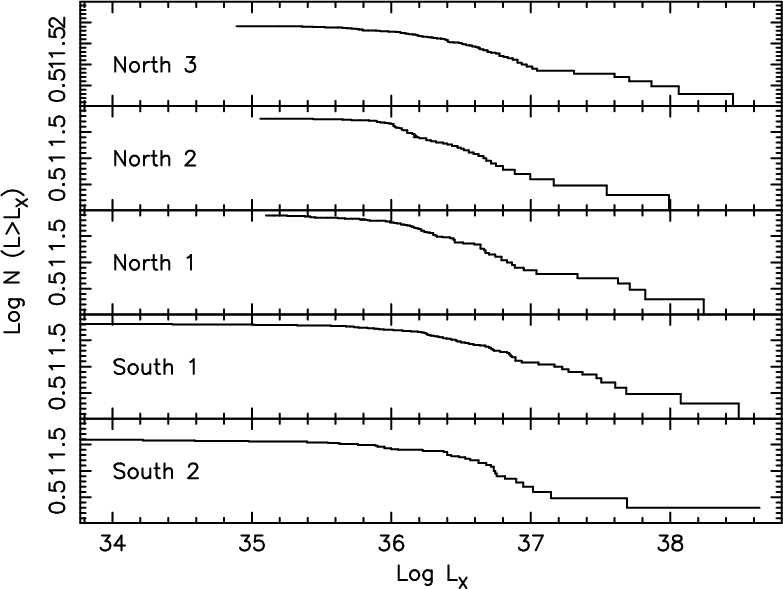

 \begin{figure} \par\includegraphics[origin=rb,angle=-90,width=12cm,clip]{offset_landscape_nofgbg_pimms} \end{figure} Figure 2:

Cumulative luminosity functions of each of the disc fields. The y-axes range is 0 to 2, except for North 3 where it is 0-2.5.
Open with DEXTER

Figure 2 shows the cumulative luminosity functions (CLFs) of each of the disc fields with the 0.3-10 keV luminosity, $L_{\rm X}$, plotted on the x-axis and the number of sources with a luminosity higher than $L_{\rm X}$ on the y-axis. The confirmed foreground star (source 182), AGN (source 27) and background galaxy (source 112) have been removed from the relevant fields, however we have not removed any of the 59 sources which are only classified as foreground or background candidates by Pietsch et al. (2005). The change between freely fit and faint sources in each field occurs between $5 \times 10^{35}$ erg s-1 and $1.7 \times10^{36}$ erg s-1. The source luminosities below this limit have been calculated using the conversion factor from the summed faint source spectrum (see Table 2).

South 2 and North 2 have the highest luminosity cutoffs of freely fit sources. This is due to these observations having the shortest good time due to background flaring. These regions also have the smallest number of point source detections. South 1 and South 2 have two and three sources respectively with luminosities below $1\times10^{35}$ erg s-1, while the other fields only have sources above this limit. South 1, North 1 and North 3 have similar numbers of point source detections and the change between freely modelled sources and faint sources occurs at a similar luminosity.

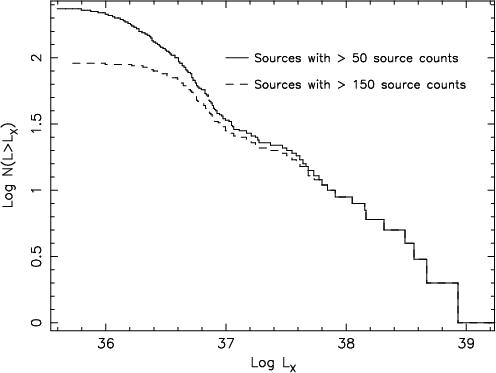

 \begin{figure} \par\includegraphics[angle=-90,width=7cm,clip]{clf_50150_nofgbg} \end{figure} Figure 3:

Cumulative luminosity functions of sources with more than 50 source counts (solid) and of sources with more than 150 source counts (dashed).
Open with DEXTER

In Fig. 3 we present the CLF of all the disc sources combined, for sources with more than 50 source counts, and compare it to the CLF of sources with more than 150 source counts. For both these CLFs we have removed the three sources known not to belong to the disc of M 31. This comparison is in order to check the validity of results derived from the spectral fitting of sources with only 50 source counts. Above $\sim$1037 erg s-1 the two functions are almost identical. Using Sherpa[*], a straight line fit of the CLFs above 1036 erg s-1 in Fig. 3 gives a slope $\alpha = 0.7$ for the 50 counts case and $\alpha = 0.6$ for the 150 counts case. The flattening of the CLF at $\sim$1037 erg s-1 is clearly apparent in the CLF of sources with more than 150 source counts, hence demonstrating that it is not an artifact of low count rate source fitting.

Previously Williams et al. (2004), using Chandra, found that the northern disc had fewer sources above 1037 erg s-1 than the southern disc. They found 10 sources with luminosities this value in the southern disc and only 5 in the northern disc, while sources with luminosities below this value are more evenly distributed, with 12 in the southern disc and 11 in the northern (numbers from Fig. 11, Williams et al. 2004). We find that South 1 may be over abundant in bright sources with 11 non globular cluster sources above 1037 erg s-1, while the other fields have somewhat smaller numbers. There are 5 bright non globular cluster sources in North 1, 3 in North 2, 7 in North 3 and 4 in South 2. In total we find 15 non globular cluster sources brighter than 1037 erg s-1 in the southern disc and 15 in the northern disc. As there are three northern disc fields and two southern the average number of bright sources per field in the southern disc is slightly larger than in the northern disc; however the difference in the number of sources is not as pronounced as that seen by Williams et al. (2004). This difference is consistent with the discussion below relating to the comparison between using individual spectral fitting and using a single simple spectral model as assumed by Williams et al. (2004).

We identify the luminosity below which these observations are incomplete as the luminosity at which we see a break in the CLF of the whole disc, see Fig. 4. This limit is ${\sim}1\times10^{36}$ erg s-1 which is in line with limits quoted in Trudolyubov et al. (2002) (detection limit $5 \times 10^{35}$ erg s-1, completeness limit ${\sim}10^{36}$ erg s-1 for the central region, North 1 and North 2). Chandra surveys (Kong et al. (2003) (detection limit  1035 erg s-1, completeness limit 1036 erg s-1) and Williams et al. (2004) (completeness limit $4\times10^{36}$ erg s-1 in the disc)) also have similar limits.

 \begin{figure} \par\includegraphics[angle=-90,width=7cm,clip]{disc_nofgbg_nogc_comp} \end{figure} Figure 4:

Cumulative luminosity function of all source in the disc of M 31 (solid), compared to the luminosity function of the disc with known globular cluster sources removed (dashed).
Open with DEXTER

Table 6:   Field by field comparison of the slopes above and below the break luminsoty ($L_{\rm b}$) for the CLFs created from freely fit spectra and the CLFs of luminosities derived from fixed models. $L_{\rm b}$ is set to 1036 erg s-1, the slopes are for the CLF above and below $L_{\rm b}$. Data for the bulge of M 31 comes from Shirey et al. (2001) where the break is $2.5 \times 10^{36}$ erg s-1.

The CLF of each field was fit individually with a power law above and below the completeness break $L_{\rm b} = 1\times10^{36}$ erg s-1. The results are given in Table 6 (Cols. 2 & 3 entitled ``Freely Fit''). The slopes of the disc CLFs above $L_{\rm b}$ are between the values expected for starburst galaxies and for spiral galaxies from Kilgard et al. (2002). Given that we are examining the disc of a spiral galaxy, this is to be expected. Fitting the CLF of the bulge of M 31, Shirey et al. (2001) find a slope of $1.77\pm0.35$ for $37.4 \leq \log L_{\rm X}$ erg s -1 <38.1, flattening to $\alpha=0.43$ for $\log L_{\rm X}$ erg s -1 <37.4. According to the surveys of Colbert et al. (2004) and Kilgard et al. (2002) galaxies with ongoing or recent star formation show flatter CLFs than elliptical galaxies consisting of old populations. Comparing the slope of the bulge CLF from Shirey et al. (2001) with those of the disc from this work (see Table 6) show that the CLF of the disc is flatter than that of the core. This result is consistent with the fact that there is more on-going star formation in the disc of M 31 than in the core.

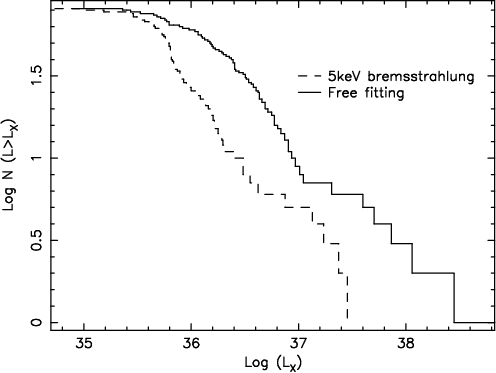

 \begin{figure} \par\includegraphics[angle=-90,width=7cm,clip]{kil_CLF} \end{figure} Figure 5:

Cumulative luminosity functions of North 3. The solid line consists of both the freely fit and faint sources from this work, while the dashed line is the luminosity of sources derived from assuming a bremsstrahlung emission model with kT = 5 keV (Kilgard et al. 2002).
Open with DEXTER

Kilgard et al. (2002) analysed seven spiral and starburst galaxies, not including M 31, in a Chandra mini-survey. They used an absorbed 5 keV bremsstrahlung emission model to convert from count rate to flux for all detected sources. In order to make a direct comparison between our work and the results from Kilgard et al. (2002), we used a 5 keV thermal bremsstrahlung model with fixed photoelectric absorption ( $n_{\rm H} = 0.1 \times 10^{22}$ H atom cm-2) to calculate the luminosity of all the M 31 disc sources. Figure 5 shows the North 3 CLF obtained in this way, as well as the freely fit CLF. There are two main differences: firstly, fixing the model gave sources which were fainter on the whole than the freely fit sources, and the total luminosity of each field was reduced to only 1- $3\times10^{38}$ erg s-1 rather than 4- $20\times10^{38}$ erg s-1. The second effect was the change in average slope of the CLF of each of the fields from $\alpha \simeq 0.7$ when the source spectra were freely fit, to $\alpha \simeq 0.8$ for the fixed model sources. Kilgard et al. (2002) conclude that steeper slopes of CLFs imply less star formation. We have found that the freely fit CLF was not as steep as the CLF of the fixed model sources and thus the CLF slope-SFR calibration could be systematically offset. A similar finding for NGC 253 is discussed in detail by Barnard et al. (2007a) and Barnard et al. (2008).

 \begin{figure} \par\includegraphics[angle=-90,width=7cm,clip]{sub_CLF_bw} \end{figure} Figure 6:

Cumulative luminosity functions of the population of sources in the disc of M 31 from this work (solid) and the derived AGN background (dashed). Also shown for luminosities above $1.4 \times 10^{36}$ erg s-1 is the CLF of the disc with the derived background contribution subtracted (dot-dash).
Open with DEXTER

Figure 4 shows the CLF of all the disc sources (excluding the 3 identified foreground and background objects), with and without globular cluster (GC) sources. It can be seen that there is a distinct flattening of the CLF in the range $37.0 \le \log {\rm L_X /erg~s^{-1}} \le 37.5$ present in both samples. A KS test shows that the sample with GC sources has a 2.5% chance being drawn from the same population that is represented by the best fit power law of the data between $36 \le \log {\rm L_X /erg~s^{-1}} \le 38$, while the corresponding probability for the sample without GC sources is 2.1%. The K-S probability becomes larger if a power law fit for the full range of luminosities, including the 8 and 3 sources, respectively, that are brighter than 1038 erg s-1, is considered. Although the KS test remains inconclusive we point out that the reality of the flattening in the CLF is supported by the fact that it can also be seen in the CLFs of the M 31 disc sources derived from prescribed models (see Fig. 5), in the higher count rate sources only (see Fig. 3) and in some of the individual fields of M 31 (especially North 3, North 1 and South 2, see Fig. 2). As well as in the CLF of M 31 sources, it is possible that the same feature is also present in the CLFs of the SMC (Shtykovskiy & Gilfanov 2005) and M33 (Grimm et al. 2005) which are both predominantly young populations but have some evidence for a LMXB contribution.

This feature could be due to the emission from a mixture of HMXB and LMXB populations (see Grimm et al. 2002, for work on the sub-populations of the Milky Way) or possibly due to a change in the nature of the compact object. Kalogera (2007) have reported that they have observed such a dip in theoretical population models, associated with the transition from a binary population with main sequence donors (below ${\sim}10^{37}$ erg s-1) to a population with red giant donors (above the dip). This is because, for most magnetic braking laws, the mass transfer rate driven by nuclear expansion of donors (as in red giant donors) is higher than that for mass transfer driven by orbital angular momentum losses (short period systems with main sequence donors). We show in Sect. 4.3 below that the flattening is not due to a change in the background AGN CLF.

4.3 AGN contamination

The CLF for the combined disc flattens below $1\times10^{36}$ erg s-1, while the very faintest sources are around 1034 erg s-1. We expect that there is a significant contribution from background AGN at these faint luminosities.

Moretti et al. (2003) consider the AGN contribution in a hard (2-10 keV) and soft (1-2 keV) energy band. We assume a standard AGN spectrum, a power law model with $\Gamma = 1.44$ (following Rosati et al. 2002), to calculate the AGN flux in our 0.3-10 keV band. We calculated the number of background sources in each field above the 0.3-10 keV incompleteness limit of $L_{\rm X} = 10^{36}$ erg s-1(corresponding to a 1-2 keV flux limit of $8.5\times10^{-14}$ erg s-1 and a 2-10 keV limit of $1.9\times10^{-14}$ erg s-1). Given that the area of each field is 0.20 deg2 and using Moretti et al. (2003, Eq. (2)) we find that there are 26-30 background sources above 1036 erg s-1 in each disc field of M 31. The lower limit is calculated assuming that all the sources visible in the soft band are also seen in the hard band, the upper limit assumes that none of the sources seen in the soft band are seen in the hard band.

We can then estimate the shape of the CLF intrinsic to the M 31 disc by removing the background AGN contribution according to Moretti et al. (2003). In Fig. 6 we show the observed complete disc CLF (Disc), with a total area of 0.98 deg2, and the calculated sum of the hard and soft background contributions per 0.98 deg2 (Background). According to Moretti et al. (2003) the soft sources do not contribute above ${\sim}2.8\times10^{36}$ erg s-1and so the total background contribution is very close to the number of sources seen in the hard (2-10 keV) band. The upper limit total is shown in Fig. 6 as a dashed line. The model shows that the observations are incomplete below a few $\times10^{36}$. We also show our estimation of the CLF of sources intrinsic to M 31 (Disc CLF with the Background CLF subtracted) only above the luminosity at which there are more sources in the disc than in the background ( $1.4 \times 10^{36}$ erg s-1). Below this luminosity the complete M 31 CLF is dominated by the backgroud contribution, and the incompleteness of the survey is obvious. We note that the flattening of the CLF near 1037 erg s-1 is still very prominent in the background corrected CLF.

5 Conclusions

We have revisited five archival XMM-Newton observations of the disc of M 31. These data revealed 335 point detections across the 5 fields constituting 329 discrete point sources. All the sources were fit with three spectral models: blackbody, bremsstrahlung and power law and the results of these fits were examined.

Using only the best fit power law model to each source, we investigated the distribution of photon indices of these fits. The broad range of photon index seen in Fig. 1 and the difference in the CLFs seen in Fig. 5 cast doubt on the validity of assuming the same spectral model for all sources when analysing more distant X-ray point source populations. Individual spectral fitting has identified the first 18 HMXB candidates in the disc. The HMXB candidates are all best fit by a power law with a photon index of 0.8-1.2 indicating magnetically acreting neutron stars.

For the first time X-ray point sources in M 31 with as few as 50 source counts have been individually spectrally fit, in contrast to previous surveys which have used the same assumed model for all sources except the very brightest. This has led us to create the first CLFs of the M 31 disc region created from 240 individually spectrally fit sources shown in Fig. 2. It can be seen that the CLFs of the fields are quite similar across the disc of M 31 and that there are no obvious changes in the CLF slopes with increasing apparent distance from the core. The CLFs of both individual fields (Fig. 2) and the entire disc both with and without GC sources (Fig. 4) show a distinct flattening between $37.0 \lesssim \log {\rm L_X}$ erg s $^{-1} \lesssim 37.5$. This flattening could be due to the emission from a mixture of HMXB and LMXB populations or due to a change in the nature of the compact object or the donor star. This prominent flattening in the CLF of M 31 sources may also appear at a lower statistical significance in the CLFs of several other galaxies.

Each observation contains not only the point sources in M 31 but also some contamination from foreground and background sources. We have estimated that there are around 26-30 background AGN above 1036 erg s-1, in each field observed, and find that above $1.4 \times 10^{36}$ erg s-1 there are few background AGN according to Moretti et al. (2003). The CLF here is dominated by the sources intrinsic to the disc of M 31 and any foreground interlopers. Following the correlations of the PSPC ROSAT survey with optical catalogues (Supper et al. 2001), we expect 5-10 forground objects above 1036 erg s-1 for each XMM-Newton field (Shirey et al. 2001).

M 31 is a prime target for population surveys because of its proximity and similarity to our own Galaxy. We have investigated the X-ray point sources in the disc of M 31 in detail and this population challenges theoretical models to explain the features seen in the distribution of sources and in the CLF.

Acknowledgements
We would like to thank the referee, Sergei Trudolyubov for very helpful comments. We also thank Wolfgang Pietsch and Simon J. Clark for useful conversations during this work. L.S.G. acknowledges support from the Open University. Astronomy research at the Open University is supported by a STFC rolling grant. J.P.O. acknowledges support from STFC.

References

Online Material

Appendix A

In this section we give positional and spectral information on all 335 point source detections in five archival XMM-Newton observations of the disc of M 31. Table A.1 gives the source numbers in order of RA and the positions as returned by the source detection routines (i.e. no astrometric corrections were applied). We also provide details of which camera the source spectra or counts are taken from and details of the best fit spectral model for each source, including the absorption ($n_{\rm H}$), best fit photon index ($\Gamma $) or temperature (kT) depending on which model, and the luminosity derived from that fit. The symbol f signifies that the absorption was fixed to $0.1 \times 10^{22}$ H atom cm-2 for that source. Note that several of the faint sources display a very large formal uncertainty in $n_{\rm H}$. The actualy best fit values were accepted only if they exceeded the Galactic foreground value ( $n_{\rm H} = 0.1 \times 10^{22}$ H atom cm-2). Errors on the absorption and $\Gamma $/kT are the two sided, non-symmetric errors derived by xspec. The luminosity given is the mean value of the 90% confidence interval and hence has symetric errors quoted in brackets. Best fit values are given for all sources with more than 50 source counts; even for cases where the fit implies significant or very large error bars. Sources with less than 50 source counts are denoted with ``faint'' as their best fit model, these sources are then summed by field and the parameters of the best fit power law to the summed spectrum applied to each source. Hence for the faint sources no absorption or $\Gamma $/kT are given. Finally we give a classification for each source. These are the classifications and source number from Pietsch et al. (2005) where the sources appear in that work. For the 34 sources not in Pietsch et al. (2005) as well as source 238 we give our own classifications and each of these have a 1 next to it.

Table A.1:   Position and spectral properties of each source detected in five archival XMM-Newton observations of the disc of M 31. We give the detected source position and detection camera(s) for each source. The best fit model to a source can be faint (less than 50 source counts), pl (power law), bb (blackbody), br (bremsstrahlung), nsa (neutron star atmosphere) or diskbb (disk blackbody). Unless a source is faint we then give the absorption ($n_{\rm H}$) and appropriate parameter (photon index, $\Gamma $, or temperature, kT) of the best fit model. The symbol f signifies that the absorption was fixed to $0.1 \times 10^{22}$ H atom cm-2 for that source. For all sources we then quote the luminosity for that source derived from the model parameters with 90% confidence errors in brackets, and finally a classification, either from Pietsch et al. (2005) with the source number, or this work (denoted with a1).
