INTEGRAL observations of the Perseus cluster

D. Eckert - S. Paltani

ISDC Data Centre for Astrophysics, Geneva Observatory, University of Geneva, 16 ch. d'Ecogia, 1290 Versoix, Switzerland

Recieved 15 October 2008 / Accepted 10 December 2008

Abstract
We present the results of a 500 ks observation of the Perseus cluster with INTEGRAL, with the aim of investigating the possible diffuse non-thermal component detected in a previous Chandra observation. In the 3-20 keV band with the JEM-X instrument, we detect the source with high significance and resolve it spatially. Above 20 keV with IBIS/ISGRI, we find that the source is point-like, and the cluster could be detected up to 120 keV. From the broad-band ISGRI/JEM-X spectrum, although we detect a non-thermal component, we find that the high-energy flux is variable and is consistent with the extrapolation of the 2-10 keV flux of the central AGN, NGC 1275. The extrapolation of the non-thermal component claimed from Chandra data exceeds the INTEGRAL spectrum by a factor of 3.

Key words: galaxies: clusters: individual: Perseus cluster - X-rays: galaxies: clusters - gamma rays: observations

1 Introduction

The Perseus cluster Abell 426 (z=0.0176) is the brightest galaxy cluster in the X-ray band, and the prototype of cooling-core clusters (Fabian 1994). Its central cD galaxy, NGC 1275, hosts a well-known narrow-line radio galaxy, Per A, which interacts with the intra-cluster gas through its jets and outflows (Boehringer et al. 1993). In the X-ray band, the cluster was the target of a very long (900 ks) Chandra observation (Fabian et al. 2003), which revealed a very complex structure, with a temperature ranging from 2.5 keV in the central regions up to $\sim$8 keV in the outskirts. Several structures associated with the propagation of high-energy particles injected by the central AGN in the thermal plasma (X-ray cavities, sound waves) were also detected.

Apart from the very deep Chandra observations, the cluster was also observed by XMM-Newton (Churazov et al. 2003). Thanks to the larger FOV of XMM-Newton, it was also possible to observe the structure of the gas in the outer regions. An asymmetry of the surface brightness profile in the east-west direction was found, possibly corresponding to a small group of galaxies falling onto the main cluster. The contribution of the active nucleus in the center of NGC 1275 was also estimated. The spectrum of the AGN could be well-fitted by an absorbed power law with a photon index $\Gamma=1.65$ typical of radio-loud AGN and a luminosity of 1043 erg s-1 in the 0.5-8 keV band.

In the radio domain, the bright radio source 3C 84 is consistent with the position of NGC 1275. While most of the radio emission comes from the radio galaxy, emission on a larger scale ($\sim$10 arcmin) was also detected in the cluster (Burns et al. 1992; Feretti et al. 2004), designated as the Perseus ``mini-halo''. This implies the presence of relativistic electrons, whose origin is not yet fully understood. If the AGN jets are hadronic, the radio emission probably comes from secondary electrons produced by interactions between cosmic-ray protons and thermal ions (Pfrommer & Enßlin 2004). Alternatively, the electrons could also be directly accelerated through turbulence induced by the central nucleus (Gitti et al. 2002), although the shocks produced by the interaction of the AGN jets with the ICM do not seem to be strong enough.

Since the existence of relativistic electrons in the cluster is obvious because of the radio synchrotron emission, we expect that photons of the CMB as well as optical/IR photons coming from the central galaxy should be up-scattered to higher energies, in particular to the (hard) X-ray domain (see e.g. Sarazin 1999). An excess of emission compared to the thermal emission was probably detected in the Coma (Fusco-Femiano et al. 1999) and A2256 (Fusco-Femiano et al. 2005) clusters by BeppoSAX and in the Ophiuchus cluster (Eckert et al. 2008) by INTEGRAL. Thanks to the very long Chandra observation of the cluster, such a component has been claimed to be detected in addition to the thermal emission (Sanders et al. 2005; Sanders & Fabian 2007). This allowed the authors to present a magnetic field map of the cluster and derive a steep magnetic field profile, ranging from $\sim$$3~\mu$G in the center down to $\sim$$0.1~\mu$G in the outskirts. However, a recent XMM-Newton observation did not confirm the result (Molendi & Gastaldello 2008), so observations of the cluster above 10 keV where the thermal emission becomes weaker are required to confirm this result.

In the hard X-ray band, Nevalainen et al. (2004) presented BeppoSAX/PDS observations of the cluster, and concluded that the emission was consistent with the extrapolation of the AGN flux. However, since the PDS instrument was non-imaging, it was not possible to put any constraints on the diffuse emission. Recently, Ajello et al. (2008) found the same result using data from the Swift satellite.

 \begin{figure}
\par\includegraphics[width=7cm,clip]{1154fig1a.eps}\hspace*{4mm}
\includegraphics[width=6.4cm,clip]{1154fig1b.eps}

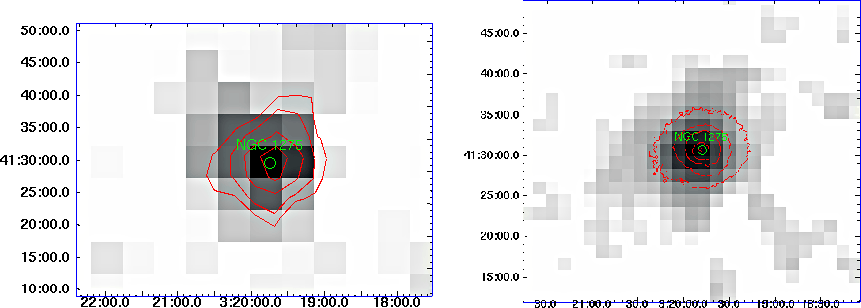

\end{figure} Figure 1:

Left: ISGRI 20-30 keV significance image of the Perseus cluster region. For comparison, the contours show the JEM-X 3-7 keV emission. The position of the radio galaxy NGC 1275 is also displaid. Right: JEM-X significance image of the cluster in the 3-7 keV band with contours from ROSAT/PSPC. The green circle shows the position of NGC 1275 at the center of the cluster.

Open with DEXTER

In this paper, we present the results of a 500 ks observation of the Perseus cluster with the INTEGRAL satellite (Winkler et al. 2003). Thanks to the broad-band coverage and good sensitivity in the hard X-ray range, IBIS (Ubertini et al. 2003) and JEM-X (Lund et al. 2003) have the necessary capabilities to constrain a possible non-thermal component. Indeed, the extrapolation of the diffuse non-thermal flux claimed by Sanders et al. (2005) within a radius of 3 arcmin from the center ( $6.3\times10^{-11}$ erg cm-2 s-1 in the 2-10 keV band, and a power-law index in the range 1.4-2.2) is clearly above the sensitivity of IBIS. Therefore, if it is present, INTEGRAL has the capabilities to confirm or rule out the Chandra result.

2 Data analysis

2.1 ISGRI data analysis

The IBIS/ISGRI instrument on board INTEGRAL (Lebrun et al. 2003) is a wide-field ( $29^\circ\times29^\circ$) coded-mask instrument sensitive in the 15-400 keV band. Its angular resolution (12 arcmin FWHM nominal) is of the same order of magnitude as the size of the core of the cluster (core radius $R_{\rm c}\sim 6'$, Boehringer et al. 1993). The Perseus cluster was observed during INTEGRAL revolutions 0052, 0096, 0168 and 0220 for a total observing time of 500 ks. During revolutions 0052 and 0096, the cluster was observed in staring mode. Unfortunately, this observing mode is not ideal for ISGRI, since artifacts due to an incorrect mask model become more prominent, and therefore the images deconvolved in the standard way are noisy. Nonetheless, the data in staring mode are fully usable for ISGRI spectral extraction, since the spectral-extraction tool works in the detector space and reduces considerably the parameter space for the deconvolution.

For ISGRI image reconstruction, we extracted detector shadowgrams using the standard OSA software v7.0 (Courvoisier et al. 2003). We fitted models of bright sources in the FOV to the raw data and subtracted them from the detector. After subtraction, we ignored improperly modeled pixels, and deconvolved the corrected images in the standard way (see Eckert et al. 2008 for the details of the analysis method). Spectral extraction was performed using the standard OSA 7.0 software with a list of sources taken from the mosaic image. Given that the source is not spatially resolved, the instrument extracts the flux in a region of radius $\sim$6 arcmin corresponding to the half-width of the PSF.

2.2 JEM-X data analysis

The JEM-X X-ray monitor on board INTEGRAL (Lund et al. 2003) consists of two identical X-ray detectors with coded mask, JEM-X1 and JEM-X2, sensitive in the 3-35 keV band. It is designed for the spectroscopic and imaging study of the sources detected by IBIS, with a better spatial resolution (3.35 arcmin FWHM nominal) and a field-of-view of $7.5^\circ$ half-response in diameter. Given that a large fraction of the observation was performed in staring mode, the JEM-X exposure time on Perseus is quite large (280 ks).

JEM-X data analysis was performed in a completely standard way using the OSA 7.0 software. Images from JEM-X1 and JEM-X2 were combined to improve the signal-to-noise ratio. For JEM-X spectral extraction, we created mosaic images in 18 energy bands between 3 and 20 keV, we combined JEM-X1 and JEM-X2 mosaics and then extracted the JEM-X spectrum from the mosaic in a region of radius 6 arcmin similar to the IBIS PSF in order to ensure that both instruments view the same field.

3 Morphology of the cluster

The source was clearly detected by both instruments at the $16\sigma$ (ISGRI, 20-30 keV) and 57$\sigma$ (JEM-X, 3-7 keV) level. Figure 1 shows the resulting significance images (i.e. ratio between the signal and the noise introduced by the background in each sky pixel) in the 20-30 keV band (ISGRI) and 3-7 keV band (JEM-X). The core radius of the cluster ( $R_{\rm c}\sim6$ arcmin) is comparable to the size of the IBIS PSF. However, fitting the ISGRI image, we find a half-width of 6.4 arcmin, which is consistent with a point-like source. This could be due to the presence of the active nucleus in the center of the cluster, which might be responsible for a significant fraction of the emission above 20 keV.

On the other hand, the extension of the source is clearly seen in the JEM-X image. The total size of the source as seen by JEM-X is $\sim$15 arcmin, which is much larger than the PSF of the instrument (3.8 arcmin FWHM). As found by XMM-Newton (Churazov et al. 2003), the source is elongated in the East-West direction. In the 7-18 keV band, the source is also clearly detected, at the $21\sigma$ level. No significant change in the morphology is observed between the 2 bands.

Table 1:   Results of the fitting procedure to the joint ISGRI/JEM-X spectrum with different models.

4 Broad-band INTEGRAL spectrum

In order to study the high-energy emission from the cluster and the central nucleus, we extracted the spectrum of the source in the 17-120 keV band with ISGRI and 3-20 keV band with JEM-X using the methods described in Sect. 2.

4.1 3-20 keV JEM-X spectrum

 \begin{figure}
\par\includegraphics[angle=270,width=6.7cm,clip]{1154fig2.ps}

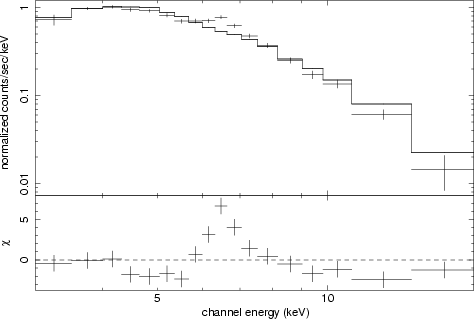

\end{figure} Figure 2:

JEM-X spectrum of Perseus in the 3-20 keV band fitted by a MEKAL model with abundance fixed to 0. The residuals from the model are displayed in the bottom panel. A prominent emission line is detected around 6.5 keV.

Open with DEXTER

Figure 2 shows the JEM-X spectrum of Perseus in the 3-20 keV band. The spectrum was fitted by a MEKAL model at a temperature kT=4.3 keV. In order to emphasize the detection of an Fe emission line, the abundance was fixed to 0 for the fit. The spectral resolution of JEM-X is not sufficient to distinguish between the Fe XXV (at 6.5 keV) and Fe XXVI (6.8 keV) emission lines, so the detected line is a blend of the two. Introducing the abundace as a free parameter in the fit, we find a temperature $kT=3.84\pm0.13$ keV and an abundance of $0.37\pm0.05$ with respect to the solar value. The redshift of the cluster was fixed to z=0.0176 (Churazov et al. 2003). The fit is satisfactory ( $\chi^2=11.7$ for 15 d.o.f.).

From XMM-Newton data, Churazov et al. (2003) derived a temperature profile increasing from 3 keV in the central regions up to $\sim$7 keV in the outskirts. Our JEM-X spectrum is extracted within a radius $\sim$6 arcmin from the center, where XMM-Newton derived a temperature increasing from 3 keV up to 6 keV. Given that the surface brightness profile is peaked towards the center, the JEM-X temperature is fully consistent with this result. Churazov et al. (2003) also found an abundance of $\sim$0.4, in agreement with the JEM-X value. As a conclusion, we find that the 3-20 keV JEM-X spectrum gives results which are fully consistent with previous studies, e.g. XMM-Newton/EPIC.

4.2 Total spectrum

In order to study the high-energy emission of the cluster, we fitted the JEM-X and ISGRI spectra simultaneously using the XSPEC package (Arnaud 1996). The cross-calibration between the two instruments is known to be very close to 1 (Jourdain et al. 2008). In any case, allowing for a cross-calibration factor between 0.8 and 1.2 does not change qualitatively any of the results presented here, so from now on the cross-calibration factor is fixed to unity. The results of the fitting procedure with different spectral models are summarized in Table 1.

As a first attempt to model the 3-120 keV spectrum, we fitted the spectrum with a single MEKAL model with abundance fixed to 0.4 solar and redshift fixed to z=0.0176 (model 1). The total spectrum is poorly represented by this model ( $\chi^2_{\rm red}=4.54$ for 24 d.o.f.), which clearly indicates the need for other spectral components. Adding a power-law component to the model (model 2), we find a significantly better fit ( $\chi^2_{\rm red}=1.15$ for 22 d.o.f.). The resulting power-law flux in the 2-10 keV band is $(1.6\pm0.2)\times10^{-10}$ erg cm-2 s-1. This is more than an order of magnitude higher than the reported flux of NGC 1275 (e.g. Donato et al. 2004; Churazov et al. 2003). Moreover, hard X-ray emitting AGN normally show a much harder spectral index compared to the value $\Gamma=2.75_{-0.18}^{+0.16}$ derived by this model (see e.g. Beckmann et al. 2006), so this second component cannot be all associated with the central AGN. Fixing the contribution of the nucleus to the value found in XMM-Newton data ( $F_{2{-}10~{\rm keV}} \sim10^{-11}$ erg cm-2 s-1, $\Gamma=1.65$, (model 3), we find a significant excess ($4.8\sigma $) between 20 and 40 keV, while the high-energy data are consistent with the extrapolation of the AGN flux (see Fig. 3). This means that a single thermal model plus the contribution from the AGN cannot explain the combined INTEGRAL spectrum.

 \begin{figure}
\par\includegraphics[angle=270,width=6.7cm,clip]{1154fig3.ps}

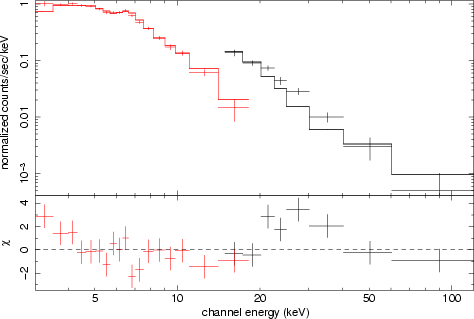

\end{figure} Figure 3:

Total broad-band INTEGRAL spectrum extracted with JEM-X (3-20 keV) and ISGRI (17-120 keV). The data were fitted using a single-temperature MEKAL model at kT=4.1 keV plus the contribution of the central nucleus of NGC 1275, which was fixed to the parameters derived by Churazov et al. (2003). While the high-energy emission is well-explained by this model, a significant excess ($4.8\sigma $) is found between 20 and 40 keV, indicating the need for another spectral component.

Open with DEXTER

On the other hand, Sanders et al. (2005) reported on a possible diffuse non-thermal component with a 2-10 keV flux of $6.3\times10^{-11}$ erg cm-2 s-1 and a photon index $\sim$2.0 (model 4). Adjusting a power-law model with such parameters in the INTEGRAL spectrum clearly over-predicts ISGRI data over 30 keV, even when the AGN contribution is completely neglected. Figure 4 shows the total INTEGRAL spectrum with a model composed of a single thermal component plus a power-law component with the parameters from Sanders et al. (2005). This model obviously over-predicts the high-energy data. The existence of a power-law component at the level claimed by Sanders et al. (2005) is therefore ruled out by ISGRI data, unless a high-energy cut-off is present in the spectrum.

 \begin{figure}
\par\includegraphics[angle=270,width=6.7cm,clip]{1154fig4.ps}

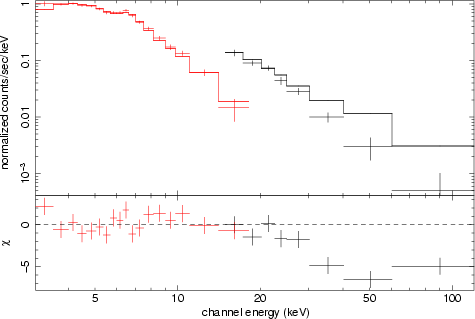

\end{figure} Figure 4:

Total broad-band INTEGRAL spectrum extracted with JEM-X (3-20 keV) and ISGRI (17-120 keV). The model (solid line) consists in a thermal component plus a power-law, with the parameters of the power-law as found by Sanders et al. (2005). The model significantly over-predicts the data above 30 keV. Therefore, the presence of a power-law without cut-off at the level claimed by Sanders et al. (2005) is ruled out by INTEGRAL data.

Open with DEXTER

Because of the complicated thermal properties of the gas in the inner 6 arcmin, modeling the data with a single-temperature thermal component cannot reproduce accurately the overall spectrum. In order to take into account the higher temperature found in the outer regions of the cluster ($kT\sim7$ keV from XMM-Newton data), we added a second thermal component to the spectrum (model 5). Including the extrapolation of the AGN contribution, we get an excellent fit with a second thermal component at a temperature kT=11-3+4 keV. Figure 5 shows the total INTEGRAL spectrum of Perseus in an EFE representation modeled with a two-temperature plasma plus the contribution of the AGN, fixed to the parameters derived by Churazov et al. (2003). The central temperature $kT=3.41\pm0.15$ keV is in agreement with XMM-Newton data. The 2-10 keV relative contribution of the high-temperature component from the outer regions compared to the 3 keV component from the center is $\sim$15%. From the JEM-X surface brightness profile, we find that the ratio between the integrated flux in the inner 4 arcmin and that in the 4-6 arcmin shell gives a similar value, so we expect that the cool component comes from the inner 4 arcmin, while the hotter component originates from the 4-6 arcmin shell. On the other hand, if instead of an additional thermal component we use a cut-off power-law with fixed photon index $\Gamma=2.0$ (model 6), we get an equally good fit with a cut-off energy $E_{\rm cut}=16_{-4}^{+6}$ keV. In this case, the 2-10 keV flux of the cut-off power-law component is $9.1\times10^{-11}$ erg cm-2 s-1. This is 1.5 times higher than the power-law flux reported by Sanders et al. (2005), but given that it is integrated in a larger radius (6' versus 3') the flux is consistent.

 \begin{figure}
\par\includegraphics[angle=270,width=6.7cm,clip]{1154fig5.ps}

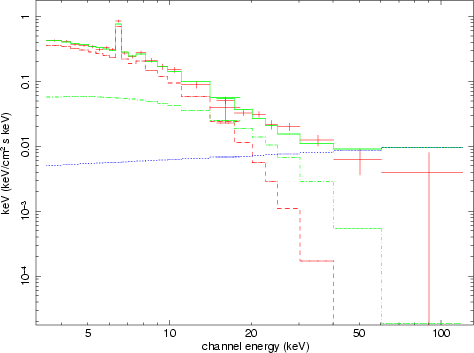

\end{figure} Figure 5:

Total INTEGRAL unfolded spectrum of the Perseus cluster. The green solid line shows the best fit to the data with a 3 keV MEKAL model (dashed red), a 7 keV bremsstrahlung model to describe the emission from the outer regions of the cluster (dashed green), plus the contribution of the central AGN NGC 1275 under the form of a power-law (dashed blue).

Open with DEXTER

5 Variability of the high-energy emission

As it is shown above, even with the addition of a second thermal component we find that a power-law is required to fit the high-energy data. However, this component is consistent with the extrapolation of the X-ray emission from the central nucleus. To confirm this, we investigated the variability of the flux at high energies. Indeed, any sign of variability would indicate a strong contamination of the high-energy flux by the AGN. Since the observations of the cluster were split into 4 different time periods, we extracted the 18-30 and 30-120 keV ISGRI fluxes for all 4 time periods (INTEGRAL revolutions 0052, 0096, 0168 and 0220) and constructed light curves in these 2 bands. In the 30-120 keV band, we found obvious signs of source variability. Indeed, while the source was clearly detected in rev. 0168 at a flux level of $3.9\times10^{-11}$ erg cm-2 s-1, no signal was detected during rev. 0096. Fitting the light curve with a constant flux value, we got a very bad fit, $\chi^2_{\rm red}=10.4$ for 3 d.o.f., so the variability of the high-energy flux is significant. In the 18-30 keV band, a significant flux drop is seen during rev. 0096. Since the AGN contribution seemed to be negligible during this time period, this allowed us to measure the relative contribution of variable versus persistent flux in the lower band, which we found to be $\sim$35%. Overall, our analysis reveals very clear signs of variability in ISGRI data, which allows us to conclude with good confidence that the power-law detected in the INTEGRAL spectrum is due to the presence of the active nucleus in the center of NGC 1275.

6 Discussion

Analyzing a 500 ks INTEGRAL observation of the Perseus cluster, we have extracted a high signal-to-noise spectrum of the cluster in the 17-120 keV band with ISGRI and 3-20 keV band with JEM-X. Since the Perseus cluster hosts a variety of known thermal (cool core, complicated temperature structure) and non-thermal phenomena (AGN activity from the central galaxy, diffuse emission from the mini-halo), modeling the total spectrum of the cluster is a complicated task.

Using a very deep Chandra observation of the cluster, Sanders et al. (2005) claimed the existence of diffuse non-thermal emission, which could be due to inverse-Compton scattering of the relativistic electrons responsible for the radio halo with CMB and infra-red photons. Extrapolating the non-thermal component in the hard X-ray band yields a flux which is clearly detectable by INTEGRAL, so a confirmation of this result would be important. However, we find that the extrapolation of the power-law component clearly over-predicts the spectrum above 30 keV. Moreover, we found clear evidence that the high-energy flux (E>30 keV) is variable over a time-scale of several months, which proves that the origin of the high-energy emission cannot be diffuse. So based on INTEGRAL data, we conclude that the existence of a power-law component without cut-off at the level claimed by Sanders et al. (2005) is ruled out.

On the other hand, assuming that the emission could be represented by a single-temperature model plus the contribution of the Seyfert nucleus does not give a good representation of the data. Therefore, an additional component in the form of a second thermal component or of a cut-off power-law is required. We find that both models can reproduce the data accurately, so based on INTEGRAL data it is not possible to distinguish between these two scenarios. However, it is well-known from Chandra and XMM-Newton observations that the temperature structure of the cluster is complicated. In particular, XMM-Newton data (Churazov et al. 2003) reveal a temperature of $\sim$3 keV in the inner 3 arcmin and a significantly higher temperature ($\sim$7 keV) in the outskirts. Since ISGRI integrates the flux within a region of 6 arcmin from the cluster center, it is reasonable to fit the data with an additional thermal component at a higher temperature. If the additional component is a cut-off power-law, our data imply a high-energy cut-off at $E\sim16$ keV. This could be consistent with the statement of Sanders & Fabian (2007), who discuss the possibility of a spectral break around 10 keV due to the cooling-time of non-thermal electrons at this energy.

In conclusion, although we cannot rule out the possibility that the emission is non-thermal and cuts off at $E\sim16$ keV, the fit with two temperatures of $\sim$3 keV and $\sim$10 keV is satisfactory. It also appears quite natural given that the source exhibits multiple thermal components in the inner 6 arcmin, in particular a 3 keV component from the cool core and a 7 keV component from the outer regions. Therefore, we conclude that the total INTEGRAL spectrum can be perfectly well described by a thermal model consistent with previous studies, plus a variable power-law component from the central AGN. Recently, the result of Sanders et al. (2005) was not confirmed by a longer XMM-Newton observation (Molendi & Gastaldello 2008). The authors claim that the discrepancy is due to uncertainties in the effective area calibration of Chandra in the highest band, which would strongly affect the results. Indeed, since the band-pass of Chandra stops at 8 keV, it is difficult to distinguish between a high-temperature bremsstrahlung and a power-law emission. The flux difference between a $\Gamma=2.0$ power-law model and a kT=7.0 keV bremsstrahlung model with the same 2-10 keV flux in the 7-8 keV band is 2.5%, hence the combination of the statistical and systematic uncertainties should be better than 2.5% in the 7-8 keV band to distinguish between the 2 models.

Nevertheless, the presence of the radio mini-halo clearly indicates the existence of relativistic electrons not associated with the central AGN. Therefore, IC scattering of the high-energy electrons with CMB and IR photons should occur, and a diffuse non-thermal component should exist as well in the X-ray domain. However, in the center of strong cooling-core clusters like Perseus, the density of the gas is very high, and the shocks induced by the interaction between the AGN radio lobes and the thermal plasma amplify the magnetic field. Measurements of magnetic fields through Faraday rotation measure in cooling-core clusters (see e.g. Carilli & Taylor 2002) indicate high magnetic field values, $B\sim10~\mu$G. If the magnetic field in the center of Perseus is of the order of $10~\mu$G, the electrons should cool mostly through synchrotron processes, and the level of IC emission should be lower. Using high magnetic field estimates together with the radio flux of the Perseus mini-halo, Pfrommer (2008) predicts a 2-10 keV non-thermal flux of $\sim$ $5\times10^{-13}$ erg cm-2 s-1, over 2 orders of magnitude lower than the flux claimed by Sanders et al. (2005), and clearly below the sensitivity limit of INTEGRAL/ISGRI. This would explain the non-detection of diffuse non-thermal emission by INTEGRAL.

7 Conclusion

In this paper, we presented the results of a 500 ks INTEGRAL observation of the Perseus cluster. We found that INTEGRAL data can efficiently constrain a possible high-energy tail in the spectrum. Although we found clear evidence for a power-law component above 30 keV, the properties of this power-law are consistent with the extrapolation of the X-ray spectrum from the central nucleus, in agreement with the results from BeppoSAX (Nevalainen et al. 2004) and Swift (Ajello et al. 2008). Moreover, we have found that the high-energy flux (30-120 keV) significantly varies between the different periods of the observation, covering $\sim$1.5 yr. This clearly demonstrates that the high-energy emission is dominated by the AGN.

On the other hand, extrapolating the power-law component claimed by Sanders et al. (2005) from Chandra data ( $6.3\times10^{-11}$ erg cm-2 s-1 in the 2-10 keV band with a photon index $\Gamma\sim2.0$) to the ISGRI band, we found that this model clearly over-predicts the high-energy data by a factor of $\sim$3 in the 40-60 keV band. Therefore, the presence of a flat power-law at such a high level is ruled out by ISGRI data. Overall, we find that the broad-band INTEGRAL spectrum can be well-described by a two-temperature thermal model (a $\sim$3 keV component from the cool core and a hotter component from the outskirts) plus a variable power-law from the central radio galaxy. The data can also be well-described by a model consisting of a single thermal component, the AGN contribution and a power-law with a high-energy cut-off at an energy $E_{\rm cut}\sim16$ keV in agreement with the discussion of Sanders & Fabian (2007). Given that deep X-ray observations clearly indicate the multi-temperature structure of the cluster, the two-temperature model is favoured. Moreover, a longer XMM-Newton observation (Molendi & Gastaldello 2008) did not confirm the Chandra result. The authors claim that the discrepancy between Chandra and XMM-Newton results is due to uncertainties in the effective area calibration of Chandra in the highest band. INTEGRAL data are in agreement with this result.

In conclusion, using INTEGRAL data, we found no evidence for a diffuse power-law emission which would dominate the emission above 30 keV. Unfortunately, the angular resolution of IBIS/ISGRI is not sufficient to disentangle the point-like emission from the diffuse component, so it is not possible to set any upper limit on the diffuse non-thermal emission. Observations of the cluster in the hard X-ray band with better angular resolution and sensitivity would be very important to detect the diffuse non-thermal component and map the magnetic field strength over the cluster, which could bring a very important input to the understanding of the interactions between the AGN radio lobes and the thermal plasma. In this framework, the future focusing hard X-ray missions (Simbol-X, NuSTAR, NeXT) should be able to detect the diffuse non-thermal component.

Acknowledgements
This work is based on observations with INTEGRAL, an ESA project with instruments and science data center funded by ESA member states (especially the PI countries: Denmark, France, Germany, Italy, Switzerland, Spain), Czech Republic and Poland, and with the participation of Russia and the USA.
