LETTER TO THE EDITOR
INTEGRAL observation of hard X-ray variability of the TeV binary
LS 5039/RX J1826.2-1450![[*]](/icons/foot_motif.gif)
A. D. Hoffmann1 - D. Klochkov1 - A. Santangelo1 - D. Horns2 - A. Segreto3 - R. Staubert1 - G. Pühlhofer1
1 - Kepler Zentrum für Astro- und Teilchenphysik,
Institut für Astronomie und Astrophysik, University of Tübingen,
Sand 1, 72076 Tübingen, Germany
2 -
Universität Hamburg, Institut für Experimentalphysik, Hamburg, Germany
3 -
INAF IFC-Pa, via U. La Malfa 153, 90146 Palermo, Italy
Received 21 November 2008 / Accepted 26 December 2008
Abstract
Context. LS 5039 / RX J1826.2-1450 is one of the few High Mass X-ray binary systems from which radio and high energy TeV emission has been observed. Moreover, variability of the TeV emission with orbital period was detected.
Aims. We investigate the hard X-ray (25-200 keV) spectral and timing properties of the source with the monitoring IBIS/ISGRI instrument on-board the INTEGRAL satellite.
Methods. We present the analysis of INTEGRAL observations for a total of about 3 Msec exposure time, including both public data and data from the Key Programme. We search for flux and spectral variability related to the orbital phase.
Results. The source is observed to emit from 25 up to 200 keV and the emission is concentrated around inferior conjunction. Orbital variability in the hard X-ray band is detected and established to be in phase with the orbitally modulated TeV emission observed with HESS. For this energy range we determine an average flux for the inferior conjunction phase interval of
erg cm-2 s-1, and a flux upper limit for the superior conjunction phase interval of
erg cm-2 s-1 (90% conf. level respectively). The spectrum for the inferior conjunction phase interval follows a power law with an index
(90% conf. level).
Key words: X-ray: binaries - stars: individual: LS 5039/RX J1826.2-1450
1 Introduction
LS 5039 / RX J1826.2-1450 is a High Mass X-ray Binary (HMXRB) system, which was discovered in the ROSAT all-sky survey and identified with optical follow-up observations by Motch et al. (1997).
The compact companion is estimated to have a mass of
,
orbiting a bright, V=11.2, O6.5V((f)) star with an orbital period
d, an eccentricity
and a distance of
kpc (Casares et al. 2005).
Based on the observation of persistent asymmetric milliarcsecond radio outflows (extending up to
1000 AU), Martí et al. (1998) and Paredes et al. (2000) suggested the presence of a mildly relativistic (
)
jet. Paredes et al. (2002) and Ribó et al. (2008) have therefore proposed the source to be a microquasar.
LS 5039 has been observed by several X-ray satellites. A summary of all
observations can be found in Bosch-Ramon et al. (2005). Flux variations on
timescales of days as well as miniflares on shorter timescales have been
observed. RXTE observations, covering the whole orbital period, show
variability with a maximum of emission at orbital phase ,
interpreted due to periastron passage. Moreover, the power-law shaped X-ray
spectrum appears harder in the high flux state (Bosch-Ramon et al. 2005).
Because inhomogeneous jets could emit -rays via inverse Compton scattering, Paredes et al. (2002,2000) have proposed the source to be the counterpart of the unidentified high energy EGRET source 3EG J1824-1514 (Hartman et al. 1999) and also a component of the MeV emitter GRO J1823-12, which is a superposition of three EGRET sources (Collmar 2003).
The source has likewise been discovered to emit at TeV energies with the
High Energy Stereoscopic System (HESS) (Aharonian et al. 2005). This
demonstrated that X-ray binaries are capable of accelerating particles to
TeV energies. The HESS measurements have revealed that the flux and
energy spectrum of the source are indeed modulated with the 3.9 d
orbital period of the binary system (Aharonian et al. 2006). The VHE
-ray emission is largely confined to half of the orbit and peaks
around the inferior conjunction (INFC) epoch of the compact companion,
where a hardening of the spectrum is observed. According to the authors
these findings indicate that
-ray absorption with pair production
occurs in the system. Interestingly, orbital variability at TeV
-ray energies has also been discovered in the similar system
LS I+61
303 with MAGIC (Albert et al. 2006) and VERITAS
(Acciari et al. 2008).
The nature of the compact object in the system RX J1826.2-1450 / LS 5039 as well as the orgin of the TeV emission is still under debate. A microquasar scenario (see e.g. Torres & Sierpowska-Bartosik 2008; Paredes et al. 2000; Bosch-Ramon & Paredes 2004) as well as a pulsar scenario (see e.g Bosch-Ramon et al. 2008; Sierpowska-Bartosik & Torres 2007; Dubus 2006) have been discussed. In this Letter, based mainly on archival data from INTEGRAL which span 4.6 years between March 2003 and October 2007, we confirm the detection of the source reported by Bird et al. (2007) in the energy range from 25 keV up to 200 keV. We report the discovery of the modulation of the hard X-ray flux with orbital phase.
2 Observations and data analysis
2.1 Observations
The International Gamma-Ray Astrophysics Laboratory (INTEGRAL, Winkler et al. 2003) carries on board two main gamma-ray instruments, the Spectrometer on INTEGRAL (SPI, 20 keV-8 MeV, Vedrenne et al. 2003), and the Imager on-Board INTEGRAL Satellite (IBIS, 15 keV-10 MeV, Ubertini et al. 2003) as well as two monitoring instruments in the X-ray and optical range, the Joint European X-Ray Monitor (JEM-X, 3-35 keV, Lund et al. 2003), and the Optical Monitoring Camera (OMC, Mas-Hesse et al. 2003).
1648 science windows (ScWs) in the region that includes LS 5039 are found in the data archive available at the INTEGRAL Scientific Data Center (ISDC, http://isdc.unige.ch/), including public data as well as data from the Key Programme. These ScWs were preselected choosing an off-axis angle of the source smaller than 10 degrees and choosing only pointing observations that had a nominal observation time of more than 1000 s. 1627 ScWs were successfully processed through the analysis with OSA 7.0 up to the image step IMA.
![]() |

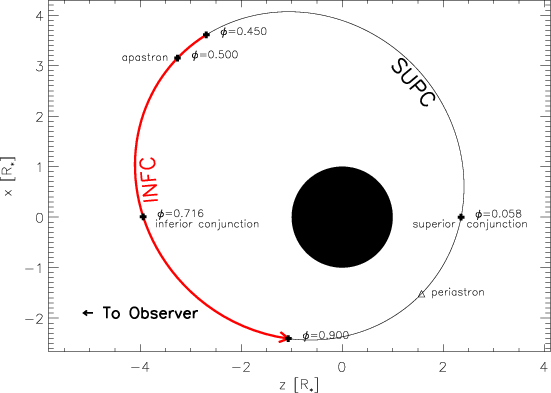

Figure 1: A sketch of the system. The orbital values are listed in Casares et al. (2005) and the definition of phase intervals is from Aharonian et al. (2006). |
Open with DEXTER |
In order to reduce statistical effects a further selection of ``good science windows'' was necessary. ScWs are included in the analysis when they fulfill the following criteria:
- 1.
- the effective exposure time after extraction is larger than 1000 s;
- 2.
- the number of good time intervals (GTI) does not exceed 10;
- 3.
- the mean background intensity level of a single ScW in the energy range 25-60 keV falls within
of the distribution of the mean background intensity levels of all other ScWs in the same energy range.
![[*]](/icons/foot_motif.gif)
Table 1: Summary of selected and analyzed INTEGRAL data for LS 5039. Analyzed data were taken from 69 revolutions, i.e. from revolution 0050 (03-11-2003) to revolution 0614 (10-25-2007).
2.2 Analysis
For the analysis of ISGRI data the Off-line Science Analysis (OSA) software
(version 7.0) provided by the ISDC was used. In addition, we cross checked
the results and also generated the lightcurve in Sect. 2.2.2
with the analysis package developed by INAF-IFC Palermo
(Segreto & Ferrigno 2006).
A special handling of the OSA was used for this analysis. First, we used a user catalogue which includes 115 sources, i.e. all sources listed in the INTEGRAL General Reference Catalog, which are in the field of view (FoV) and which turned out to be as bright as or brighter than RX J1826.2-1450 (
LS 5039).
This is required because the source of interest is quite faint and the
crowded field produces too many ghost images if the known sources are not
subtracted. Second, the spectrum was produced with the help of the OSA tool
MOSAIC_SPEC
from 13 mosaics, each covering one energy bin in the 13-250 keV
range. The binning was chosen identical to the default energy binning OSA
uses for the spectrum calculation step (SPE). This procedure is needed due to the fact that the source is faint and the FoV is too crowded, and provides more reliable results than the standard OSA pipeline does.
We also checked our results using the standard SPE and the lightcurve
creation (LCR) steps of OSA. In this case we used a special catalogue
including all sources with a detection significance greater than in the energy band 20-60 keV. The catalogue includes 65
sources. According to the User Manual of the INTEGRAL IBIS/ISGRI
data analysis this is beyond the standard method (see the IBIS Analysis Manual
for details). However, our results show that a careful treatment of this standard method provides a comparable result in spite of the restrictions (see Fig. 4 and Sect. 2.2.2).
2.2.1 Imaging
The source is clearly seen at a significance level of 7.7


![[*]](/icons/foot_motif.gif)
At the INFC phase interval, the source was detected with a significance
,
for an exposure time of
1.43 Msec
(Fig. 2, lower panel). At the SUPC phase interval the source
was observed for a total exposure time of 1.56 Ms, and was only
marginally detected: at the source position there is an excess at the level
of
(Fig. 2, upper panel). For the total sample
and the total energy band 25-200 keV the source is detected at the
position fitted by OSA (
deg,
deg) with
.
Within the errors, this is consistent with the source position
determinated by Bird et al. (2007).
2.2.2 Timing analysis
A lightcurve produced with the INAF-IFC data analysis software (Segreto & Ferrigno 2006) was used for the timing analysis. According to the authors this software is suitable to produce reliable results even in the case of the presence of a larger number of sources in the FoV.
Searching for an unambiguous period failed due to low statistics and large gaps in the sample of observations. But a periodogram produced by epoch folding provides a peak at a period of 3.903 days, which is within uncertainties identical to the orbital period determined by Casares et al. (2005) in the optical band. Figure 3 shows the periodogram.
In a next step the lightcurve was folded using the known orbital period of
days with
(
phase
and periastron passage) determined by Casares et al. (2005), to produce a 10 bin orbital phase profile.
In addition, 10 mosaics corresponding to each of the 10 orbital phase intervals were produced and the count rates at the catalogue
position were determined. The values of the fluxes were derived from a 2D-Gaussian fit with fixed width (
arcmin) and fixed source position. Both methods yield (within errors) comparable results:
the hard X-ray emission is clearly modulated with the orbit, and appears to be in phase with the TeV emission (Fig. 4). The HESS data points in the figure are from Aharonian et al. (2006).
![]() |

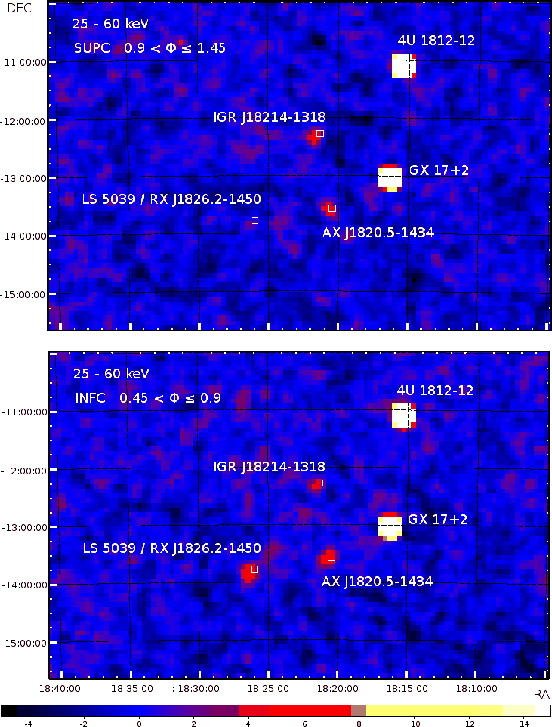

Figure 2: INTEGRAL significance maps in the energy range 25-60 keV. The open boxes are known source positions. Comparable exposure times and a higher significance for LS 5039 in the INFC phase interval indicates variability of the hard X-ray emission with orbital phase (see also Fig. 4). The INFC phase interval includes the maximum flux state of the source. Details can be found in the text. |
Open with DEXTER |
![]() |

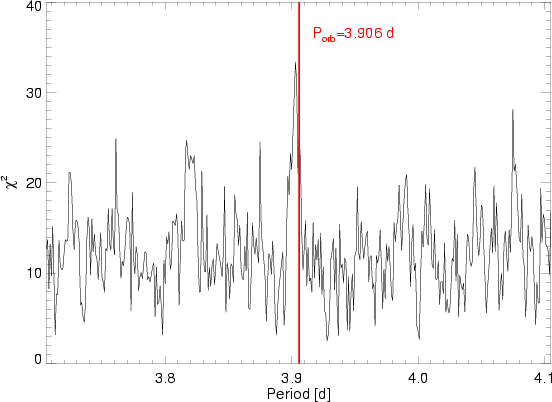

Figure 3: An epoch folding on the INTEGRAL lightcurves shows a significant peak at a period that is nearly identical to the orbital period known and determined from optical observation of the system (Casares et al. 2005). All other peaks are likely beat frequencies due to the large gaps in the sample of observations. |
Open with DEXTER |
![]() |
Figure 4:
Top: orbital profile for LS 5039 in the energy range 25-200 keV observed with INTEGRAL. The lightcurve is folded with the orbital period of 3.9 days.
Bottom: orbital profile for LS 5039 for the energy range above 1 TeV observed with HESS (Aharonian et al. 2006). The hard X-ray emission is in phase with the TeV |
Open with DEXTER |
2.2.3 Spectral analysis
A statistically significant IBIS/ISGRI spectrum of LS 5039 was obtained for the orbital phase interval corresponding to INFC (not shown here) and was modeled with a power law with
(90% confidence level). The reduced
for the fit is 1.4 (9 d.o.f.).
Mean countrates for the two phase intervals allow us to estimate a flux for
the INFC phase interval of
erg cm-2 s-1 (90% conf. level). For the SUPC phase interval a flux upper limit of
erg cm-2 s-1 (90% conf. level) for the energy range 25-200 keV can be determined.
3 Summary and discussion
In this paper we report on a 3 Ms INTEGRAL monitoring of the HMXRB RX J1826-1450 / LS 5039. The faintness of the source and the fact that it lies in a crowded field required a very careful, non-standard handling of the data.
Our results, obtained by applying different analysis methods, point out that the source significantly emits at hard X-rays (25-200 keV) and that this emission varies with the orbit in phase with the very high energy -rays detected with HESS (Fig. 4). The spectrum at the inferior conjunction is well described by a power law, while at the superior conjunction the hard X-ray emission, if any, is below the sensitivity of INTEGRAL.
Our result indicates that accretion might not be the mechanism for the production of the hard emission, since, in this case, we would expect a rather sharp flux maximum near periastron.
Moreover, the observed close correlation of hard X-ray and VHE -ray emission in
phase suggests that the emission would originate from the same source
region, possibly from particles produced in the same acceleration process.
This casts doubt on the simple explanation that the TeV variability is
mainly caused by -
absorption, as suggested in
Aharonian et al. (2006).
We note that, from the correlation alone, more complicated scenarios
involving -
absorption such as described by
Dubus et al. (2008) cannot be ruled out. However the cascades initiated in
the
-
absorption process produce secondary electrons
(Bednarek 1997) also emitting X-ray synchrotron emission.
Therefore, soft and hard X-ray flux levels can be used to constrain the
amount of absorption involved.
The detection of TeV emission at SUPC together with the upper limit in the
hard X-ray domain derived here may pose problems for models invoking only
one emission region close to the compact object, as recently discussed in
Bosch-Ramon et al. (2008).
Radio observations interpreted as jets have led to a microquasar interpretation for this source. In this scenario, particles are accelerated to TeV energies (Perucho & Bosch-Ramon 2008) due to the interaction between the jet and the stellar wind of the companion. Alternatively, Dubus (2006) has suggested the source to be a pulsar binary system, where VHE emission arises from the pulsar wind material shocked by the interaction with the stellar companion wind and afterwards flowing away in a
comet-shape tail. Unfortunately, the observations presented here do not enable us to discriminate between the two scenarios, although the predicted X-ray variability by Paredes et al. (2006) seems to be not in accordance with our observations.
Finally, we remark that a hadronic scenario (Romero & Vila 2008; Romero et al. 2003) is not
ruled out by our findings. A longer and more detailed interpretation of our
results is beyond the scope of this Letter, and will be the subject of further investigations.
Acknowledgements
We acknowledge the support of the Deutsches Zentrum für Luft- und Raumfahrt (DLR) under grant number 50OR0302. This work is based on observations with INTEGRAL, an European Space Agency (ESA) project with instruments and science data centre funded by ESA member states (especially the PI countries: Denmark, France, Germany, Italy, Switzerland, Spain), Czech Republic and Poland, and with the participation of Russia and the USA. We also thank the anonymous referee for his/her valueable comments. and suggestions.
References
- Acciari, V. A., Beilicke, M., Blaylock, G., et al. 2008, ApJ, 679, 1427 [NASA ADS] [CrossRef] (In the text)
- Aharonian, F., Akhperjanian, A. G., Aye, K.-M., et al. 2005, Science, 309, 746 [NASA ADS] [CrossRef] (In the text)
- Aharonian, F., Akhperjanian, A. G., Bazer-Bachi, A. R., et al. 2006, A&A, 460, 743 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Albert, J., Aliu, E., Anderhub, H., et al. 2006, Science, 312, 1771 [NASA ADS] [CrossRef] (In the text)
- Bednarek, W. 1997, A&A, 322, 523 (In the text)
- Bird, A. J., Malizia, A., Bazzano, A., et al. 2007, ApJS, 170, 175 [NASA ADS] [CrossRef] (In the text)
- Bosch-Ramon, V., & Paredes, J. M. 2004, A&A, 417, 1075 [NASA ADS] [CrossRef] [EDP Sciences]
- Bosch-Ramon, V., Paredes, J. M., Ribó, M., et al. 2005, ApJ, 628, 388 [NASA ADS] [CrossRef] (In the text)
- Bosch-Ramon, V., Khangulyan, D., & Aharonian, F. 2008, [arXiv:0810.4494]
- Casares, J., Ribó, M., Ribas, I., et al. 2005, MNRAS, 364, 899 [NASA ADS] [CrossRef] (In the text)
- Collmar, W. 2003, in Proc. of 4th Agile Science Workshop, Franscati (Rome), on 11-13 June 2003, 177 (In the text)
- Dubus, G. 2006, A&A, 456, 801 [NASA ADS] [CrossRef] [EDP Sciences]
- Dubus, G., Cerutti, B., & Henri, G. 2008, A&A, 477, 691 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Hartman, R. C., Bertsch, D. L., Bloom, S. D., et al. 1999, ApJS, 123, 79 [CrossRef] (In the text)
- Lund, N., Budtz-Jørgensen, C., Westergaard, N. J., et al. 2003, A&A, 411, L231 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Martí, J., Paredes, J. M., & Ribo, M. 1998, A&A, 338, L71 [NASA ADS] (In the text)
- Mas-Hesse, J. M., Giménez, A., Culhane, J. L., et al. 2003, A&A, 411, L261 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Motch, C., Haberl, F., Dennerl, K., Pakull, M., & Janot-Pacheco, E. 1997, A&A, 323, 853 (In the text)
- Paredes, J. M., Martí, J., Ribó, M., & Massi, M. 2000, Science, 288, 2340 [NASA ADS] [CrossRef] (In the text)
- Paredes, J. M., Ribó, M., Ros, E., Martí, J., & Massi, M. 2002, A&A, 393, L99 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Paredes, J. M., Bosch-Ramon, V., & Romero, G. E. 2006, A&A, 451, 259 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Perucho, M., & Bosch-Ramon, V. 2008, A&A, 482, 917 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Ribó, M., Paredes, J. M., Moldón, J., Martí, J., & Massi, M. 2008, A&A, 481, 17 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Romero, G. E., & Vila, G. S. 2008, A&A, 485, 623 [NASA ADS] [CrossRef] [EDP Sciences]
- Romero, G. E., Torres, D. F., Kaufman Bernadó, M. M., & Mirabel, I. F. 2003, A&A, 410, L1 [NASA ADS] [CrossRef] [EDP Sciences]
- Segreto, A., & Ferrigno 2006, in Proc. of the 6th INTEGRAL Workshop ``The Obscured Universe'', Moscow, on 2-8 July 2006, ed. S. Grebenev, R. Sunyaev, & C. Winkler, 633 (In the text)
- Sierpowska-Bartosik, A., & Torres, D. F. 2007, ApJ, 671, L145 [NASA ADS] [CrossRef]
- Torres, D. F., & Sierpowska-Bartosik, A. 2008, [arXiv:0810.4435]
- Ubertini, P., Lebrun, F., Di Cocco, G., et al. 2003, A&A, 411, L131 [CrossRef] [EDP Sciences] (In the text)
- Vedrenne, G., Roques, J.-P., Schönfelder, V., et al. 2003, A&A, 411, L63 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
- Winkler, C., Courvoisier, T. J.-L., Di Cocco, G., et al. 2003, A&A, 411, L1 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
Footnotes
- ...
LS 5039/RX J1826.2-1450
- Based on observations with INTEGRAL, an ESA project with instruments and science data centre funded by ESA member states (especially the PI countries: Denmark, France, Germany, Italy, Switzerland, Spain), Czech Republic and Poland, and with the participation of Russia and the USA.
- ... JEM-X
- The User Manual to the OSA can be found at: http://isdc.unige.ch/?Support+documents. See p. 15 of JEM-X Analysis User Manual for a JEM-X sensitivity plot.
- ... Palermo
- http://www.pa.iasf.cnr.it/~ferrigno/INTEGRALsoftware.html
- ... Catalog
- The INTEGRAL General Reference Catalogue is available at ISDC: http://isdc.unige.ch/index.cgi?Data+catalogs
- ... MOSAIC_SPEC
- http://isdc.unige.ch/Soft/download/osa/osa_doc/osa_doc-5.0/osa_um_ibis-5.0/node108.html#mosaspec
All Tables
Table 1: Summary of selected and analyzed INTEGRAL data for LS 5039. Analyzed data were taken from 69 revolutions, i.e. from revolution 0050 (03-11-2003) to revolution 0614 (10-25-2007).
All Figures
![]() |
Figure 1: A sketch of the system. The orbital values are listed in Casares et al. (2005) and the definition of phase intervals is from Aharonian et al. (2006). |
Open with DEXTER | |
In the text |
![]() |
Figure 2: INTEGRAL significance maps in the energy range 25-60 keV. The open boxes are known source positions. Comparable exposure times and a higher significance for LS 5039 in the INFC phase interval indicates variability of the hard X-ray emission with orbital phase (see also Fig. 4). The INFC phase interval includes the maximum flux state of the source. Details can be found in the text. |
Open with DEXTER | |
In the text |
![]() |
Figure 3: An epoch folding on the INTEGRAL lightcurves shows a significant peak at a period that is nearly identical to the orbital period known and determined from optical observation of the system (Casares et al. 2005). All other peaks are likely beat frequencies due to the large gaps in the sample of observations. |
Open with DEXTER | |
In the text |
![]() |
Figure 4:
Top: orbital profile for LS 5039 in the energy range 25-200 keV observed with INTEGRAL. The lightcurve is folded with the orbital period of 3.9 days.
Bottom: orbital profile for LS 5039 for the energy range above 1 TeV observed with HESS (Aharonian et al. 2006). The hard X-ray emission is in phase with the TeV |
Open with DEXTER | |
In the text |
Copyright ESO 2009
Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.
Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.
Initial download of the metrics may take a while.
