Fig. 8

Download original image

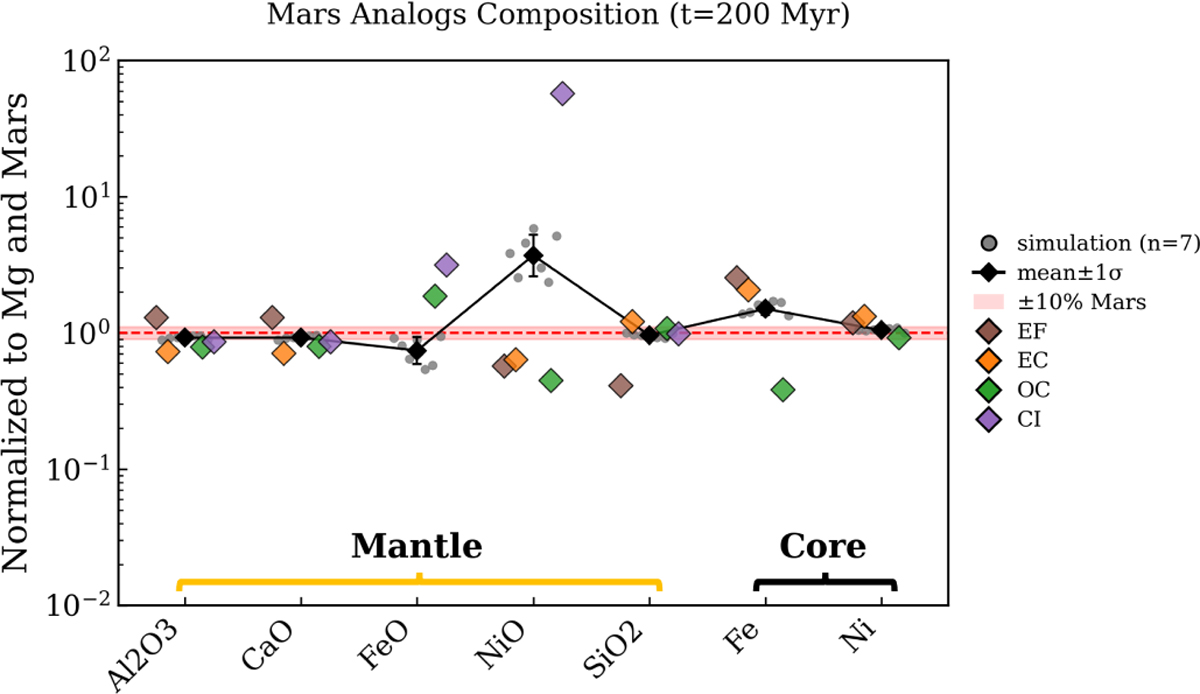

Mantle (oxide) and core (elements) compositions of Mars analogs at 200 Myr, normalized to Mg and further normalized to Mars reference atomic ratios. Gray circles show individual simulations (n=7). Black diamonds with error bars indicate the mean values with a ±1σ spread. Colored diamonds denote the compositions of the meteoritic endmembers used in the accretion-composition tagging scheme (EF, EC, OC, and CI). The dashed red lines and shaded band denote the Mars reference values (±10%).
