Fig. 7

Download original image

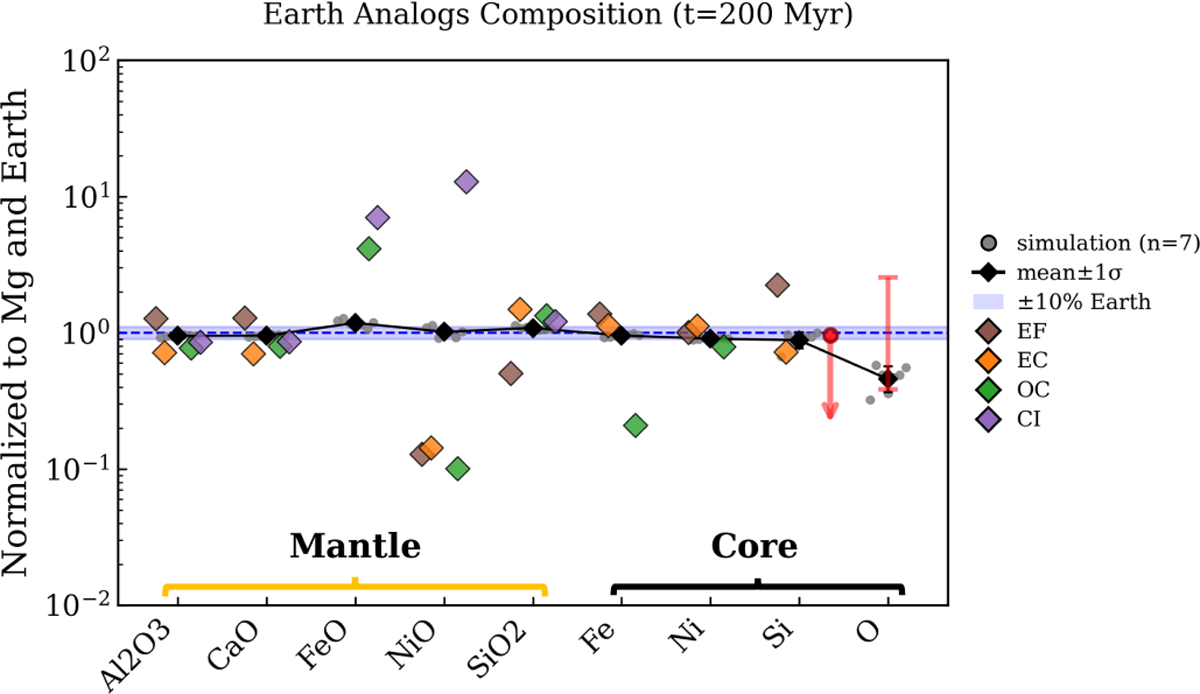

Mantle (oxide) and core (elements) compositions of Earth analogs at 200 Myr, normalized to Mg and further normalized to Earth reference atomic ratios. Gray circles show individual simulations (n=7). Black diamonds with error bars indicate the mean values with a ±1σ spread. Colored diamonds denote the compositions of the meteoritic endmembers used in the accretion-composition tagging scheme (EF, EC, OC, and CI). The dashed blue lines and shaded band denote the Earth reference values (±10%). Red markers indicate the estimated uncertainty ranges of Si and O abundances in the Earth's core from Hirose et al. (2021).
