Fig. 3
Download original image

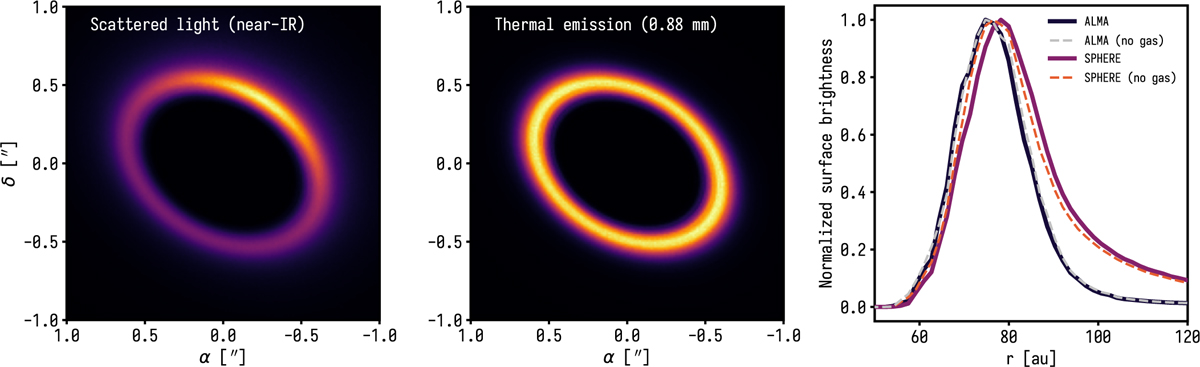

Results for the fiducial model, with a gas mass of 10−2 M⊕. Left : synthetic scattered light image in total intensity at 1.63 μm. Middle : thermal emission image at 880 μm. Right : normalized surface brightness profiles. The profiles for the simulation with (without) gas are shown with solid (dashed) lines. The ALMA profiles are shown in black and gray; the other two profiles (purple and orange) are for the SPHERE profiles.
