Fig. 11

Download original image

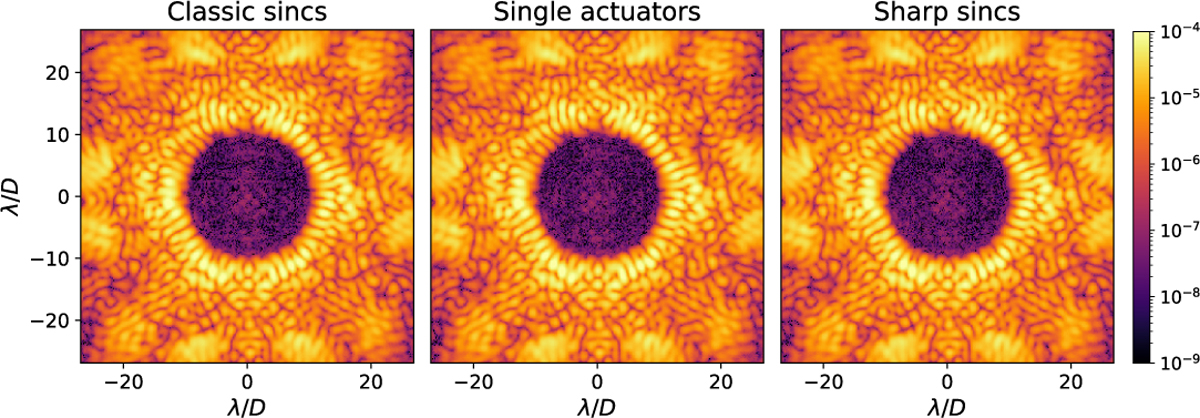

DH images toward the end (iteration 50) of all three closed-loop WFS&C runs shown in Fig. 10. The residual speckle pattern and intensity is very similar in all three cases, confirming the same level of contrast performance between probe shapes in this case. All three shapes of probes, sinc-sinc-sine, single actuators, and sharp sincs, were applied with a probe amplitude that adds a mean contrast of 10−6 to the DH in each iteration. We conclude that there is no difference in contrast performance between the three probe shapes at moderate probe amplitudes.
