Fig. B.1.
Download original image

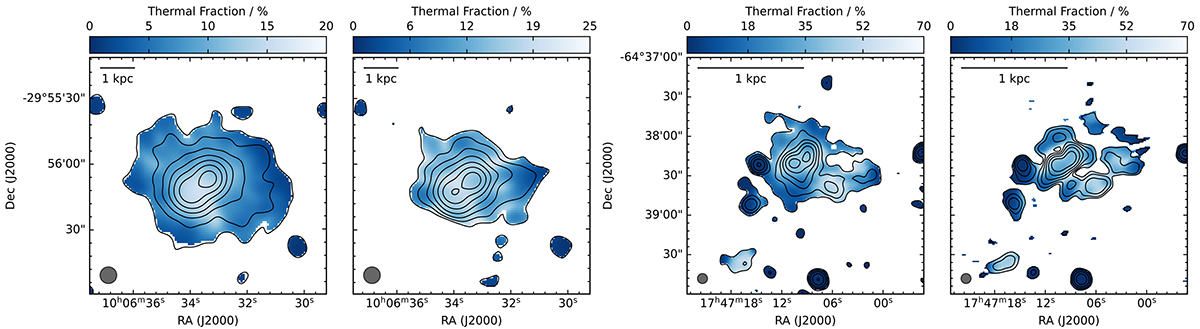

Left: Thermal fraction of NGC 3125 at 1.28 GHz with overlaid contours of the non-thermal emission starting at 3σ and increasing by factor of two (σ = 20 μJy/beam). Middle left: Thermal fraction of NGC 3125 at 2.1 GHz with overlaid contours of the non-thermal emission starting at 3σ and increasing by factor of two (σ = 15 μJy/beam). Middle right: Thermal fraction of IC 4662 at 1.28 GHz with overlaid contours of the non-thermal emission starting at 3σ and increasing by factor of two (σ = 20 μJy/beam). Right: Thermal fraction of IC 4662 at 2.1 GHz with overlaid contours of the non-thermal emission starting at 3σ and increasing by factor of two (σ = 15 μJy/beam). The 7.6" circular beam appear in the lower left corner.
