Fig. 9.

Download original image

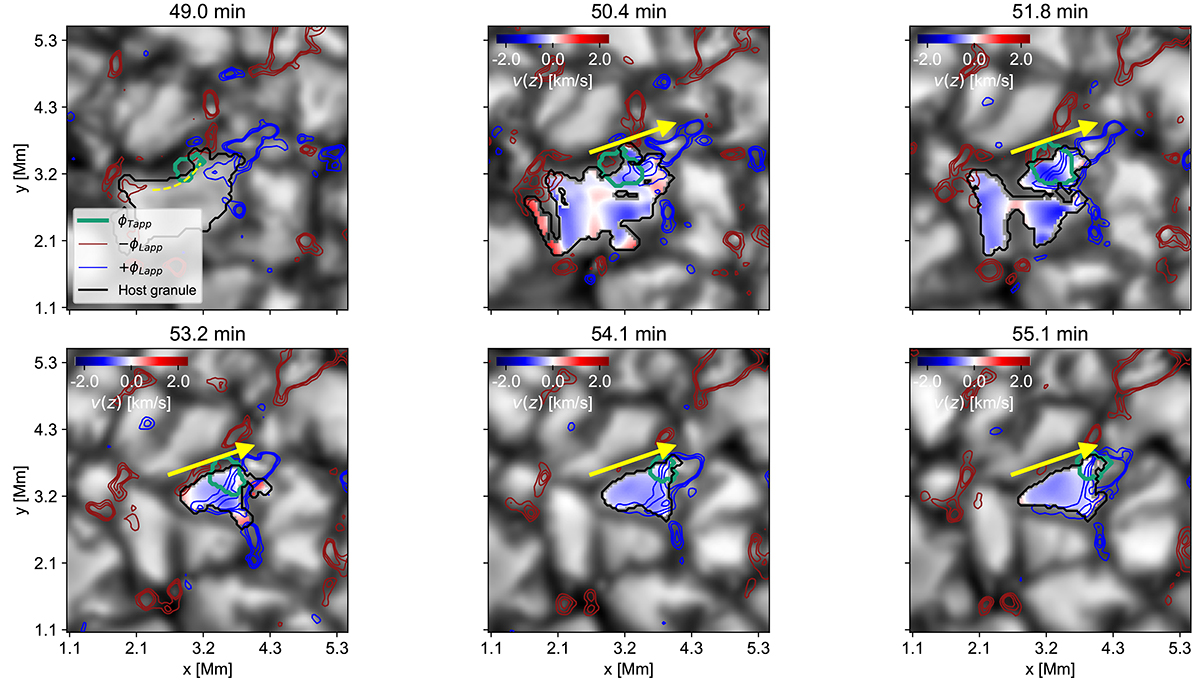

Case of a magnetic flux sheet emergence associated with a granule with granular lanes. The image series shows the continuum close to the Fe I 617.3 nm line recorded by CRISP. The plot set-up and information are as is shown in Fig. 5. The dashed yellow curve in t = 49.0 min highlights a granular lane signature. The yellow arrow marks the direction of displacement of the magnetic flux sheet.
