Fig. 3.
Download original image

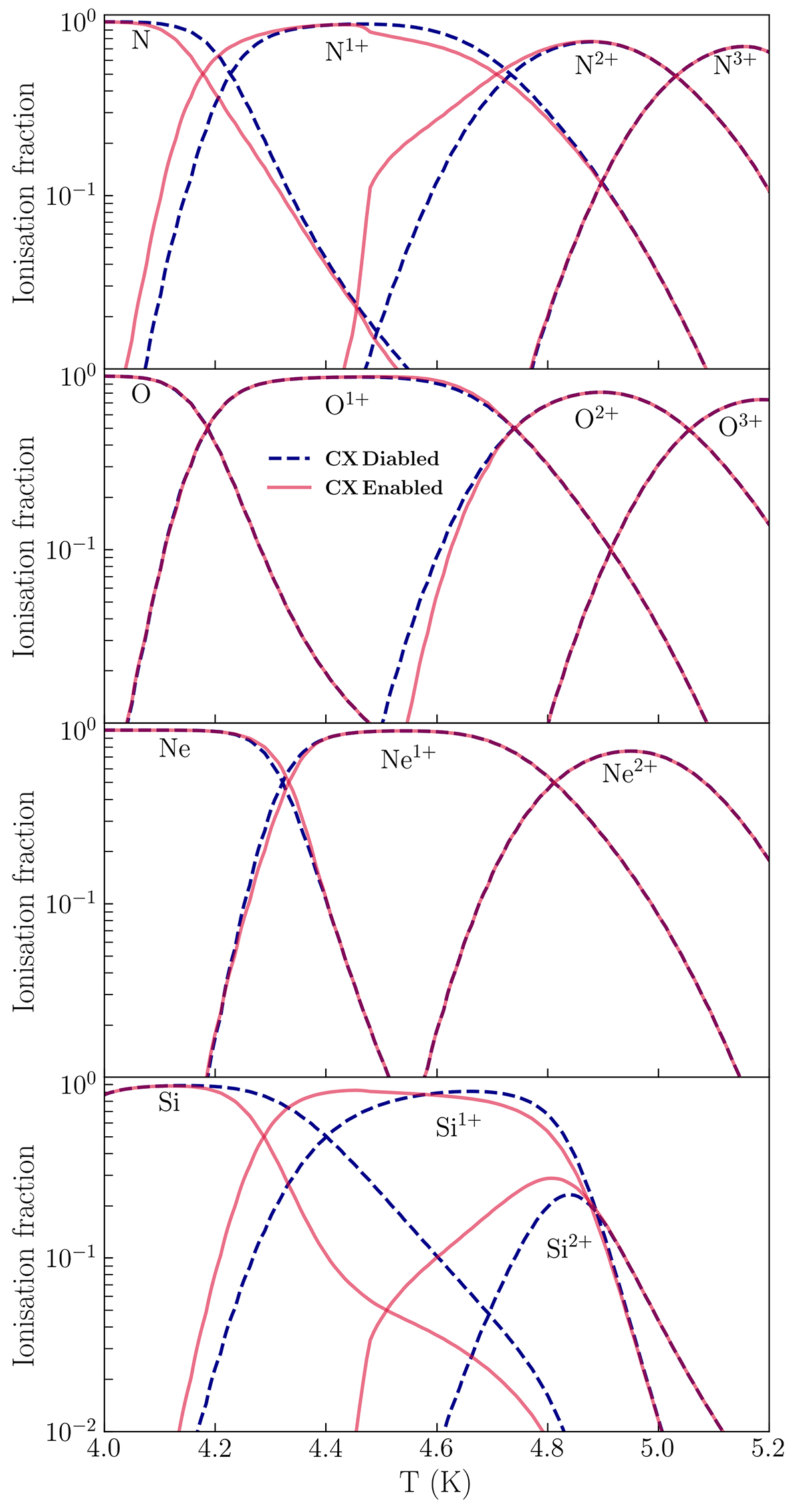

Comparison of CIE balance for N, O, Ne, and Si incorporating and omitting charge exchange (CX) reactions with H and He. Solid curves represent ionisation fractions with charge exchange calculations, while dashed curves represent ionisation fractions without charge exchange reactions.
