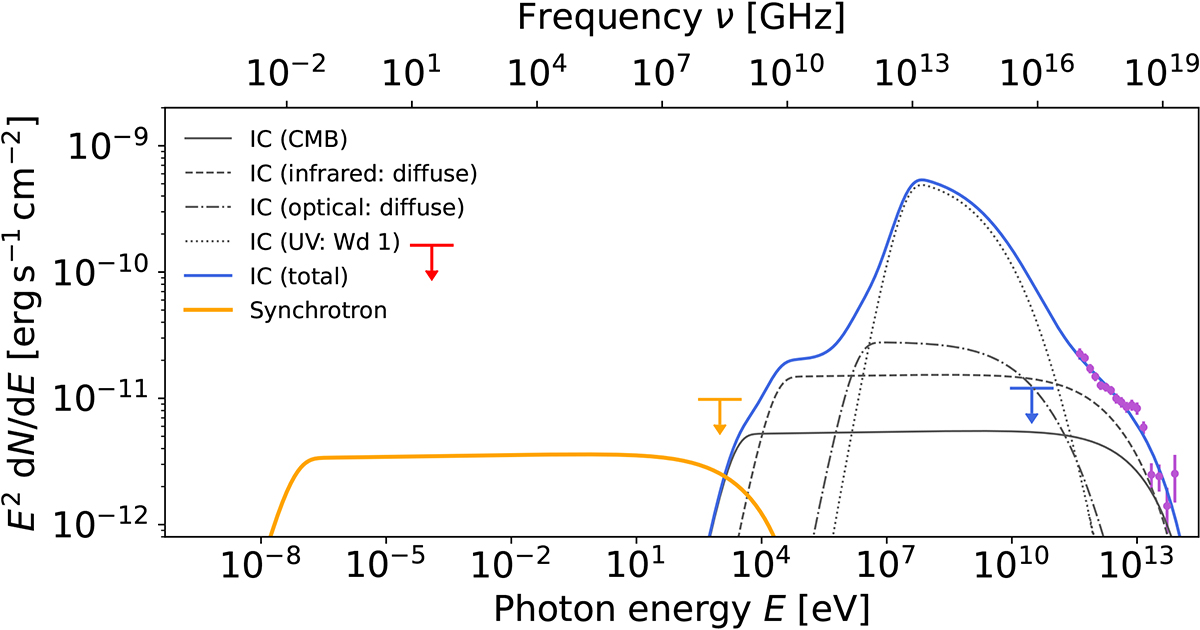

Fig. 8.


Download original image

Spectral energy distribution fit to HESS J1646−458, assuming Emin = 500 MeV. The data are, from left to right: the Planck radio upper limit in red, the eROSITA X-ray upper confidence bound in orange, the Fermi-LAT HE γ-ray upper limit in blue, and the H.E.S.S. VHE γ-ray data from Aharonian et al. (2022) in purple. The solid orange line is synchrotron radiation and the solid blue line is IC scattering. The different target photon contributions to the IC scattering are given by the thin black lines. The CMB is solid, diffuse Galactic infrared radiation dashed, diffuse Galactic optical light dashed-dotted, and Wd 1’s photon field dotted.
