Fig. 3.


Download original image

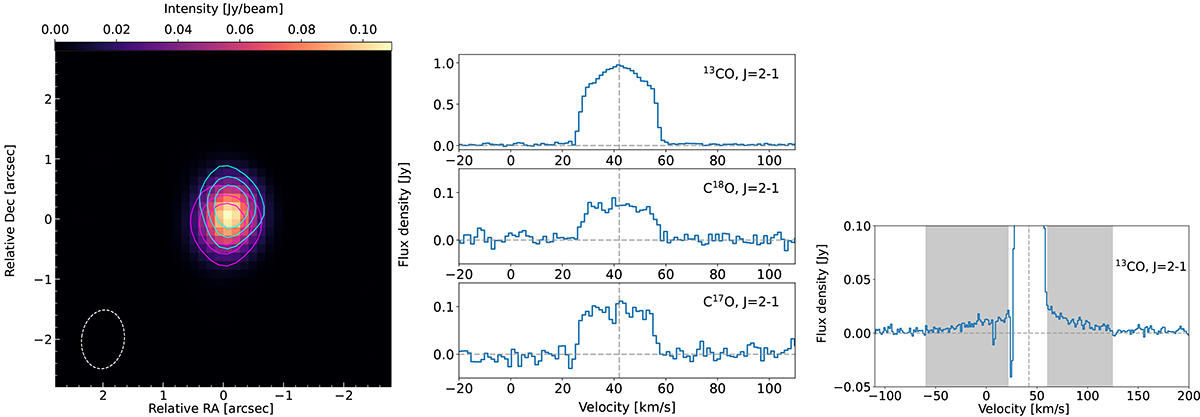

Continuum (1.3 mm) and J = 2 − 1 13CO, C18O, and C17O line emission towards GLMP 953. Left: Maps of the continuum (colour map) and high-velocity line emission (contours). The continuum peak is at α = 19 h 50 m 08 . s 203 $ \alpha = {19^{\text{ h}}50^{\text{ m}}08{{\overset{\text{ s}}{.}}}203} $ and δ = + 25 ° 11 57 . 136 $ \delta = {+25^{\circ}11{\prime}57{{\overset{\prime\prime}{.}}}136} $. The full lines show emission in the 13CO J = 2 − 1 integrated over the spectral intervals marked in grey line plot. Magenta and cyan contours mark red-shifted and blue-shifted emission, respectively, at 10%, 30%, 50%, and 70% of the peak values of 0.009 (red-shifted) and 0.007 (blue-shifted) Jy beam−1 × km s−1. Middle: Spectra of the 13CO J = 2 − 1, C18O J = 2 − 1, and C17O J = 2 − 1 lines. Right: Single-beam spectrum (to maximise the S/N of the weak emission) of the 13CO J = 2 − 1 line towards the continuum peak of GLMP 953 including a broader velocity range.
