Fig. 10.


Download original image

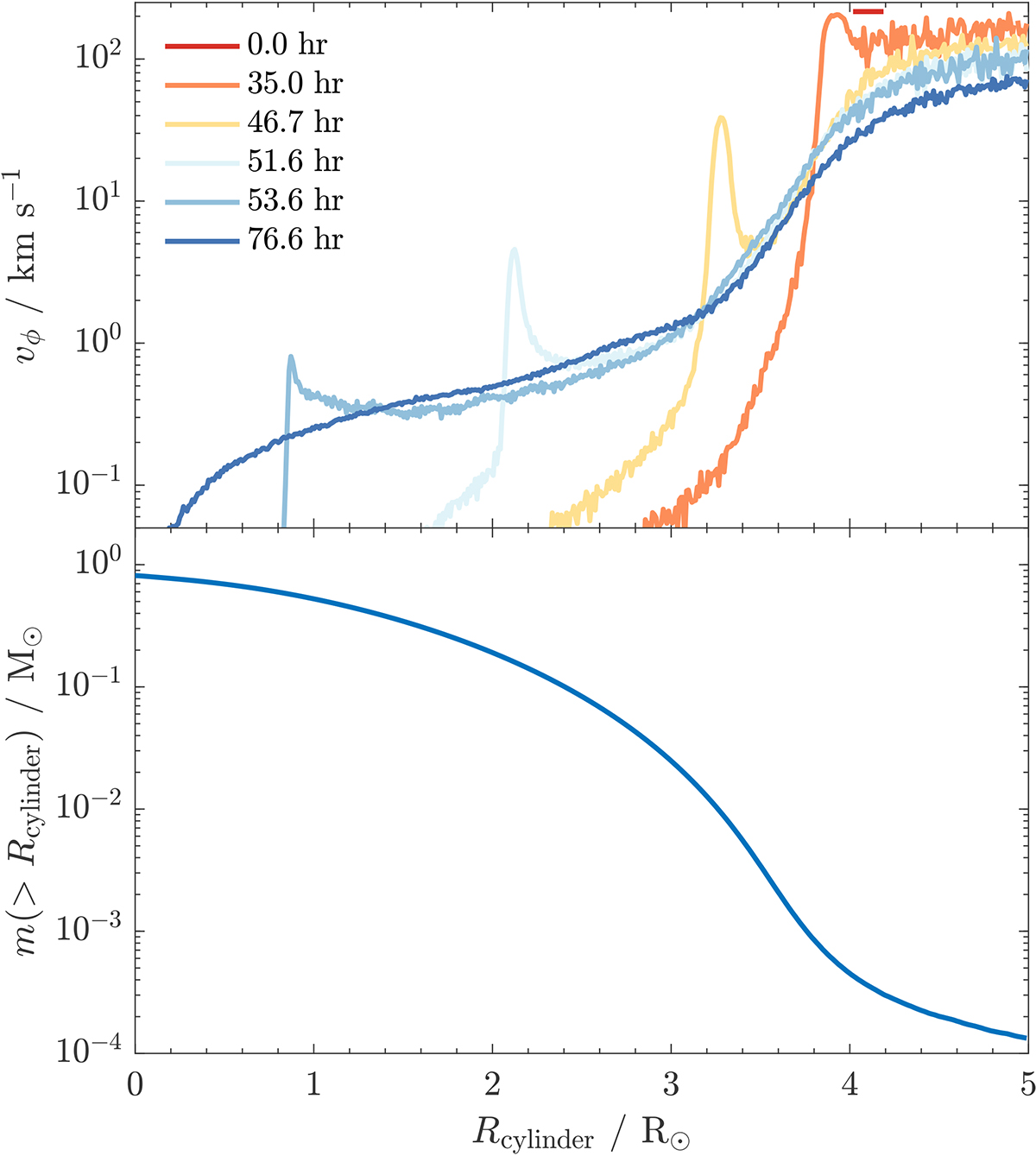

Top panel: Azimuthal velocity, vϕ, as a function of cylindrical radius, Rcylinder, at different points in time corresponding to the snapshots in Figure 4. Bottom panel: Mass exterior to Rcylinder. At t = 0, there is no rotation other than the orbital motion of the hot Jupiter itself, which is shown as a flat red line at the Keplerian velocity, 216 km s−1. The inward movement of the hot Jupiter is shown by the spike. In the last simulation snapshot, the outermost ≈ 10−3 M of material rotates at a few times 10 km s−1.
