Fig. 16

Download original image

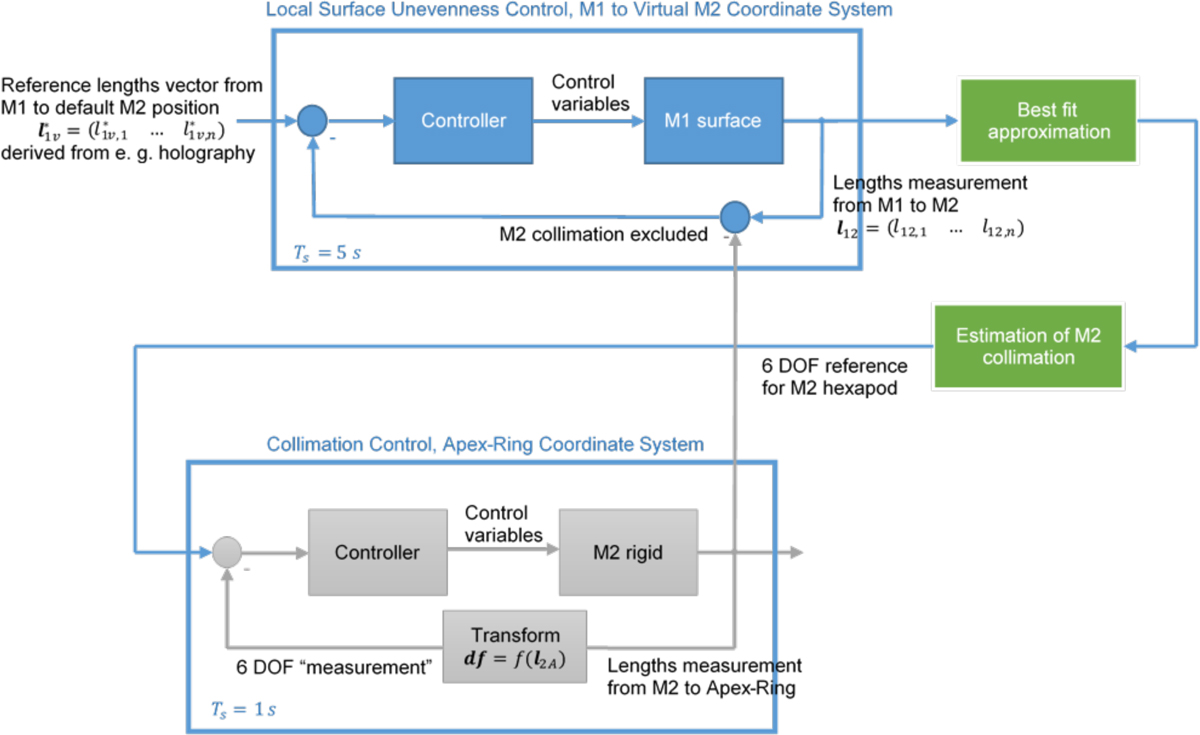

Main reflector panel control loop, consisting of active optics (active, flexible surface) and alignment of optical elements in rigid body DOFs. Here, the term “apex-ring” refers to the opening in Ml where several of the Etalon metrology systems will be mounted (see the beam paths represented by purple lines in Fig. 14).
