Fig. 10

Download original image

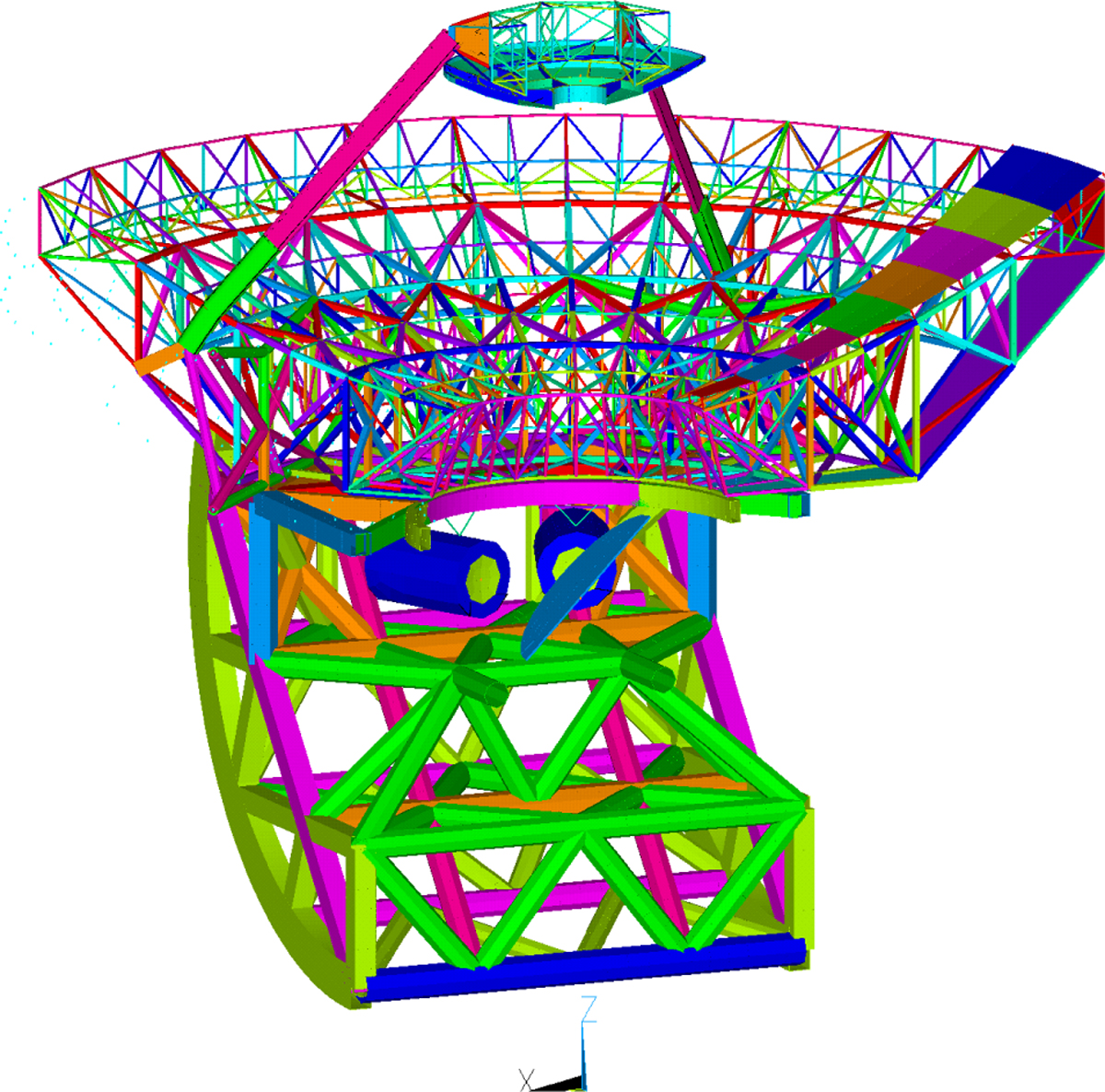

Cut-through view of the finite element model for elevation rotating structure. The two dark blue cylinders are 2.6 meters in diameter and represent two of the four potential Cassegrain-mounted instruments, which corotate in elevation. The cyan half-disk in the center represents (half of) the surface of M3. Each color represents a specific, mechanical cross section or shell section property.
