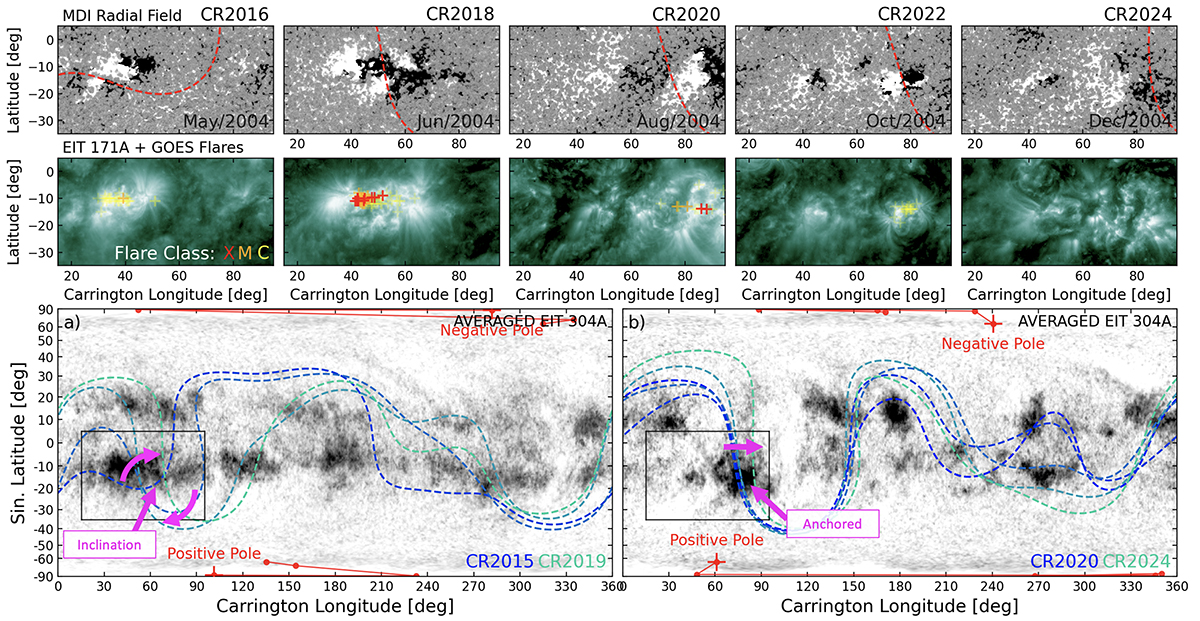

Same as Fig. 2, but for a nested active region emergence spanning from May 2004 to April 2005. The nested active region locally inclines the HCS, which then remains anchored to the region as it begins to drift with the rotation near the equator.
