Fig. B.2
Download original image

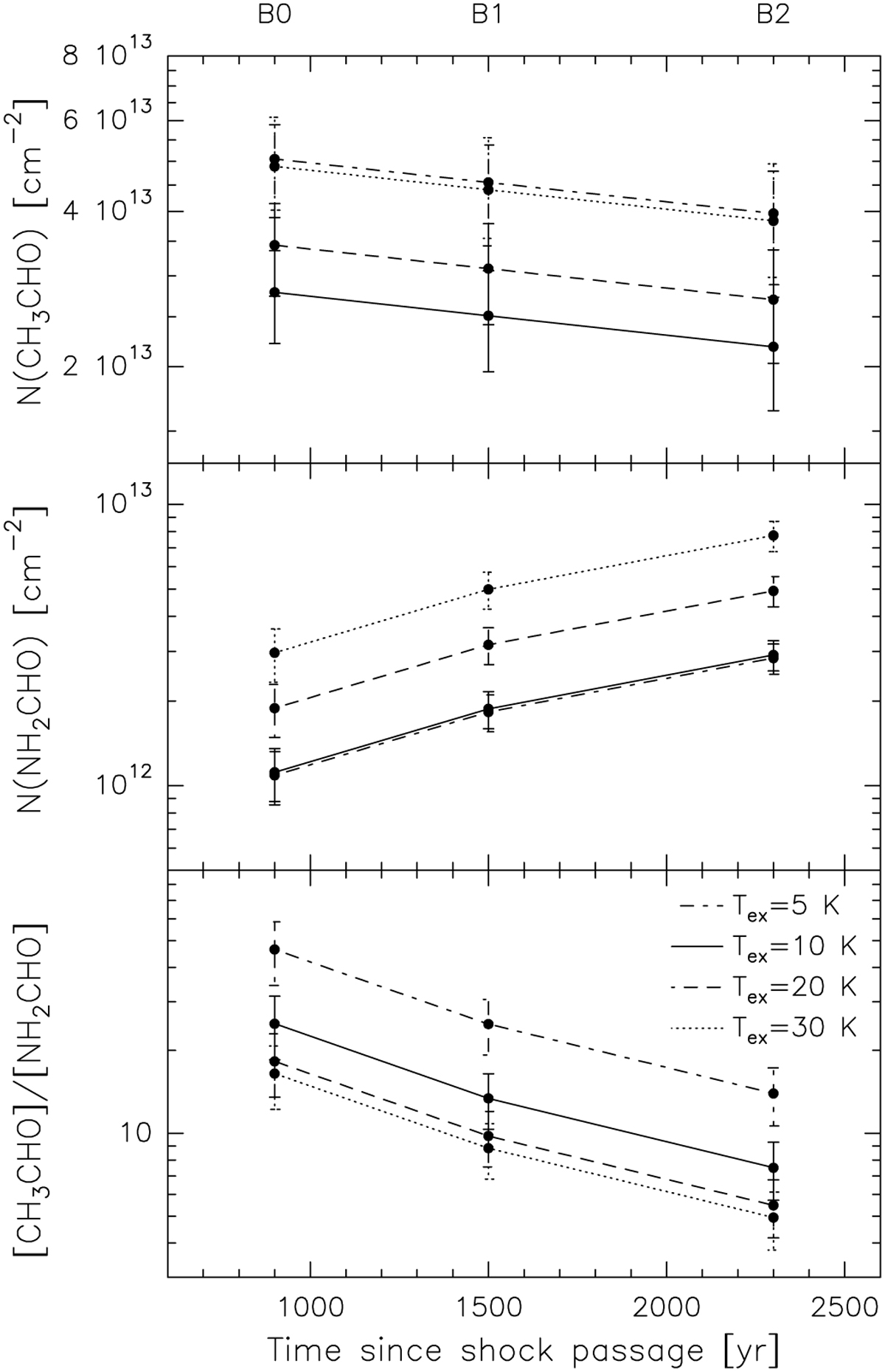

Molecular column densities of CH3CHO and NH2CHO (top panel) and their abundance ratio (bottom panel) against time since the passage of the shock, for four different values of excitation temperature, Tex. The times associated with each shocked region are based on Podio et al. (2016).
