Fig. A.1

Download original image

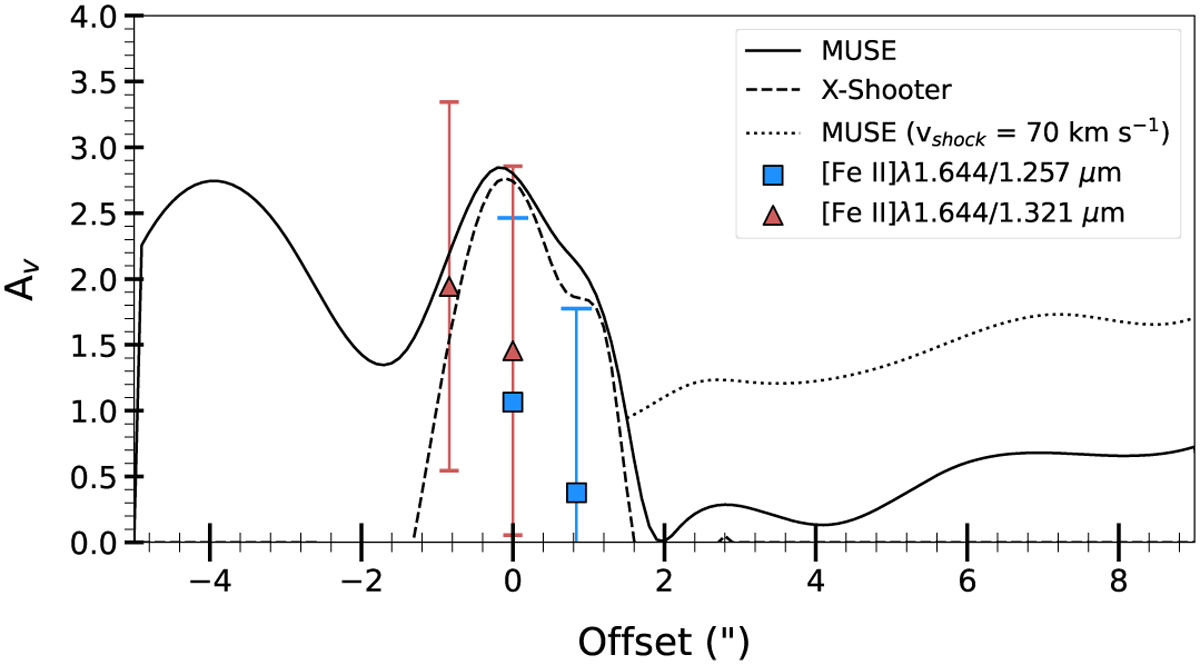

Comparison of the estimated extinction along the Th 28 jet lobes, using Hα and Hβ fluxes sampled from the MUSE and X-shooter data and assuming typical υshock of 40 km s−1 for the red-shifted lobe (right). The source position is marked at 0 and the dotted line shows the upper bound of AV values in the red-shifted jet assuming υshock = 70 km s−1. The extinction values estimated using [Fe II] fluxes from the X-shooter data are over-plotted.
