Fig. 12.
Download original image

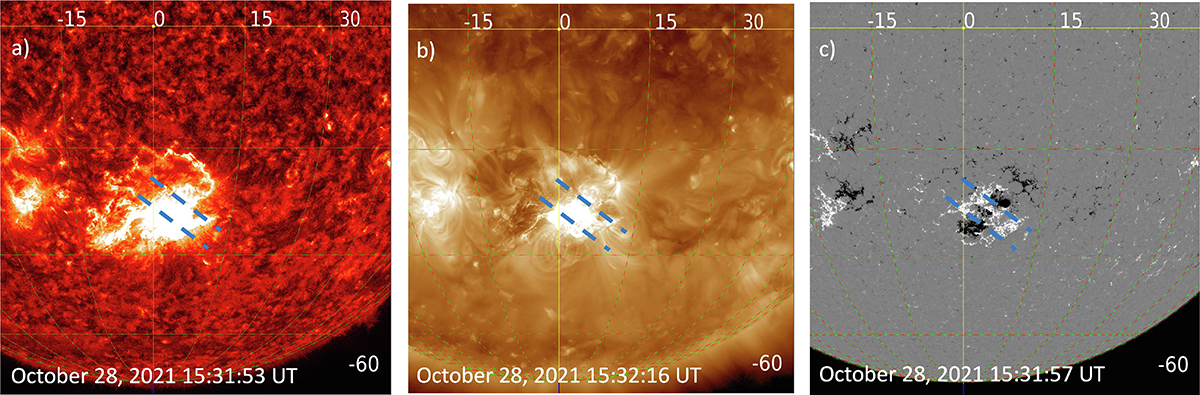

Observations used to find the orientation of the AR neutral line, and therefore also the flux rope orientation for Event 2. First, we identified the neutral line, indicated by the two dashed blue lines, in the magnetogram (panel c), and then we compared it with the post-eruption arcade in 193 Å (panel b), and positioned it in the 304 Å image for comparison (panel a).
