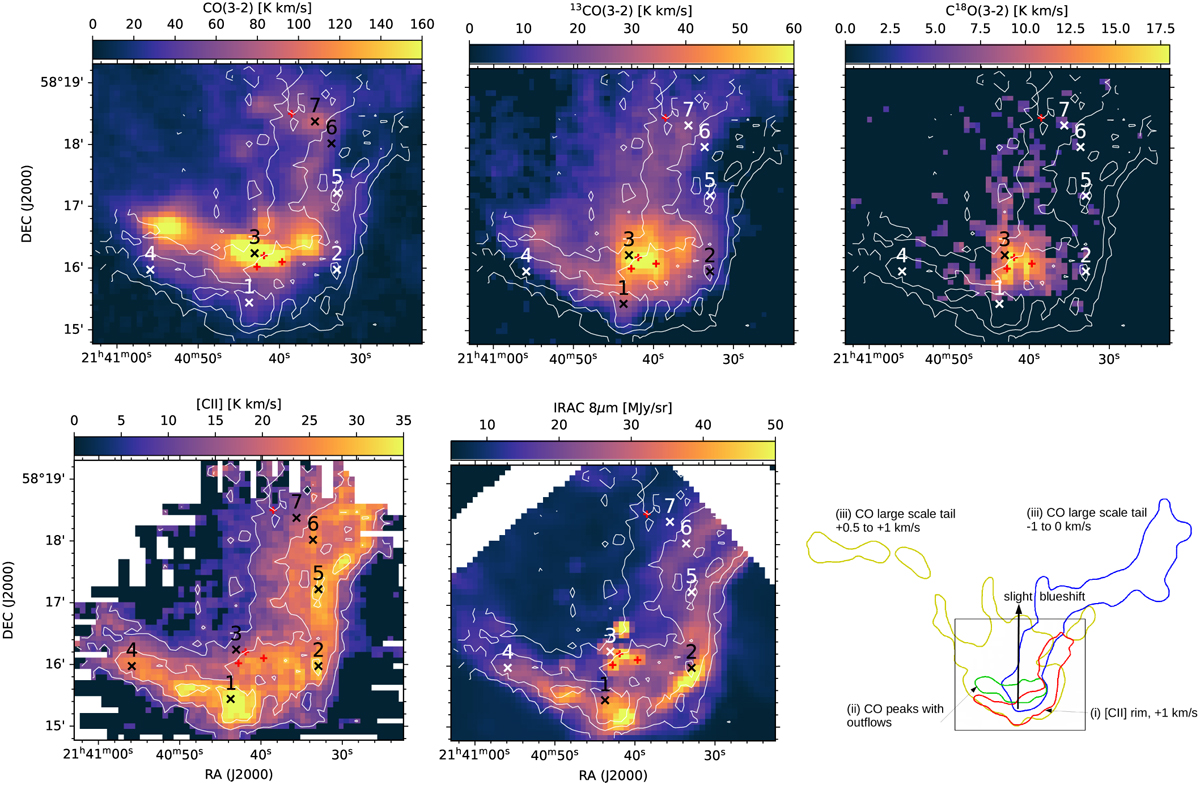

Integrated intensity maps (colors, 16″ resolution) of the different tracers (denoted on the top of each panel) overlaid with contours of [C II] integrated intensity (white lines) in IC 1396E. White and black areas have the same meaning as in Fig. 5. The bottom right panel shows the schematic decomposition as in Fig. 5. Integrated intensities were calculated by direct integration over the velocity range of (−5, 8) km s⁻¹, except for CO(3−2) with the range of (−10, 10) km s⁻¹. Red pluses are the positions of outflow-driving sources: BIMAl-3 (southern ones, Beltrán et al. 2002) and the source C (northern one, Codella et al. 2001). Black crosses with numbers mark positions whose spectra are shown in Fig. 16.
